LOCATION
Address: 3030 East Cornwallis Road
City: Durham
State: North Carolina
Zip Code: 27713
Nation: United States

STATUS
Type: Office
Status: Demolished

TECHNICAL DATA
Date(s): 1982-1986
Site Area:
Floor Area: 120,000 ft² (11,148 m²)
Height:
Floors (Above Ground):
Building Cost:

PROFESSIONAL TEAM
Client: Burroughs Wellcome & Company
Architect: Paul Rudolph
Rudolph Staff: R.D. Chin
Associate Architect: Lockwood Greene
Landscape: MJS Engineering & Land Surveying
Structural:
MEP: Lockwood Greene
QS/PM:

SUPPLIERS
Contractor:
Subcontractor(s): MJS Engineering & Land Surveying (Site Improvements)

Burroughs Wellcome Company - South Building Expansion

The project scope includes the addition of a new wing to the original research facility for the Burroughs Wellcome pharmaceutical company with offices for 250 medical personnel and a dining room for 600.
The plan of the wing is linear in layout and runs north of the original building, for an L with the back of the original building. Rudolph envisions a future addition would turn the L into a U-shaped courtyard.

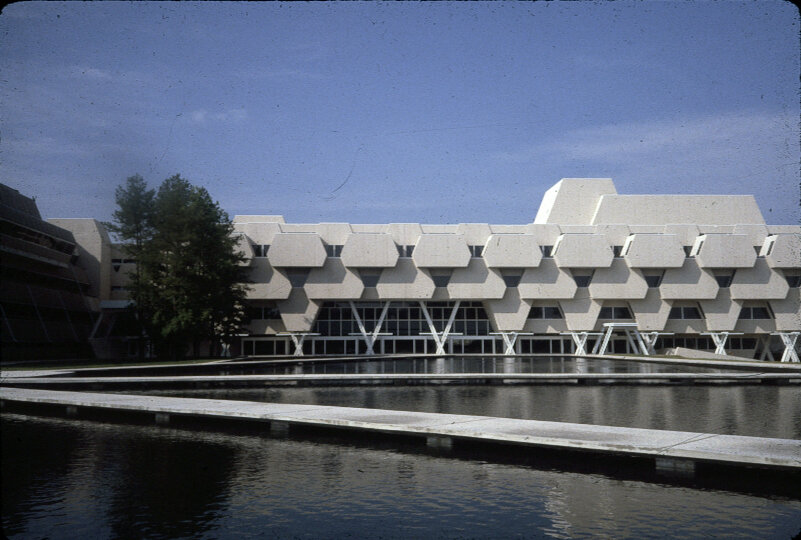

The building’s angled steel supports echo the slopes of nearby hills. Arranged in sequence, they resemble a crystalline structure, with the dining room on the ground floor and the offices above. This hexagonal module reflects the existing building, and reinforces the linear appearance of the addition. The A-frame of the original building becomes a V in the new wing, that is exposed and repeated along the length of the addition.
One story tall along its perimeter, the dramatic dining room rises to a height of five stories at its skylit center. Rudolph further modulates the space by breaking down the floor into three steppe-like platforms.
MJS Engineering & Land Surveying designs all of the site improvements for the North Office Building, including the complete design of 340 x 160 foot reflecting pool, parking, and truck loading docks. They provided grading, stormwater pipe layout, soil erosion and sediment control and retaining wall design. In addition, a 340 x 160 foot reflecting pool is completely detailed.
Construction of the addition is complete in 1986.
