The Ideal Theater
In 1960, the Ford Foundation Program for Theater Design is created under an $800,000 grant from the Ford Foundation.
The design is presented as part of “The Ideal Theater: Eight Concepts,” an exhibition of resulting designs and models prepared and circulated by the American Federation of Arts and designed by Peter Larkin and the firm of Alex-Mauro-Witteborg.
The design is a 2,000-seat theater using new film-projection techniques and live stage action simultaneously. It allows for dramas that would take place partly on film, and includes a vast movie screen that sweeps around three sides of the auditorium.
The appearance of the outside of the building, with its multiple outcroppings, expresses figuratively and literally what goes on inside. It is designed for the use of film projection - but very elaborate and sophisticated film projection - and the six outcroppings are the six projection booths that focus on the stage from as many directions. Three of them are for front-projected images, three for rear-projected images, and the screen they project upon is not really a screen at all. It is a continuous curtain of translucent vertical louvers, embracing both backstage and side walls, and its surface can be made to appear transparent or opaque, depending upon the way light is thrown against it. The film would be project against all or part of this parabolic surface, and the louvers would open, permitting the actors, in effect, to walk out of the scenery. It is intended that films would be especially made for this theater, so that their scale and perspective coincided with that of the actors and action. In addition to realistic film, it would also use abstract film of color and movement for certain kinds of productions.
The material is displayed at the Museum of Contemporary Arts and Crafts in New York City from January 26 to March 4 in 1962. The exhibit then goes on a 14-city national tour afterwards until January, 1964. Conspicuously absent from the exhibition are estimates of what any of the proposed structures would cost. According to a museum aide ‘such consideration is deliberately left out so that creative imagination could work unhampered.’
The material is displayed in the Terrace Lounge of the Iowa Memorial Union at the University of Iowa from June 27 to July 10 in 1965.
“The most novel, most inventive, and most experimental of all these eight ‘concepts’ may well be Ralph Alswang’s and Paul Rudolph’s for a 2,000-seat theater using film projection techniques and live stage action simultaneously. It raises questions: perhaps the live actor and screened image might not make a happy marriage, and the combination wouldn’t result in artistically satisfying effects; perhaps it would fascinate for a while and then become monotonous for want of sufficient possibilities of transformation? But perhaps, on the other hand, such a theater might lead to something wonderfully fresh in the way of theatrical excitement.”
“An attempt to provide an instrument for the intermeshing of movie projections and stills with live actors. The projection sources are housed in specific volumes which are juxtaposed to the more fluid forms required by live actors.”

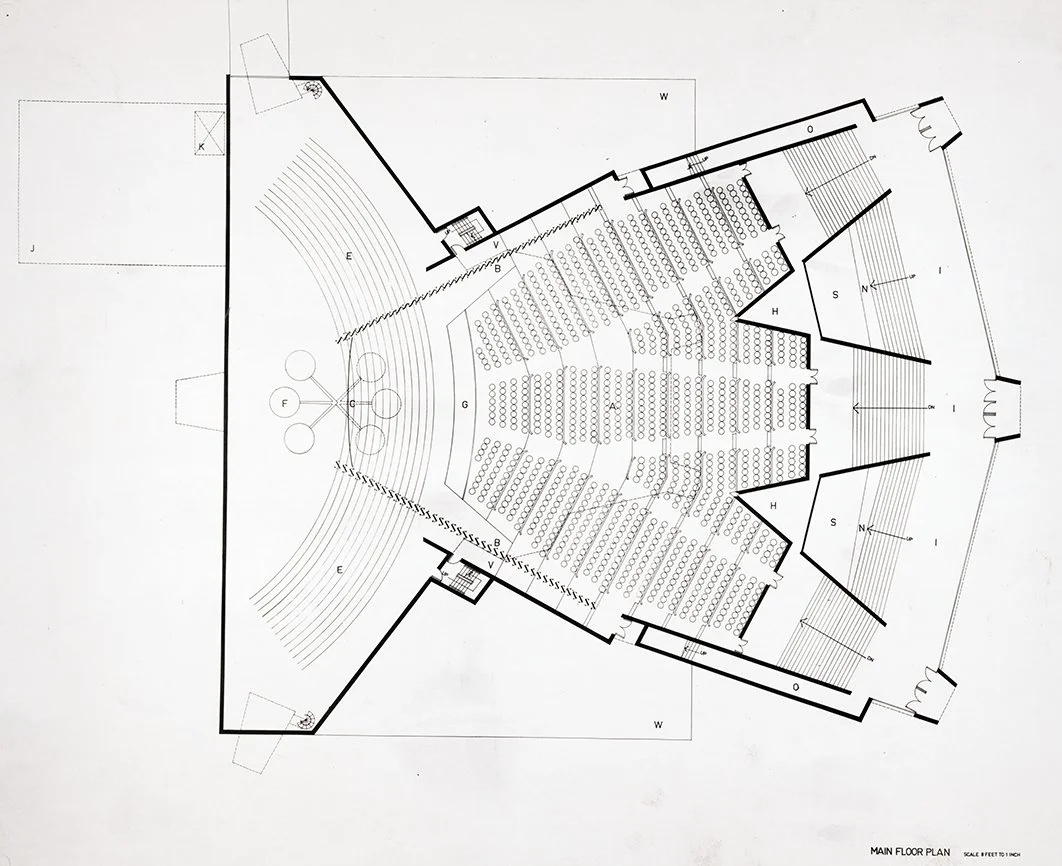

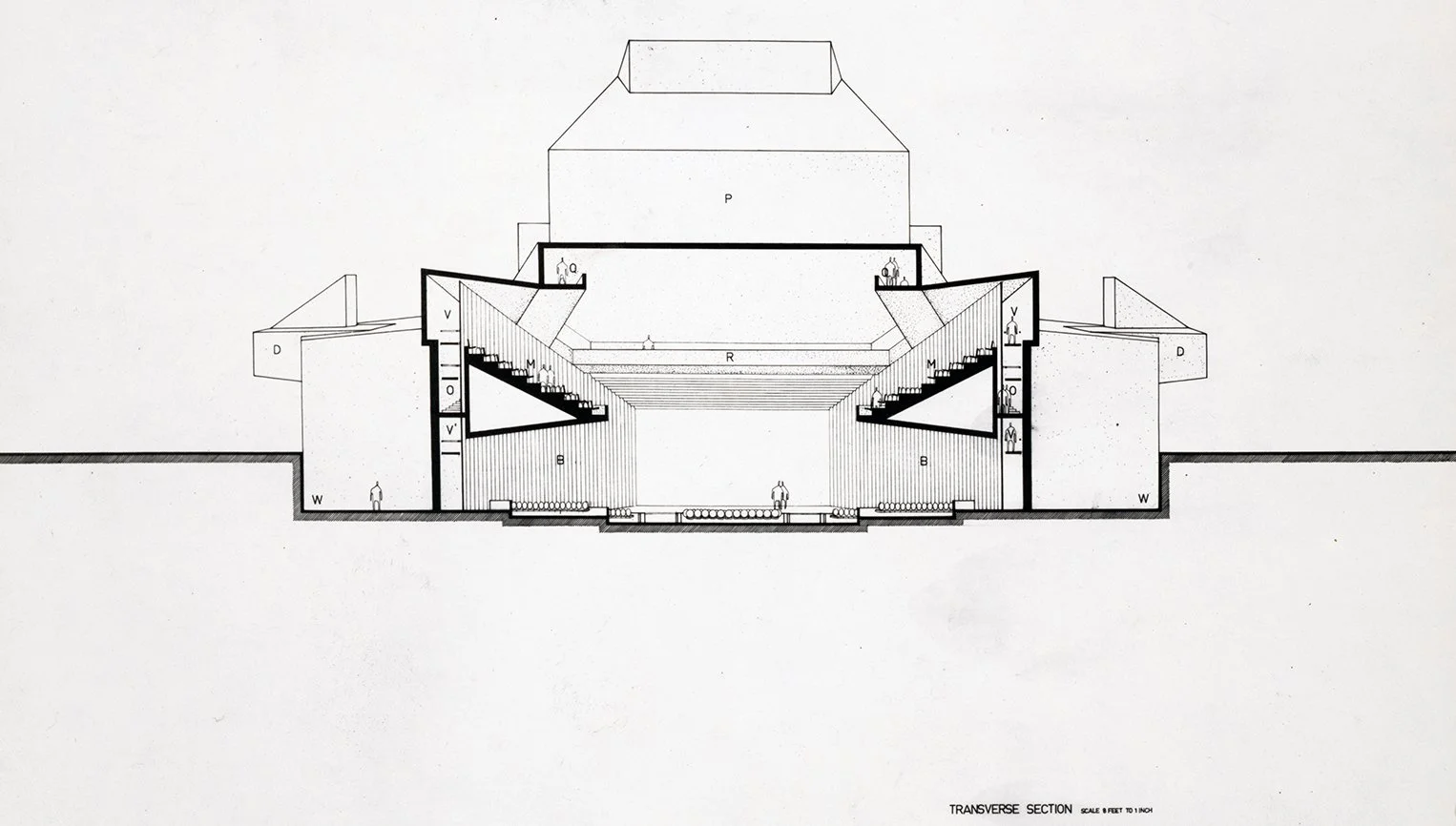

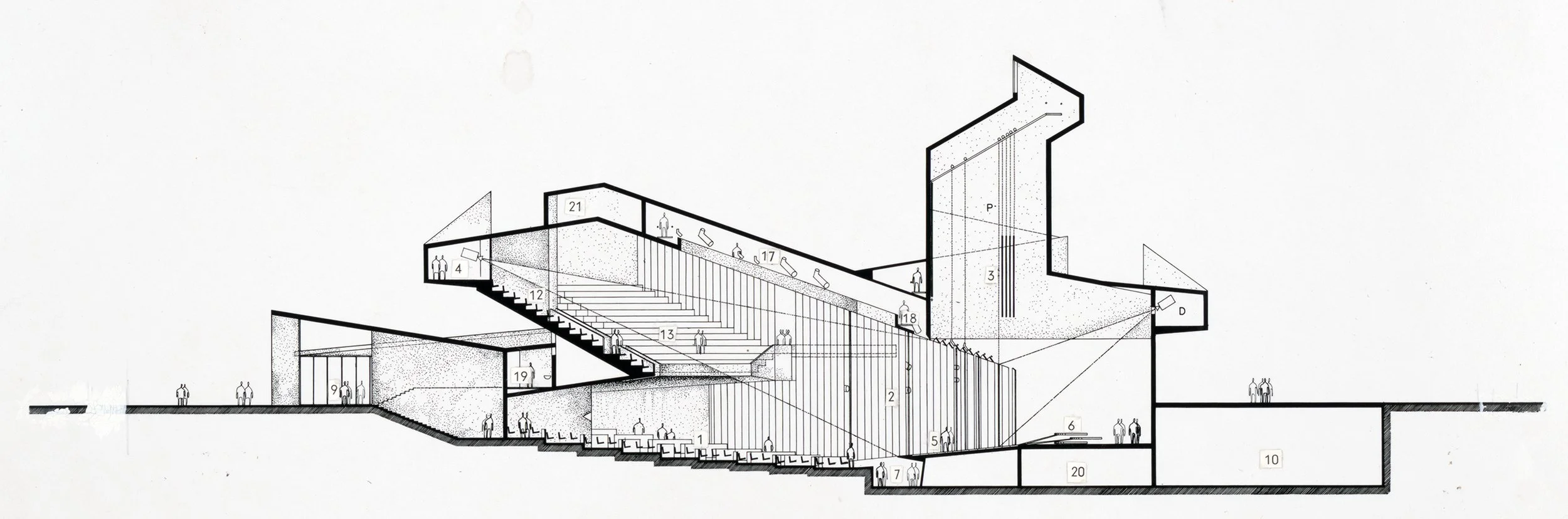

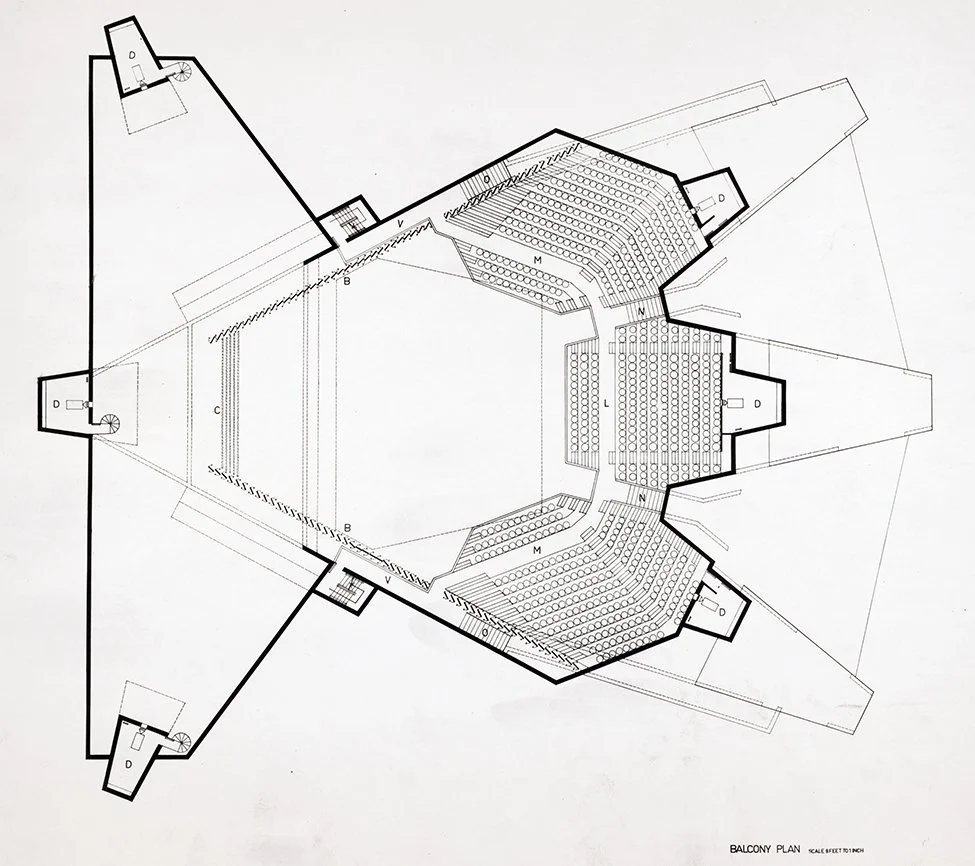

DRAWINGS - Design Drawings / Renderings
DRAWINGS - Construction Drawings
DRAWINGS - Shop Drawings
PHOTOS - Project Model
PHOTOS - During Construction
PHOTOS - Completed Project
PHOTOS - Current Conditions
LINKS FOR MORE INFORMATION
RELATED DOWNLOADS
PROJECT BIBLIOGRAPHY
American Federation of Arts. The Ideal Theater: Eight Concepts. The American Federation of Arts, 1962.
Athanasopulos, Christos. Contemporary Theater Evolution and Design. Wiley-Interscience, 1983.
“Centre Administratif d’etat de Massachusetts a Boston; Hotel de Ville, Syracuse, NY; Projet Pour Un Theatre a Boston.” Architecture D’Aujourd’hui, no. 35, Sept. 1965, pp. 32–35.
“Exhibitions Are Viewed At Carnegie.” Uniontown Morning Herald, November 21, 1962. p. 43
“Film and Action Theater.” Architecture and Urbanism, no. 80, July 1977, p. 159.
Harold Clurman. “Eight Ideal Theaters.” Industrial Design, no. 9, Apr. 1962, pp. 46–47.
“Ideal Theater Ford Foundation Progam.” Progressive Architecture, no. 42, Dec. 1961, p. 51.
Paul Rudolph and Sybil Moholy-Nagy. The Architecture of Paul Rudolph. Praeger, 1970.
“Recherches Americaines Pour Un Theatre Ideal.” Architecture D’Aujourd’hui, no. 34, Feb. 1964, p. 39.
“Theatre Project for the Ford Foundation.” Progressive Architecture, no. 43, Feb. 1962, pp. 110–11.
