Steinmetz Studio2.jpg

LOCATION
Address: 1614 Laurel Street
City: Sarasota
State: Florida
Zip Code: 34236
Nation: United States



STATUS
Type: Commercial
Status: Demolished

TECHNICAL DATA
Date(s): 1947-48
Site Area:
Floor Area:
Height:
Floors (Above Ground): 1
Building Cost:

PROFESSIONAL TEAM
Client: Joseph J. Steinmetz and Lois F. Steinmetz
Architect: Ralph S. Twitchell
Associate Architect: Paul M. Rudolph
Landscape:
Structural:
MEP:
QS/PM:

SUPPLIERS
Contractor:
Subcontractor(s):

The Joseph Janney Steinmetz Photography Studio

  • The project scope is to design a commercial office and photography studio for Joseph Janney Steinmetz (1906-1995) and Lois Foley Steinmetz (1934-1968), nationally prominent photo-journalists and advertising photographers (and who took some of the earliest architectural photos of Rudolph’s buildings).

  • The project includes a state-of-the-art dark room complete with a through-the-wall air-conditioning unit.

  • The building is built using exposed four-by-eight posts sandwiched between wood beams and infilled with stacked concrete block and bands of glass windows.

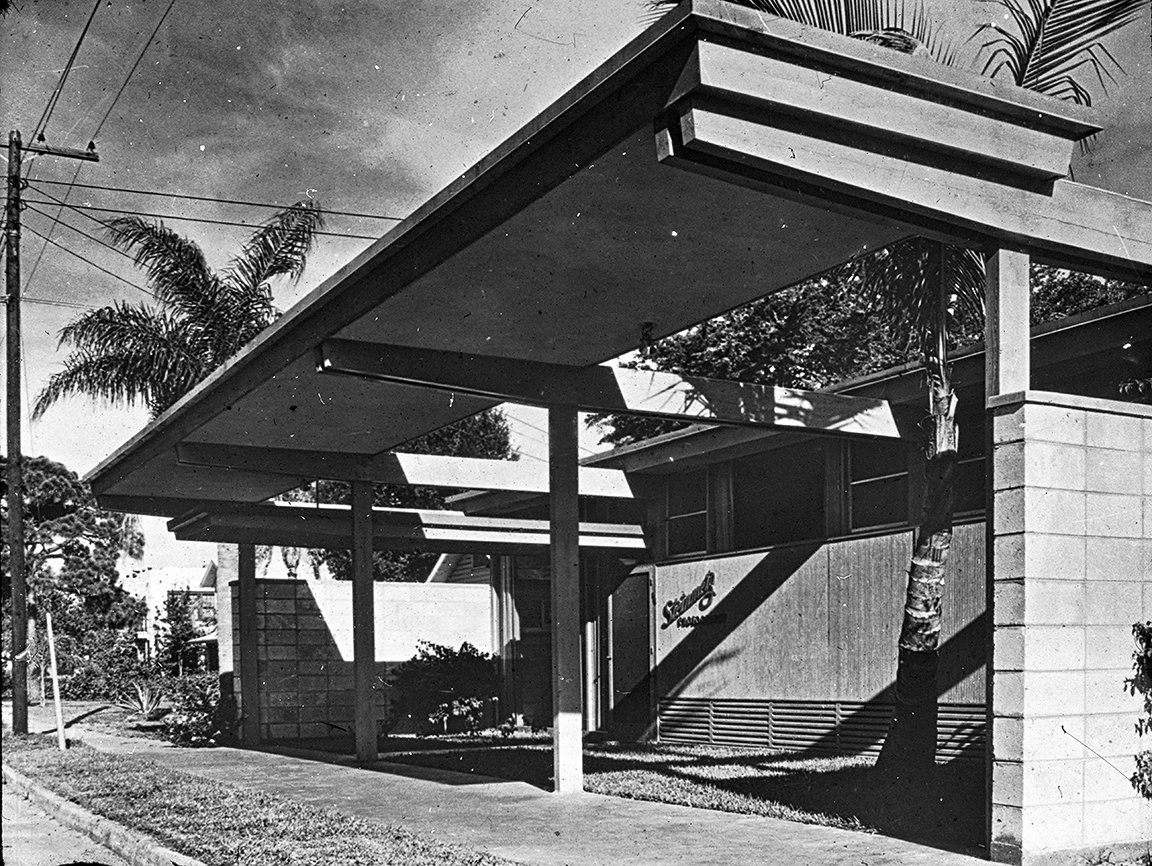

  • The structure’s cantilever panels extend onto the public sidewalk, supporting a flat canopy on top to shelter pedestrians.

  • The project design goes through major changes after it is built.

  • On October 06, 1949 the studio becomes the home of the Professional Photographers of Sarasota, a group organized by the Steinmetz’s to ‘better photography in the city.’ The studio is used as a meeting location for several other local organizations.

  • Lois Foley Steinmetz passes away in January 1968.

  • Joseph Steinmetz passes away on October 15, 1995.

  • The studio is demolished in the 2000’s and a condominium building is constructed in its place.

“The photography studio for Joseph Steinmetz, built along a residential street near downtown Sarasota, is an example of Twitchell and Rudolph’s construction and design methods used in a conventional suburban context. Low and compact, it is innovative though not fully resolved, lacking the expansive character of the beach houses. Here. space is focused inward and natural light tightly controlled as befits a photography studio and darkroom. The side walls extend to the front property line, interrupting the typical pattern of suburban grassed front yards while creating a protected semicourt area at the front of the building. The cantilevered cypress beams and wooden joist roof structure create a protective cover over the sidewalk as a gesture to the public realm, while extending the building’s horizontality.”
— Domin, Christopher, et al. Paul Rudolph: the Florida Houses. Princeton Architectural Press, 2002.

DRAWINGS - Design Drawings / Renderings

DRAWINGS - Construction Drawings

DRAWINGS - Shop Drawings

PHOTOS - Project Model

PHOTOS - During Construction

PHOTOS - Completed Project

PHOTOS - Current Conditions

LINKS FOR MORE INFORMATION
Florida Memory - The State Archives of Florida

RELATED DOWNLOADS

PROJECT BIBLIOGRAPHY
Christopher Domin and Joe King. Paul Rudolph: The Florida Houses. Princeton Architectural Press, 2002.

John Howey. The Sarasota School of Architecture 1941-1966. MIT Press, 1997.

Timothy Rohan. The Architecture of Paul Rudolph. Yale University Press, 2014.
