LOCATION
Address:
City: Siesta Key
State: Florida
Zip Code:
Nation: United States

STATUS
Type: Residence
Status: Project

TECHNICAL DATA
Date(s): 1947
Site Area:
Floor Area:
Height:
Floors (Above Ground): 1
Building Cost:

PROFESSIONAL TEAM
Client: George C. Shute
Architect: Ralph S. Twitchell
Associate Architect: Paul Rudolph
Landscape:
Structural:
MEP:
QS/PM:

SUPPLIERS
Contractor:
Subcontractor(s):

shute residence

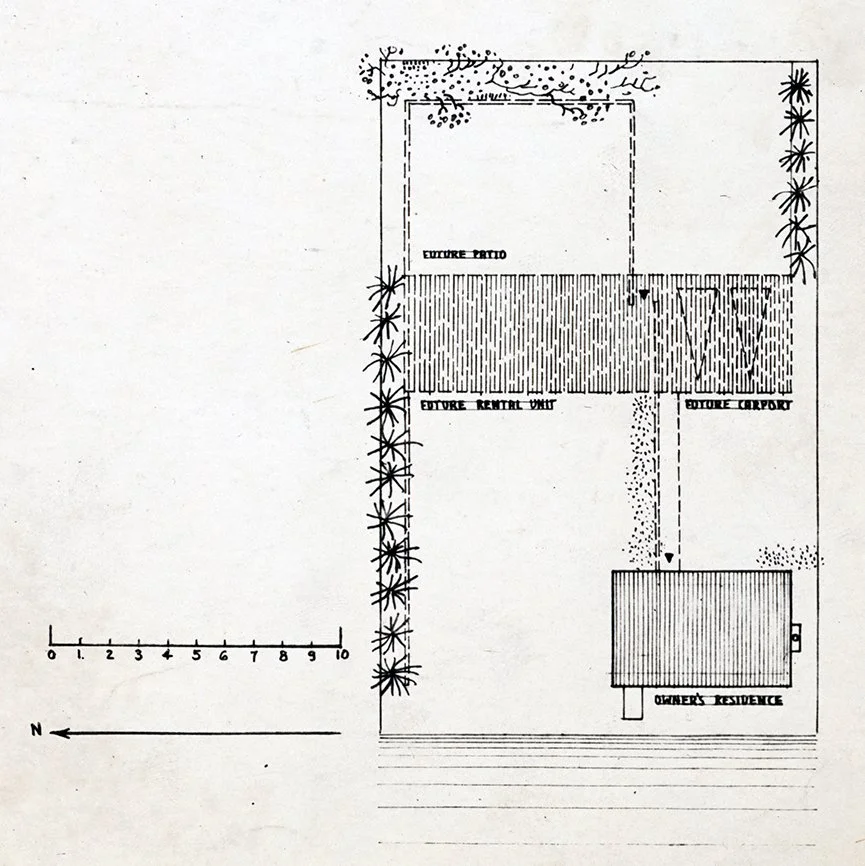

• The project scope is to design a small pavilion for George Cameron Shute (1920-2004). The site is nearby a location where the client intends to later build a larger adjoining house. George Shute is a project superintendent at Associated Builders, Inc. which is a company created by Ralph Twitchell, his wife Lucienne Twitchell and Edward J. Root from March 20, 1937 until it is dissolved on April 15, 1955.

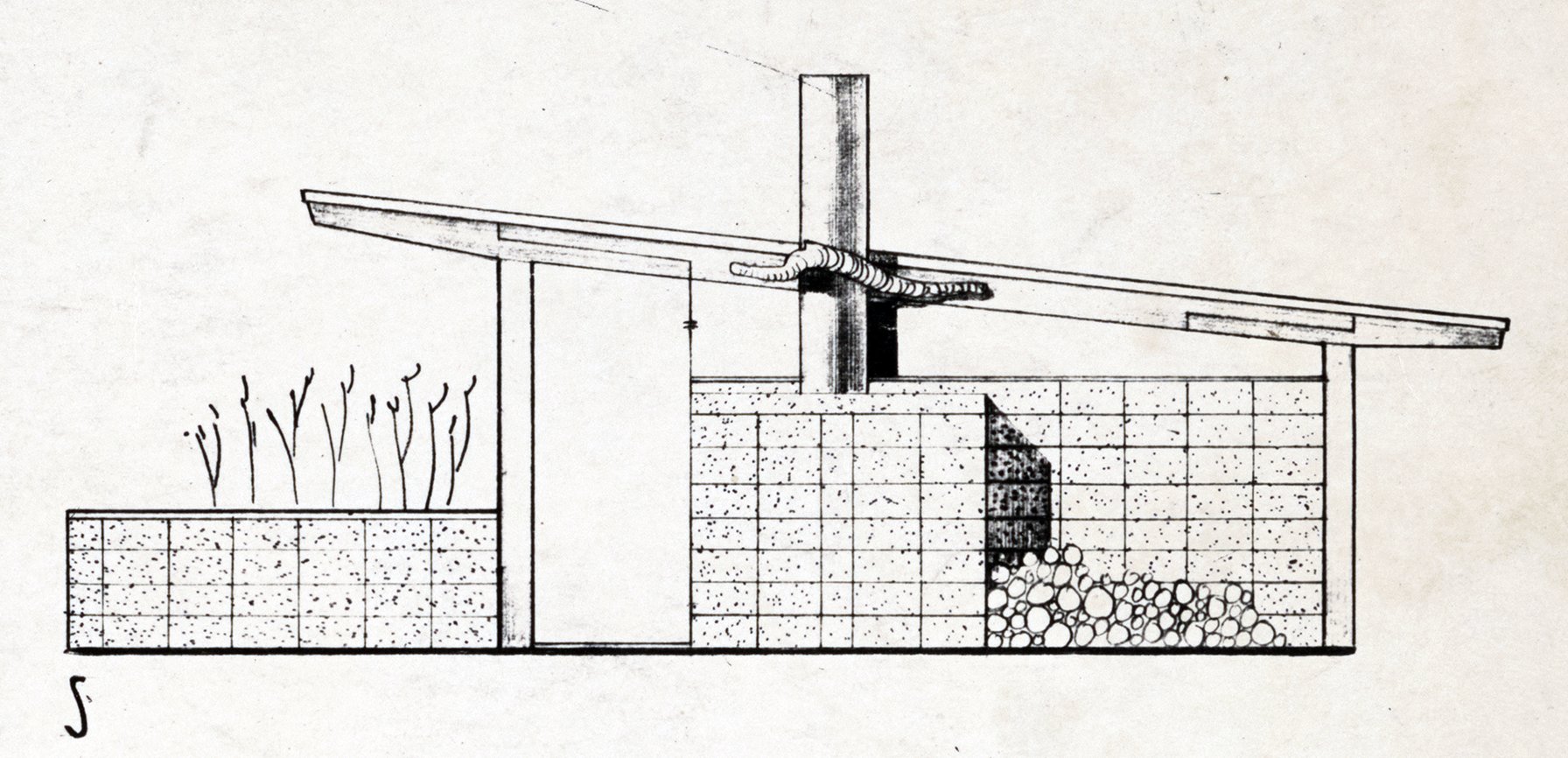

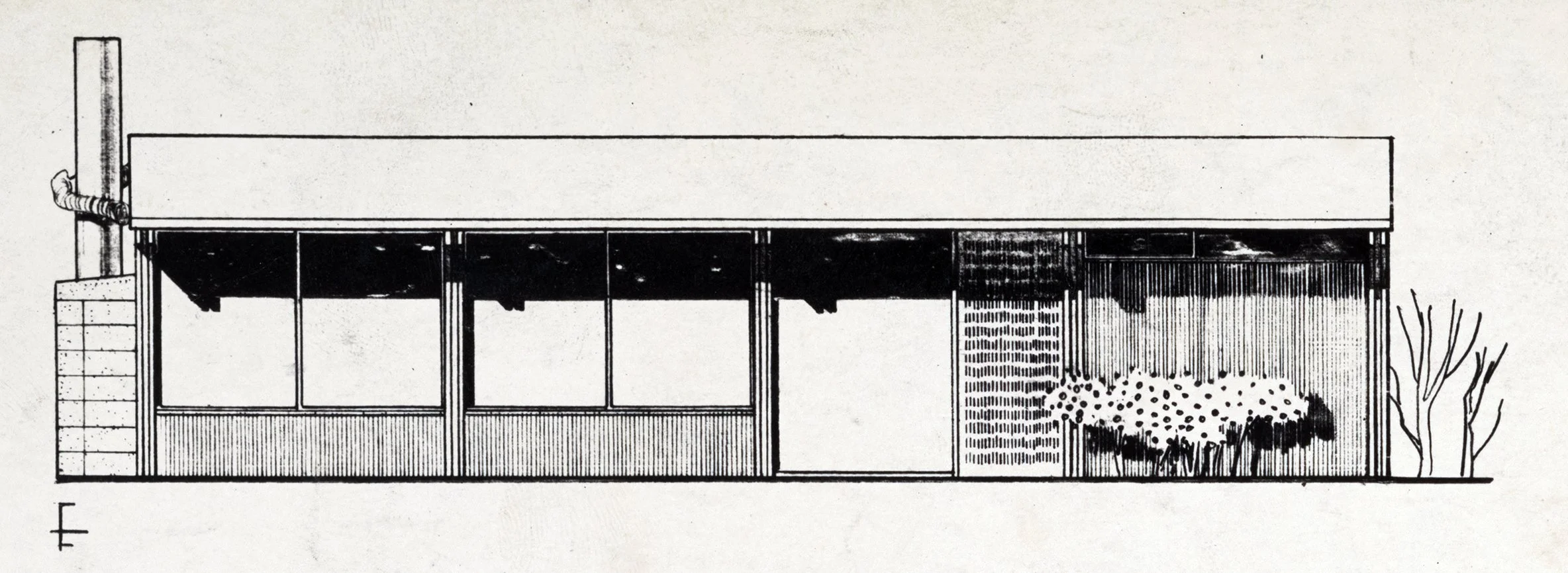

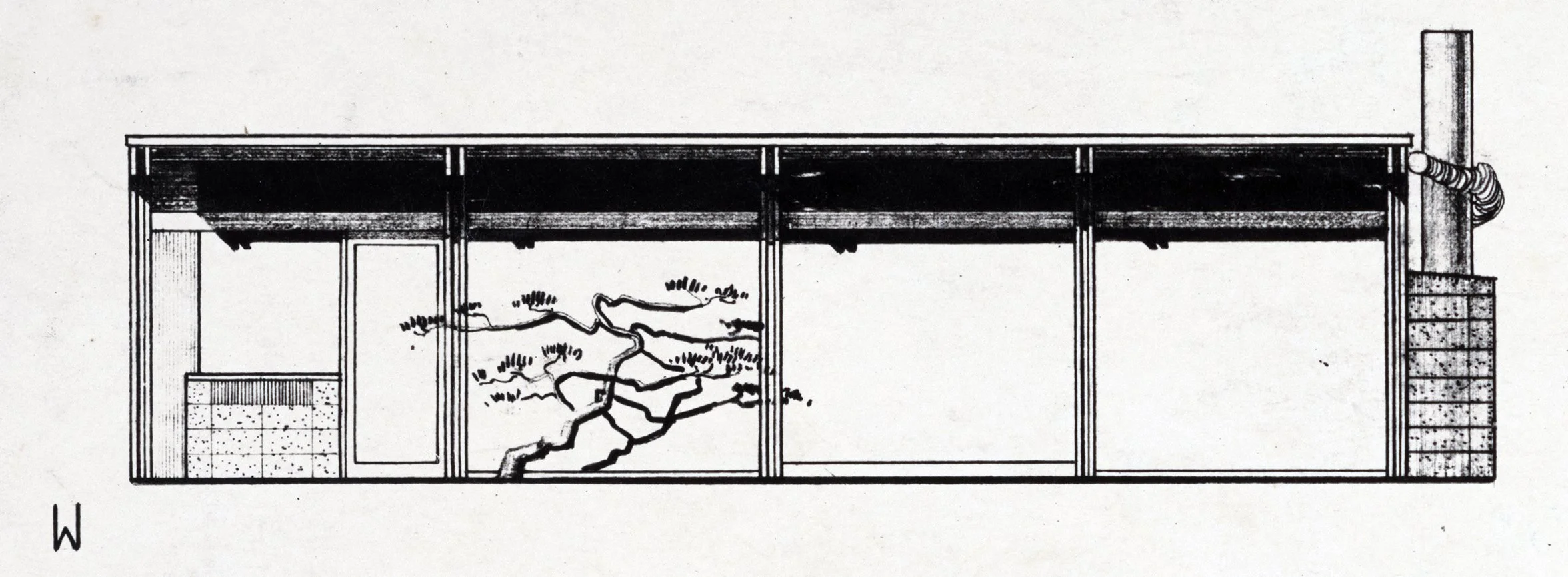

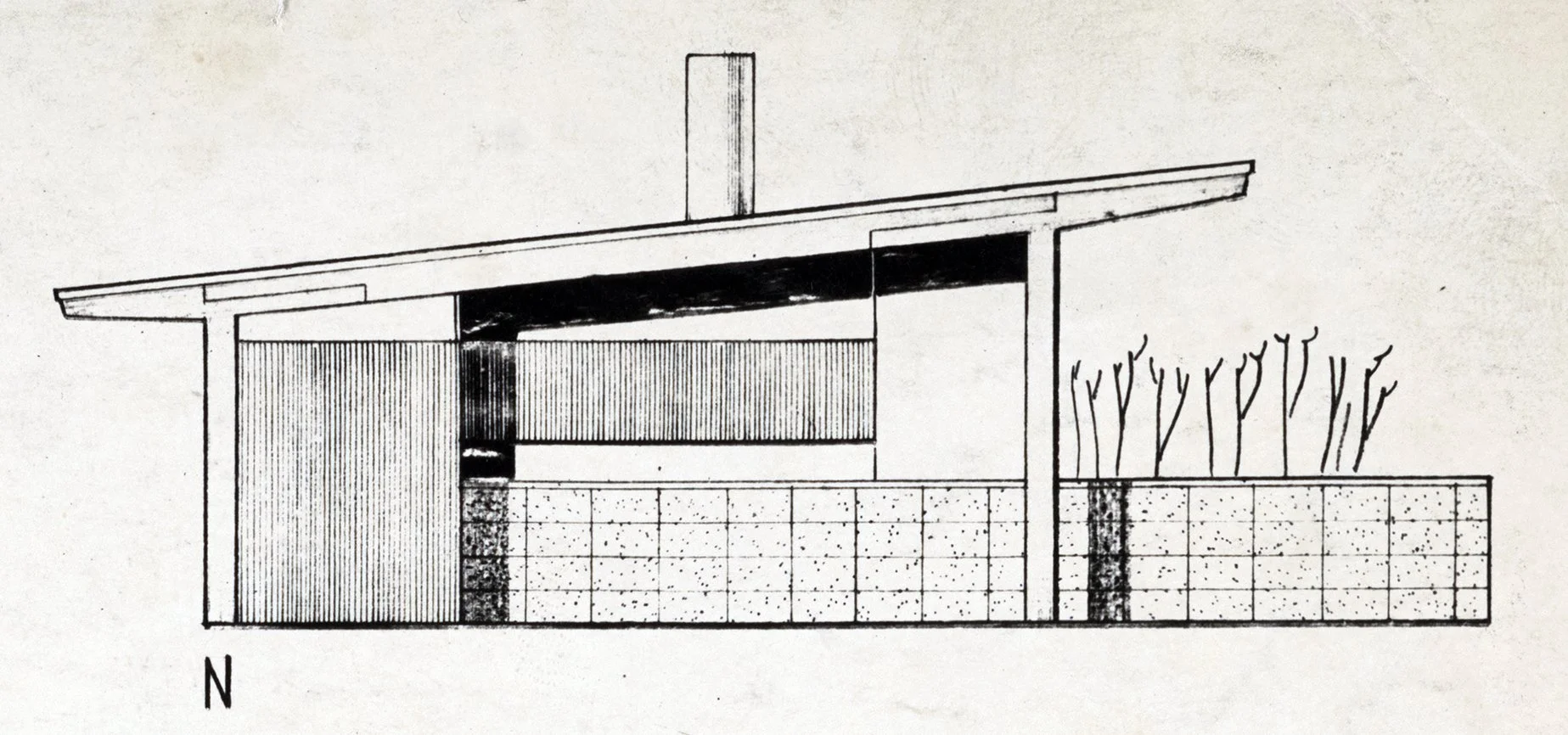

• The lean roof structure rests on lofty posts that are joined with glass screens, enclosing the house. The house is planned to be made up of prefabricated modular structures which will later be assembled on site.

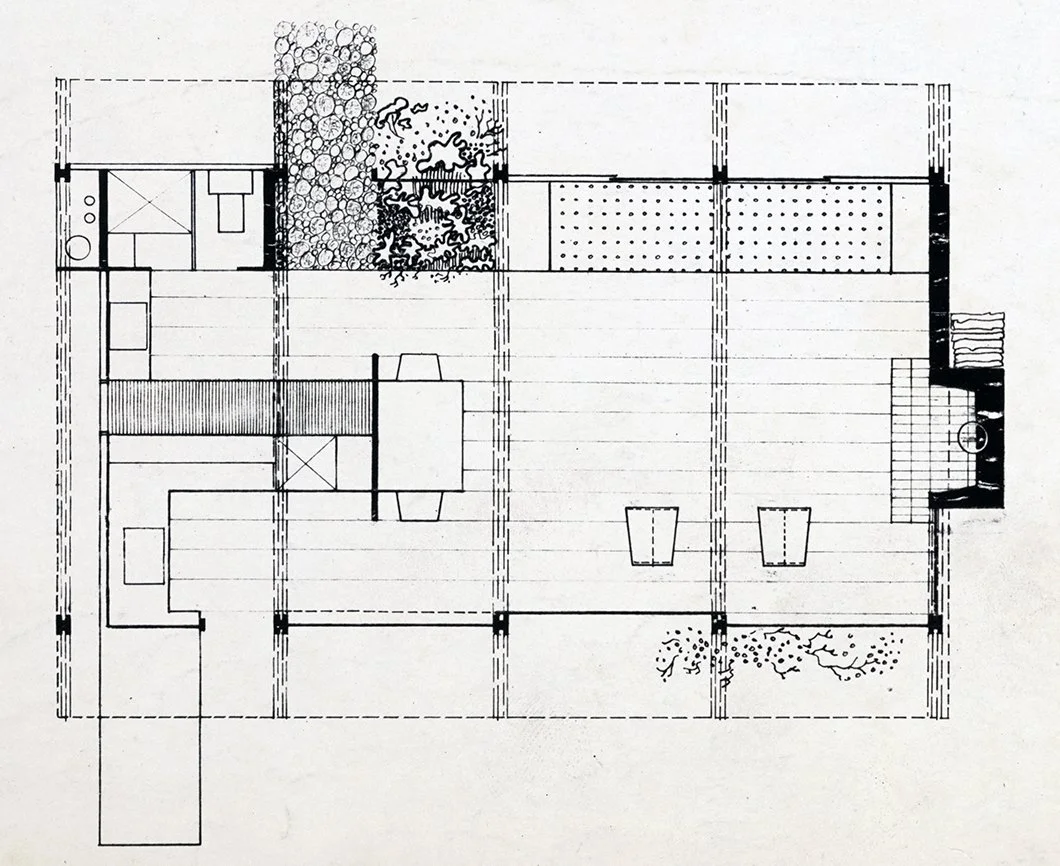

• Rudolph focuses on connecting various modules and setting up their size in relation to the unifying structure of the cantilevered roof.

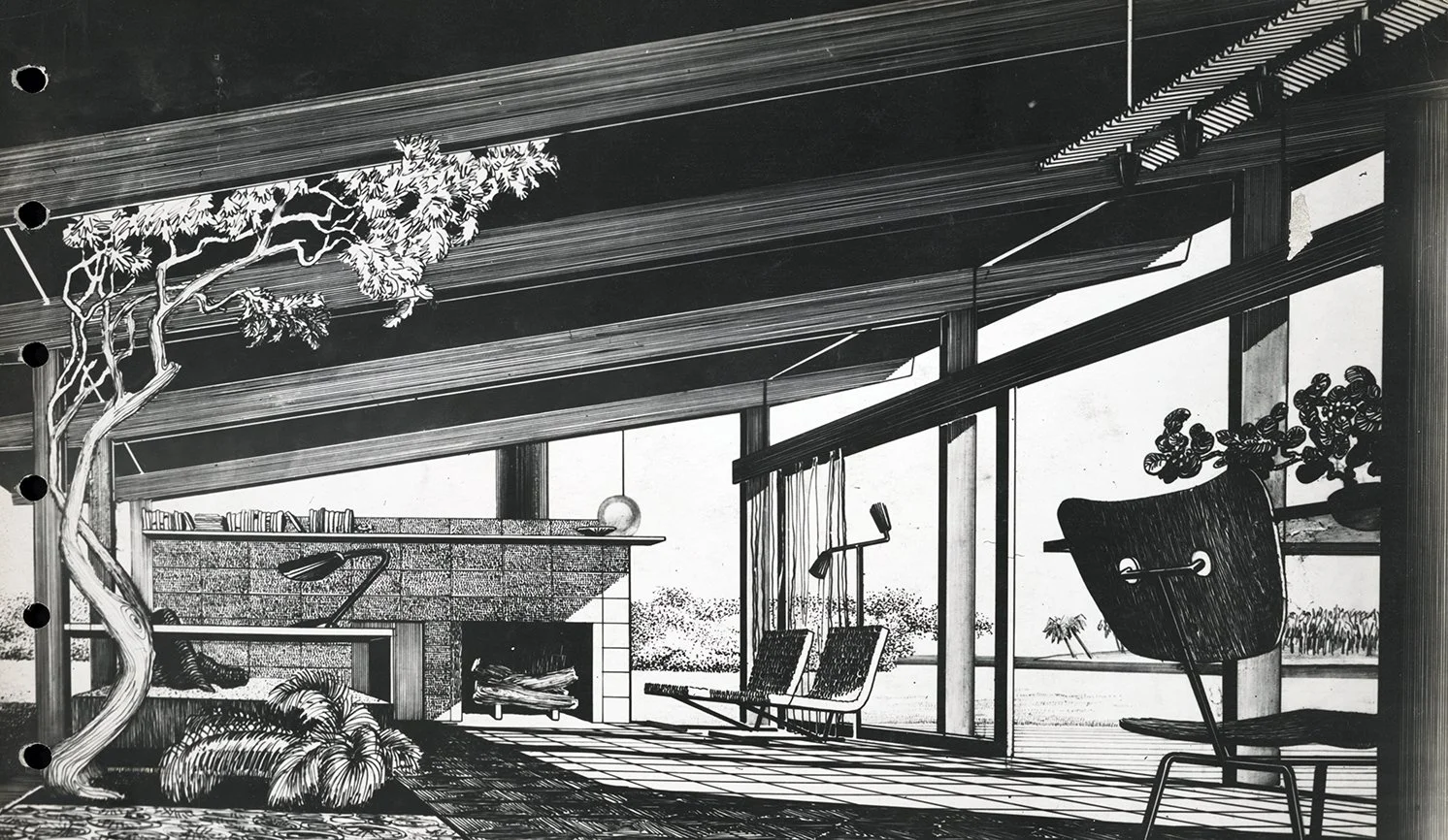

• The chimney is freestanding and attached to the roof structure by a sculptural piece of driftwood.

• George Shute passes away on March 25, 2004.

• The project remains unbuilt.

DRAWINGS - Design Drawings / Renderings

DRAWINGS - Construction Drawings

DRAWINGS - Shop Drawings

PHOTOS - Project Model

PHOTOS - During Construction

PHOTOS - Completed Project

PHOTOS - Current Conditions

LINKS FOR MORE INFORMATION

RELATED DOWNLOADS

PROJECT BIBLIOGRAPHY
Christopher Domin and Joe King. Paul Rudolph: The Florida Houses. Princeton Architectural Press, 2002.

“Chronological List of Works by Paul Rudolph, 1946-1974.” Architecture and Urbanism, no. 49, Jan. 1975.

Timothy Rohan. The Architecture of Paul Rudolph. Yale University Press, 2014.
