LOCATION
Address: 165 Church Street
City: New Haven
State: Connecticut
Zip Code: 06510
Nation: United States
STATUS
Type: Government
Status: Project
TECHNICAL DATA
Date(s): 1968-1972
Site Area:
Floor Area:
Height:
Floors (Above Ground):
Building Cost:
PROFESSIONAL TEAM
Client: City of New Haven, Connecticut
Architect: Paul Rudolph
Associate Architect:
Landscape:
Structural:
MEP:
QS/PM:
SUPPLIERS
Contractor:
Subcontractor(s):
Government Center including new City Hall, library, plaza, police station, bank, Federal office building and garage

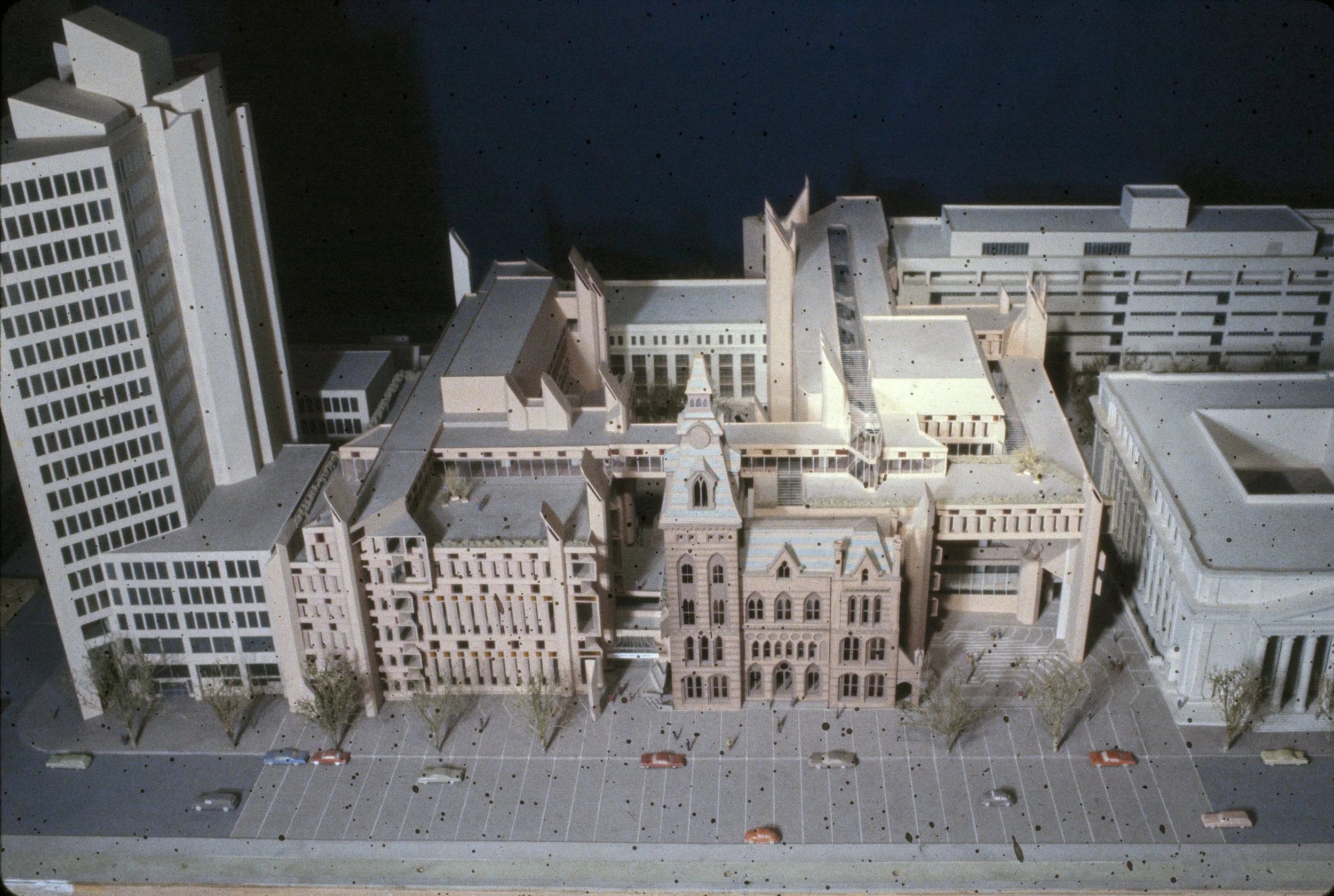

The project scope is to design a 240,000 s.f. City Hall and a new library, with underground parking on a site bounded by the New Haven Green and a group of existing buildings on the block, including the existing 32,000 s.f. City Hall.

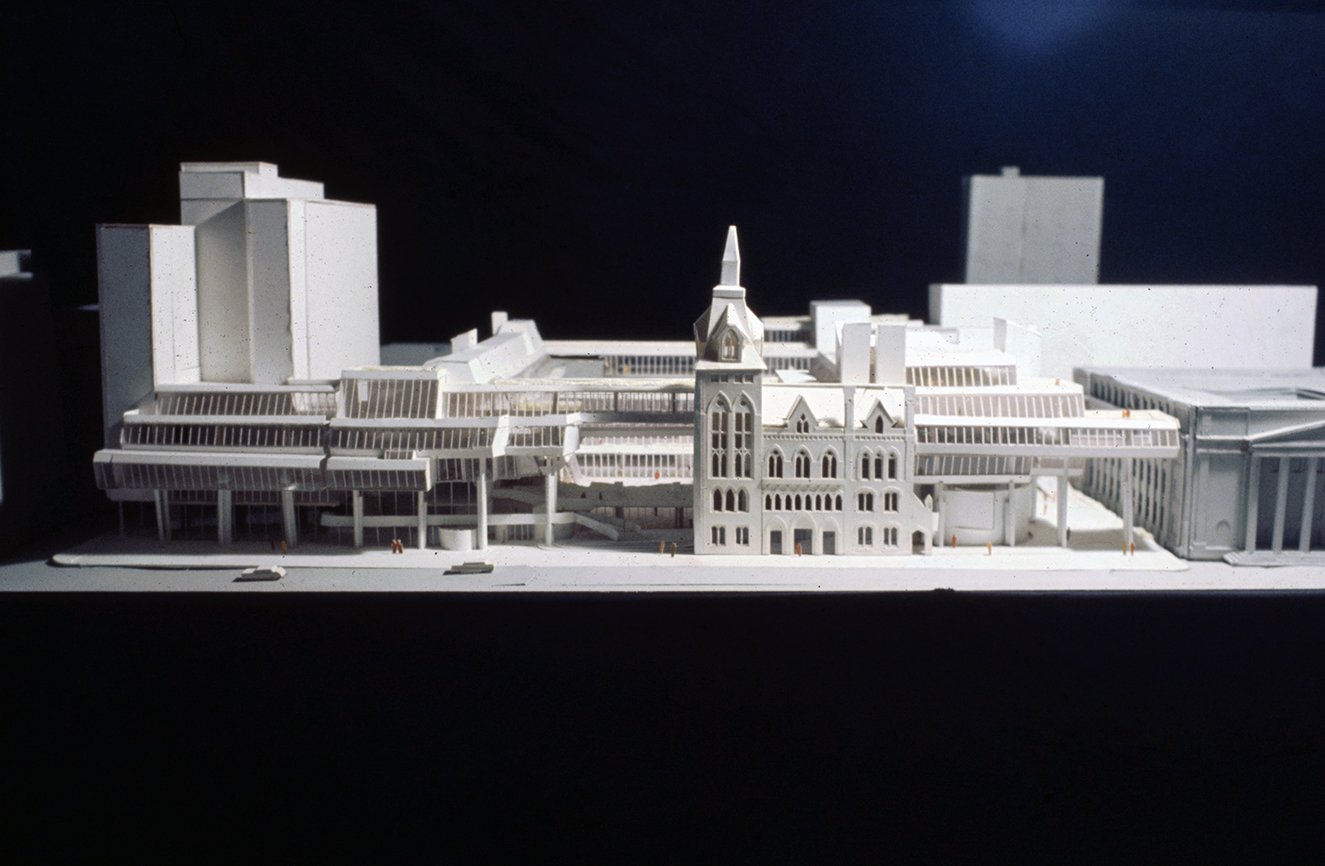

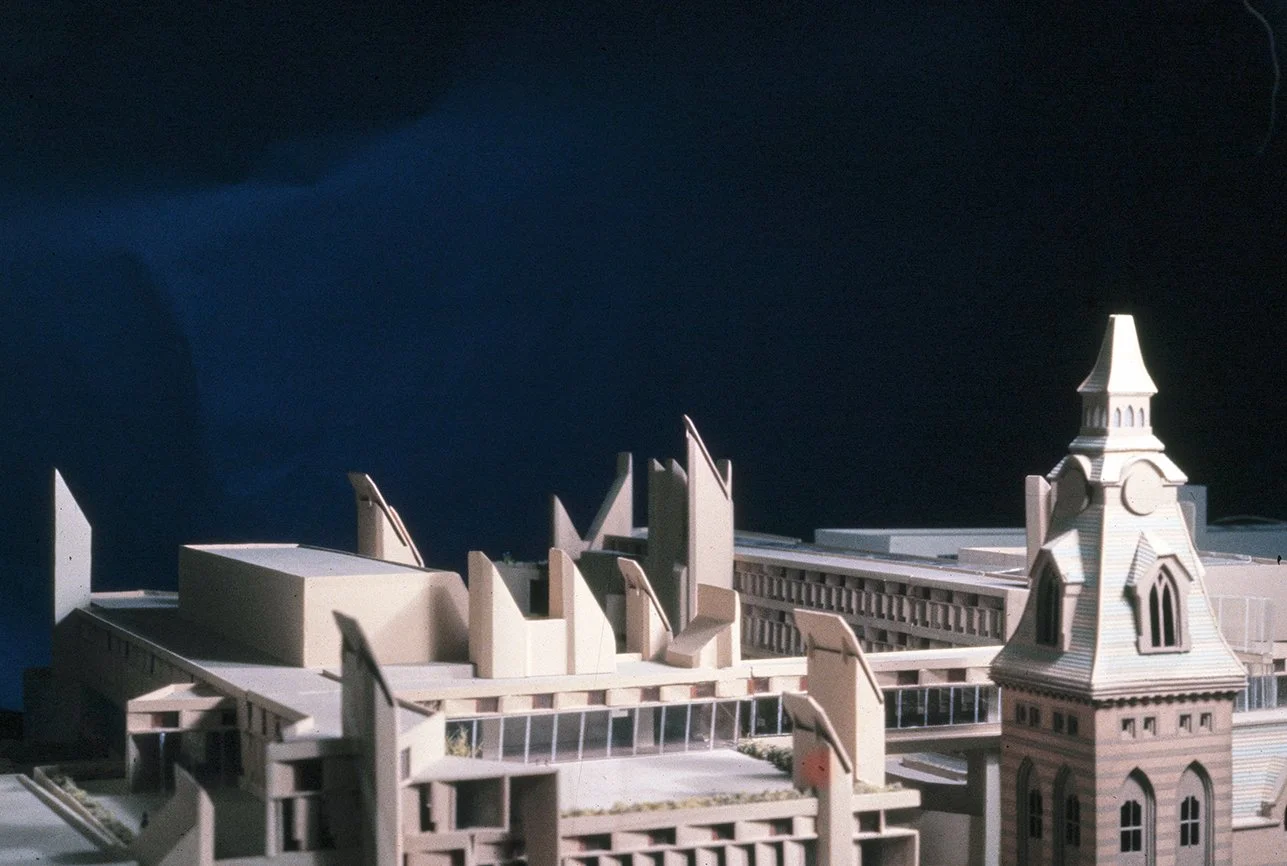

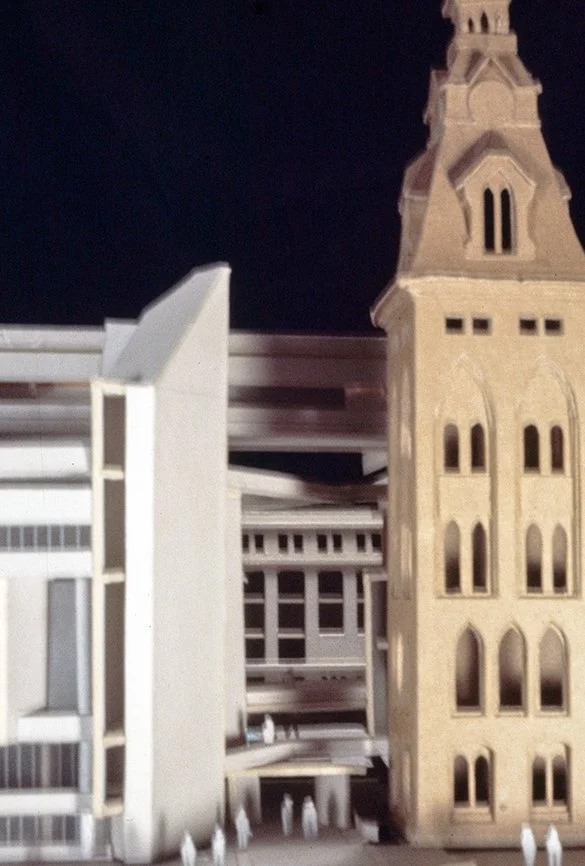

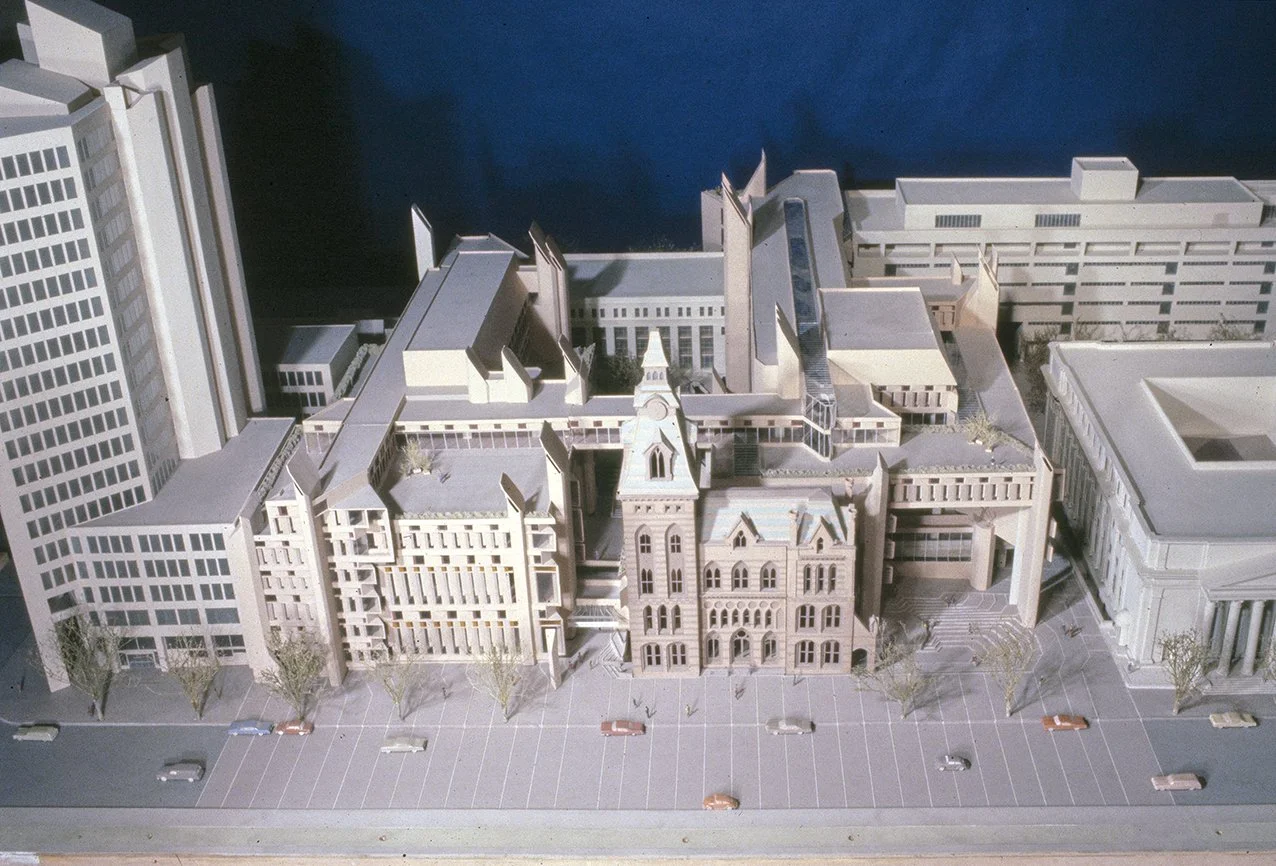

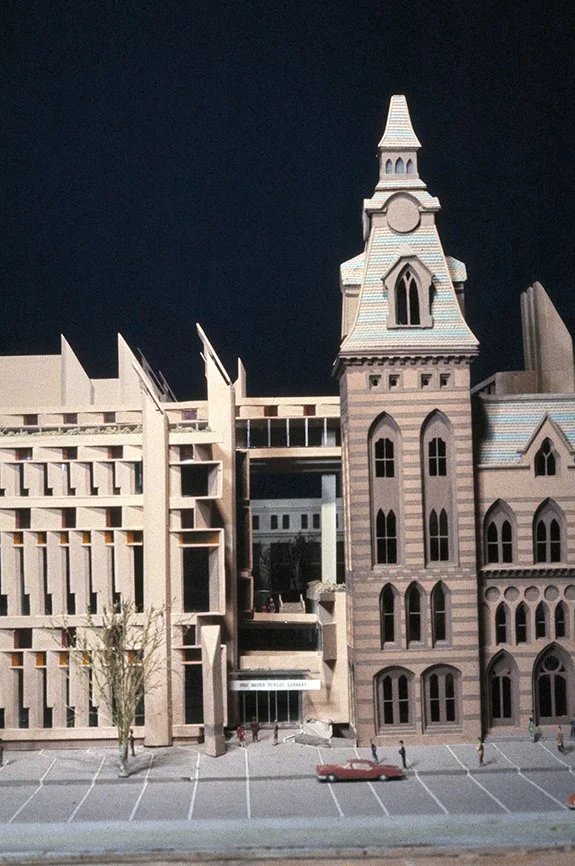

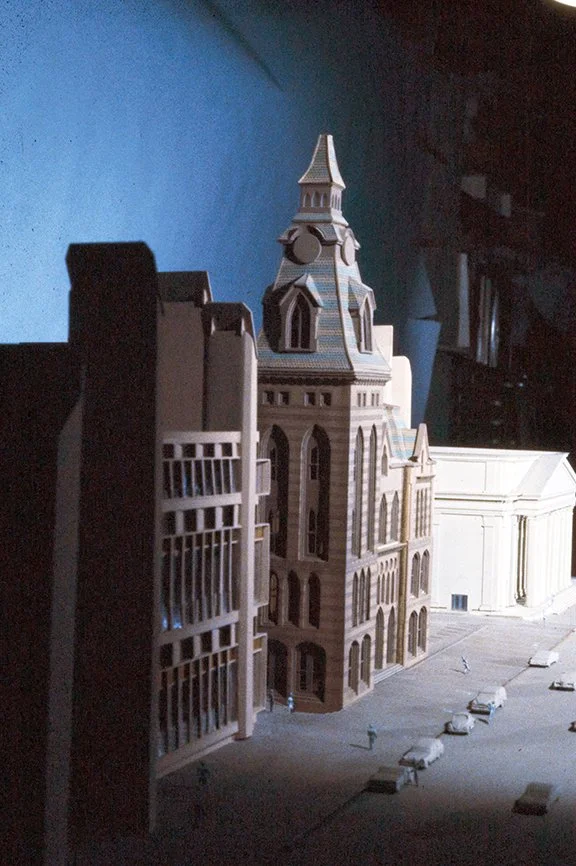

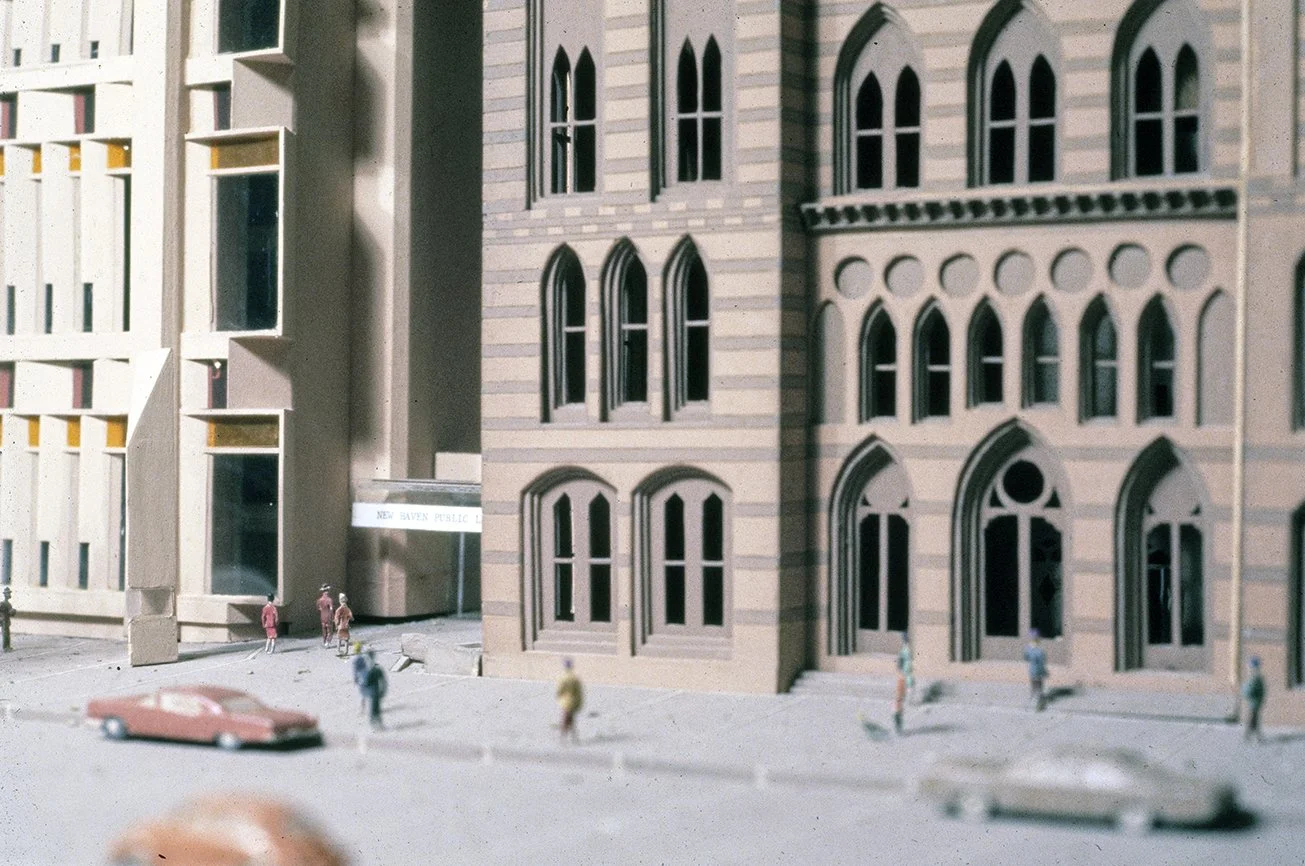

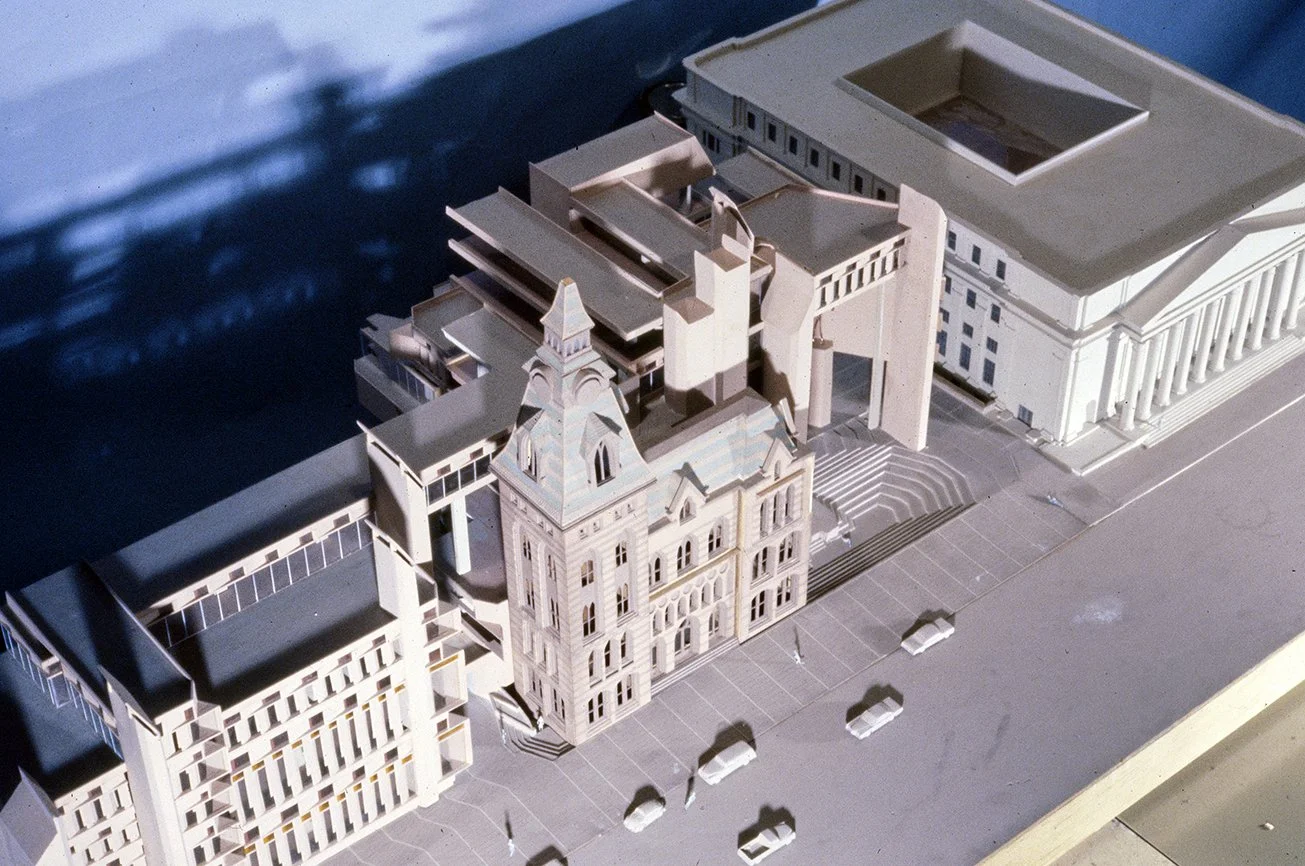

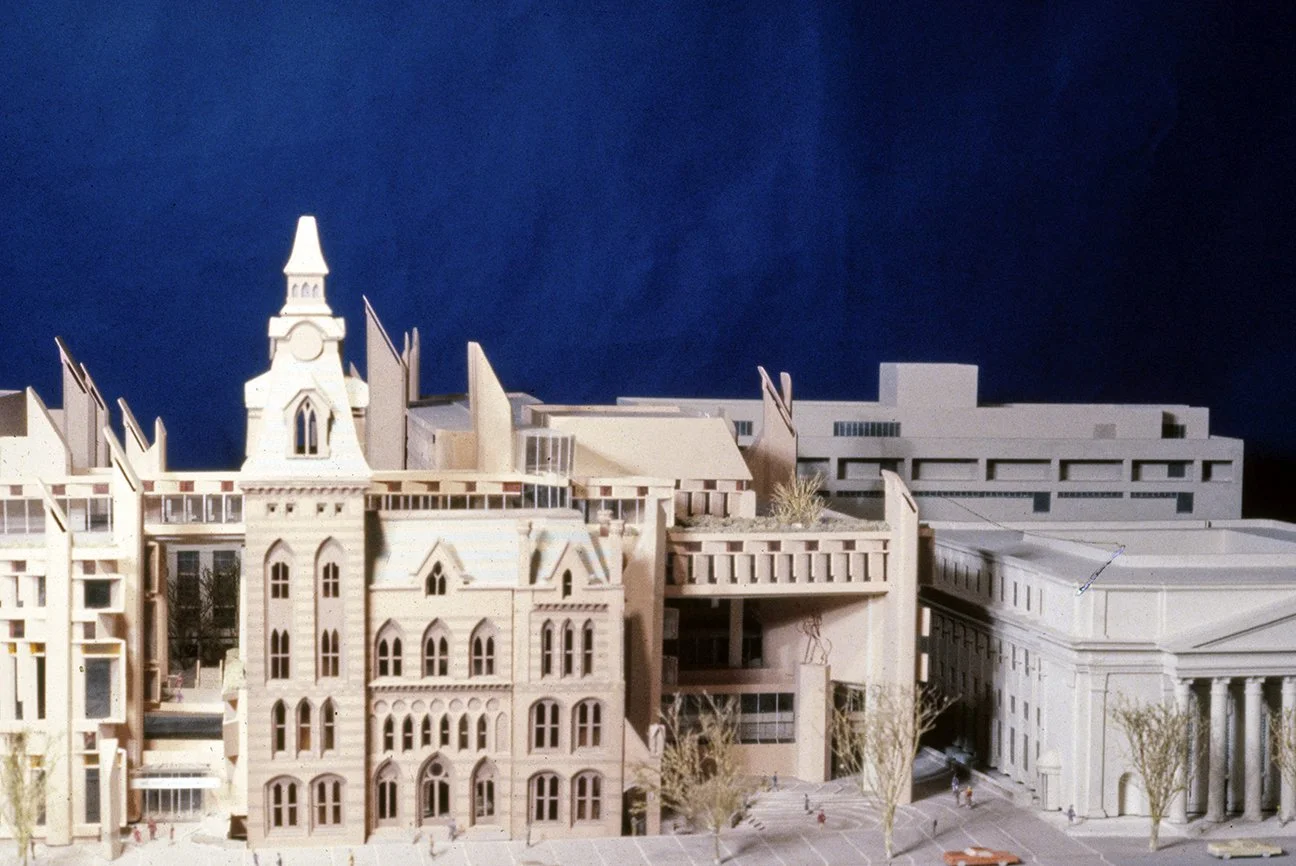

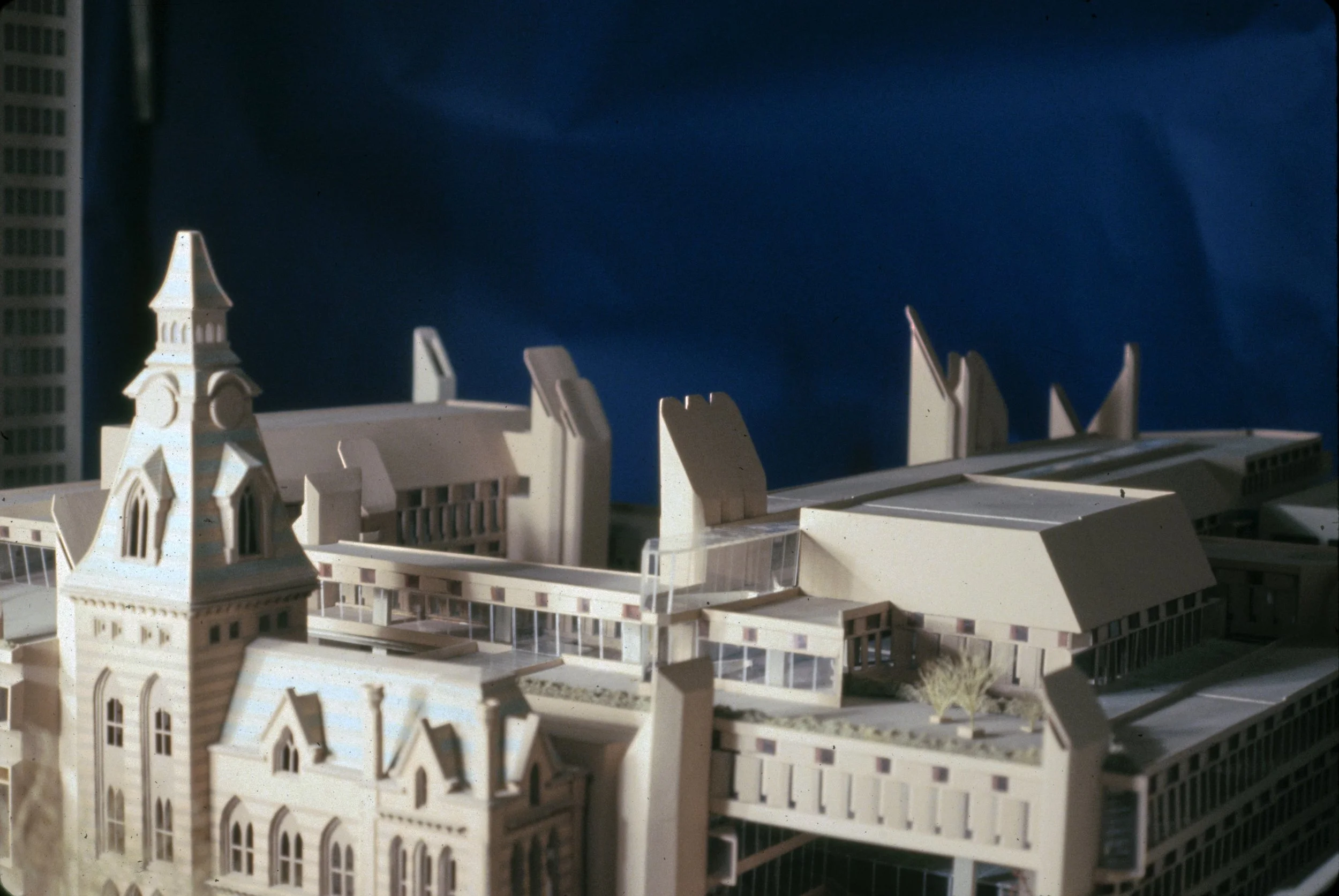

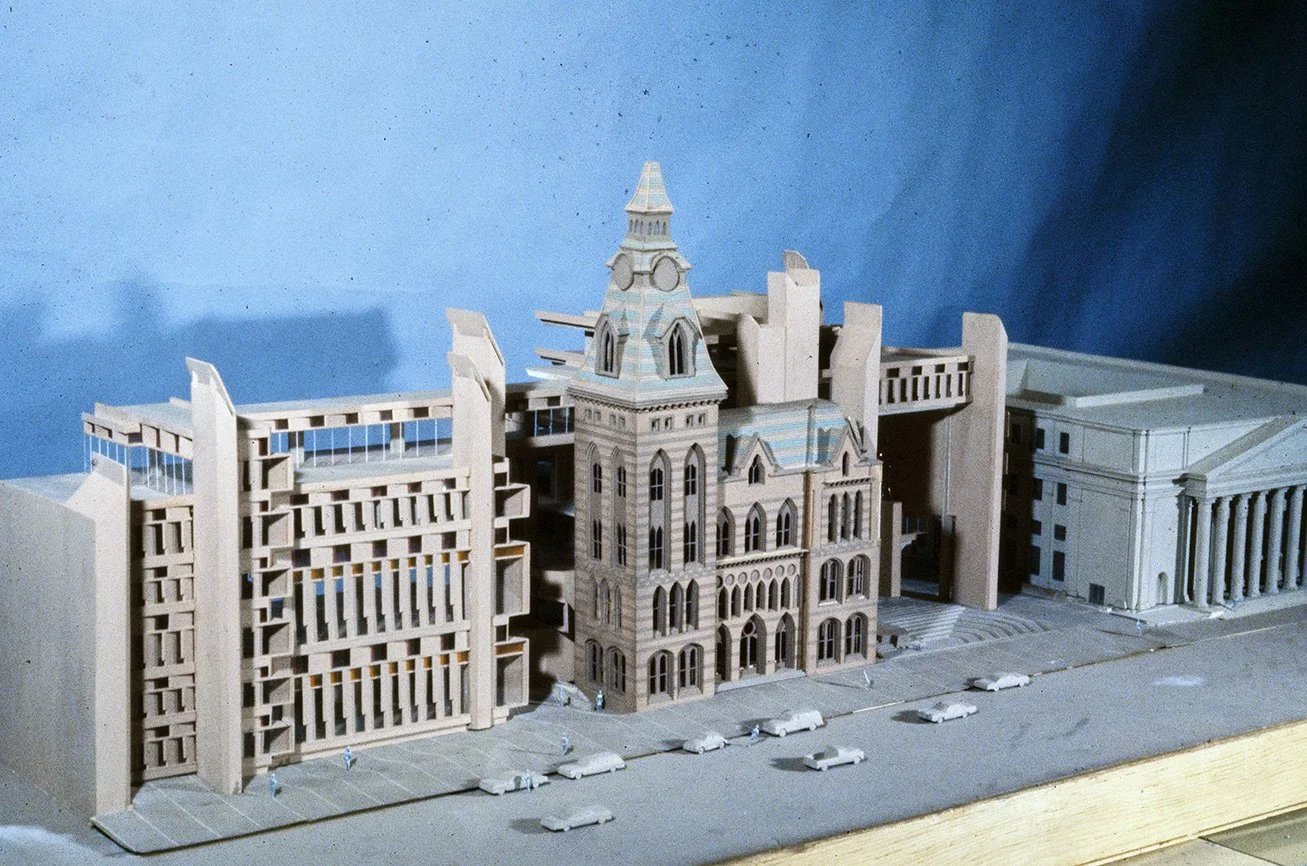

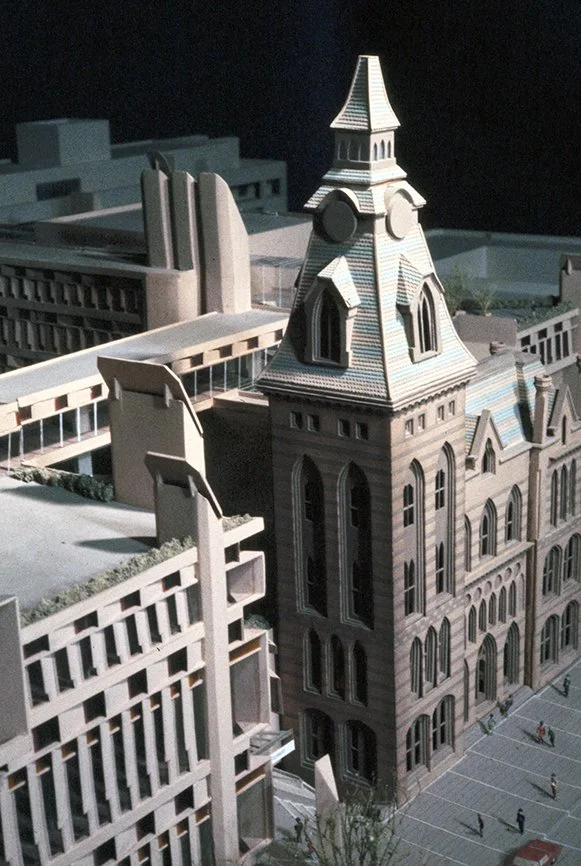

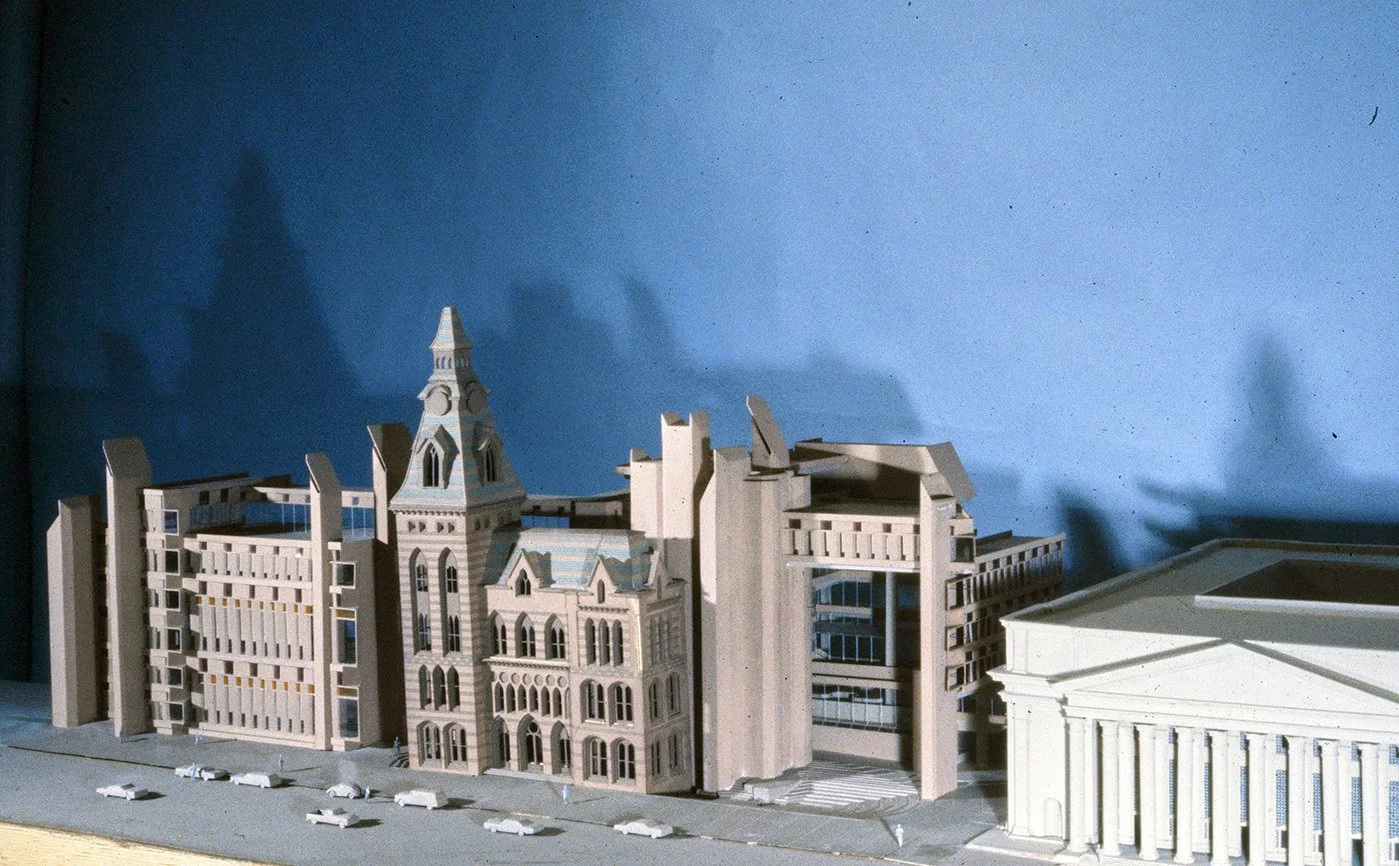

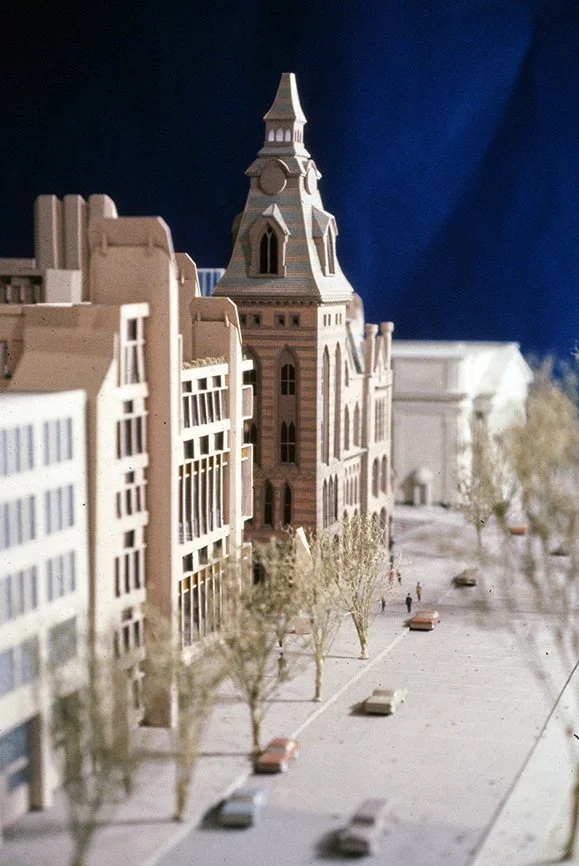

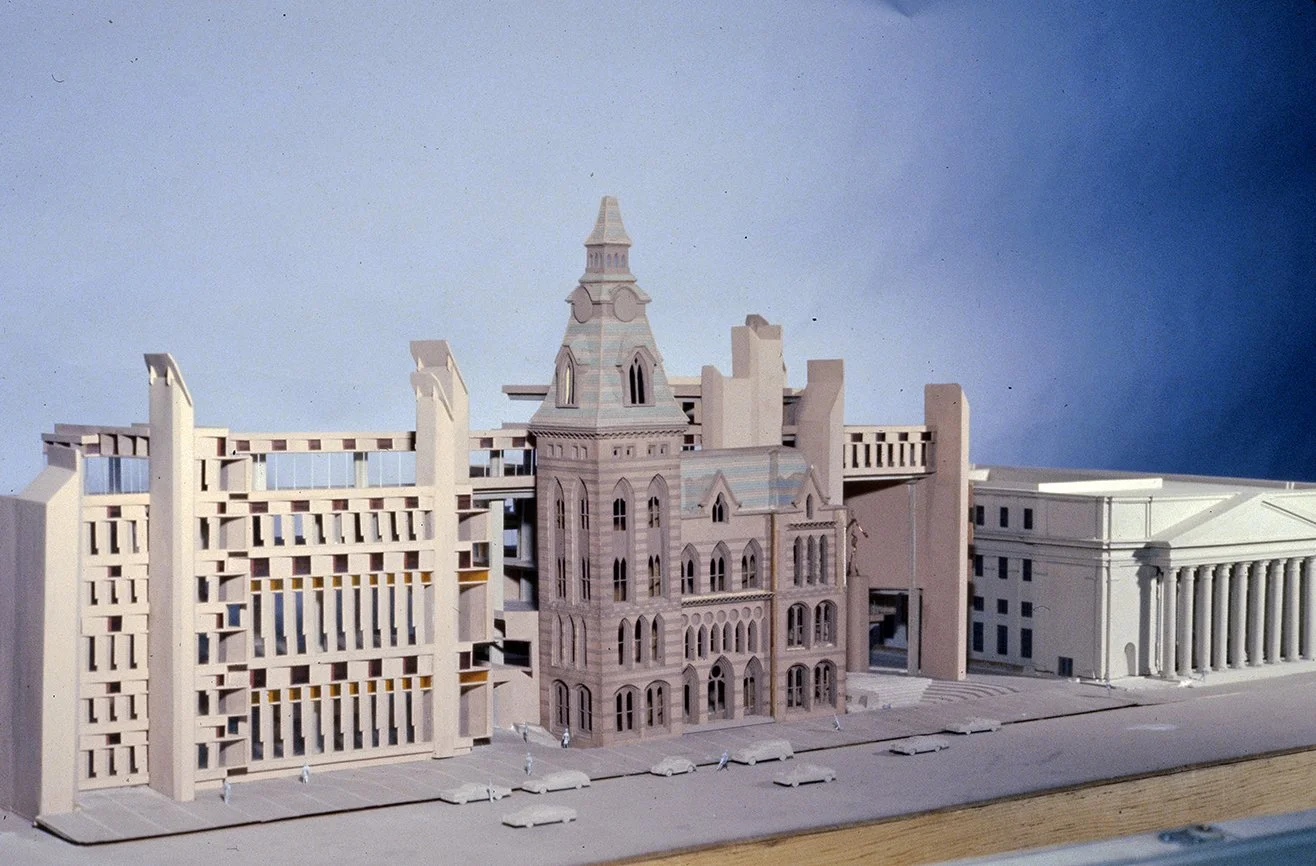

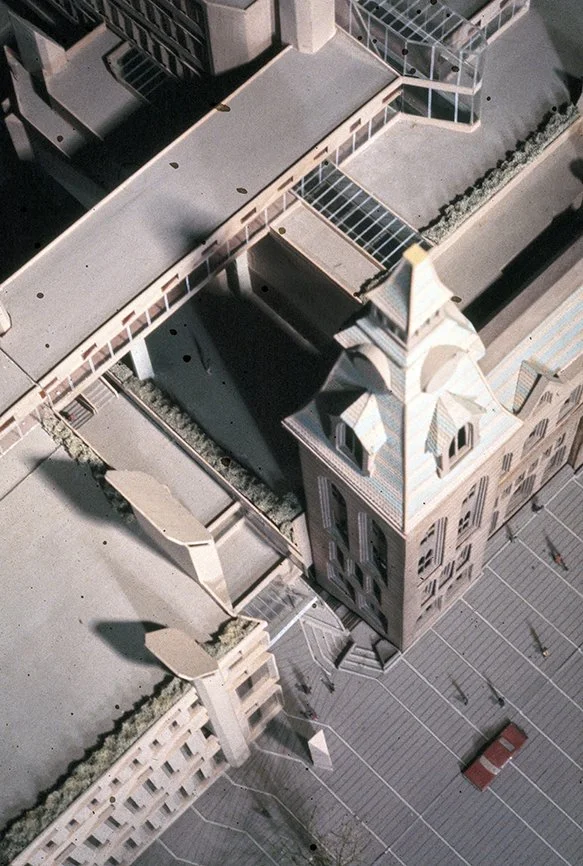

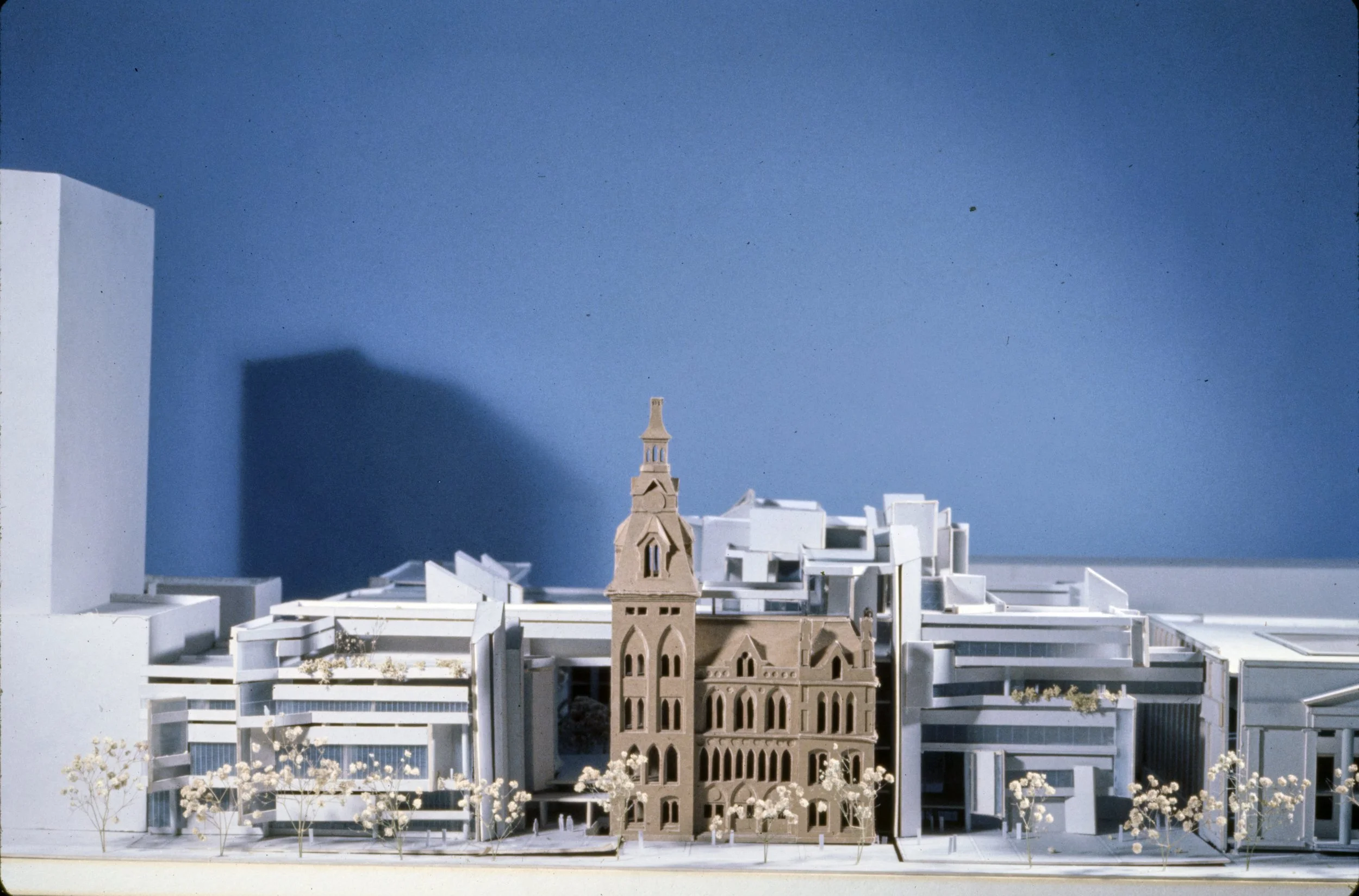

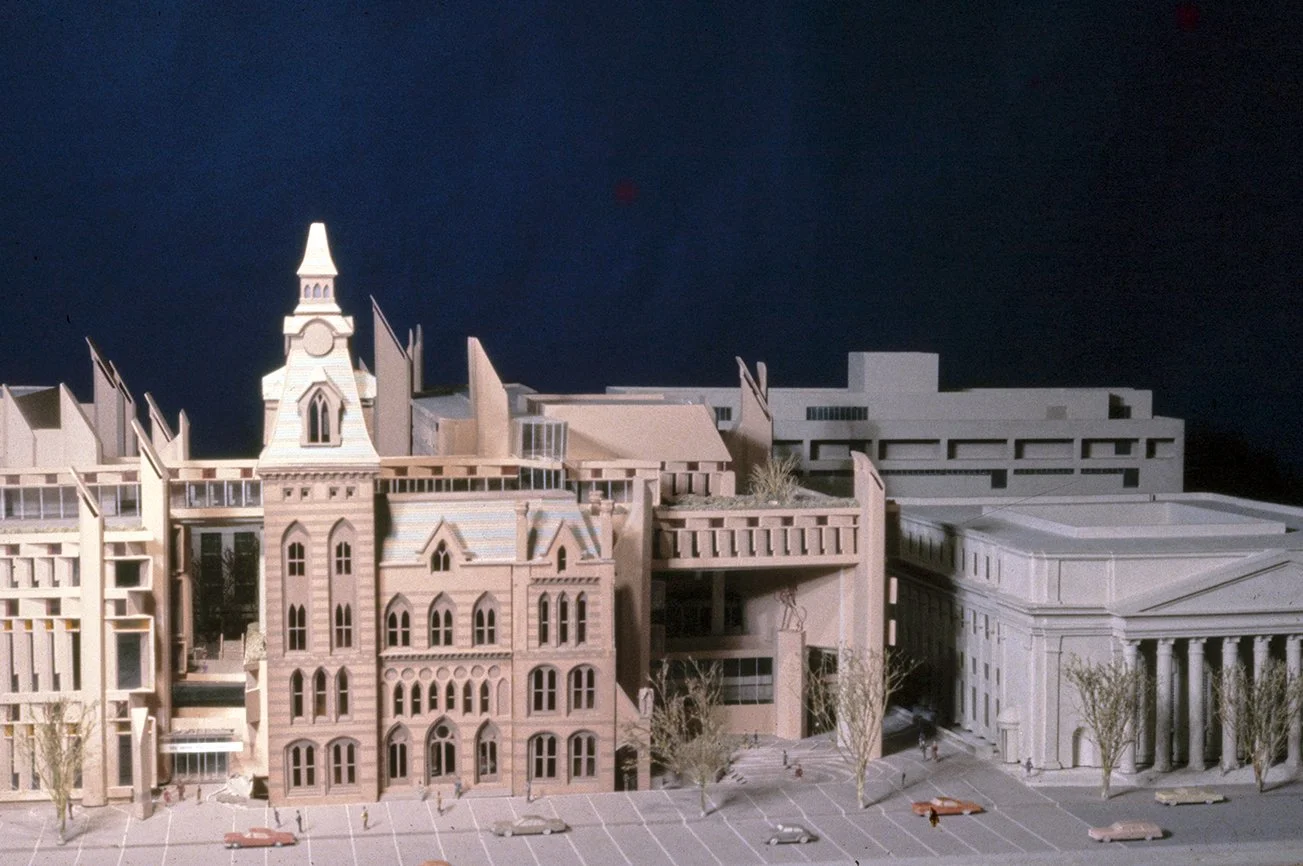

Rudolph’s design preserves part of the existing Victorian Gothic building facing the green - and use the section with its grand stair as the entrance to the new city offices.

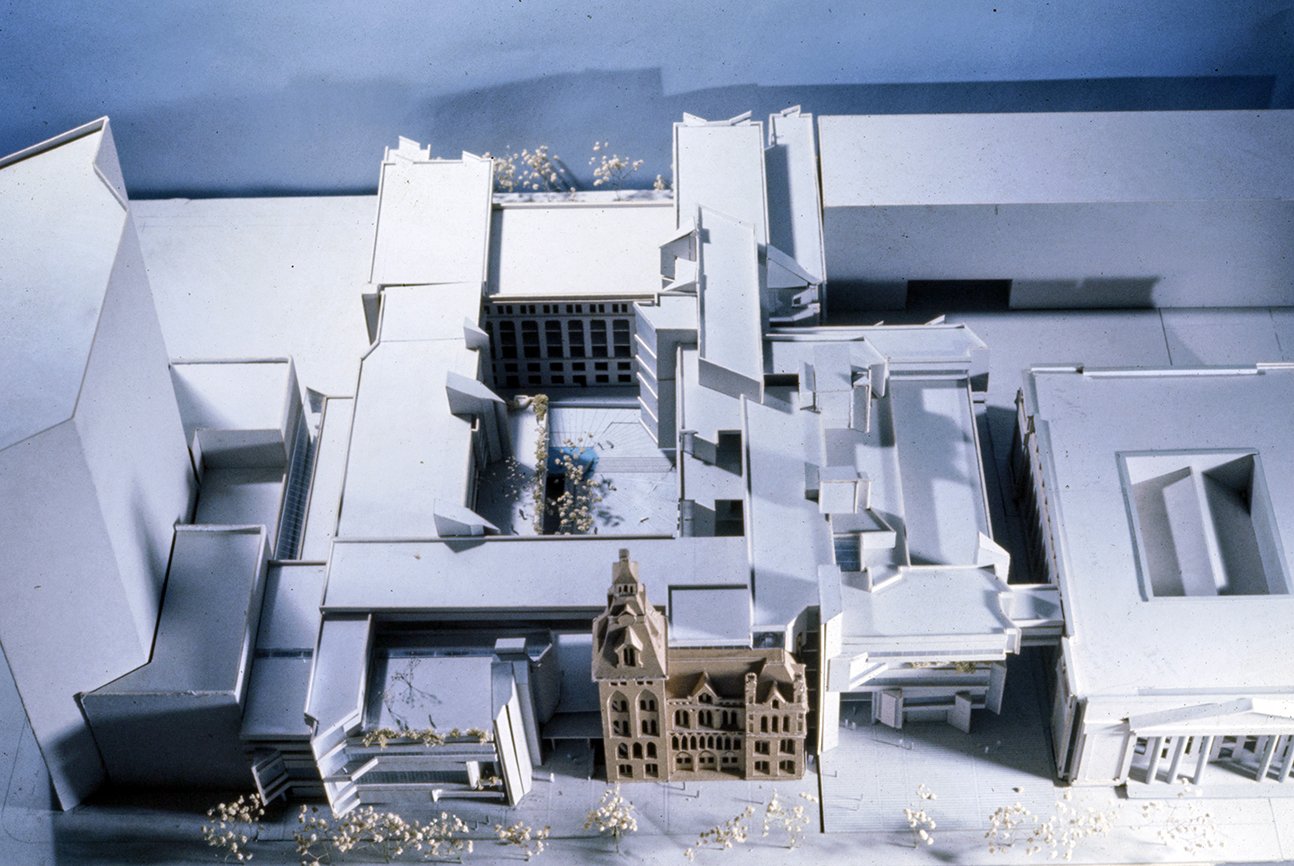

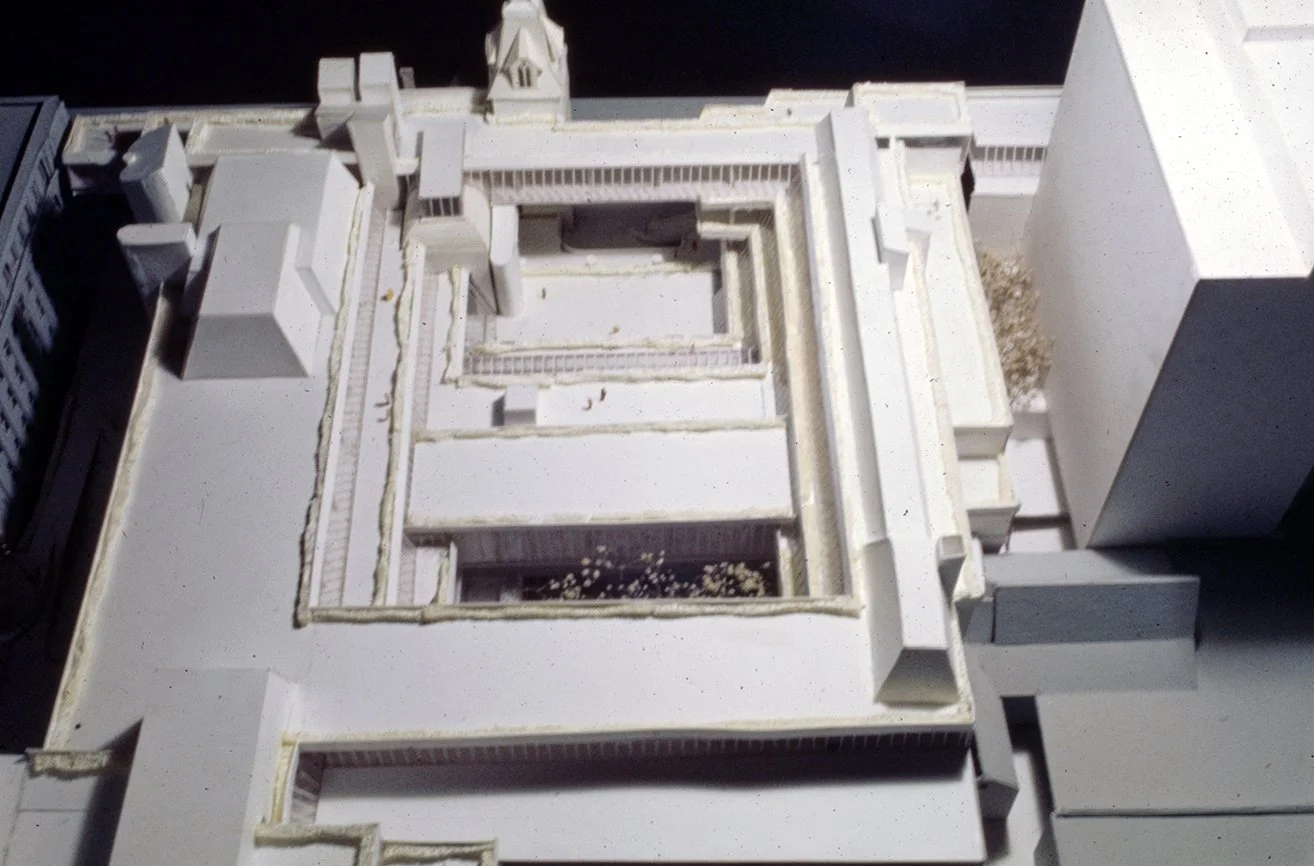

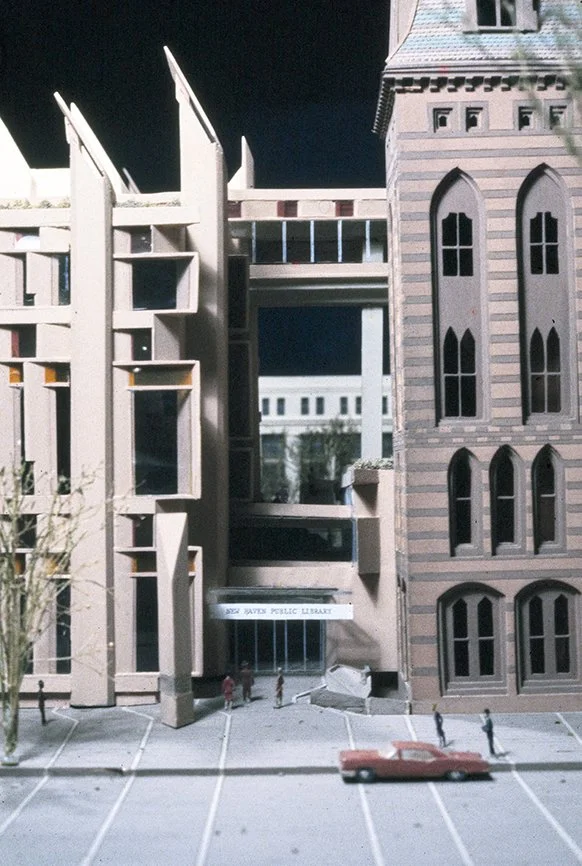

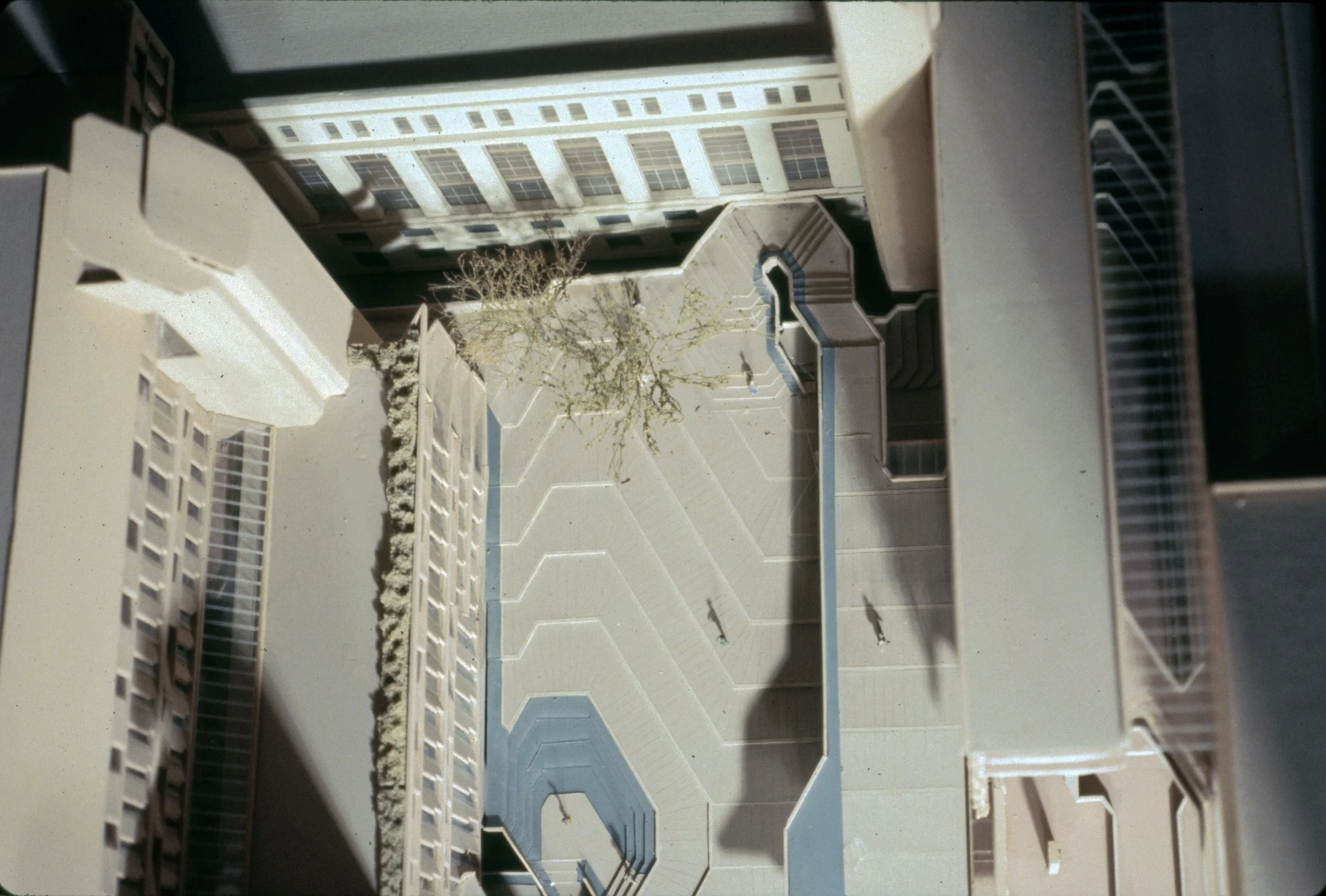

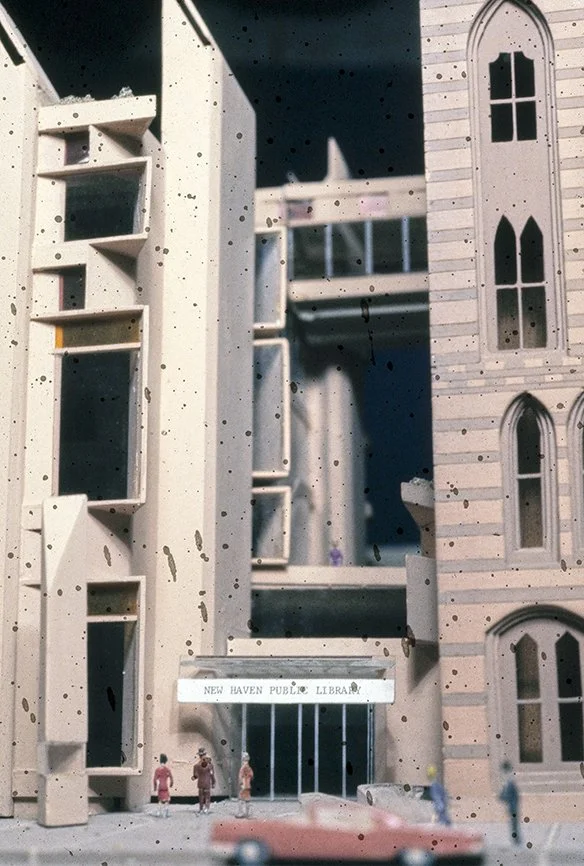

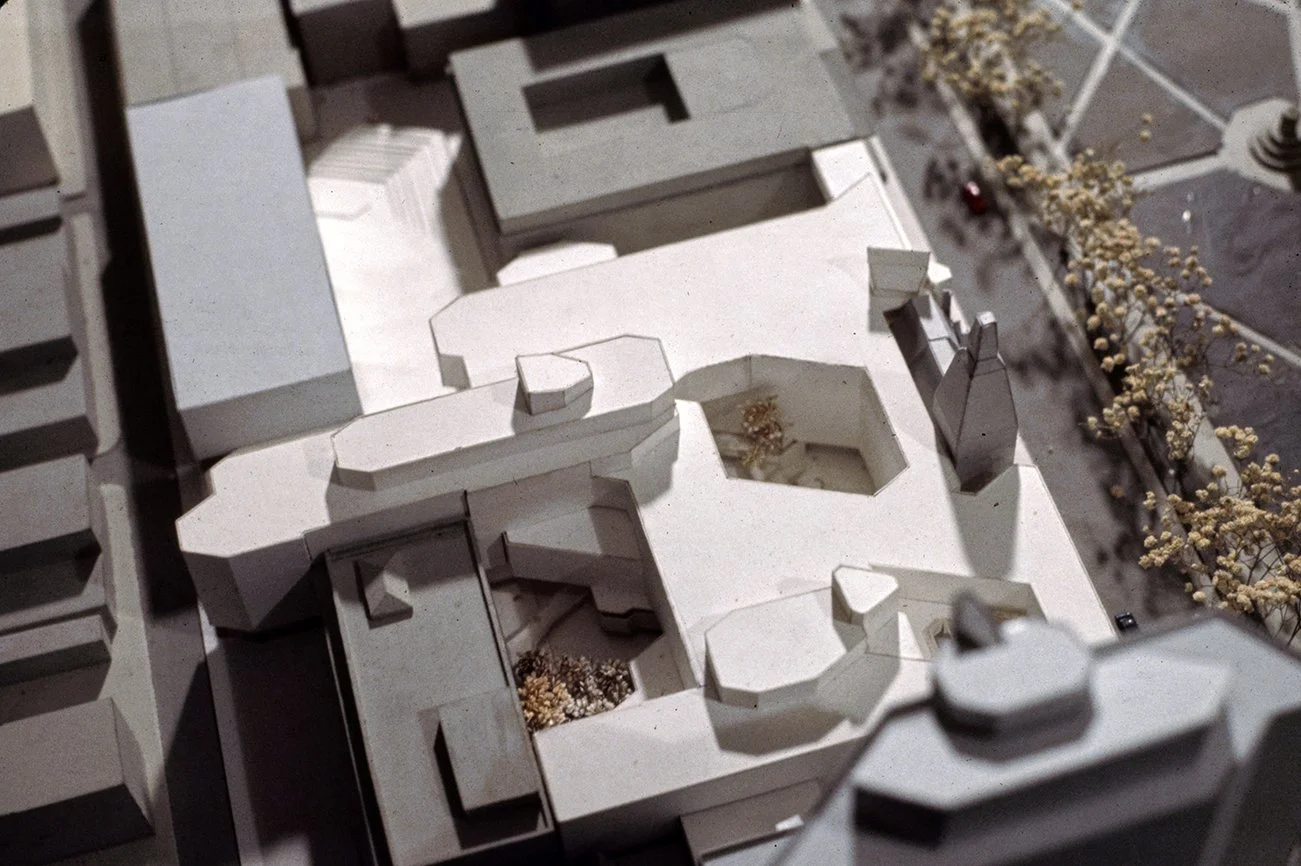

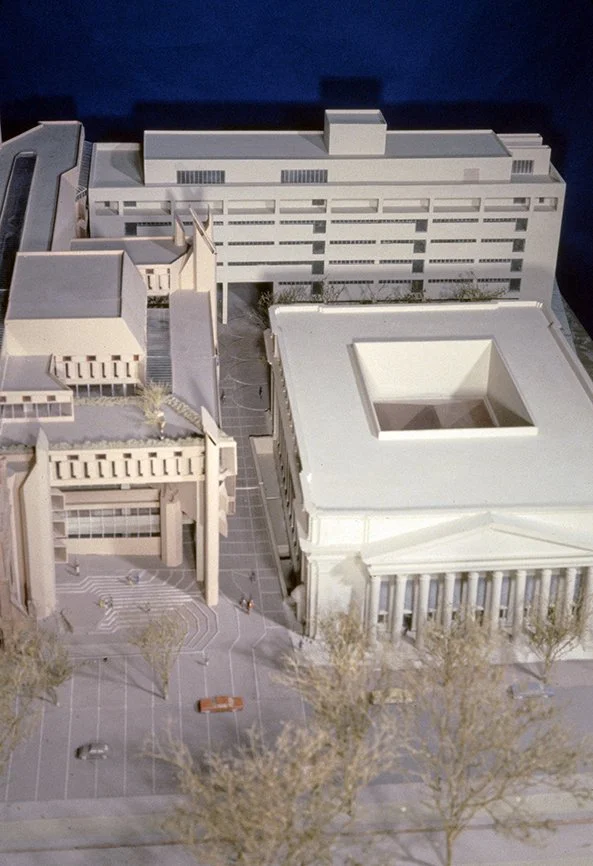

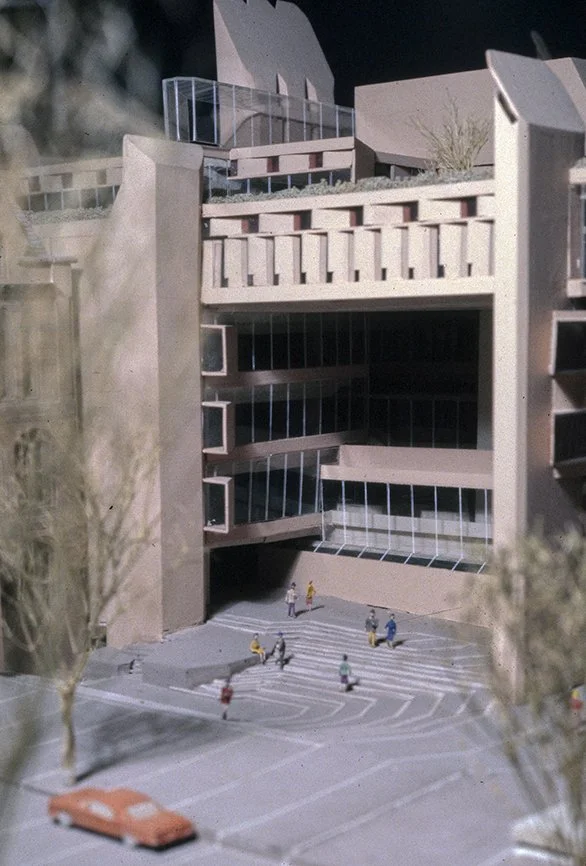

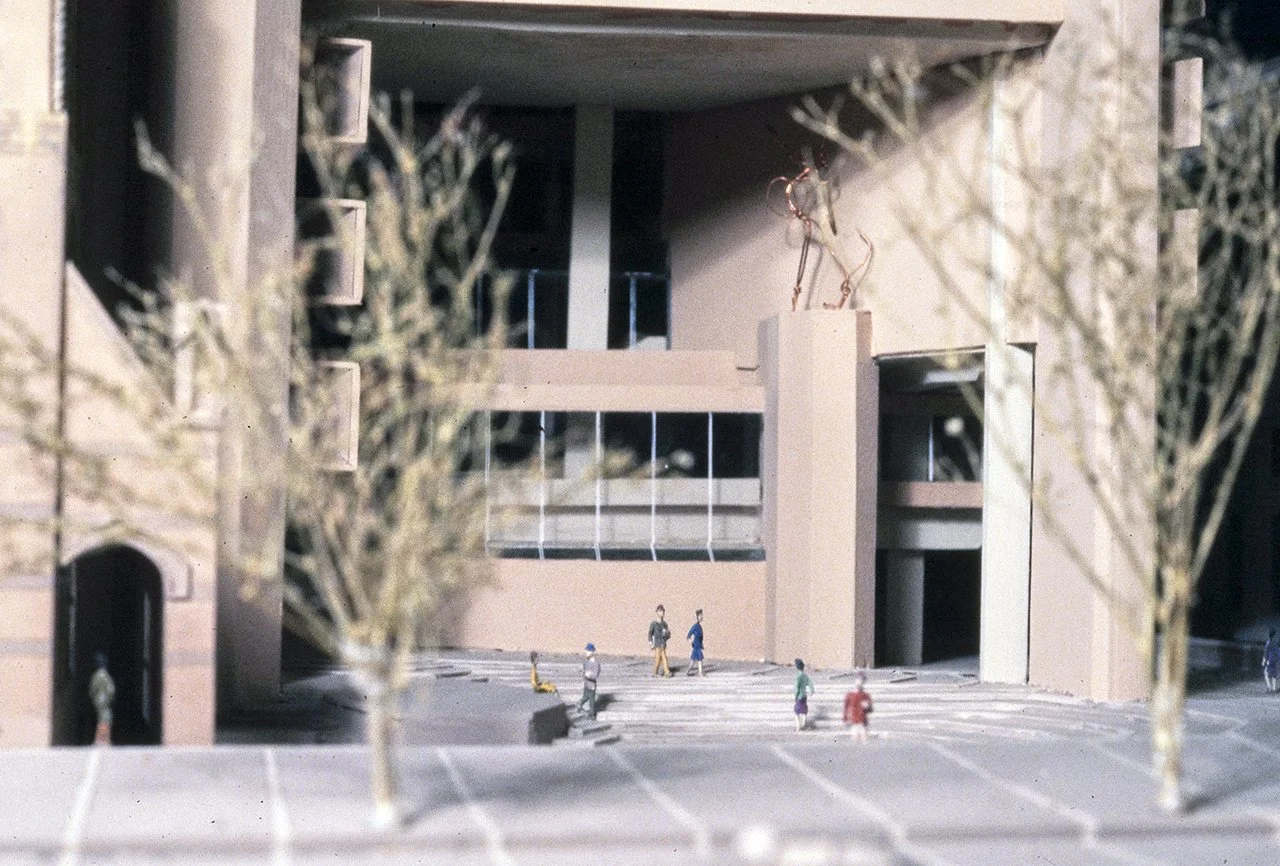

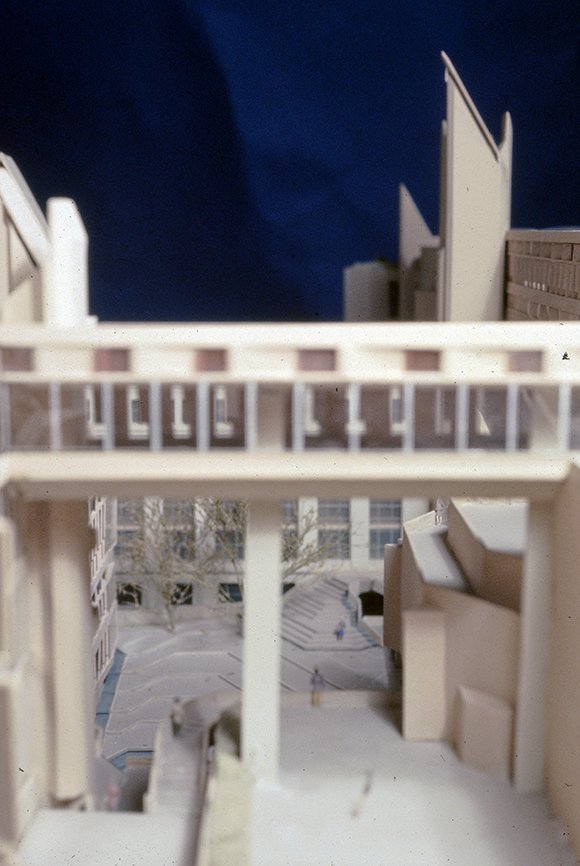

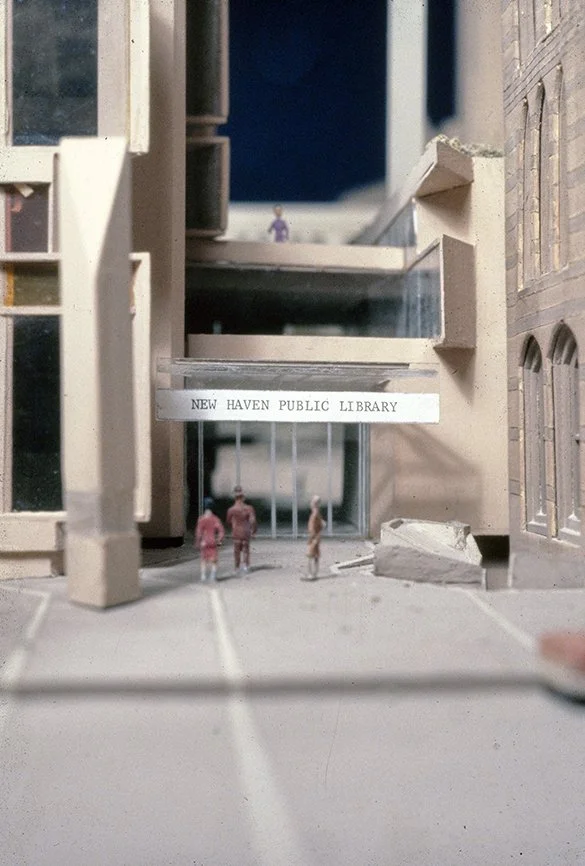

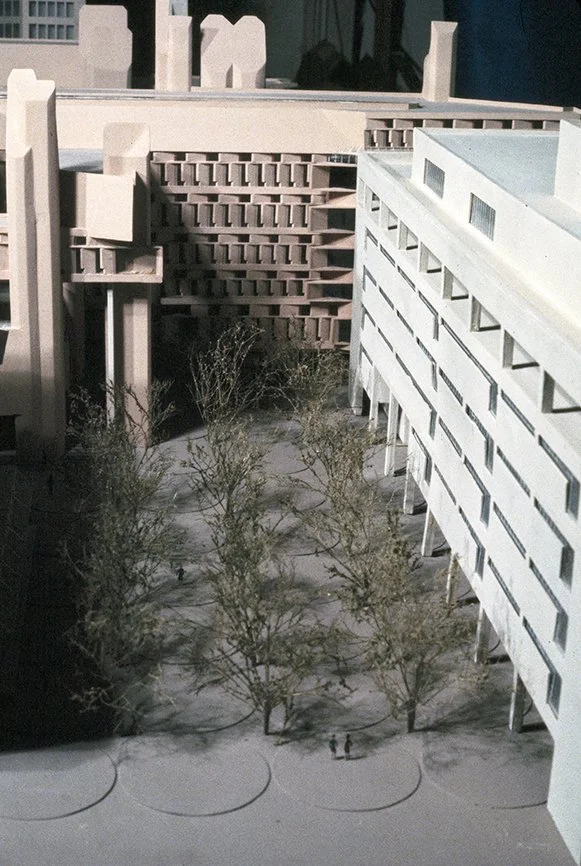

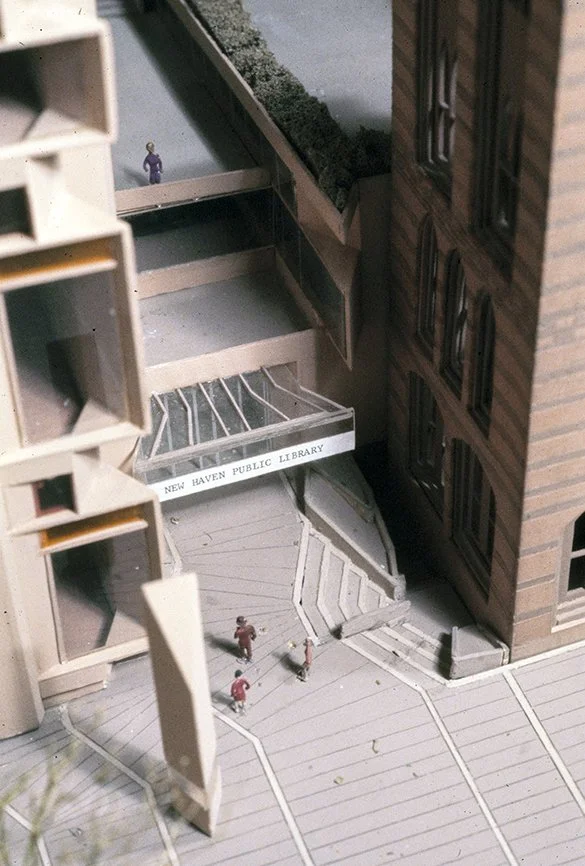

The library is on the lower floors of the new building. A ceremonial outdoor space is created between the City Hall and library wings.

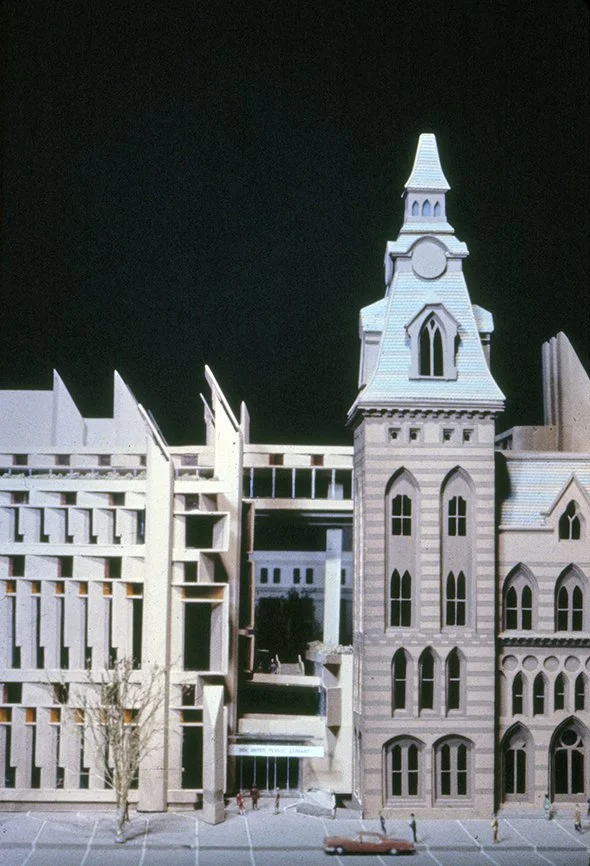

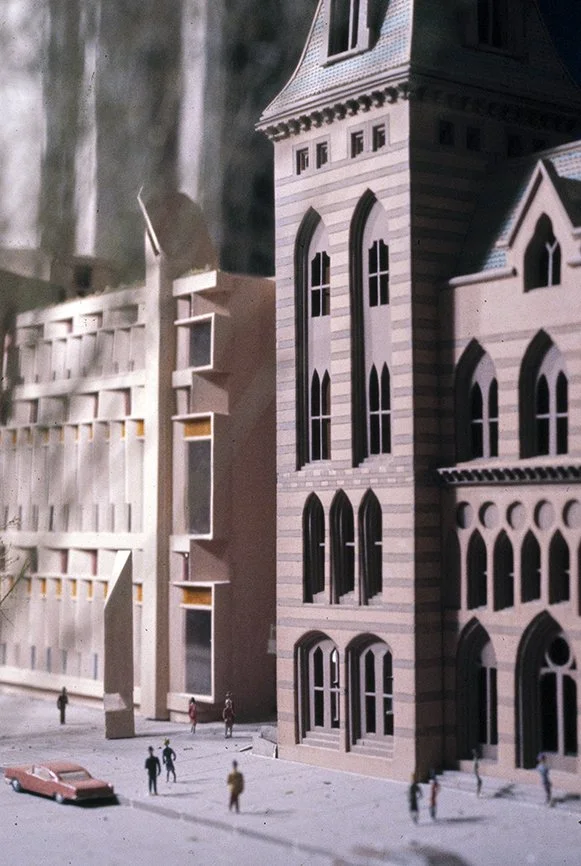

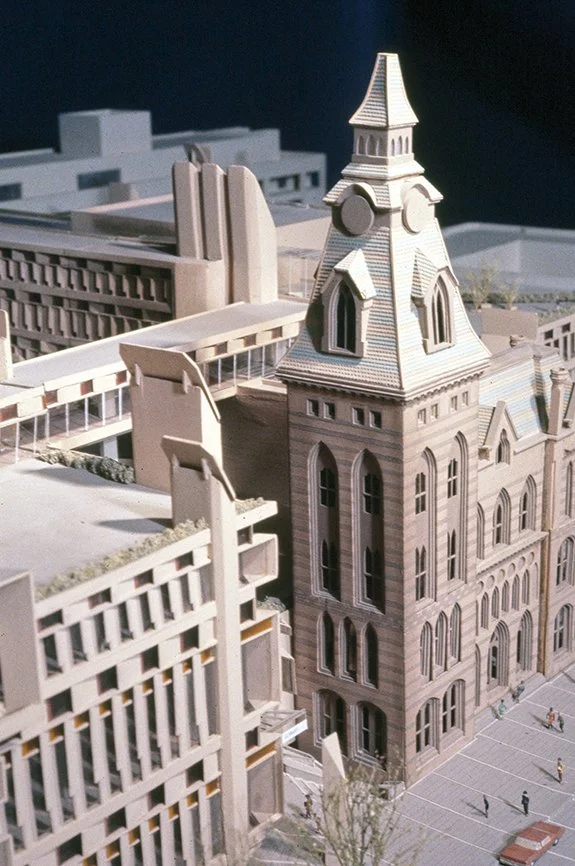

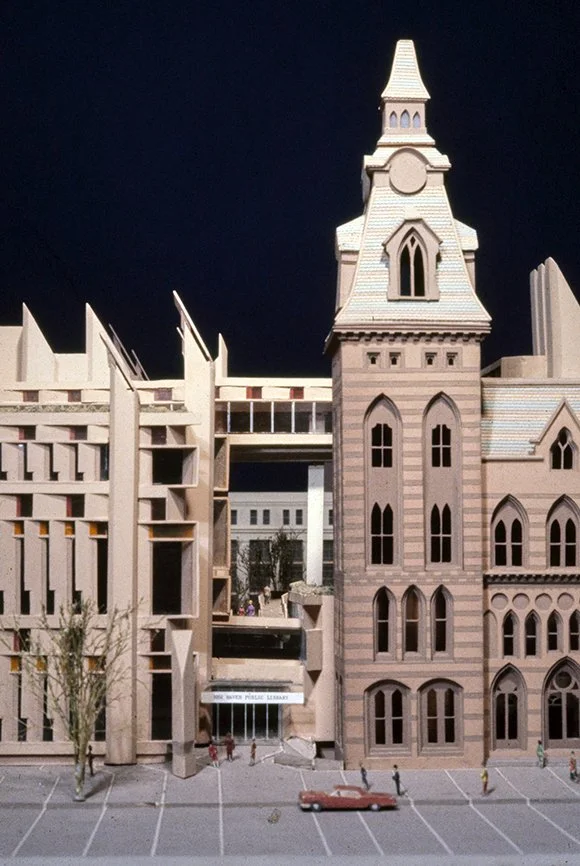

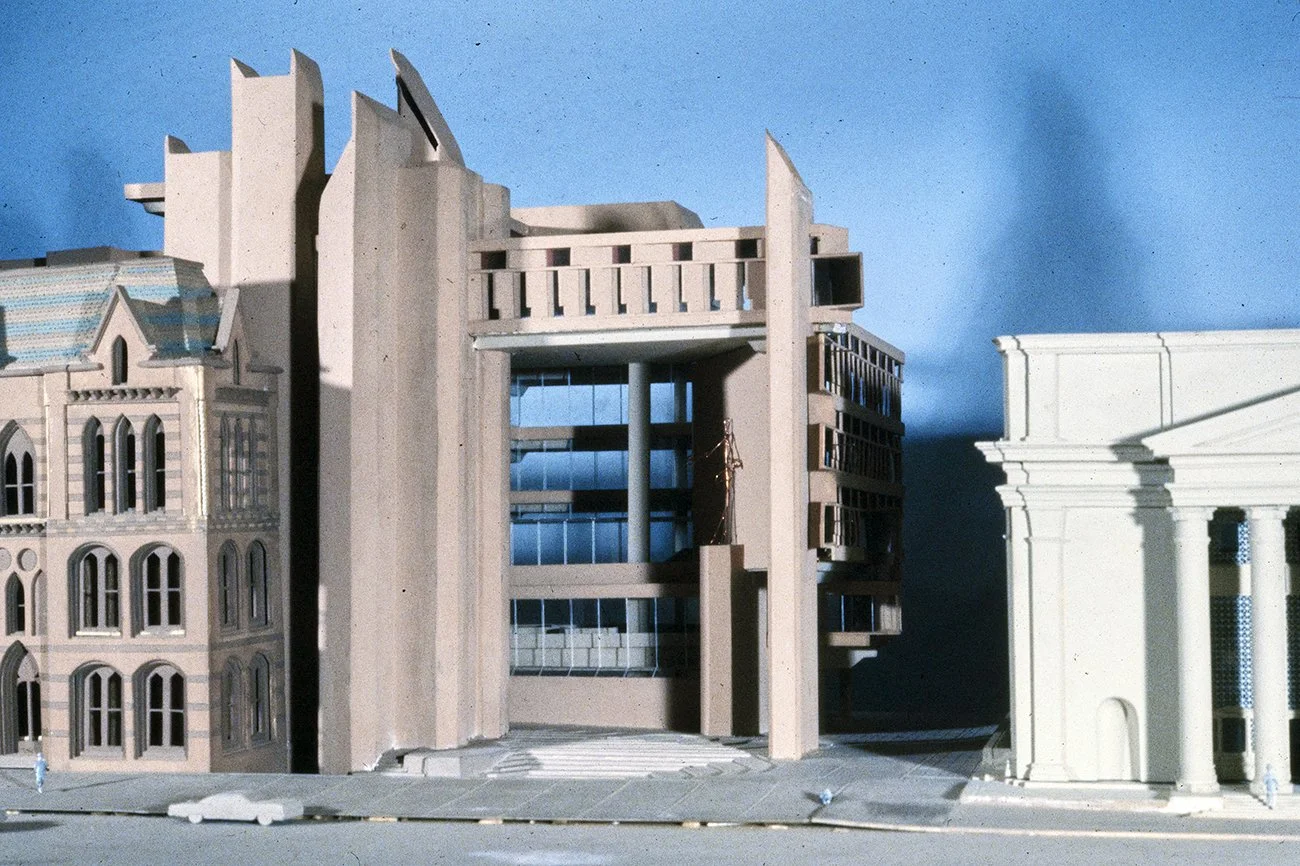

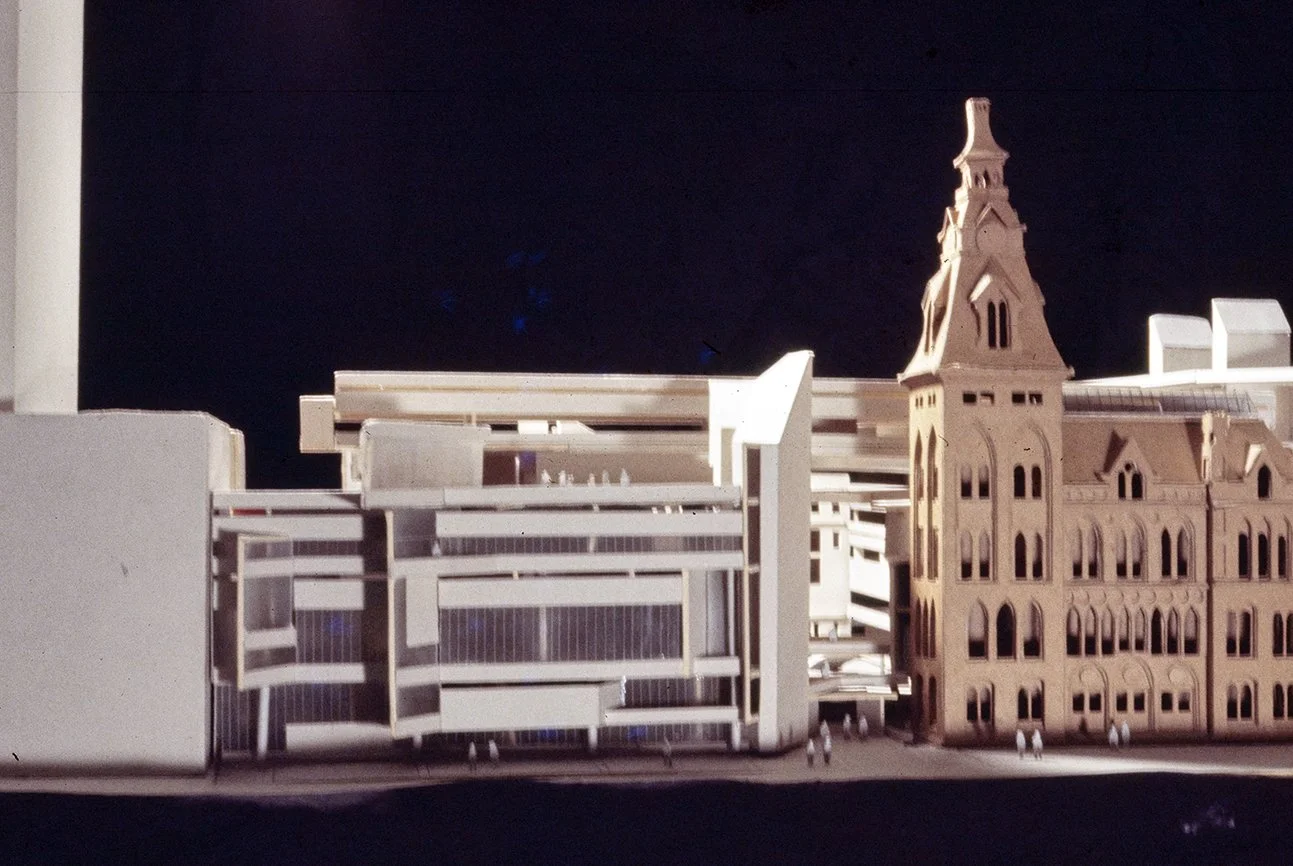

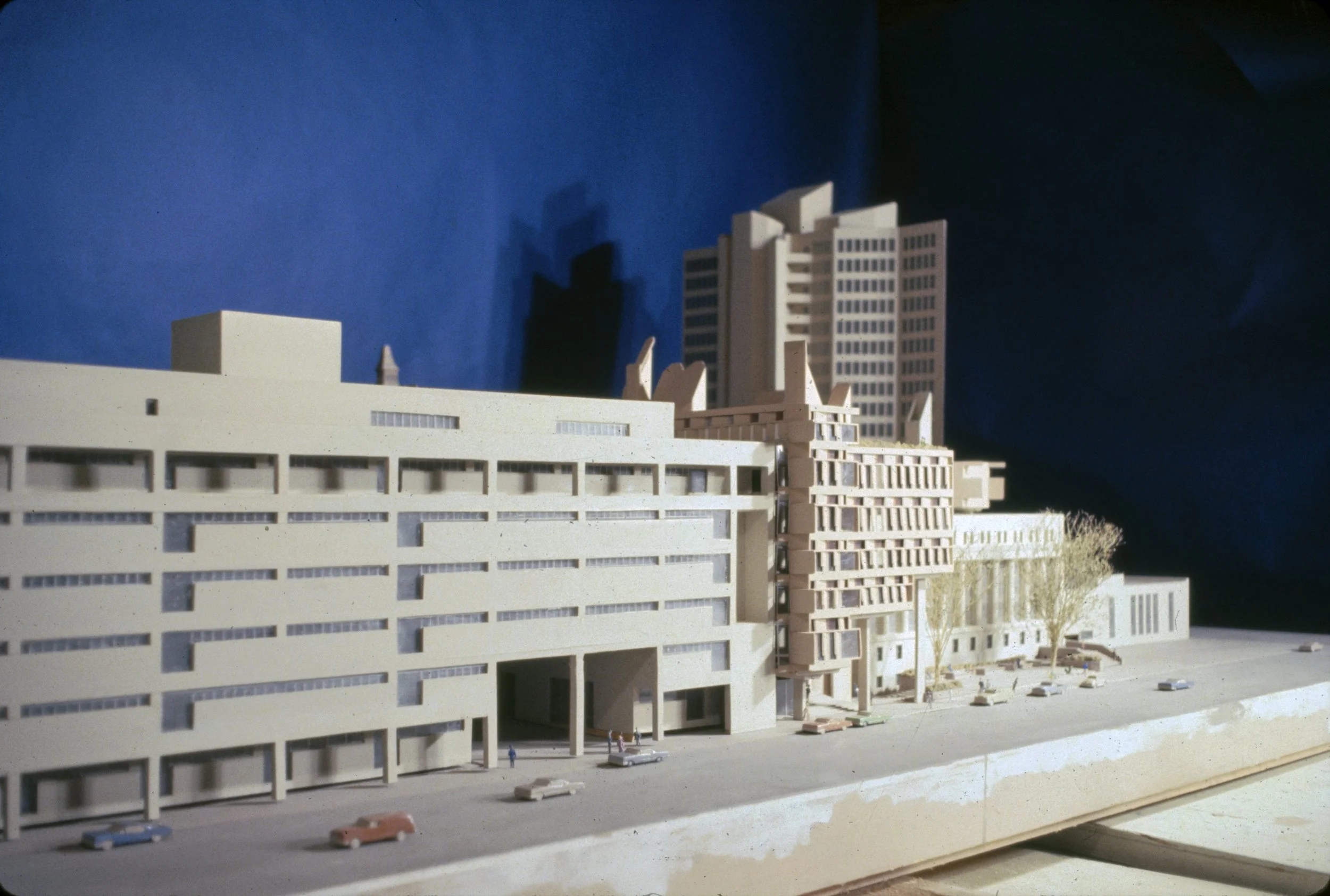

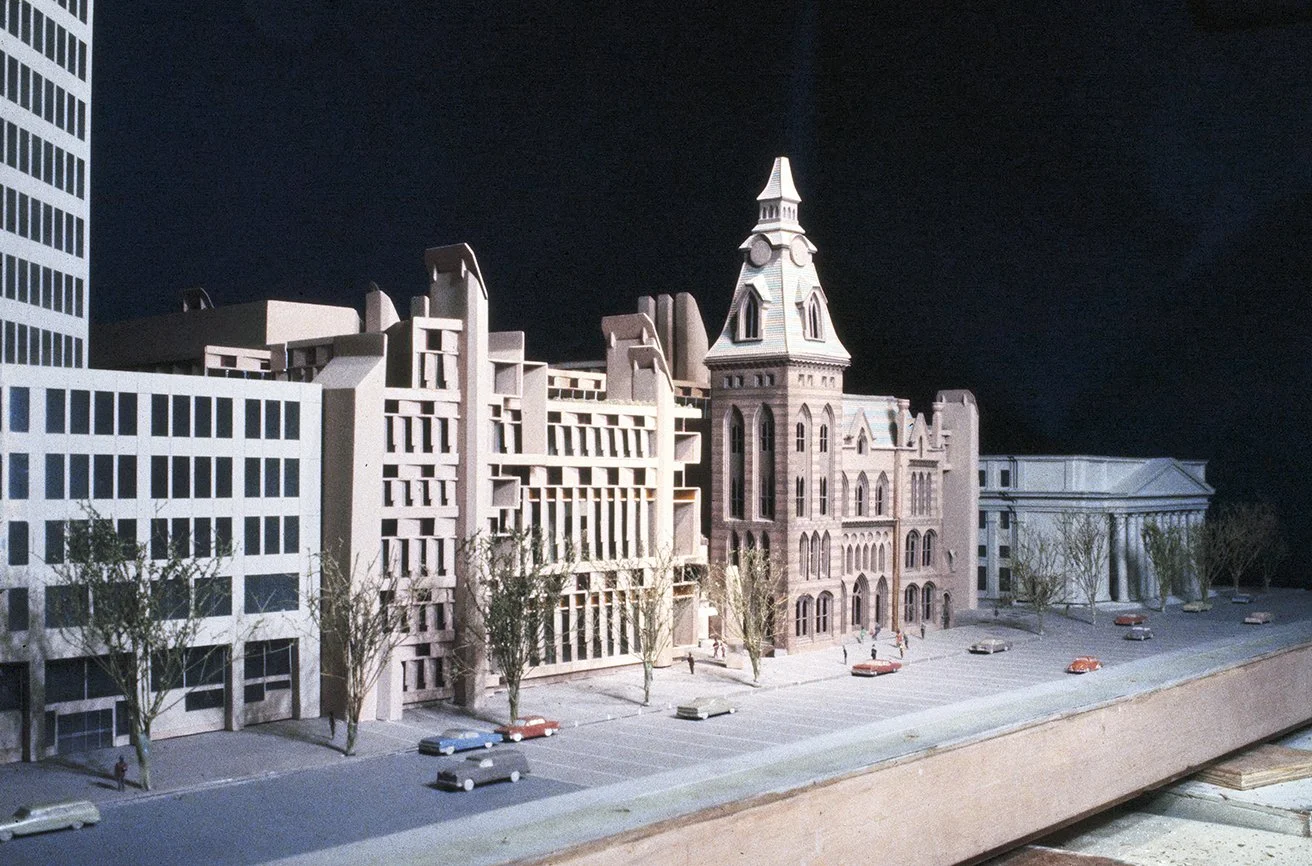

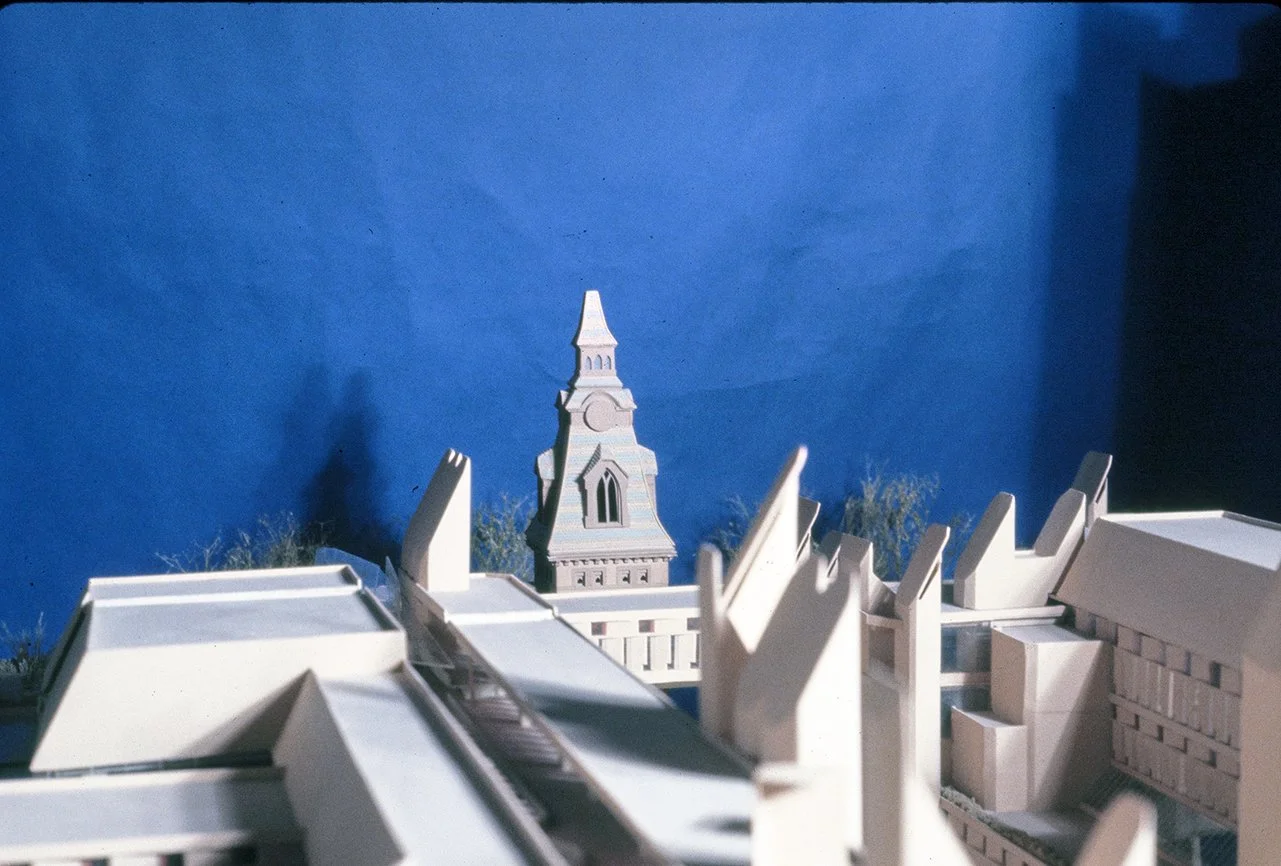

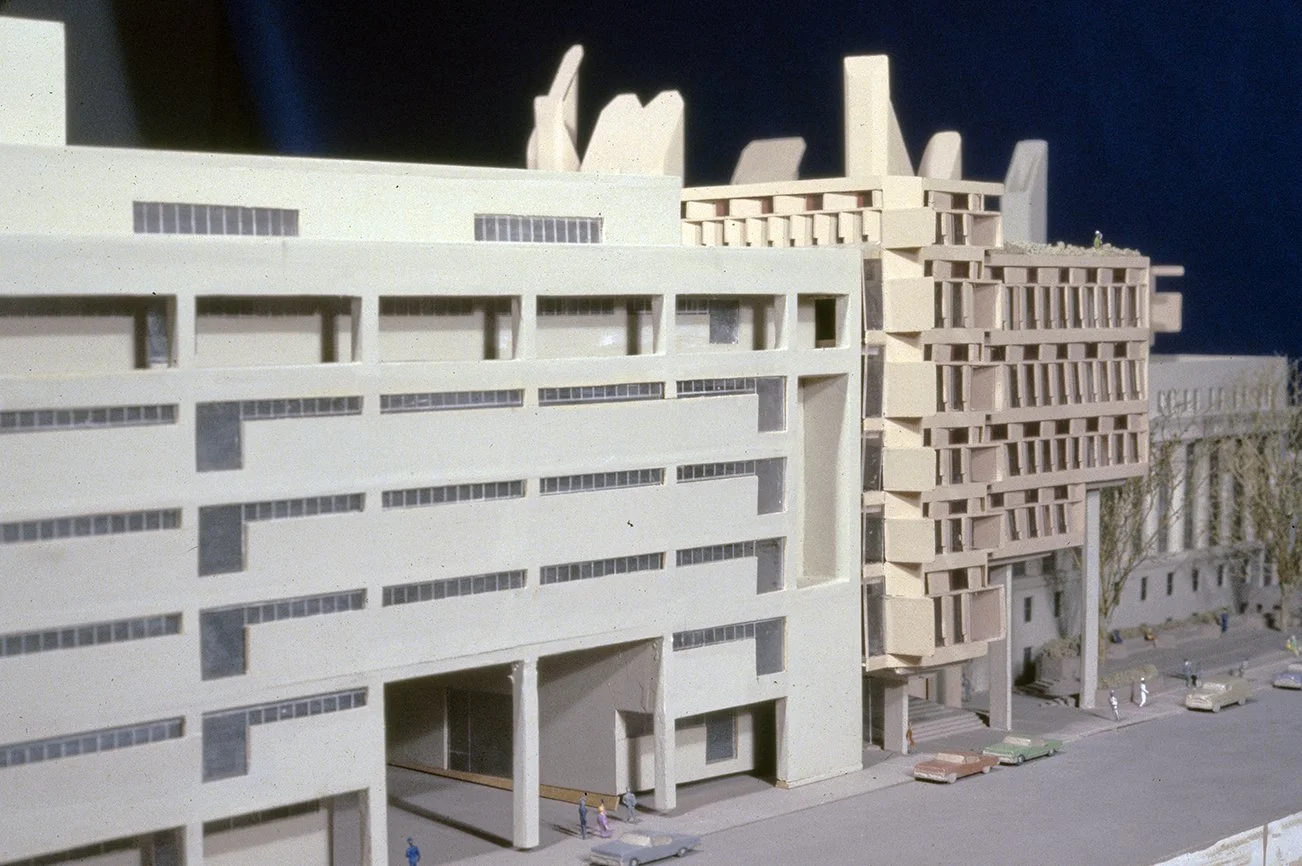

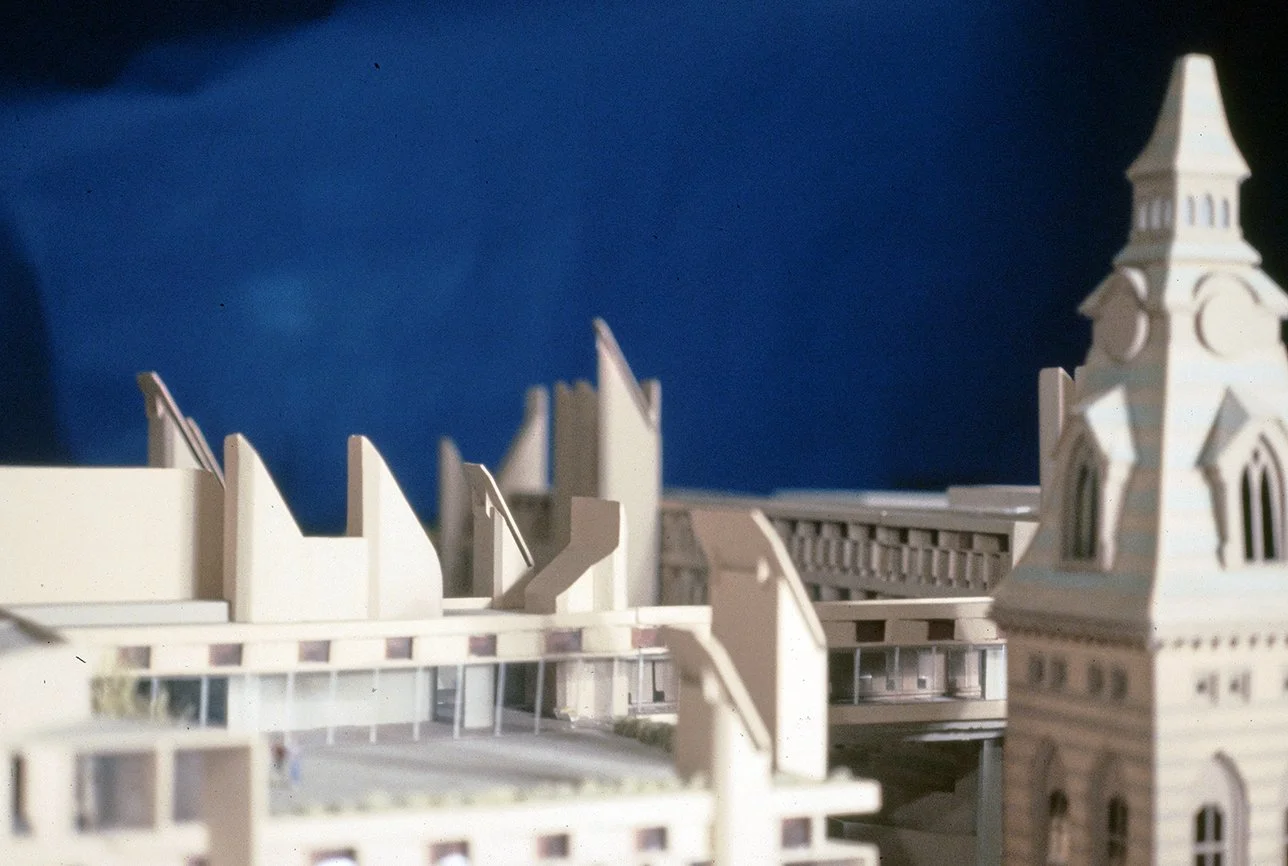

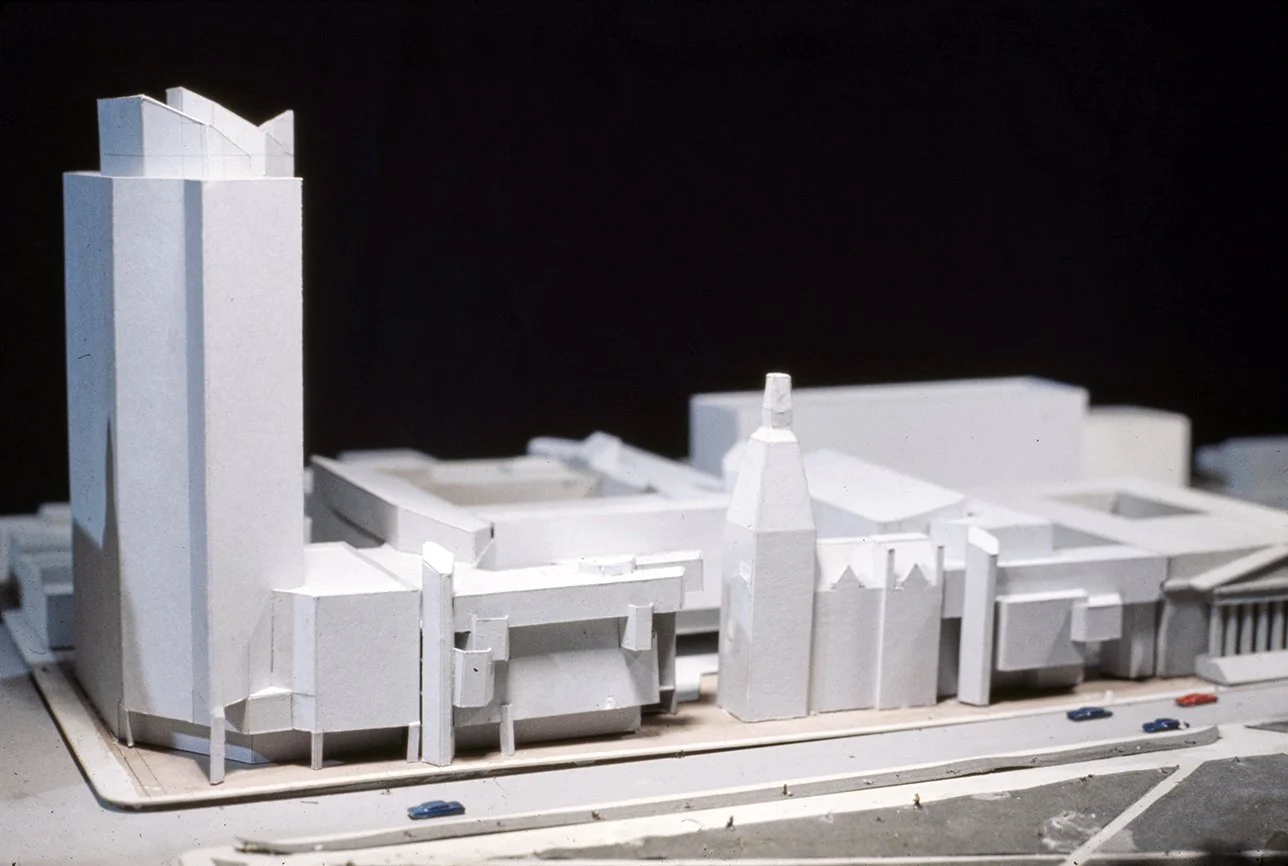

The new buildings echo the verticality of the old City Hall - with tall window slits echoing the Gothic windows, slant-topped stair and elevator wells are meant to suggest “towers.”

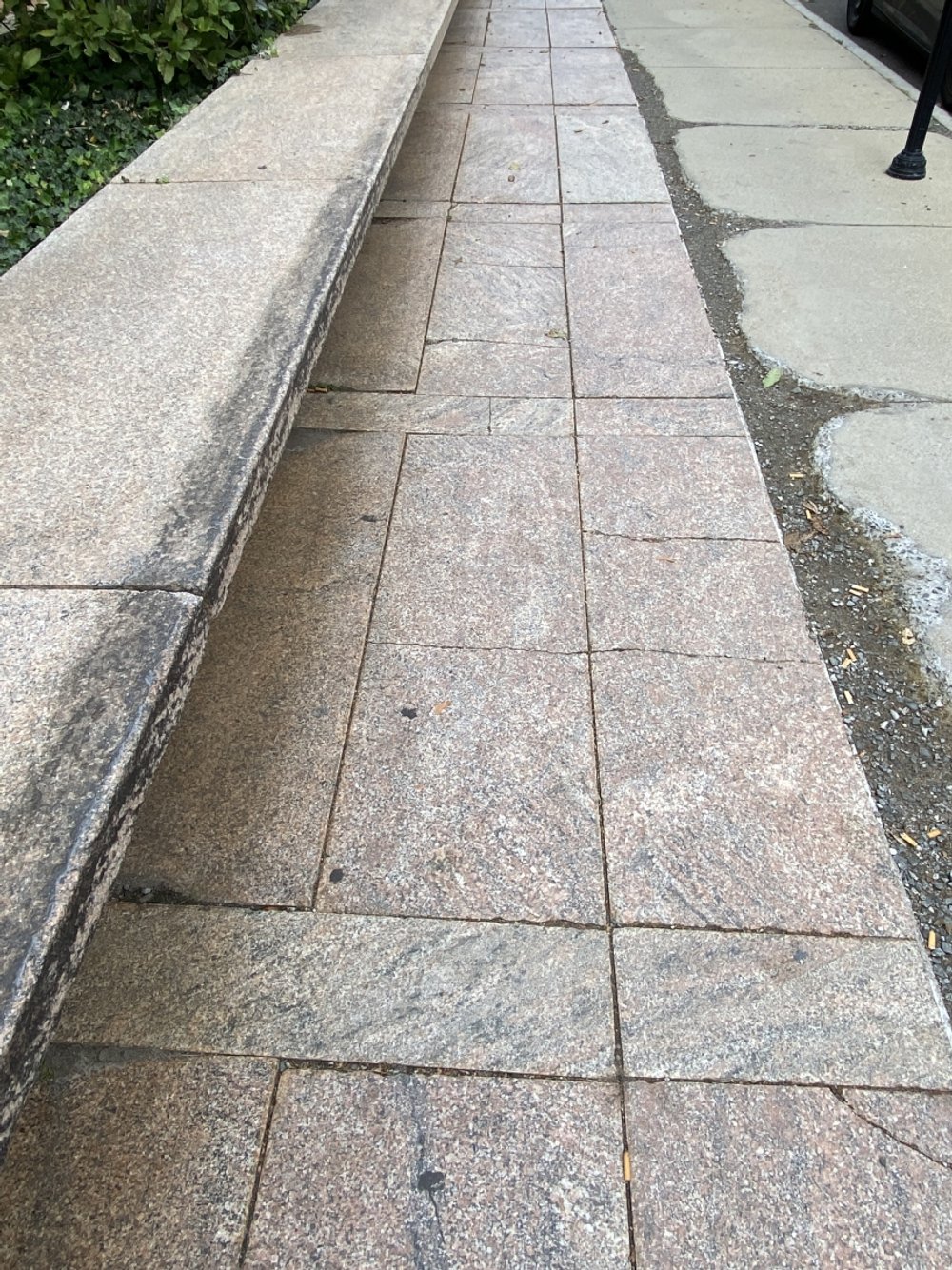

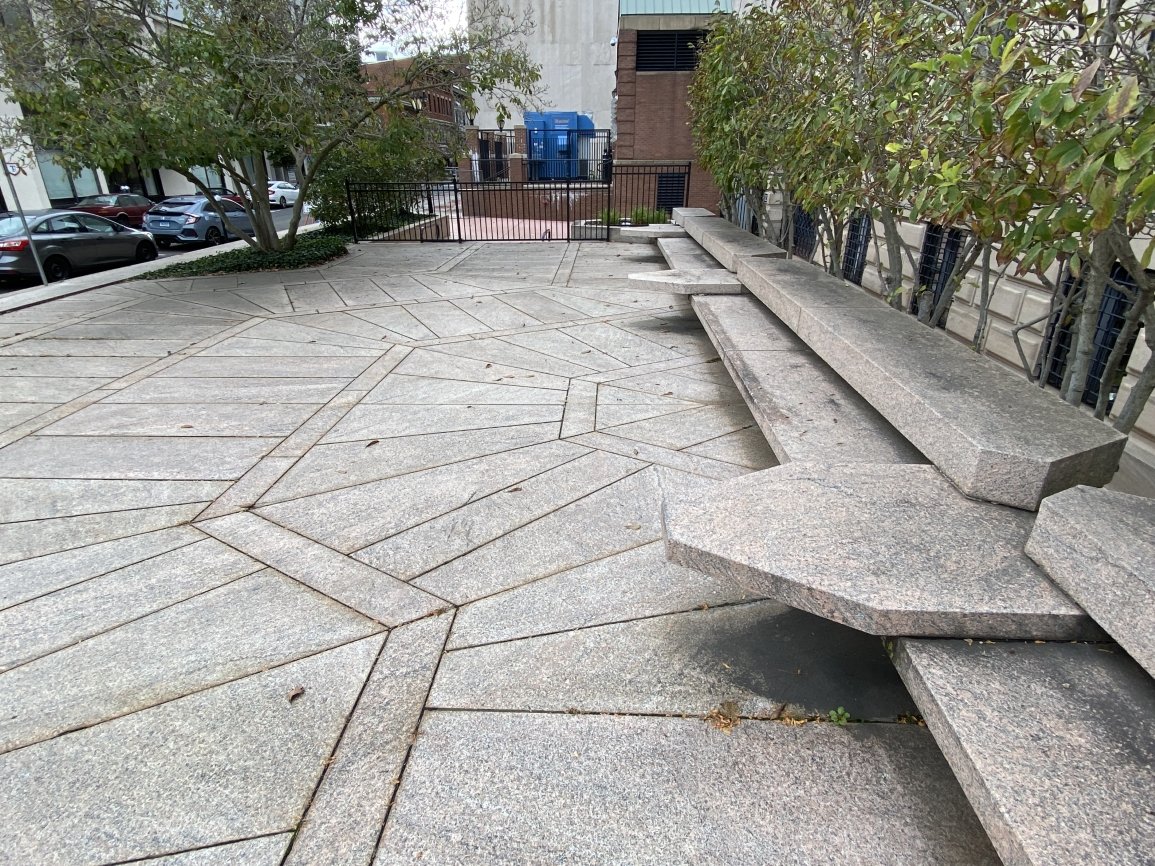

Although the overall project is unbuilt, the EOC (Emergency Operations Center) plaza located at 200 Orange Street is constructed and completed in 1978. The brutalist design is composed of cut stone slabs of Stony Creek Granite on top of reinforced, cast-in-place concrete.
“Paul Rudolph’s design for the New Haven Government Center is the most sophisticated kind of urban in-fill: it creates new buildings sympathetic to the old in color, massing and character - and adds some fine new outdoor spaces.”
DRAWINGS - Design Drawings / Renderings
DRAWINGS - Construction Drawings
DRAWINGS - Shop Drawings

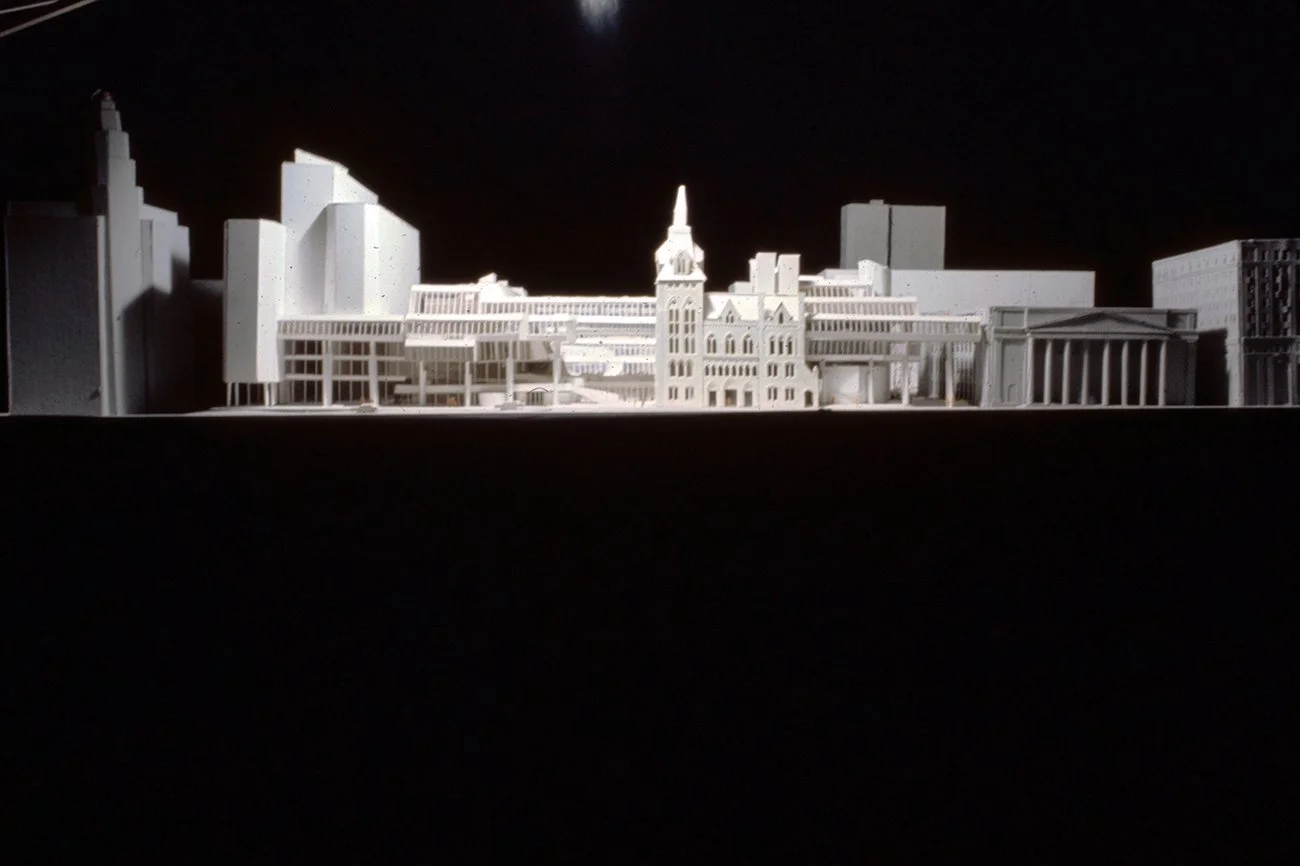

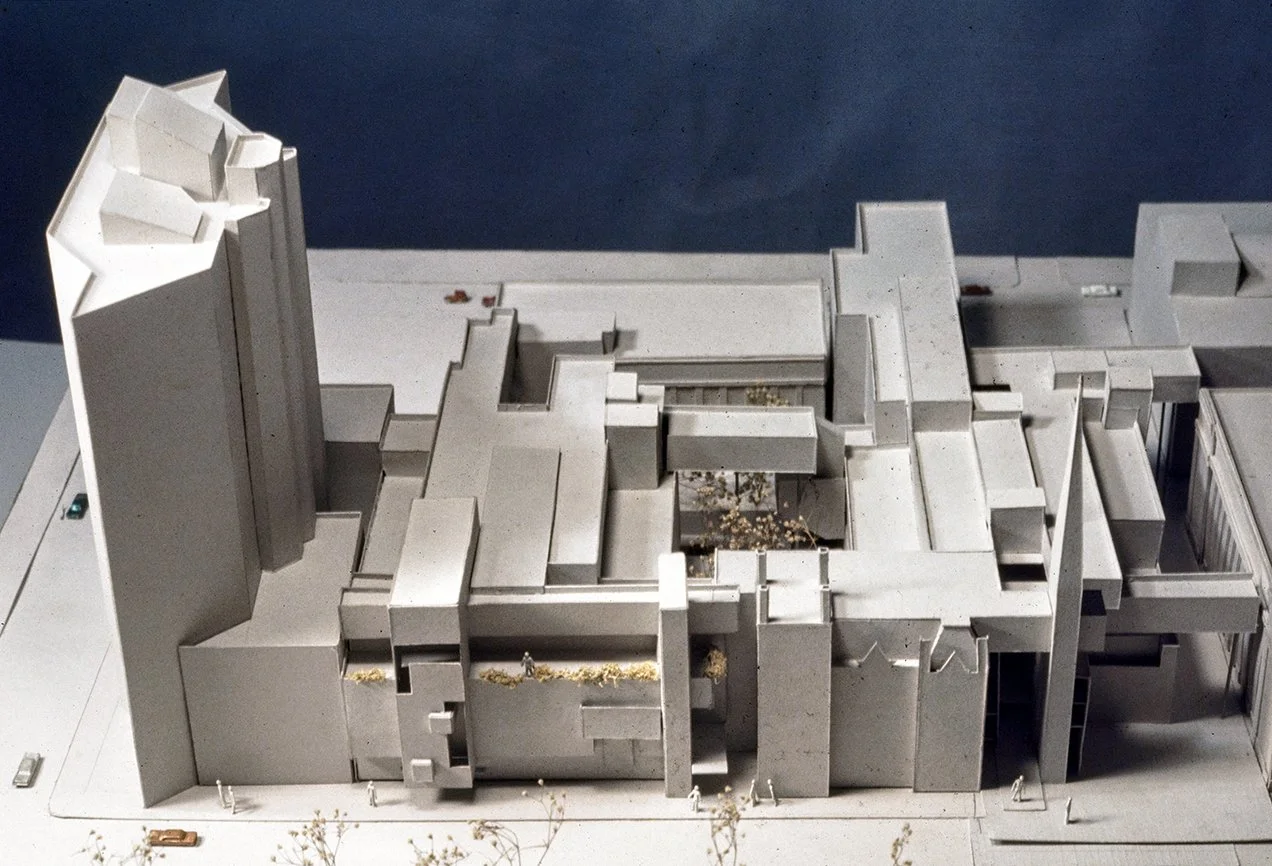

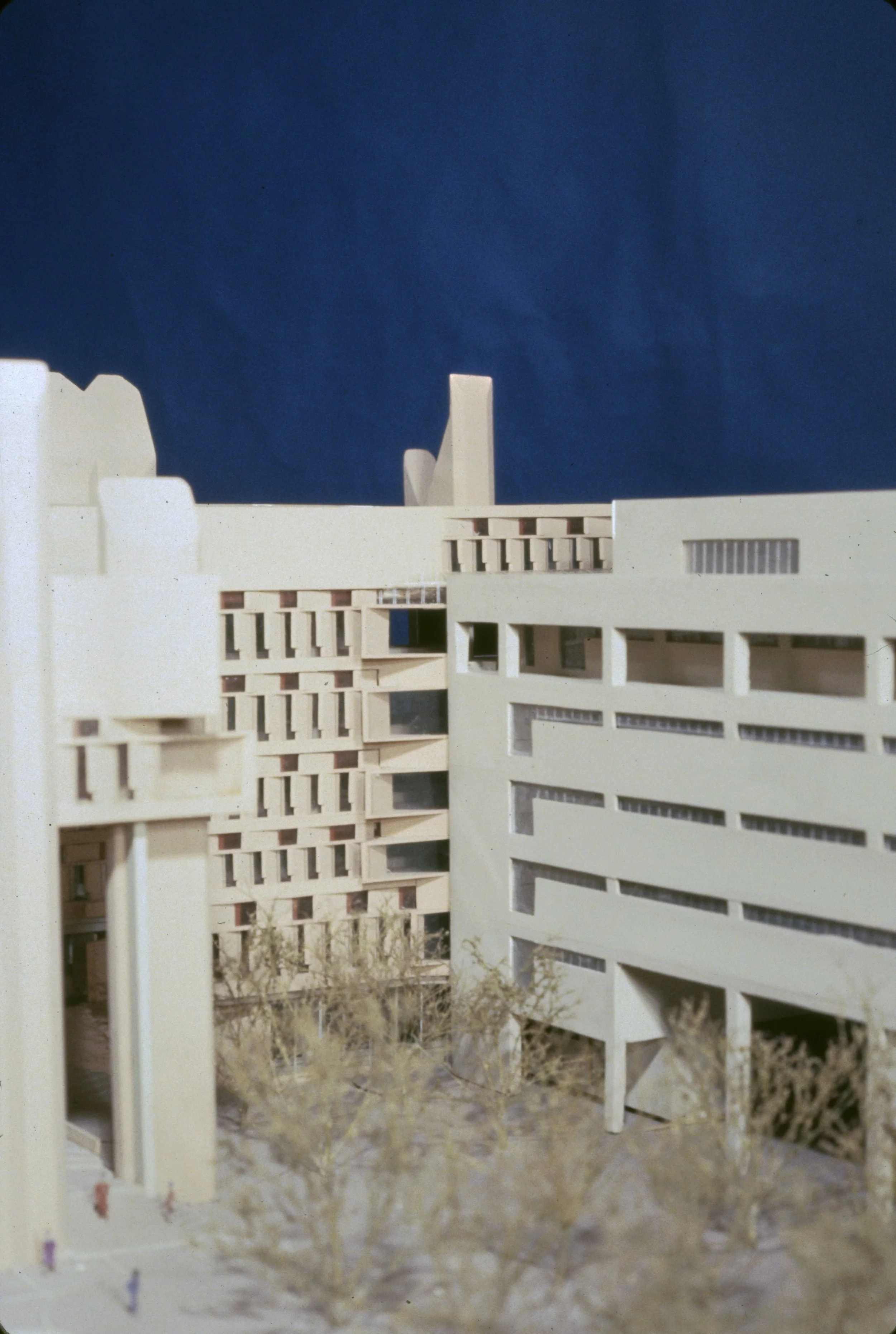

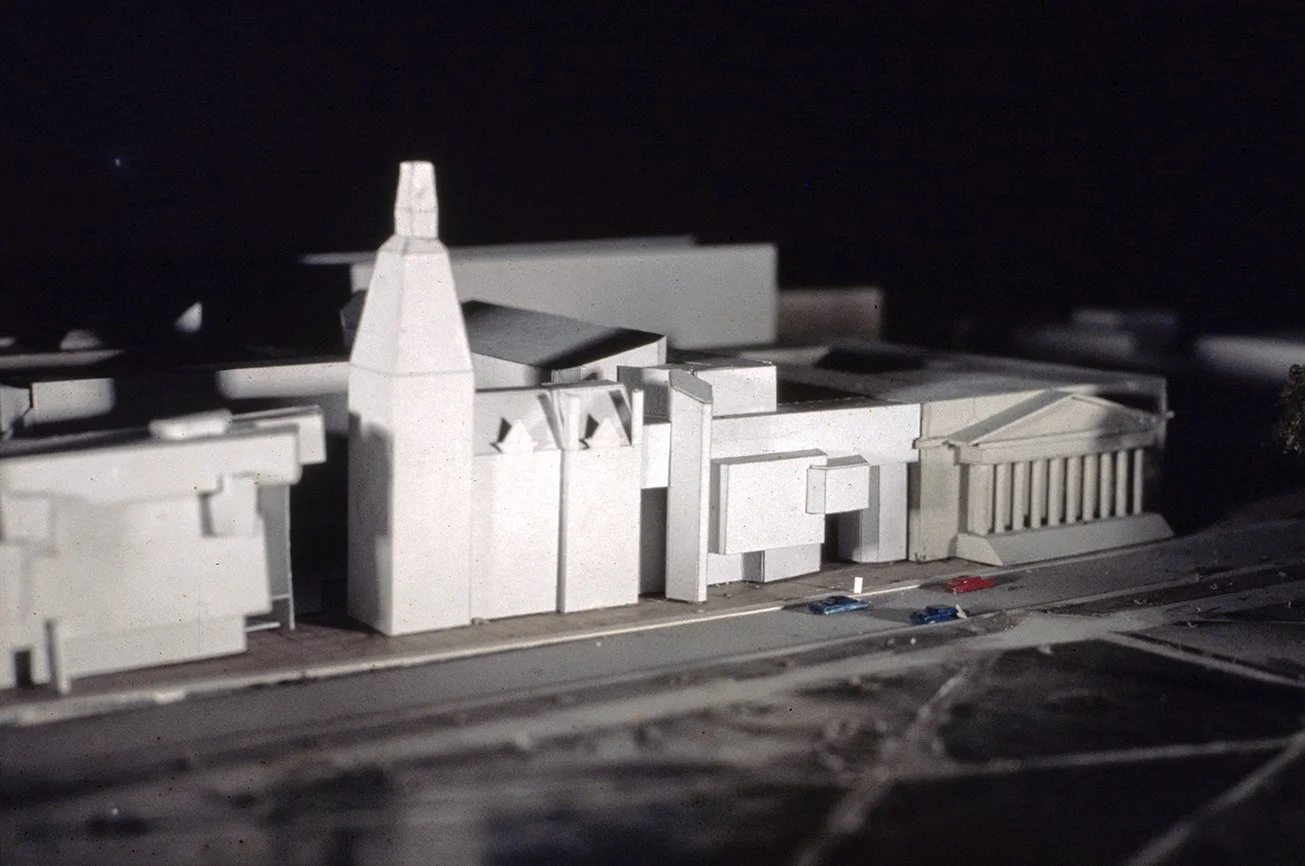

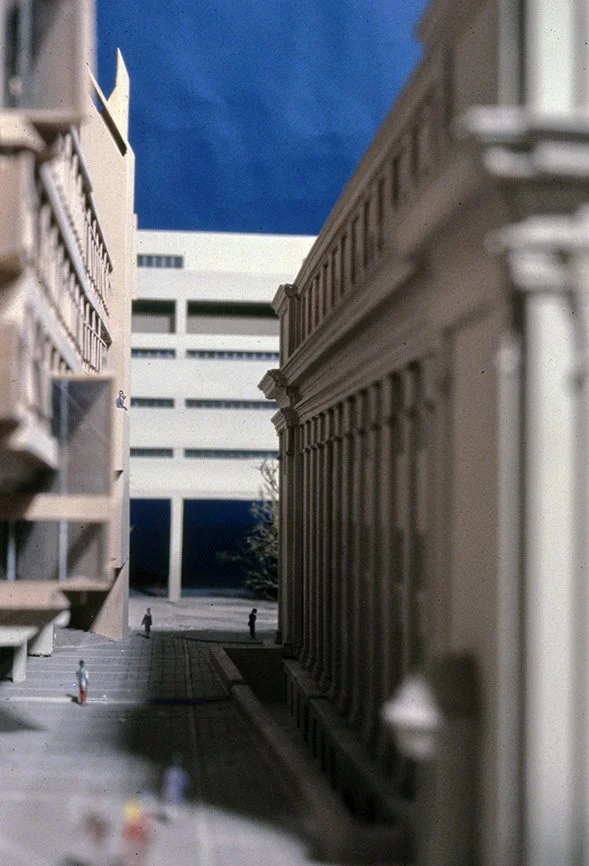

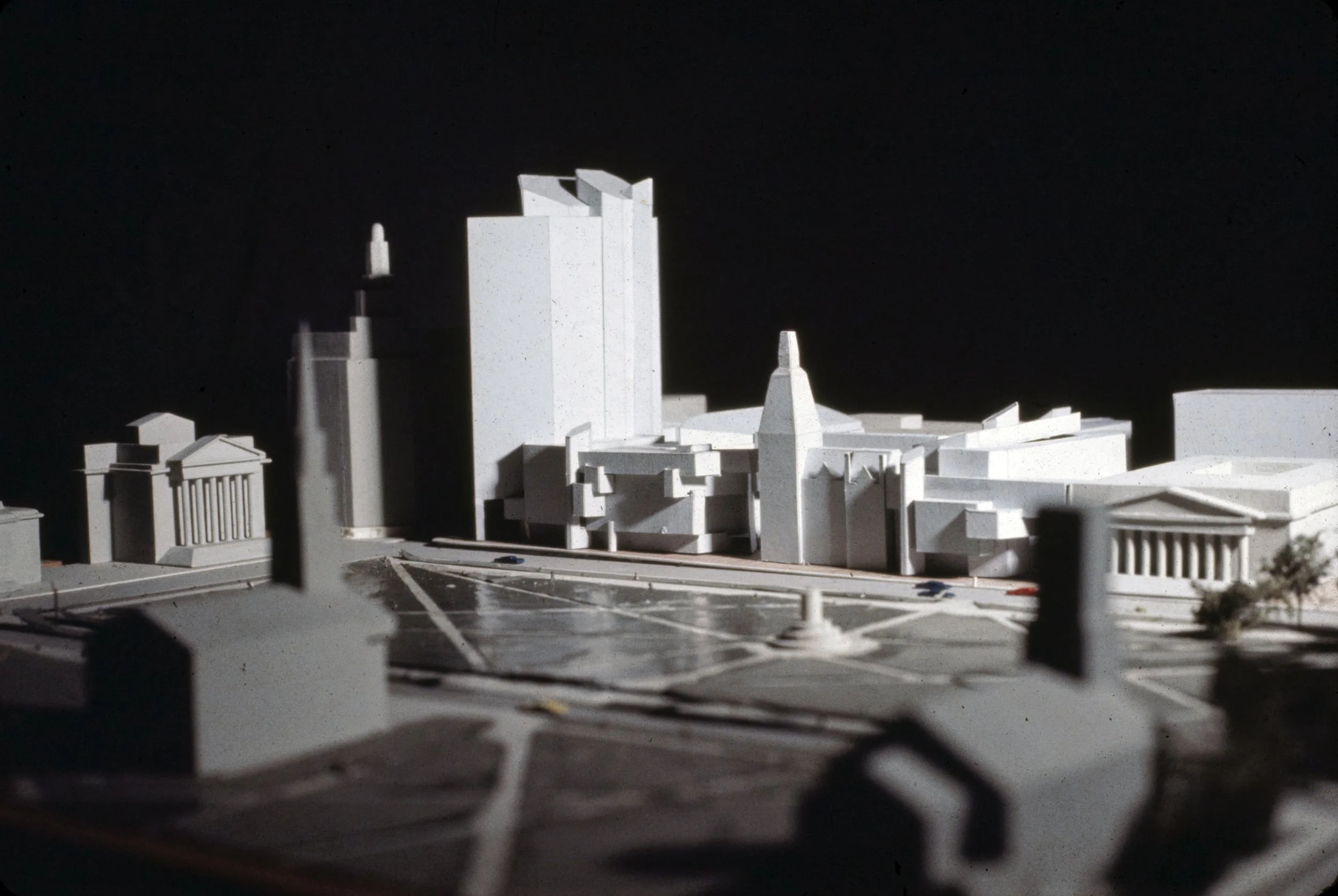

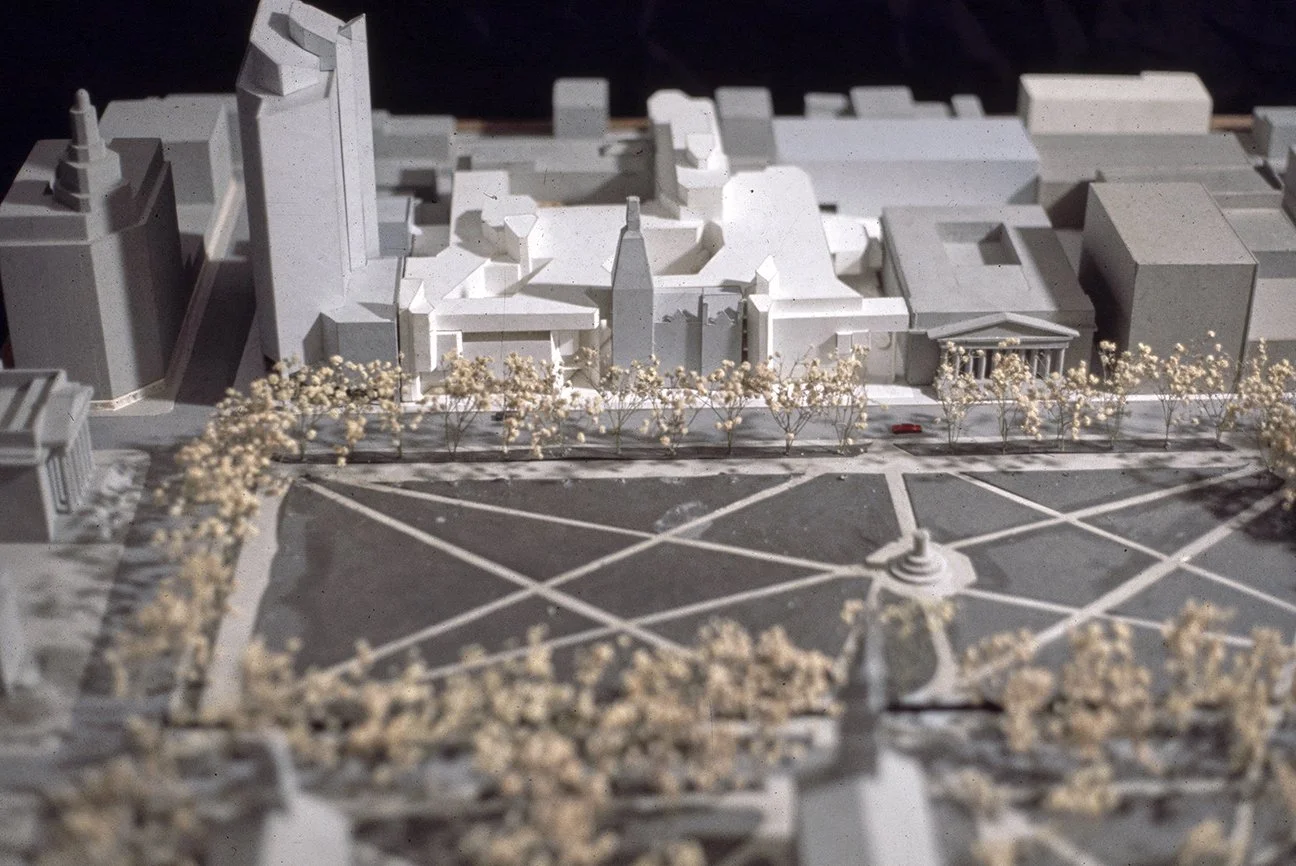

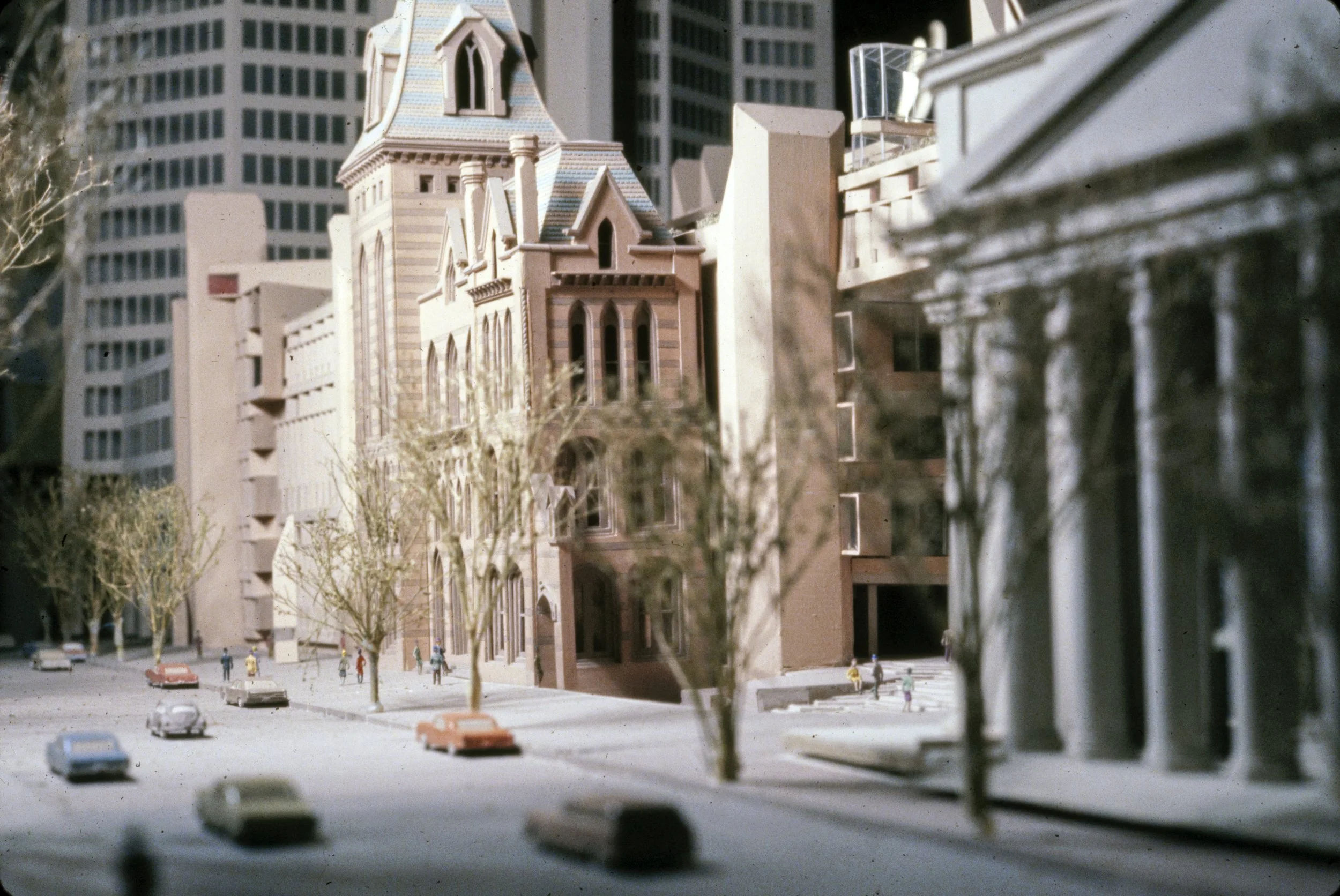

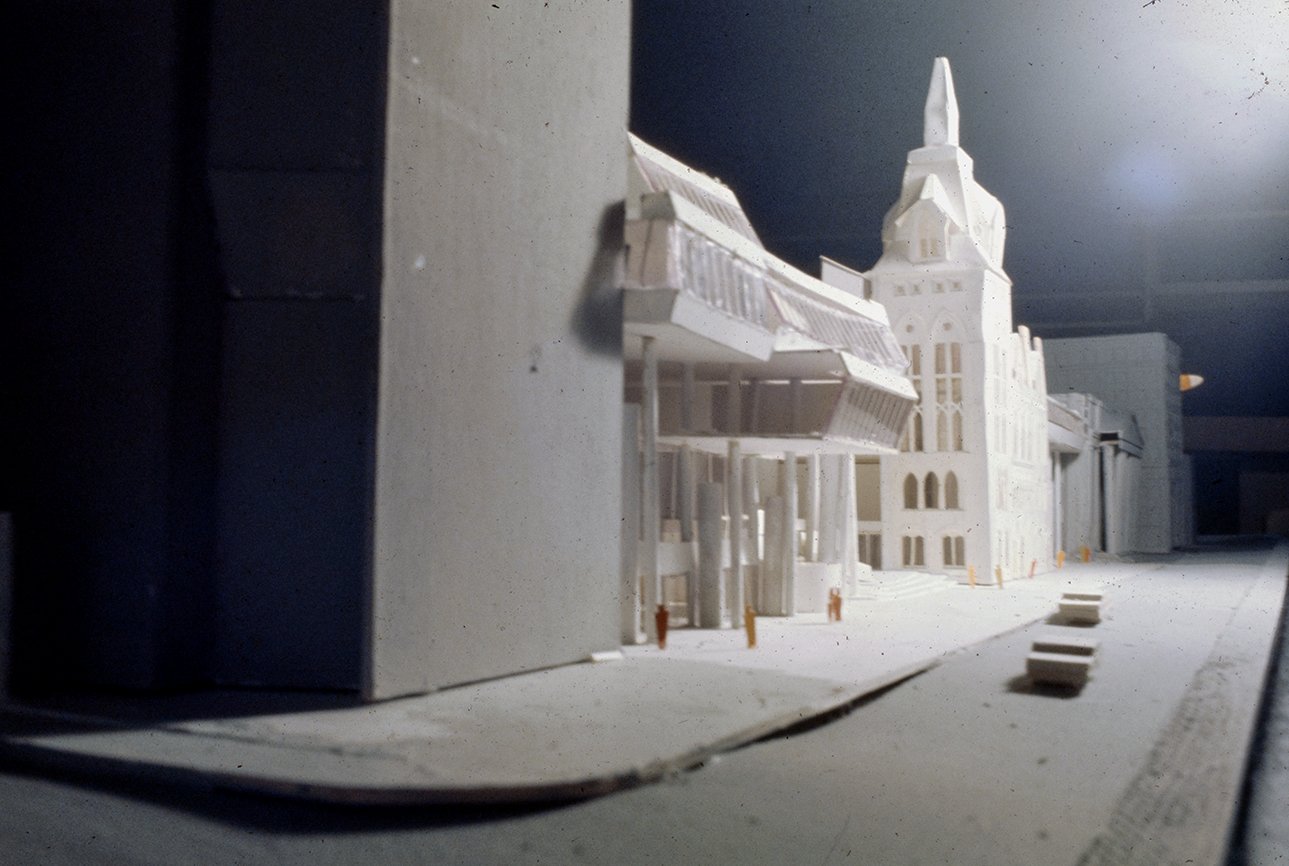

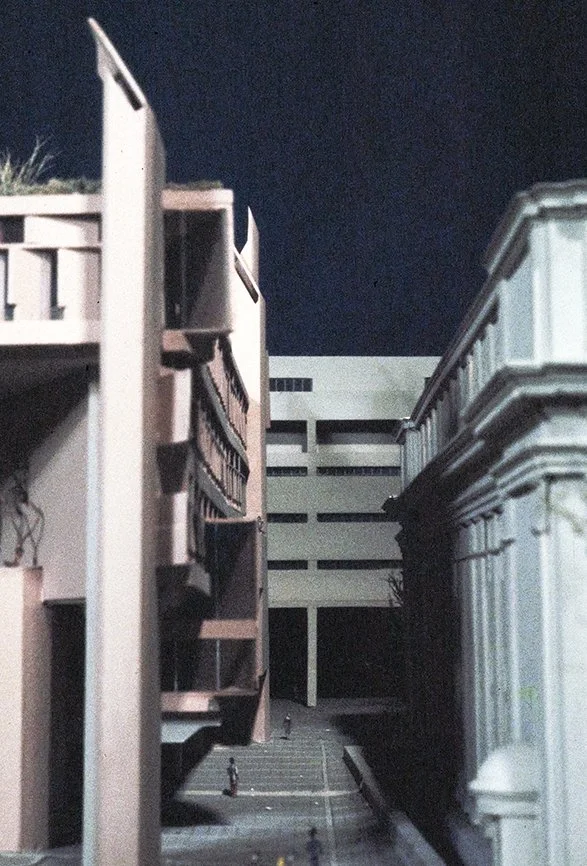

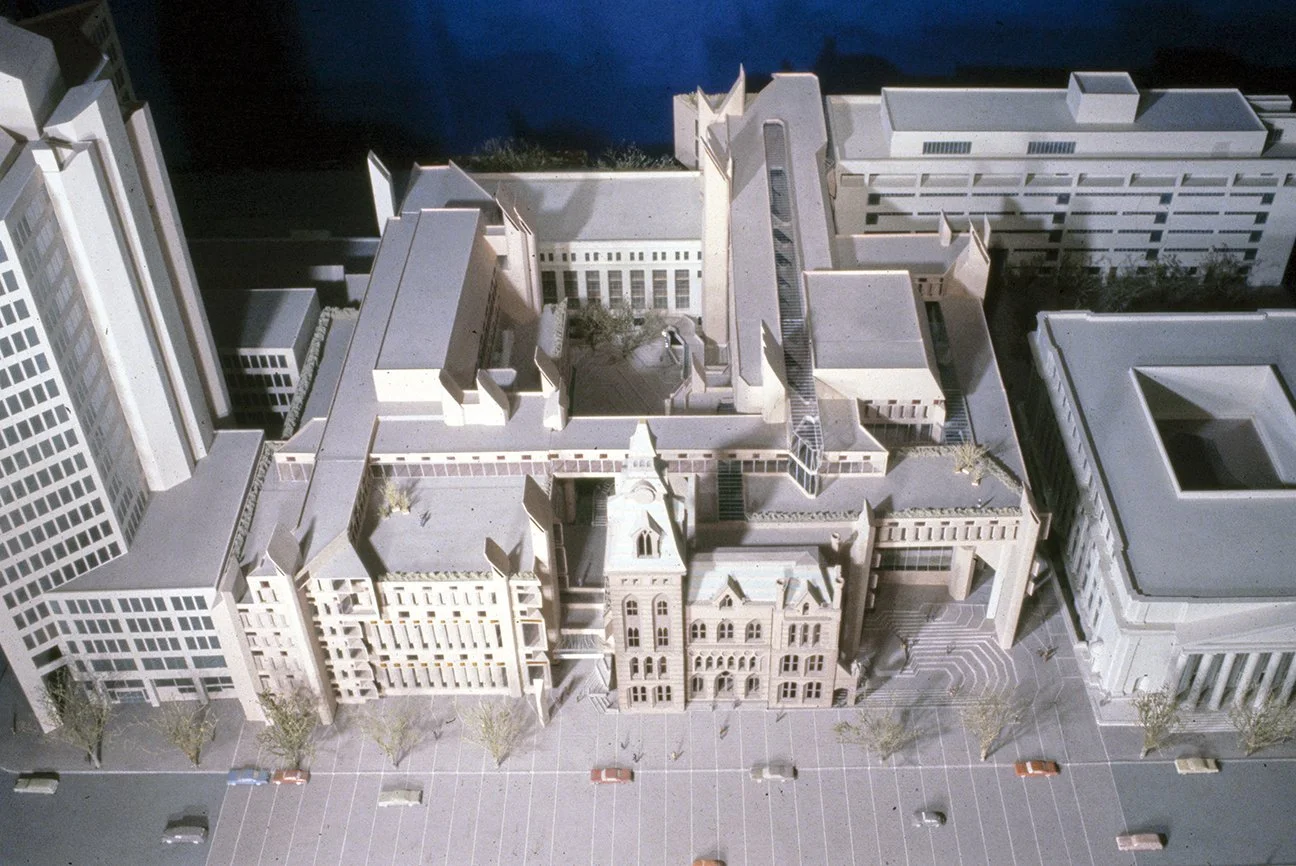

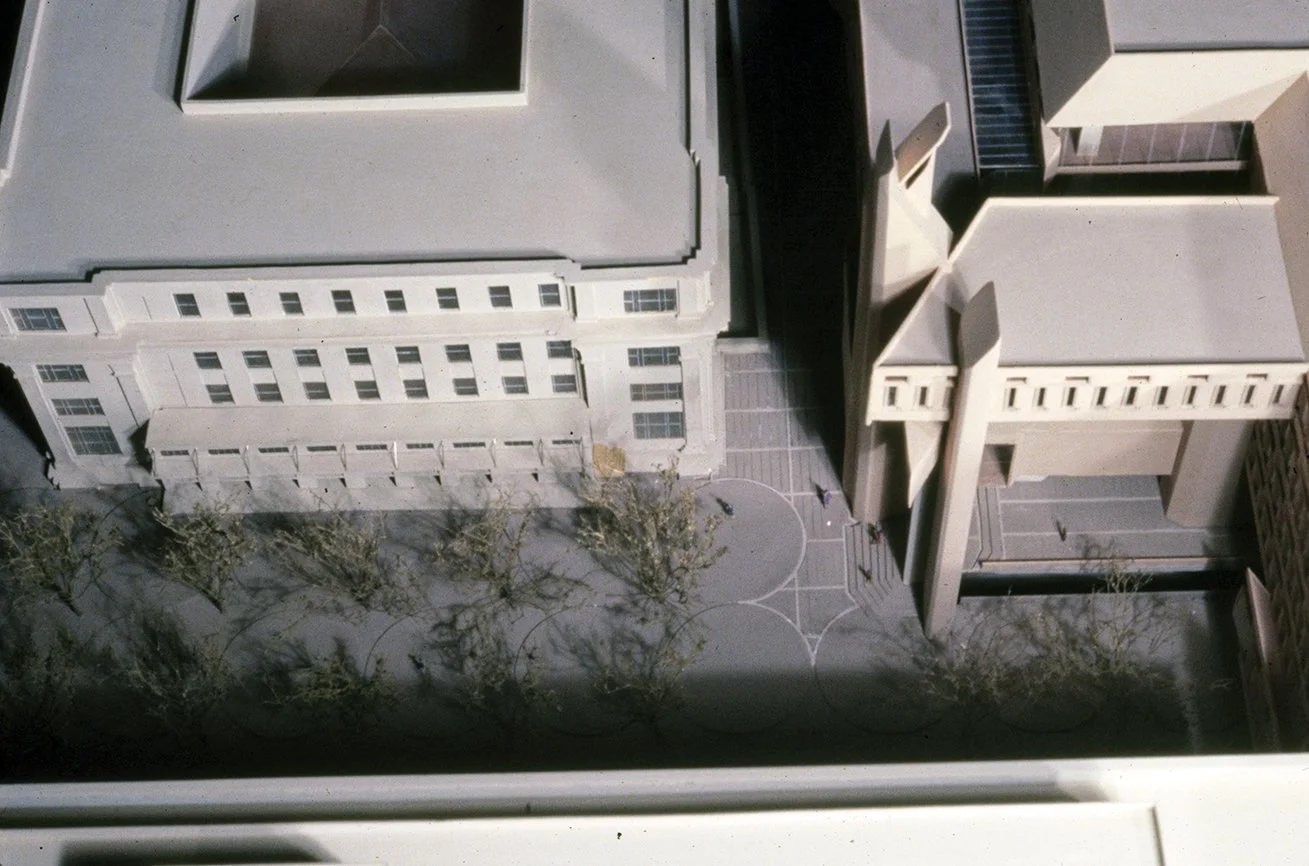

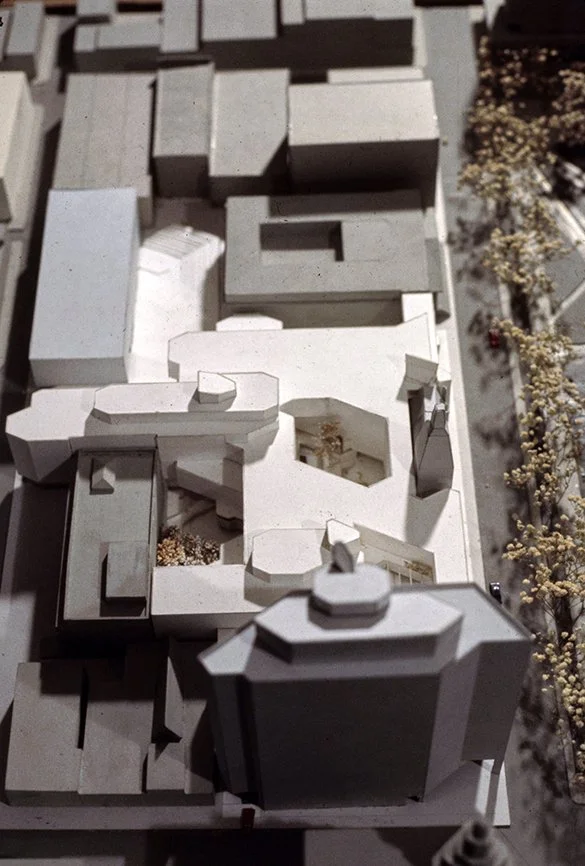

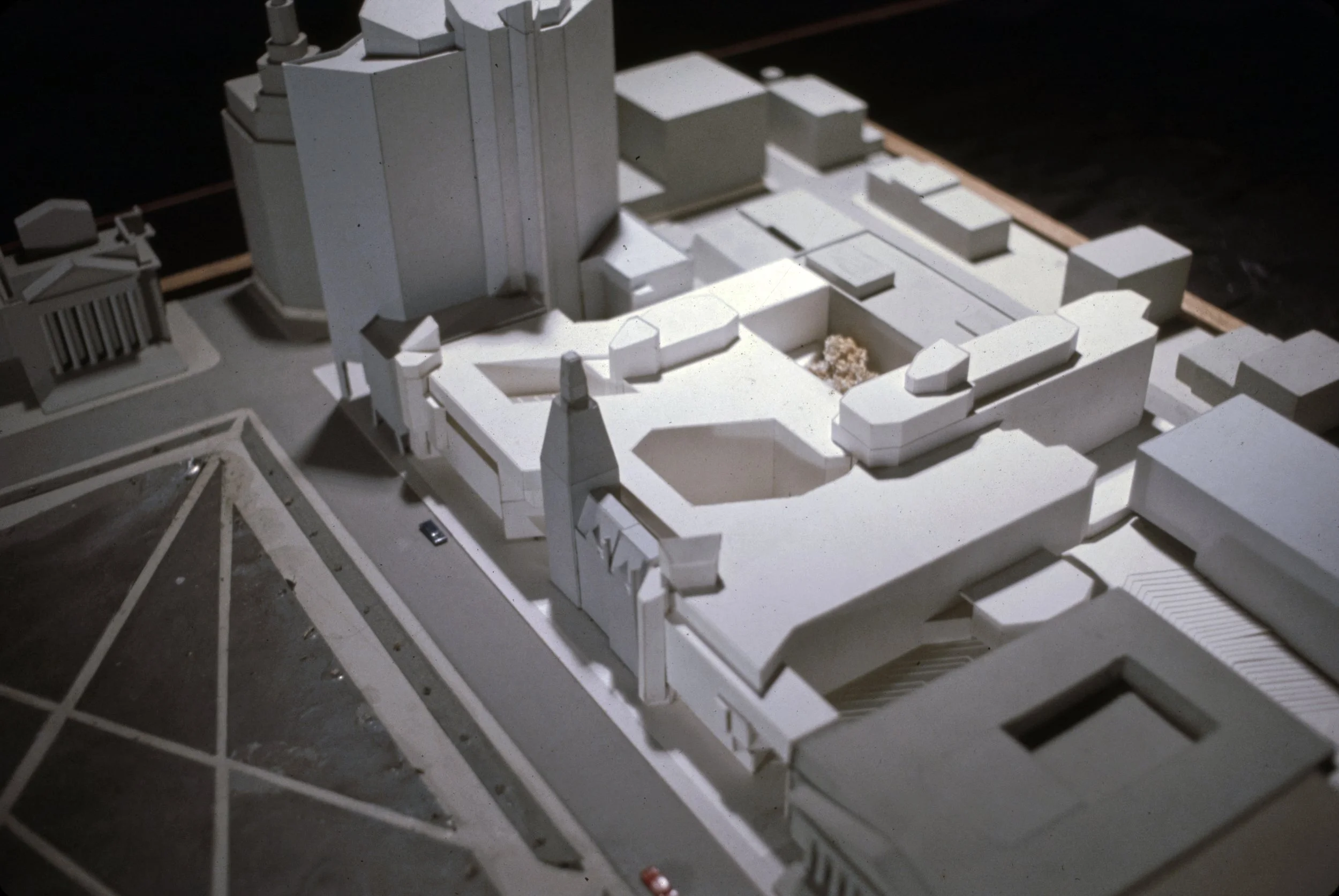

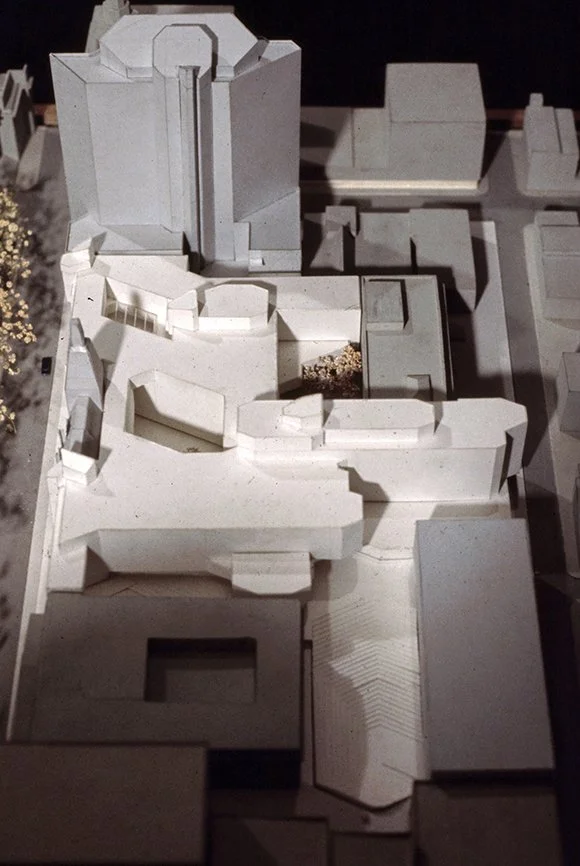

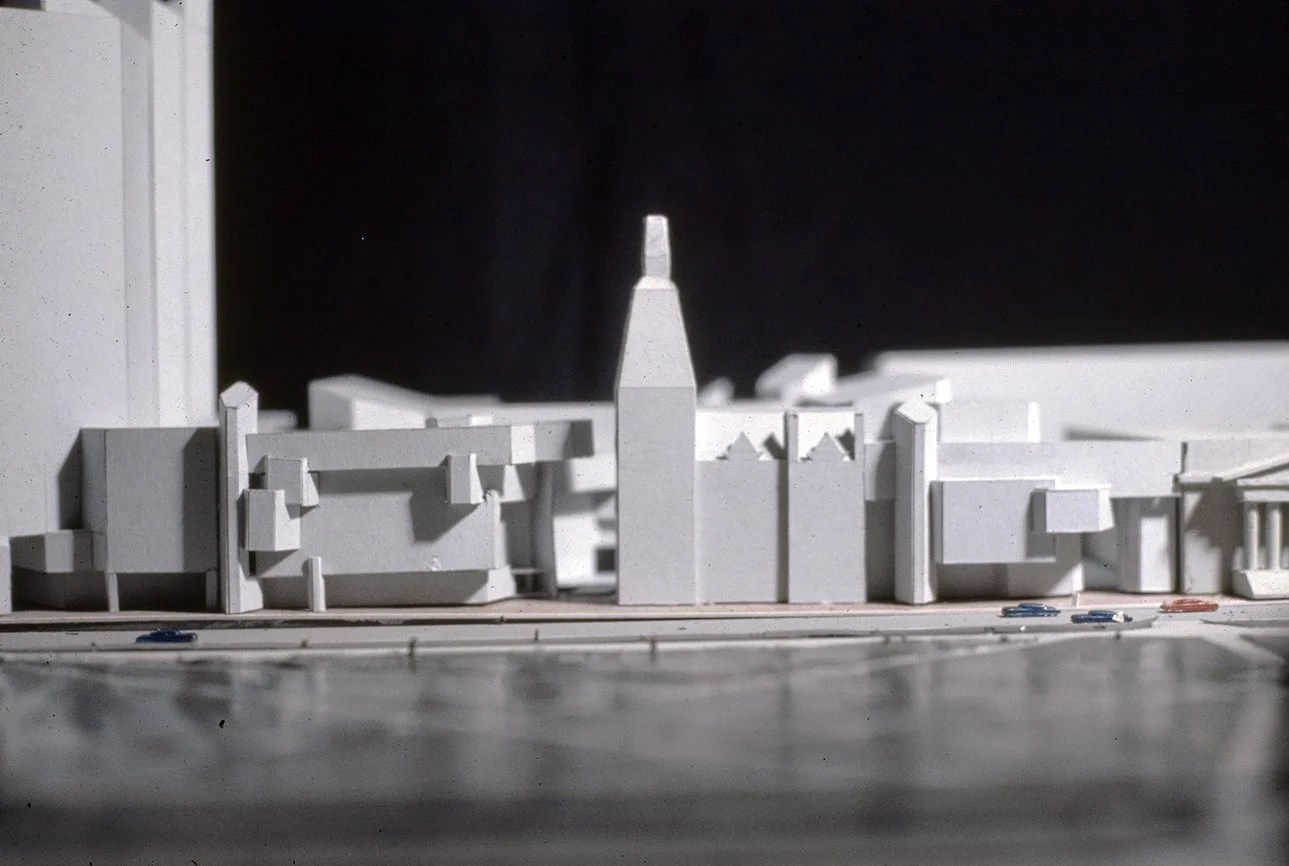

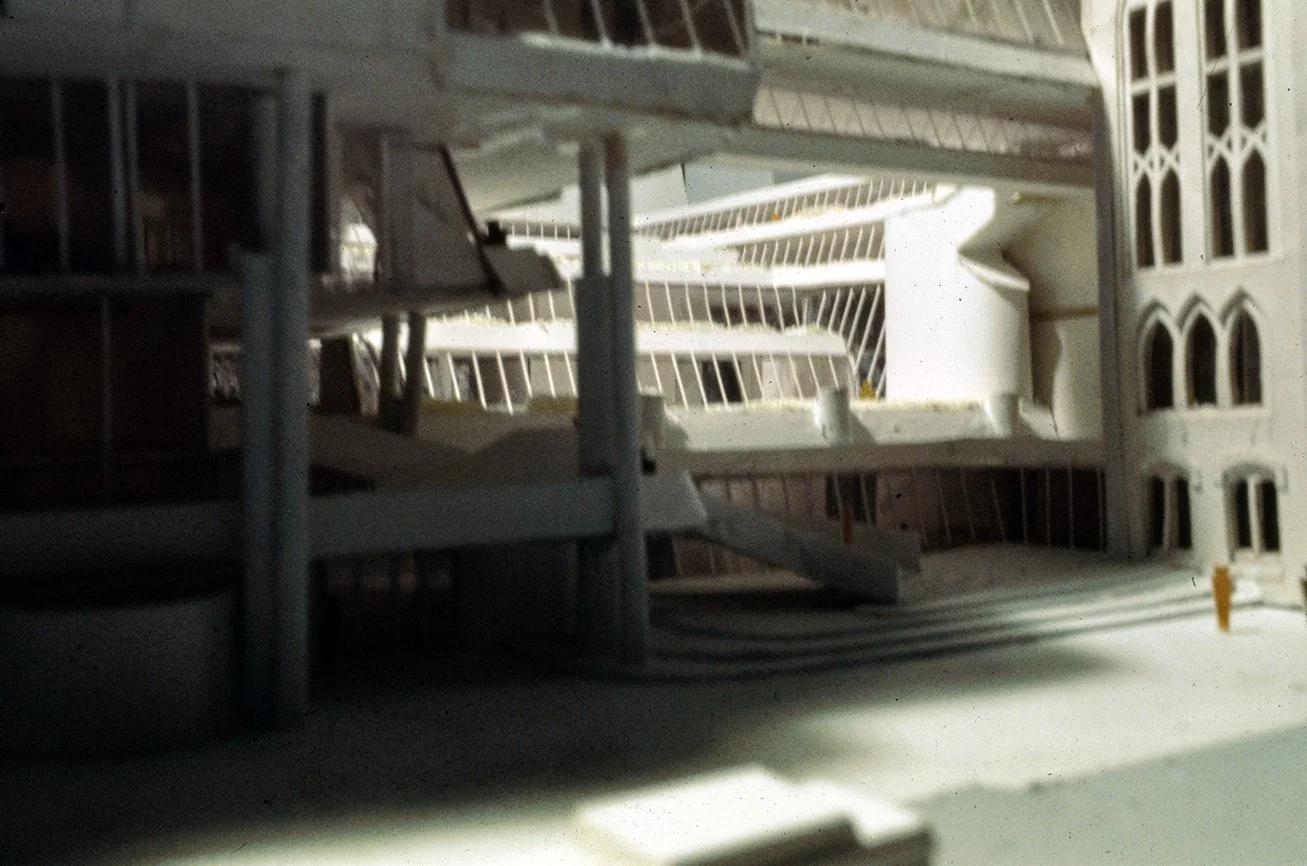

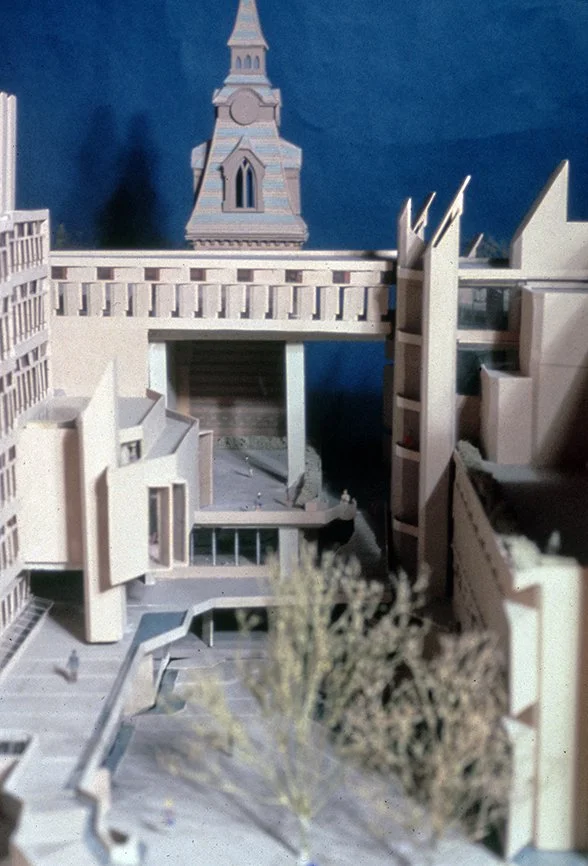

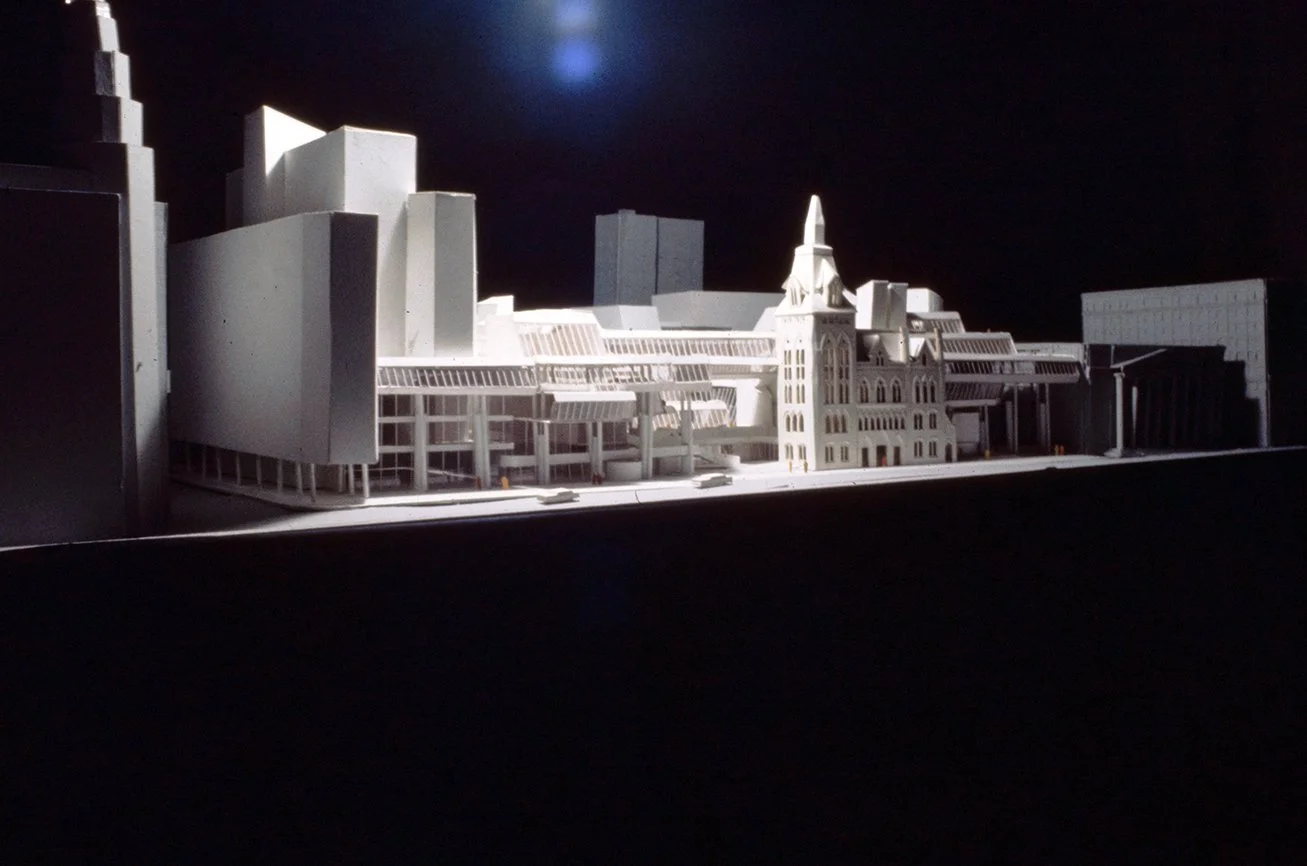

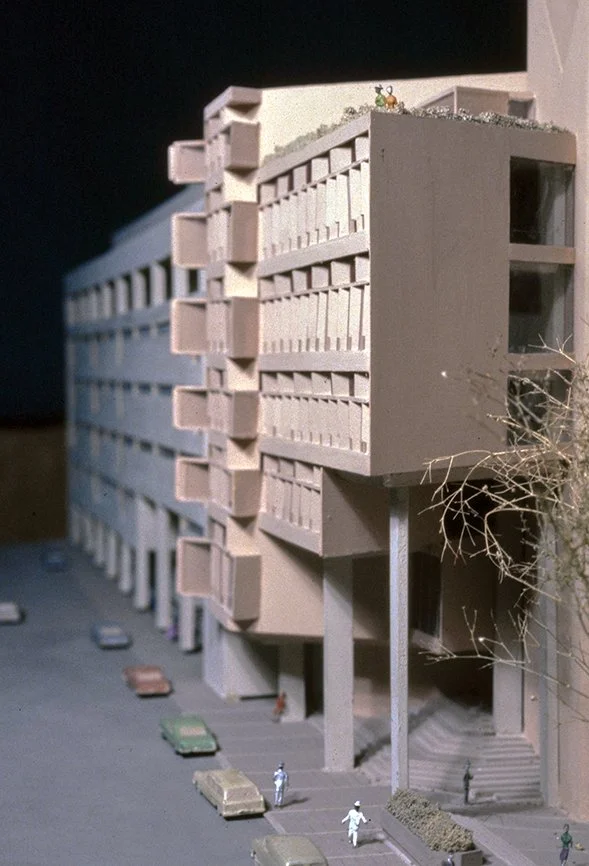

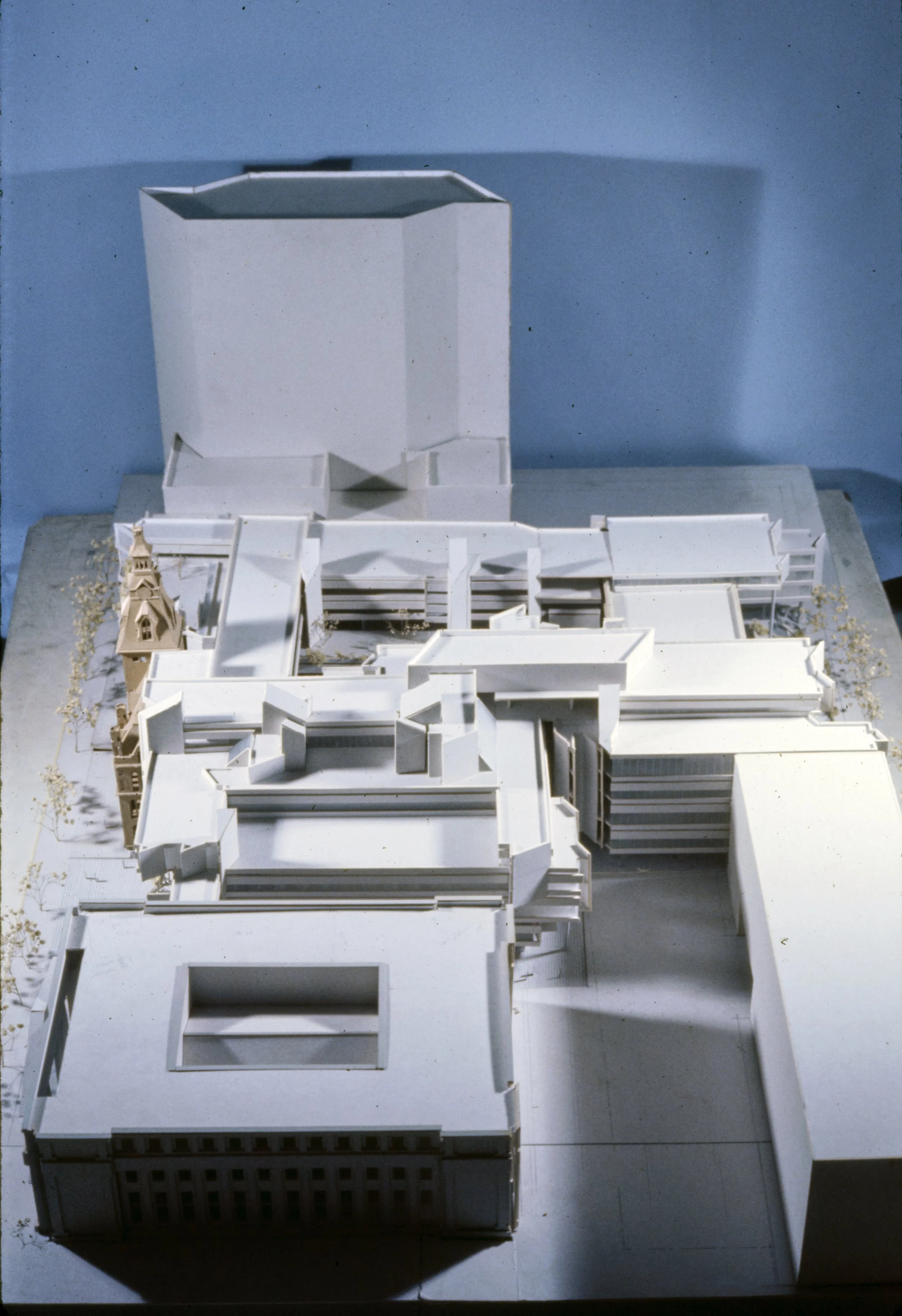

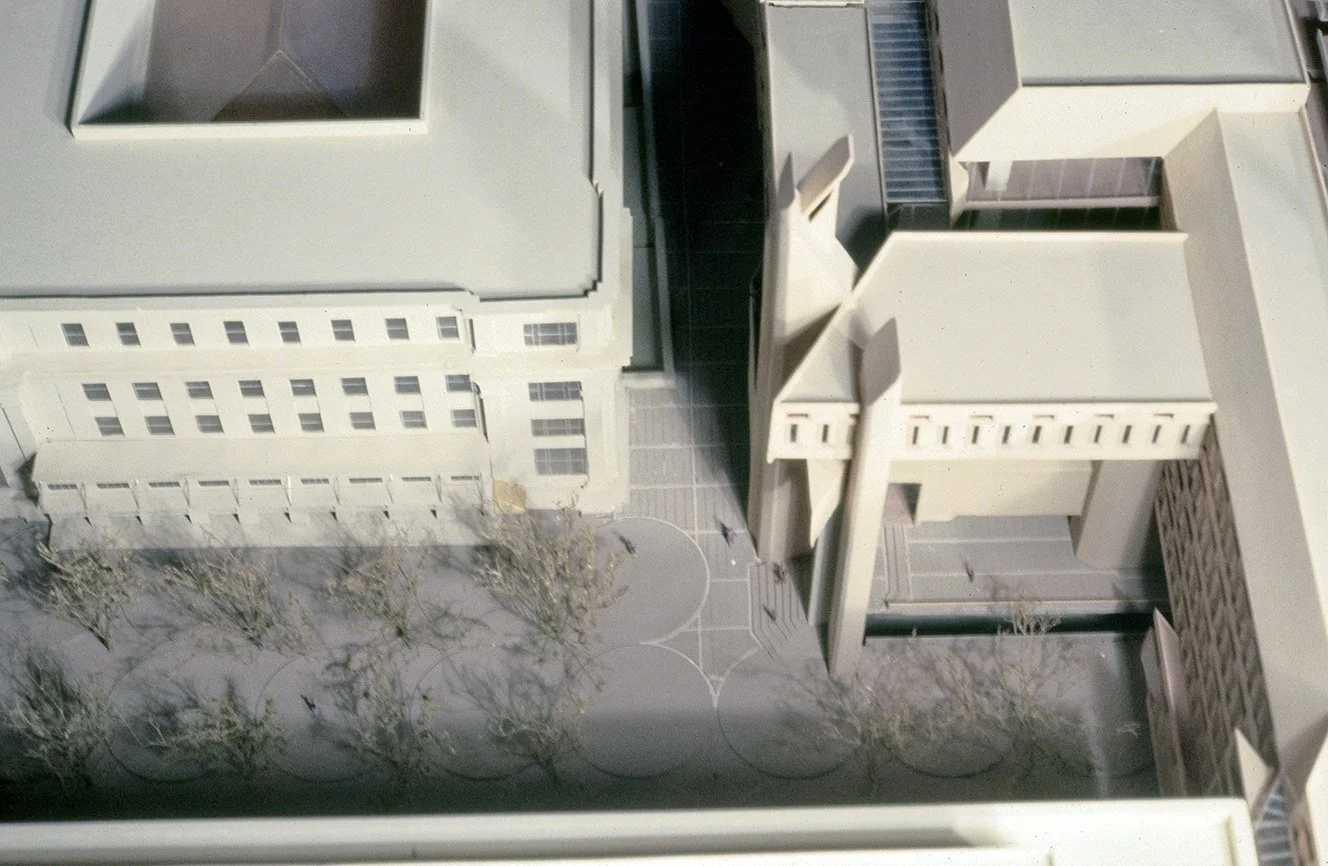

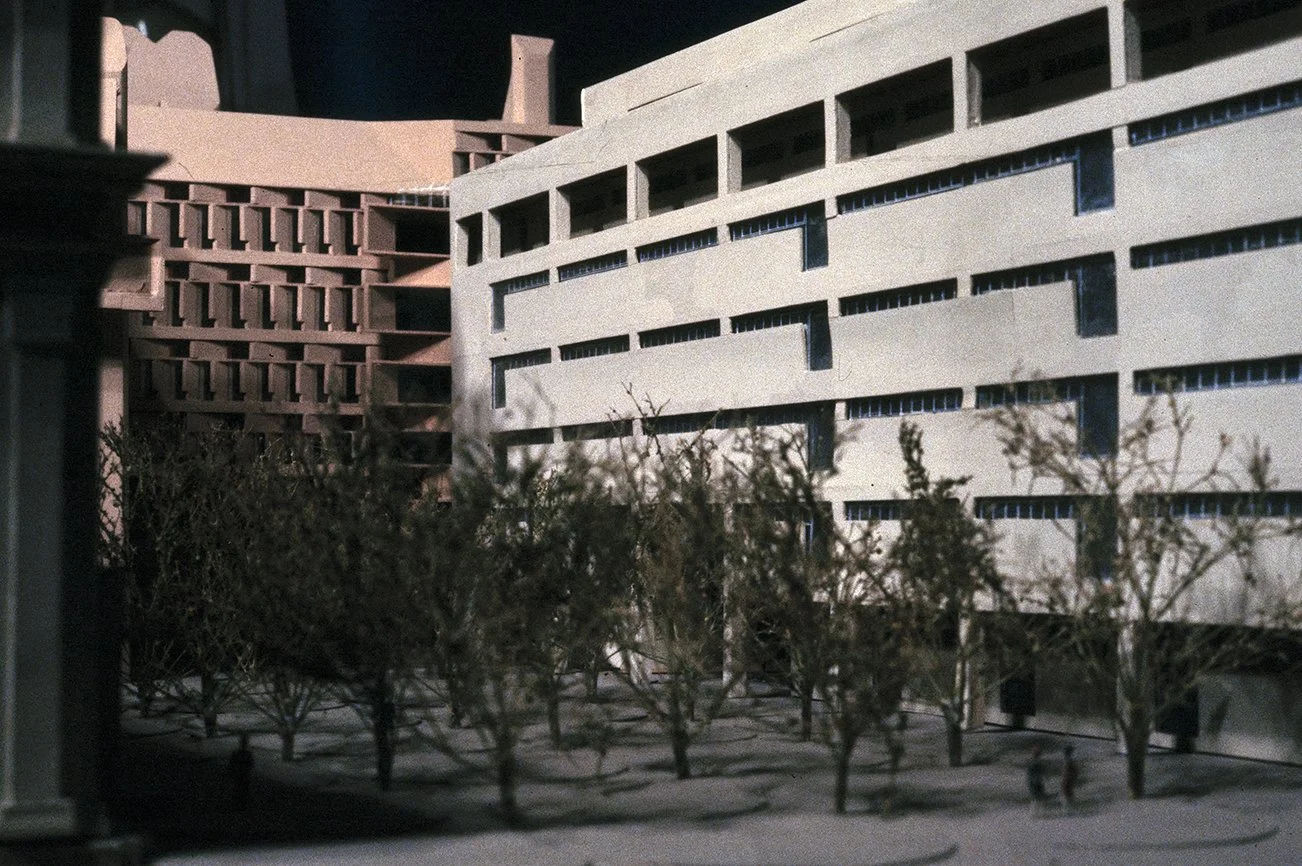

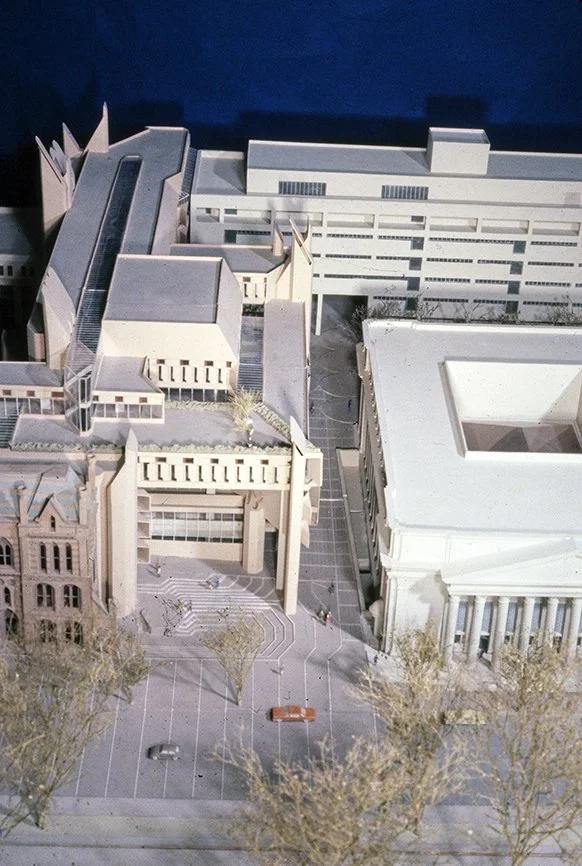

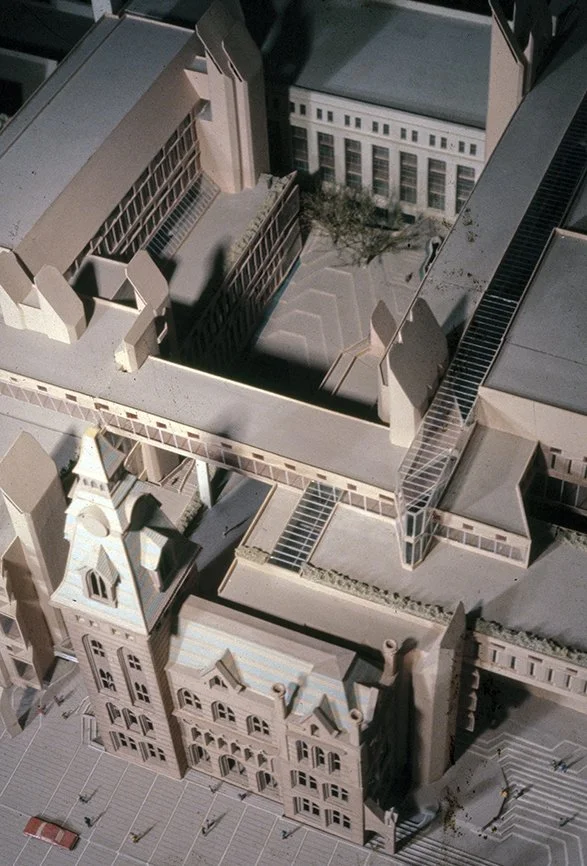

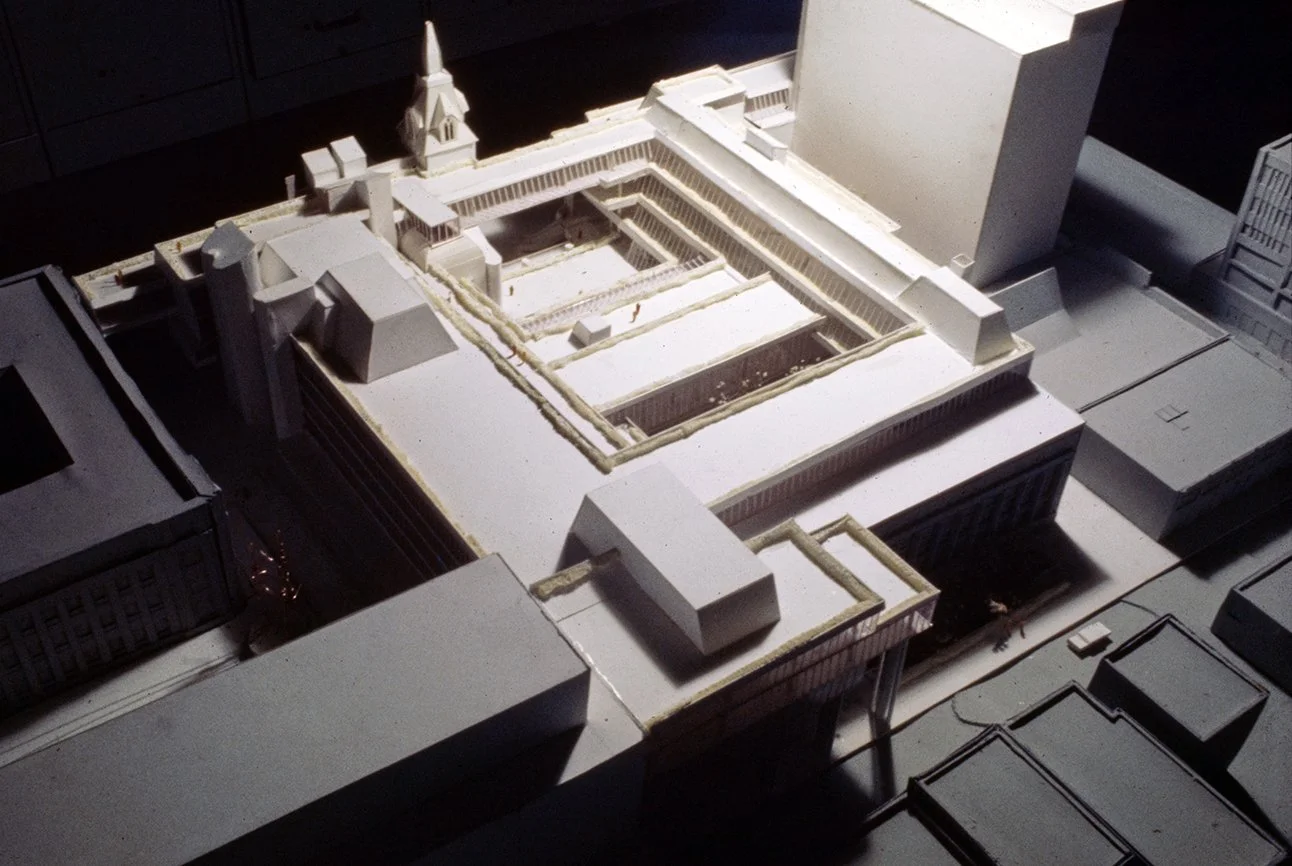

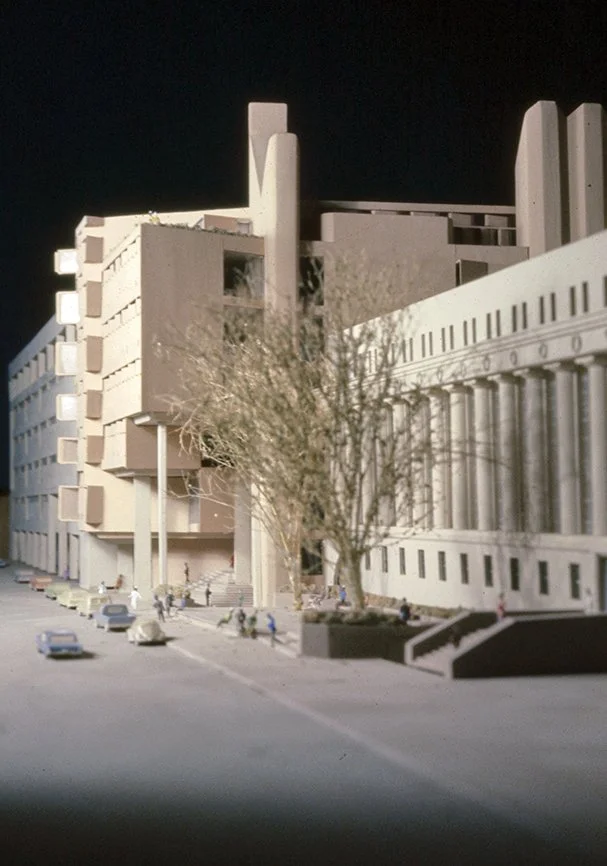

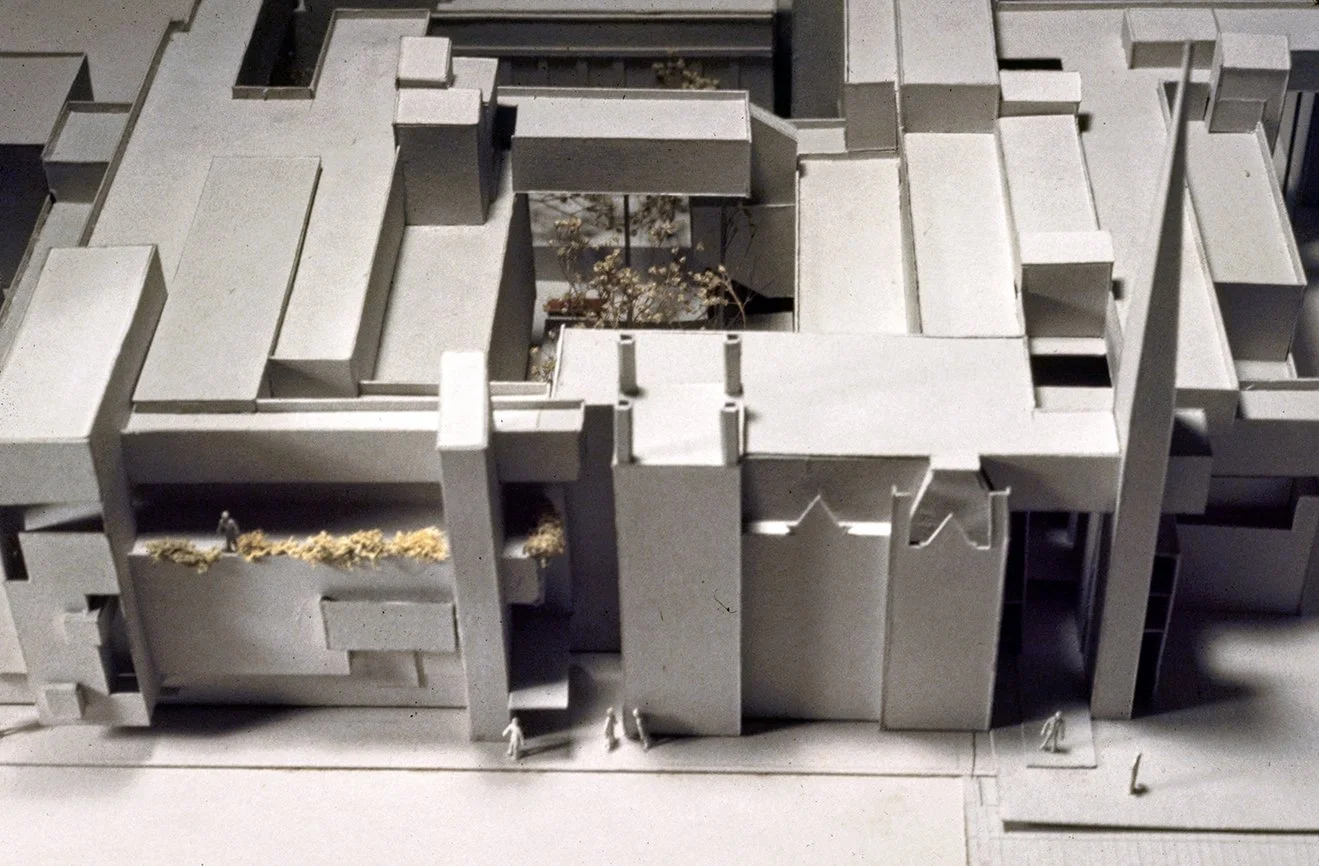

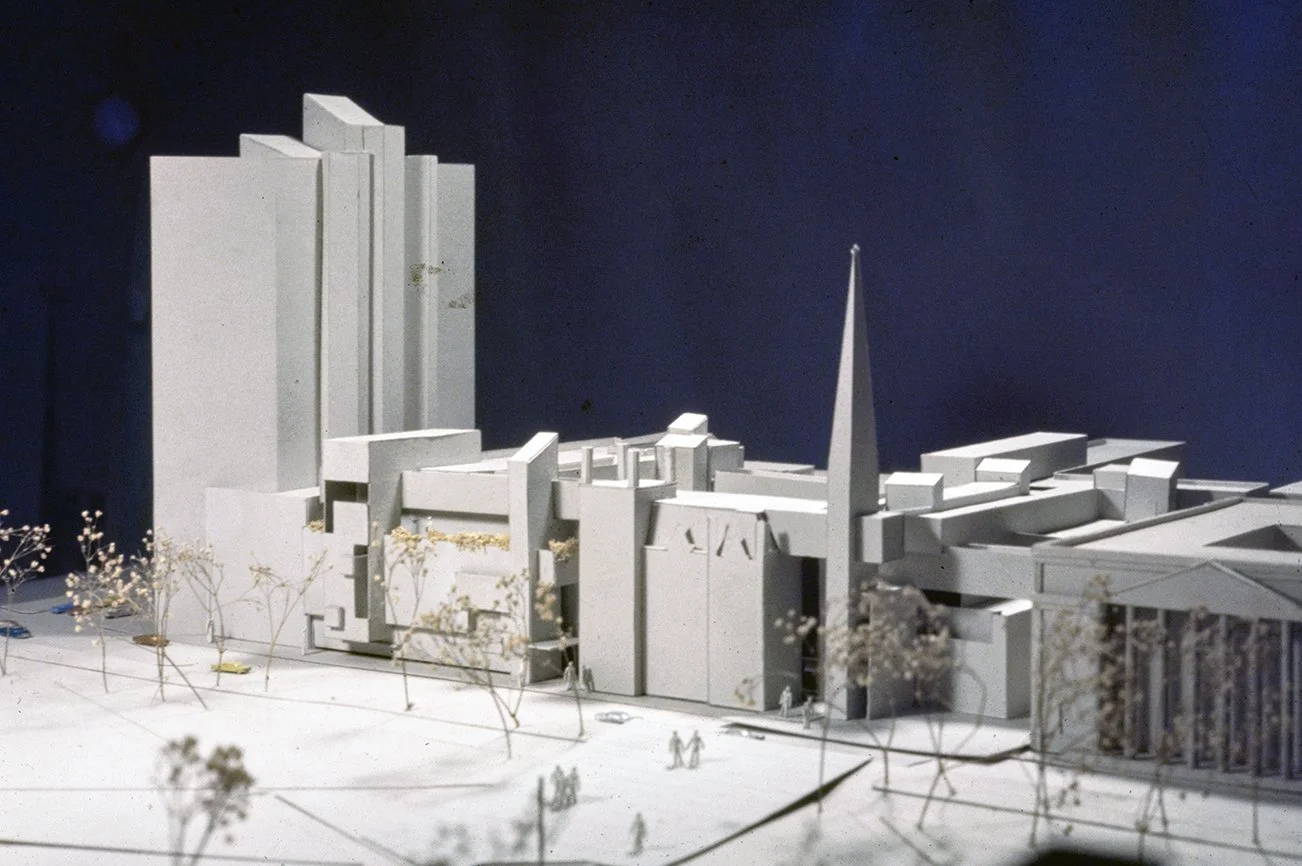

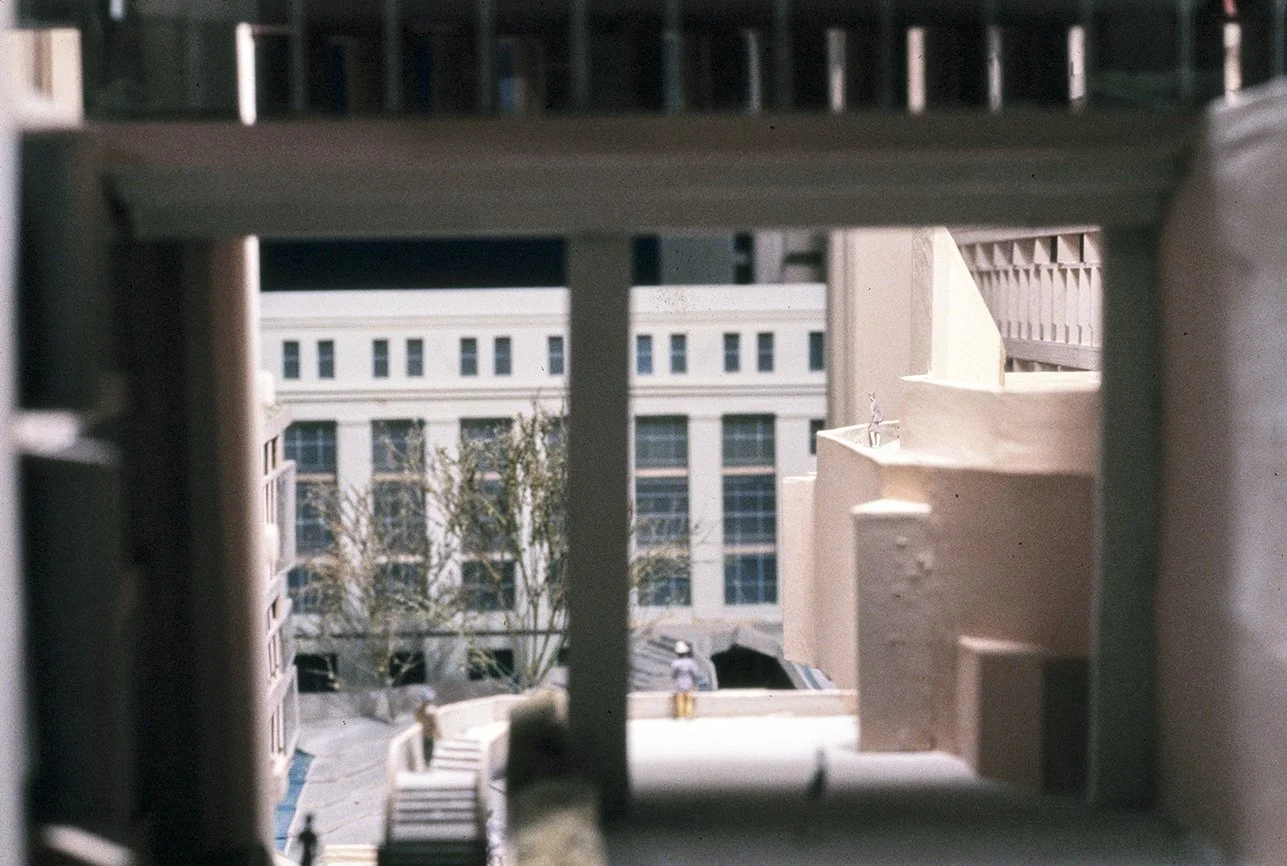

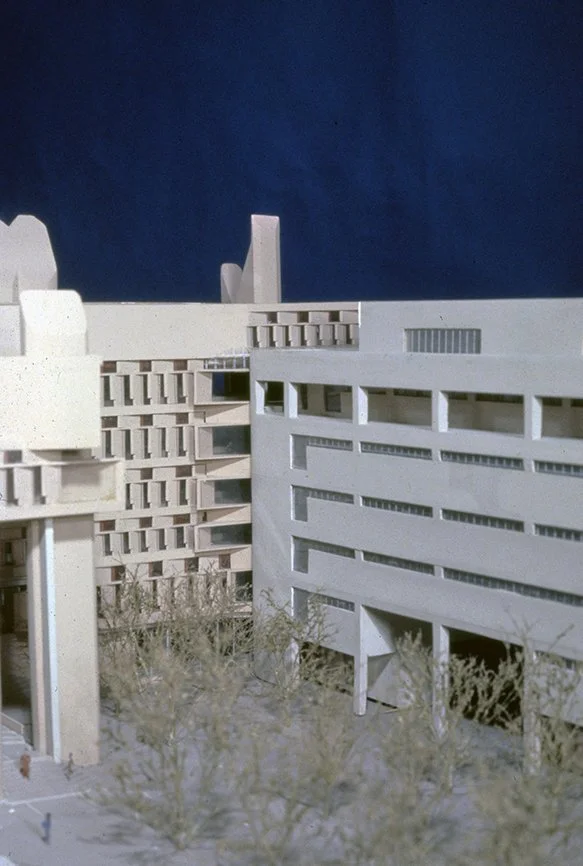

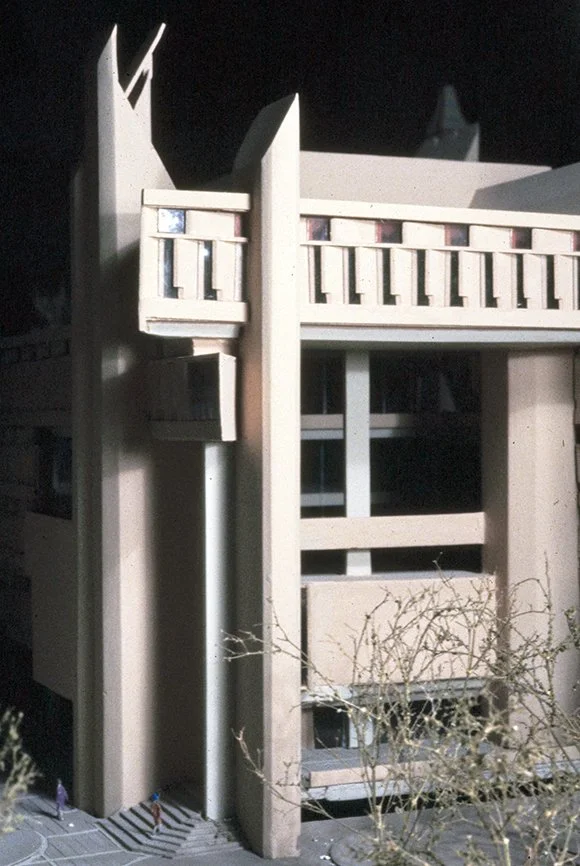

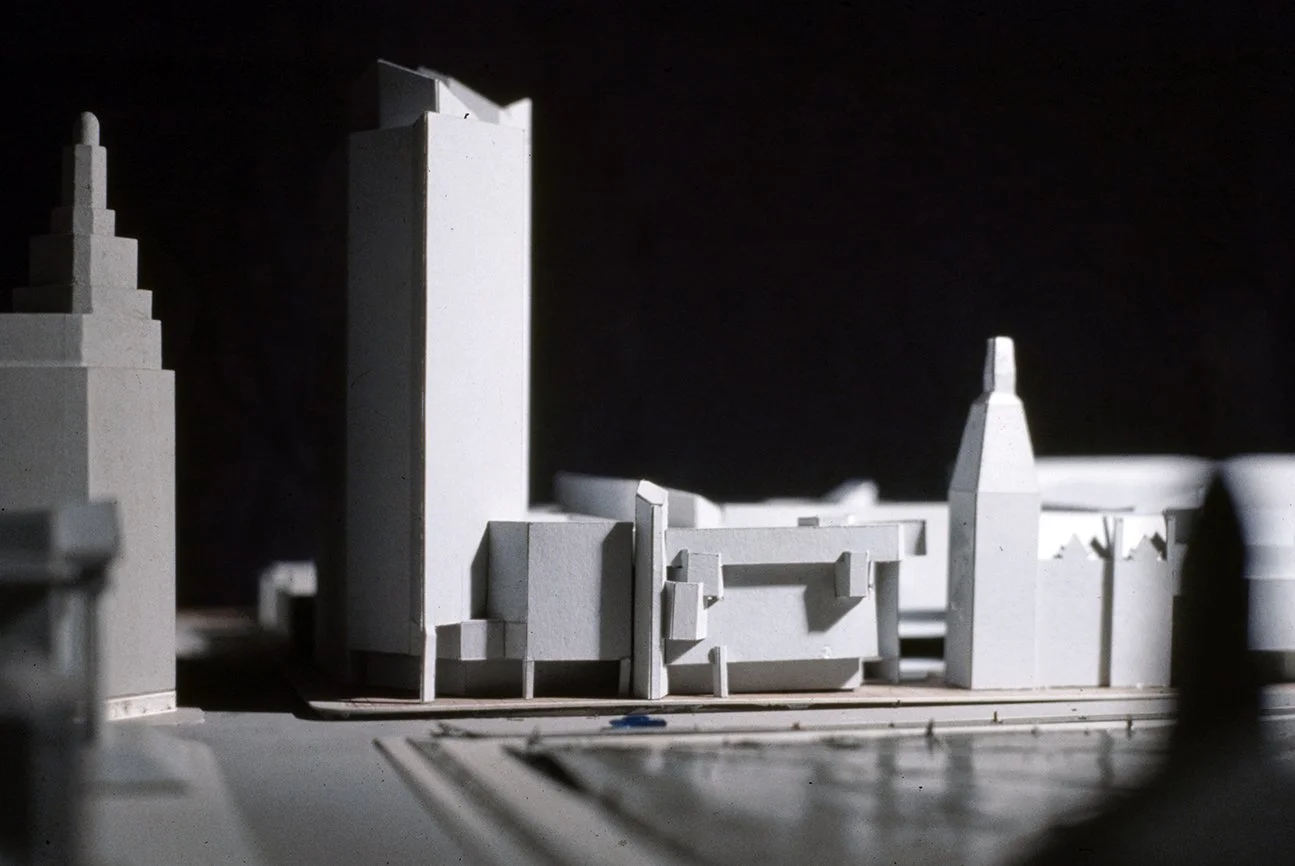

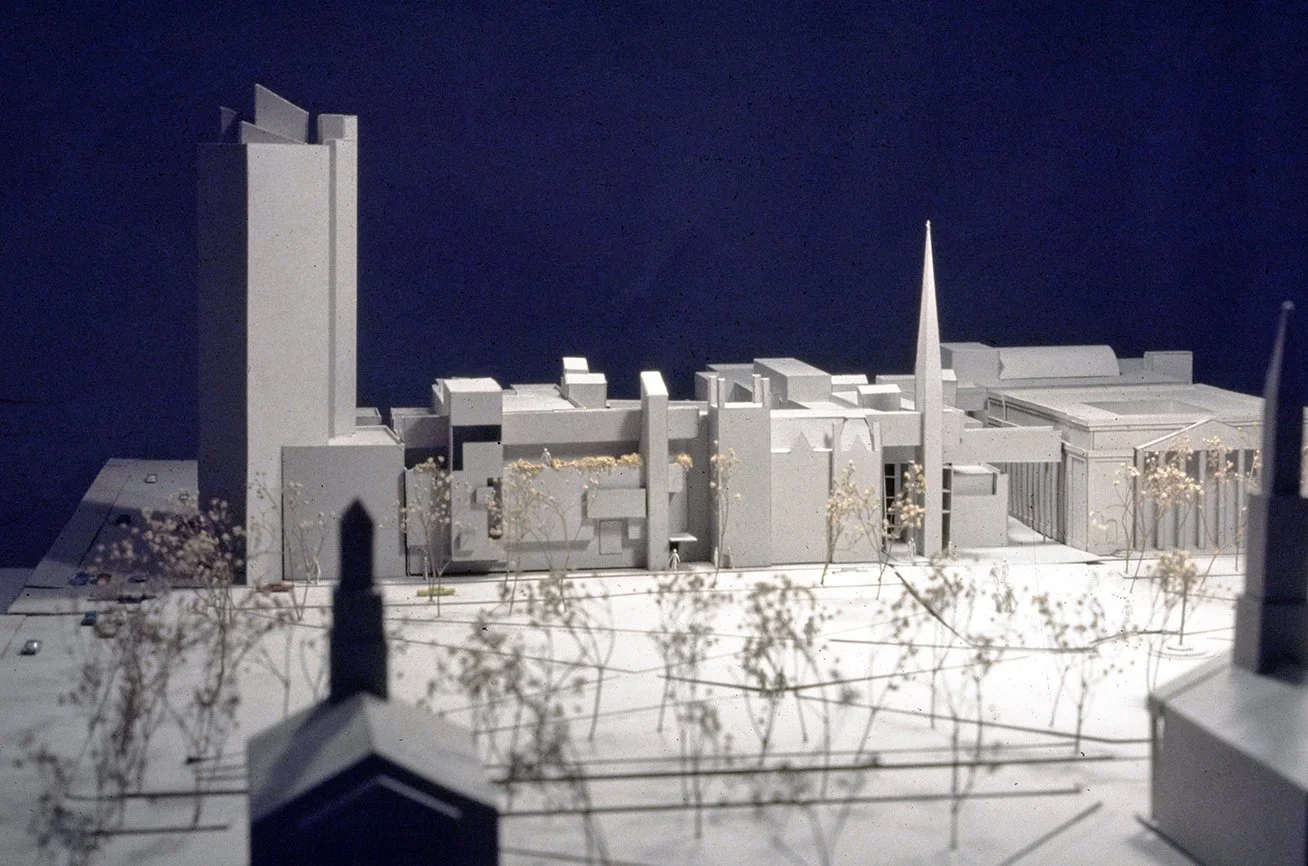

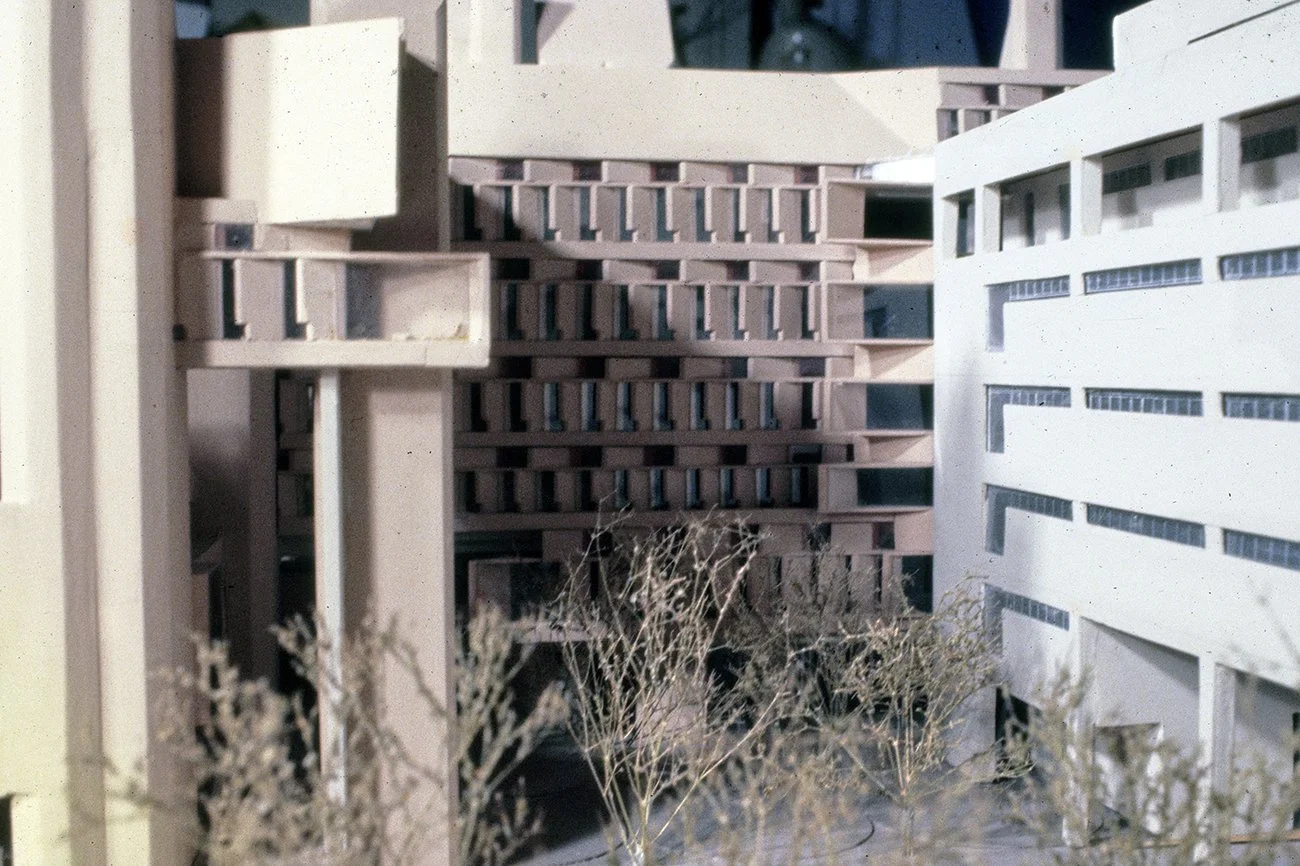

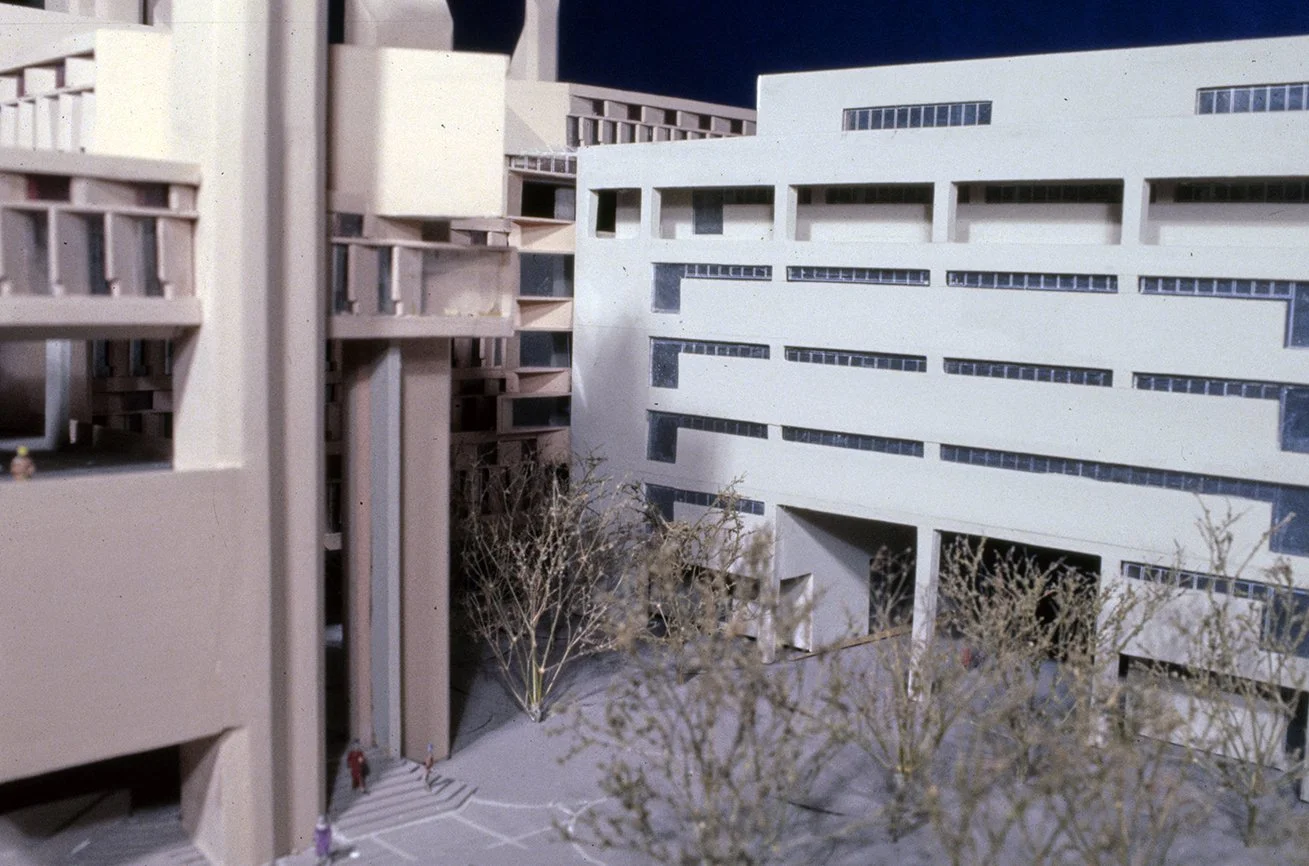

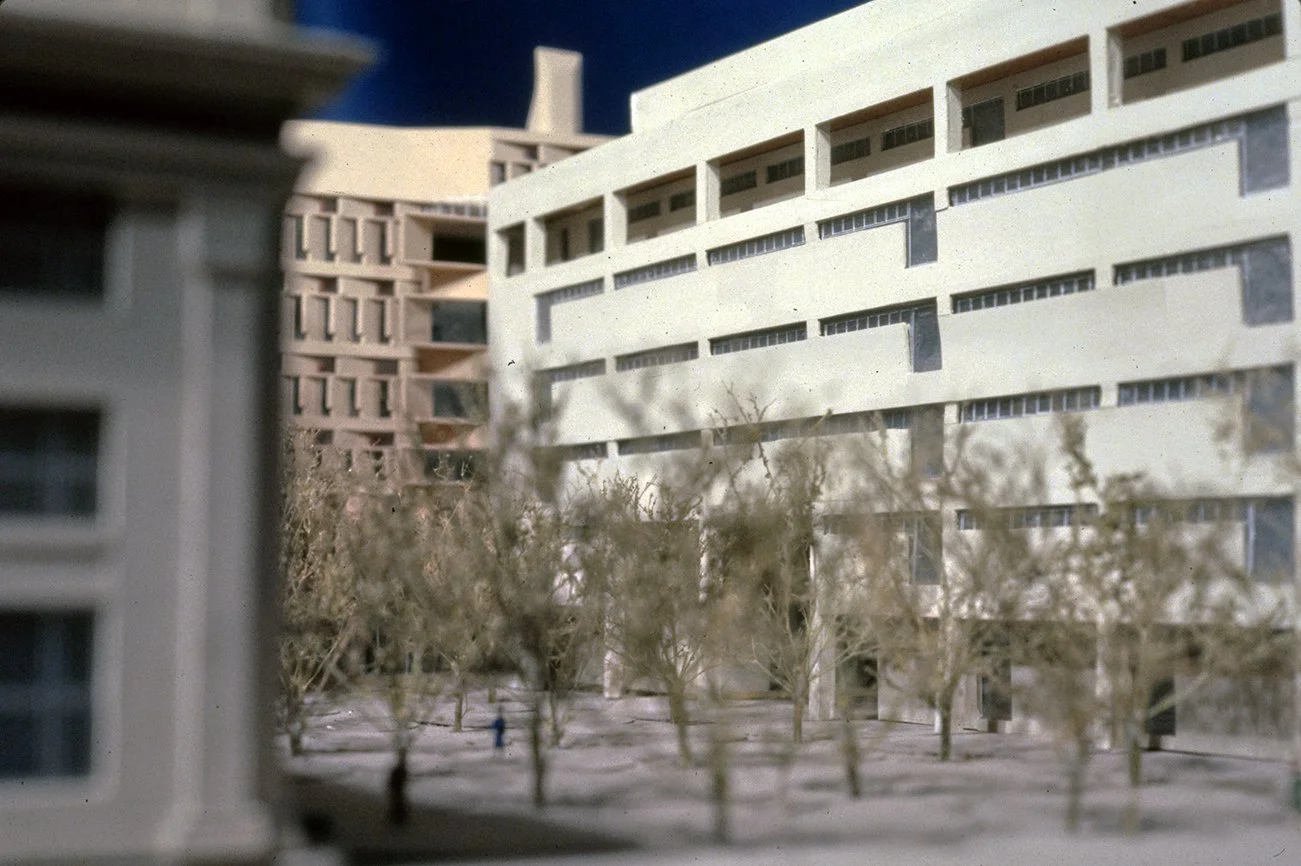

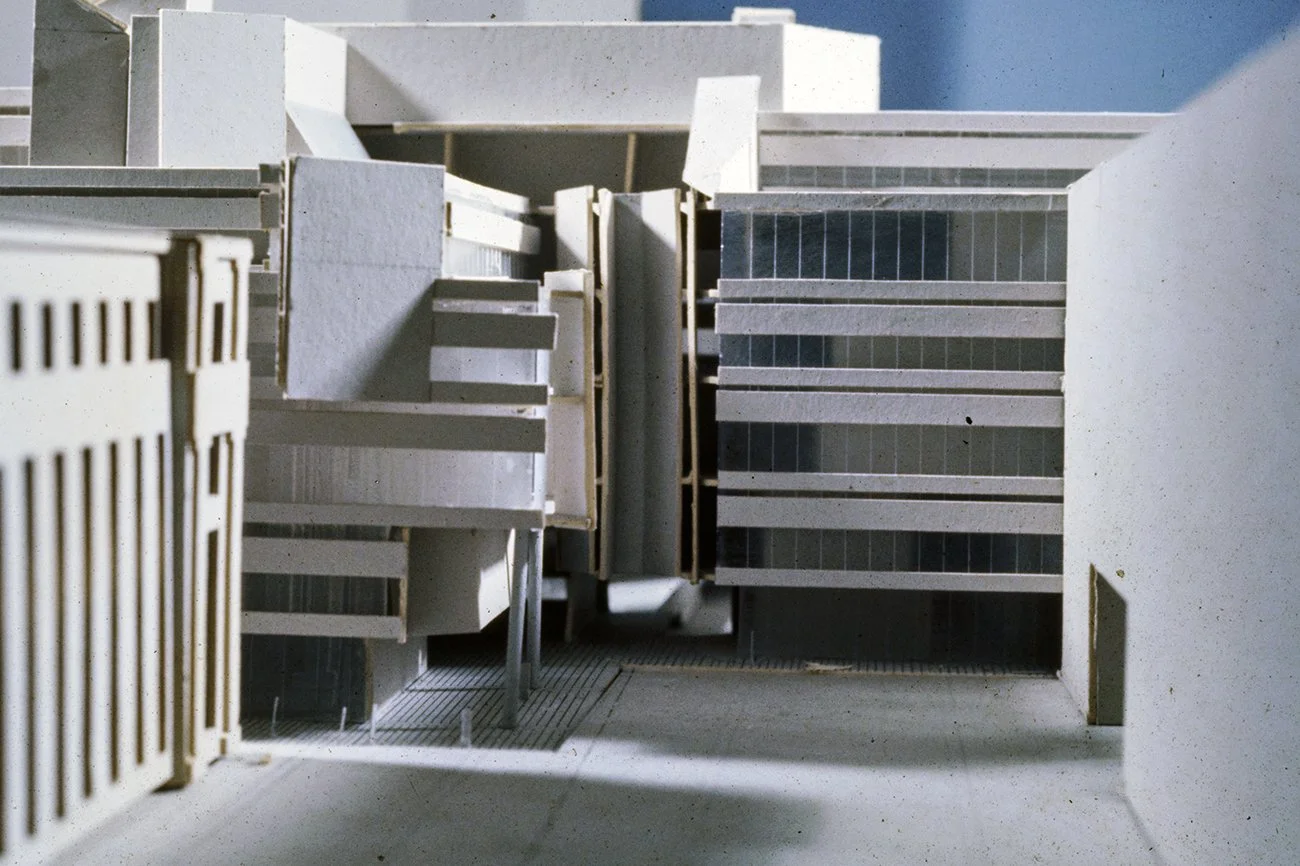

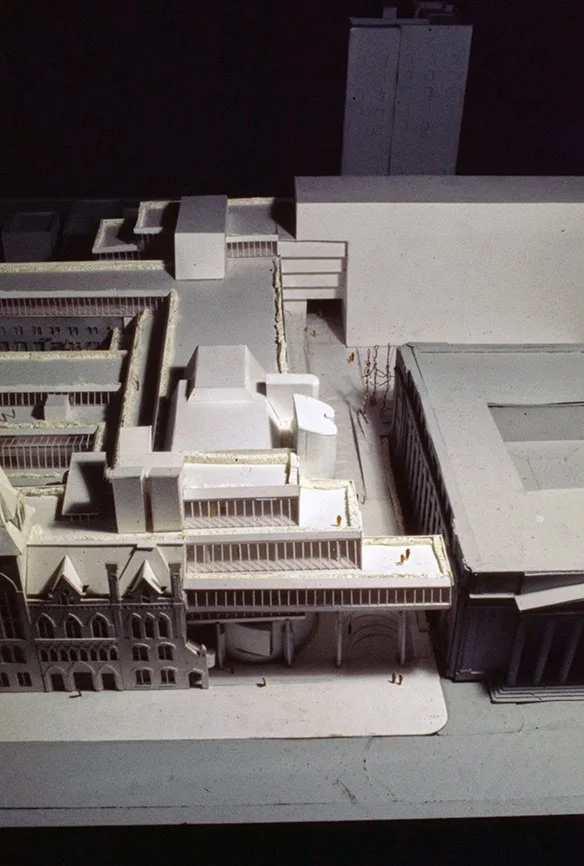

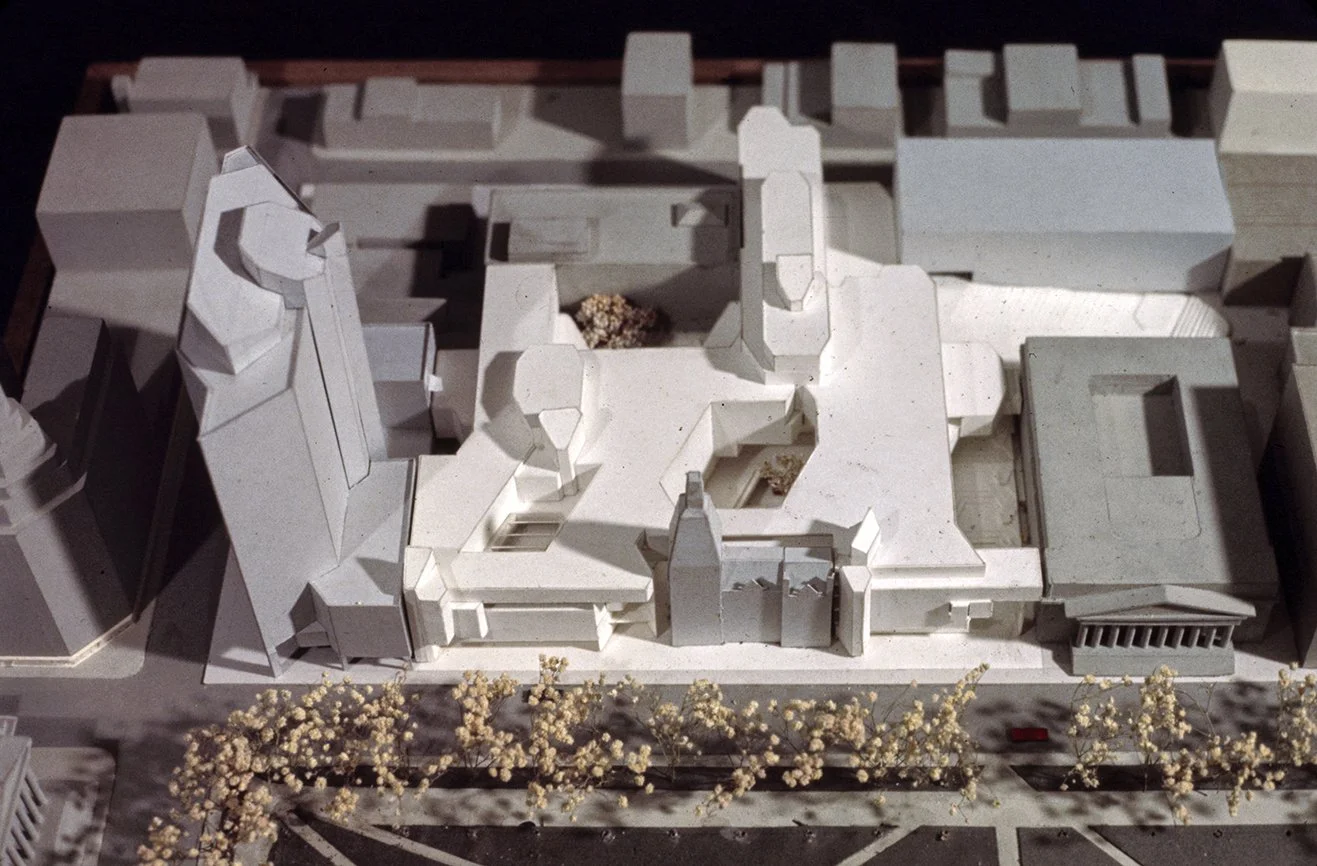

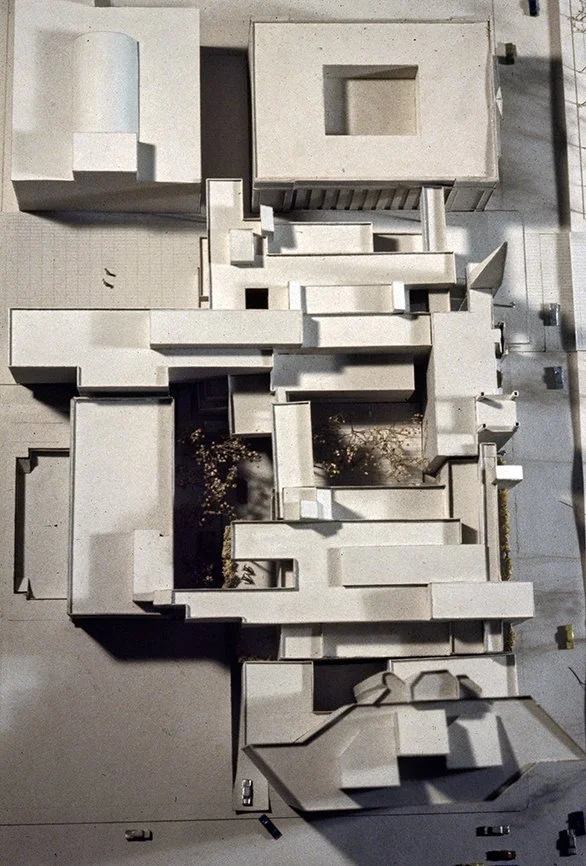

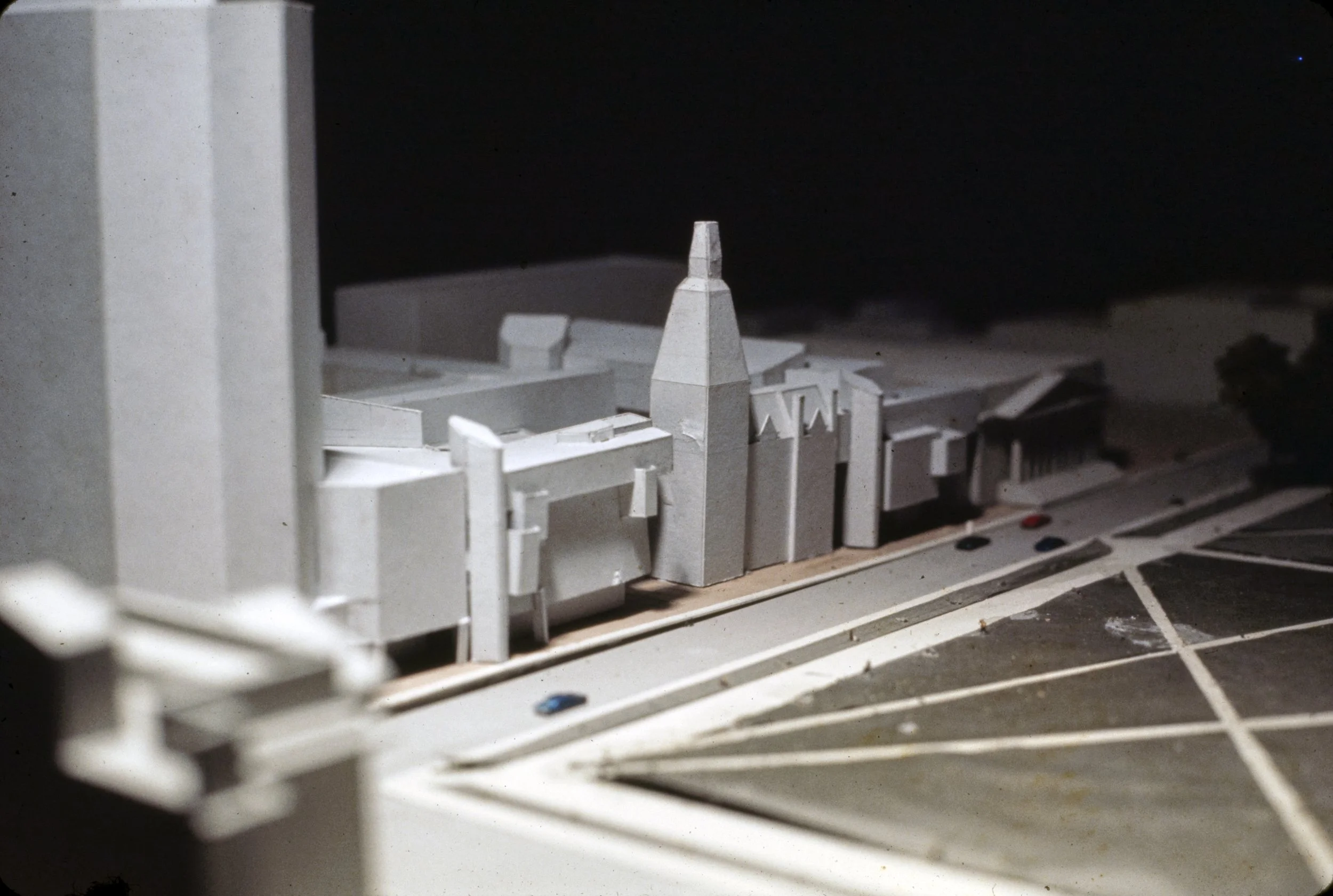

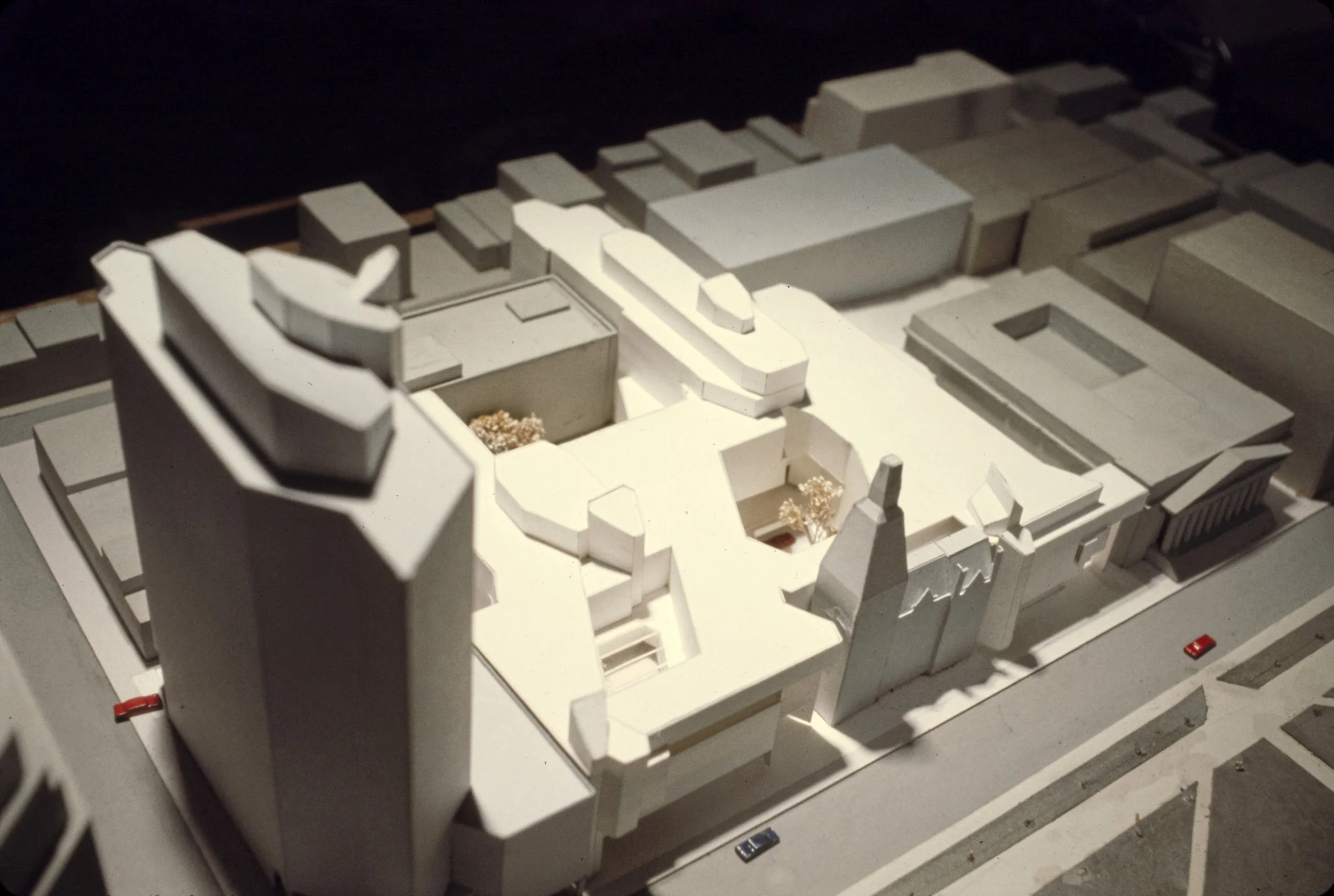

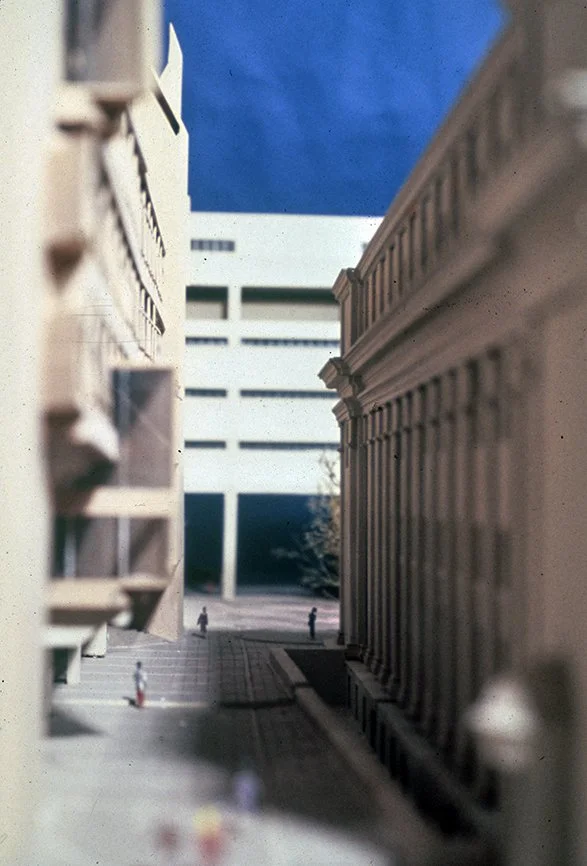

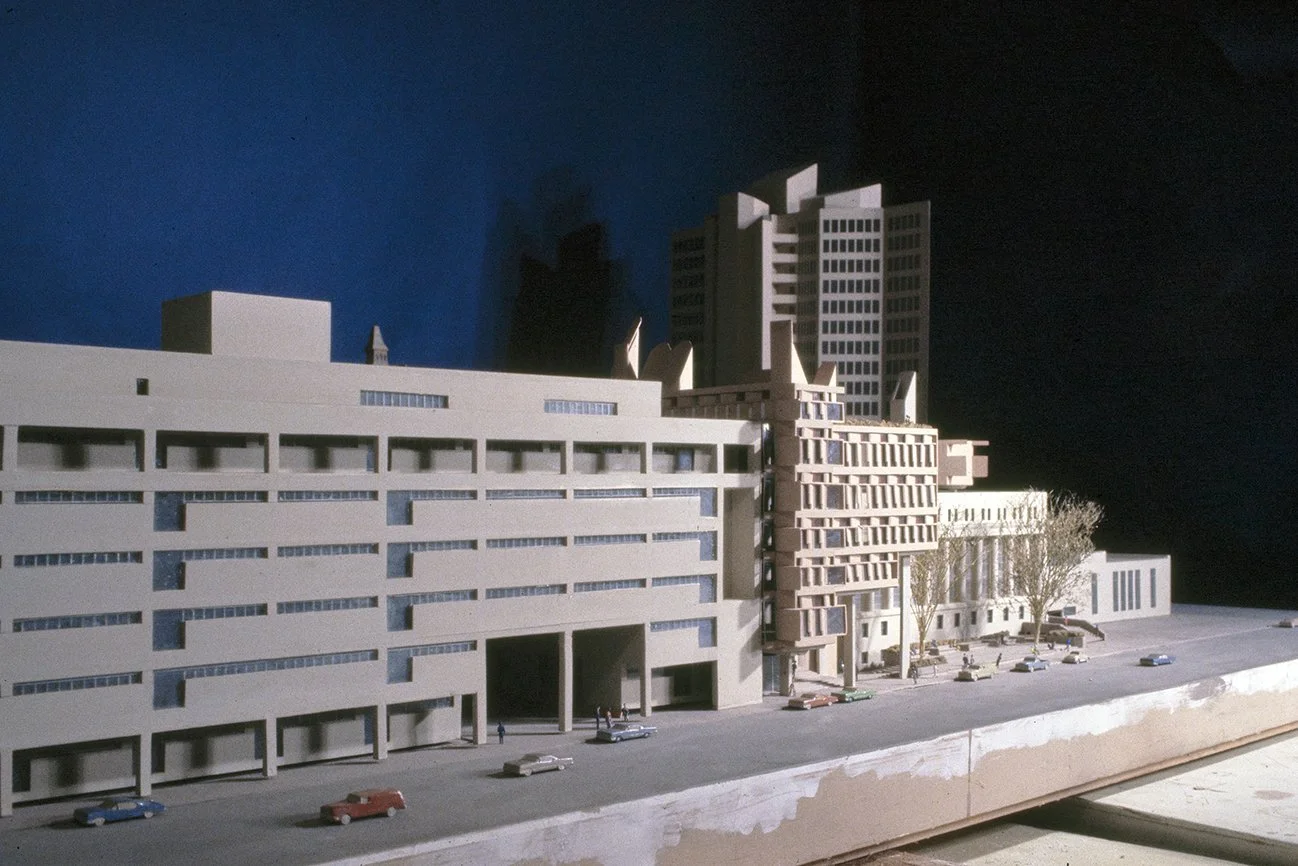

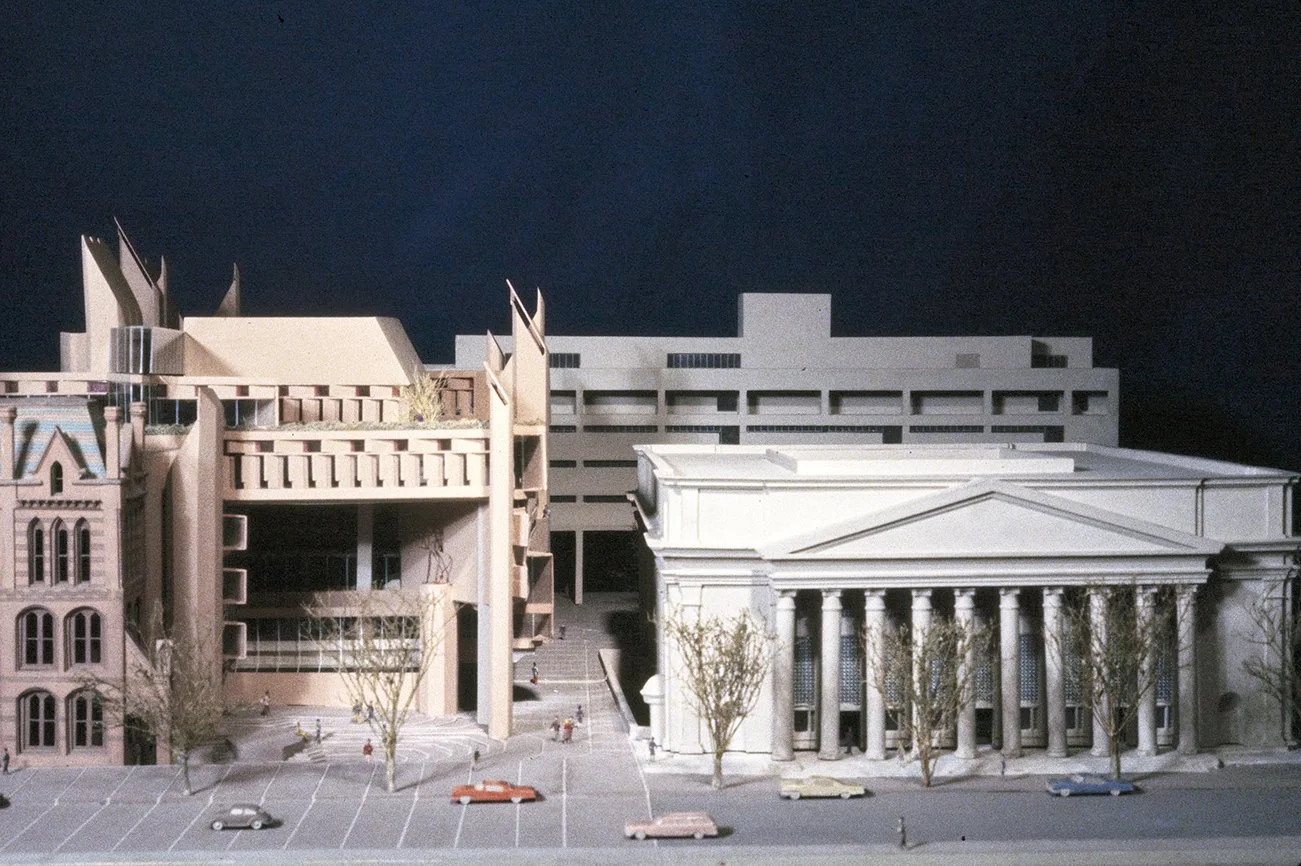

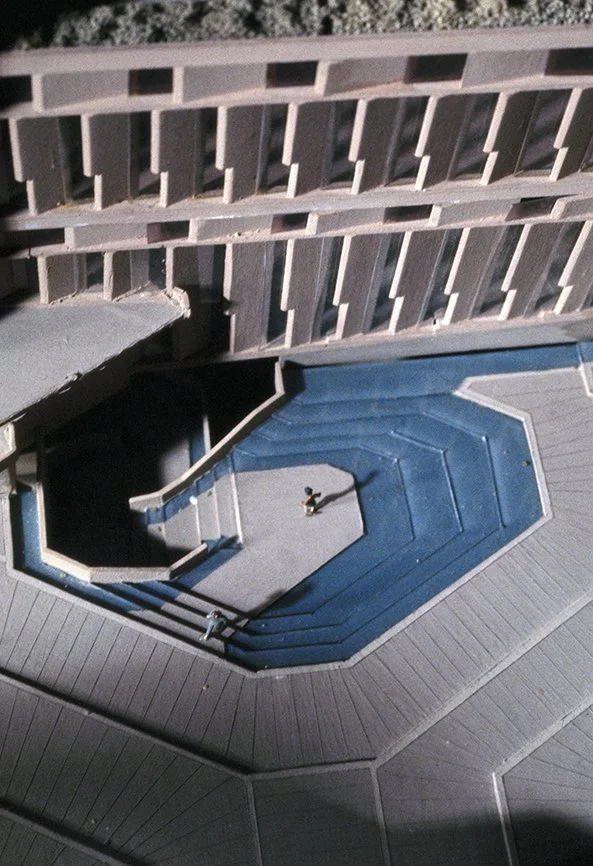

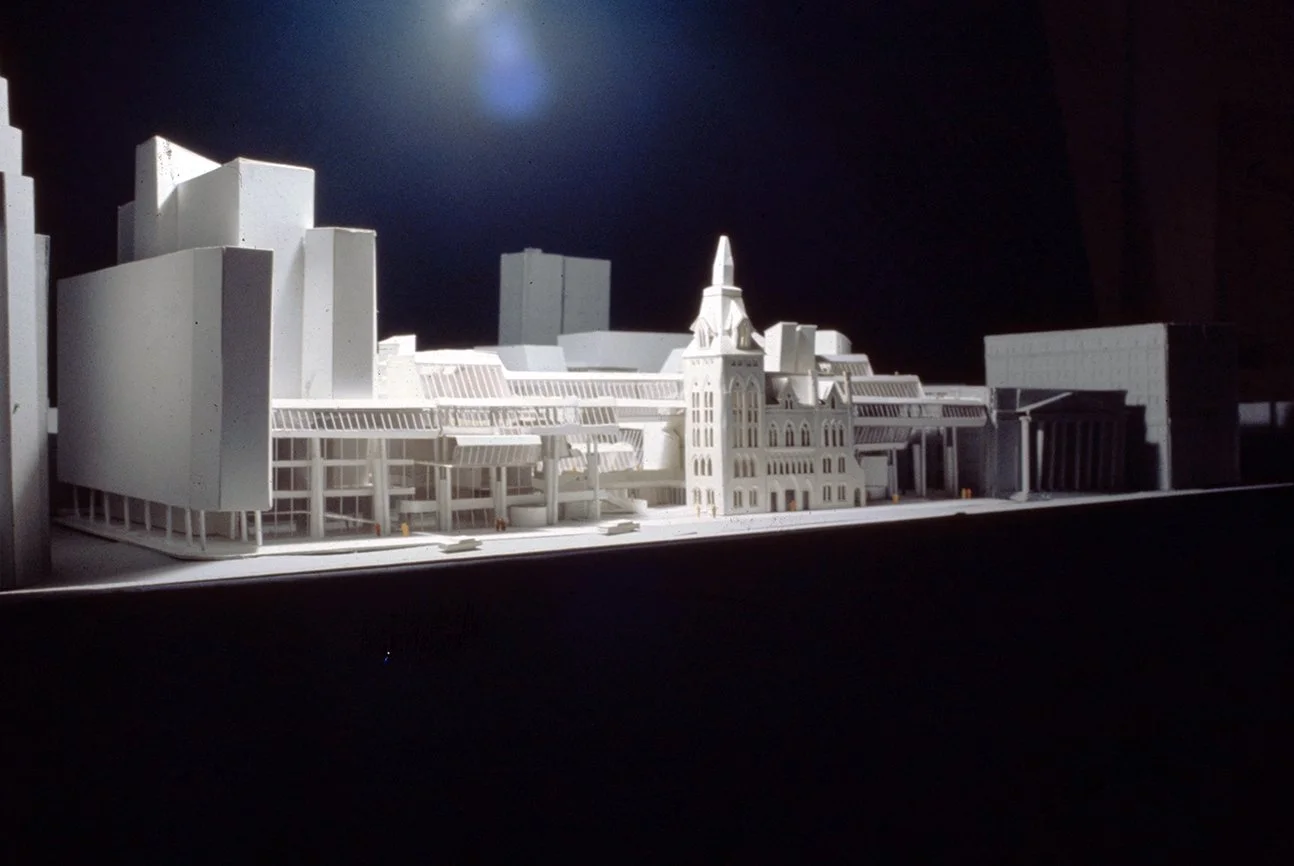

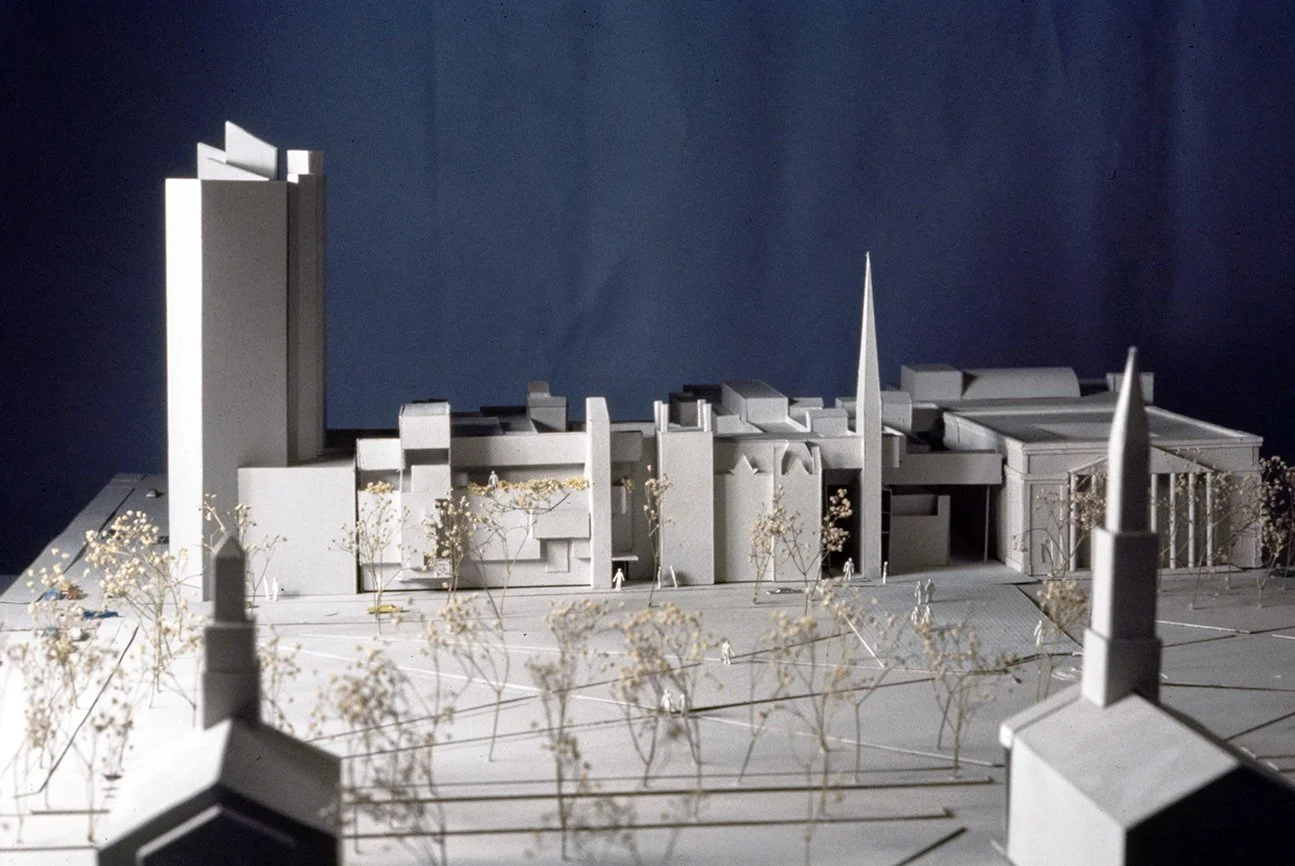

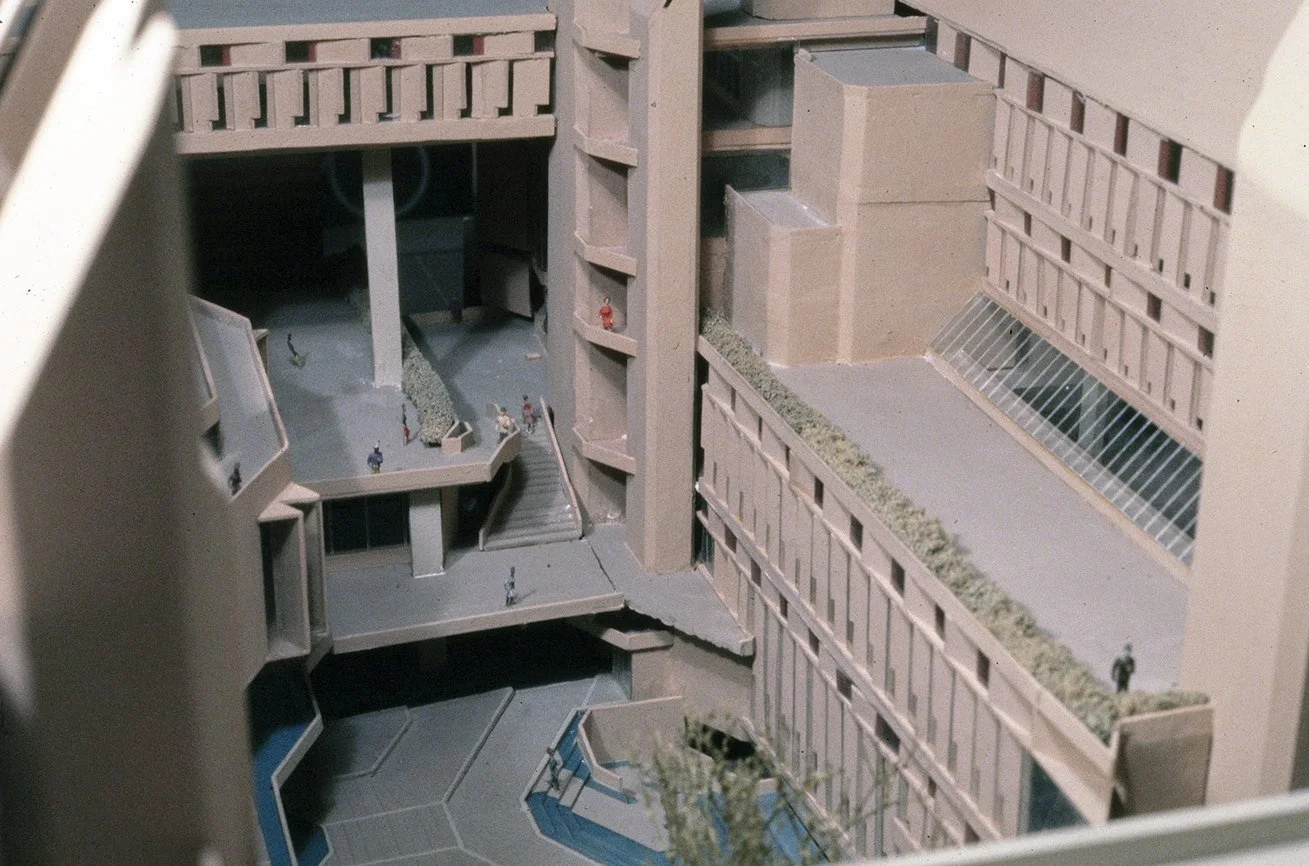

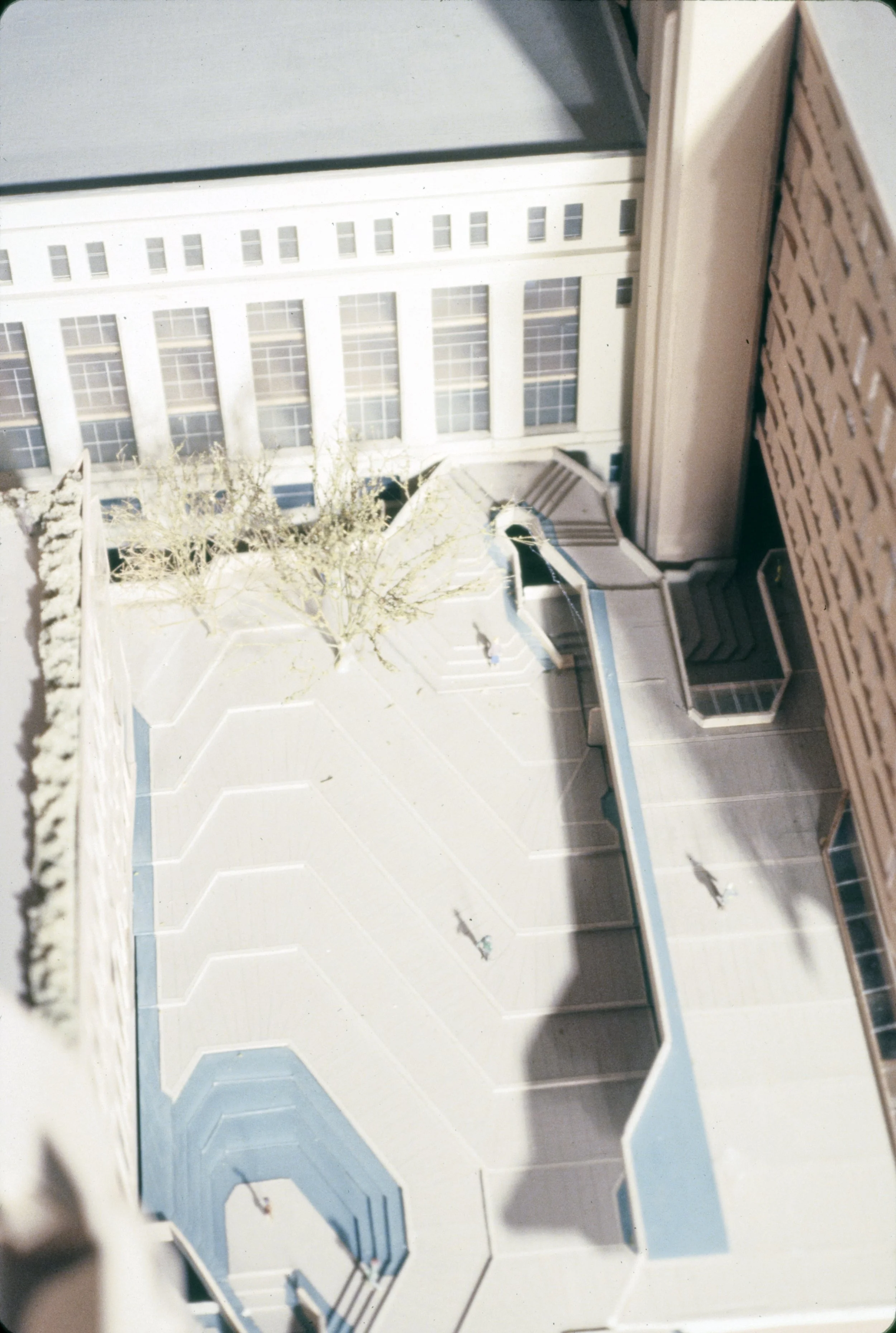

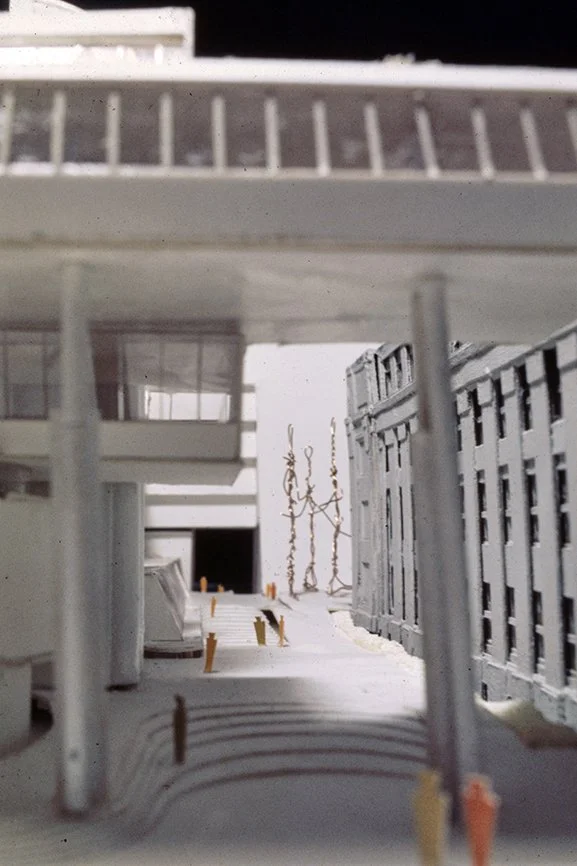

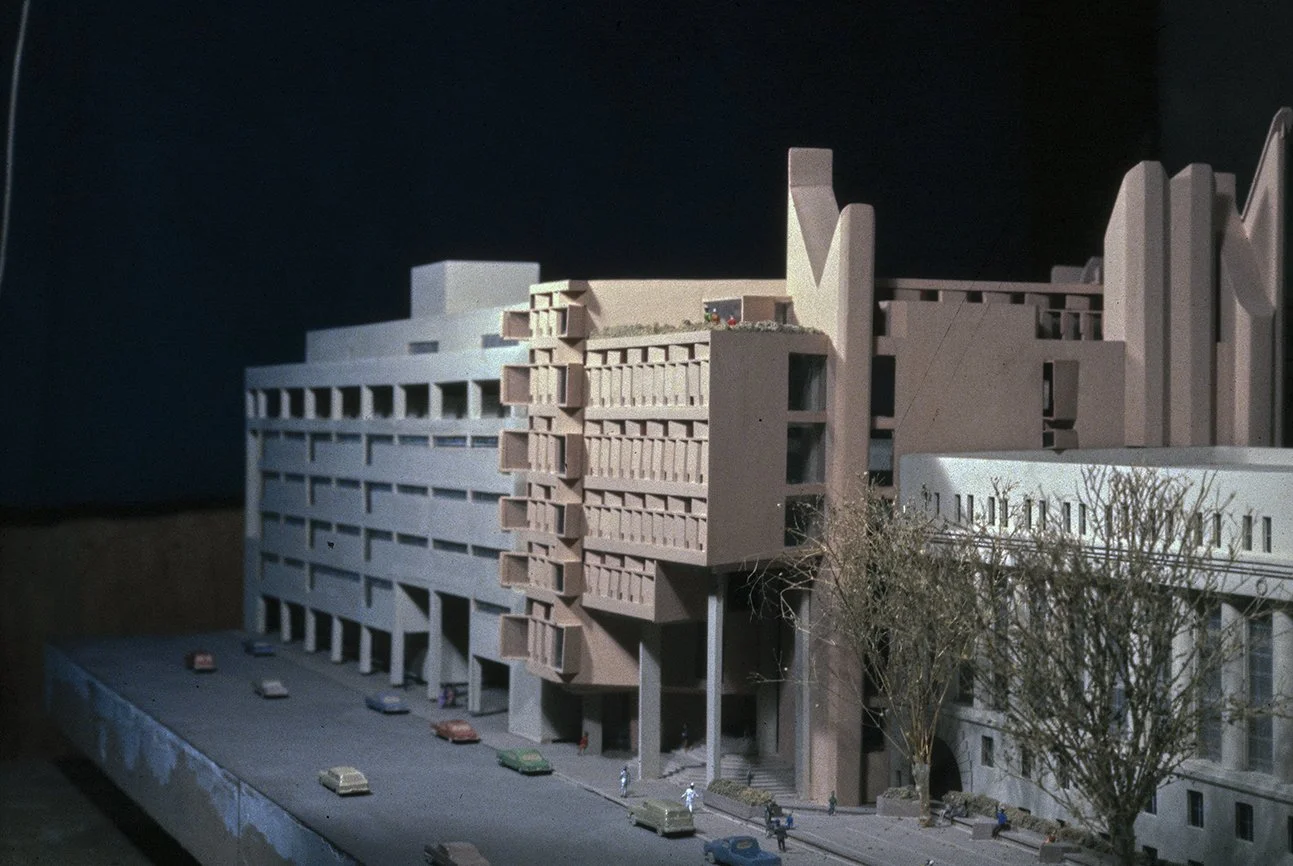

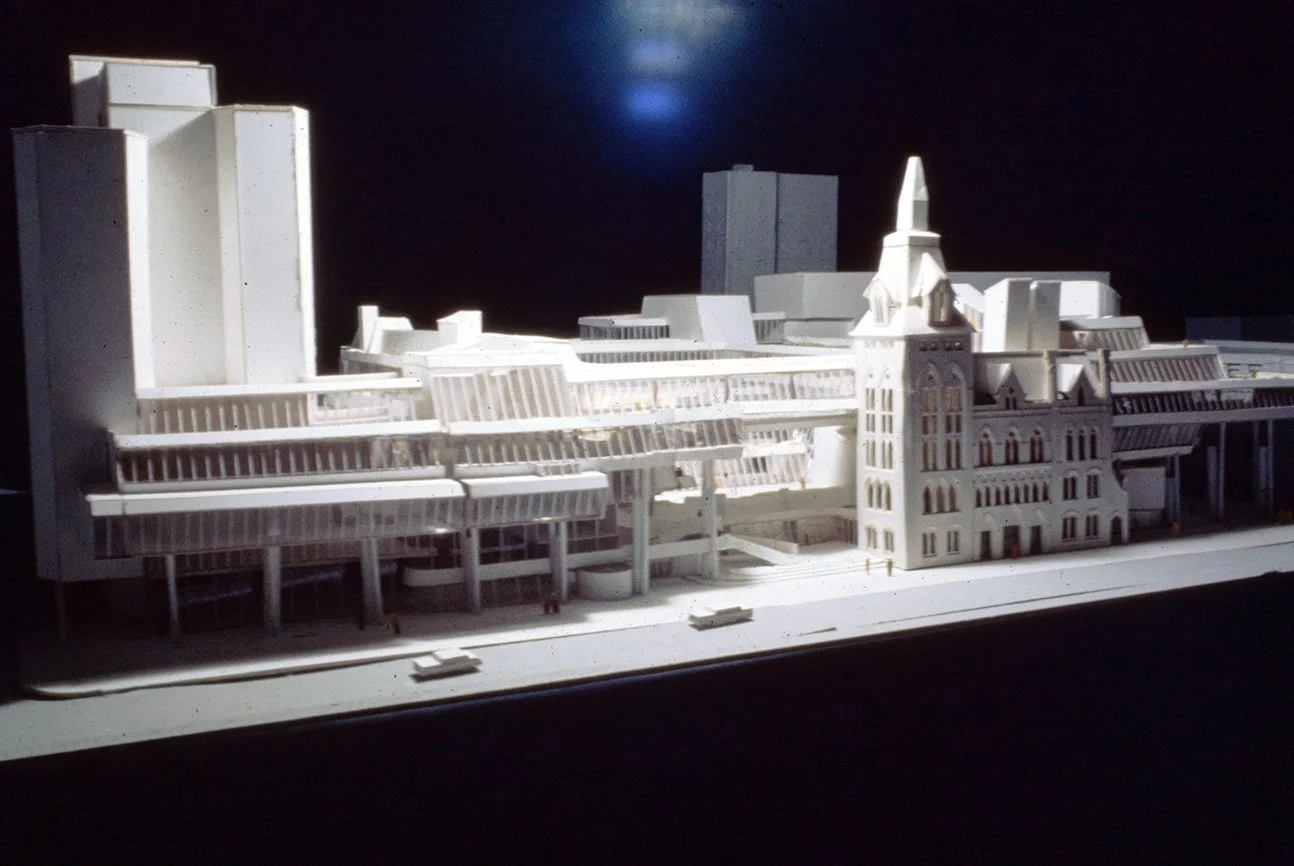

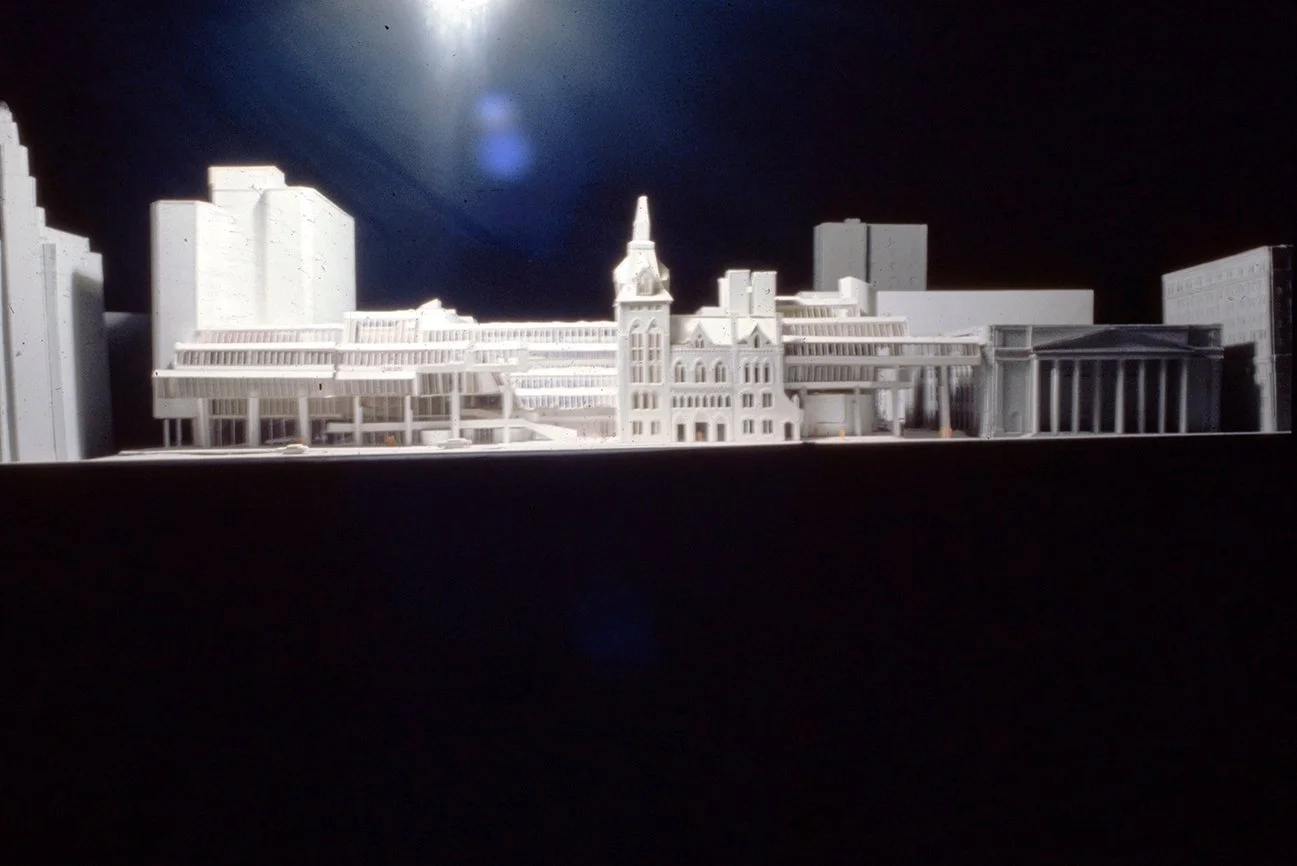

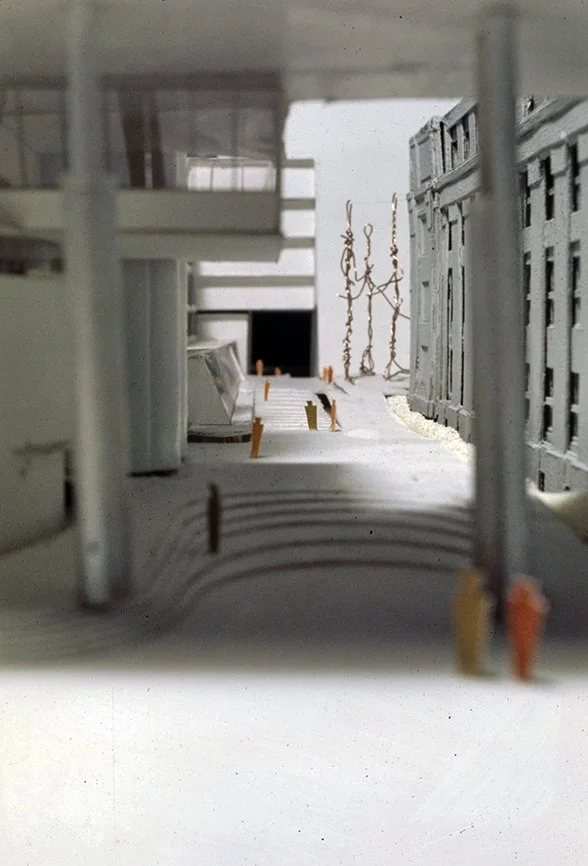

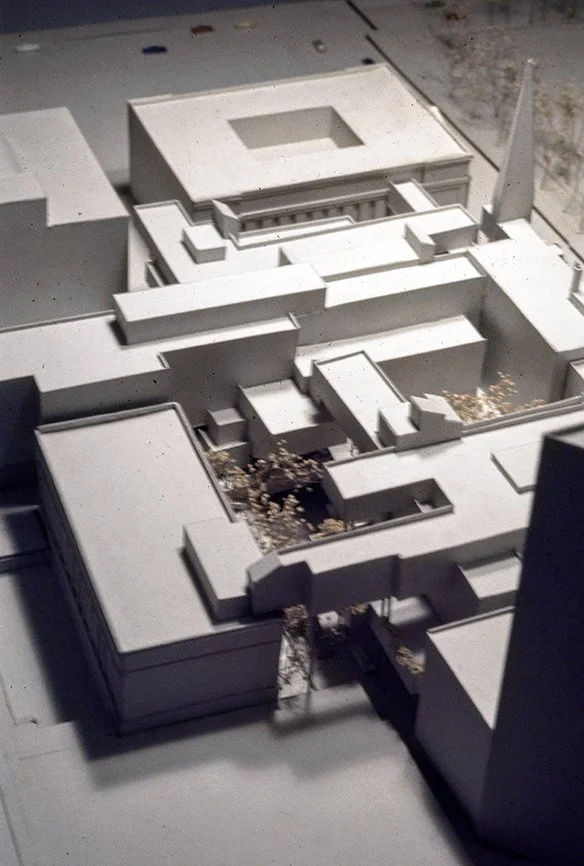

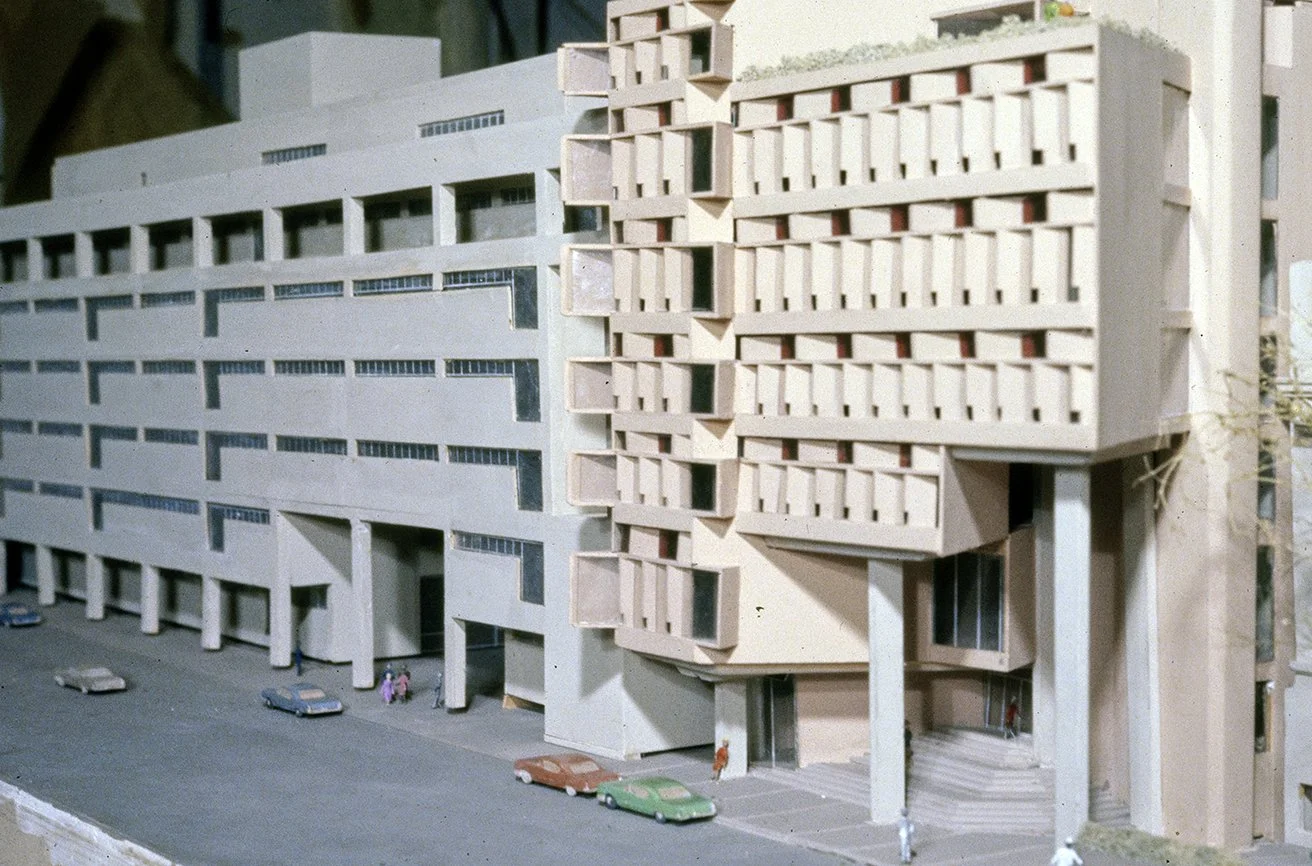

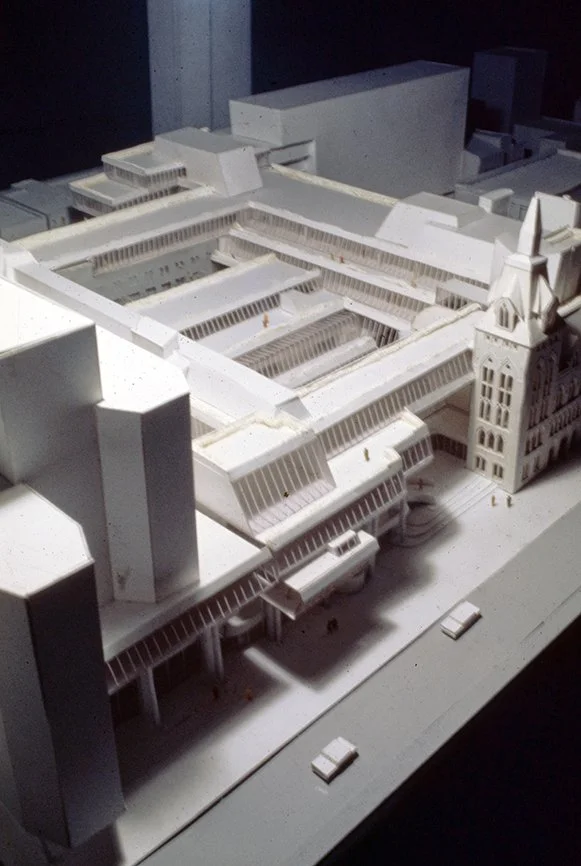

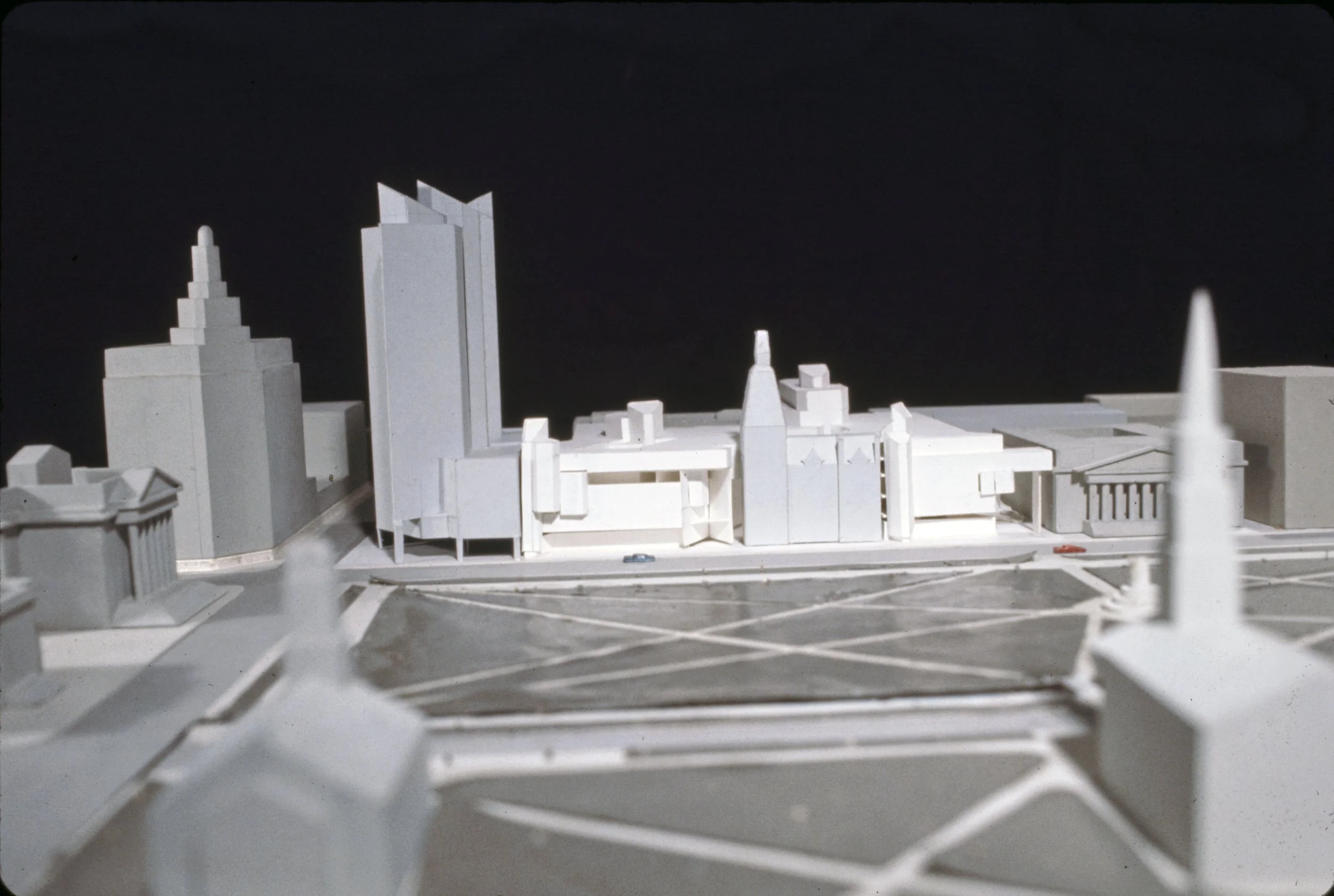

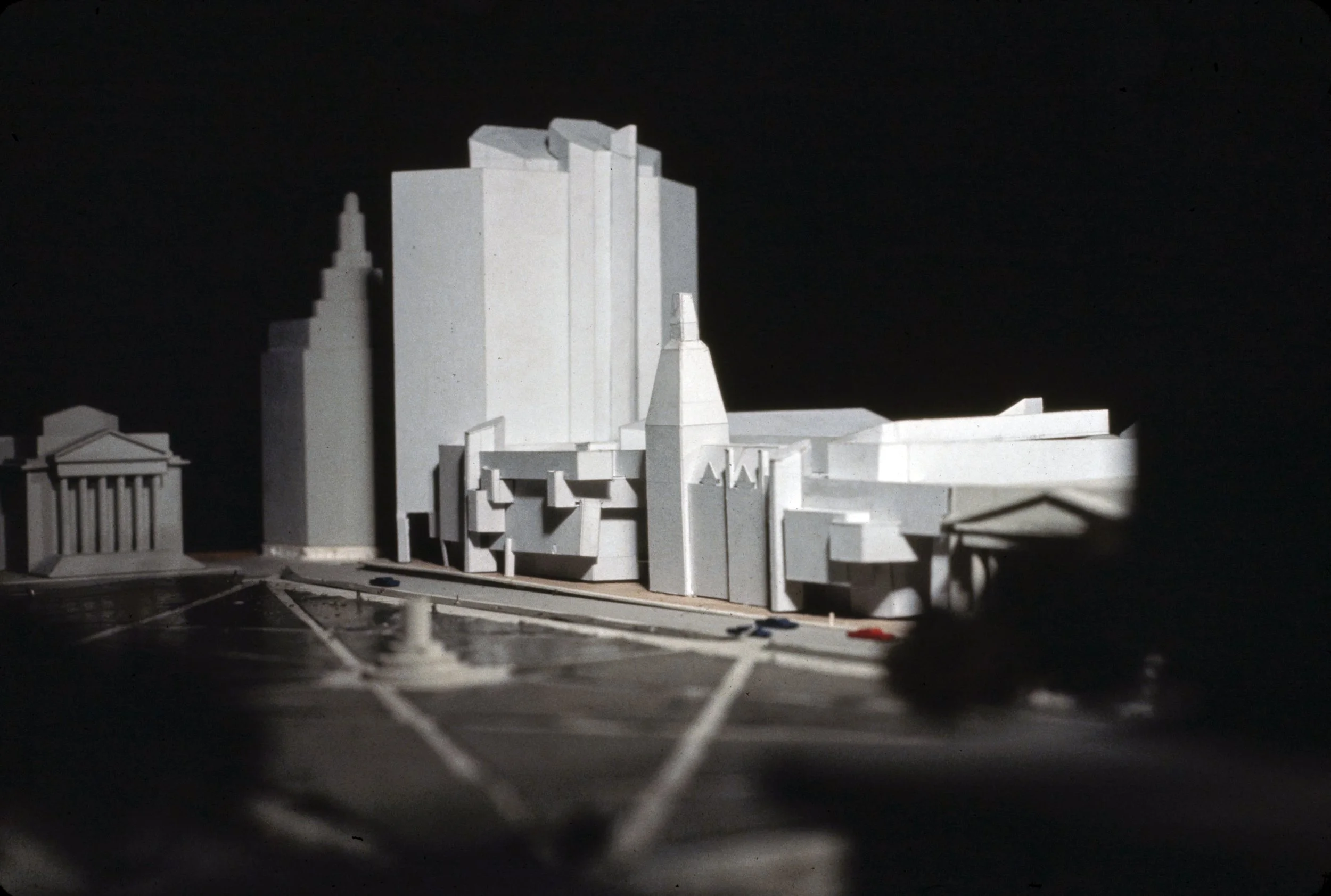

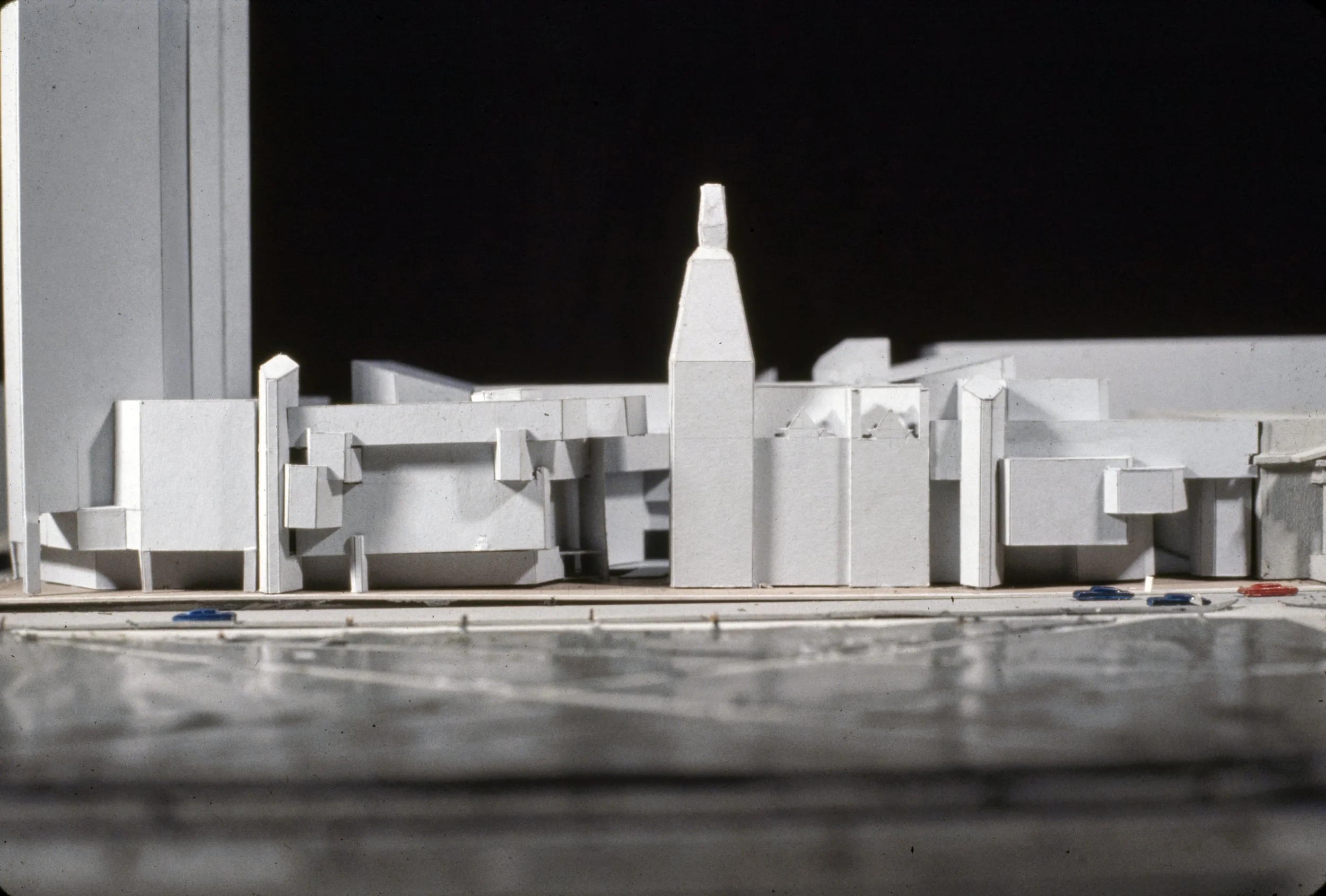

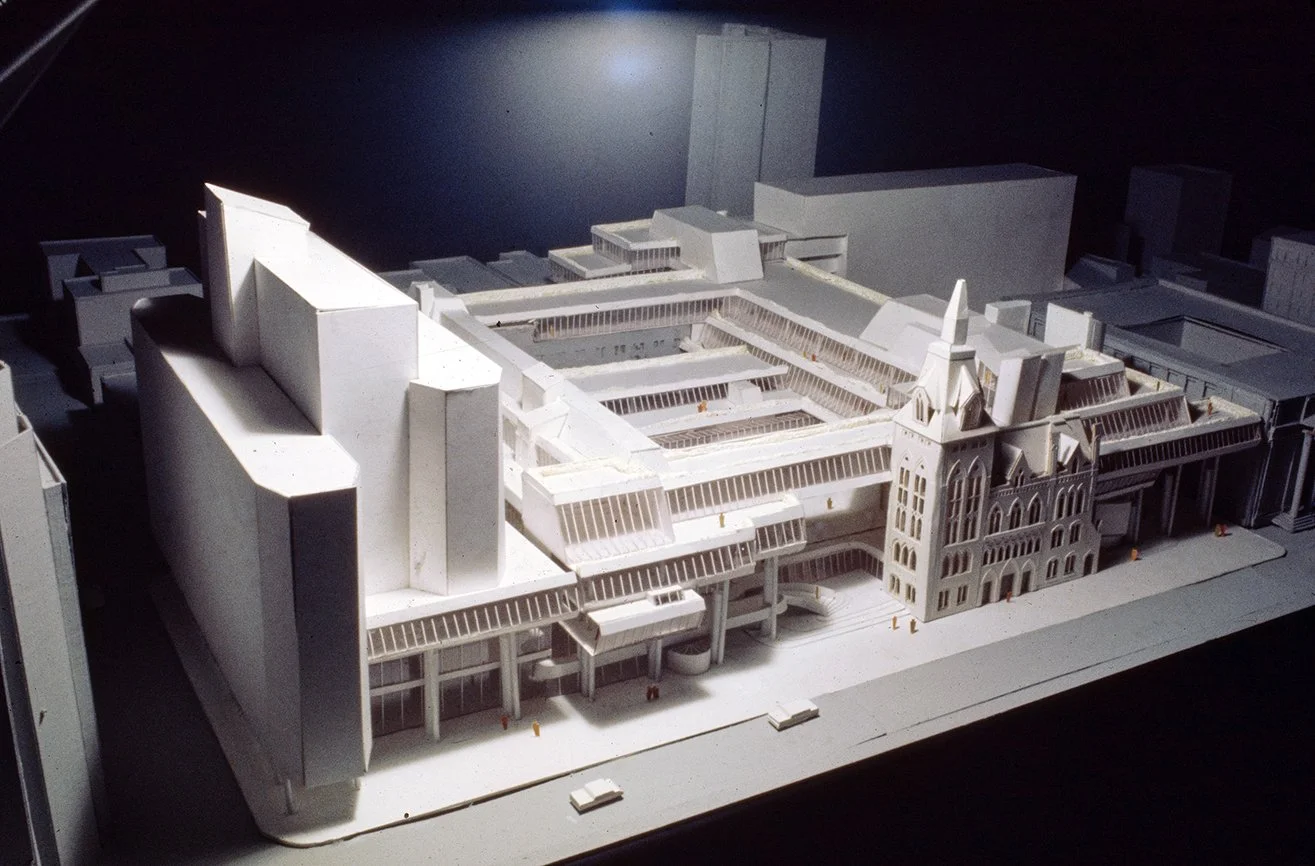

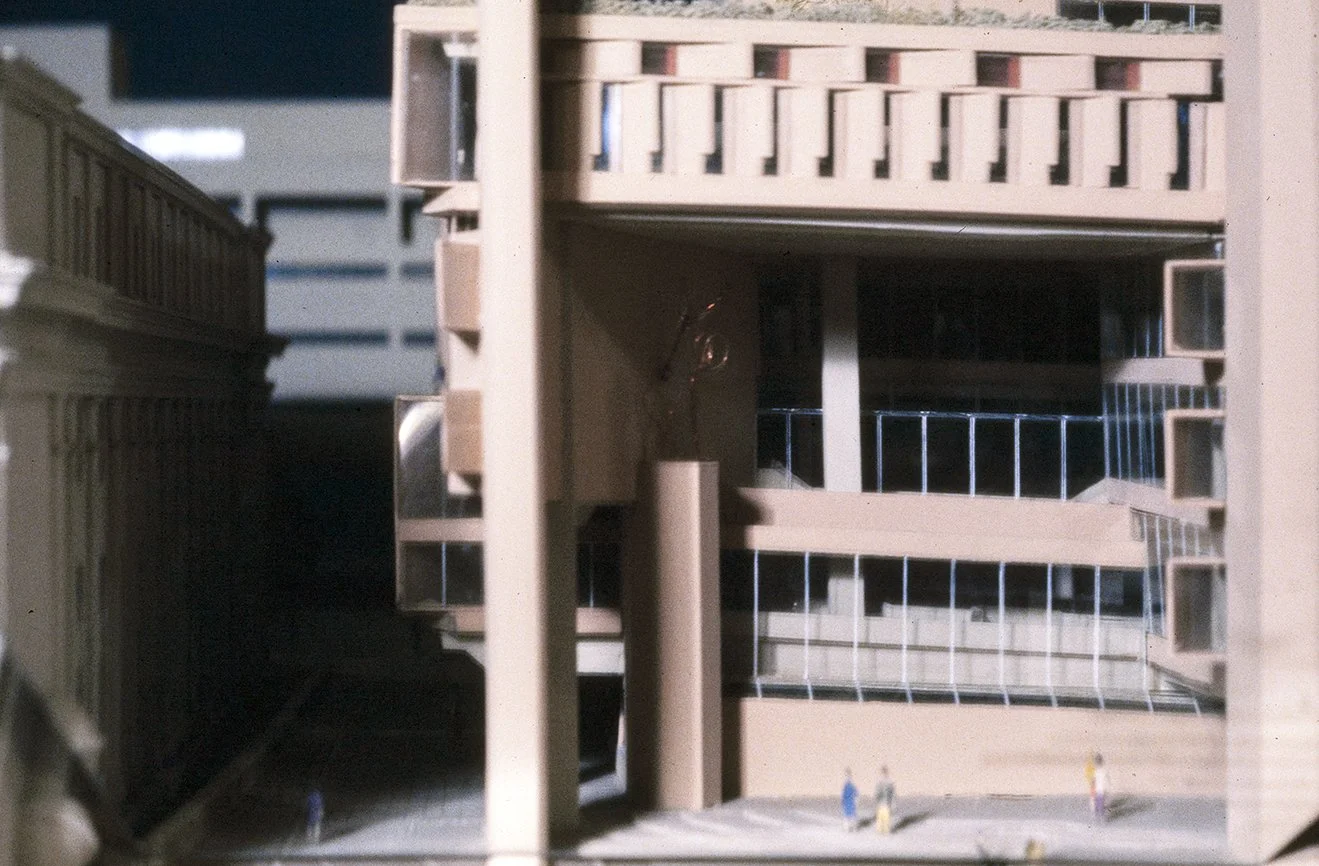

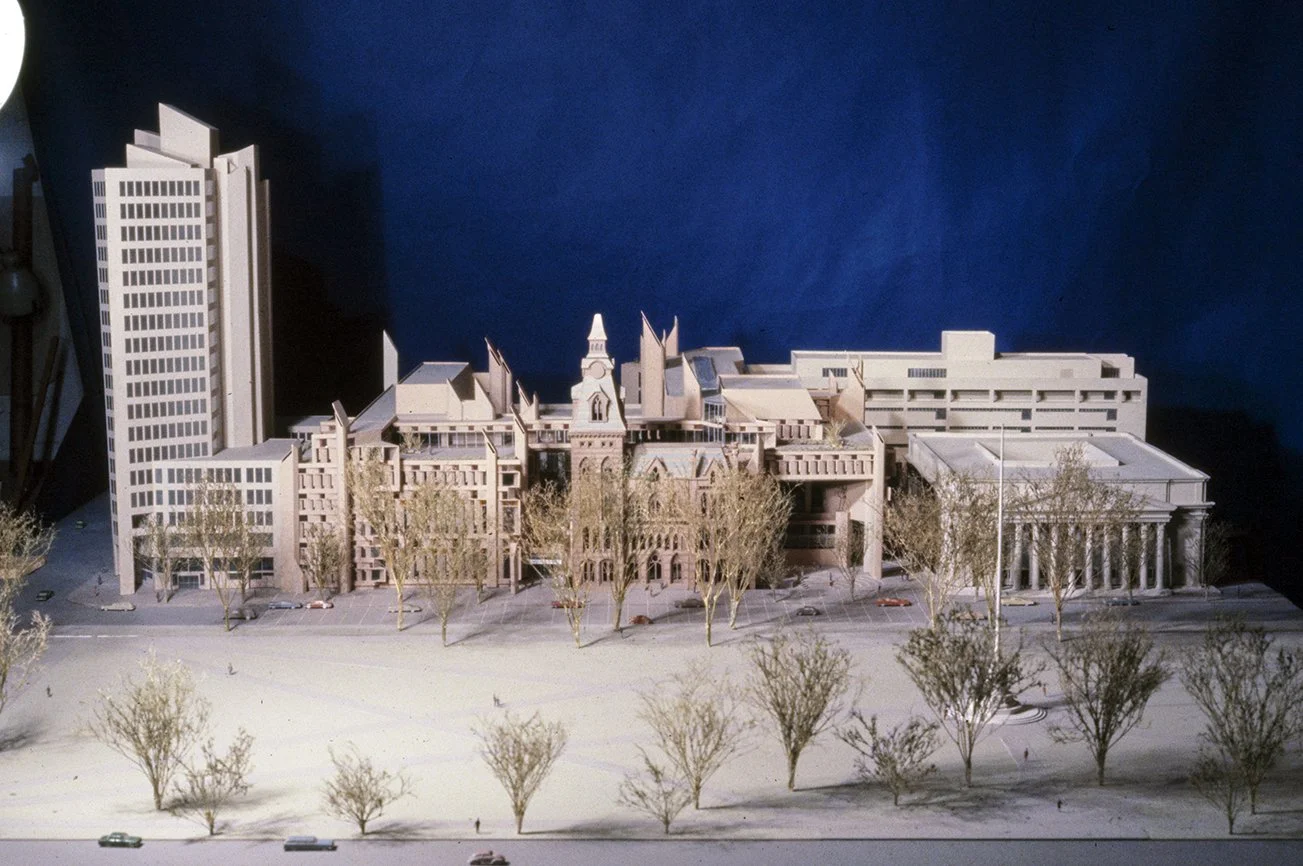

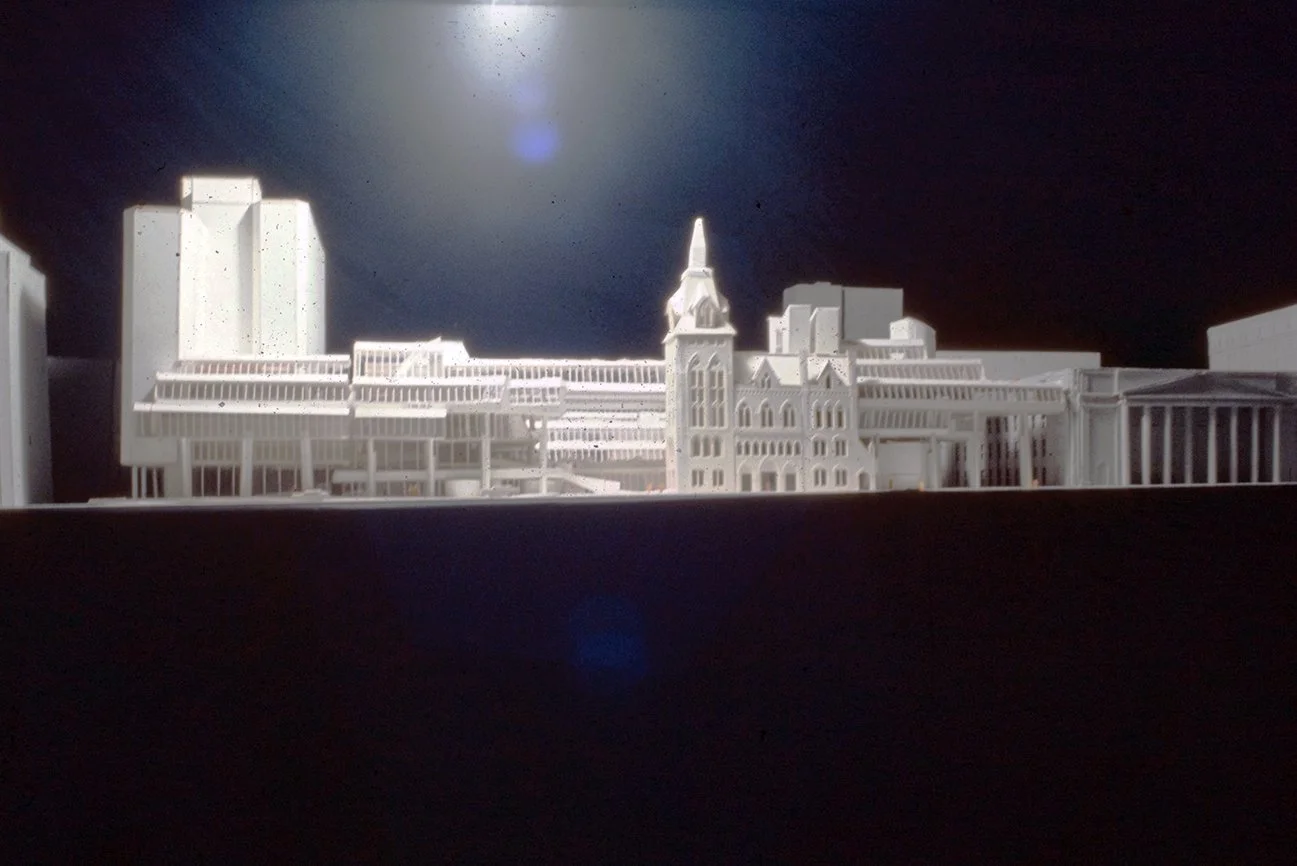

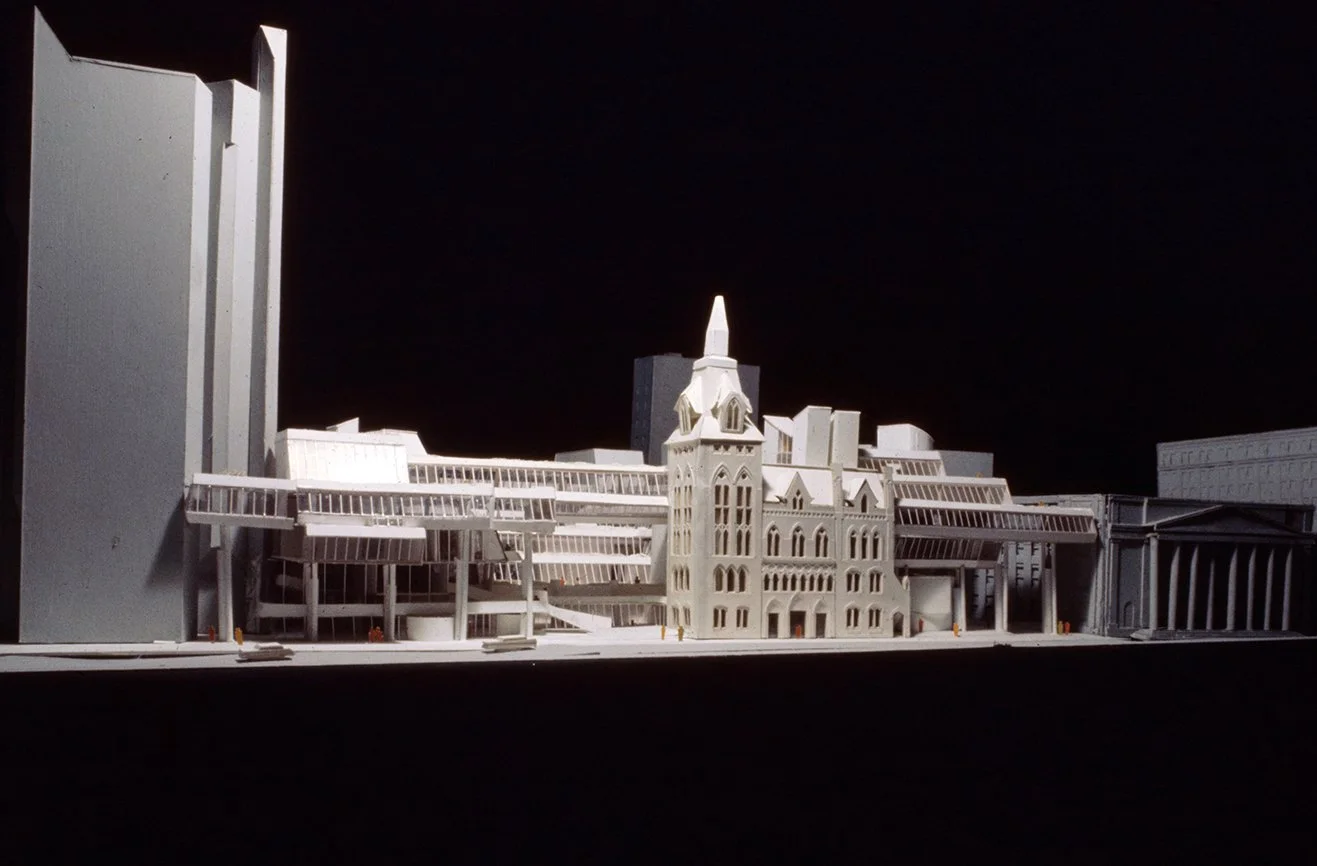

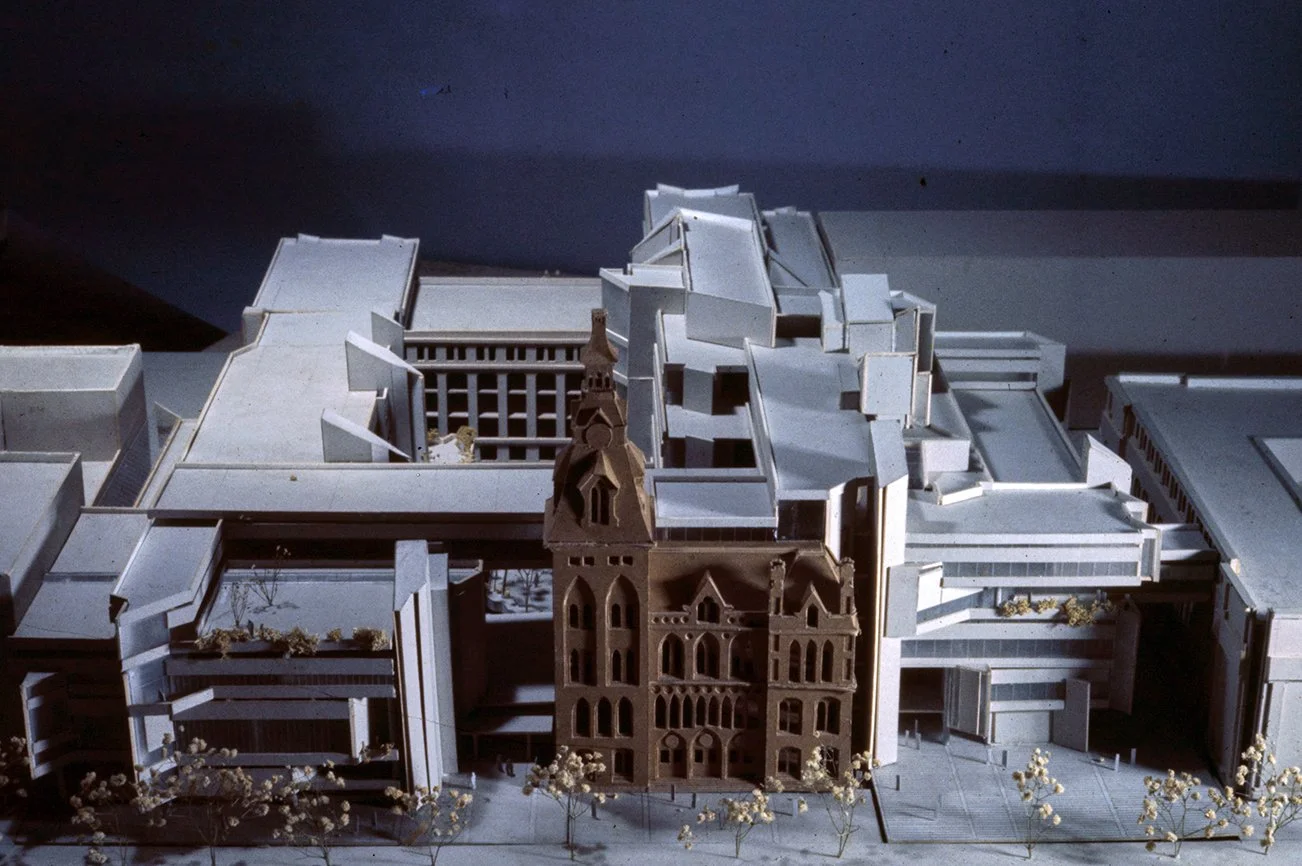

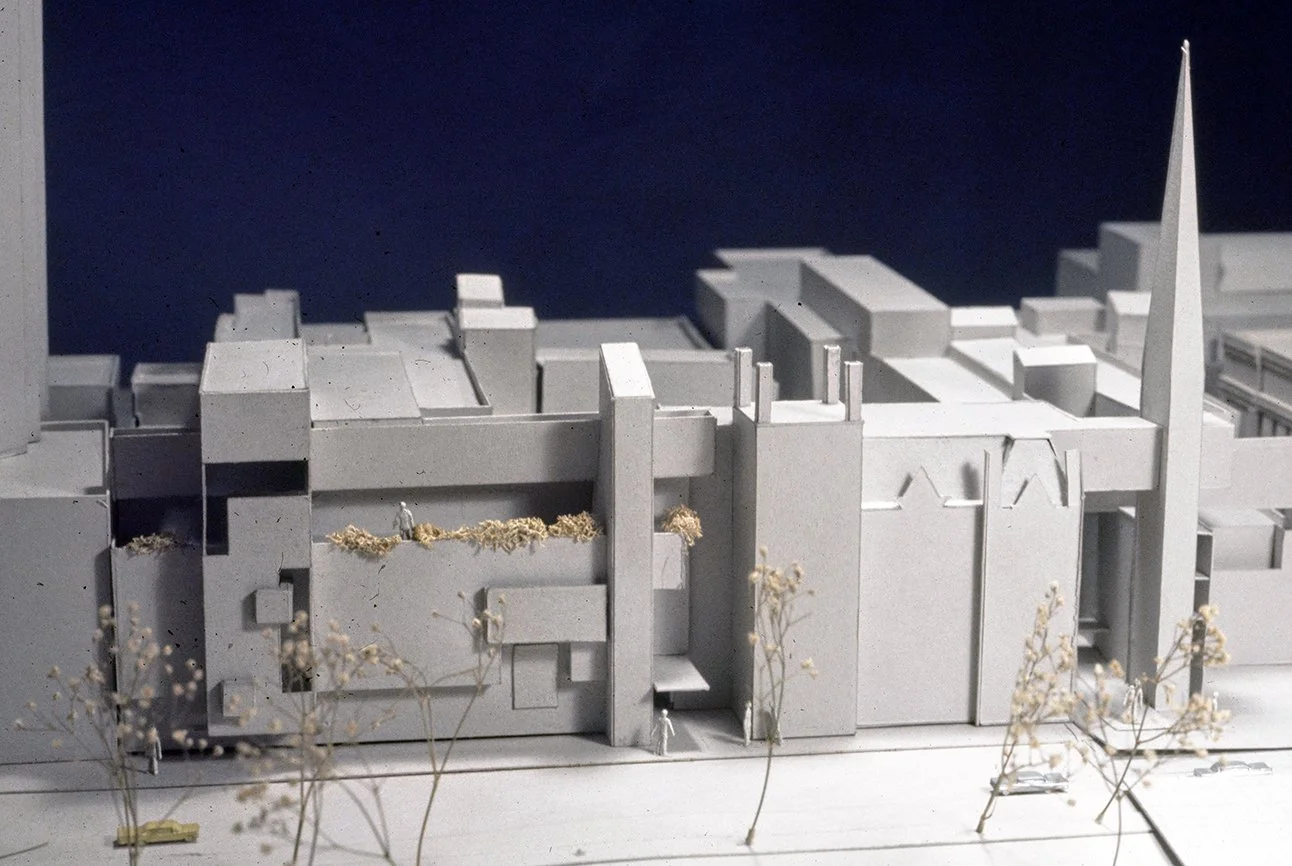

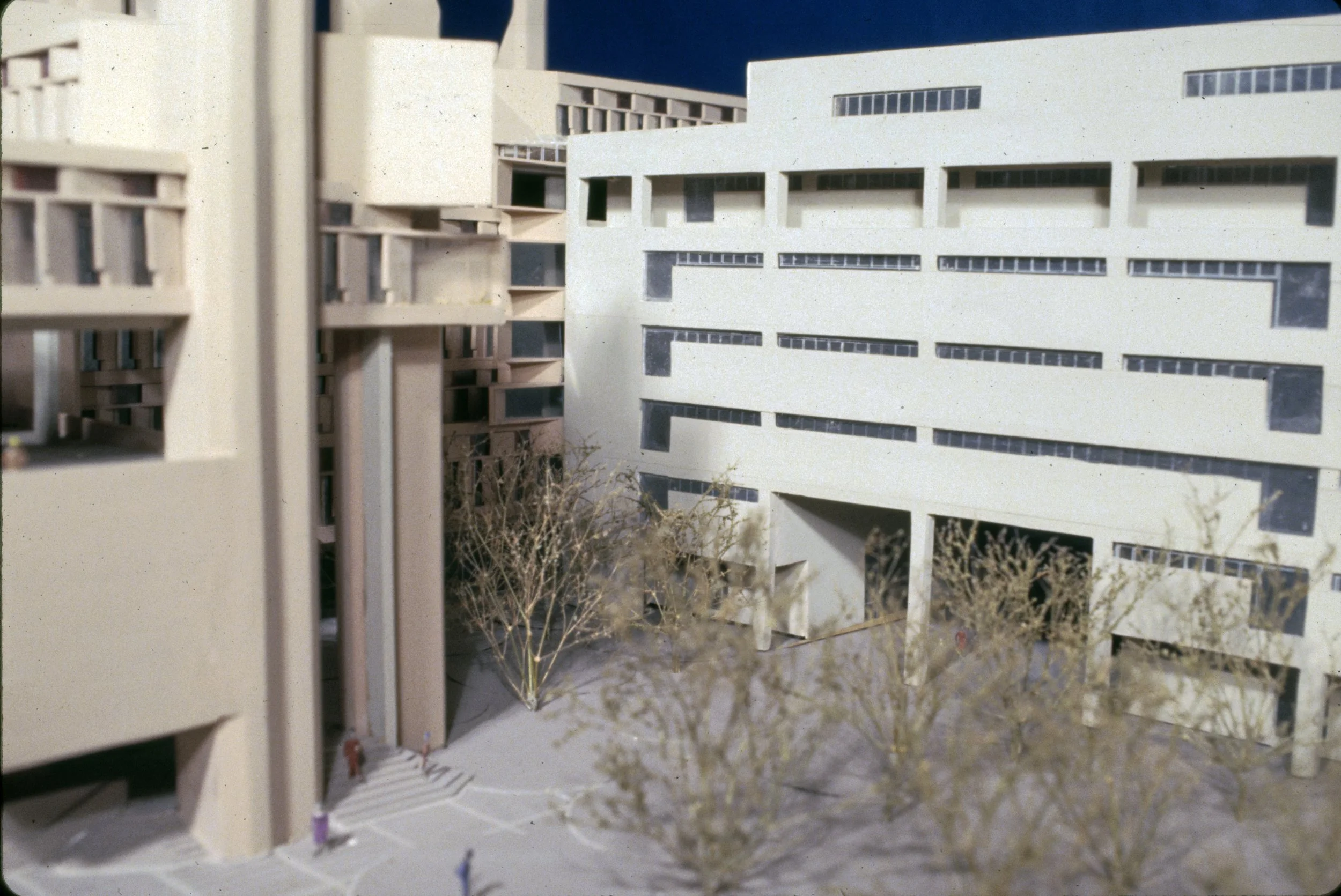

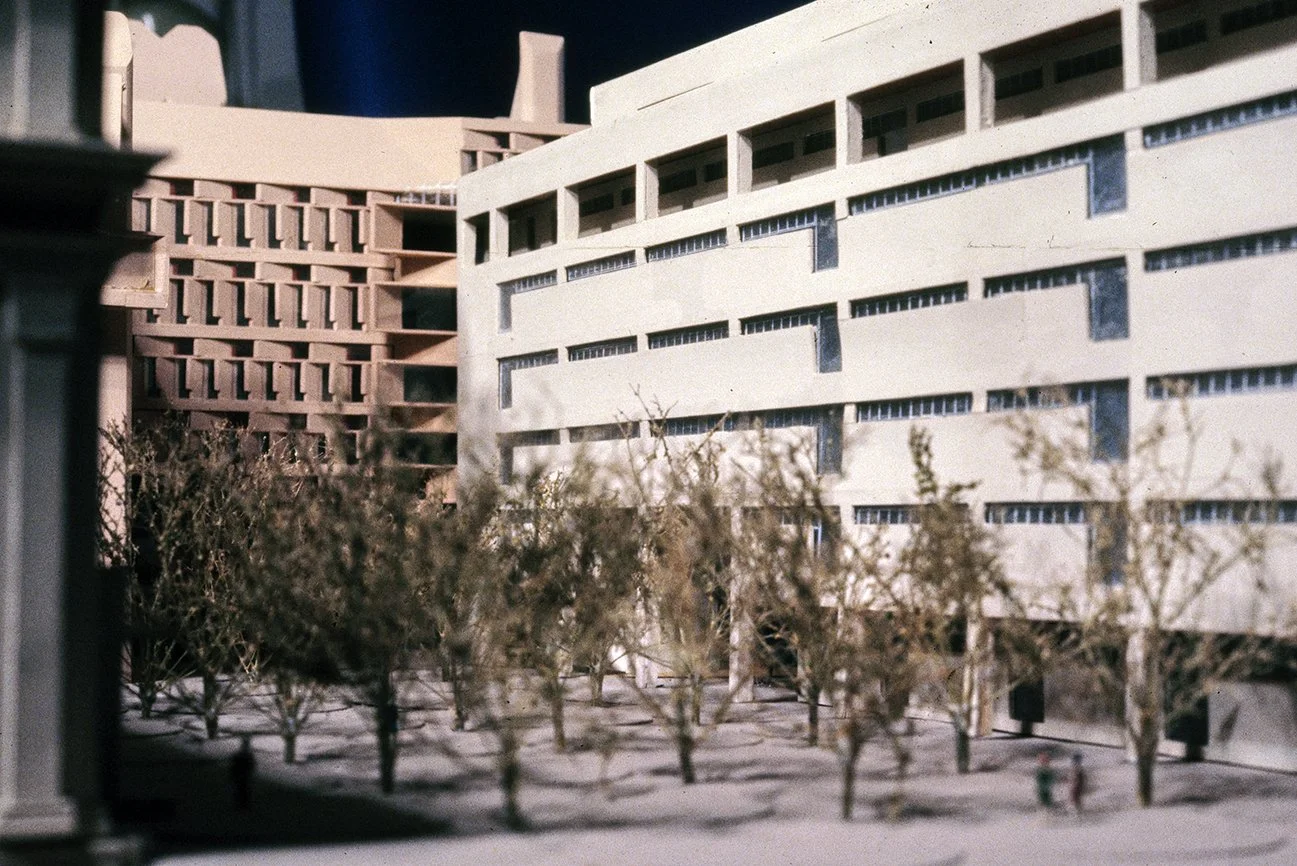

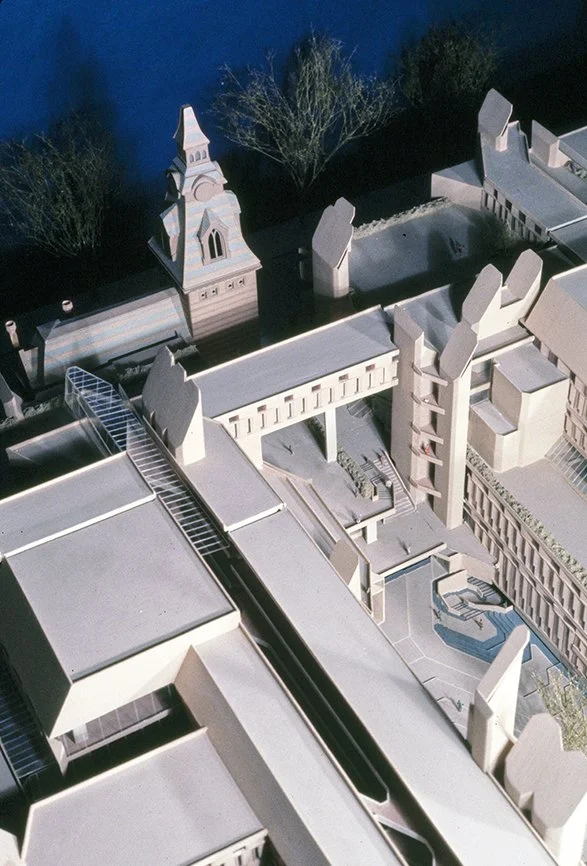

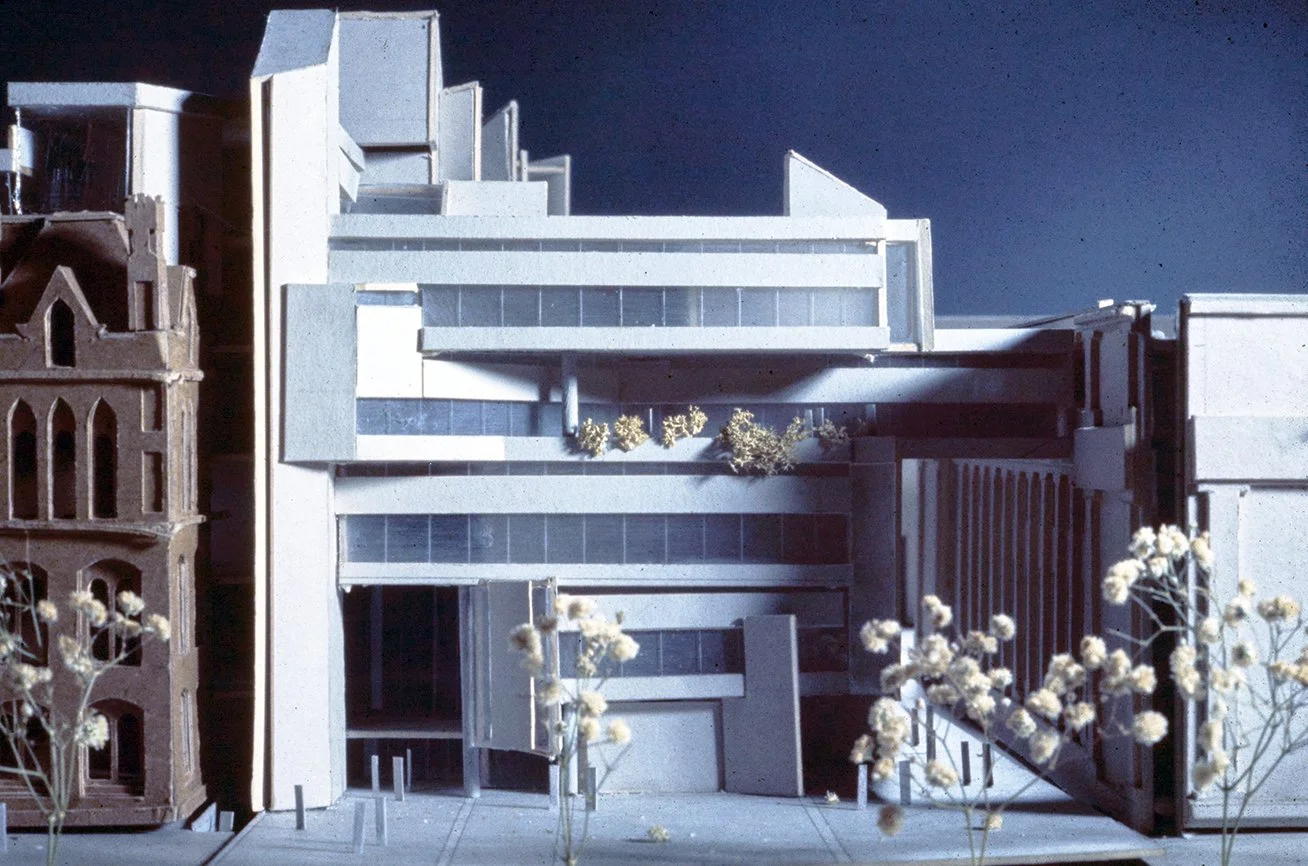

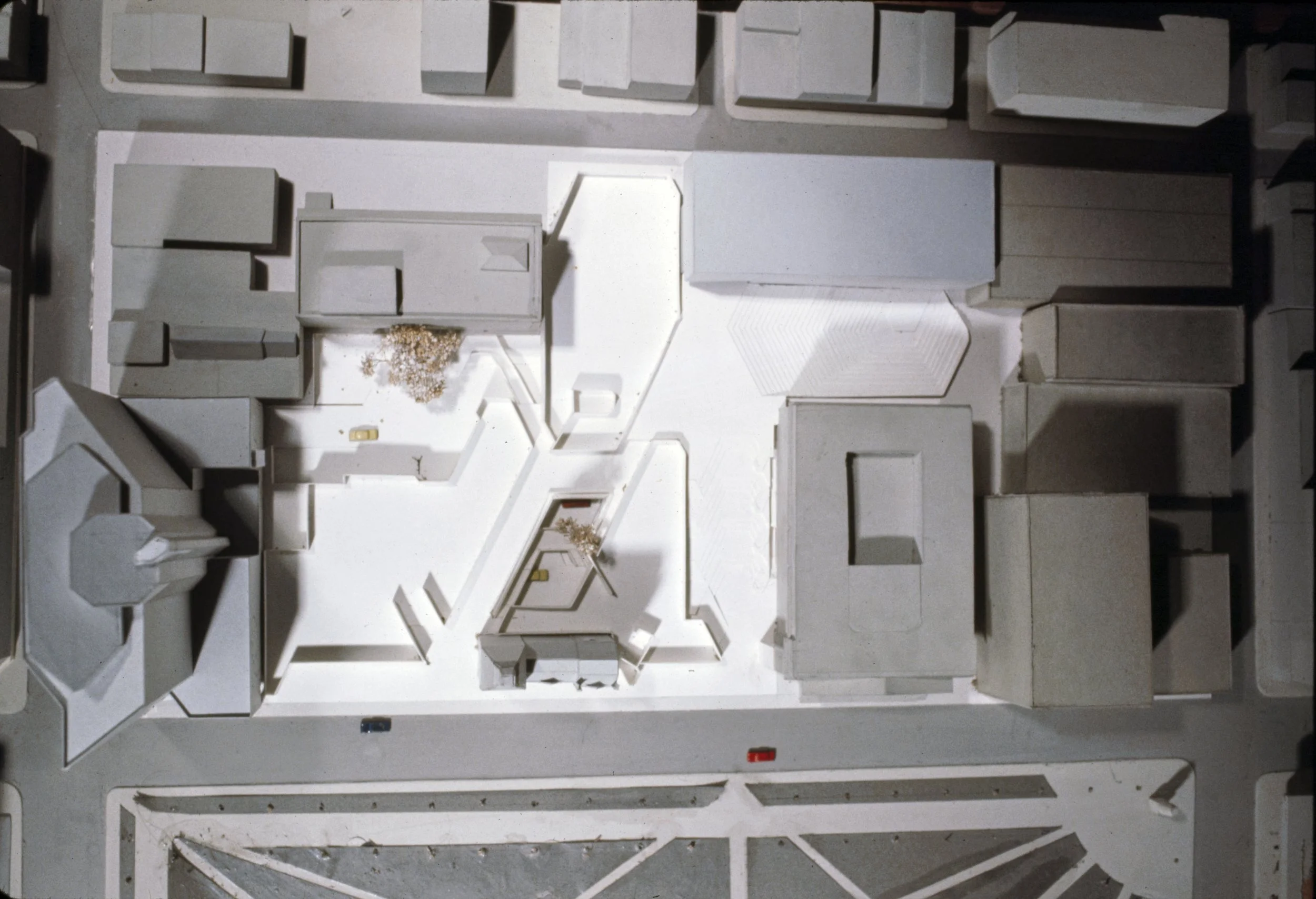

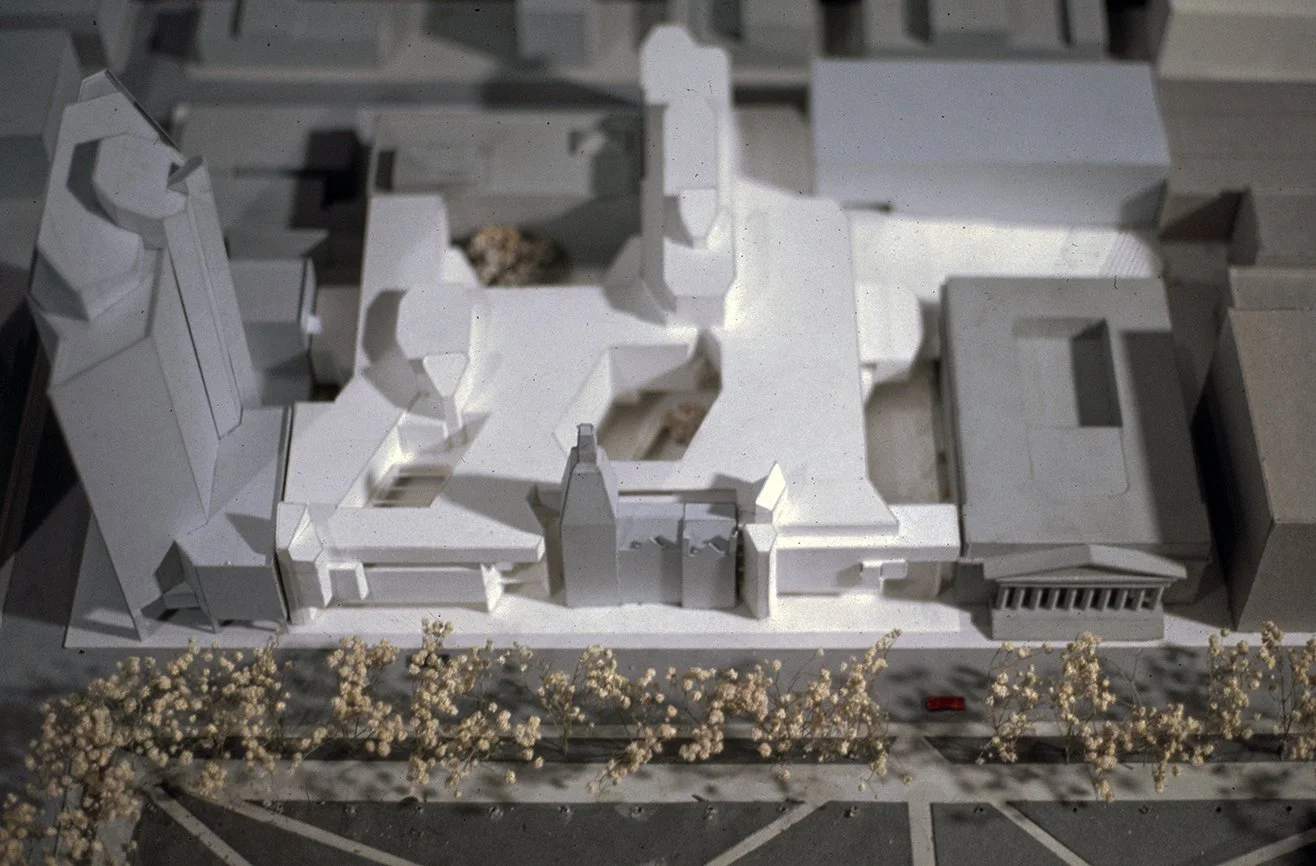

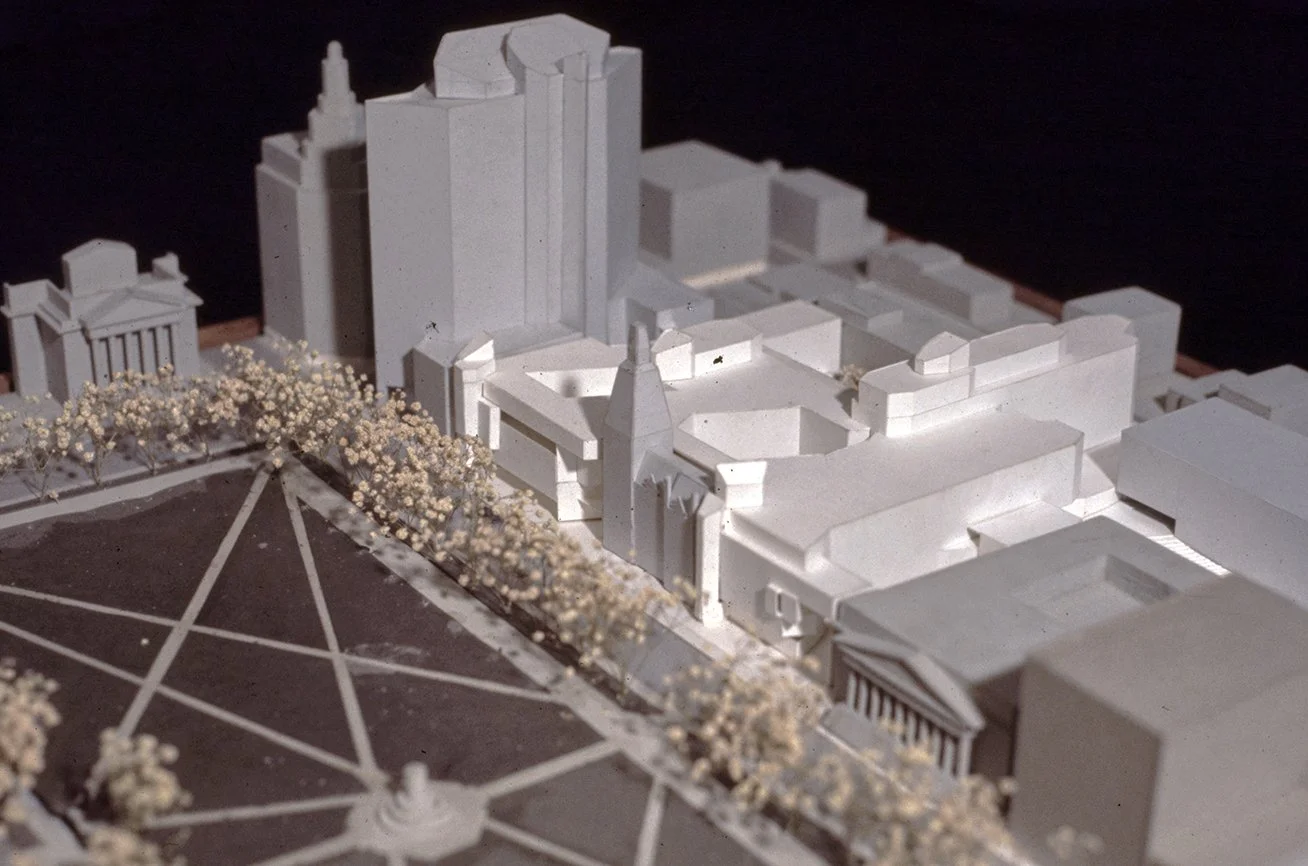

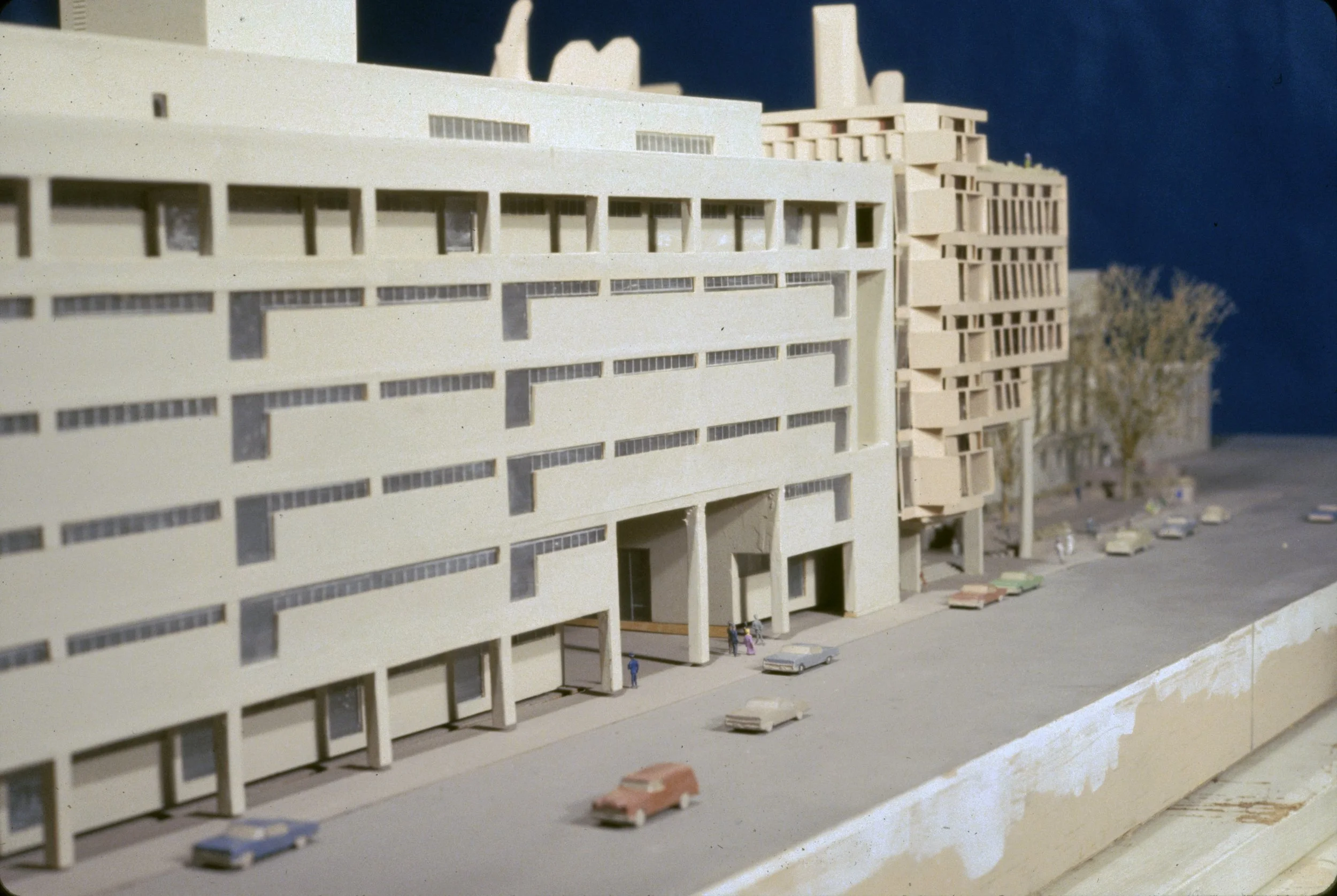

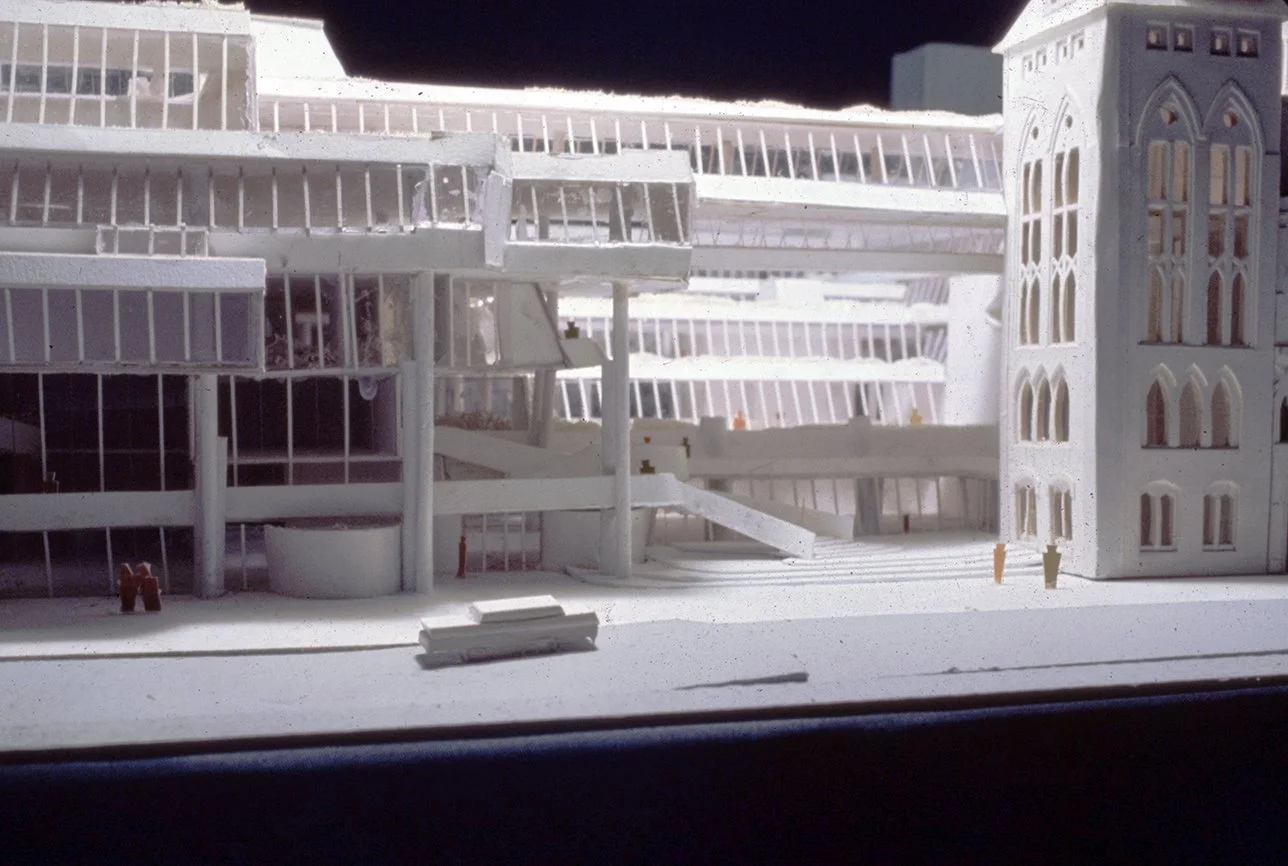

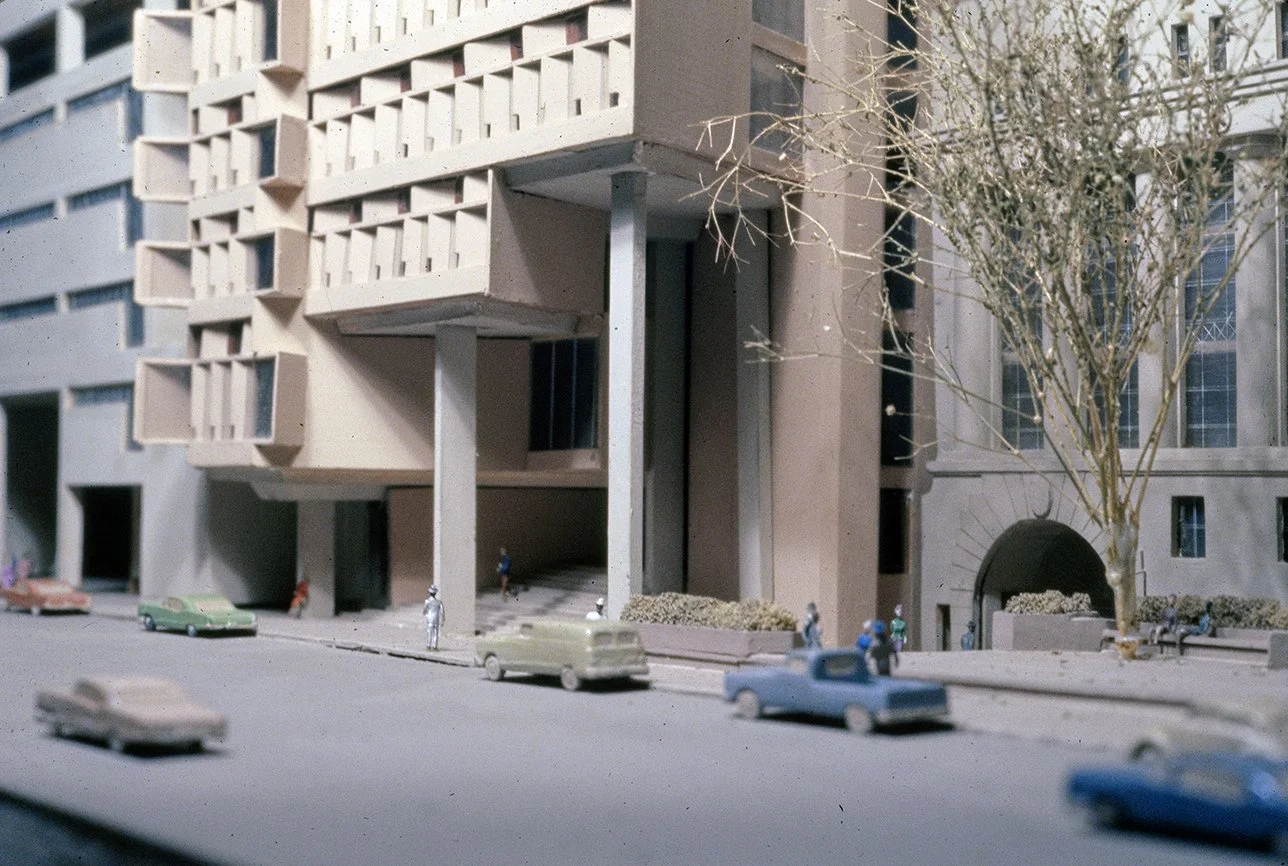

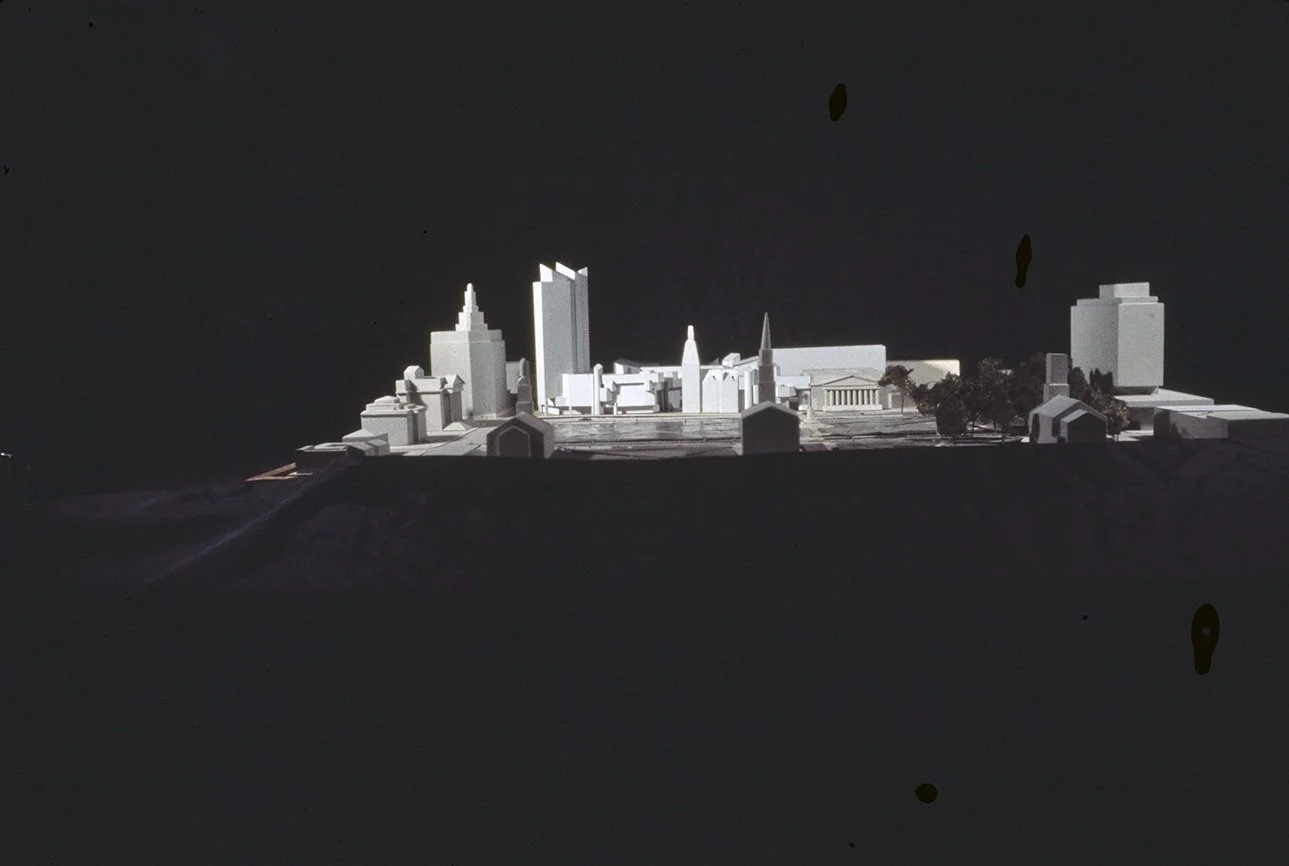

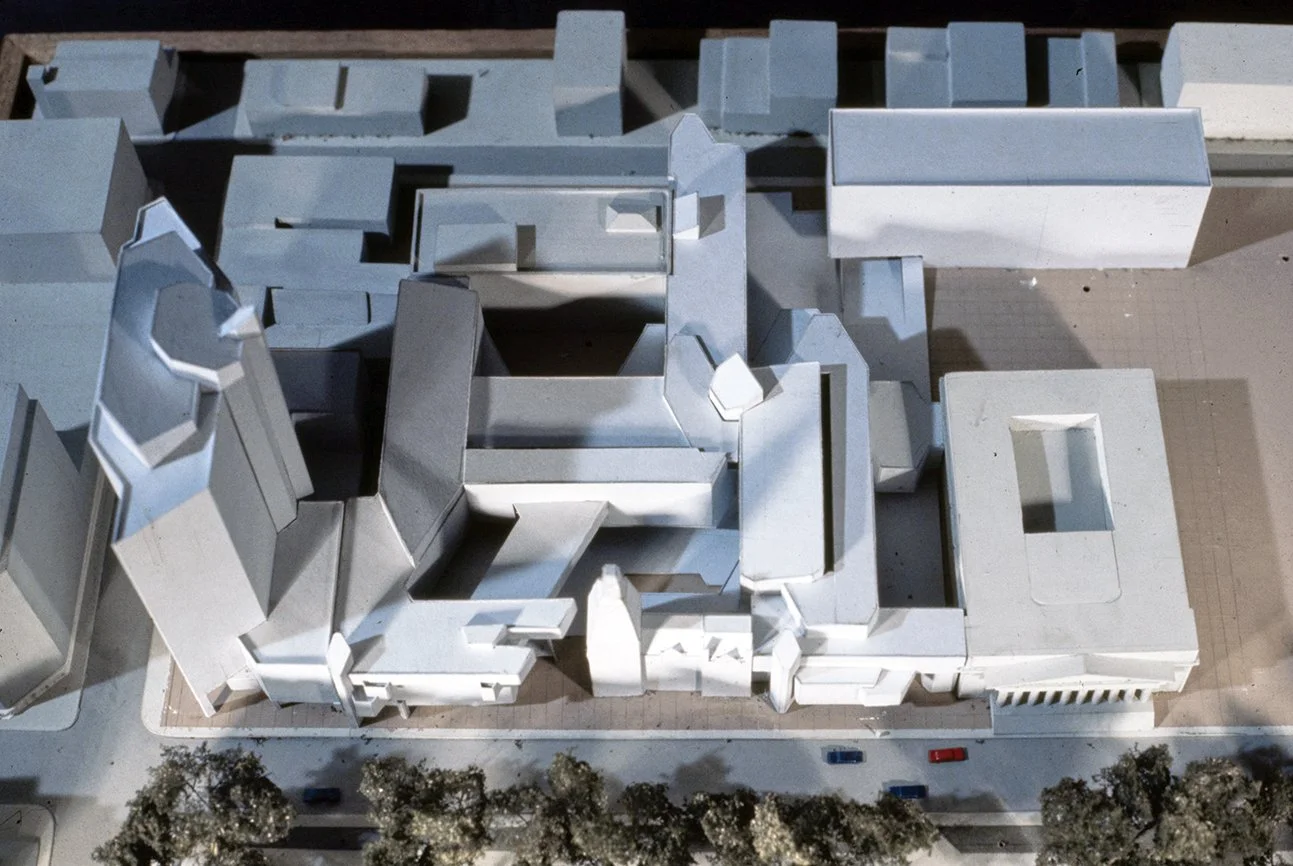

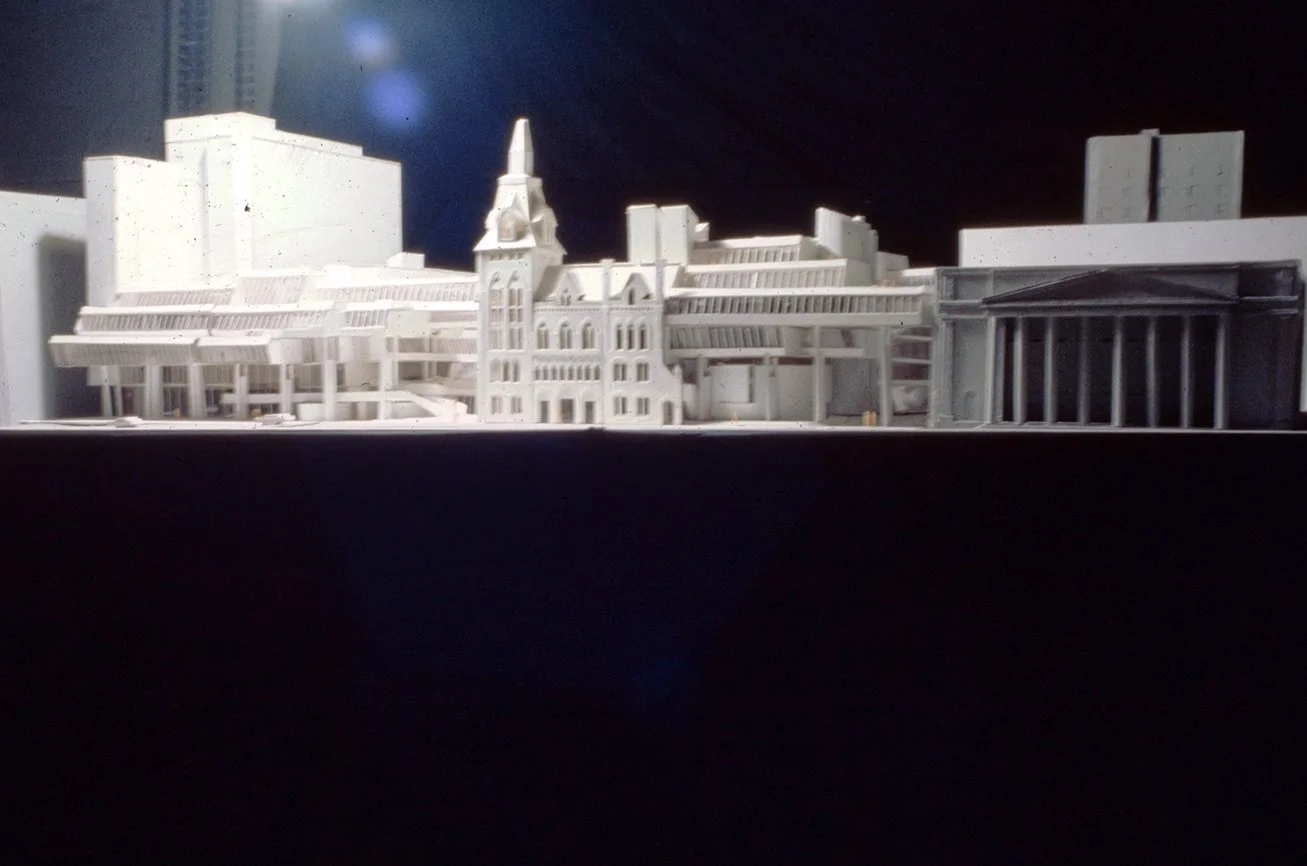

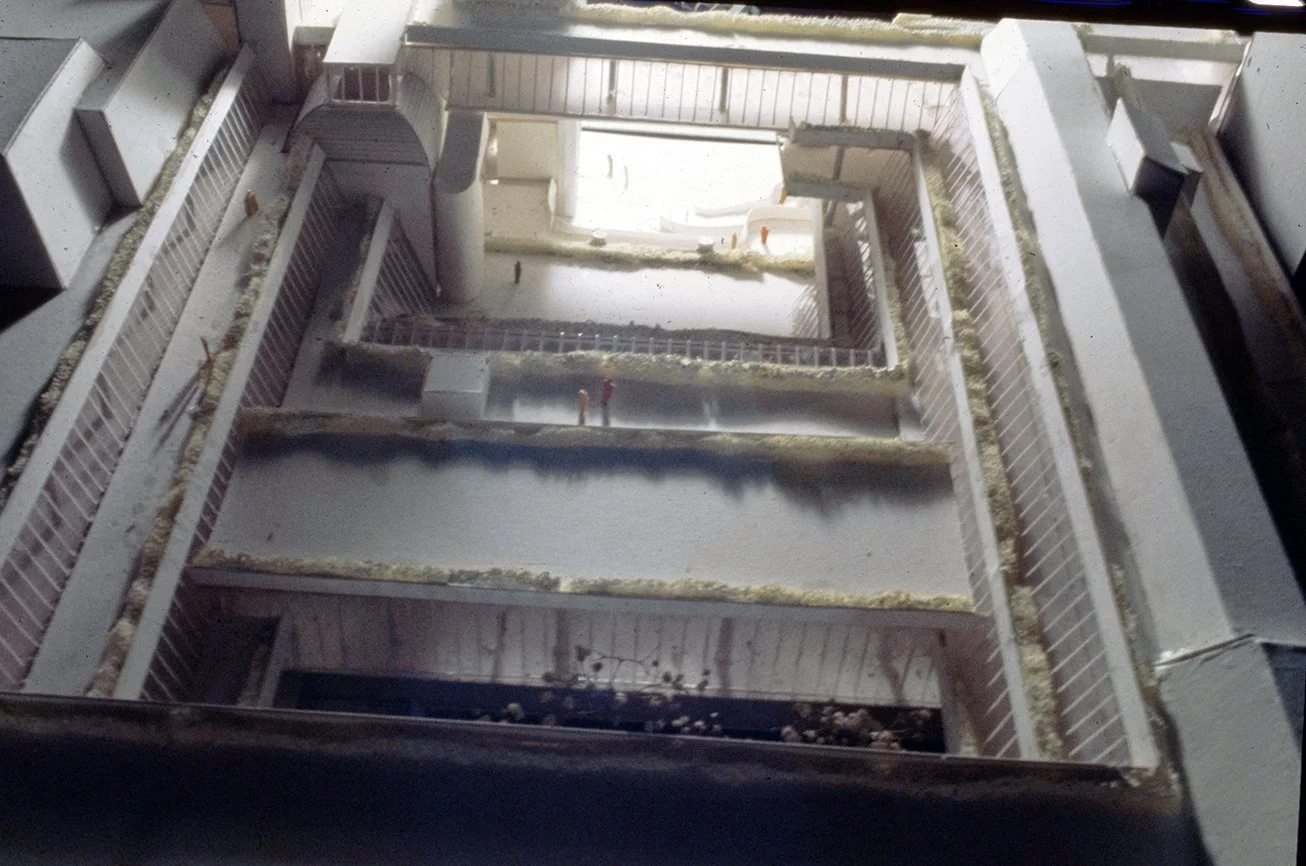

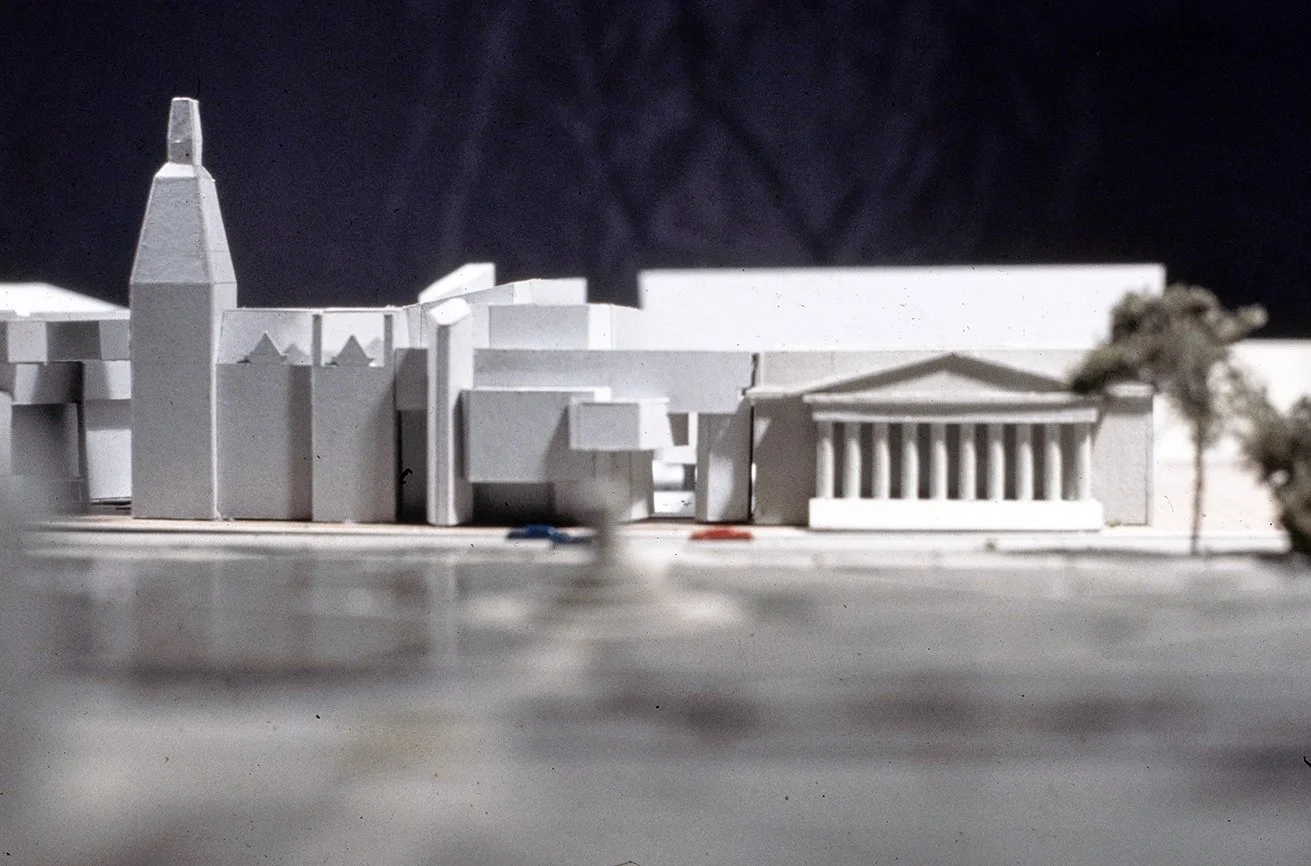

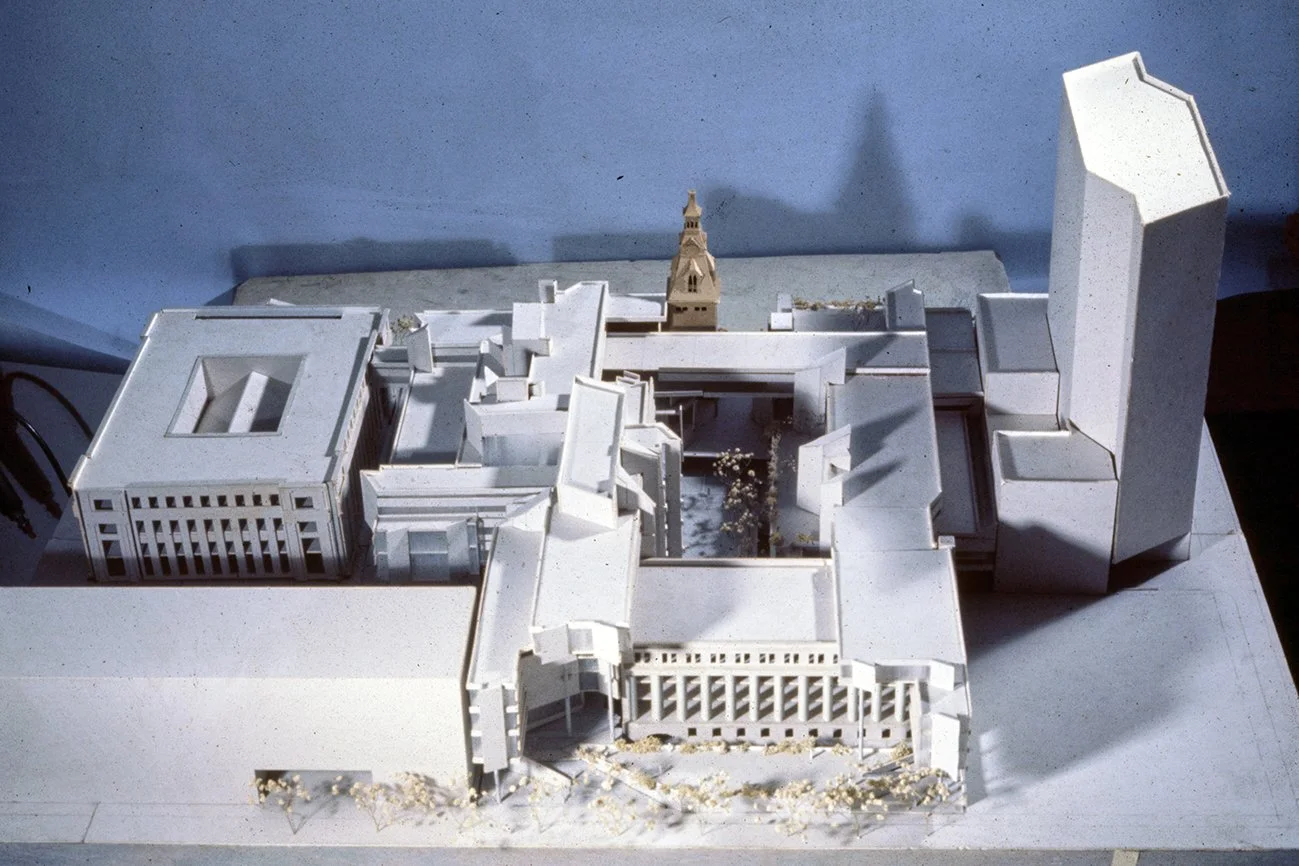

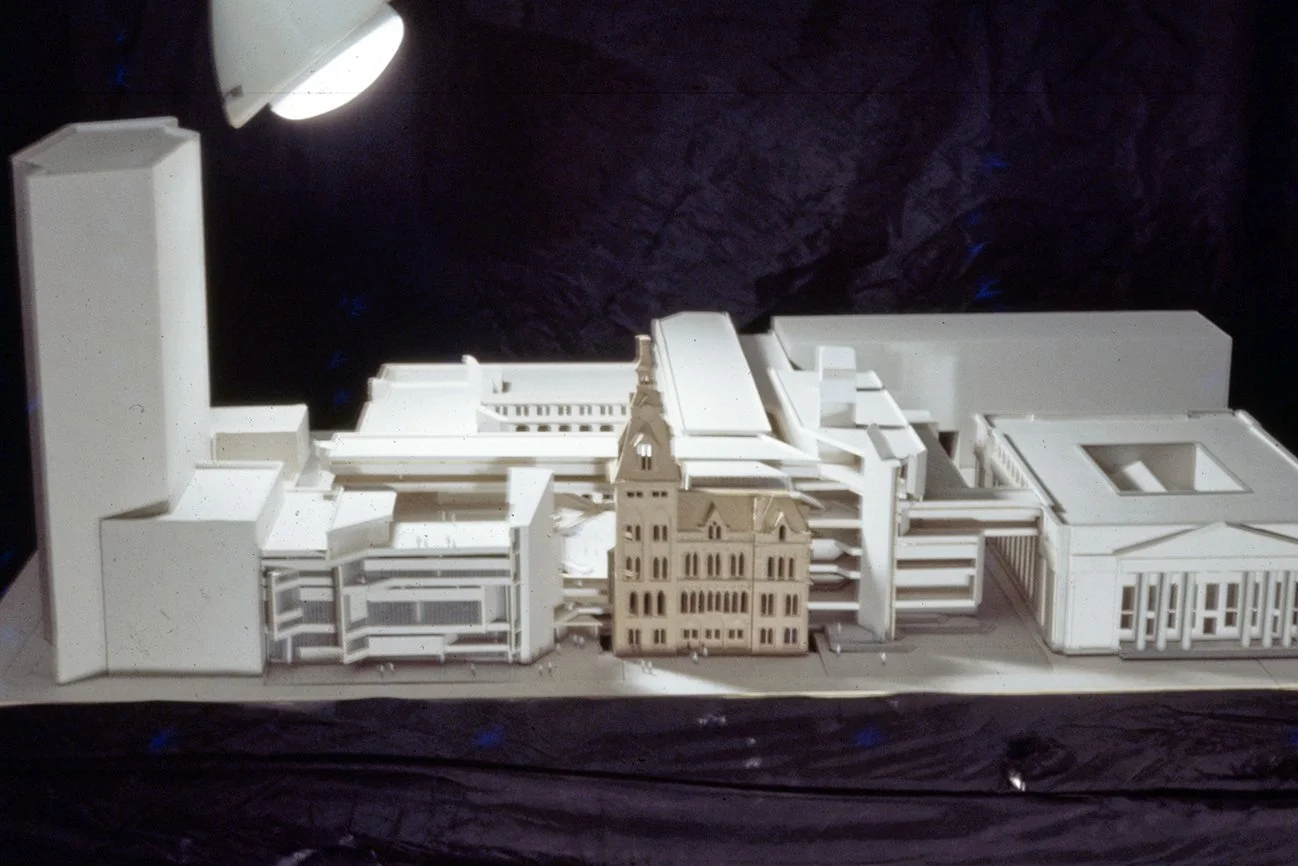

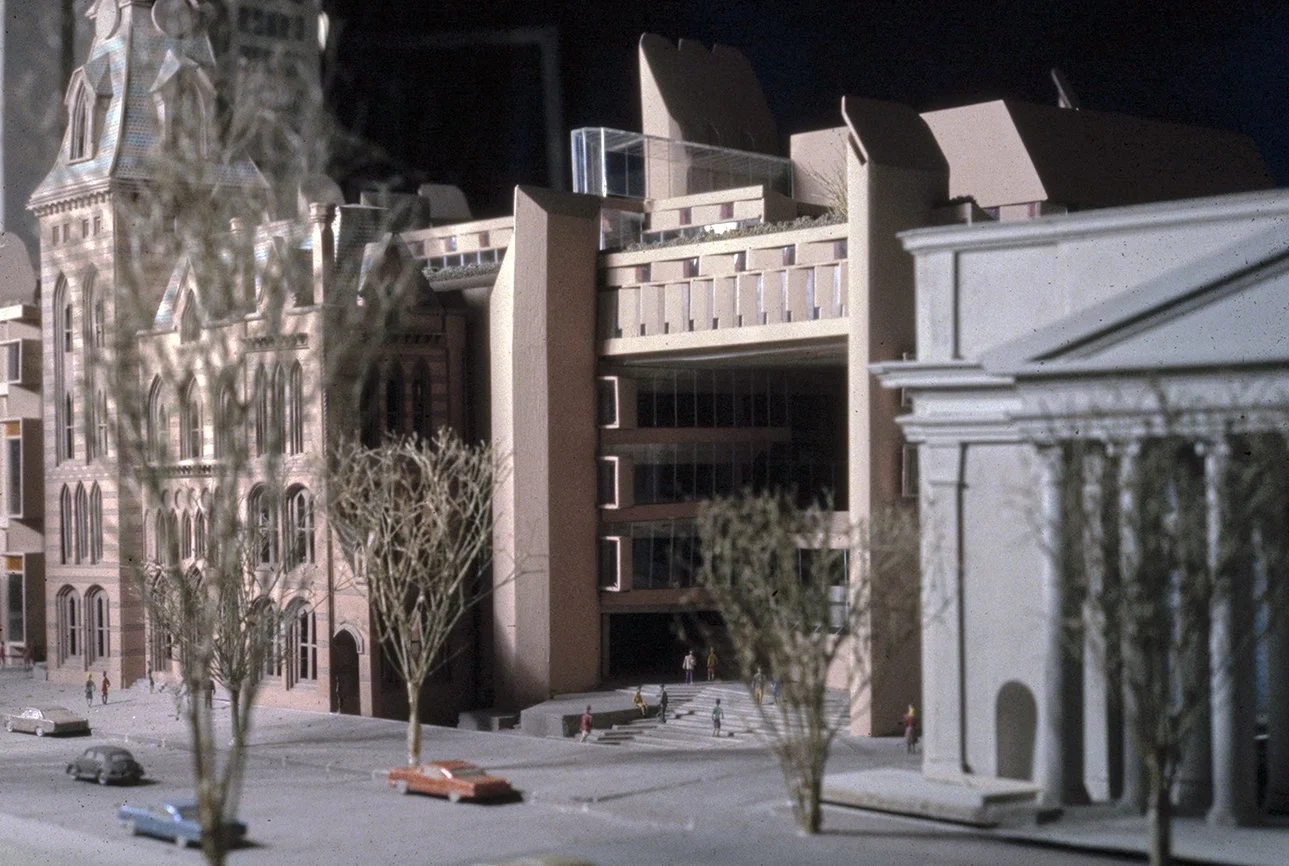

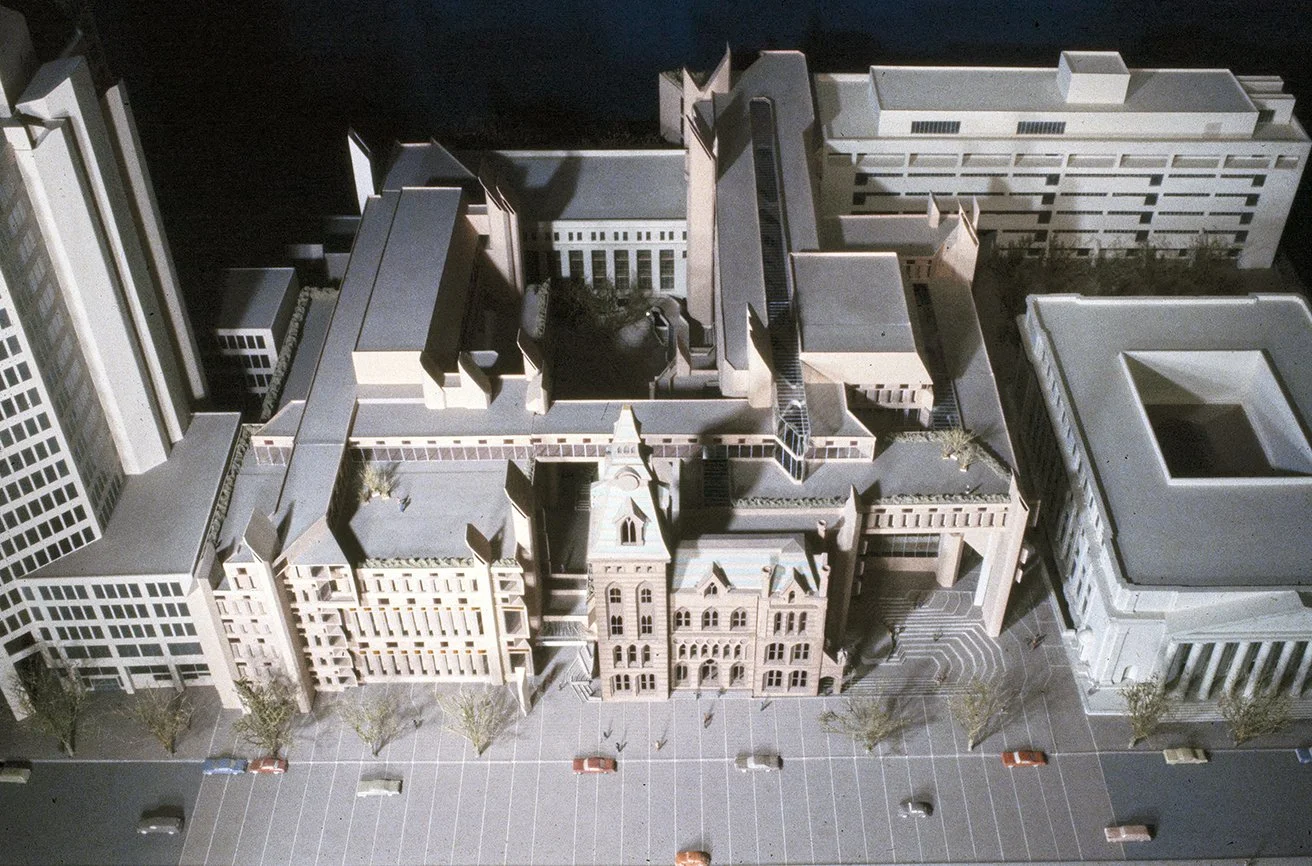

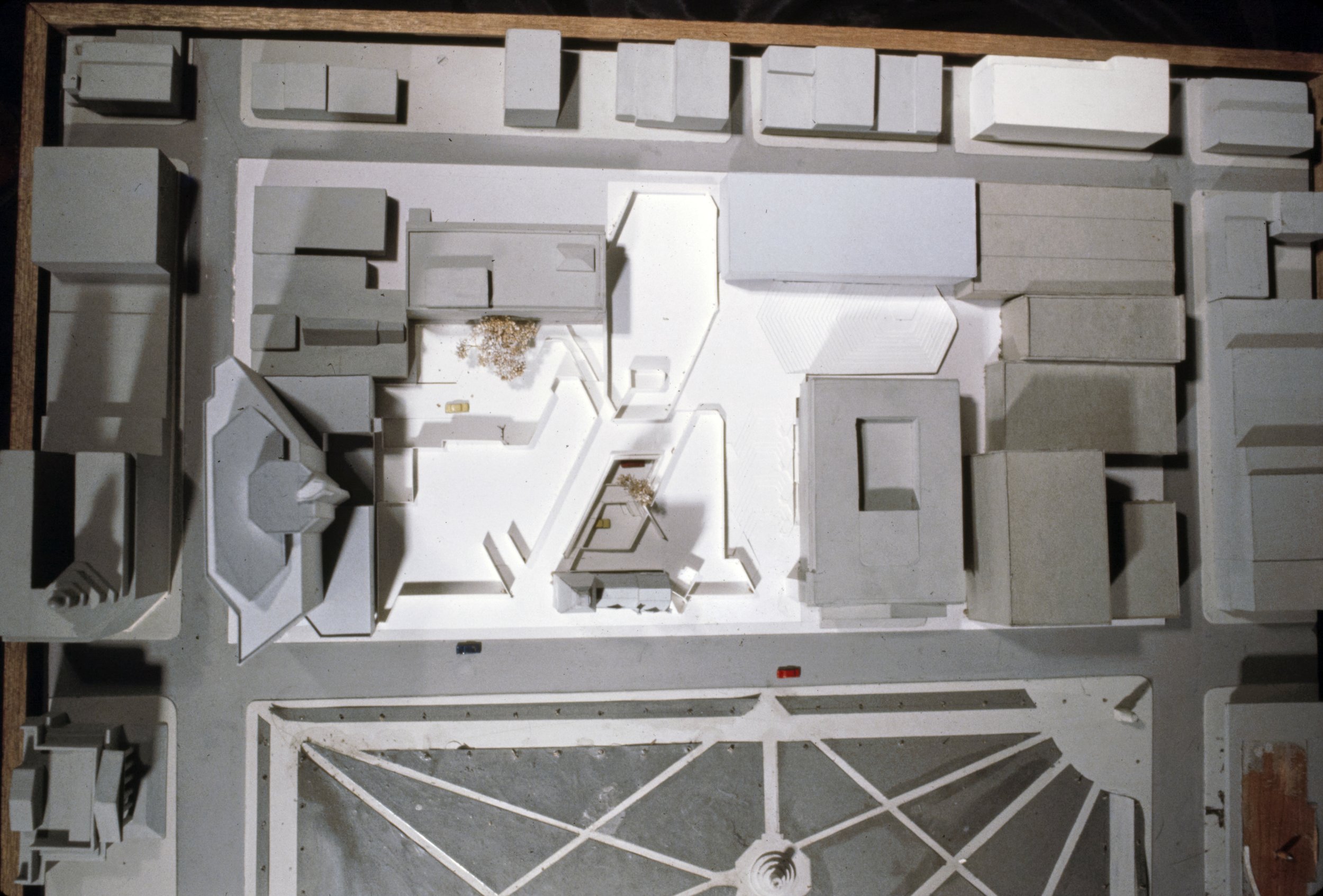

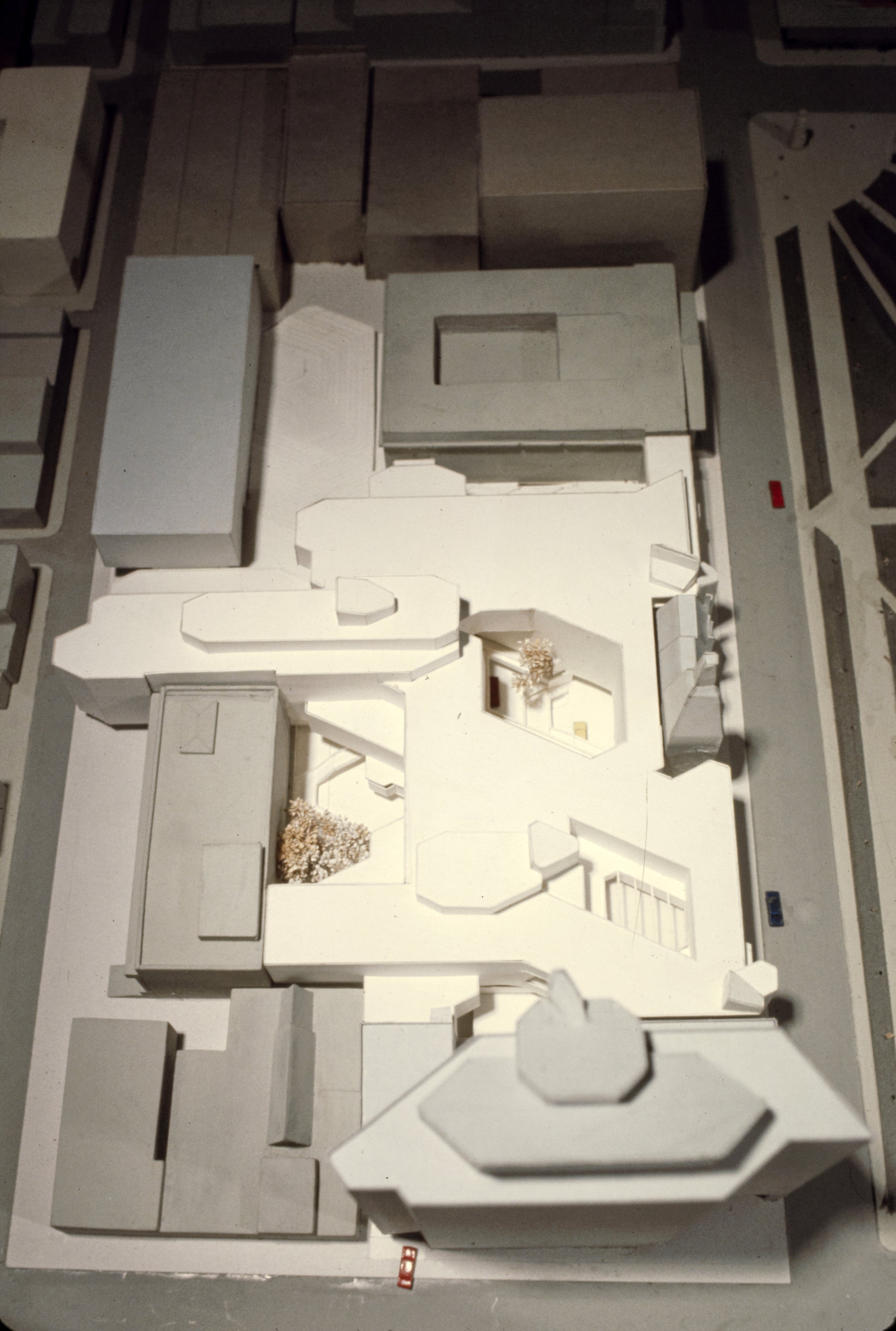

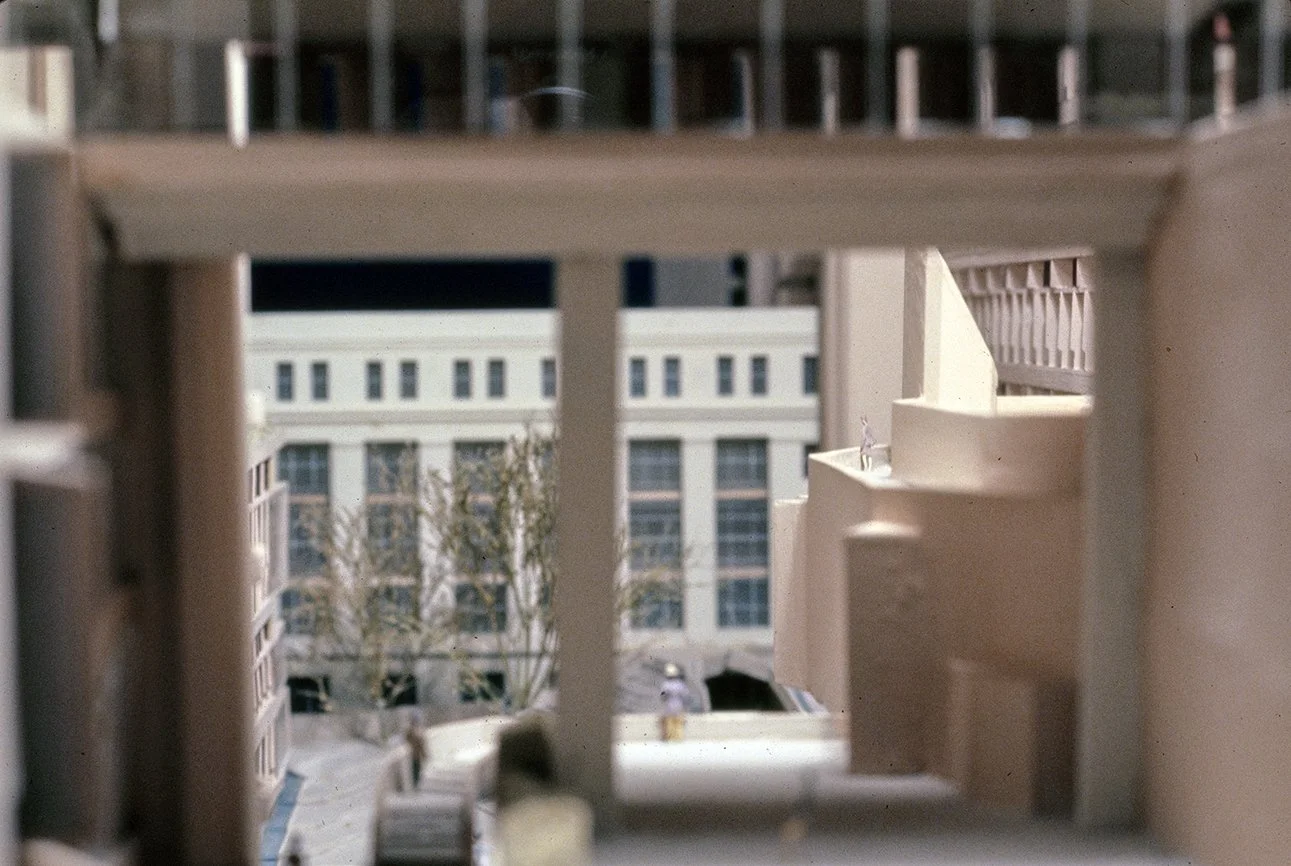

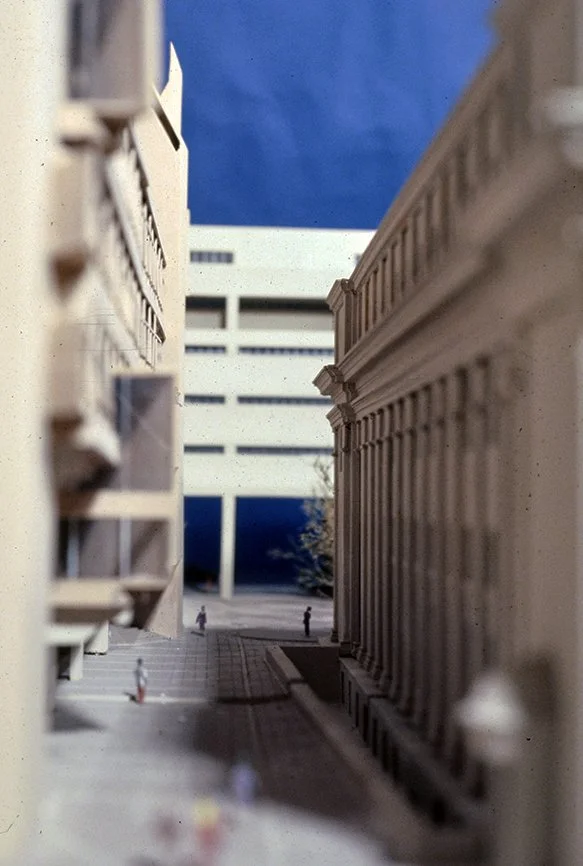

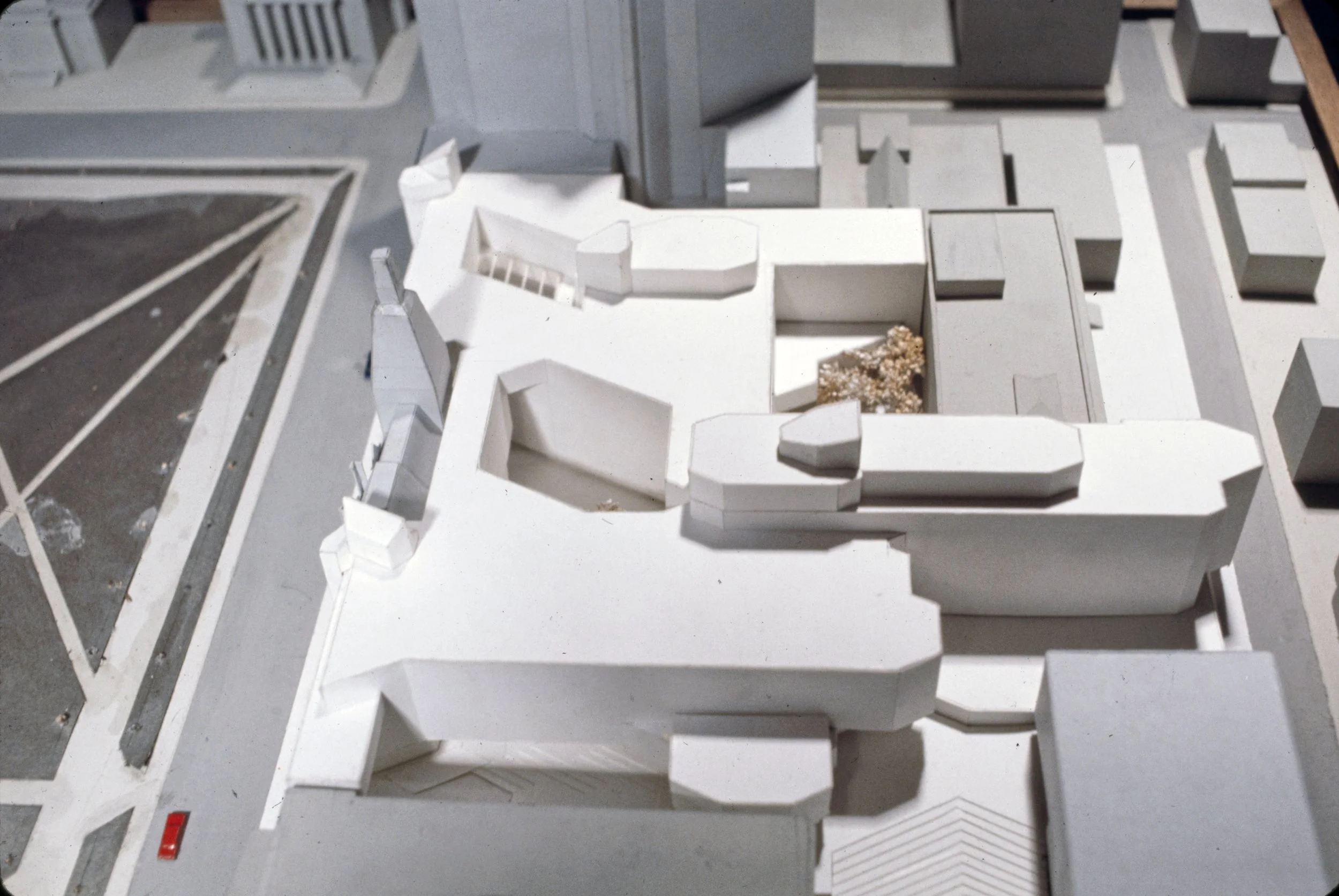

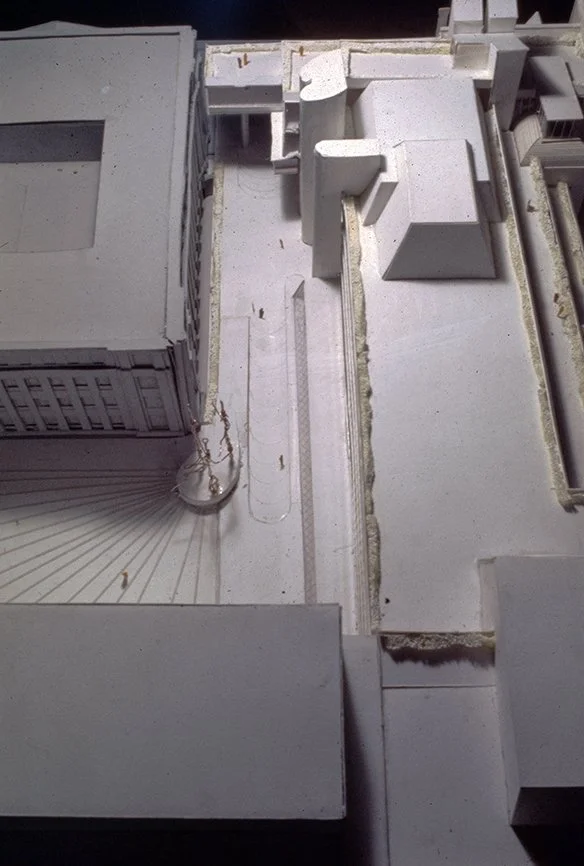

PHOTOS - Project Model
PHOTOS - During Construction
PHOTOS - Completed Project
PHOTOS - Current Conditions
LINKS FOR MORE INFORMATION
RELATED DOWNLOADS
PROJECT BIBLIOGRAPHY
Freeman, Belmont. “Review - Model City: Buildings and Projects by Paul Rudolph for Yale and New Haven.” Journal of the Society of Architectural Historians, vol. 69, no. 1, 2010, pp. 134–36. JSTOR.
Jeanne M. Davern. Architecture 1970-1980: A Decade of Change. McGraw-Hill, 1980.
“New Haven Planning Major New Project.” New York Times, 2 Jan. 1966.
Paul Rudolph. Paul Rudolph: Dessins D’Architecture. Office du Livre, 1974.
Tony Monk. The Art and Architecture of Paul Rudolph. John Wiley & Sons Ltd., 1999.
