LOCATION
Address: 370 Prospect Street
City: New Haven
State: Connecticut
Zip Code: 06511
Nation: United States
STATUS
Type: Academic
Status: Built
TECHNICAL DATA
Date(s): 1957-1959
Site Area:
Floor Area: 24,246 s.f.
Height:
Floors (Above Ground):
Building Cost:
PROFESSIONAL TEAM
Client: Yale University
Architect: Paul Rudolph (1918-1997)
Associate Architect: Charles Henry Brewer, Jr.
Landscape:
Structural: Henry A. Pfisterer
MEP: Hubbard, Lawless & Blakeley
QS/PM:
SUPPLIERS
Contractor: Dwight Building Company
Subcontractor(s):
William B. Greeley Memorial Laboratory for the Yale Forestry School
The project scope is to design a new facility for the Yale School of Forestry, the oldest forestry school in the country. The building site is located just below Marsh Hall, the original home of the Forestry School.
The building program includes classrooms and facilities for research in wood technology, forest genetics, tree physiology and forest pathology.
The building is among the earliest of Yale’s modern buildings and the first by Paul Rudolph for the university.

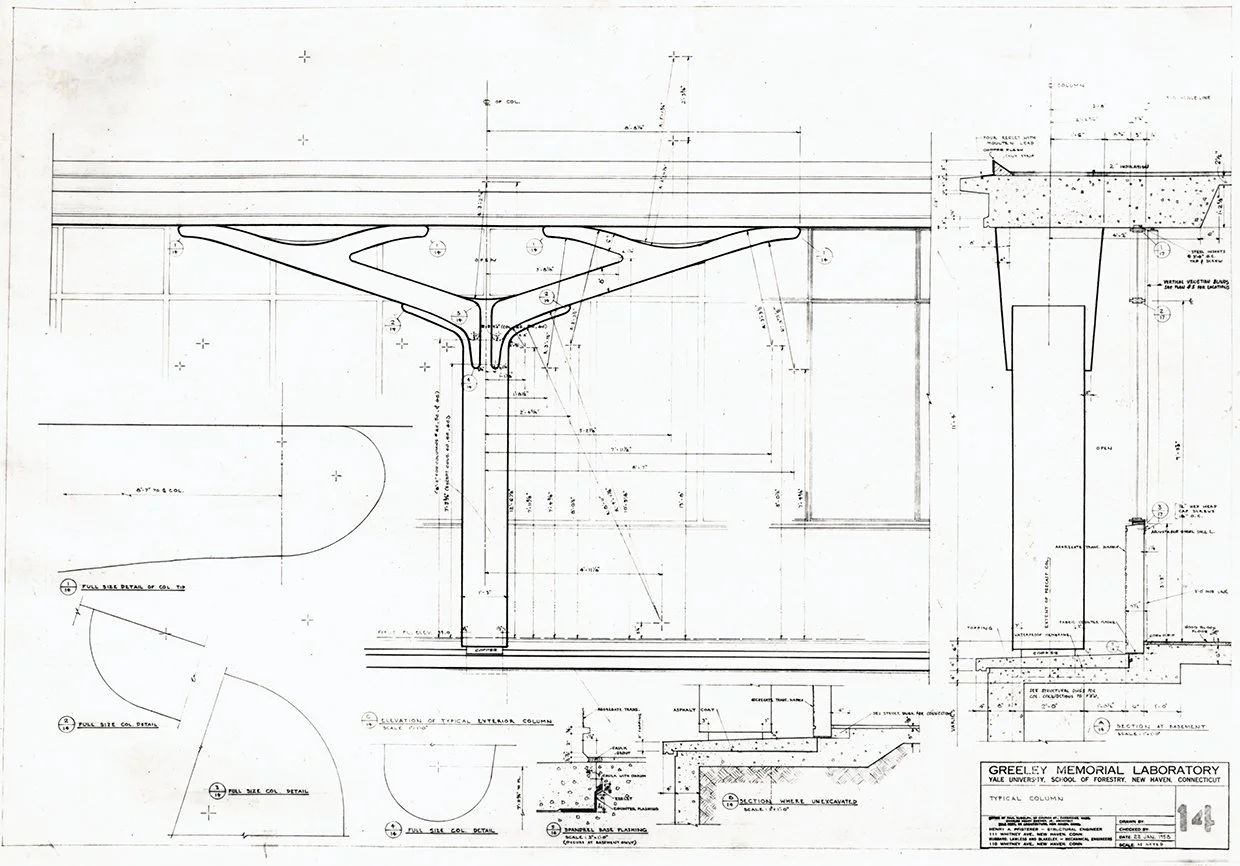

According to the 1967 book ‘Yale: A Pictorial History’ by Rueben A. Holden, the design is “intended to symbolize the study of the forest, its Y-shaped columns spreading like trees to form a grove.”
Today the building houses faculty, staff, 2 seminar rooms and labs. It also is home to the Center for Green Chemistry & Green Engineering with a separate greenhouse (4,278 GSF)
“A precast concrete structure entirely exposed which attempts to exploit some of the plastic characteristics of concrete. The relationship between the enclosed nature of the various rooms and the pavillion-like character of the building is unresolved.”

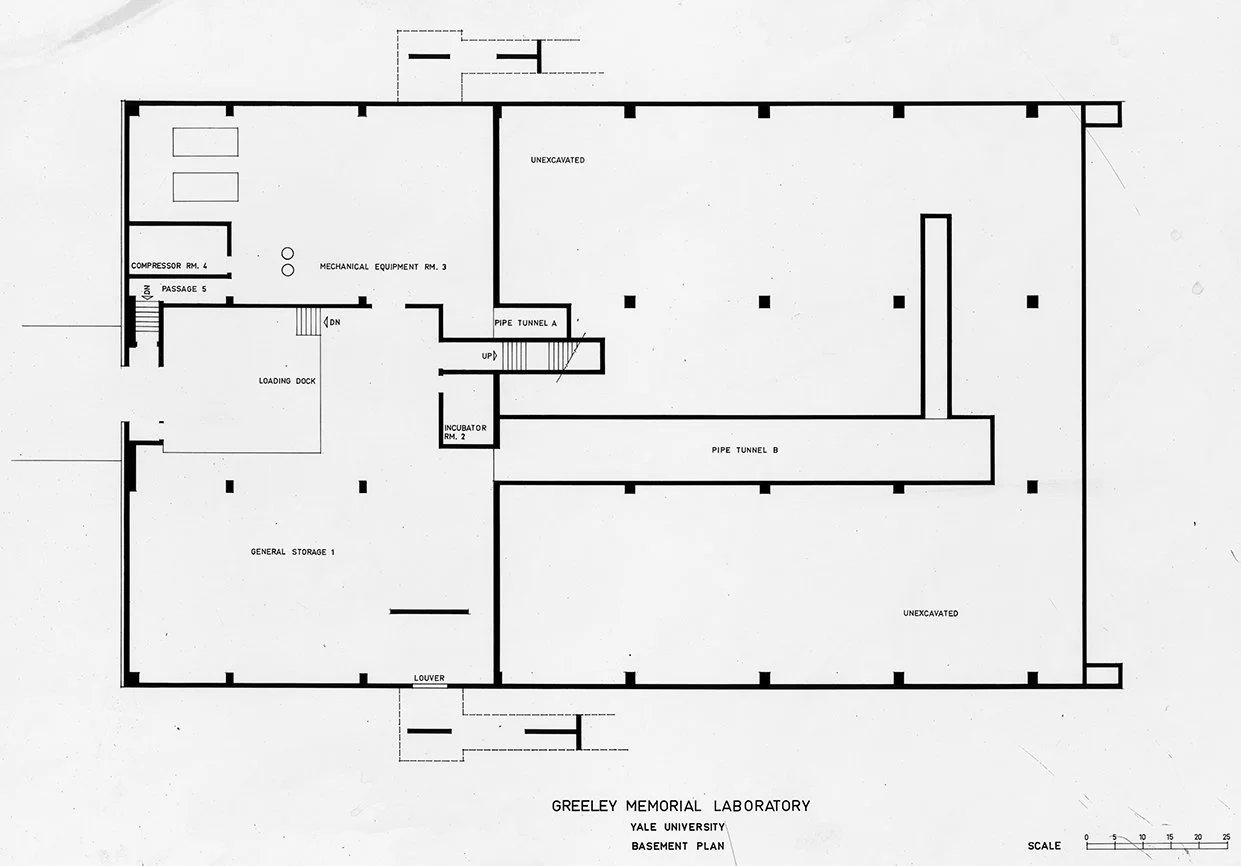

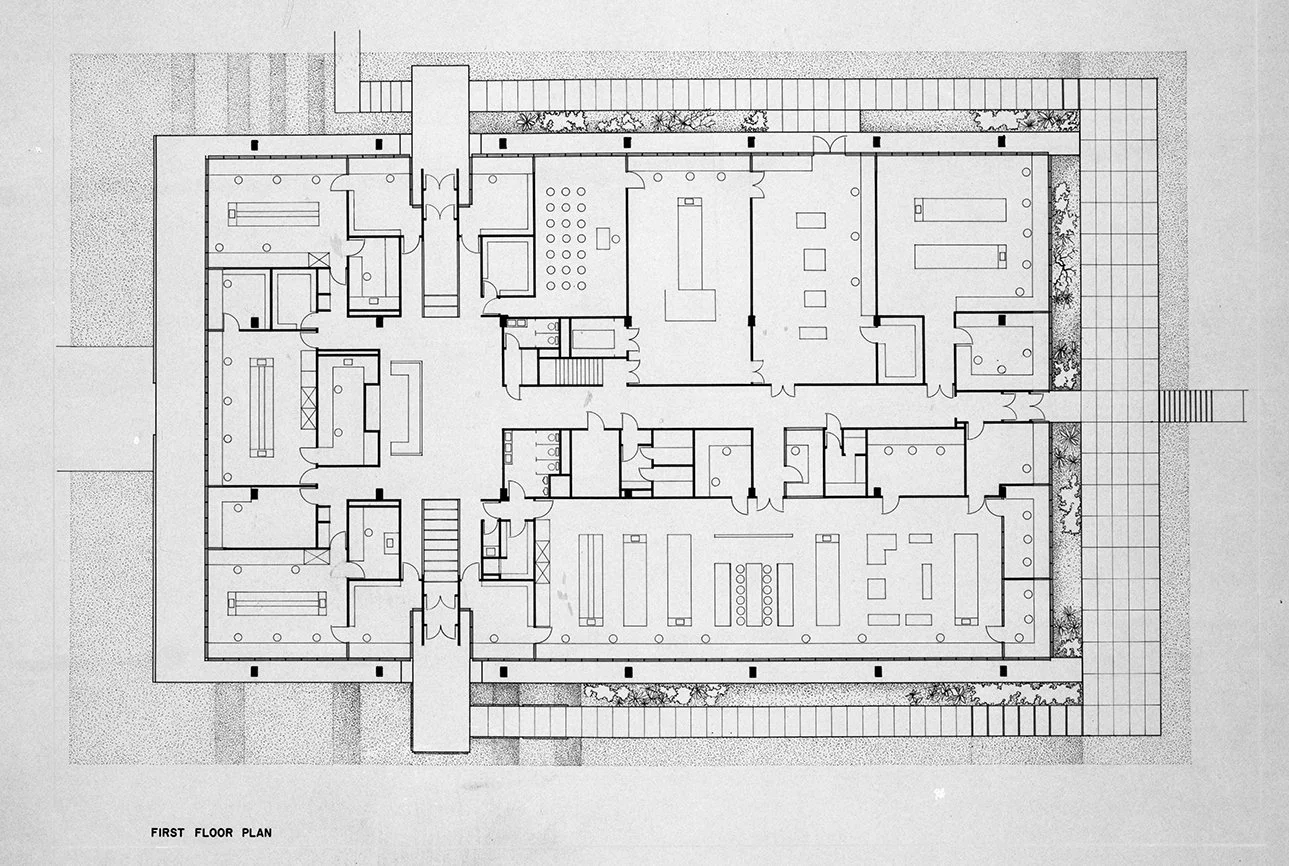

DRAWINGS - Design Drawings / Renderings

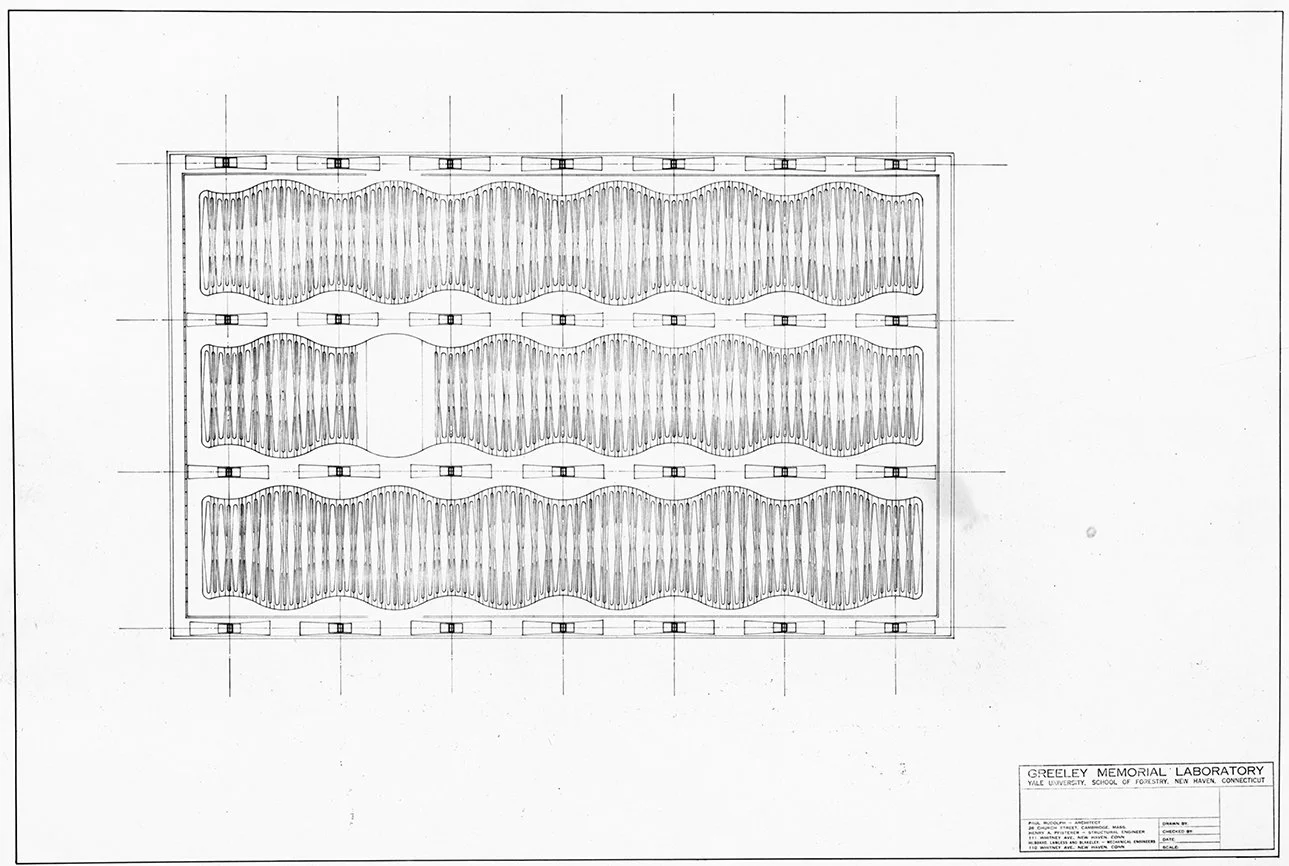

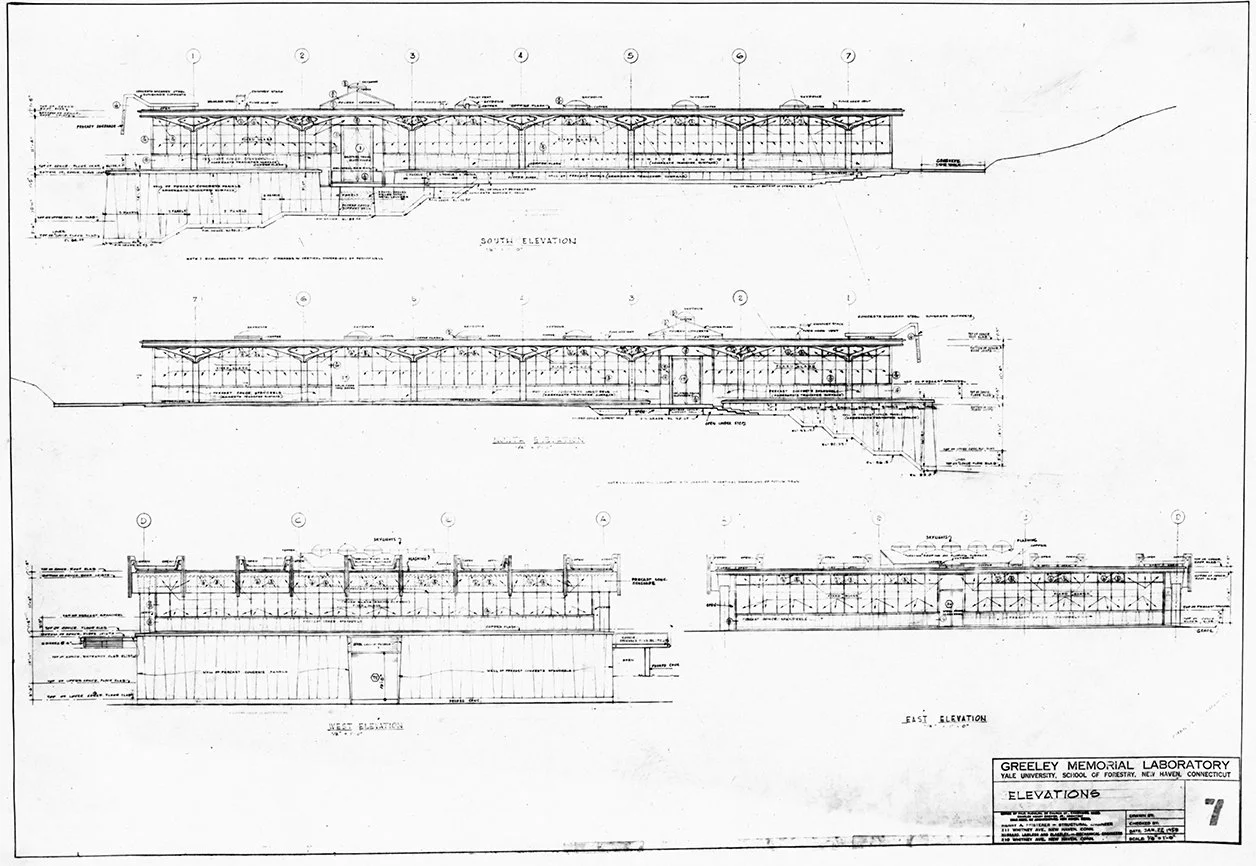

DRAWINGS - Construction Drawings
DRAWINGS - Shop Drawings
PHOTOS - Project Model
PHOTOS - During Construction
PHOTOS - Completed Project

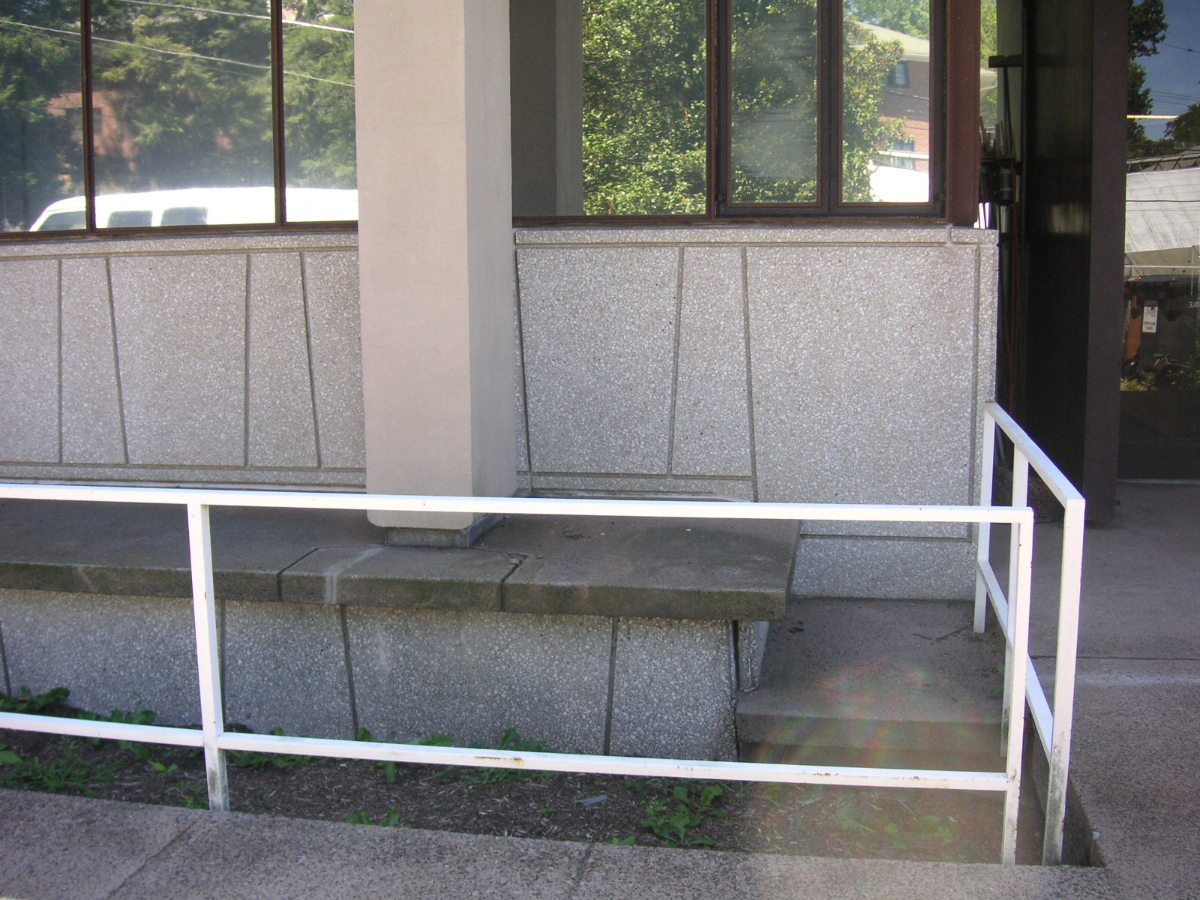

PHOTOS - Current Conditions
LINKS FOR MORE INFORMATION
RELATED DOWNLOADS
PROJECT BIBLIOGRAPHY
“Chronological List of Works by Paul Rudolph, 1946-1974.” Architecture and Urbanism, no. 49, Jan. 1975.
“Concrete Orchard: Yale’s Architectural Renaiisance Is Furthered by a Laboratory for Forestry Research by Paul Rudolph.” Architectural Forum, no. 111, Oct. 1959, pp. 138–41.
Cranston Jones. Architecture Today and Tomorrow. McGraw-Hill, 1961.
Don Metz. New Architecture in New Haven. MIT Press, 1966.
---. New Architecture in New Haven. MIT Press, 1973.
“Electrical Distribution: Forestry Laboratory at Yale.” Progressive Architecture, no. 41, Feb. 1960, pp. 172–73.
Francesco Tentori. “Greeley Memorial Laboratory per La Facolta d’agraria Di Yale, New Haven, Connecticut, 1959.” Casabella, no. 234, Dec. 1959.
Freeman, Belmont. “Review - Model City: Buildings and Projects by Paul Rudolph for Yale and New Haven.” Journal of the Society of Architectural Historians, vol. 69, no. 1, [Society of Architectural Historians, University of California Press], 2010, pp. 134–36, https://doi.org/10.1525/jsah.2010.69.1.134. JSTOR.
Fumihiko Maki. Contemporary Architecture of the World, 1961. Shokokusha, 1961.
Henry A. Millon. “Rudolph at the Crossroads.” Architectural Design, no. 30, Dec. 1960, pp. 497–99.
Paul Rudolph. Paul Rudolph: Dessins D’Architecture. Office du Livre, 1974.
Paul Rudolph and Sybil Moholy-Nagy. The Architecture of Paul Rudolph. Praeger, 1970.
Philip Johnson. “Three Architects.” Art In America, no. 48, Spring 1960, pp. 70–73.
Reuben A. Holden. Yale: A Pictorial History. Yale University Press, 1967.
Rupert Spade. Paul Rudolph. Simon and Schuster, 1971.
Tony Monk. The Art and Architecture of Paul Rudolph. John Wiley & Sons Ltd., 1999.
Walter McQuade. “Exploded Landscape.” Perspecta, no. 7, 1961, pp. 83–84.
