Oriental Masonic Gardens
The project scope is to design a $3.4 million USD federally-aided cooperative deveopment of 143 low and moderate income two-story townhouse apartments designed to solve the housing shortage in New Haven.
The project is conceived by developer Alan Glen, President of Modular Structures, Inc., a Bethesda, Maryland firm specializing in modular construction. The project is sponsored by Oriental Lodge No. 6 of the Prince Hall Masons, a black fraternal organization.
The project offers 2-5 bedroom apartments. Residents are required to submit a $325 USD down payment, with monthly charges ranging from $111.50 USD per month for a two bedroom unit with federal subsidy, to $258.49 USD for a five bedroom apartment for a moderate income family not receiving subsidy.
The final project scheme consists of 148 prefab units on 12.5 acres. It has a total of 333 modules, costing $2,363,000 USD.
The project is demolished in 1981
New housing known as ‘Westfield Manor’ is constructed on the site
“The development has many unique features which I believe will influence housing design in the mass production field.”
“These stacked houses consist of two blocks, one at the ground floor containing a living-dining-kitchen, a second block at the second floor containing the bedrooms and baths. These two blocks face their own courtyard, allowing each ‘house’ to have its own plot of land and identity. By grouping such units in fours around a single core an alternative to the row house or single family house is achieved. Two 3/8 inch sheets of plywood are bound to form vaults, apparently expanding the interior space. Construction started on this project in October, 1969, and will be the first project utilizing the ‘Twentieth Century Brick.’ ”
“In New Haven, in the 60s, I designed some housing using trailers. I had the acquiescence of Mayor Lee, a remarkable mayor indeed. The whole notion of making a project for about 150 people using trailers was difficult to persuade anybody to do. I suppose it was a mistake; it was eventually demolished. People hated it. First of all it leaked, which is a very good reason to hate something, but I think it was much more complicated than that. Psychologically, the good folk who inhabited these dwellings thought that they were beneath them. In other words, the deviation of the dwelling was not something to their liking. I thought, and I suppose the mayor thought, that trailers were perfectly good enough for them. But I should say, in defense of what we built, that it was a pocket court plan and that it provided a separate outside space for each family. There were two stories, with a core at the center. I am very tenacious about certain things, and in the long run it seems to me that with the correcting of mistakes one can make something much more successful.”
DRAWINGS - Design Drawings / Renderings
DRAWINGS - Construction Drawings
DRAWINGS - Shop Drawings

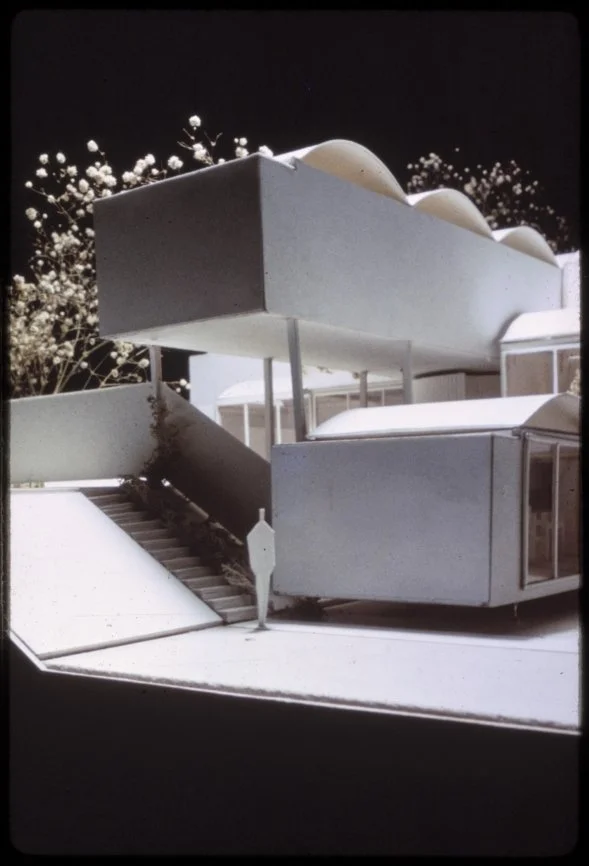

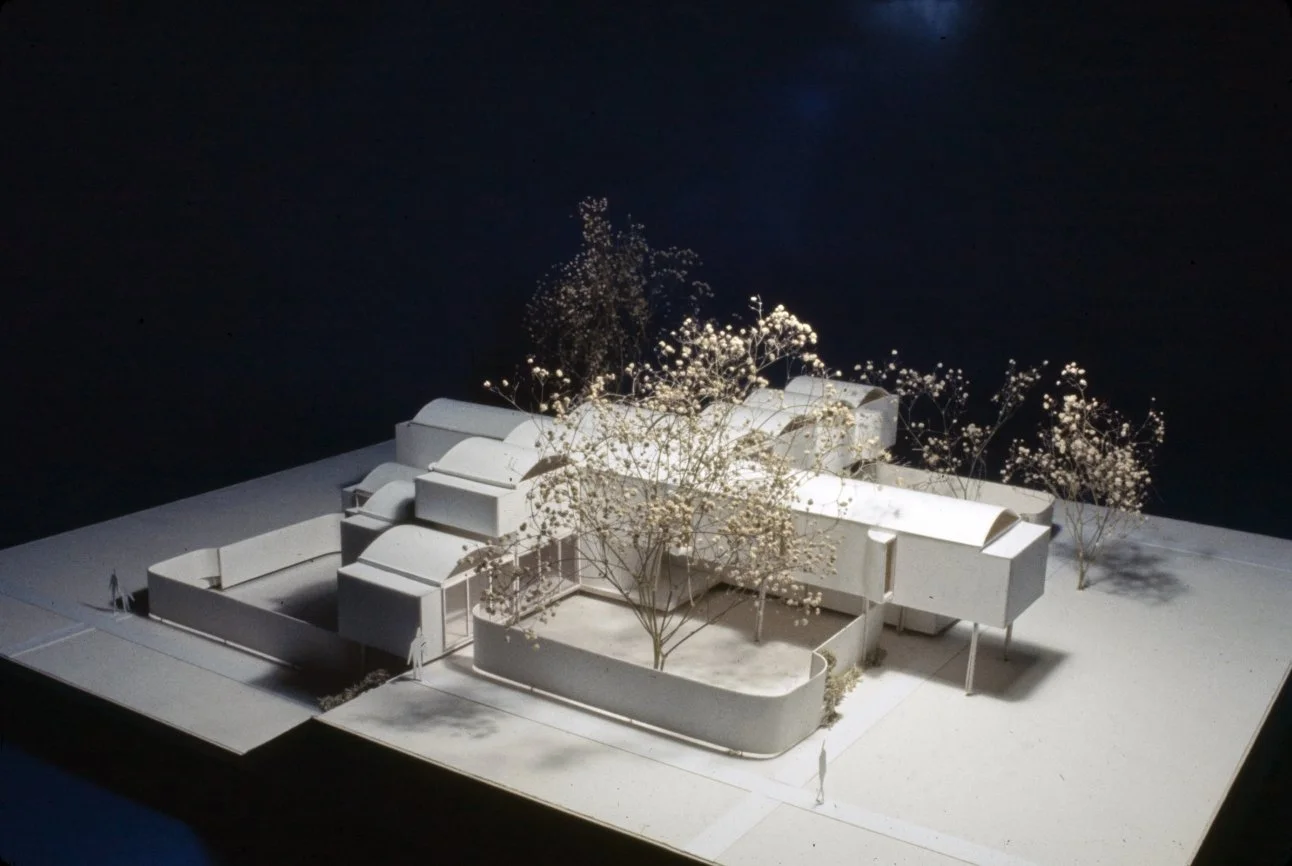

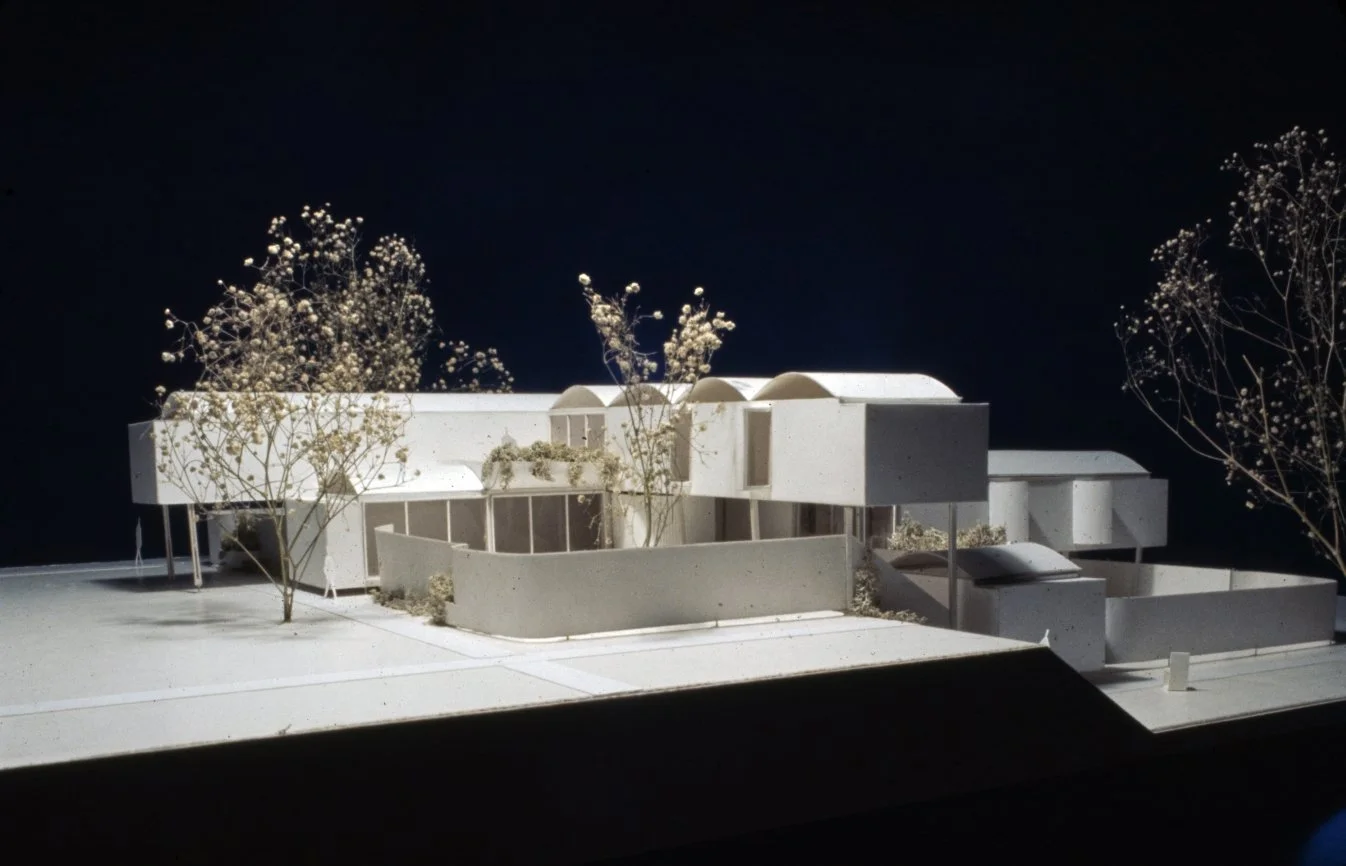

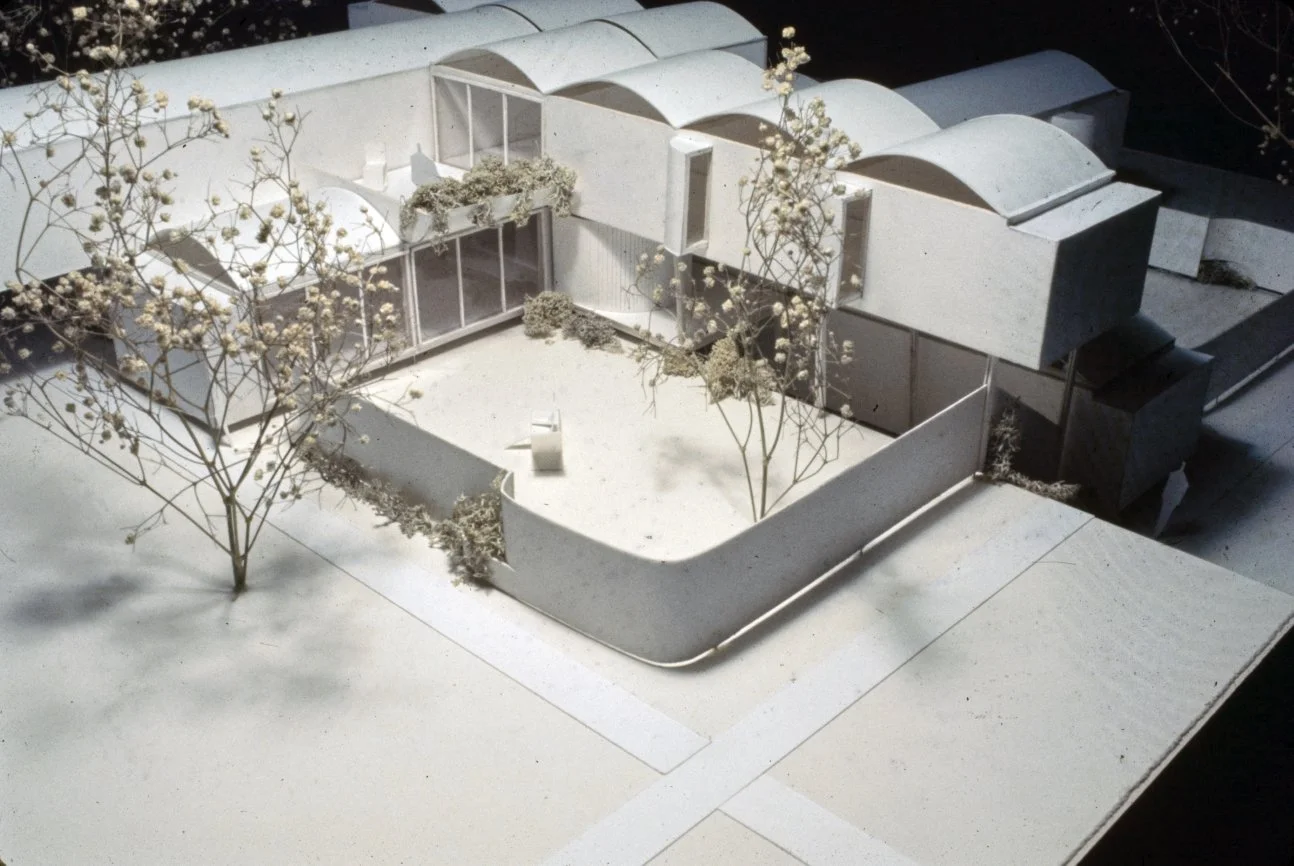

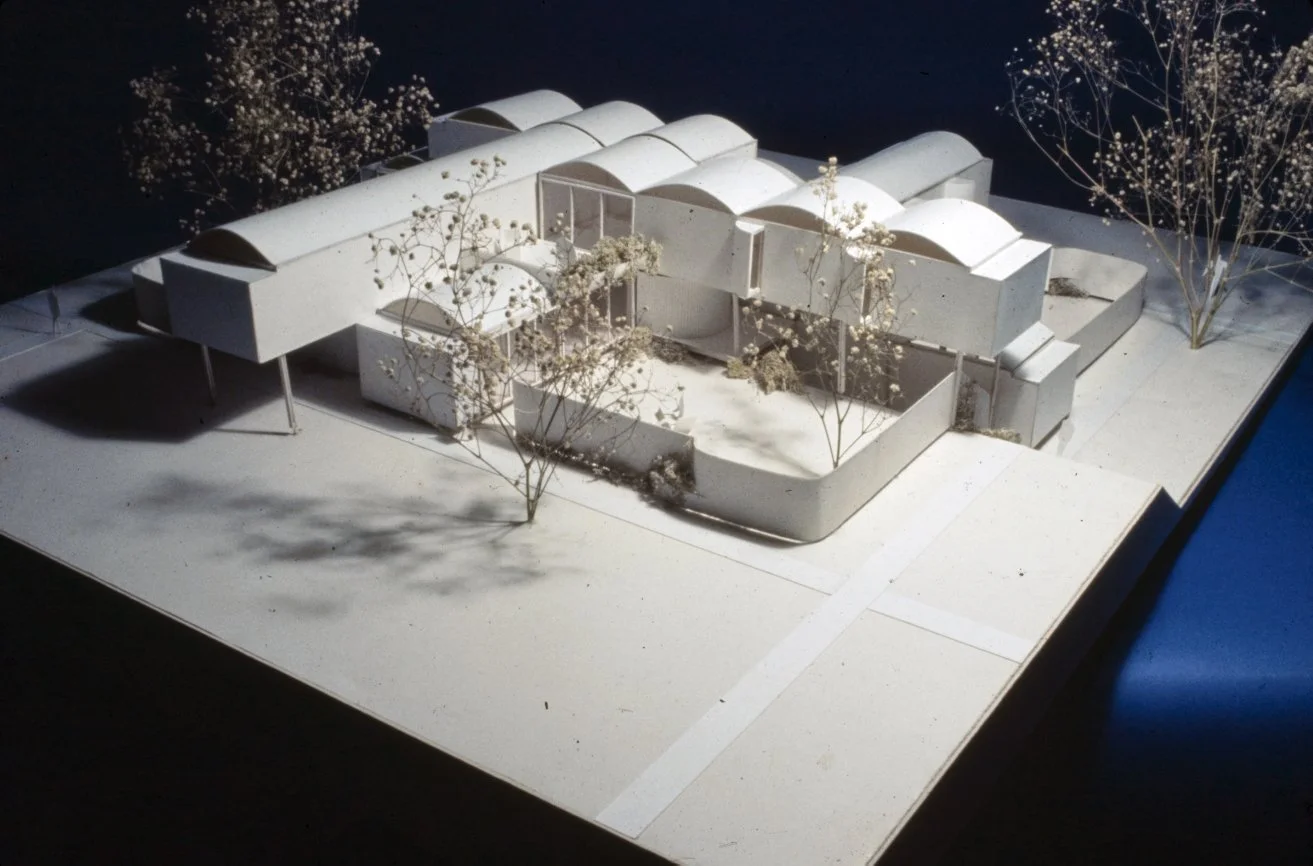

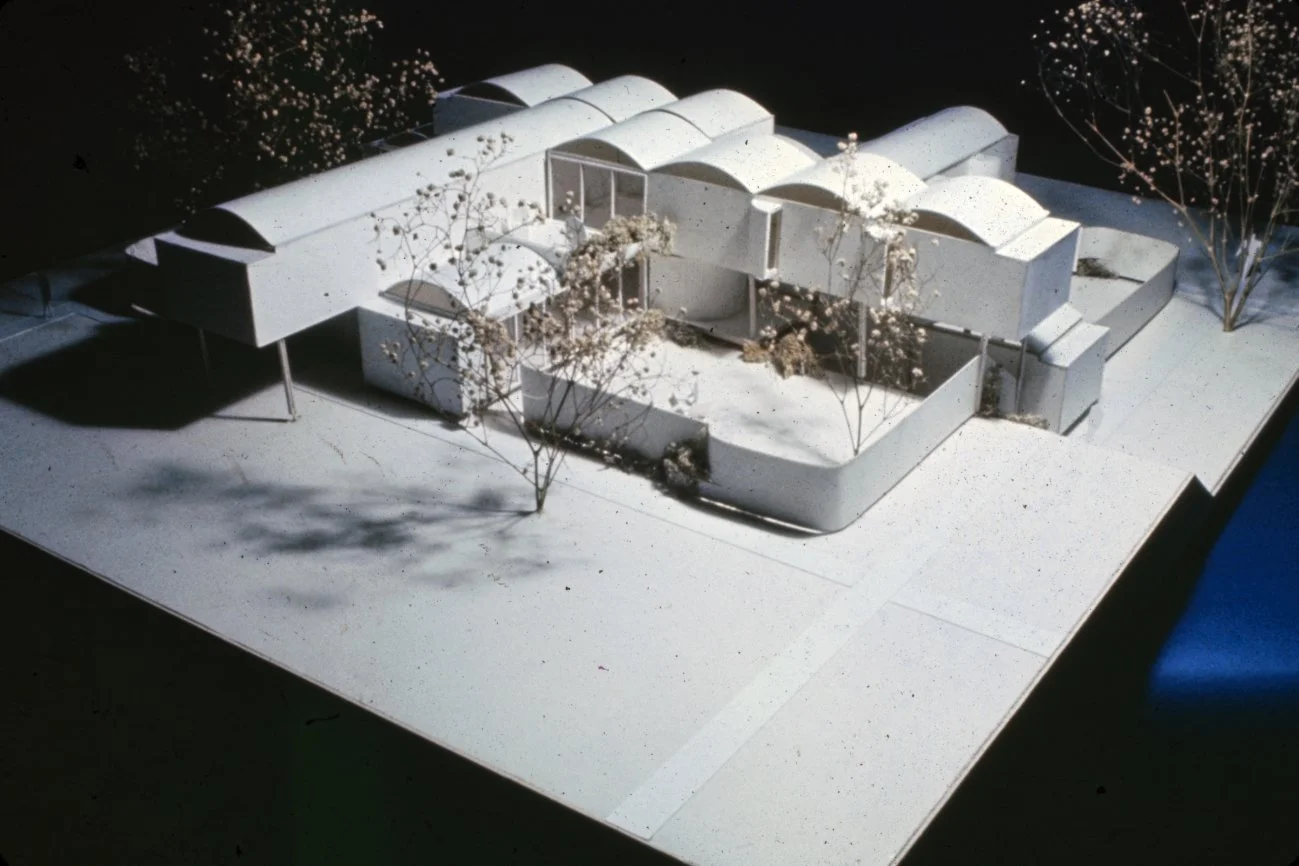

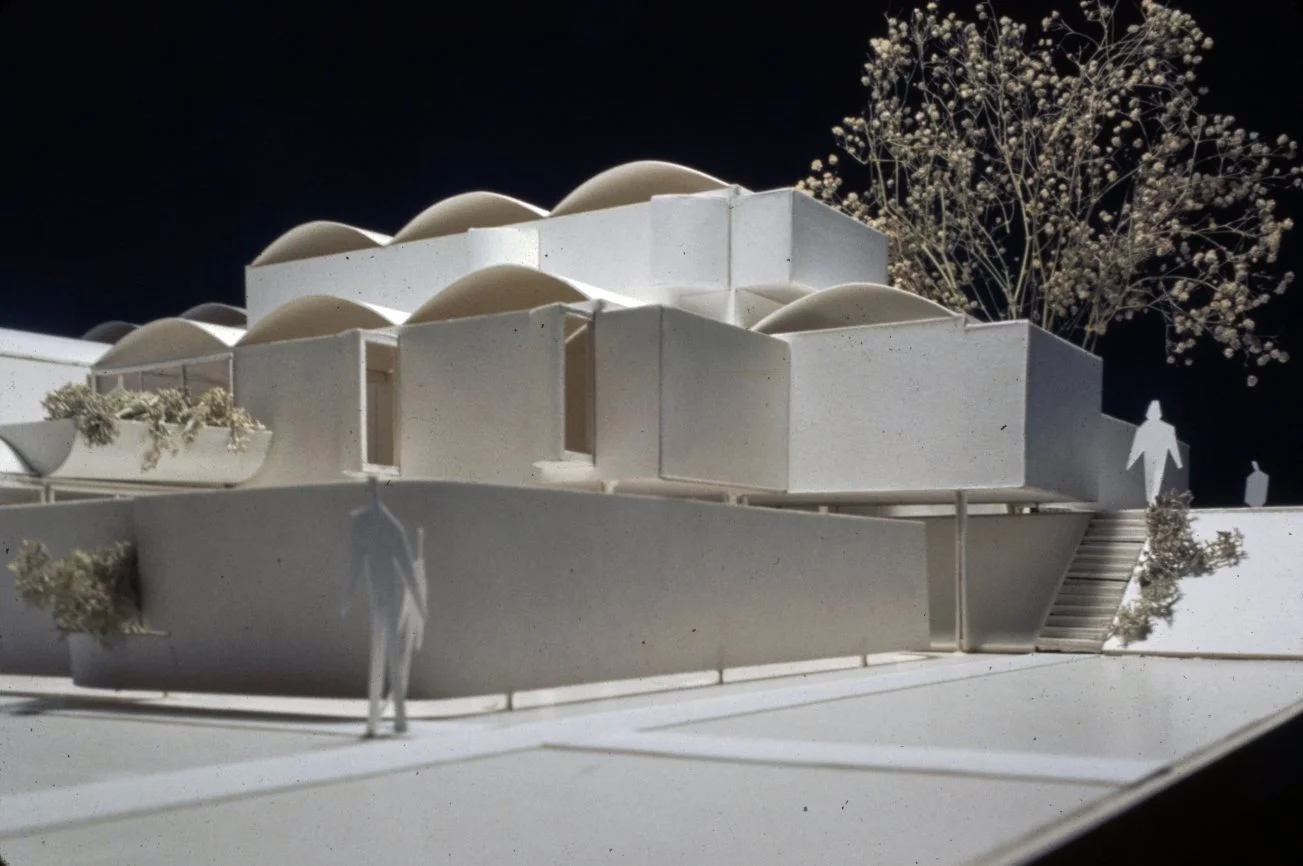

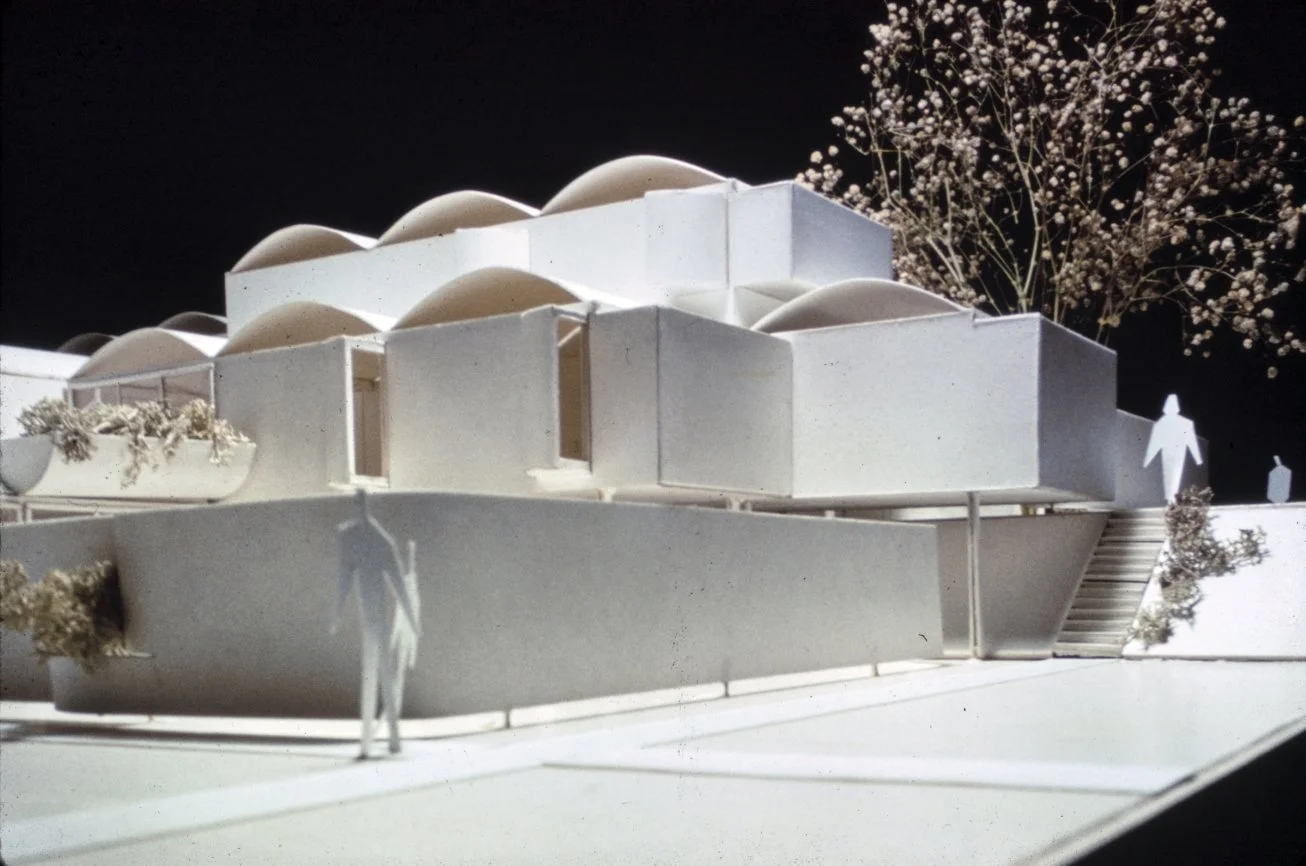

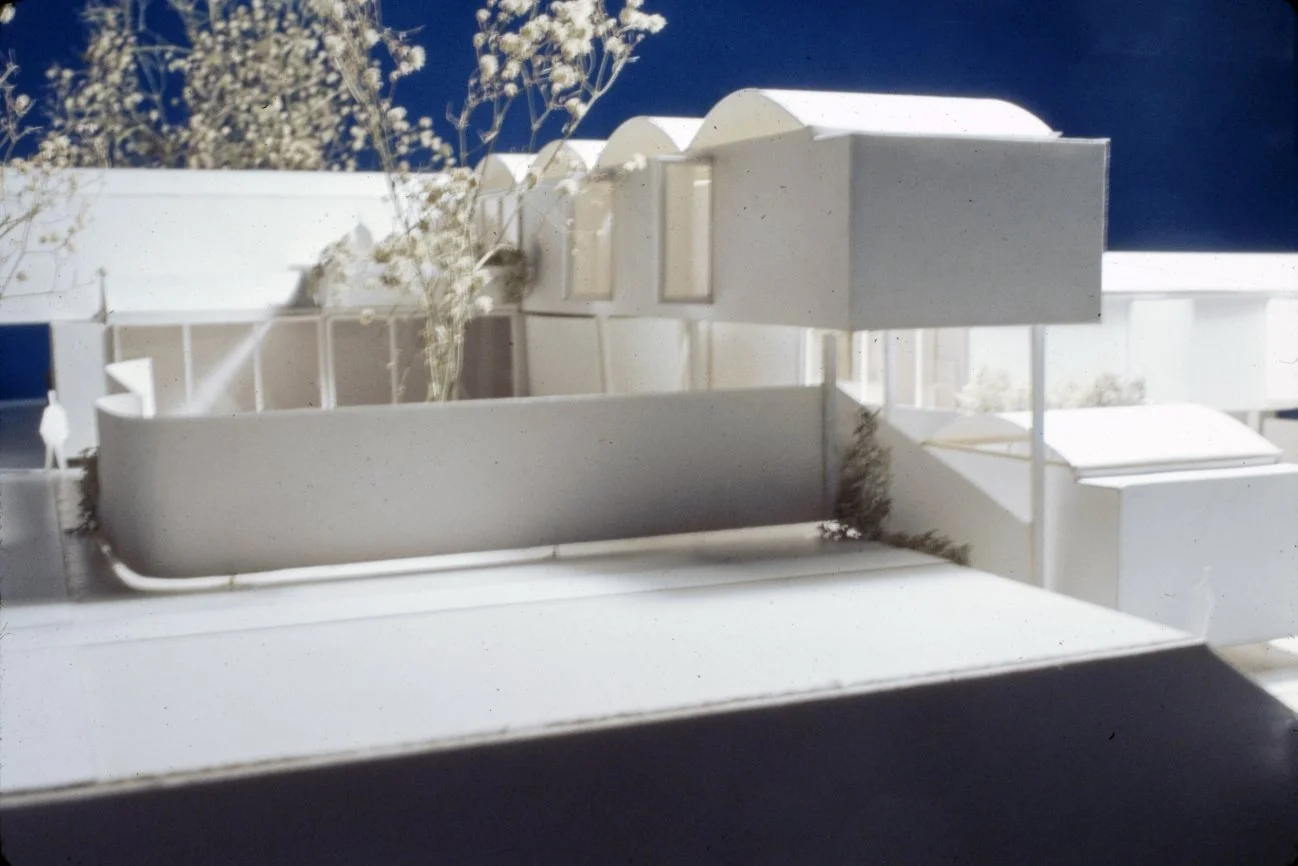

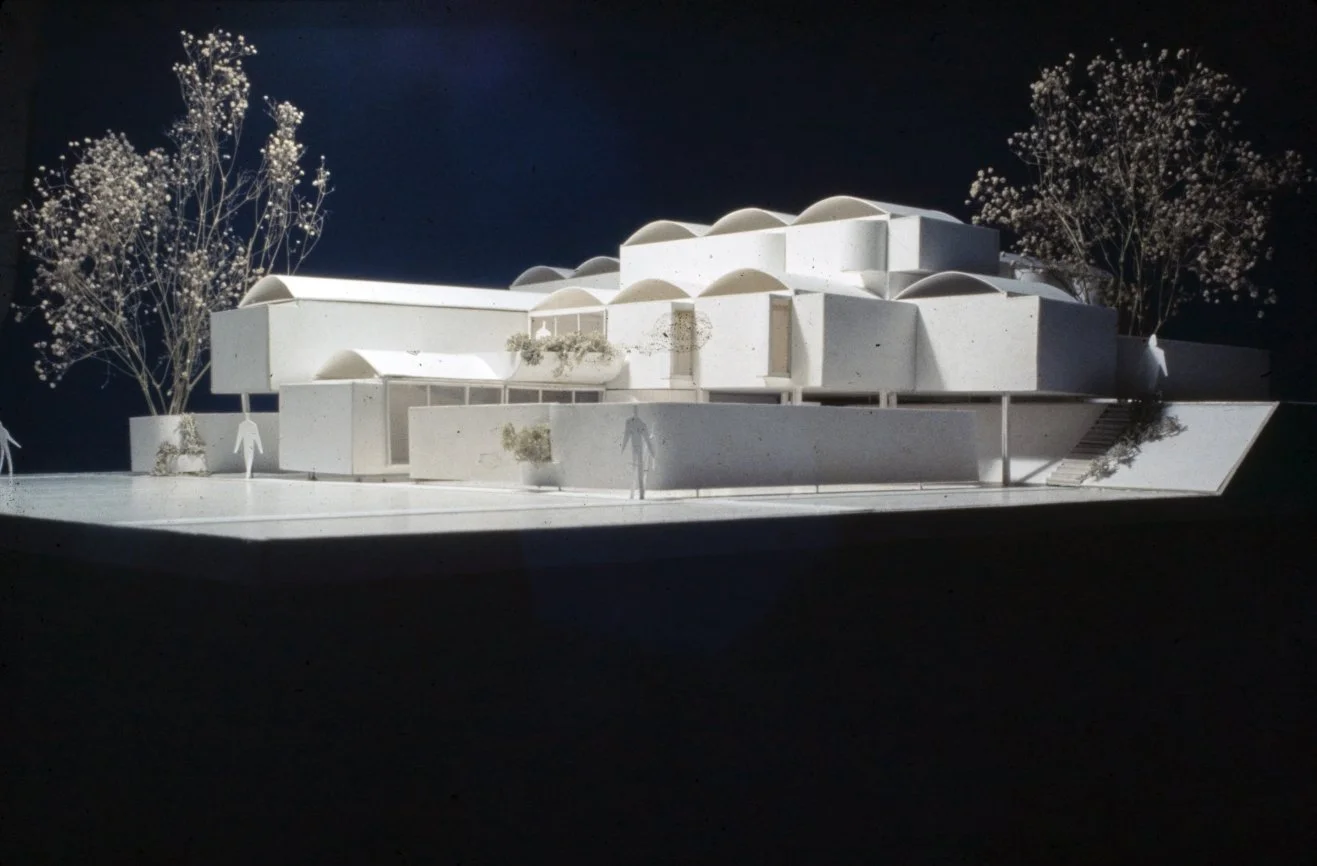

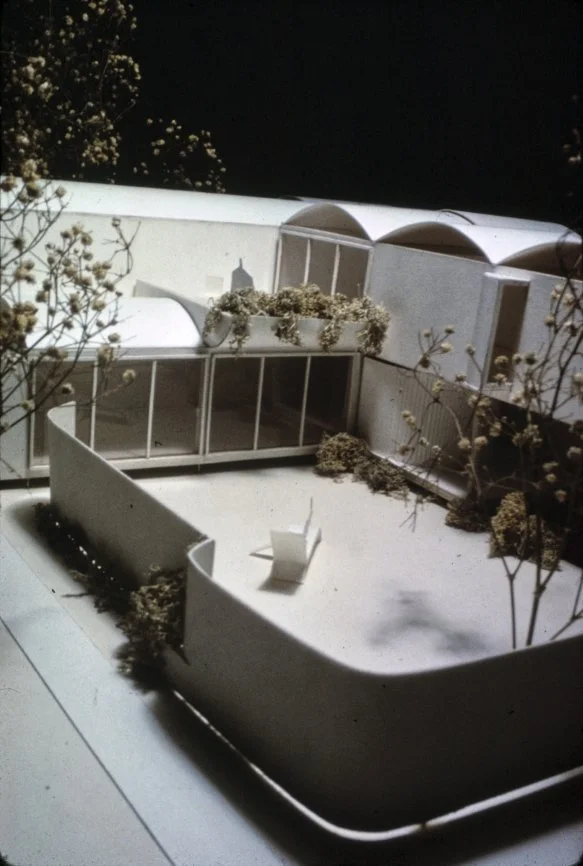

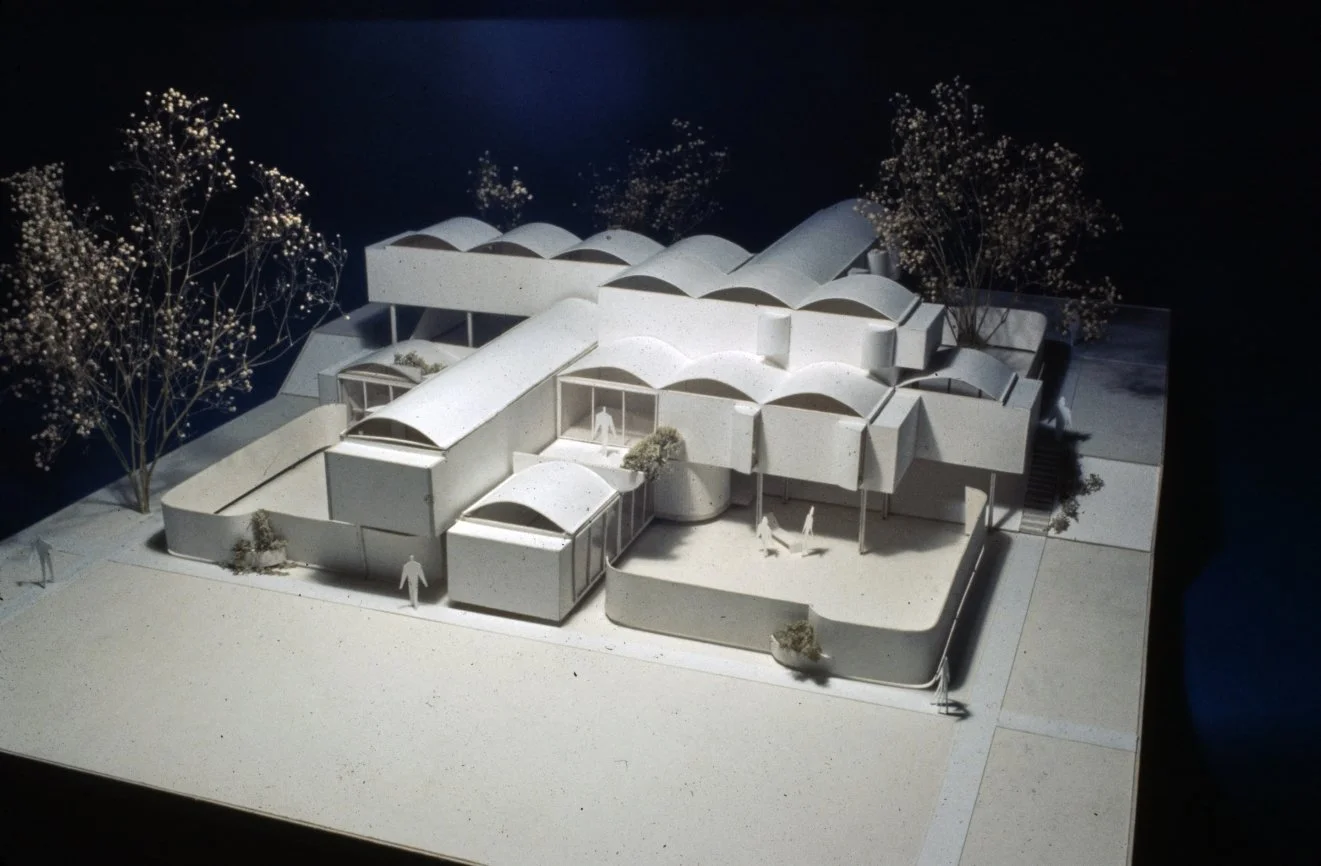

PHOTOS - Project Model

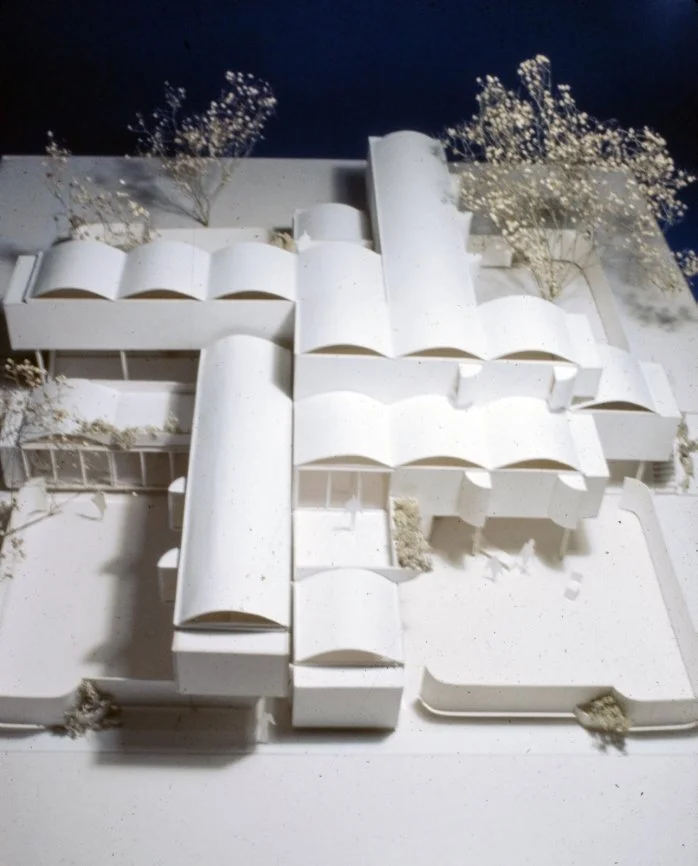

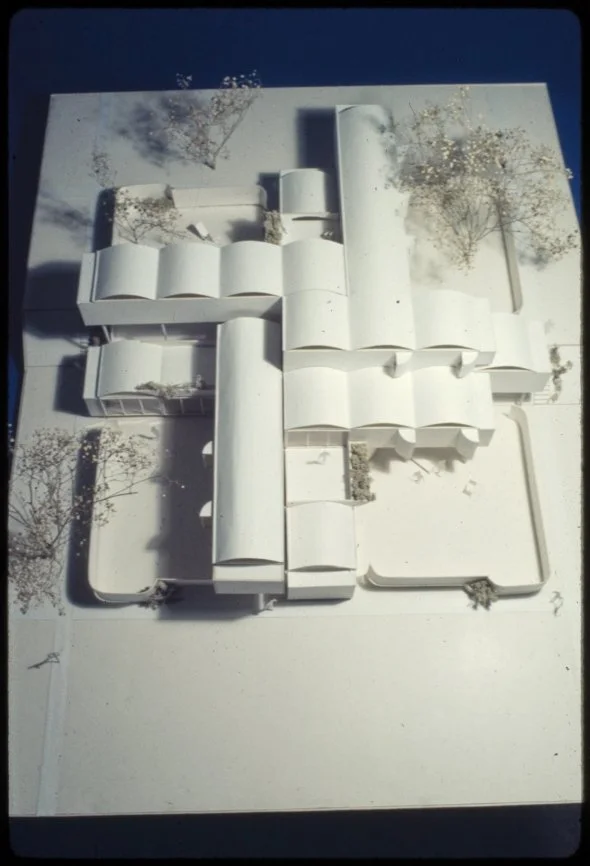

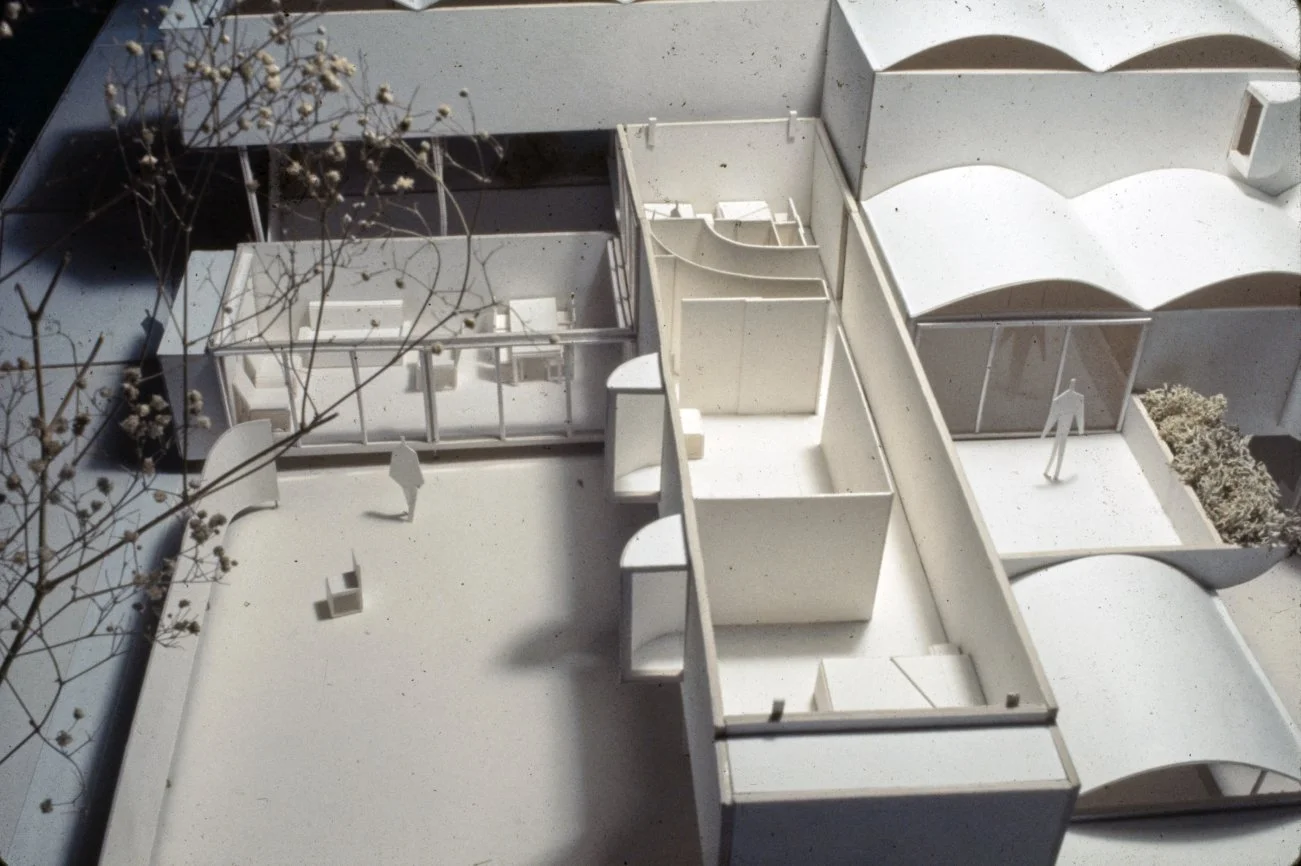

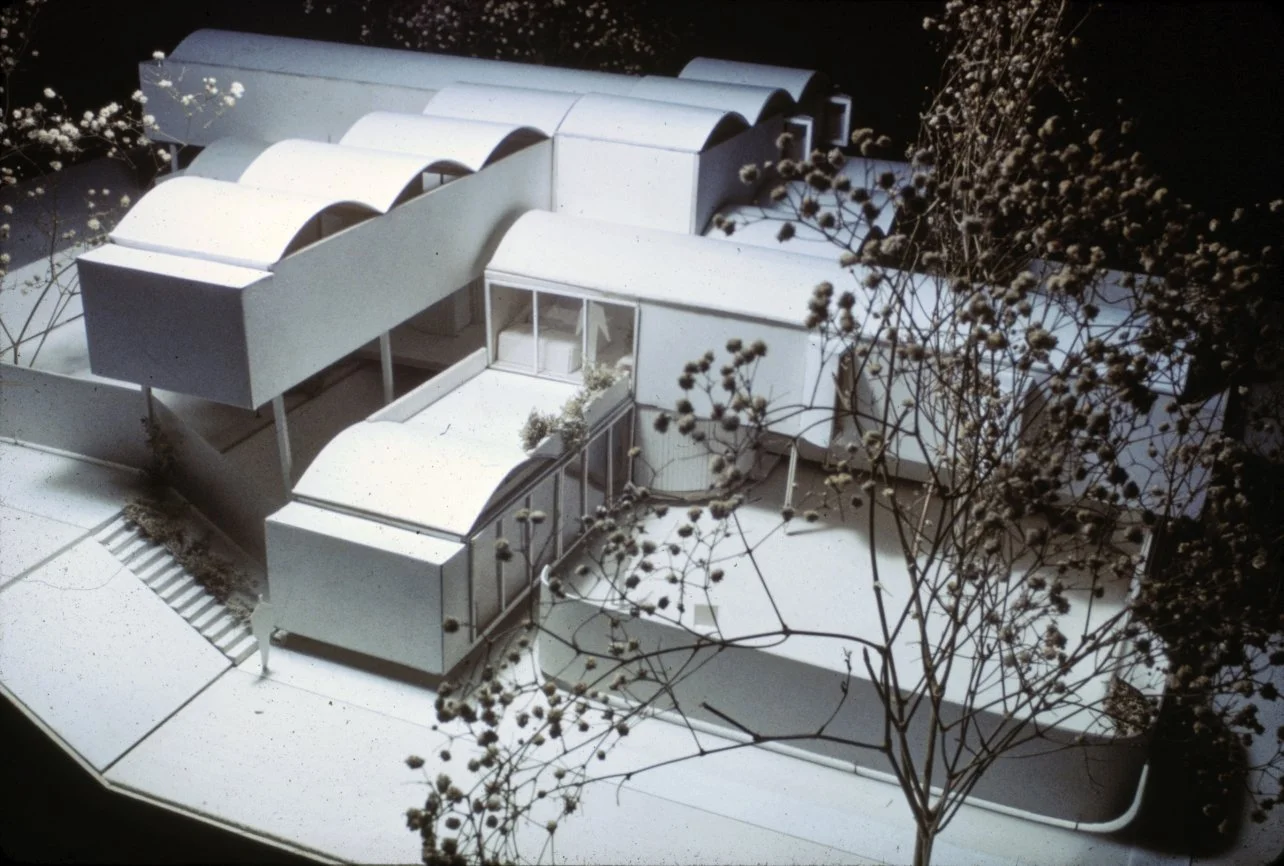

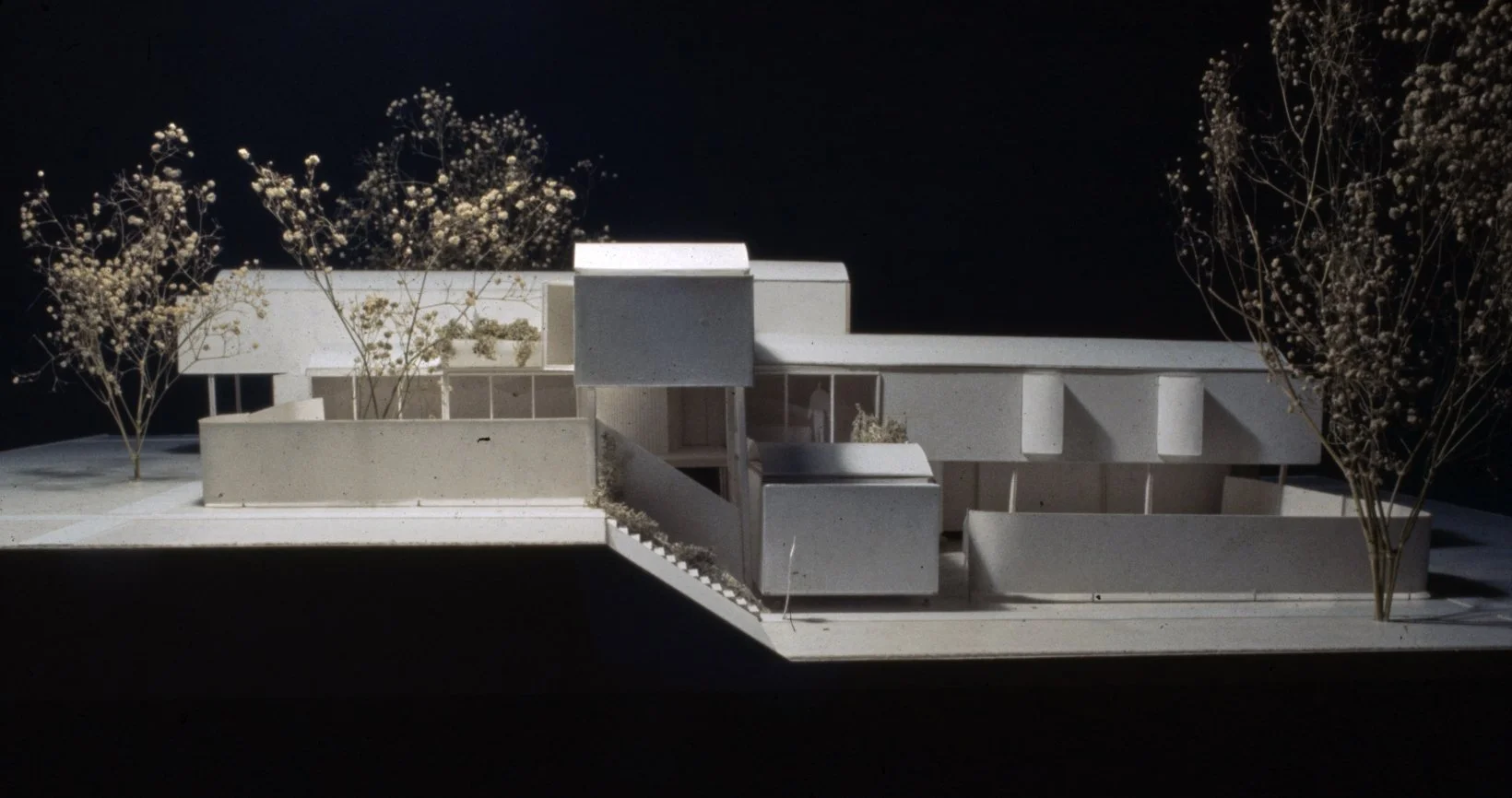

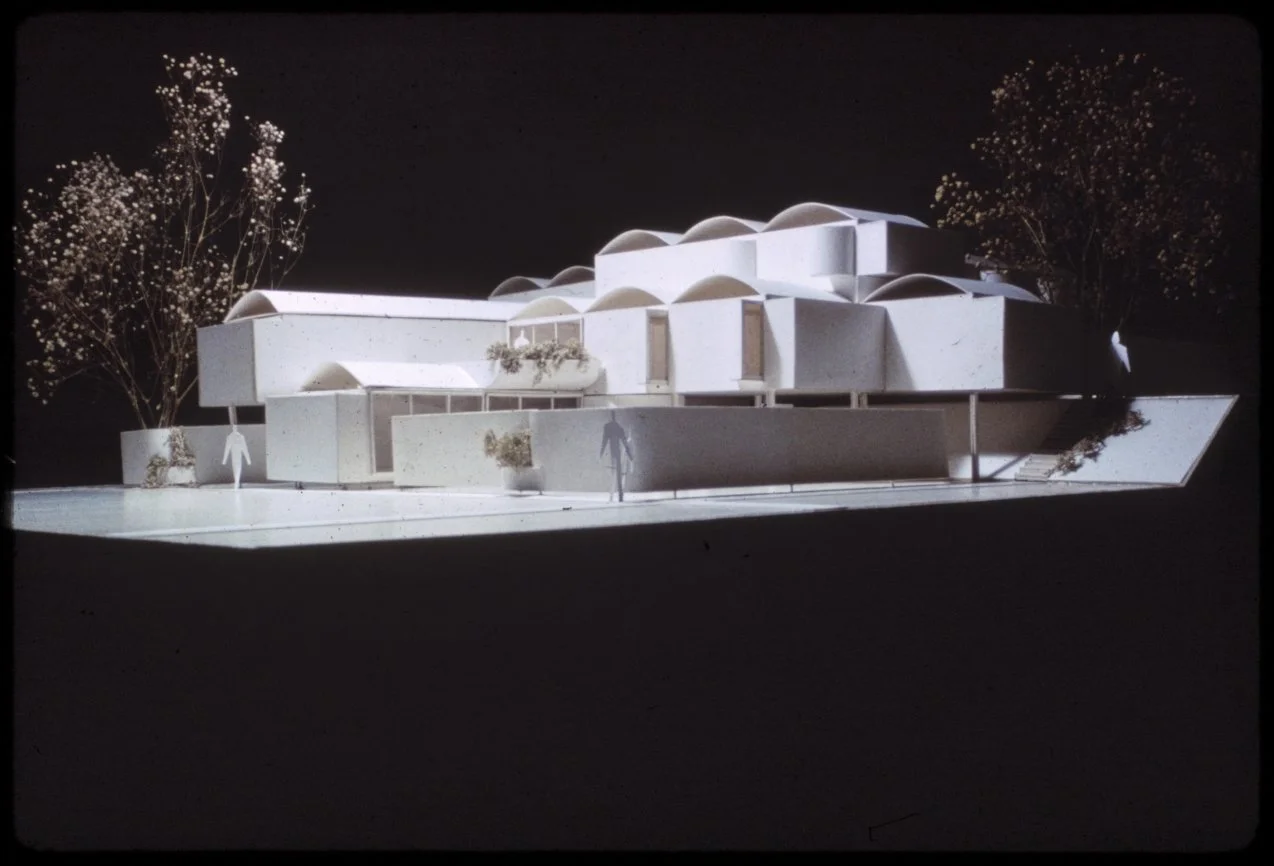

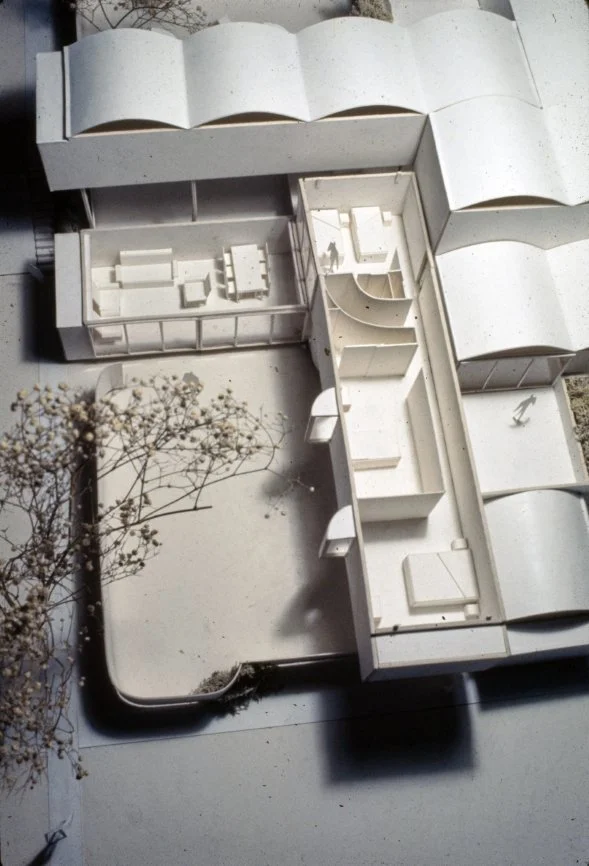

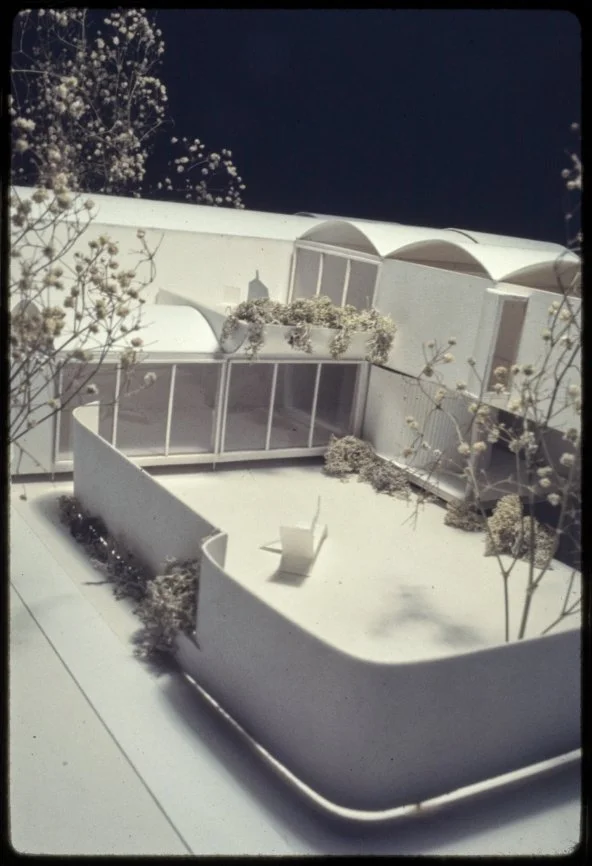

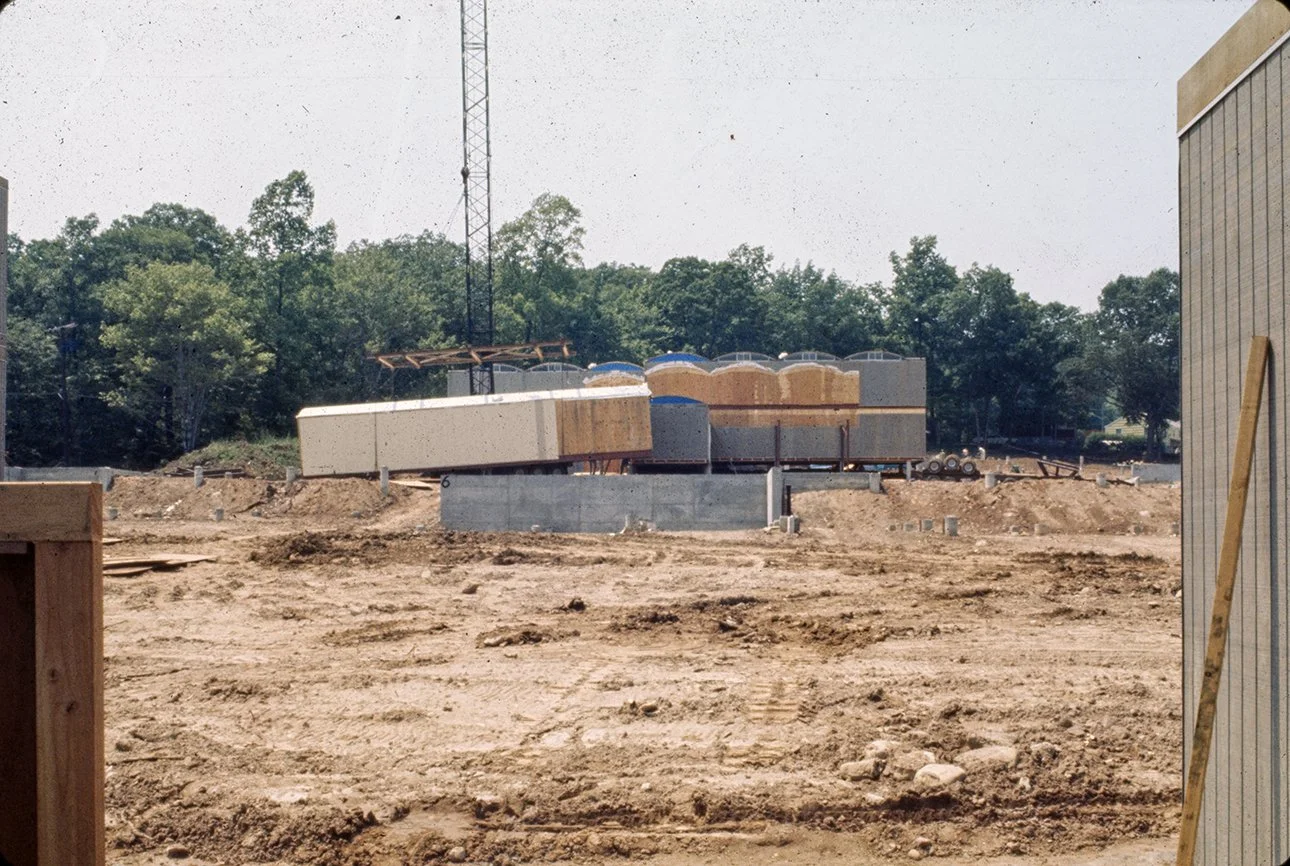

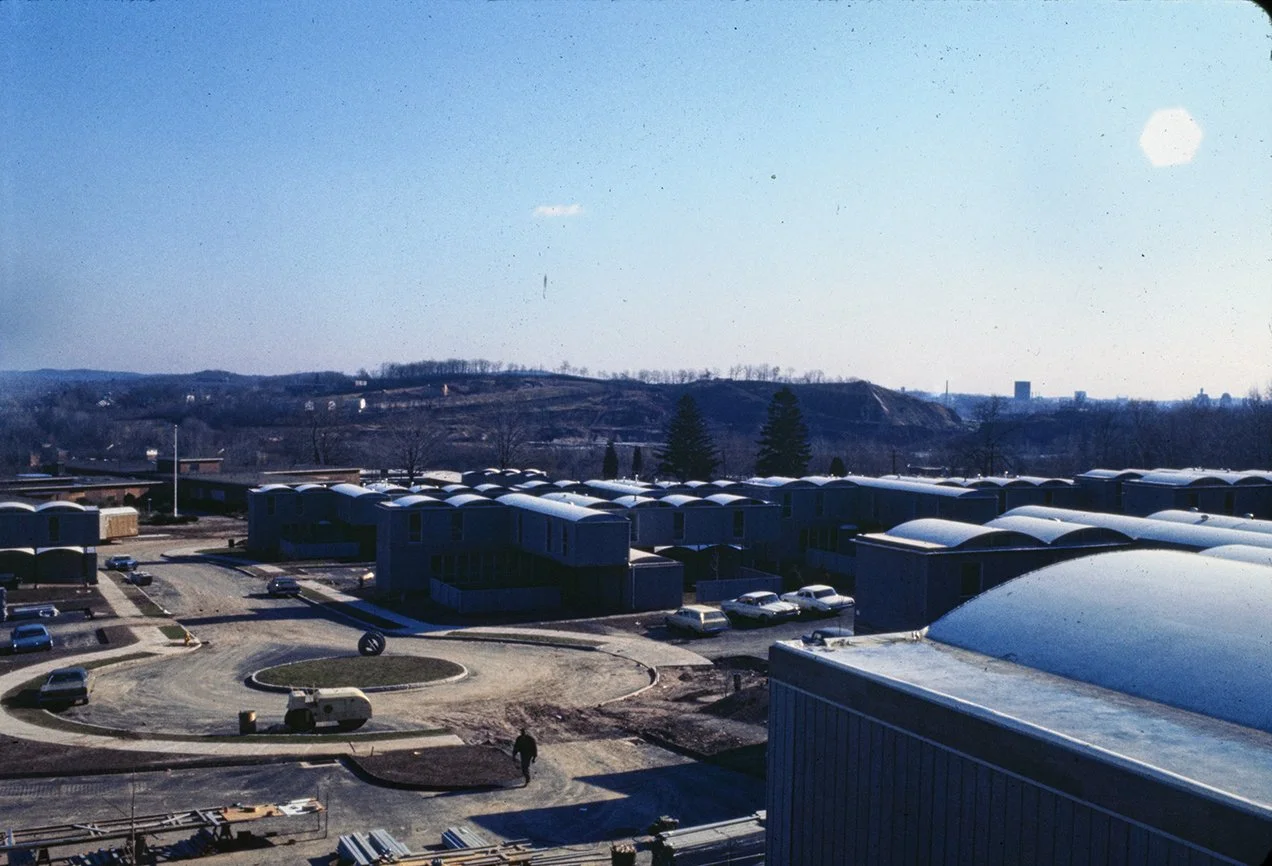

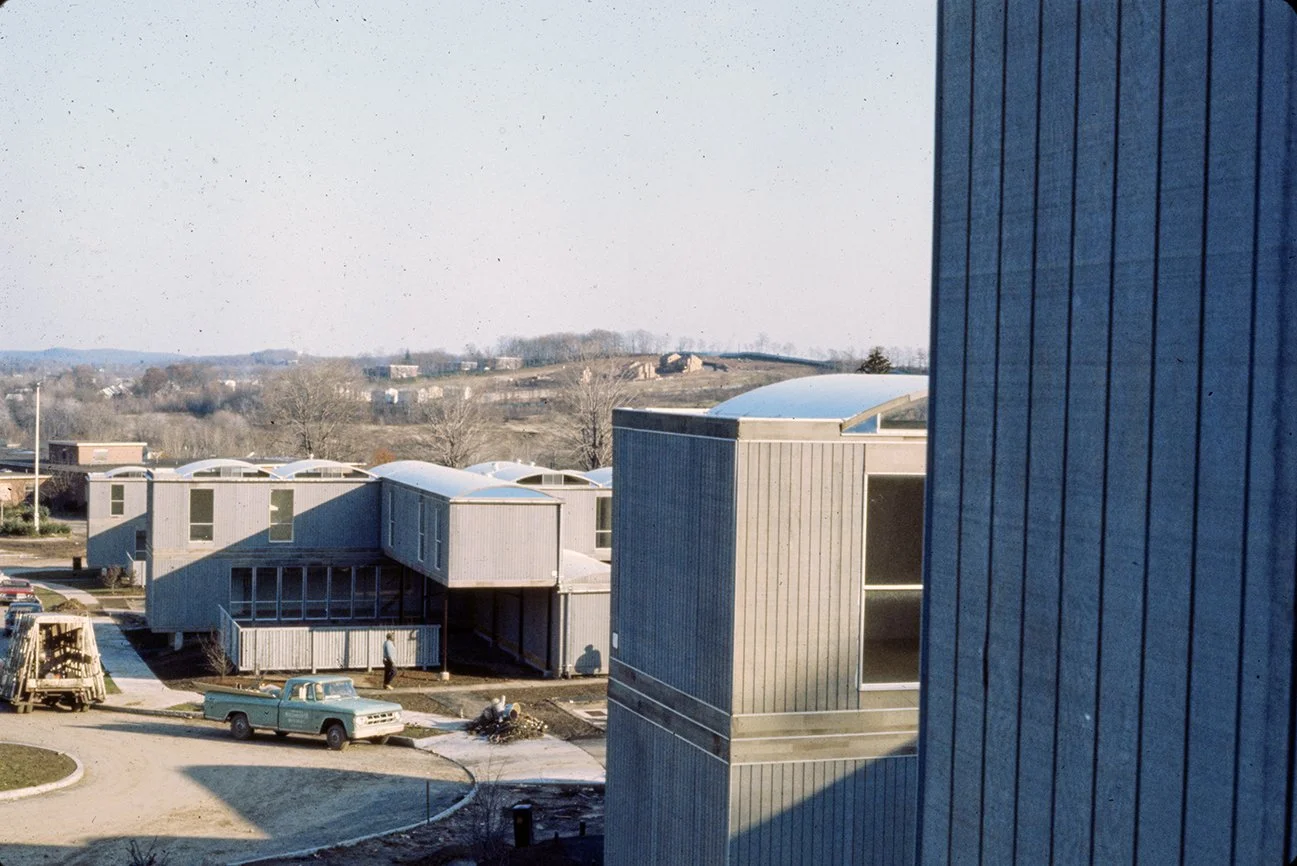

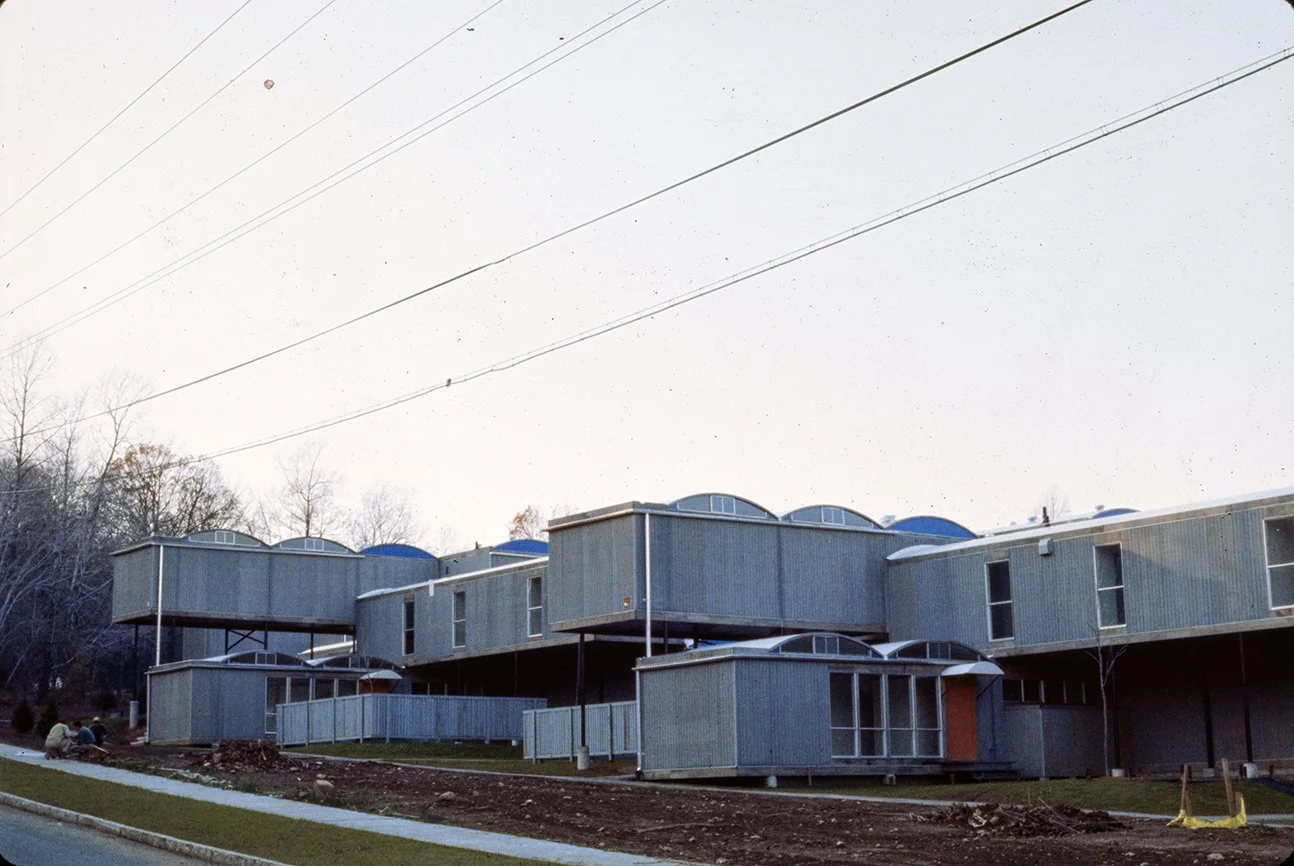

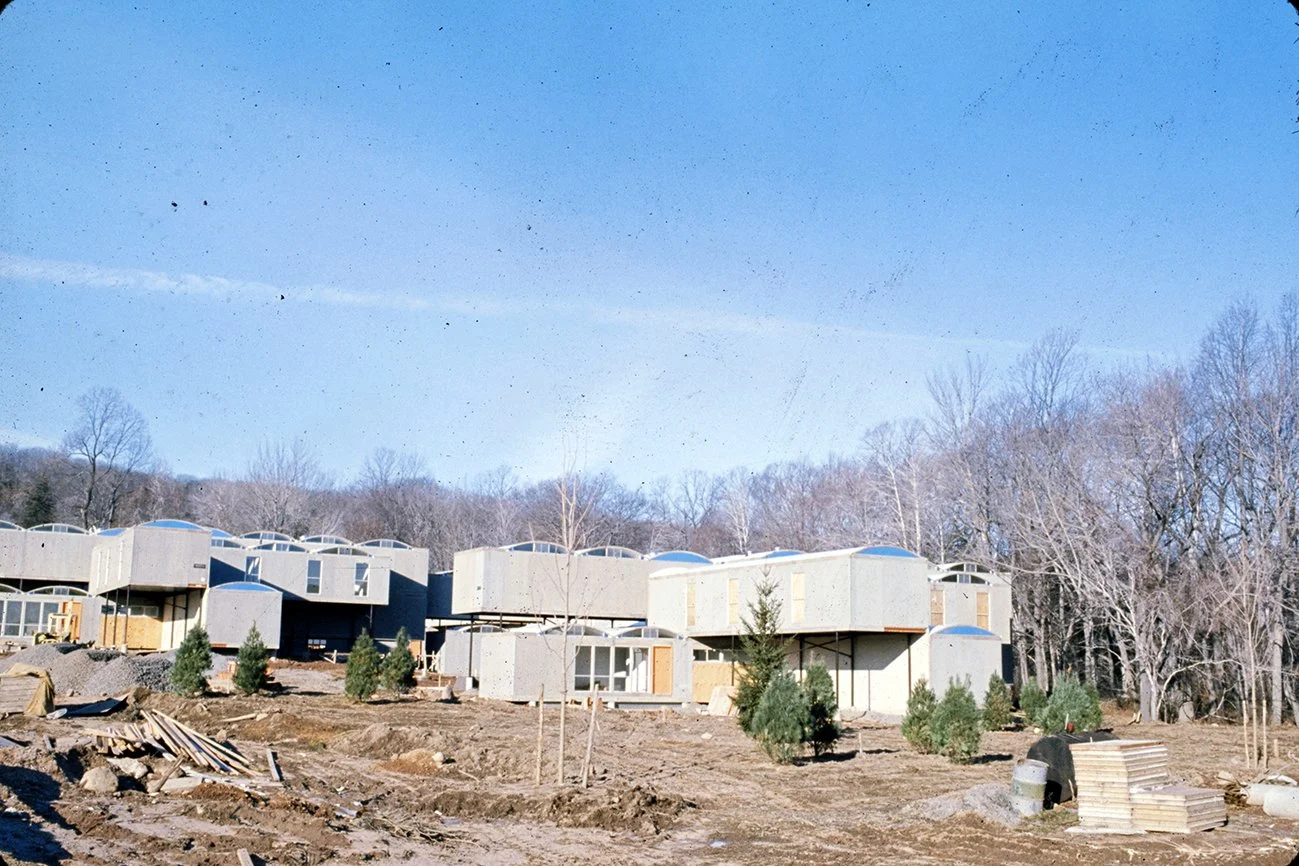

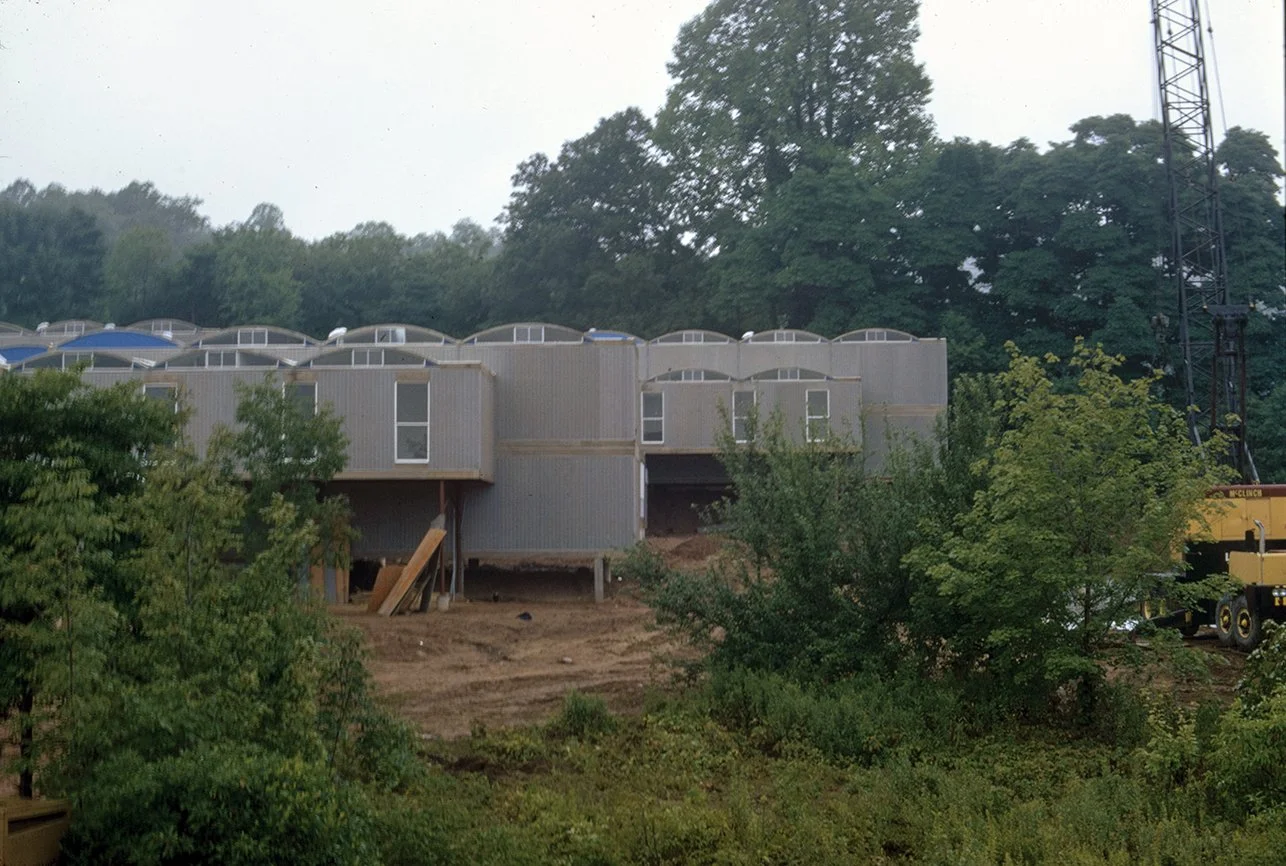

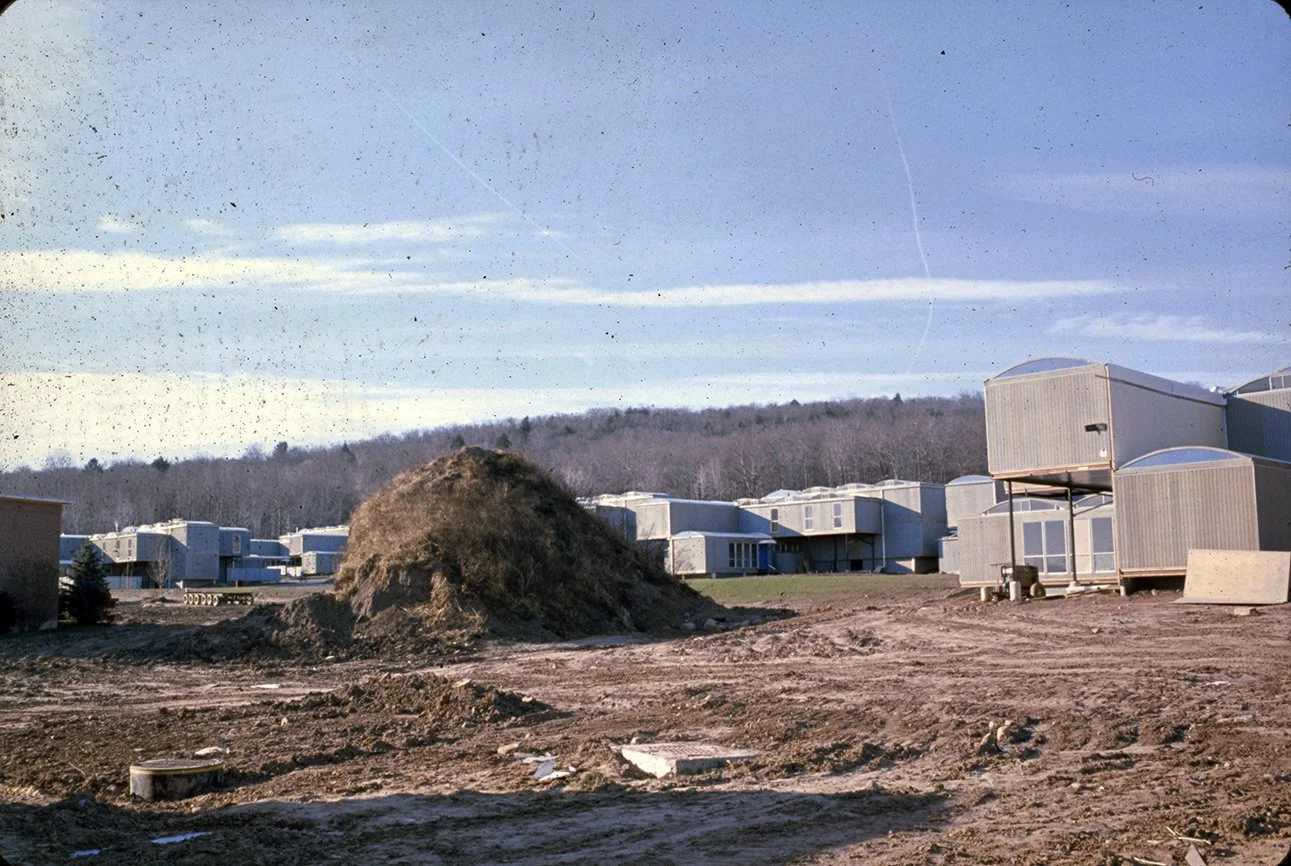

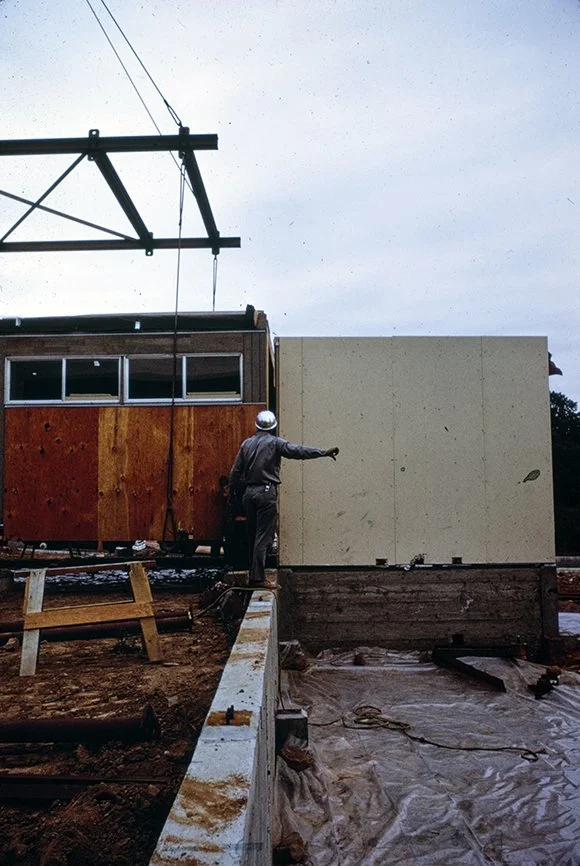

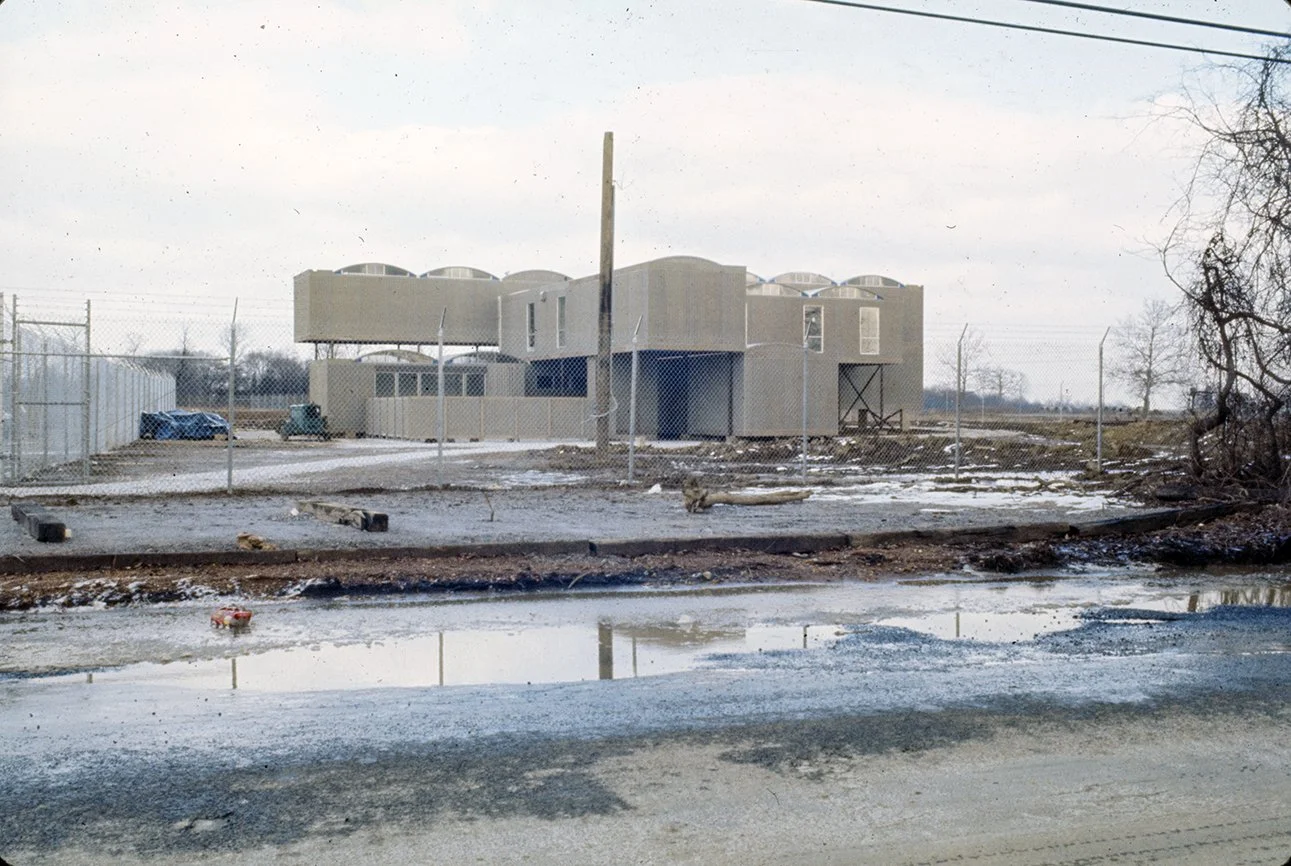

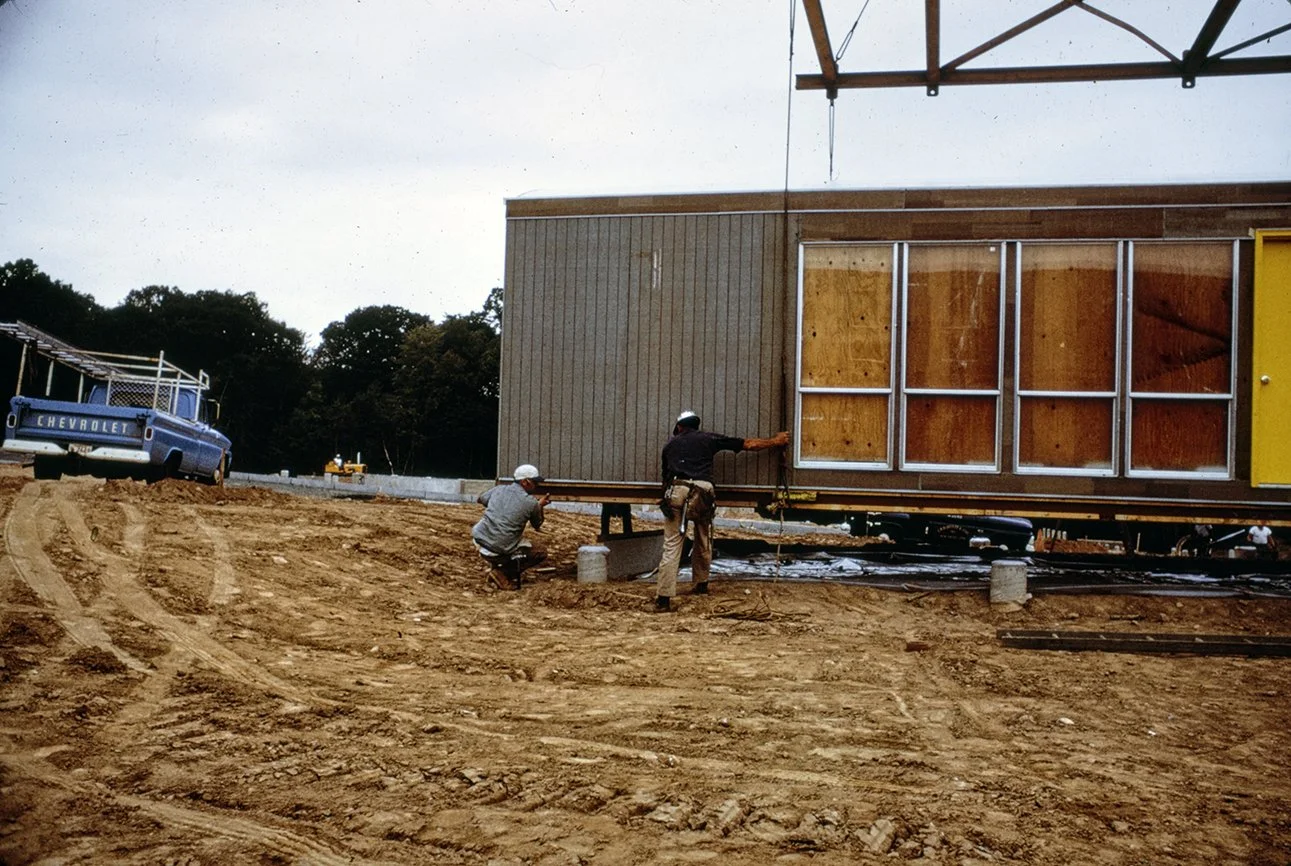

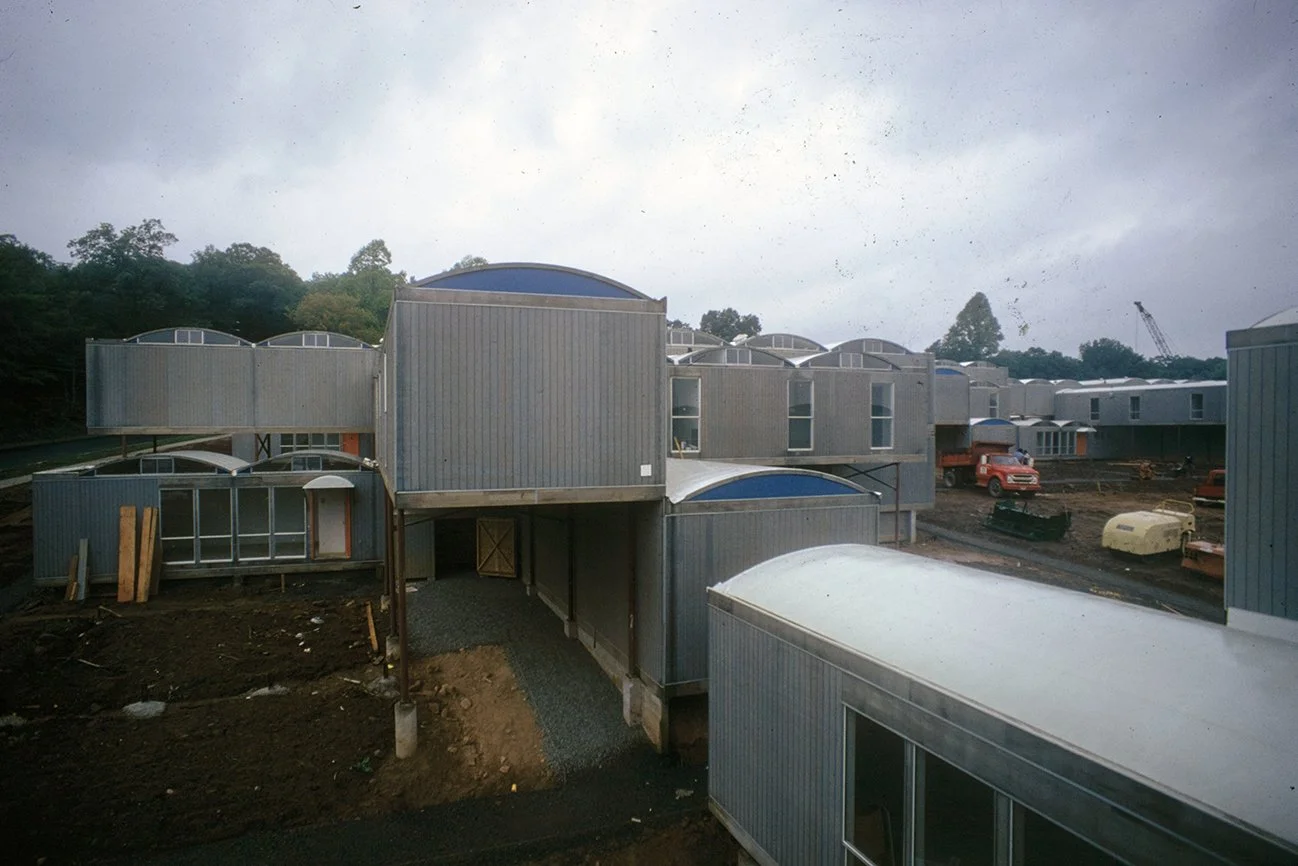

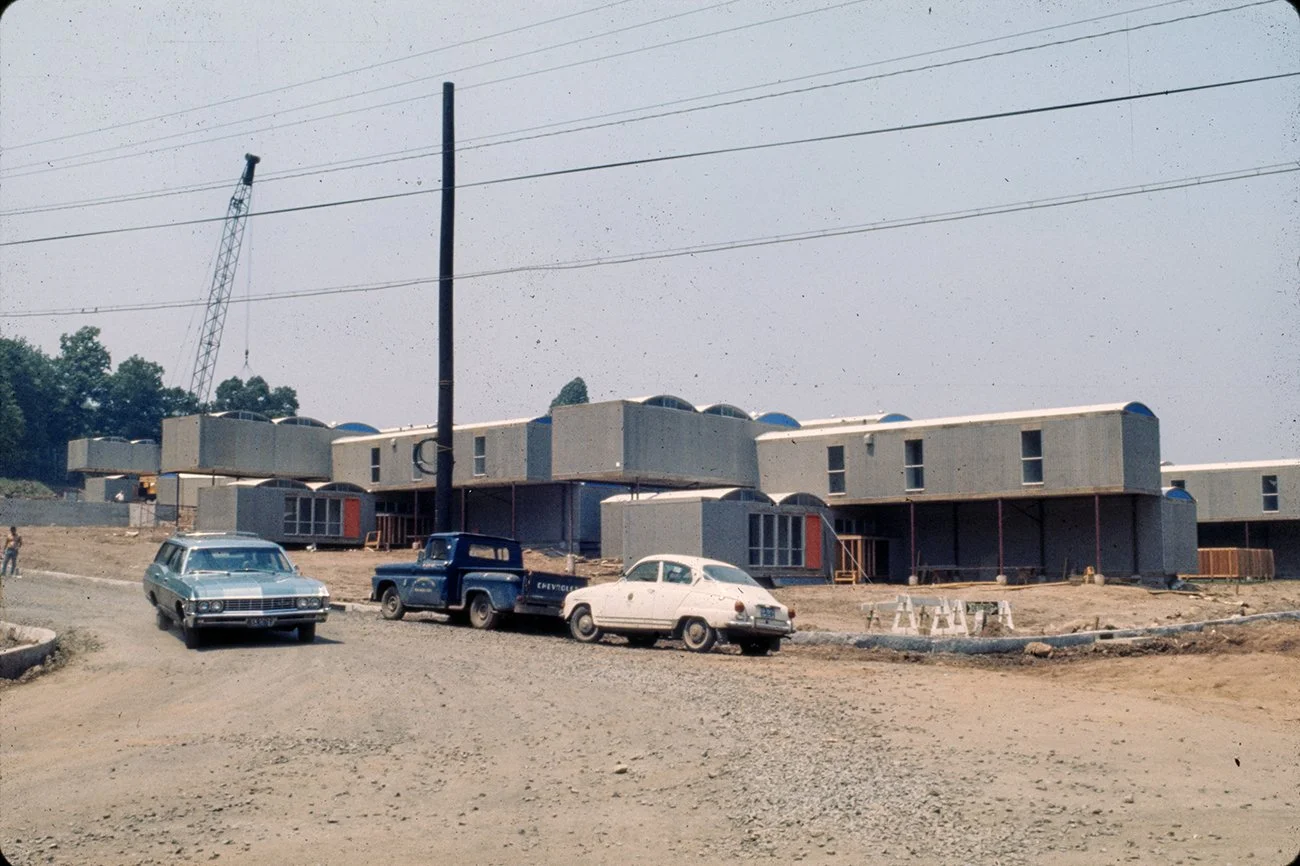

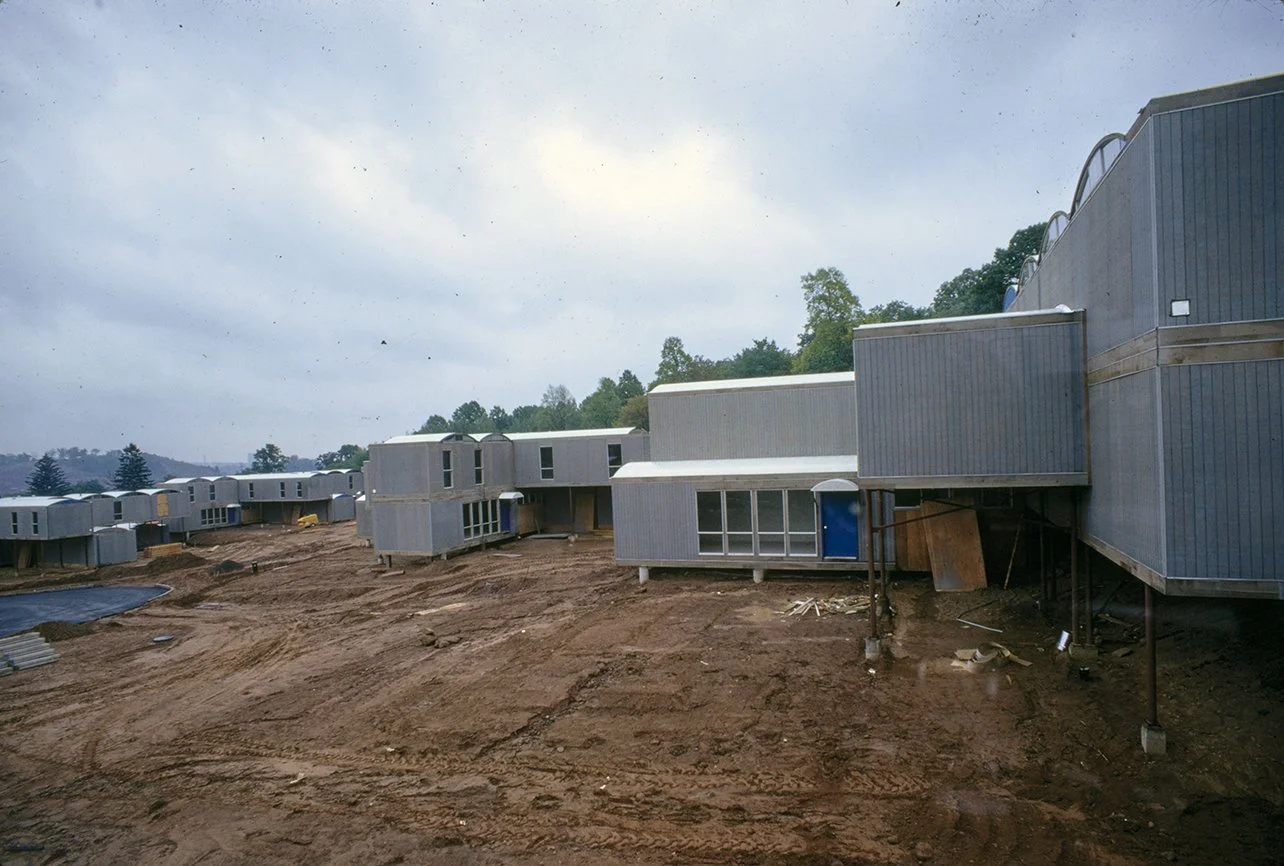

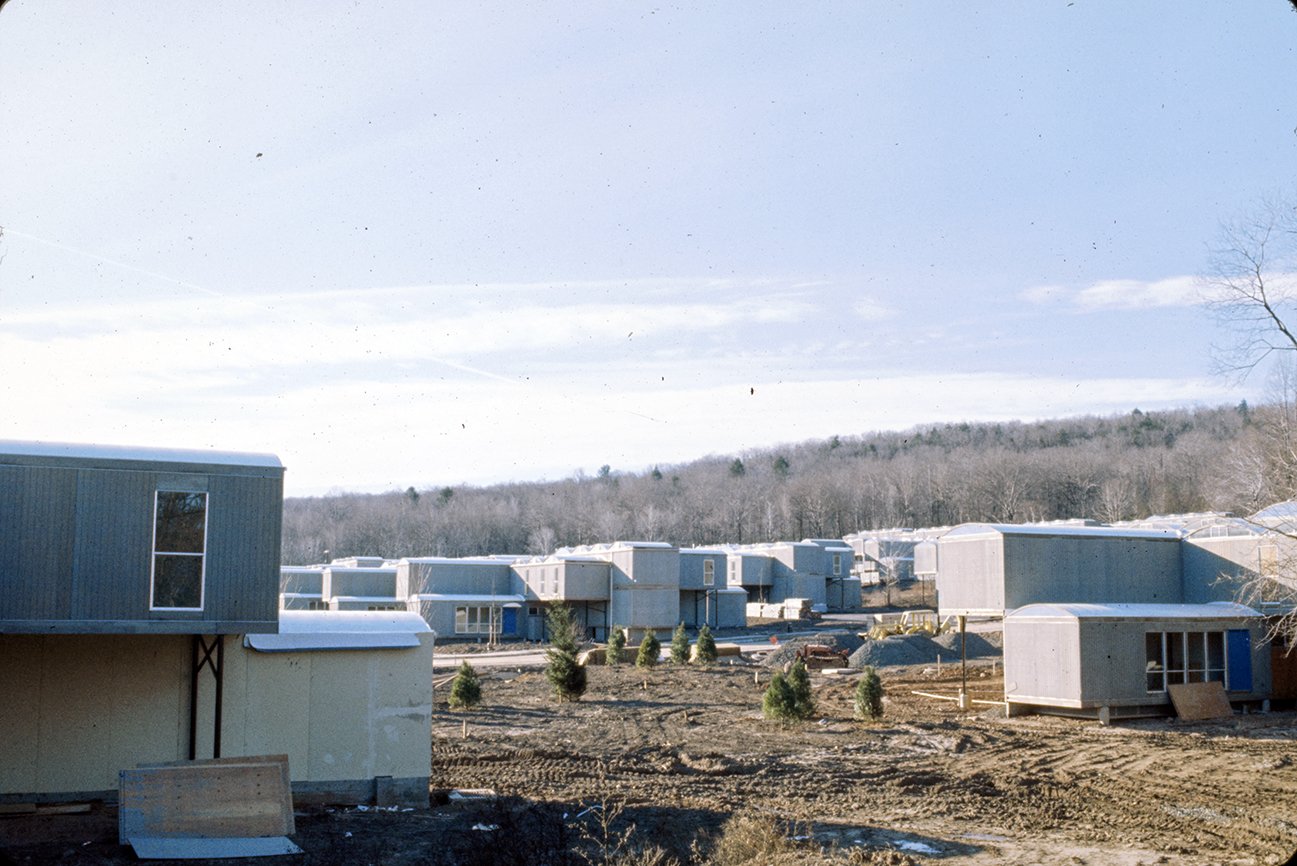

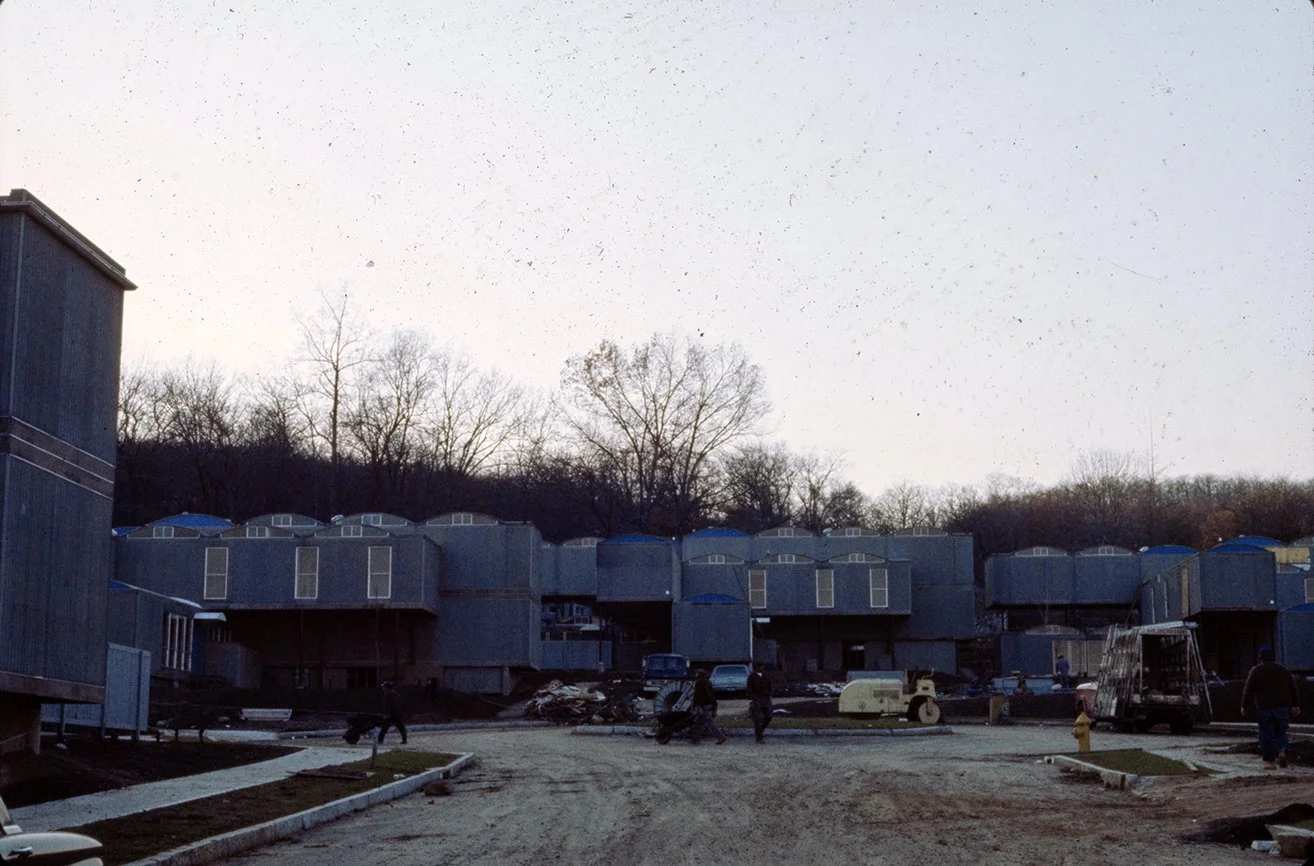

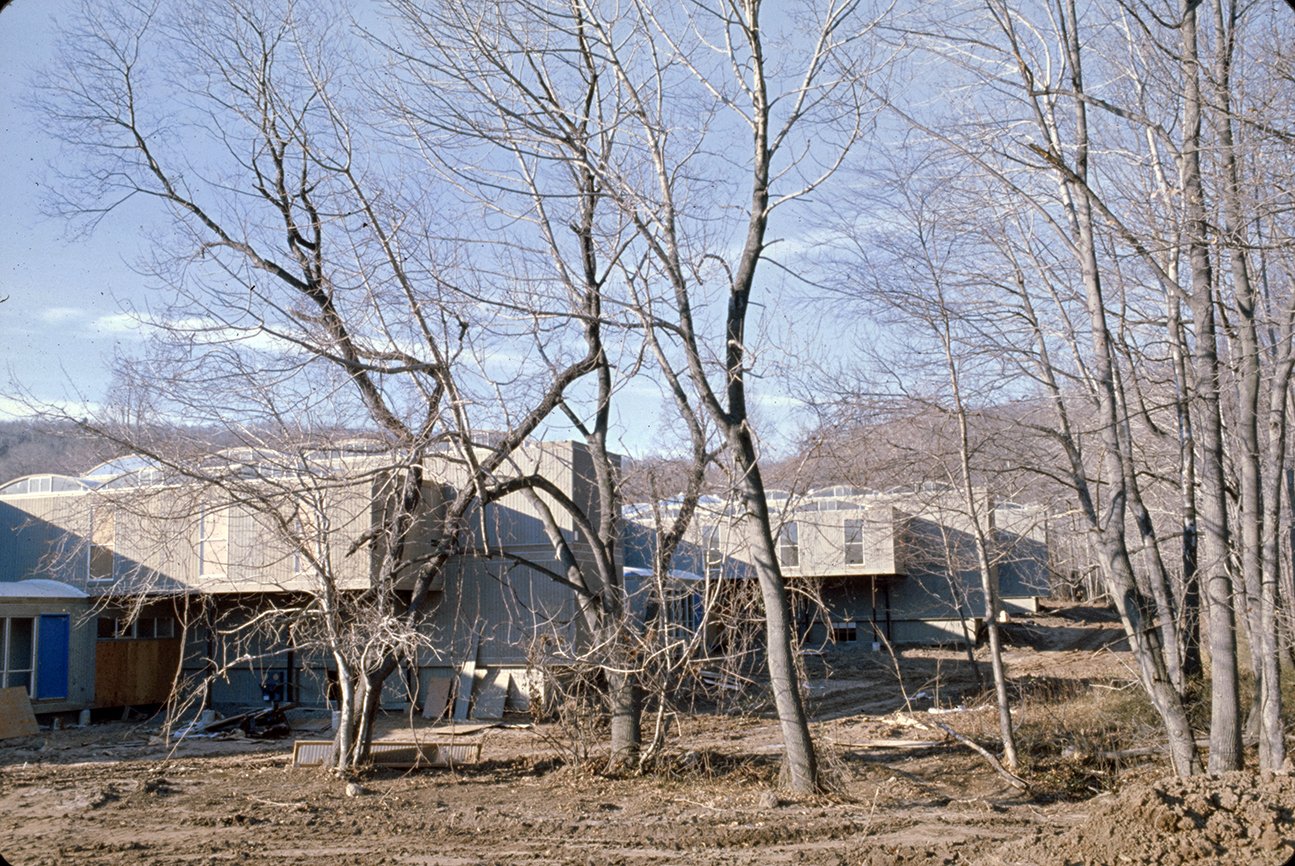

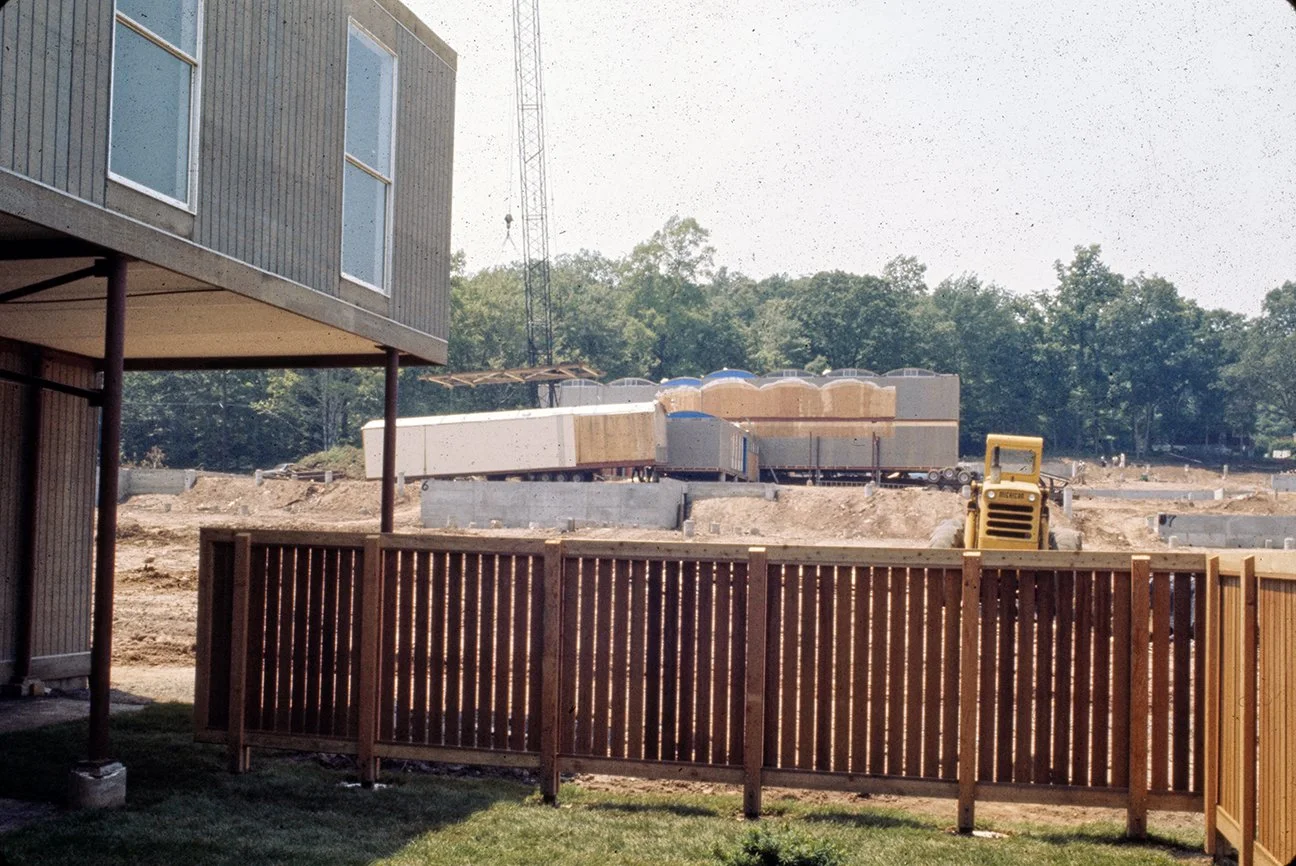

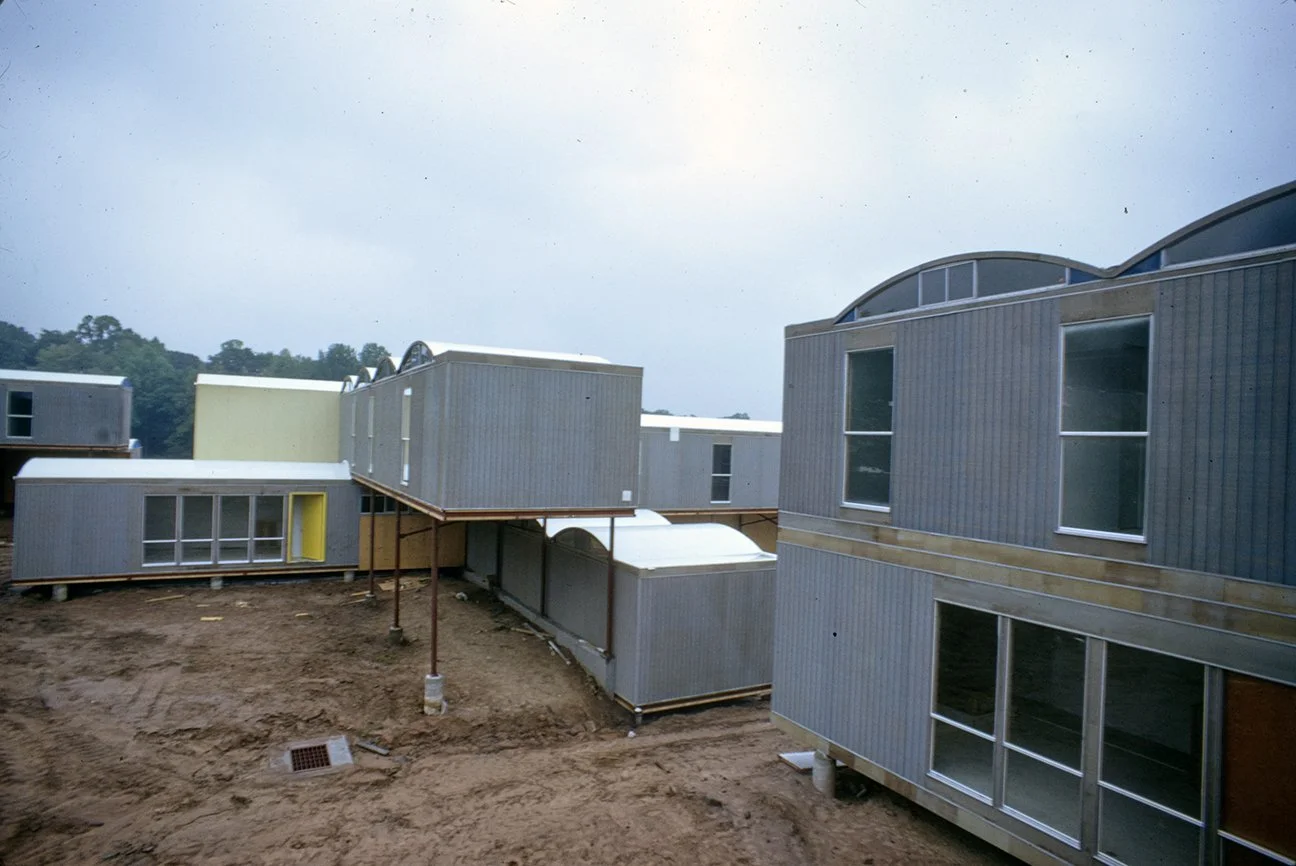

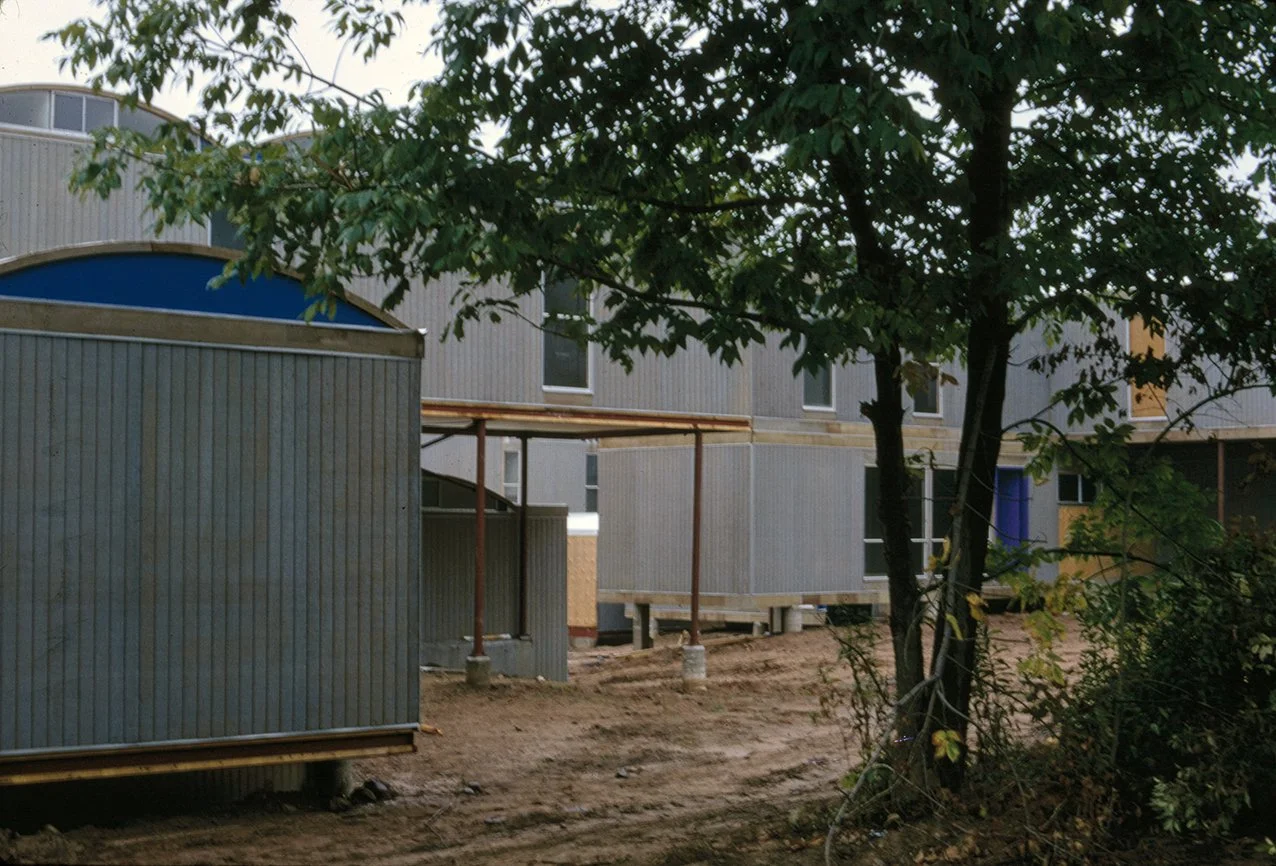

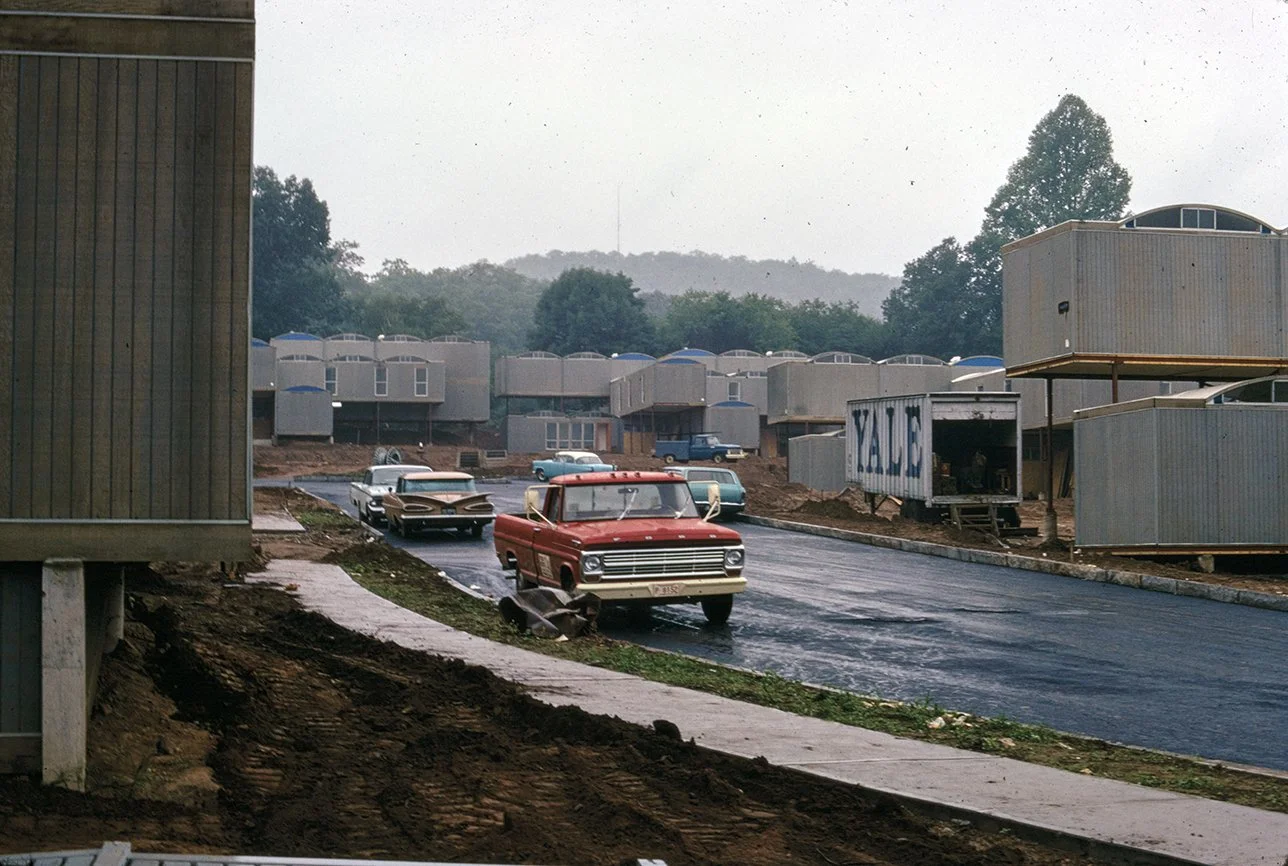

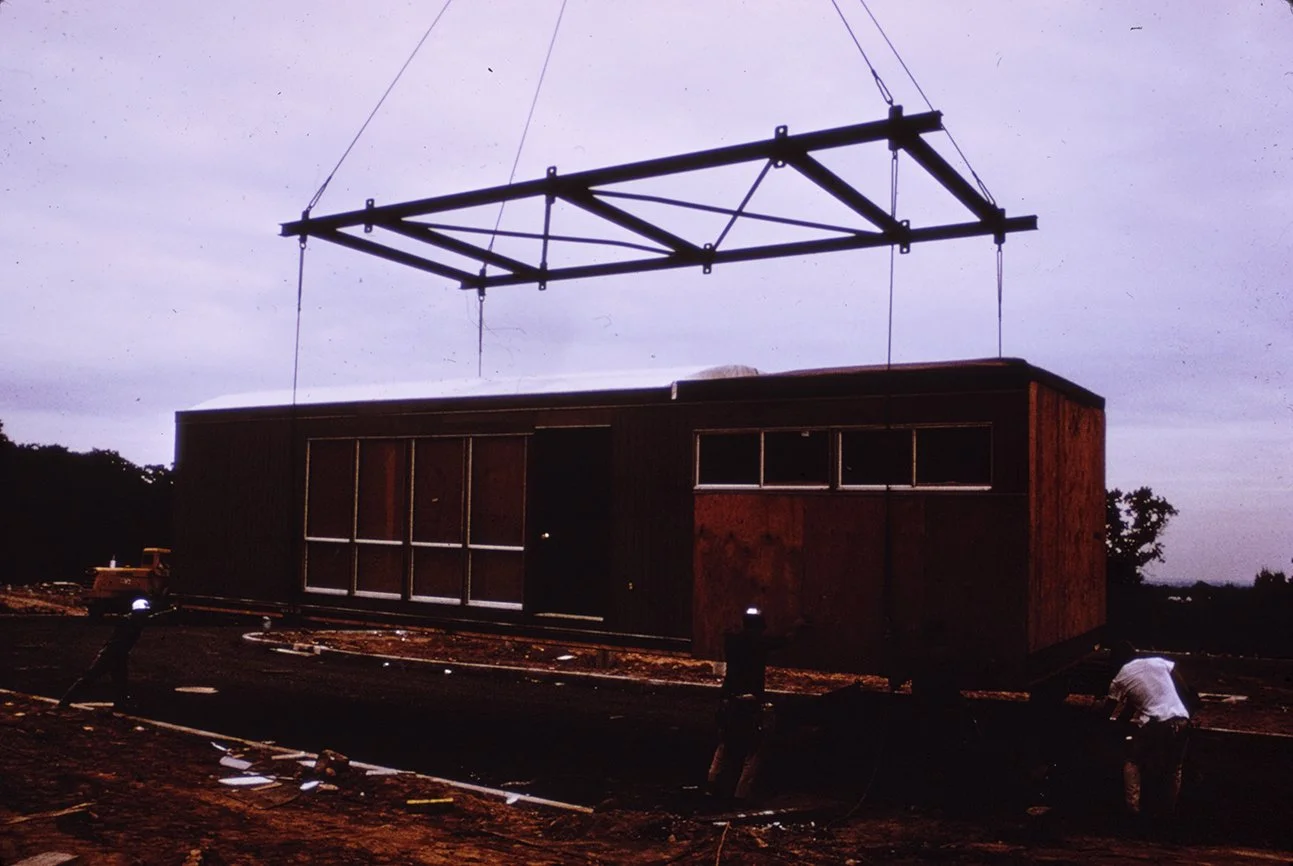

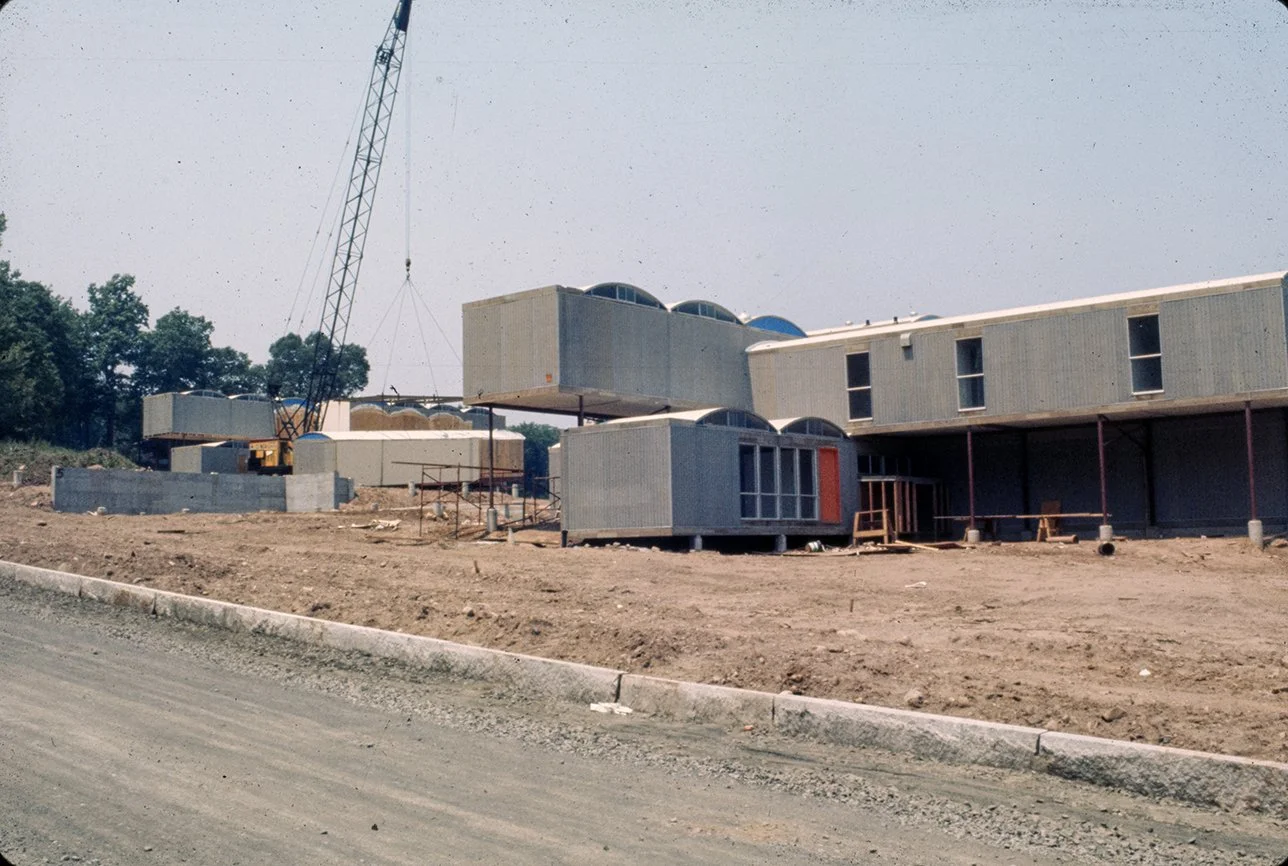

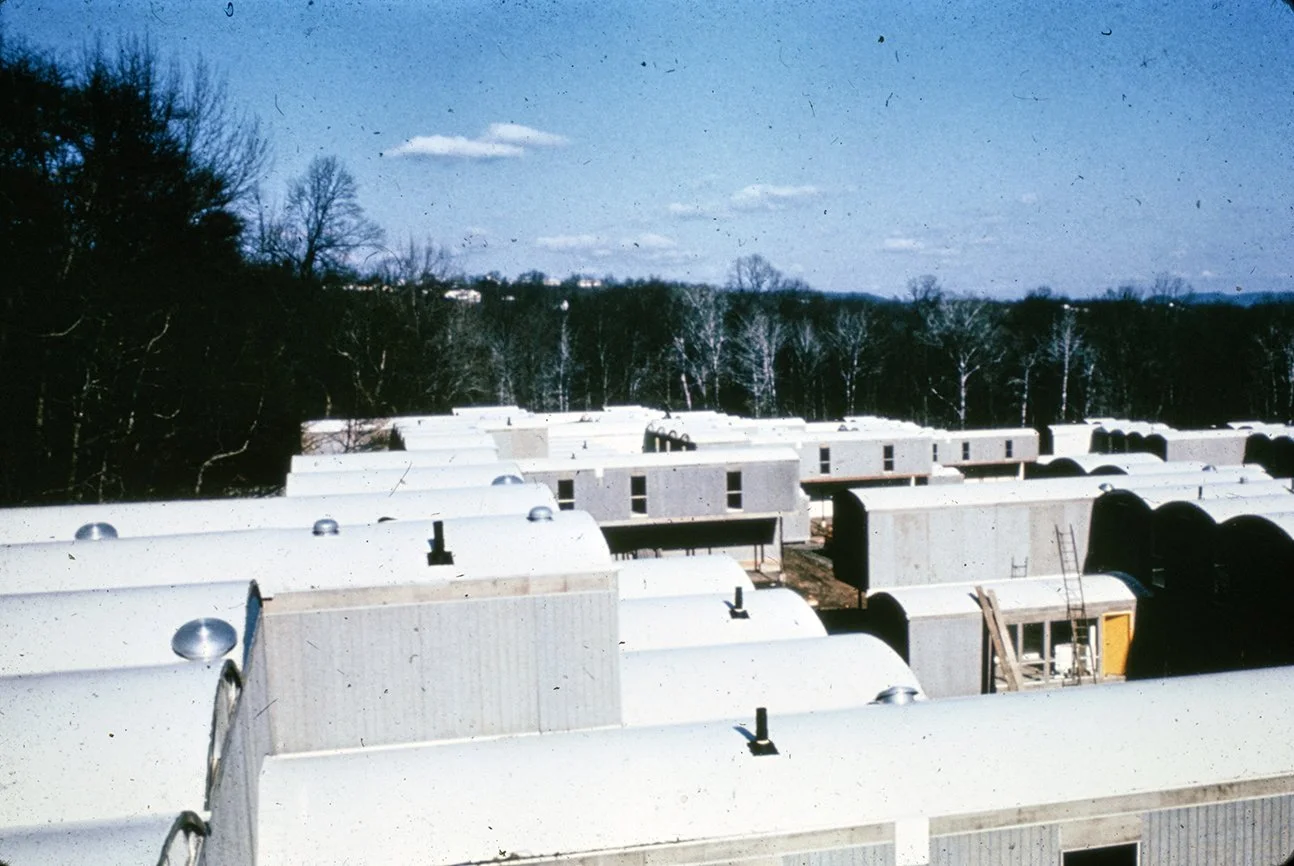

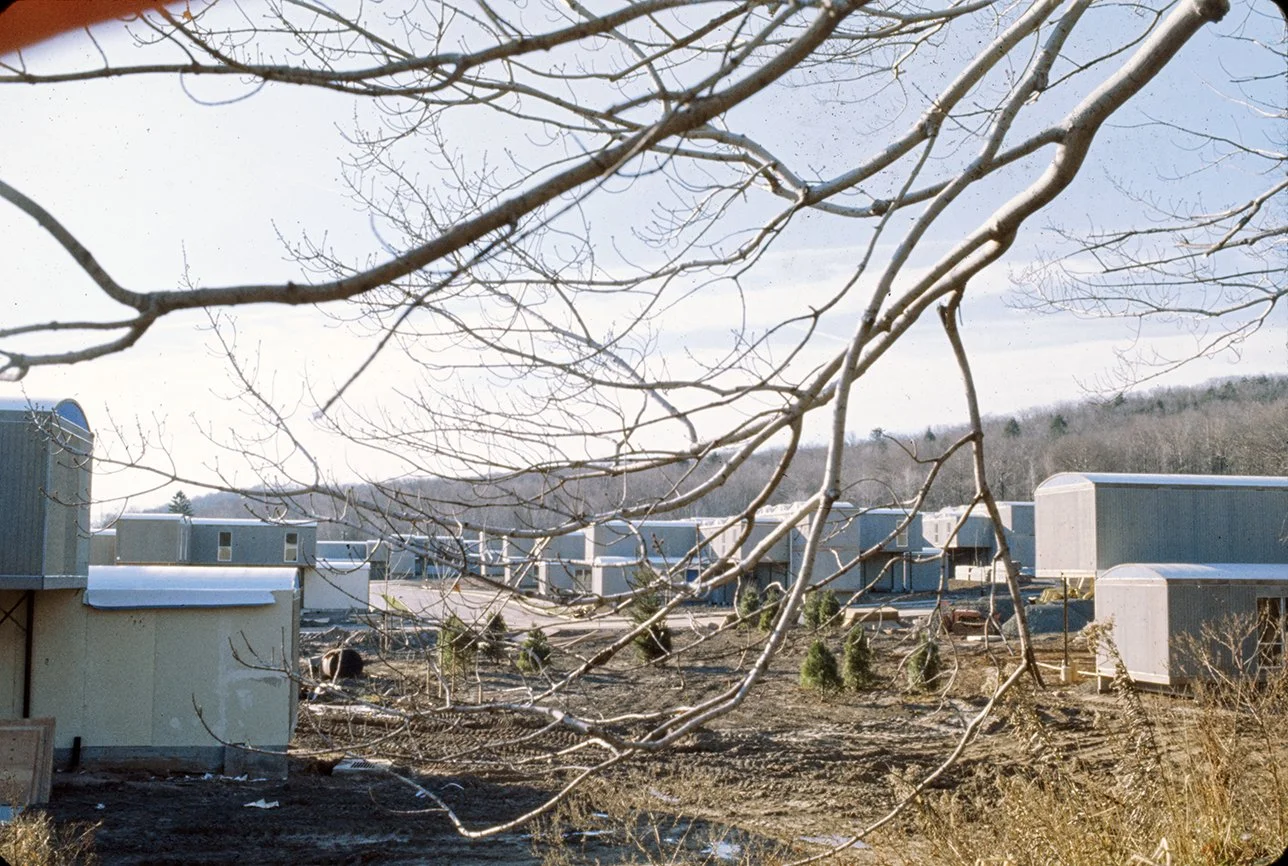

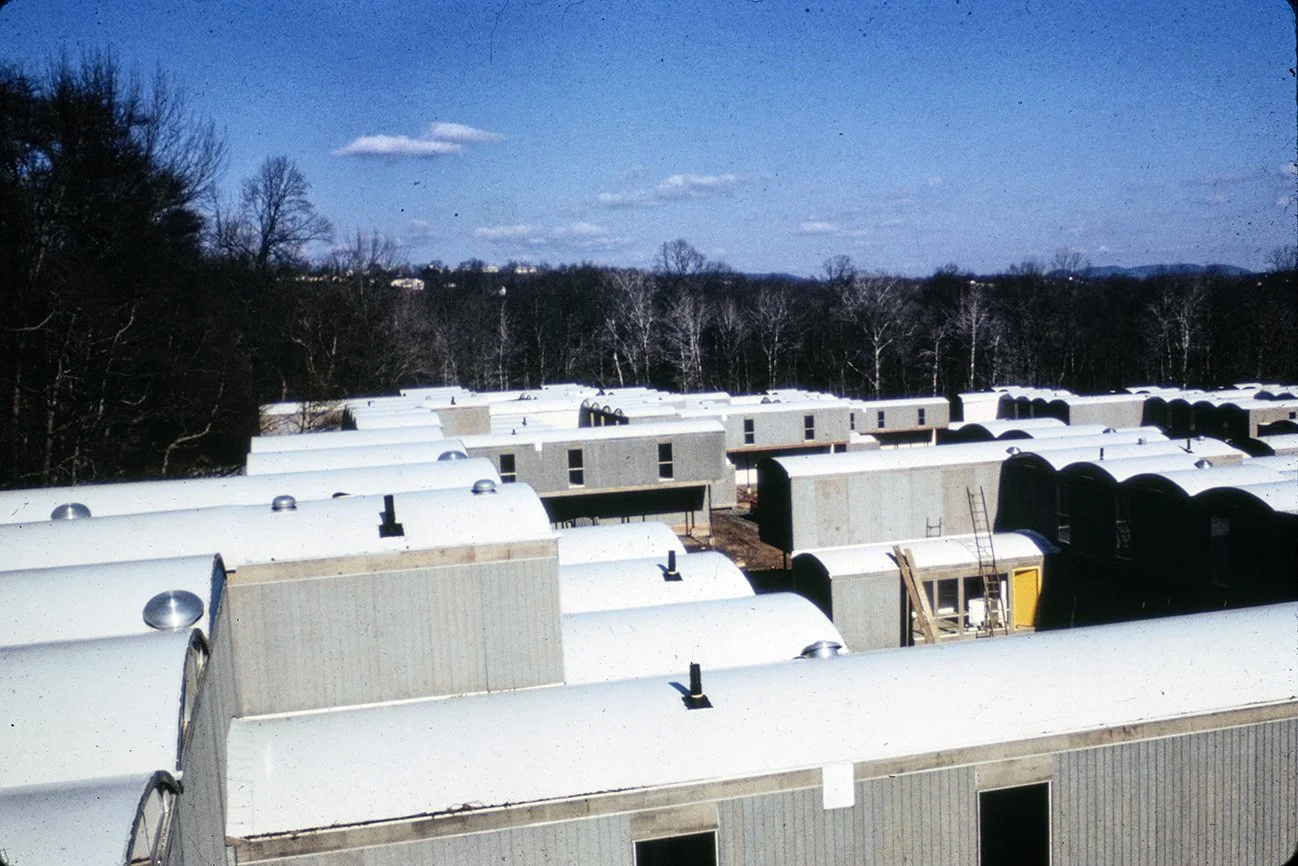

PHOTOS - During Construction

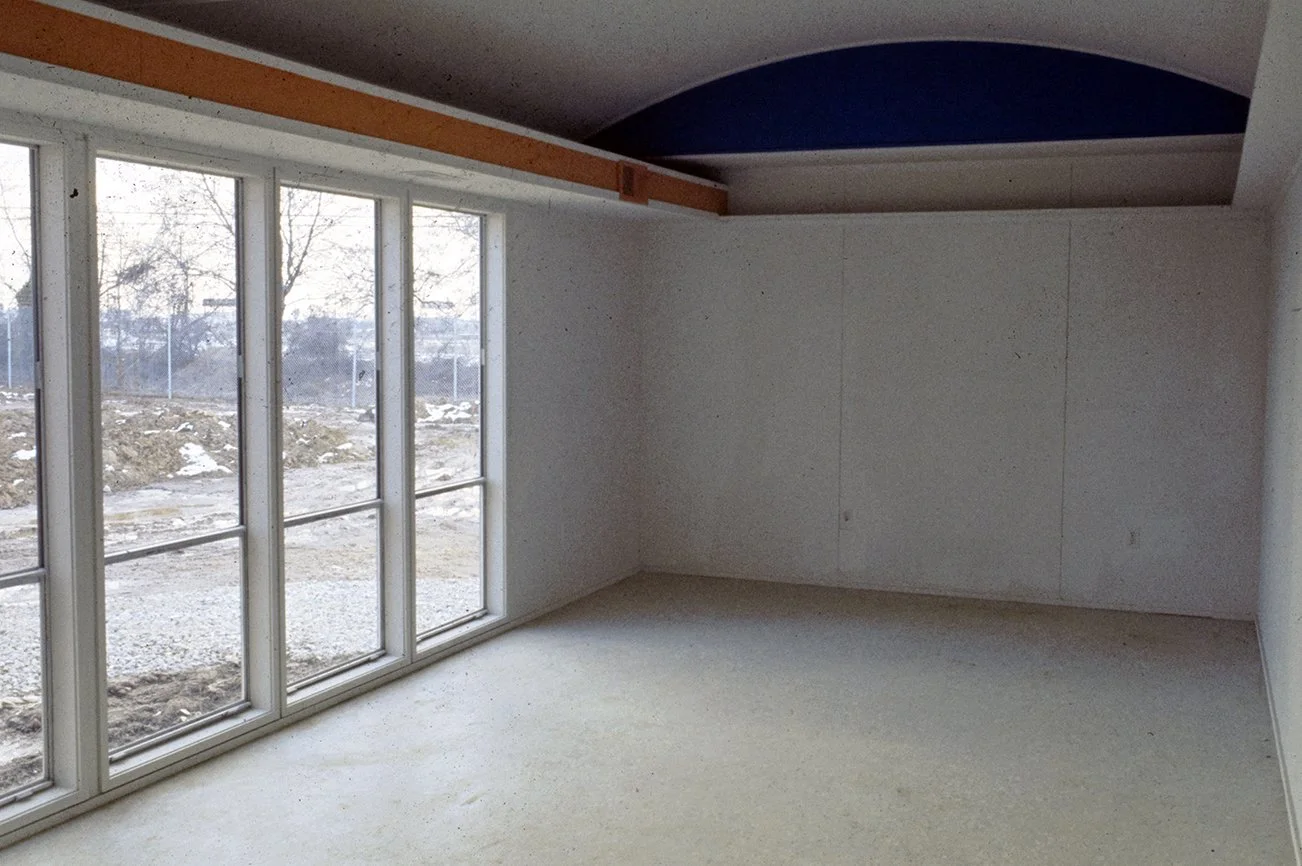

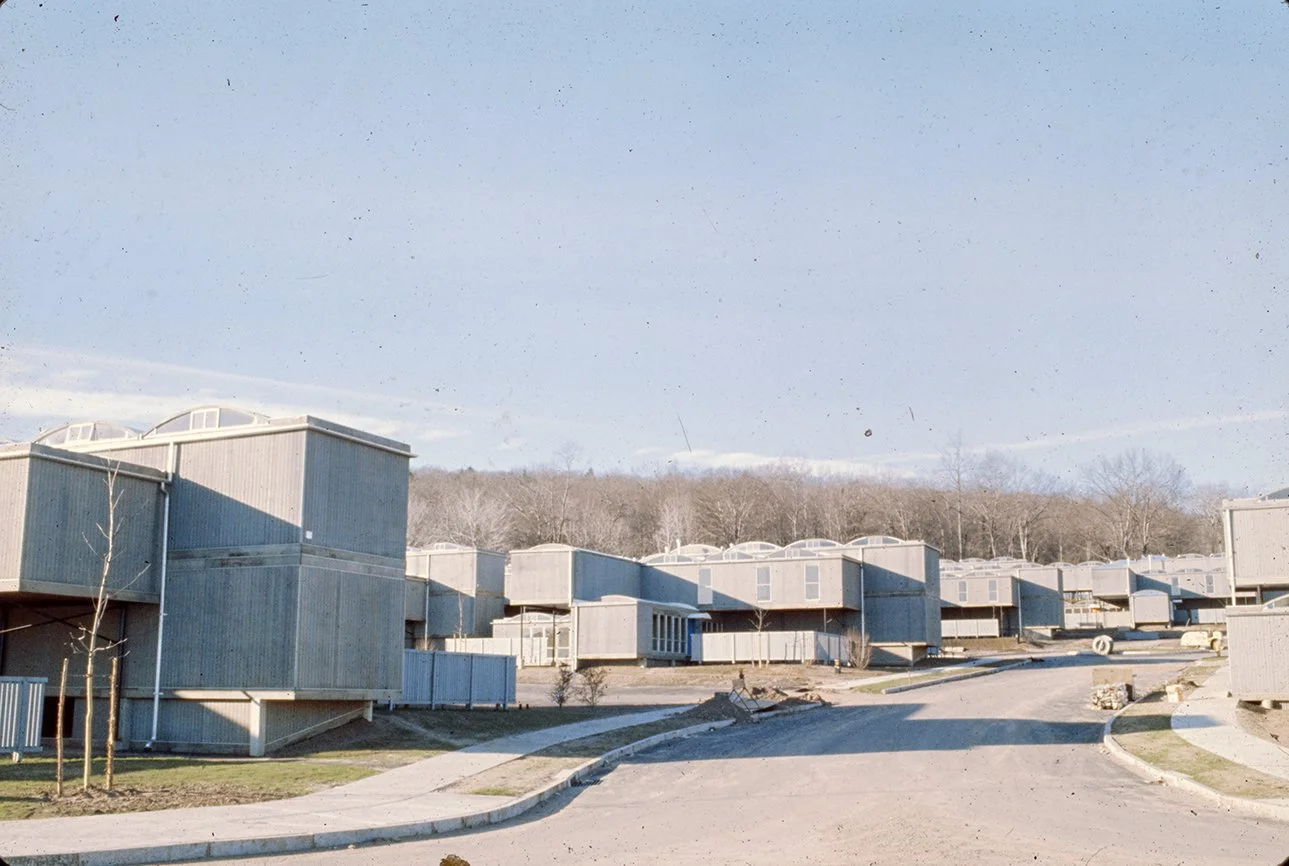

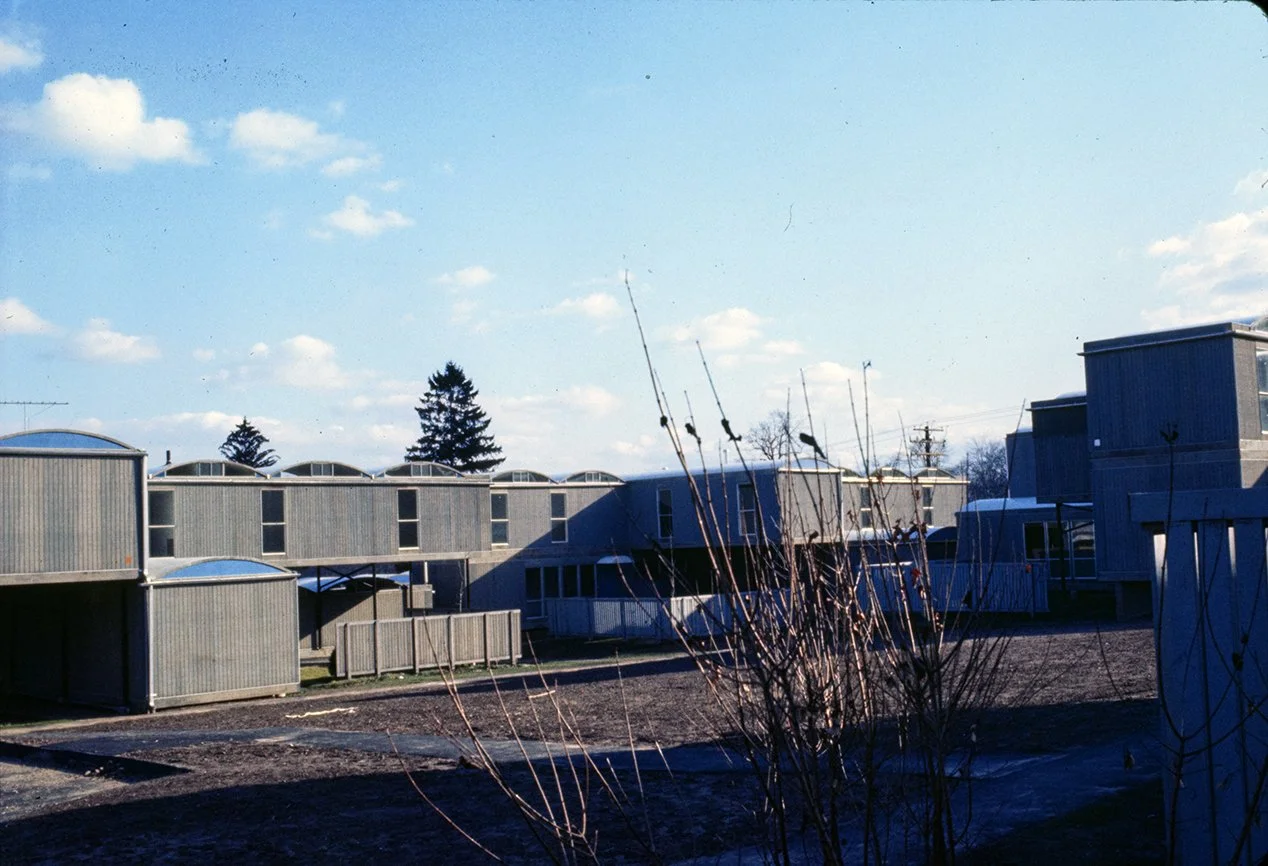

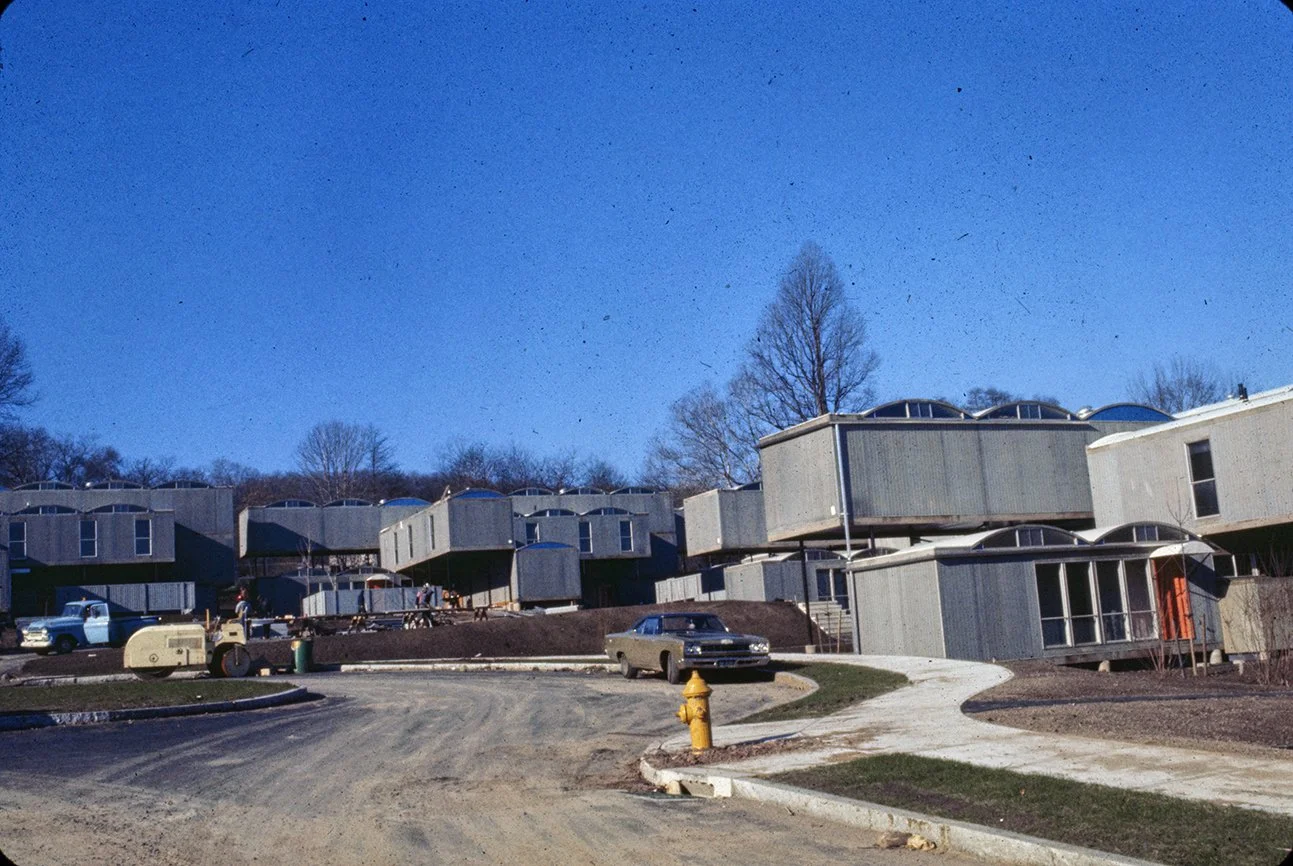

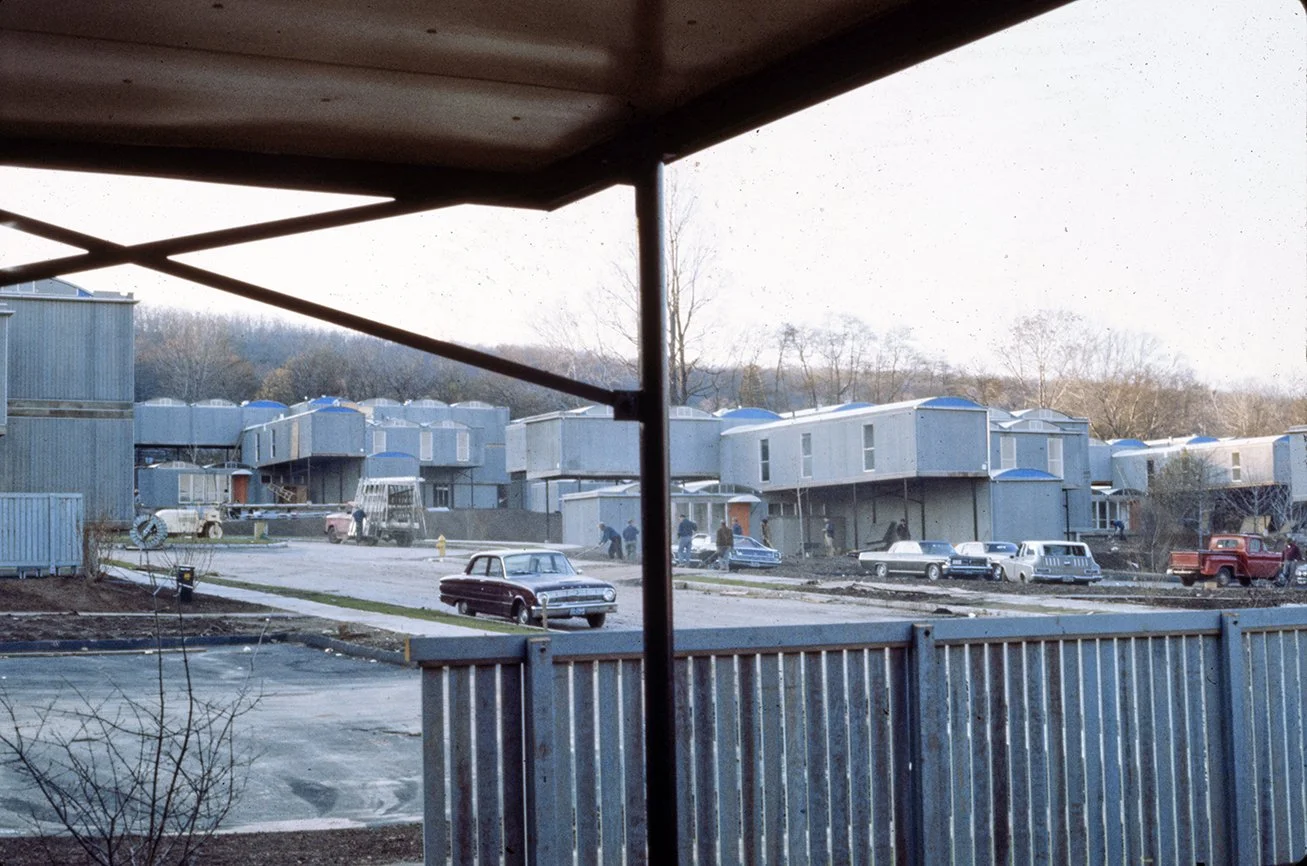

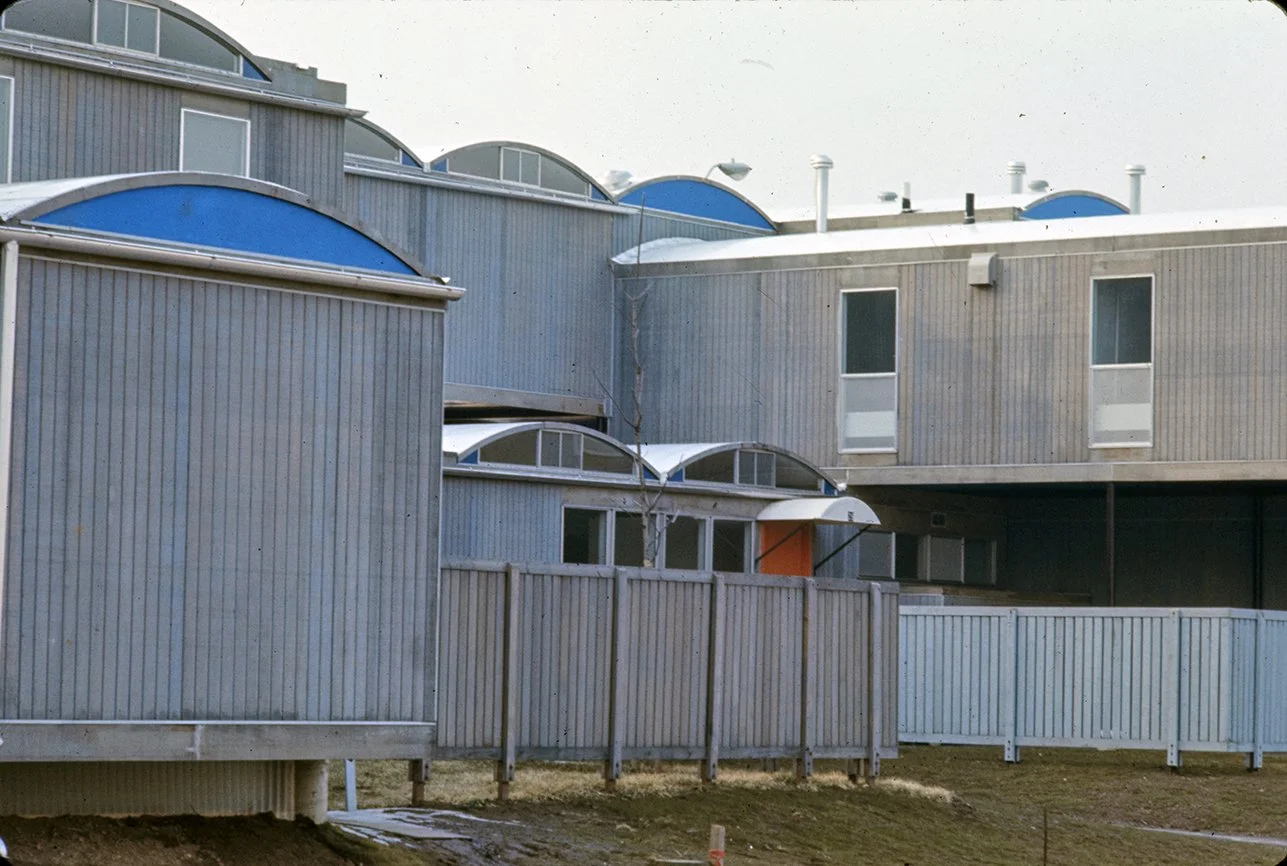

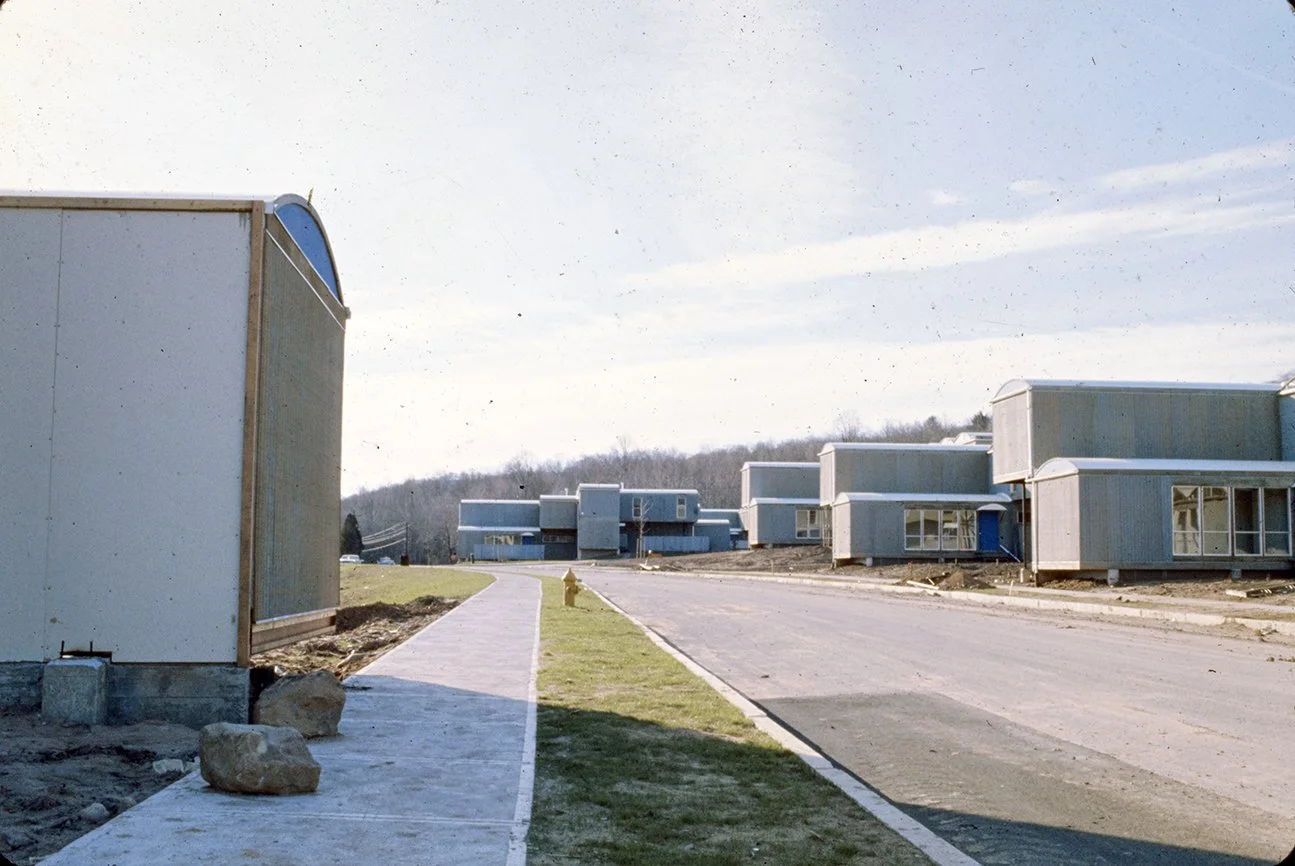

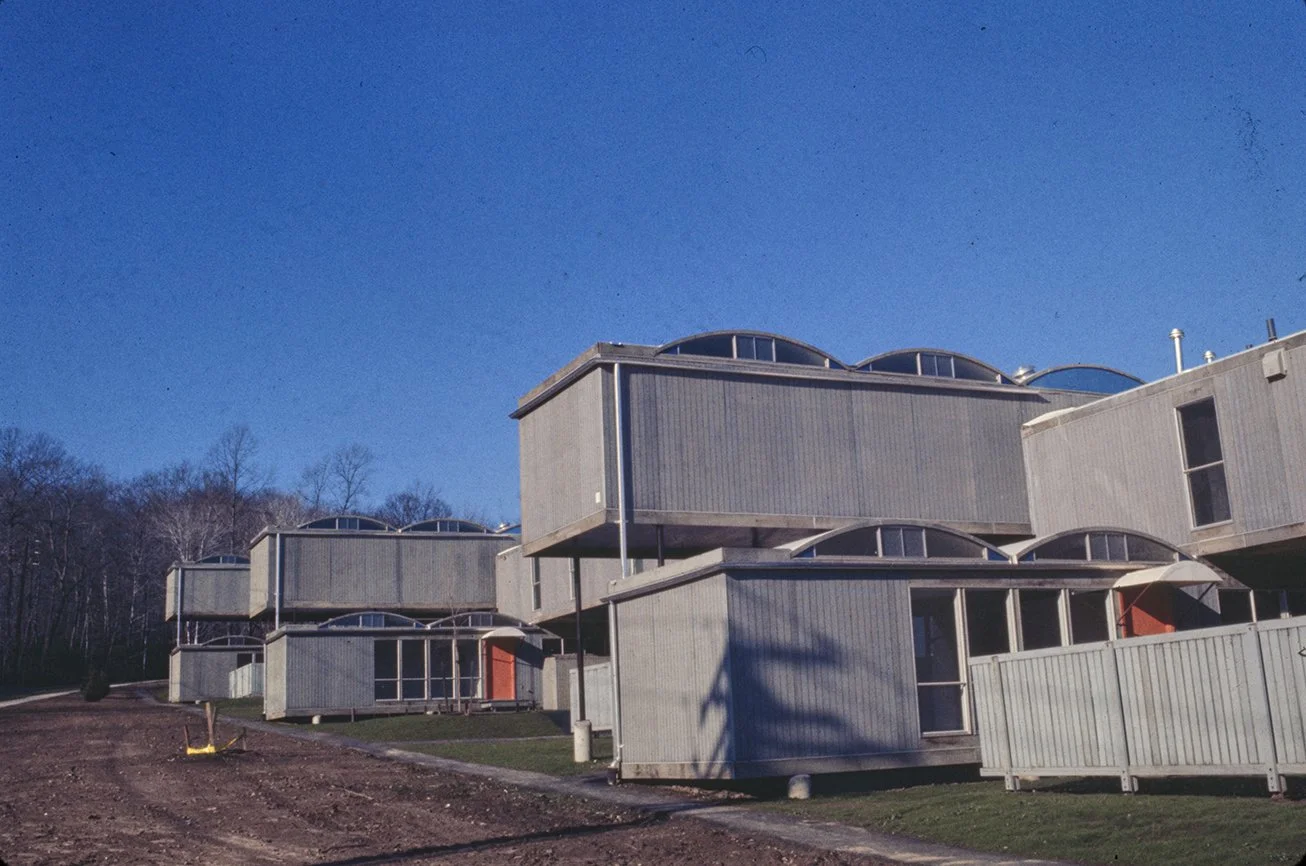

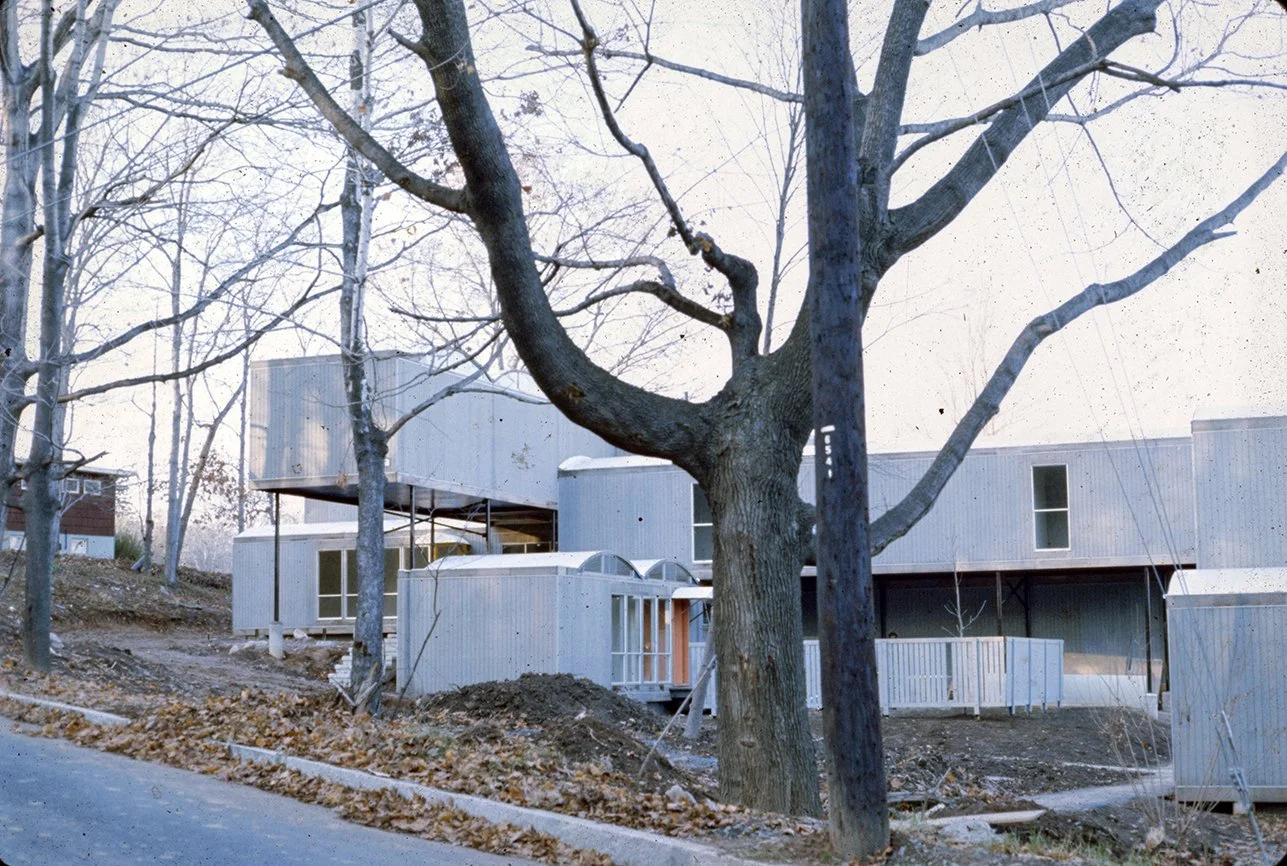

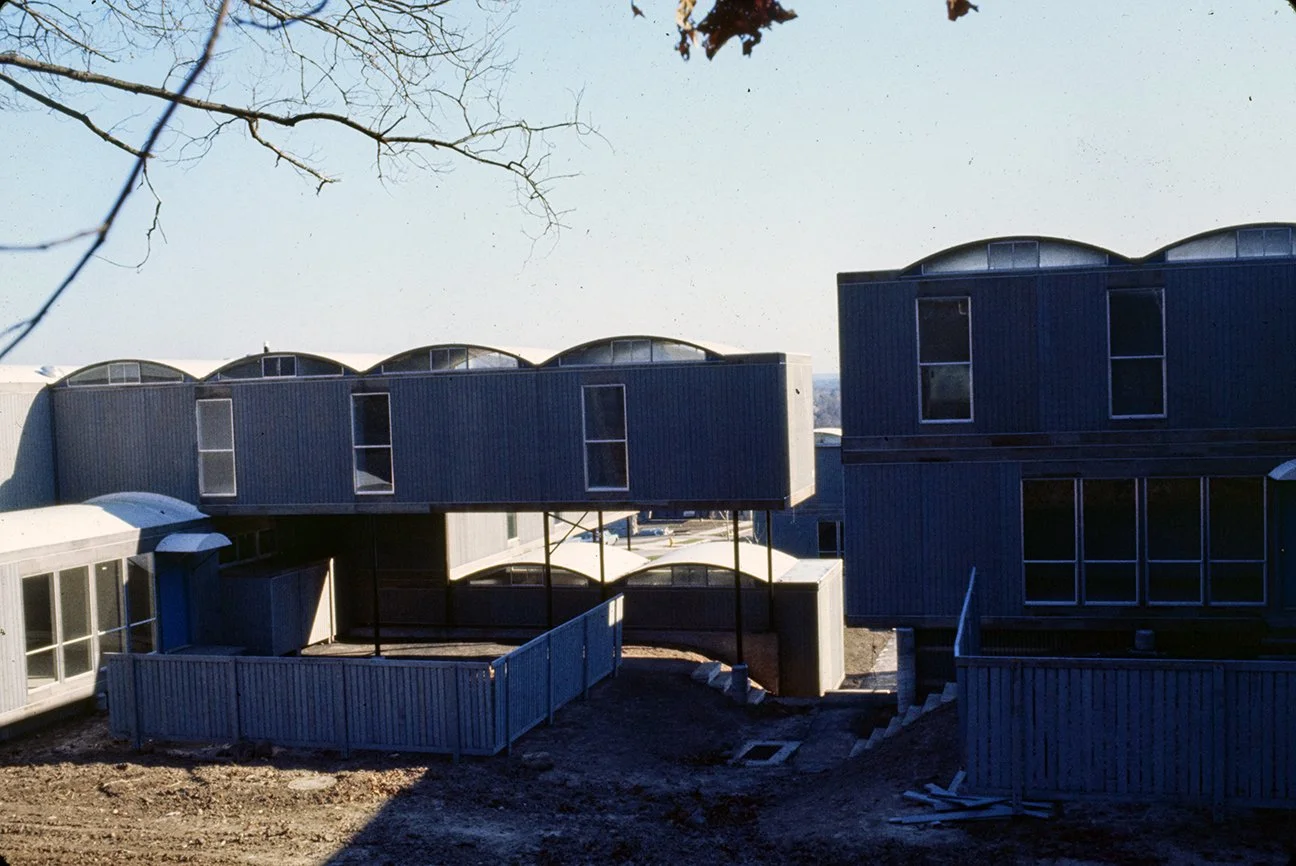

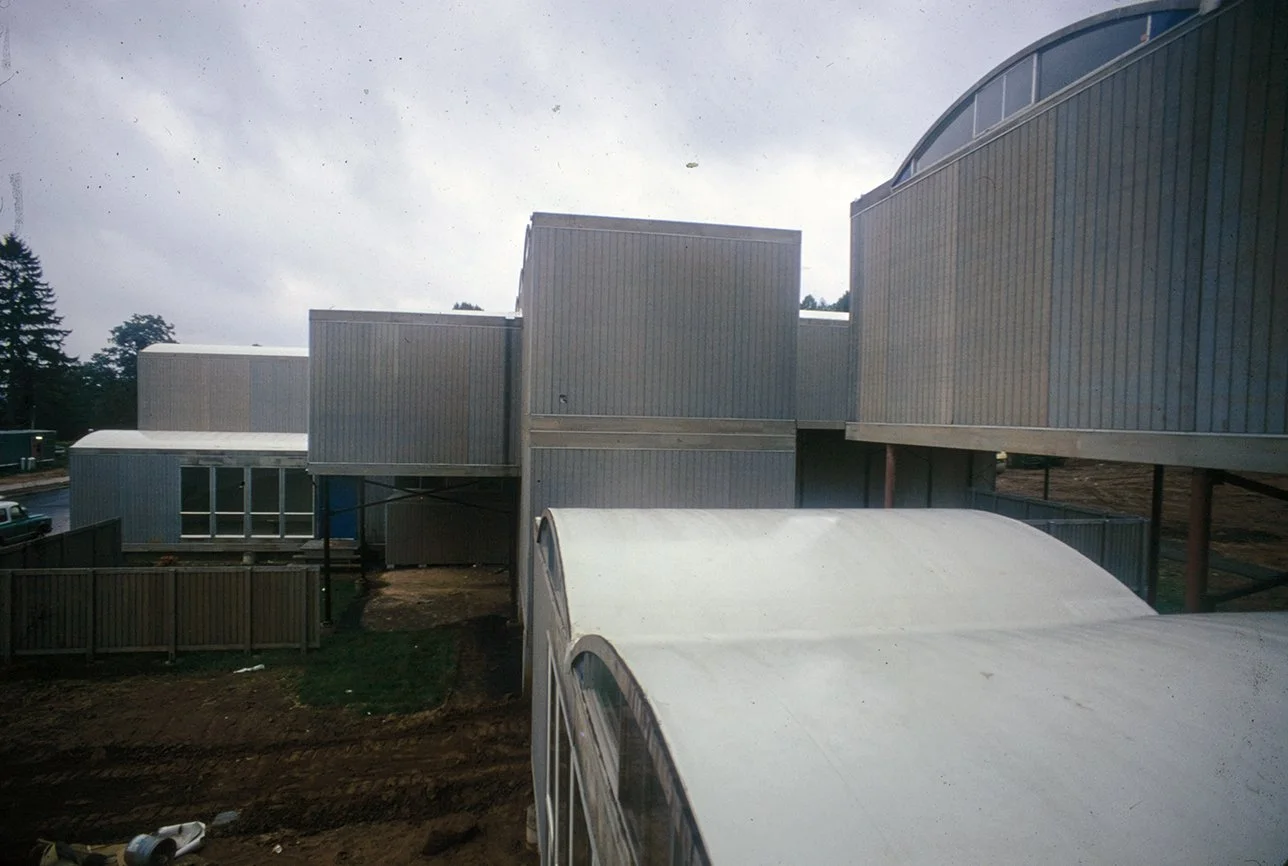

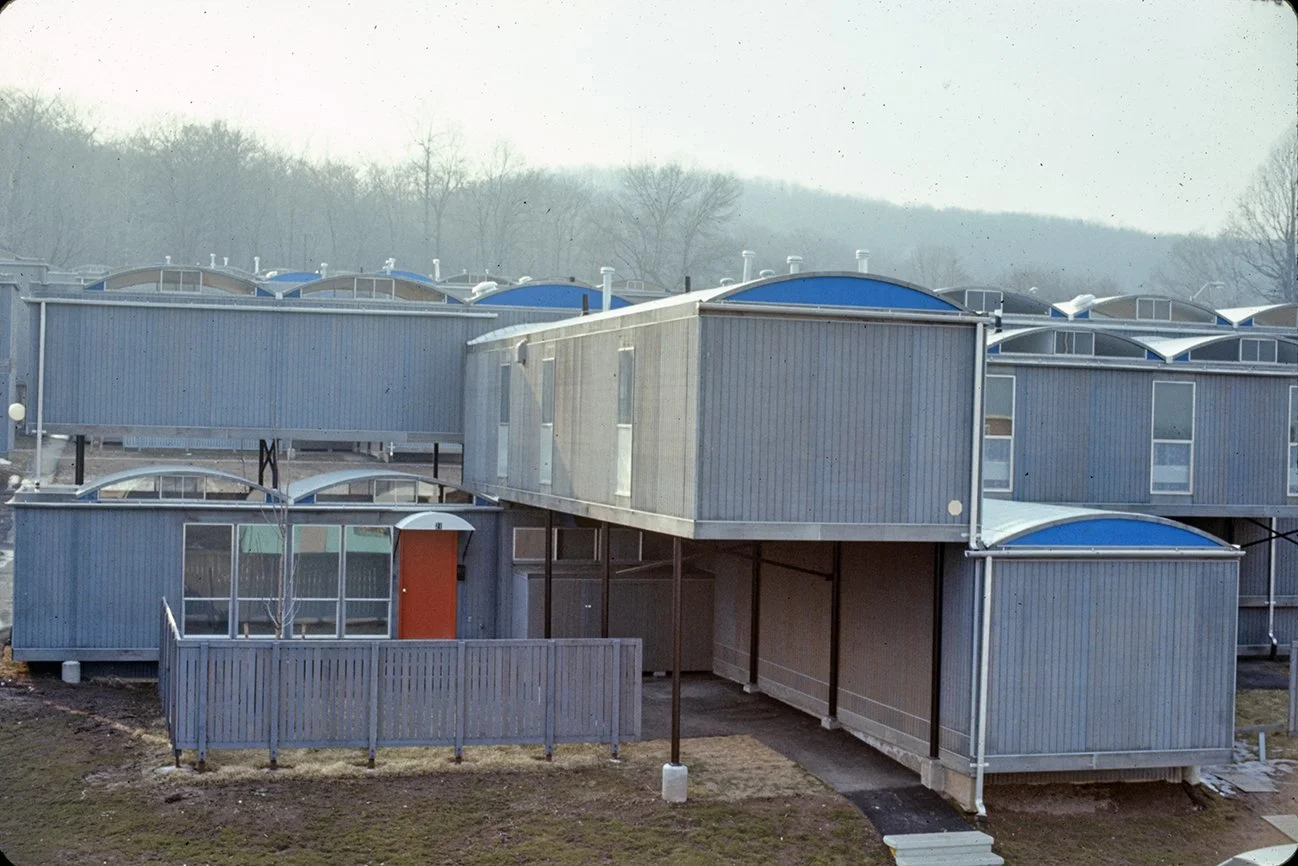

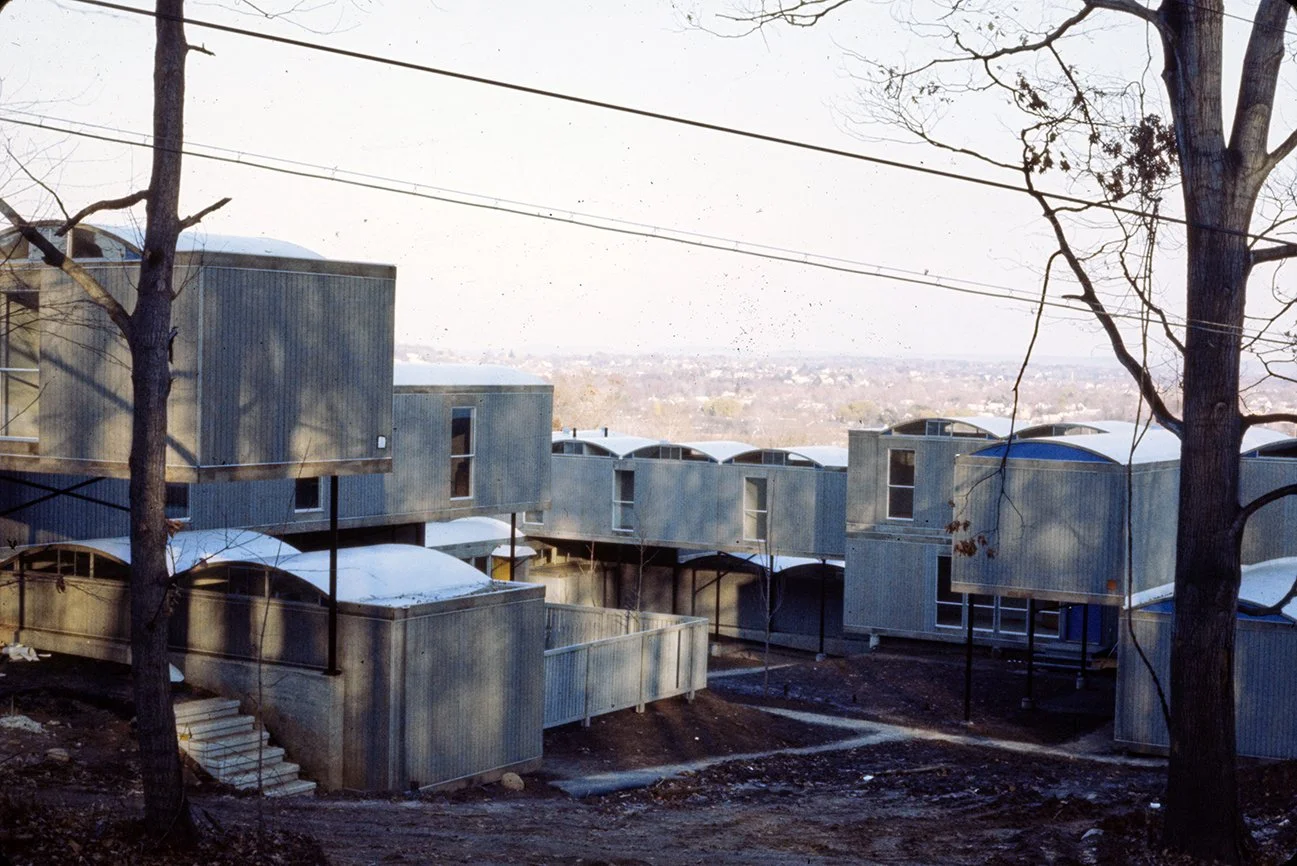

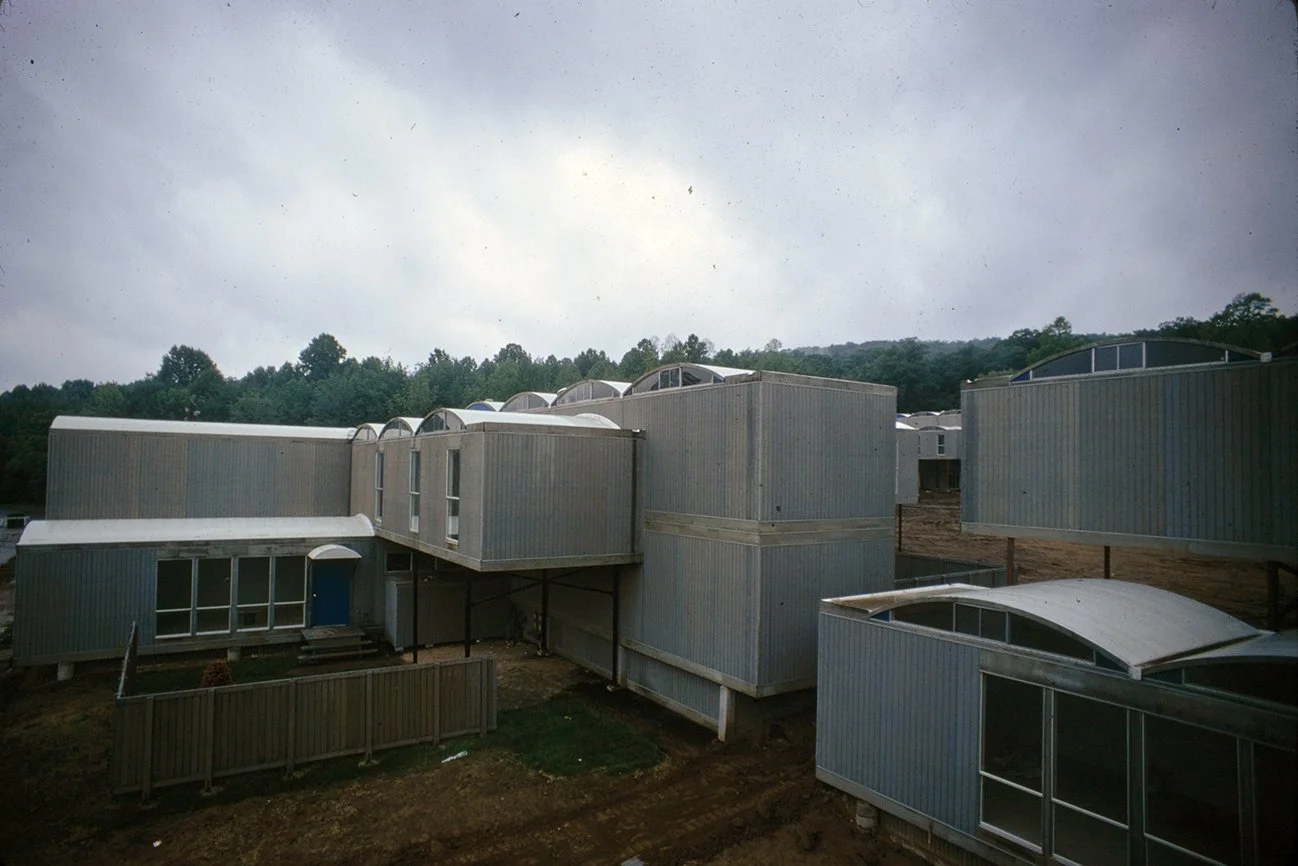

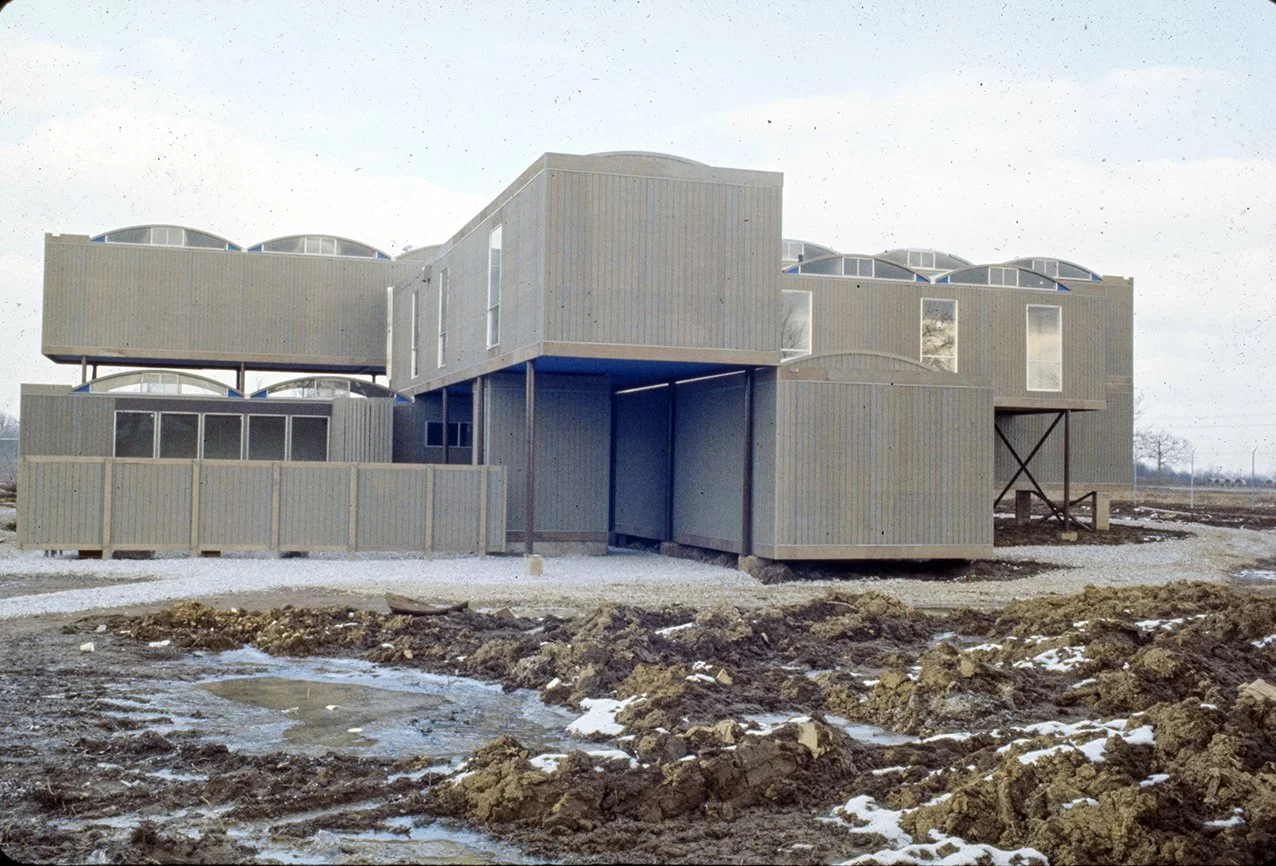

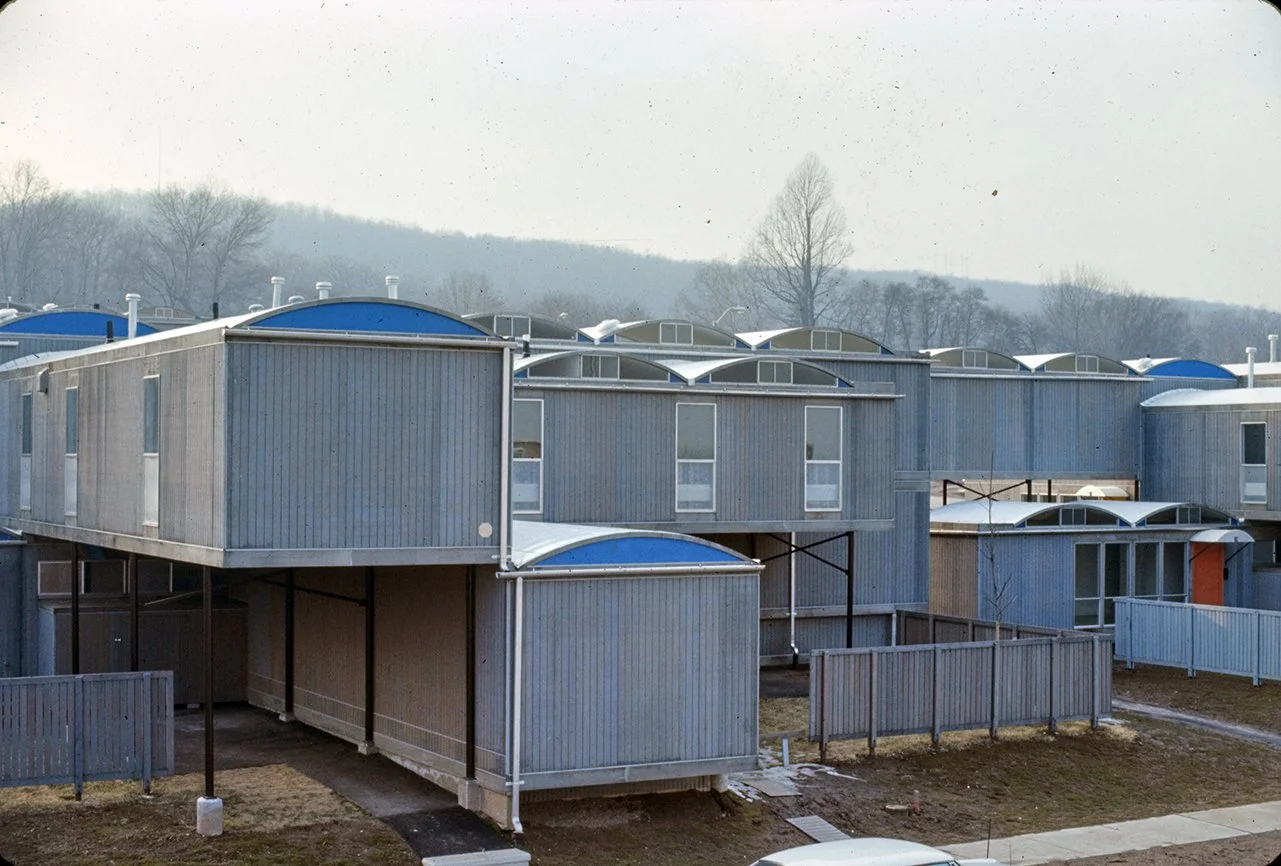

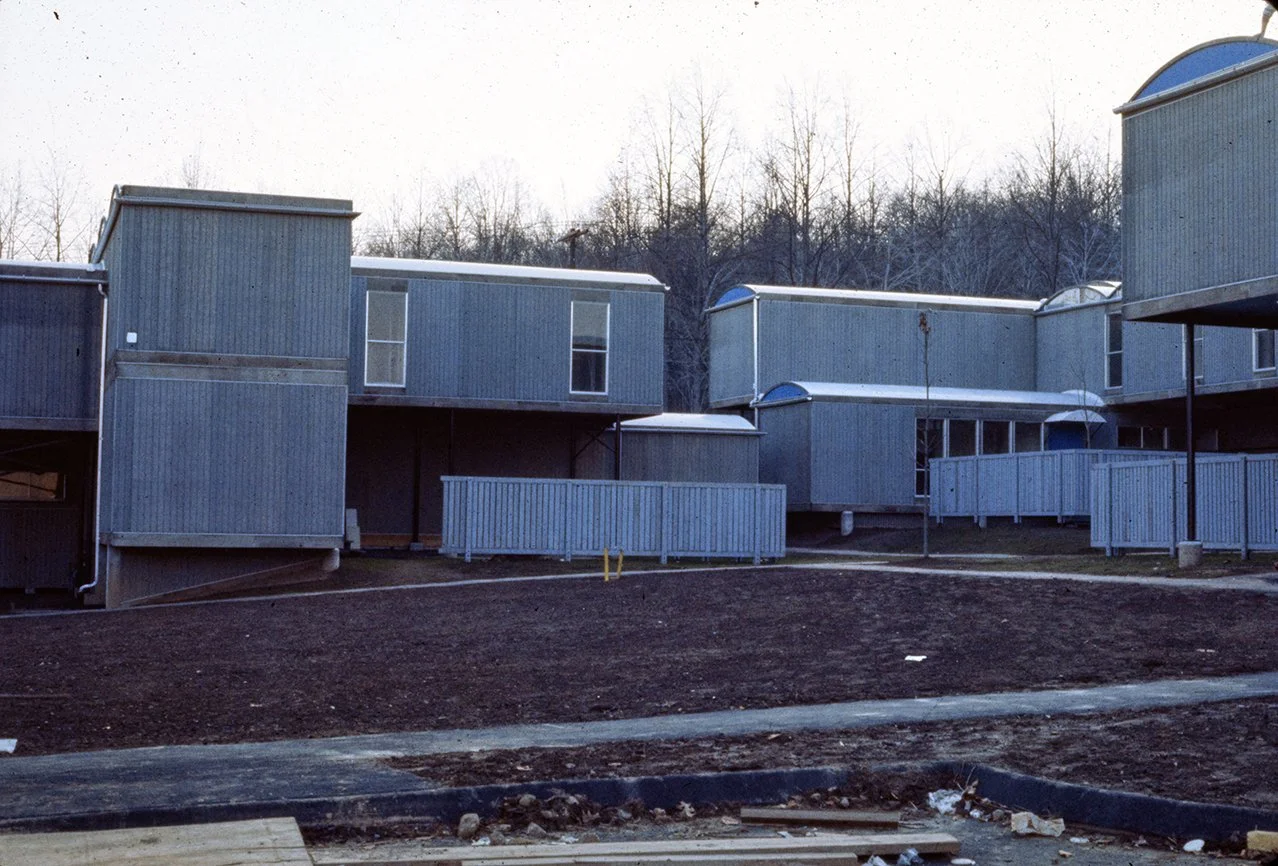

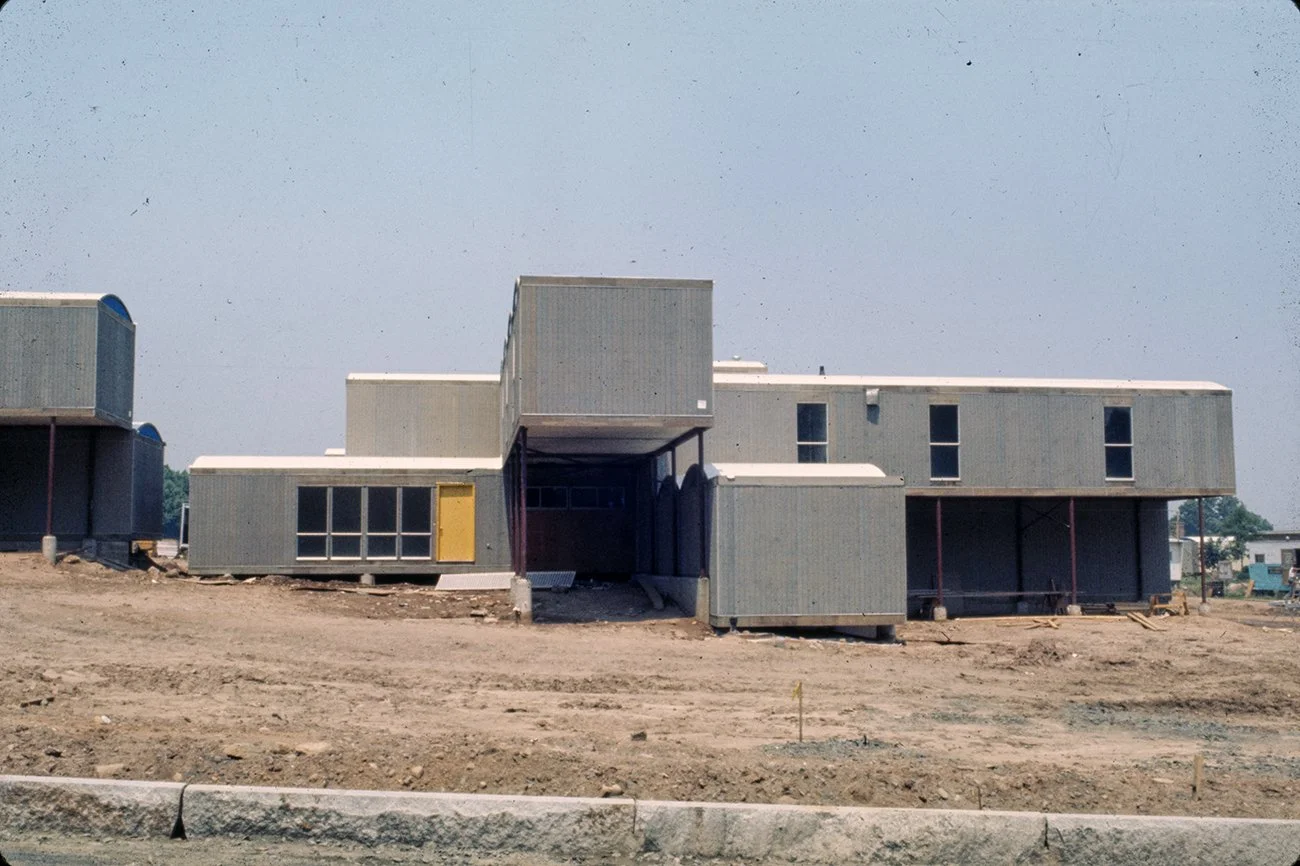

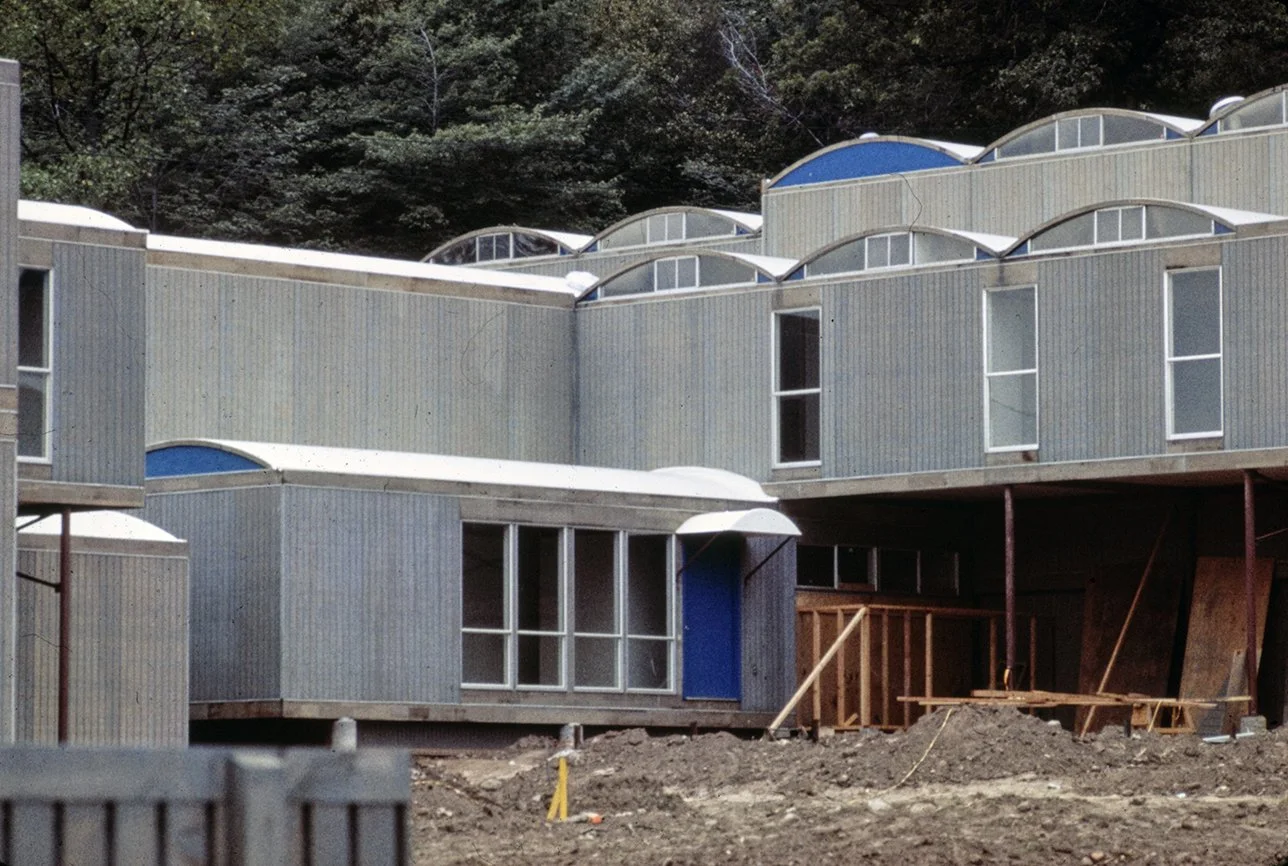

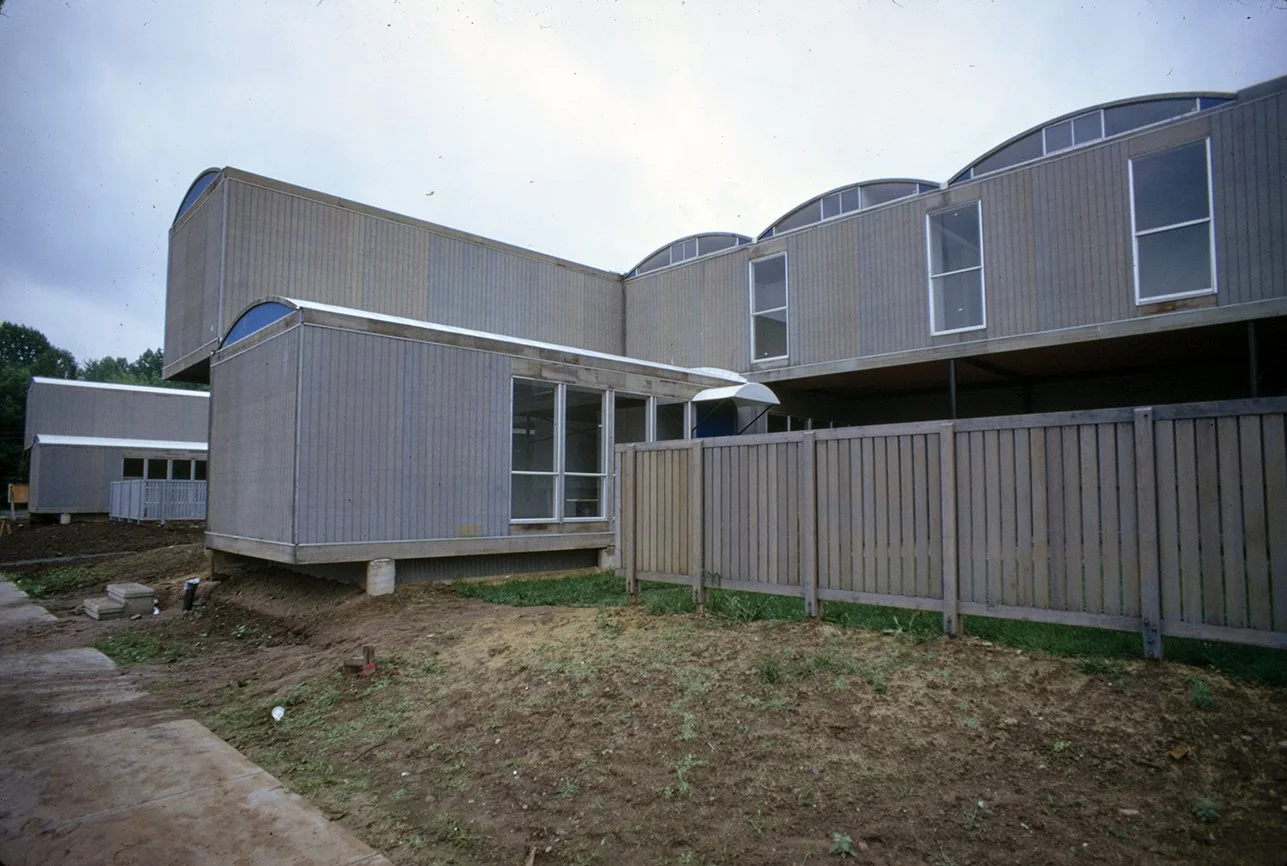

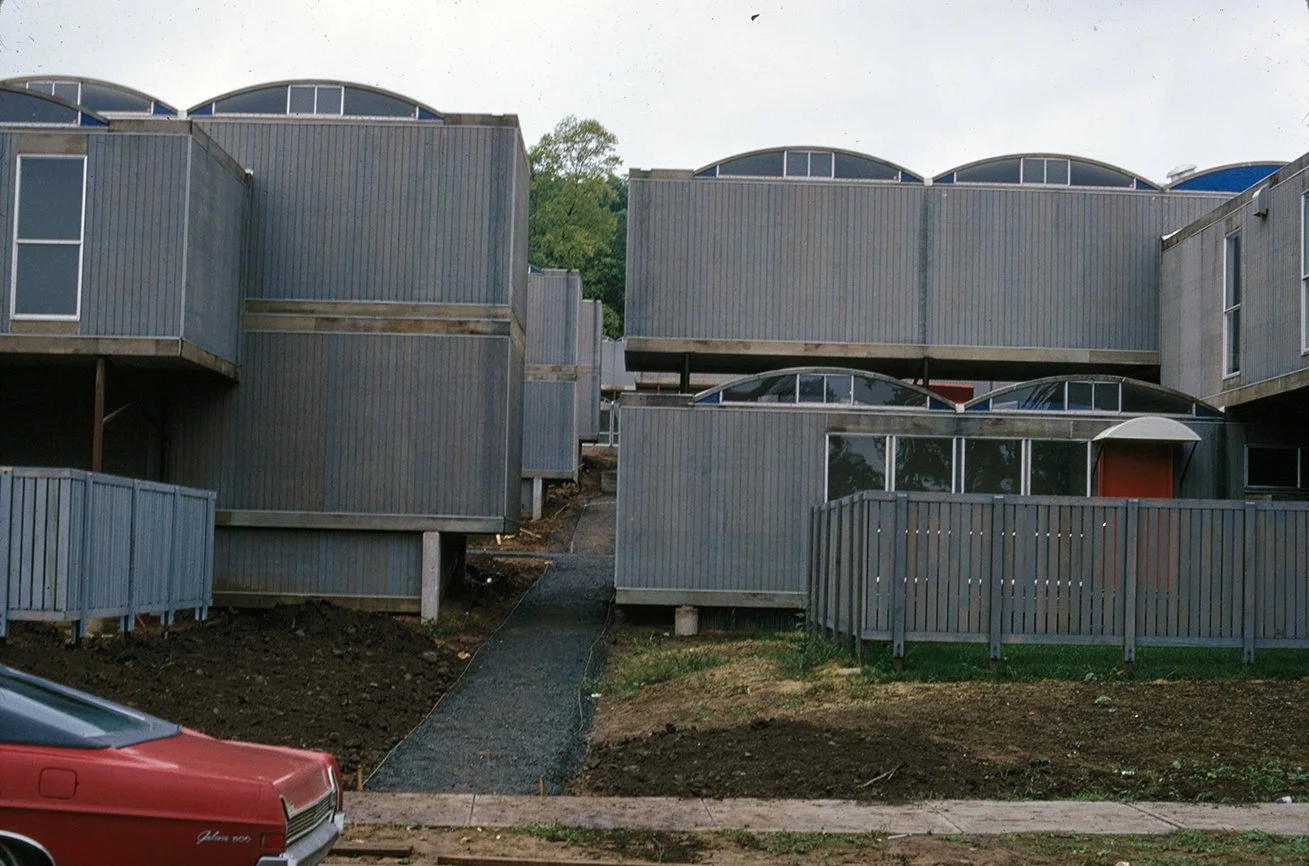

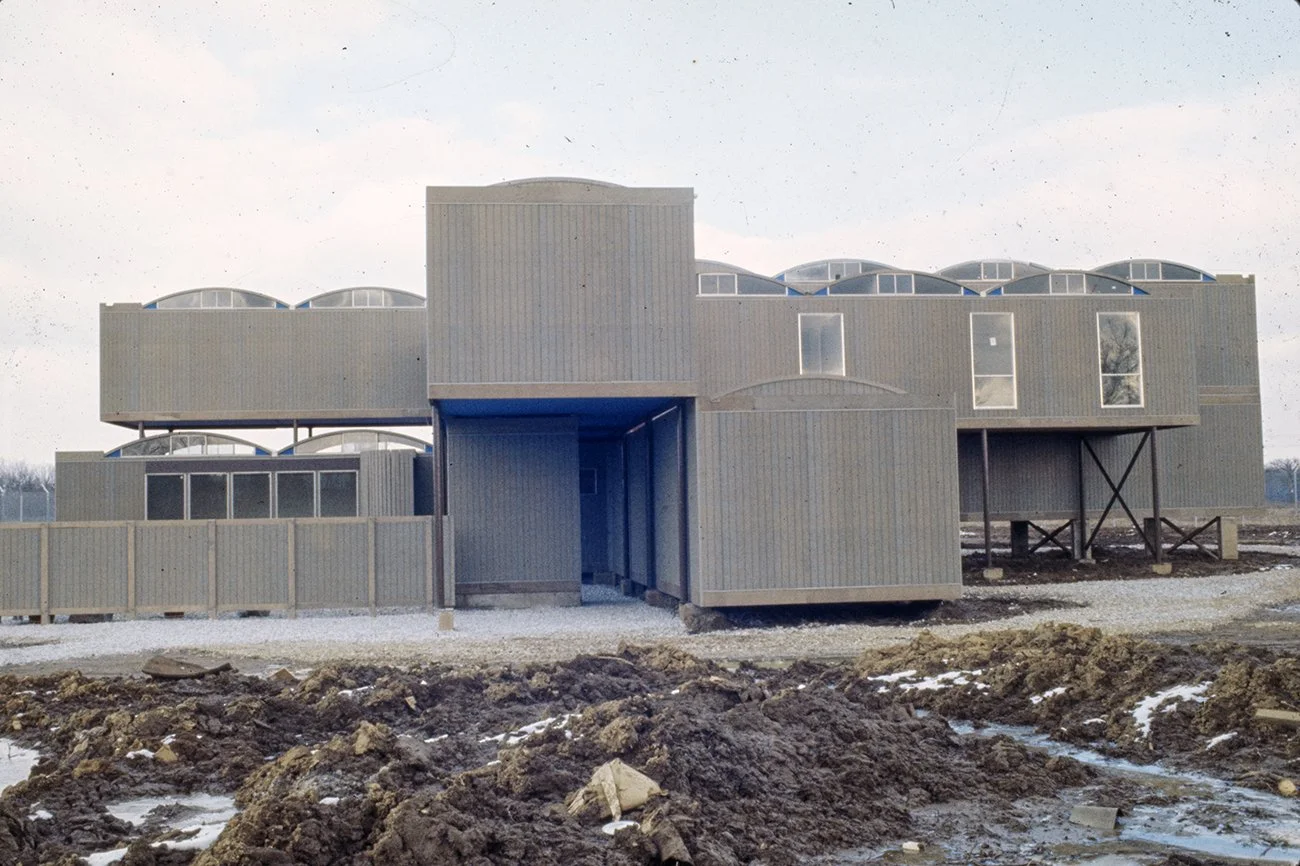

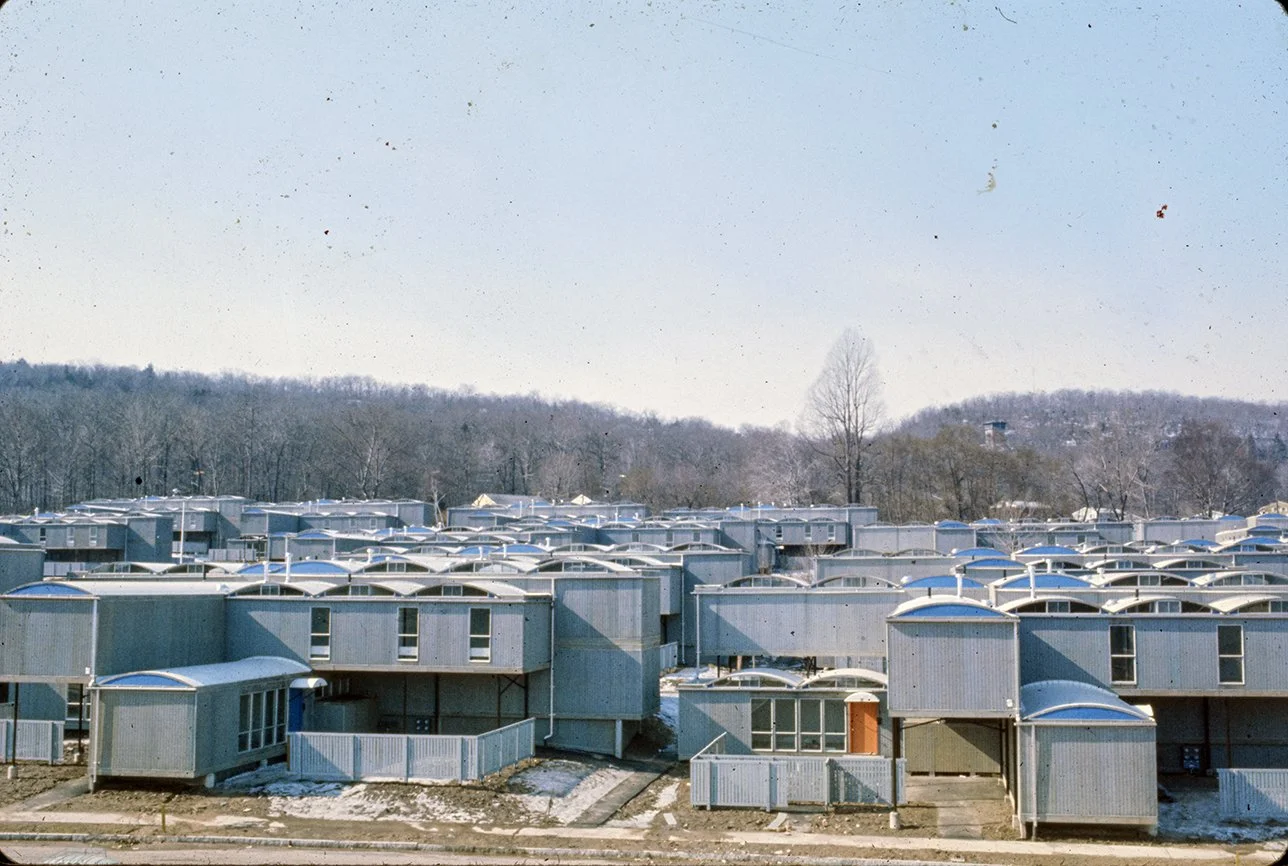

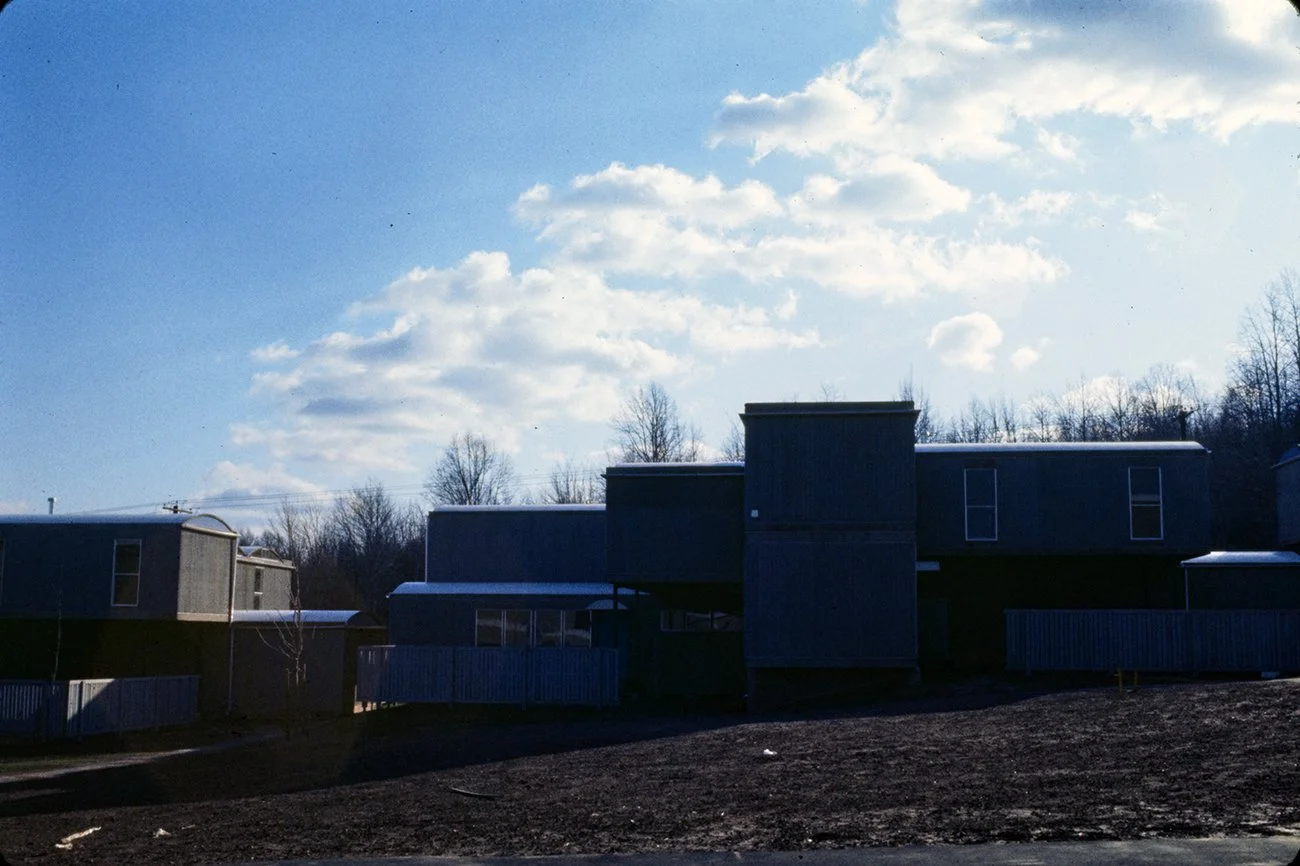

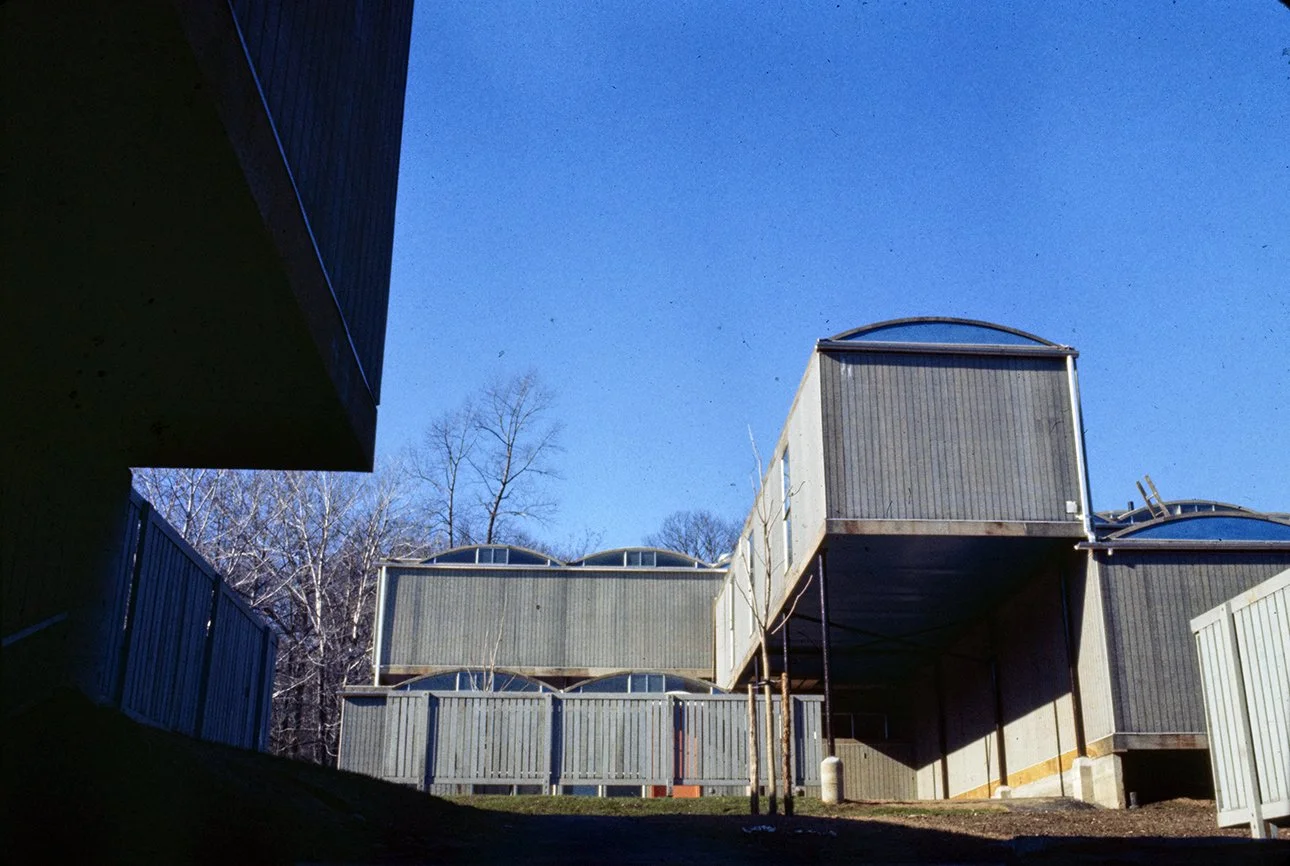

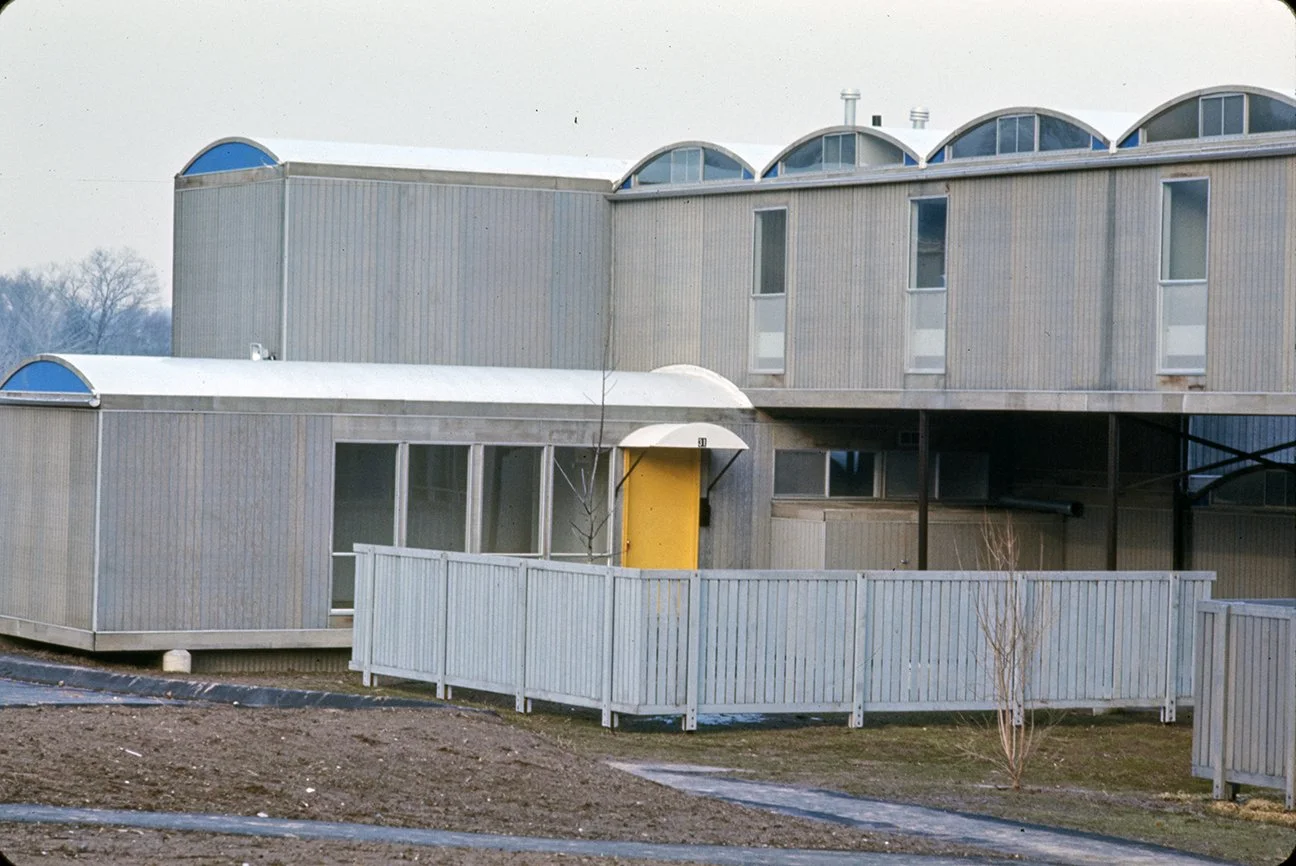

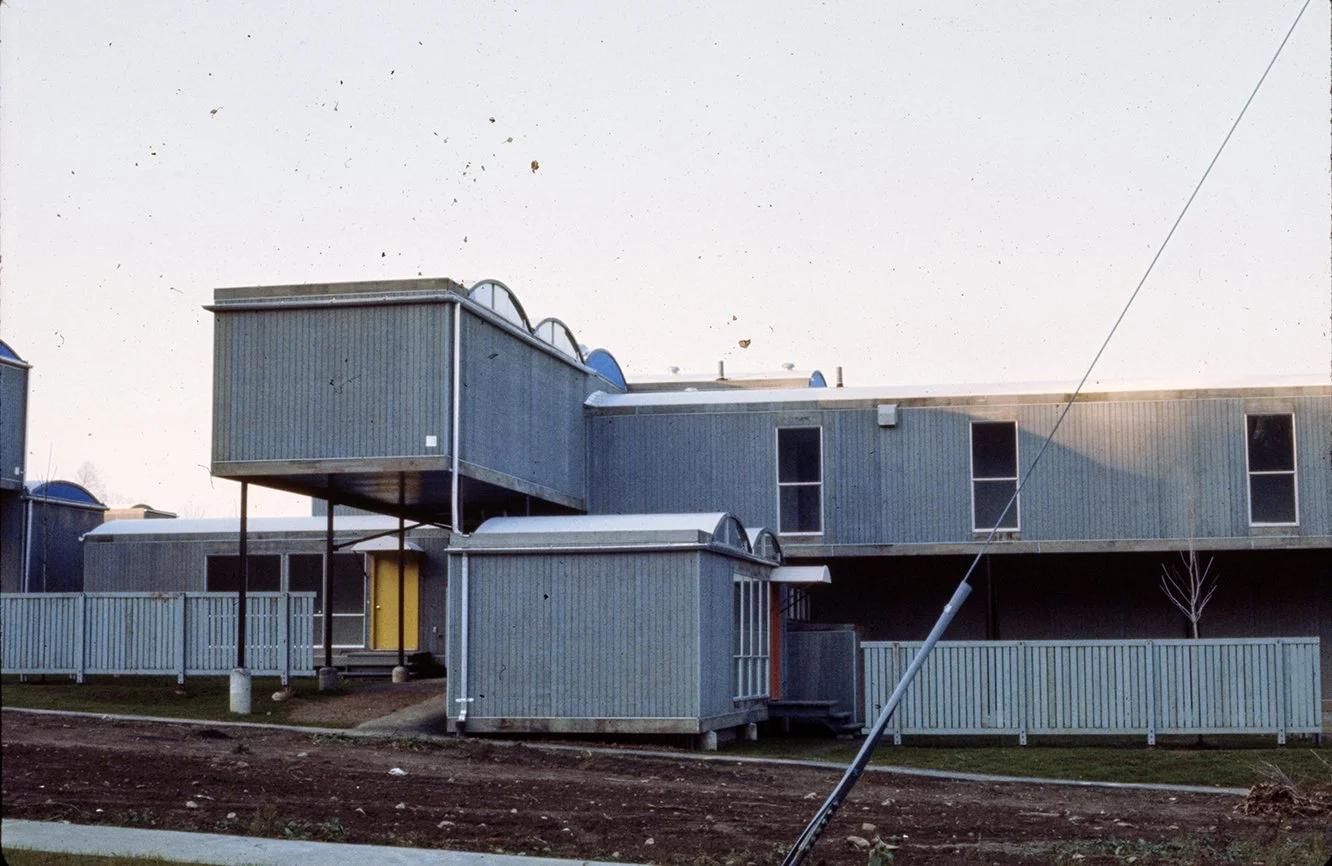

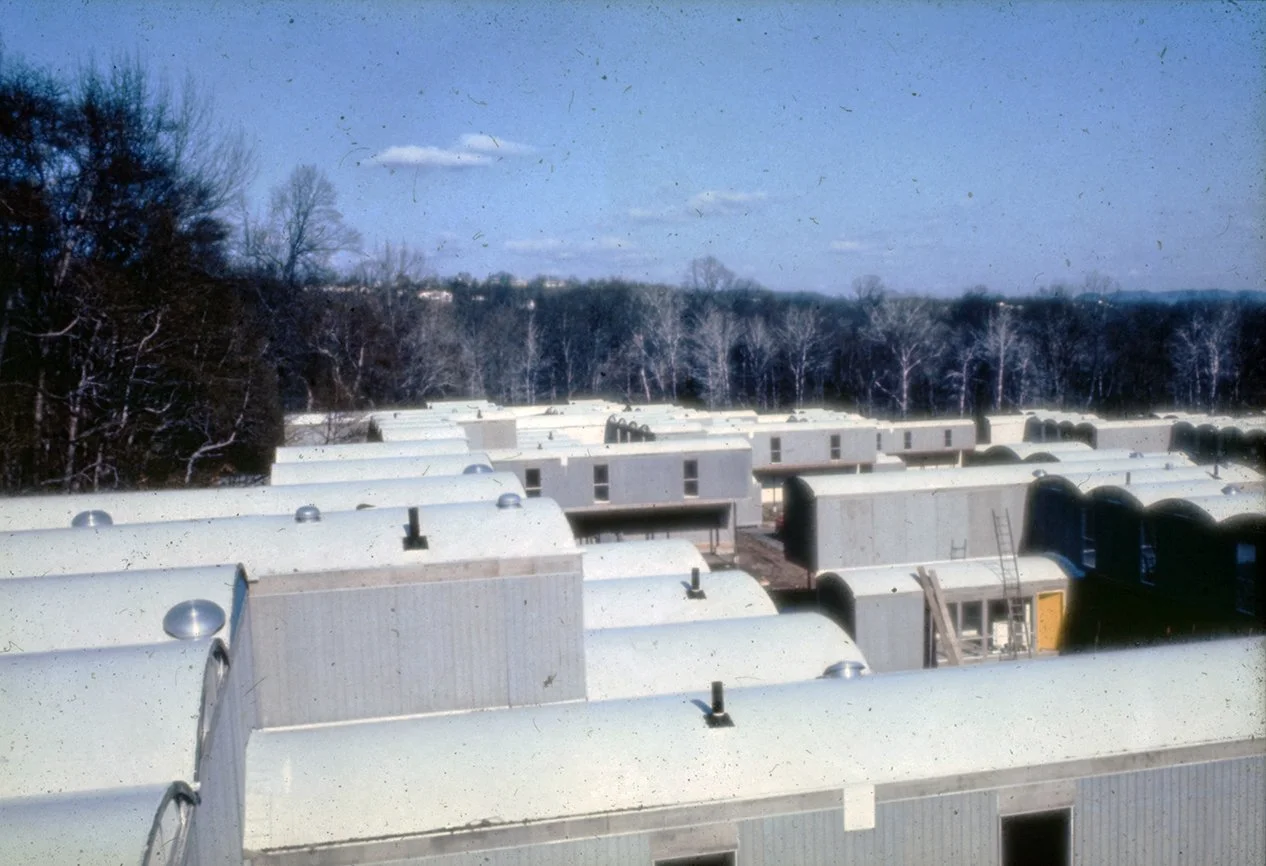

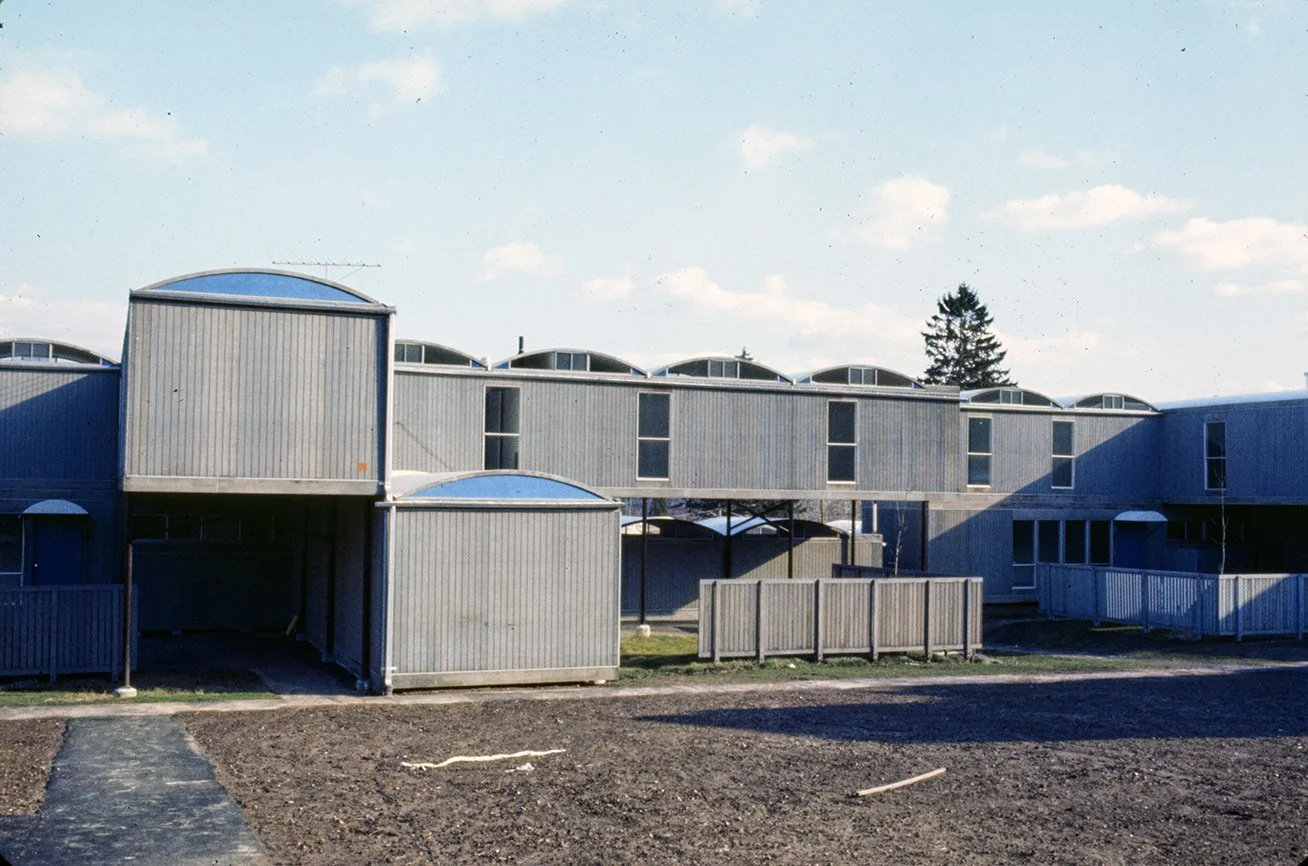

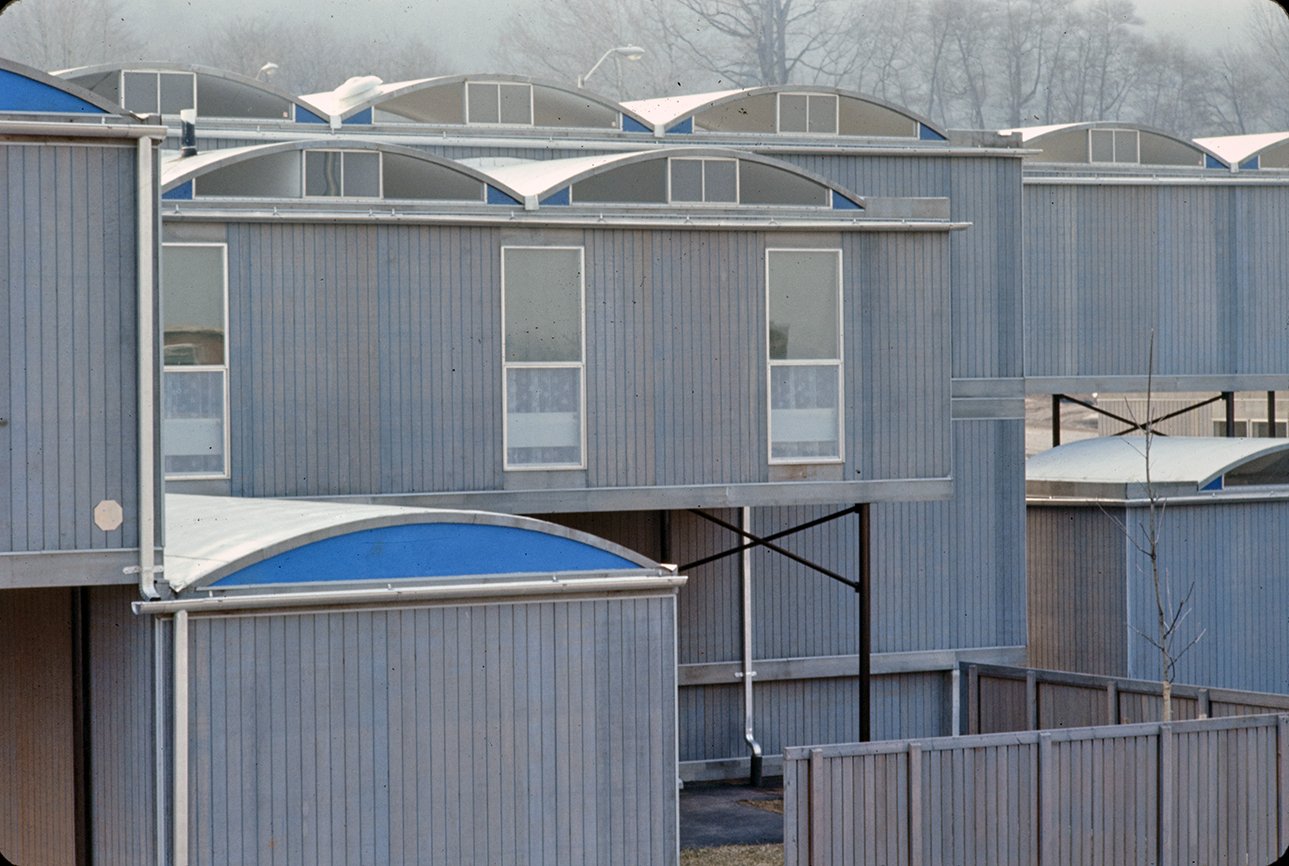

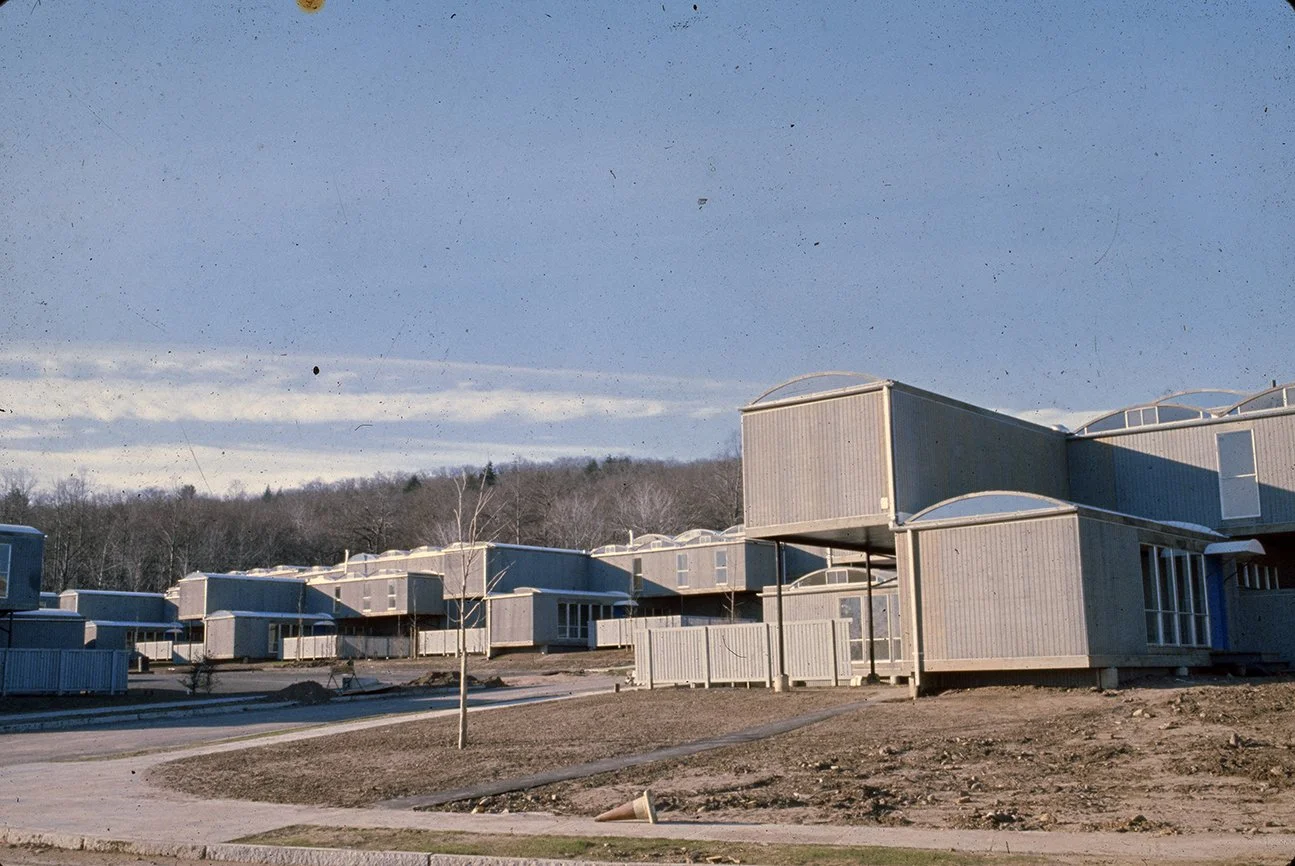

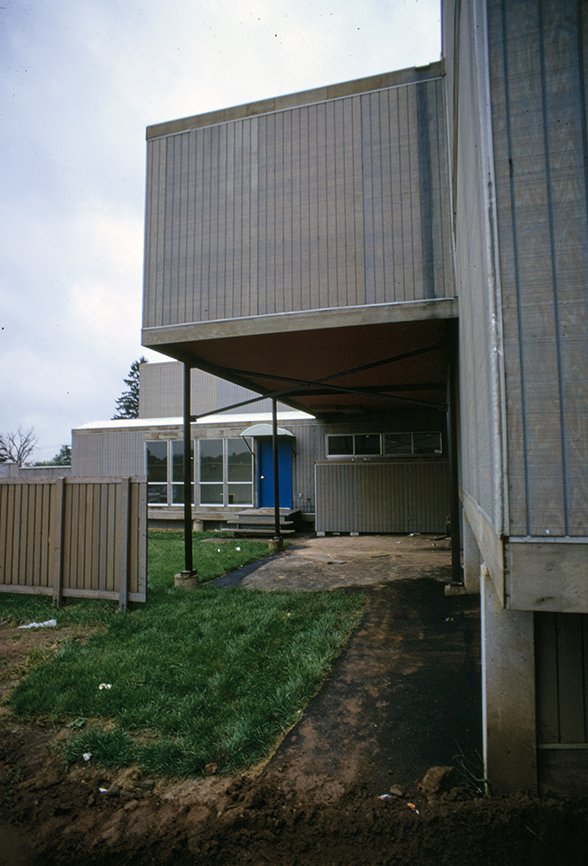

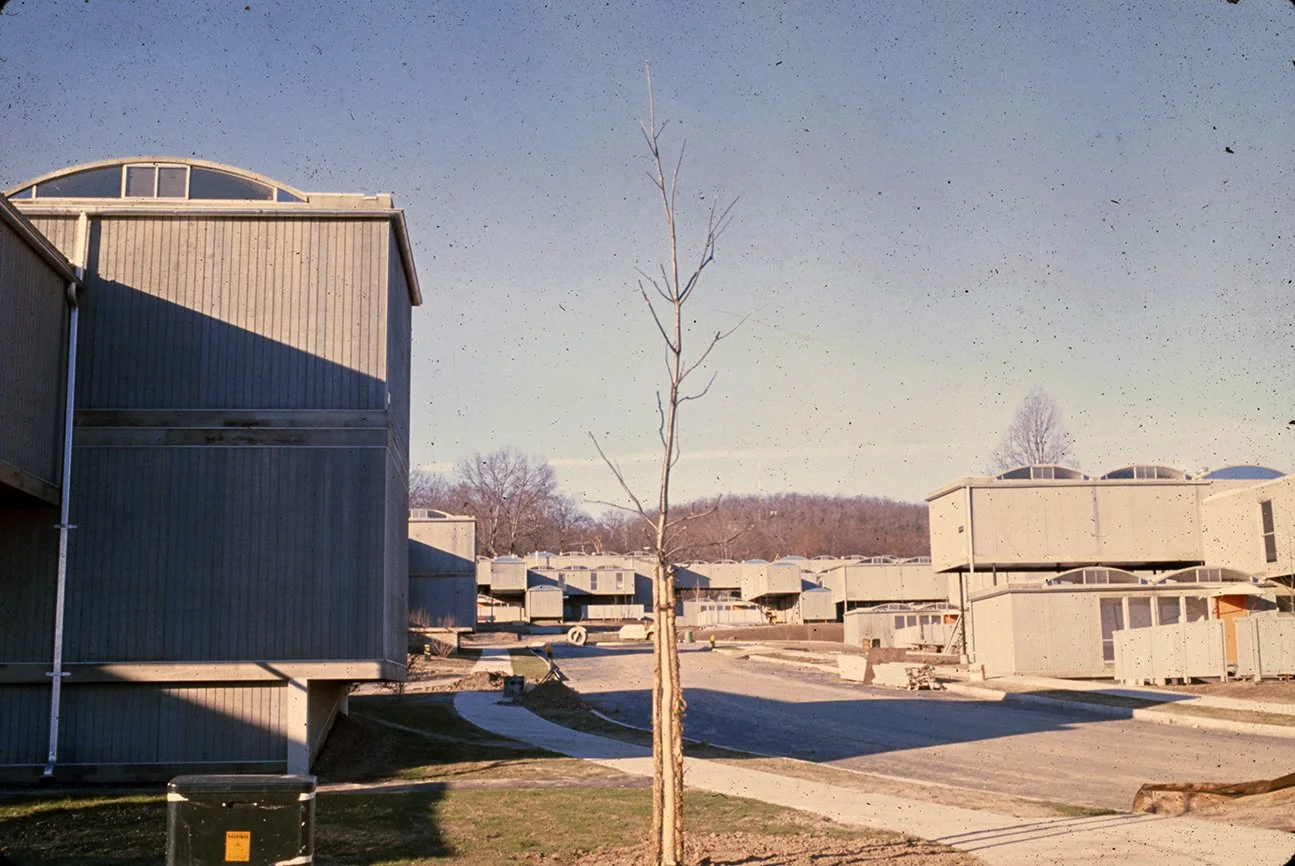

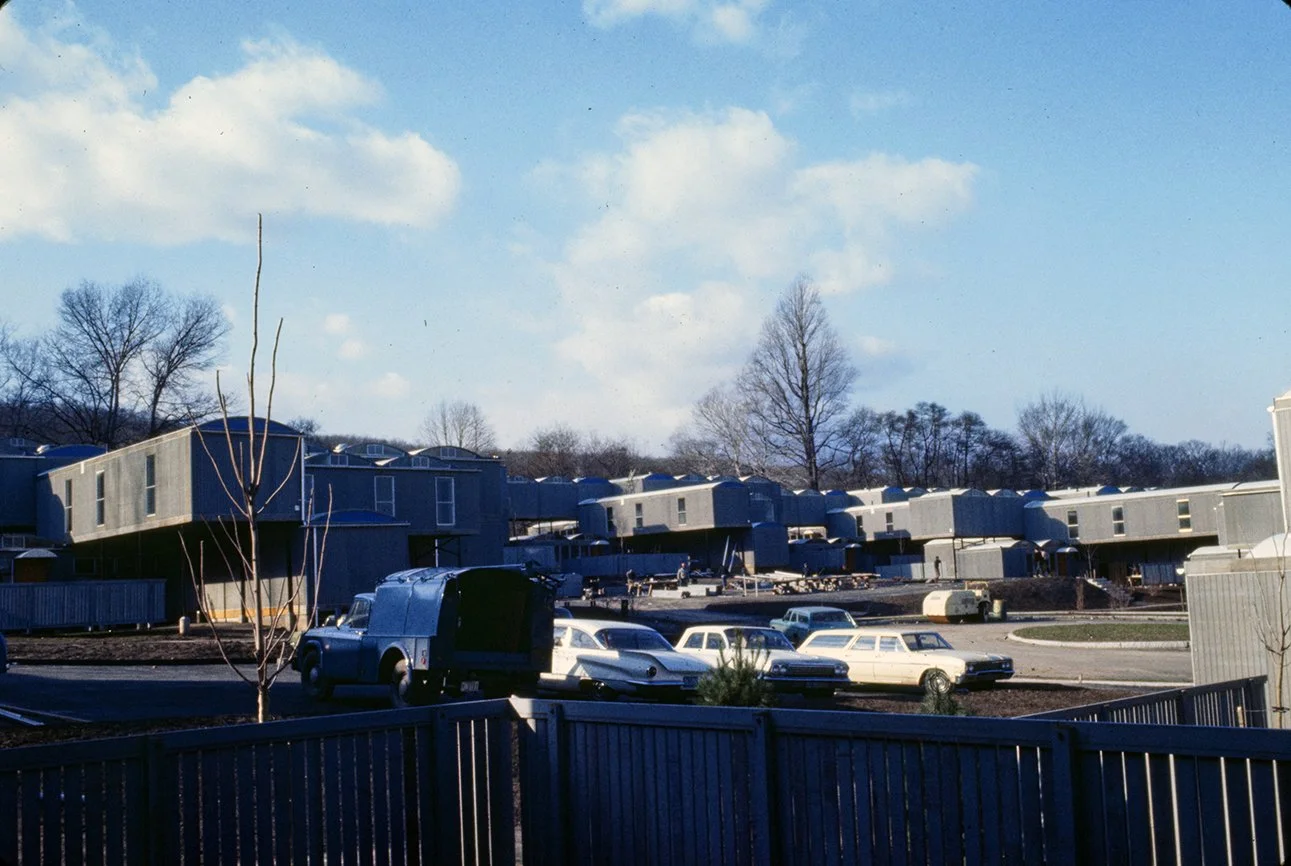

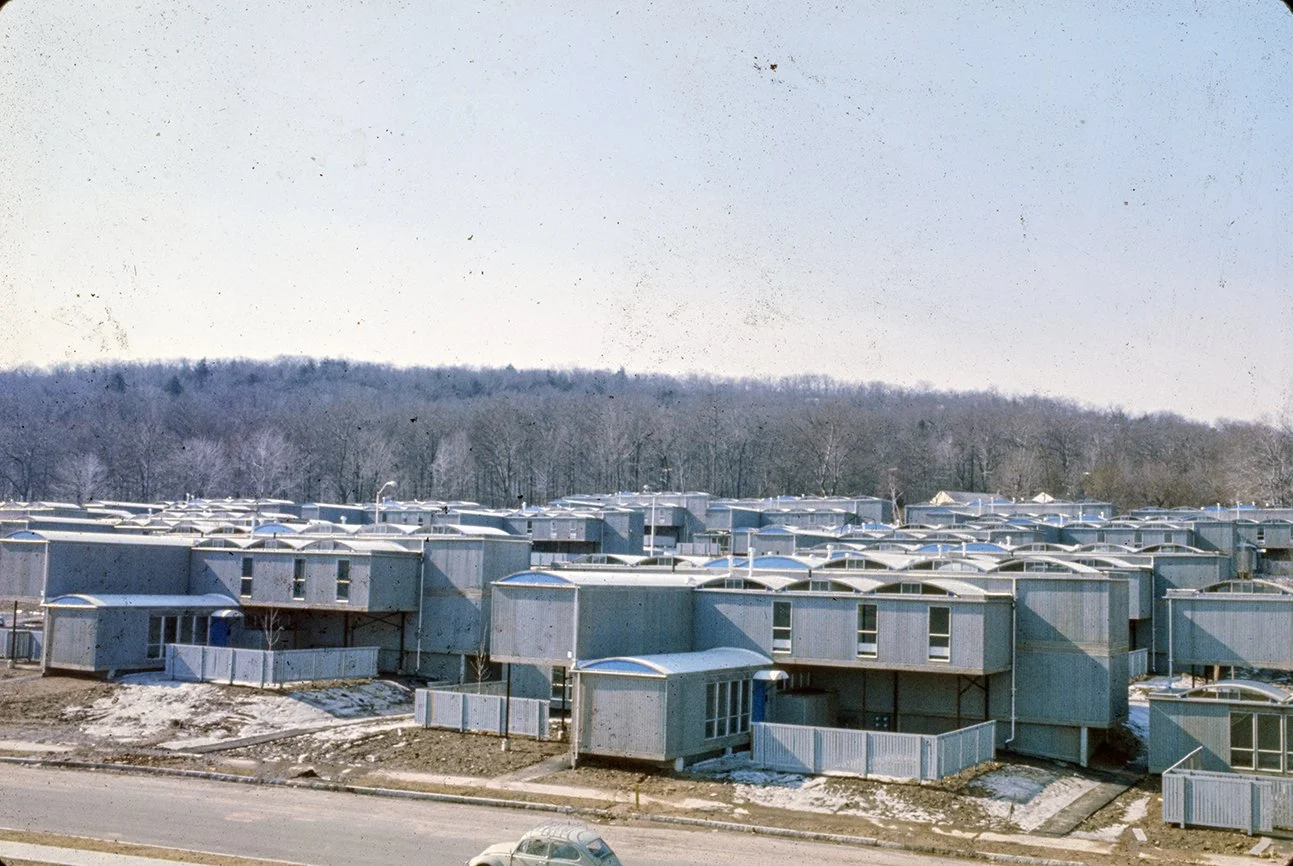

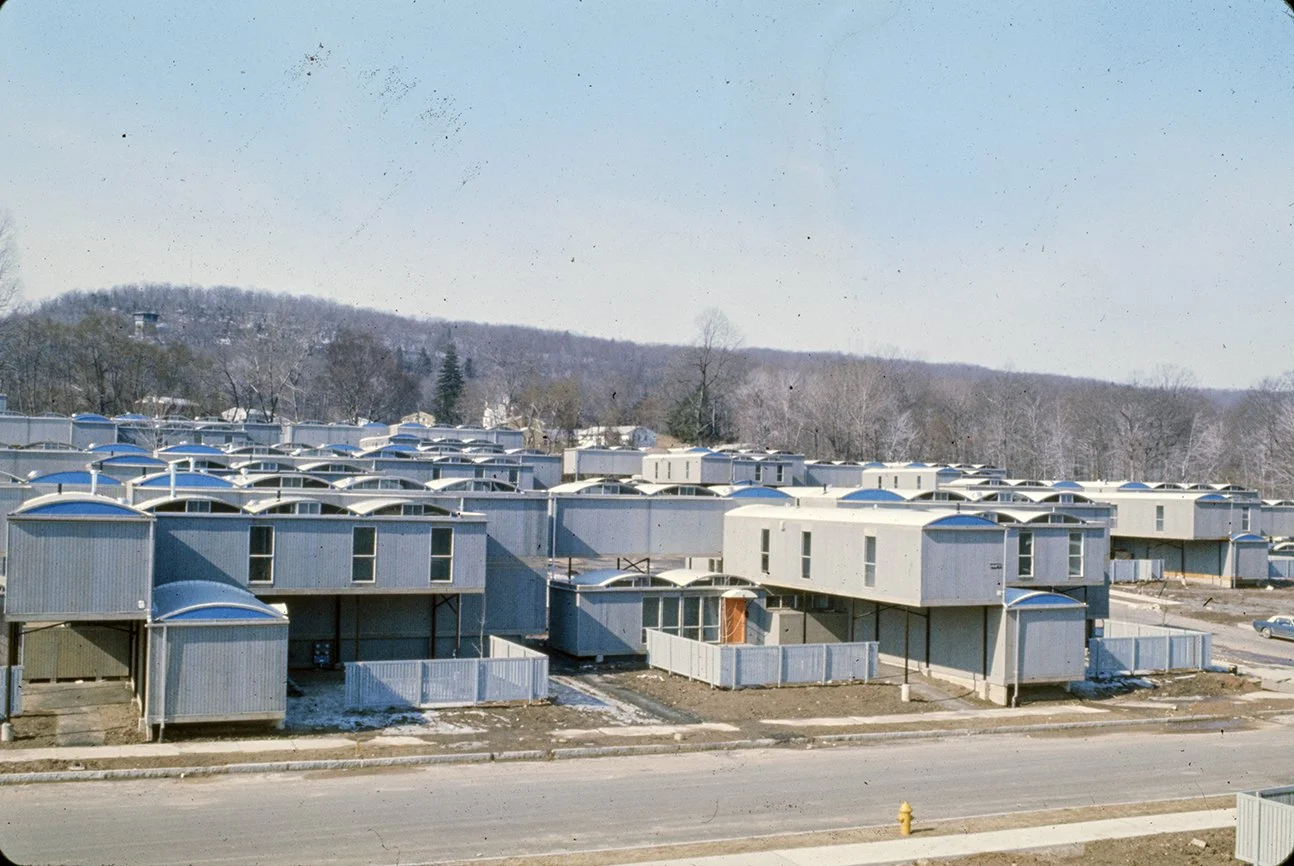

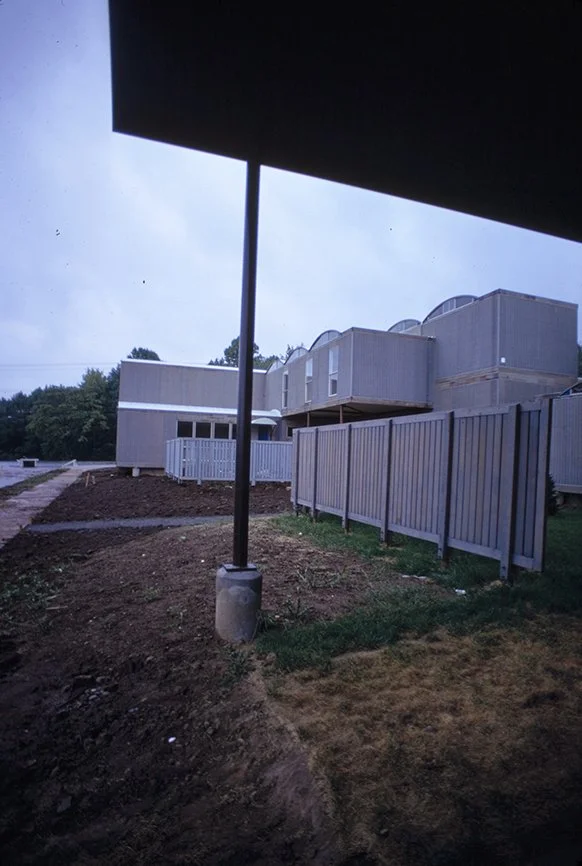

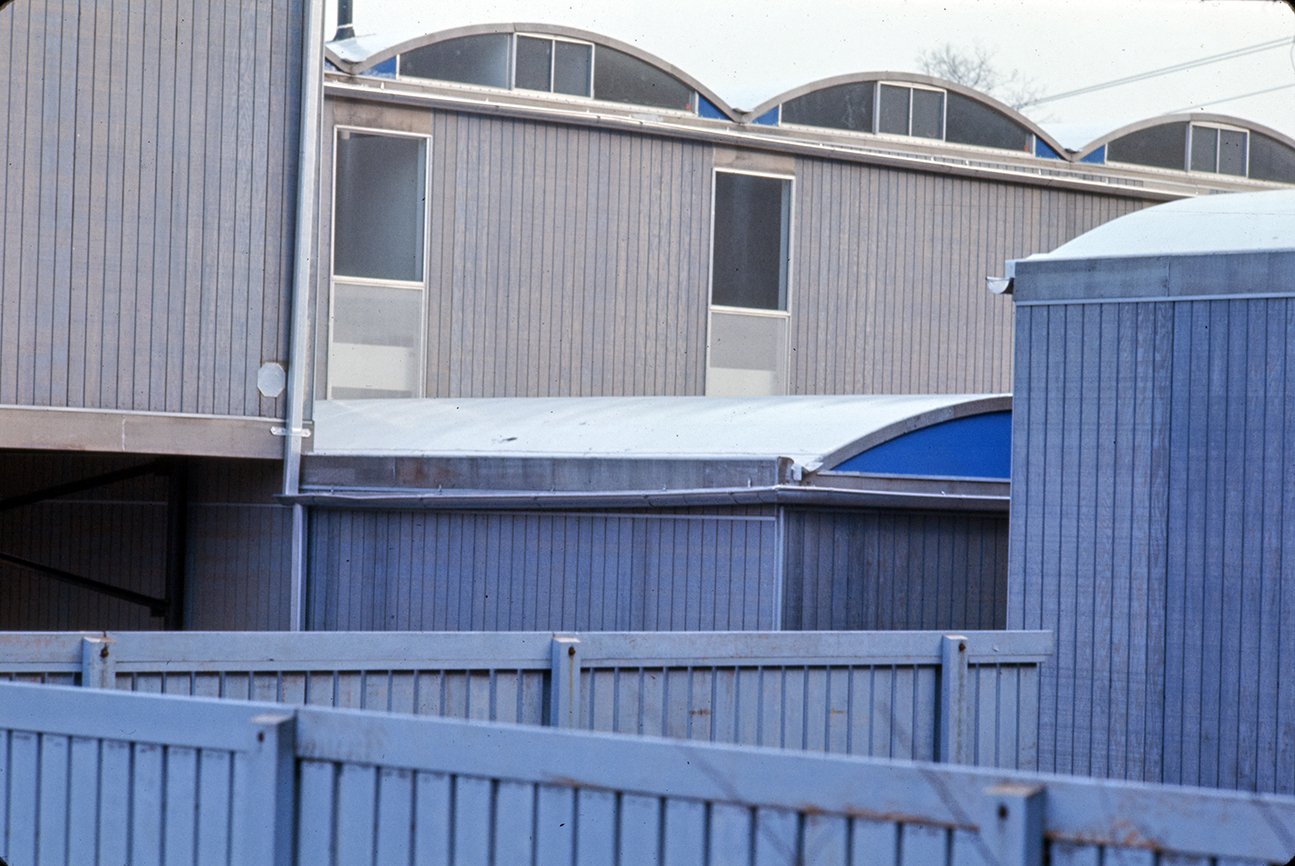

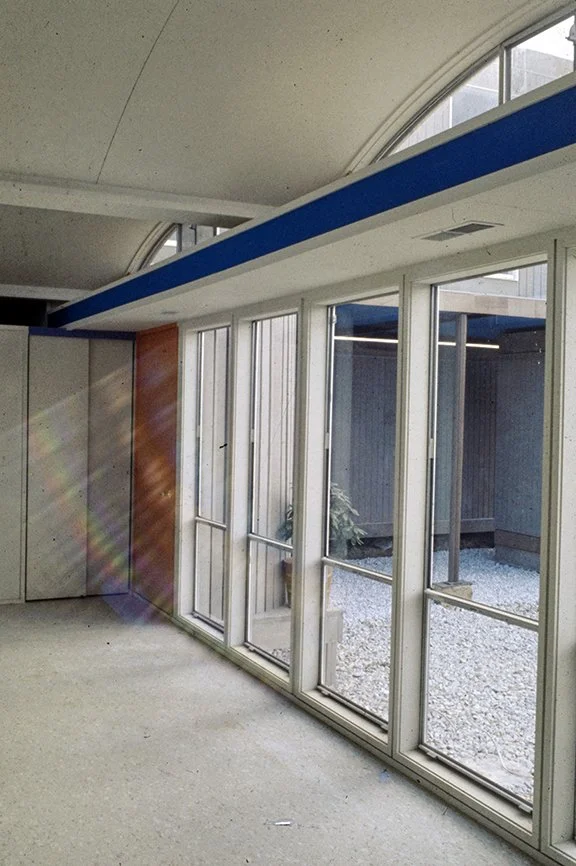

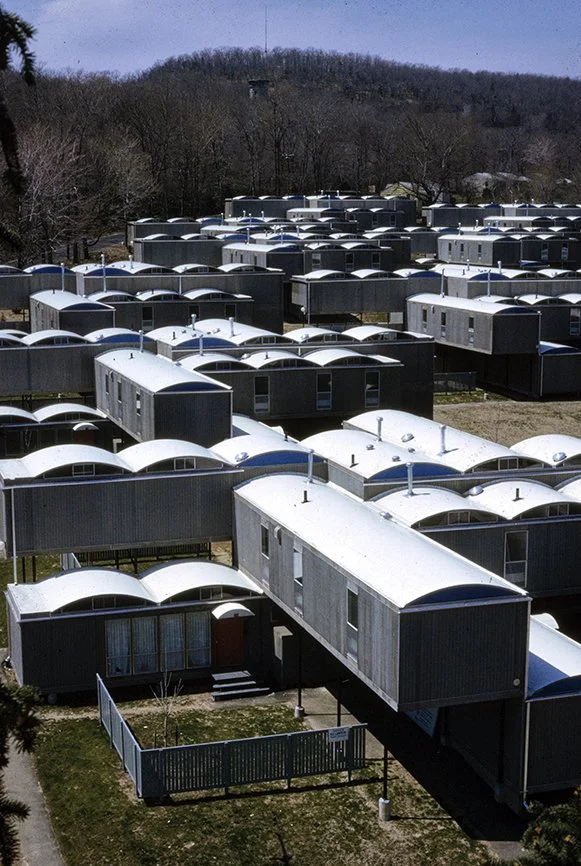

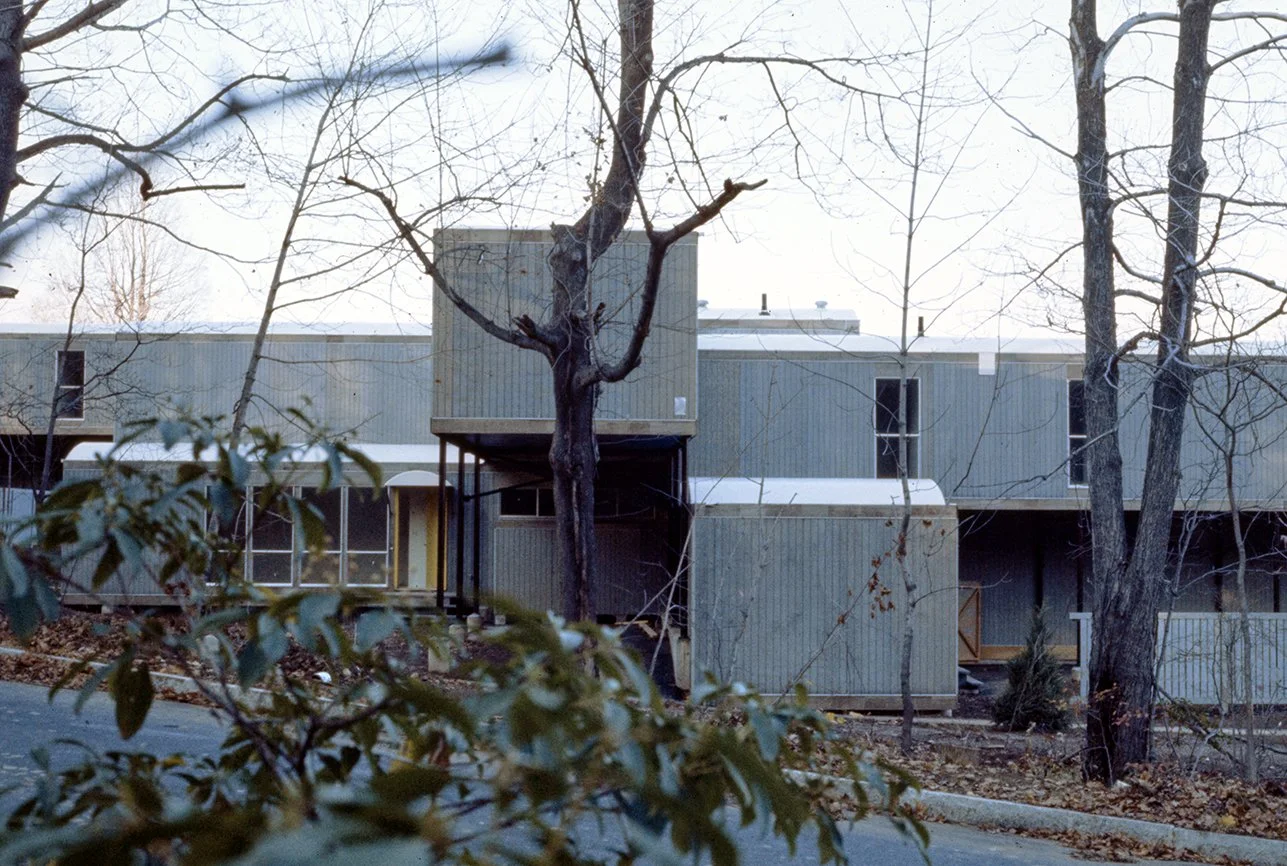

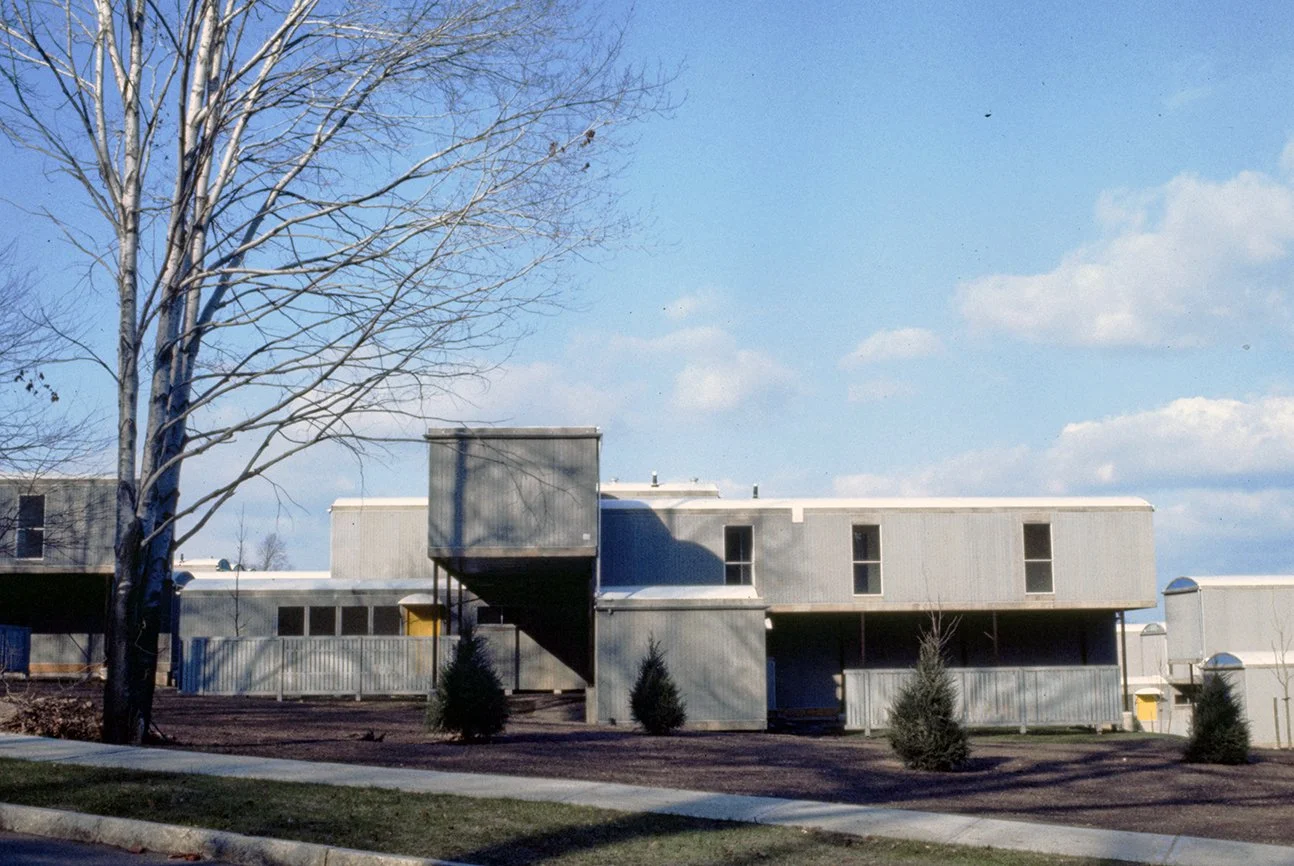

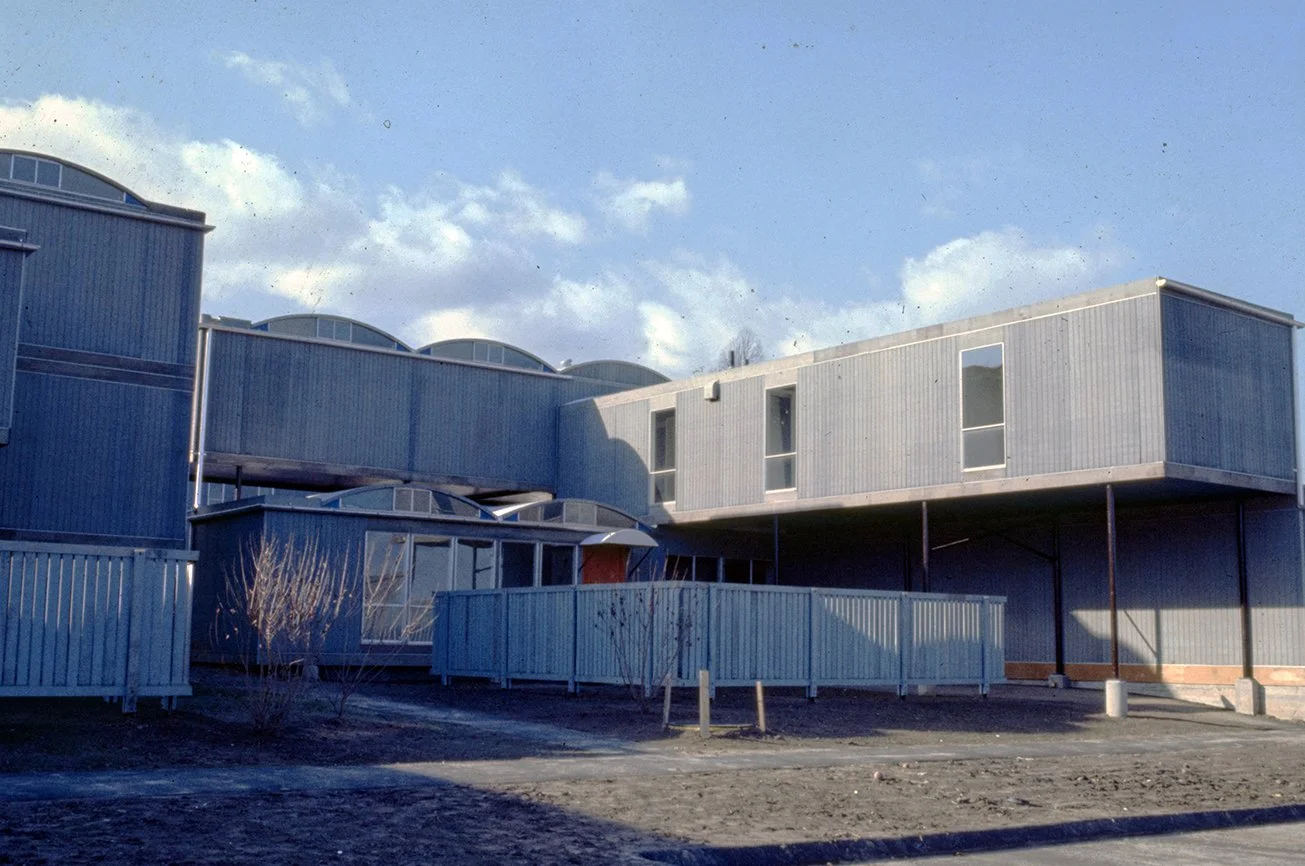

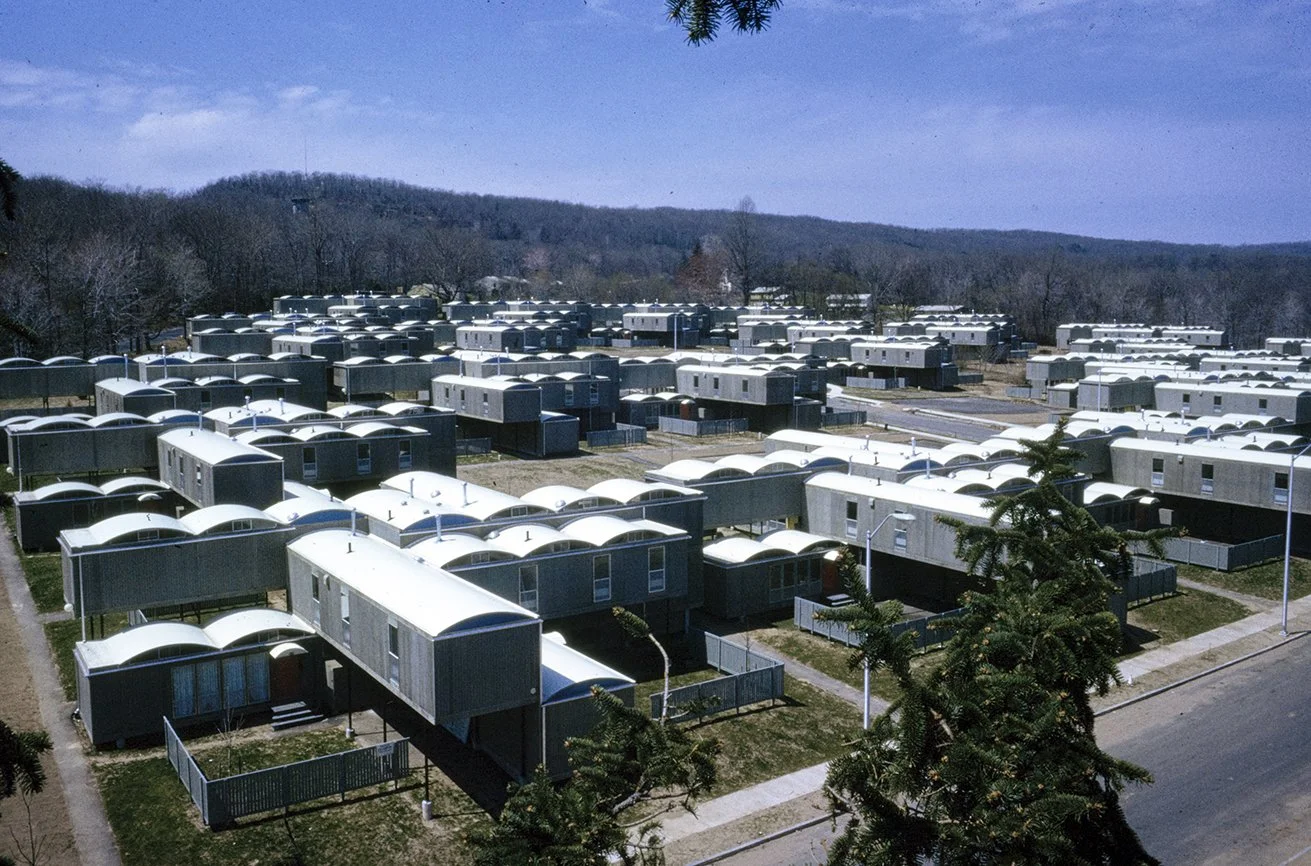

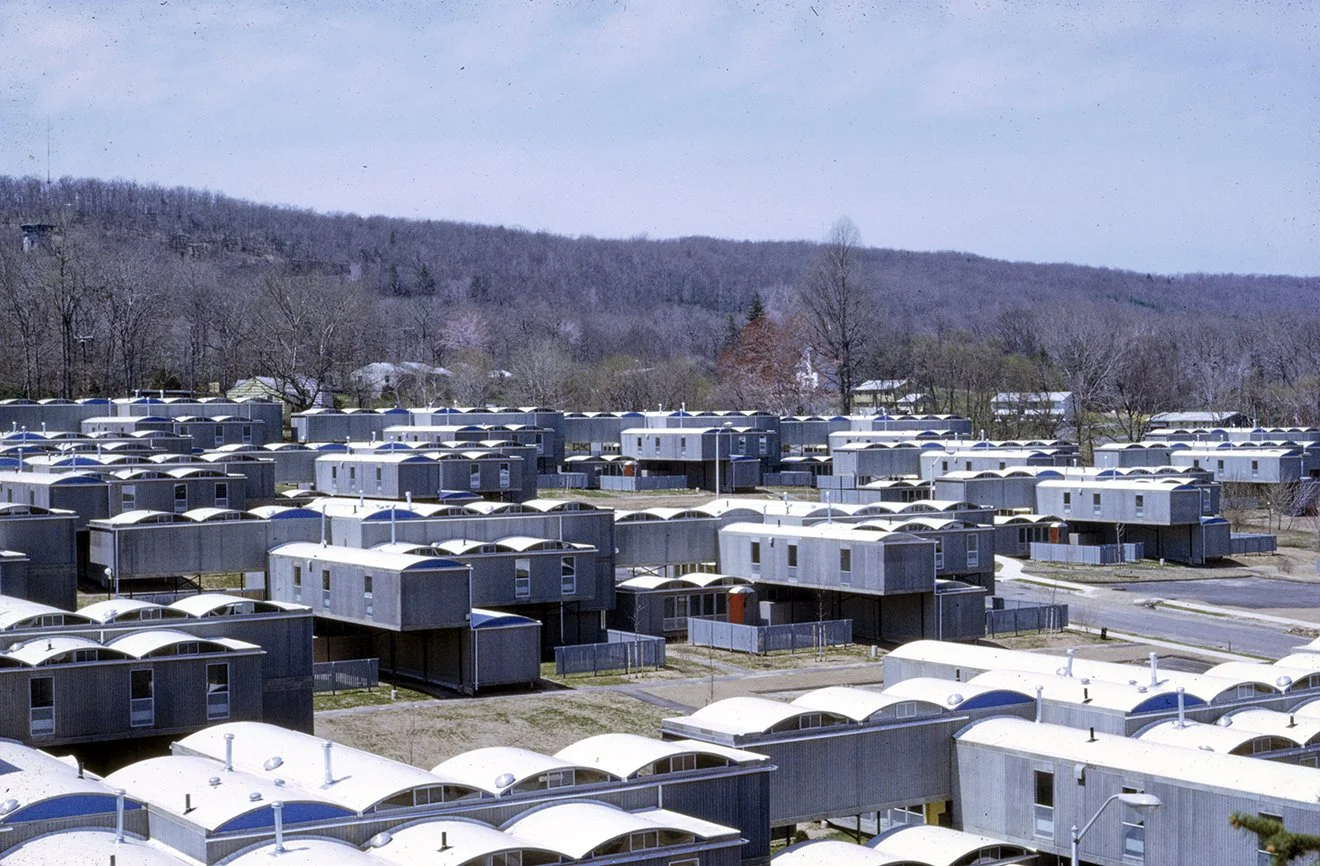

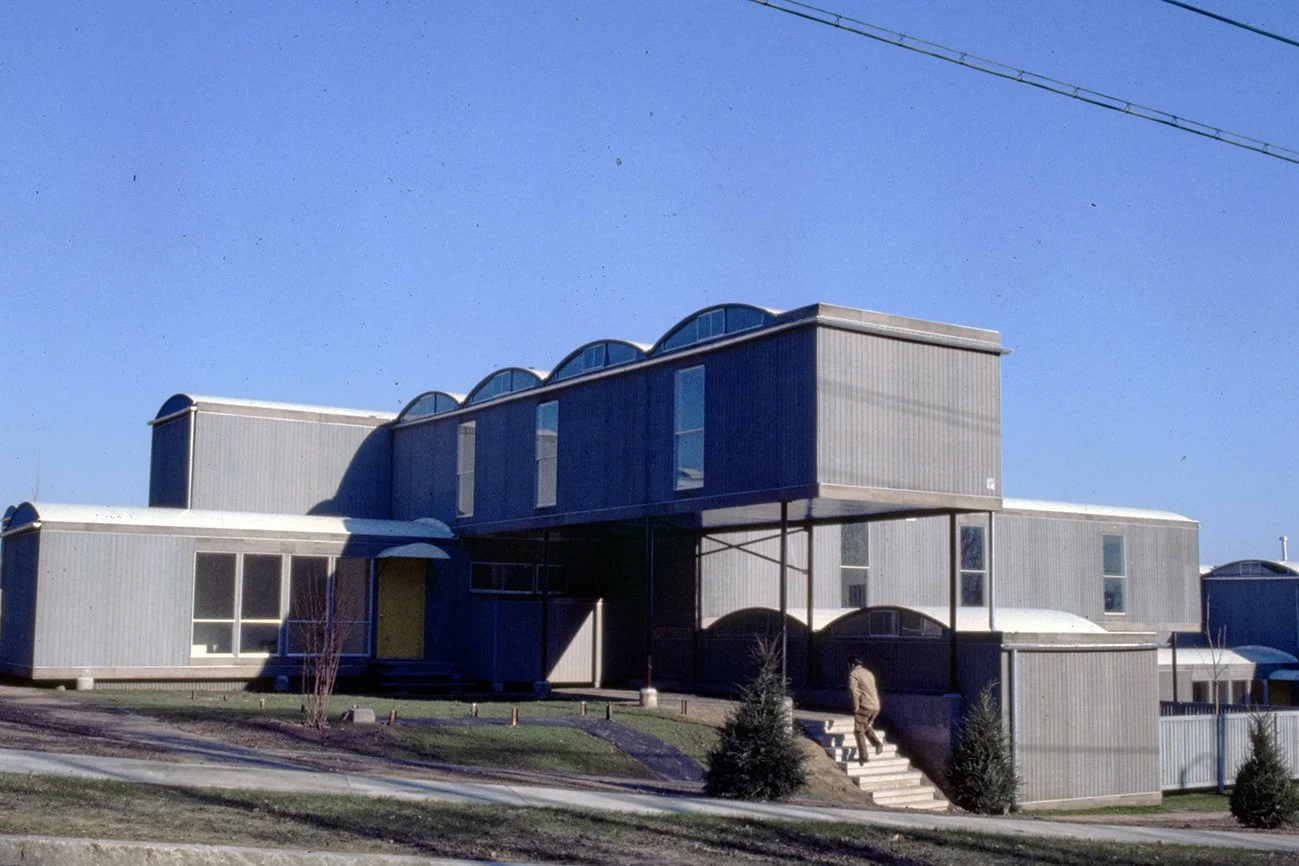

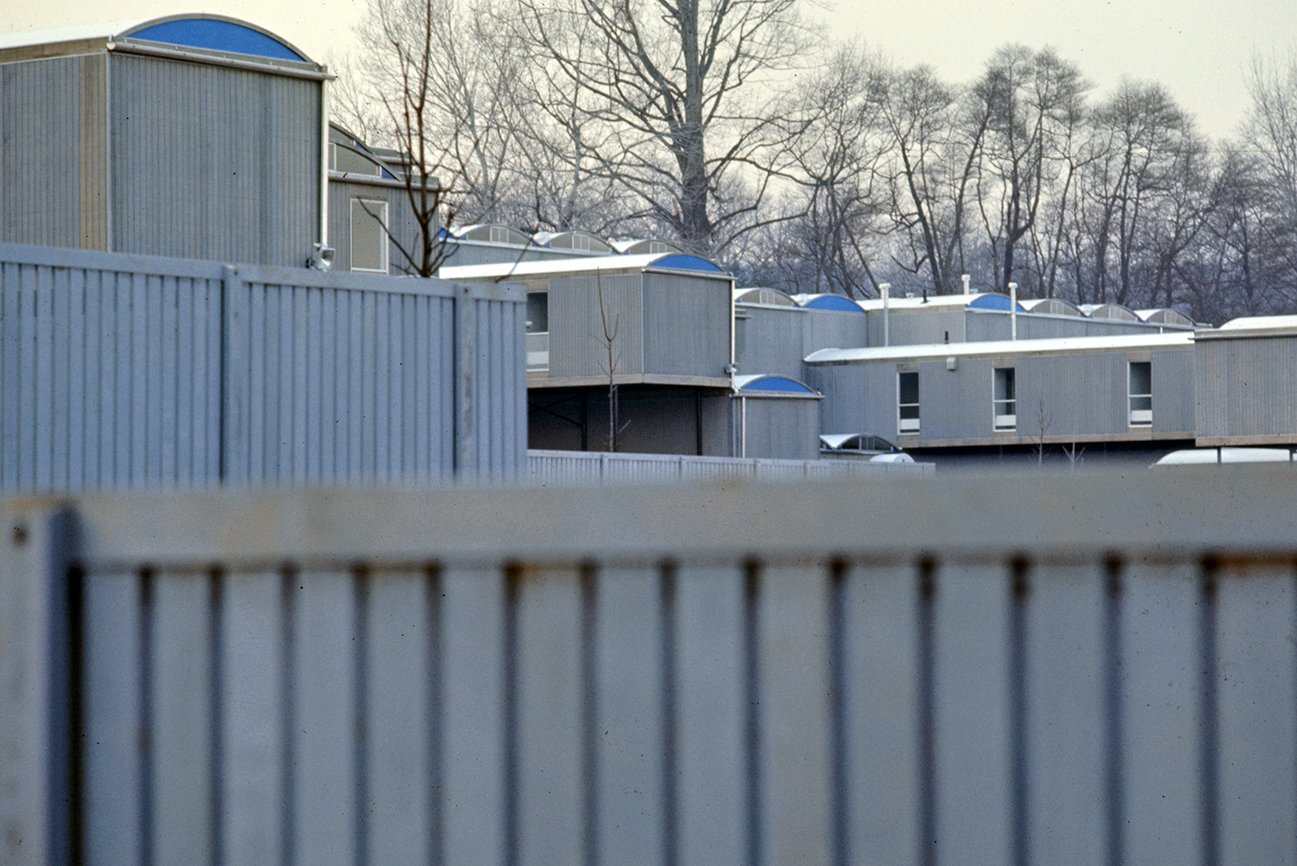

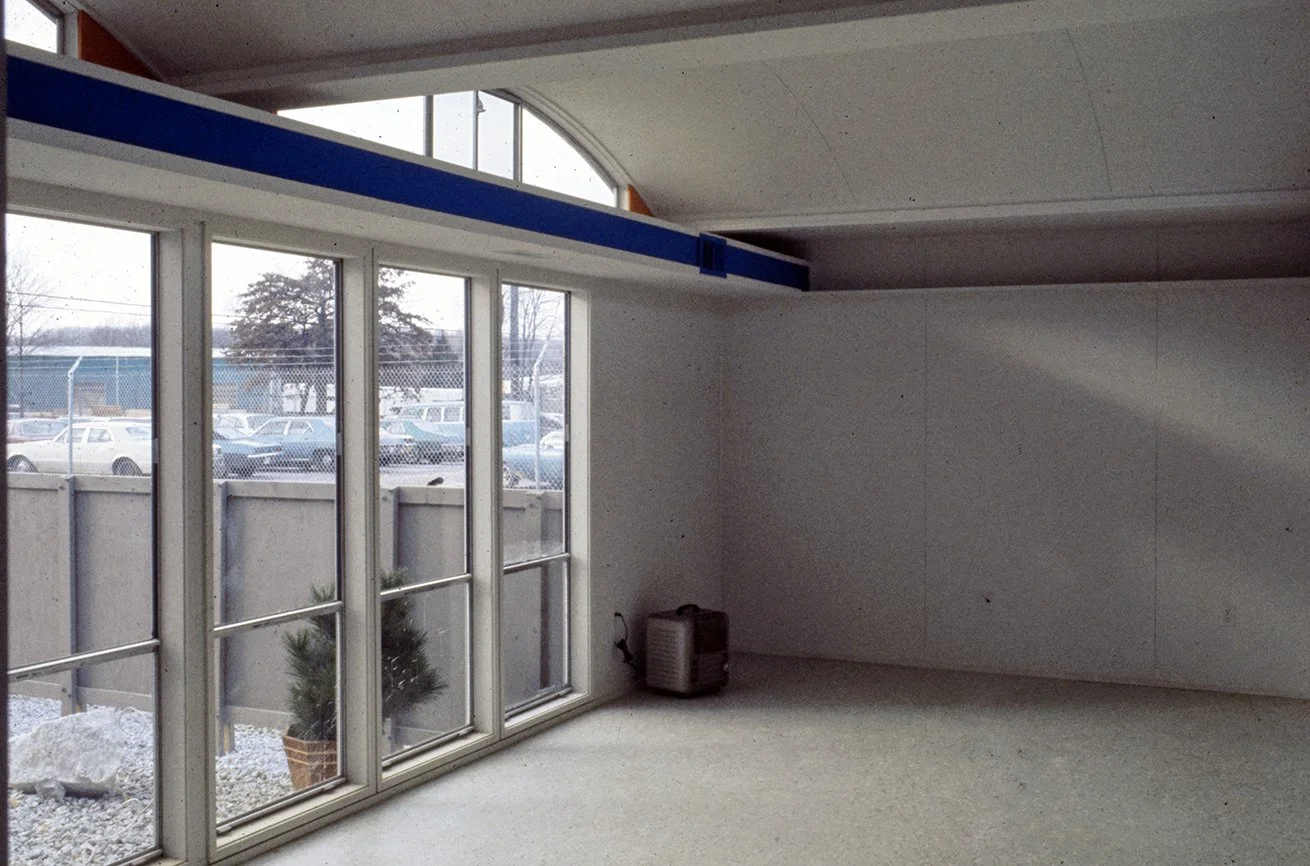

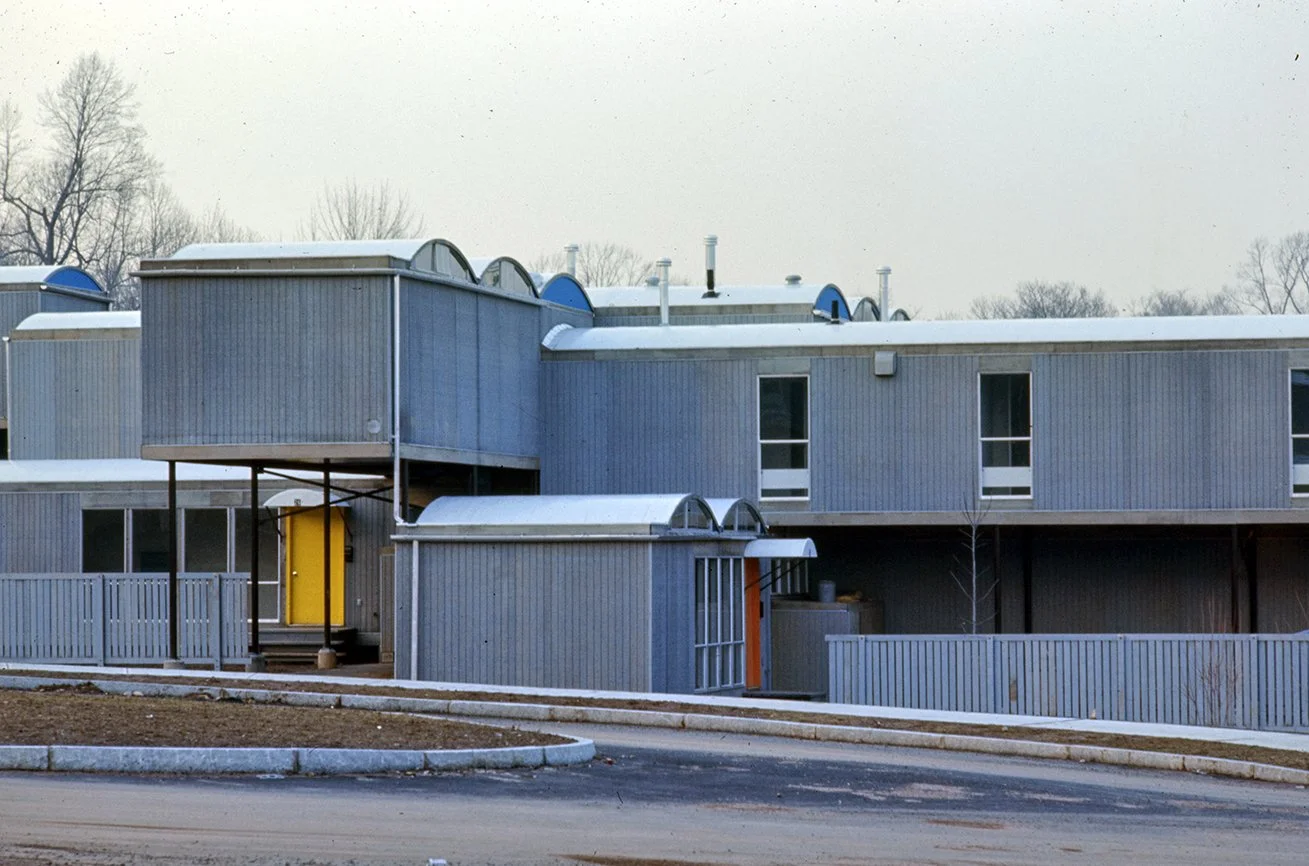

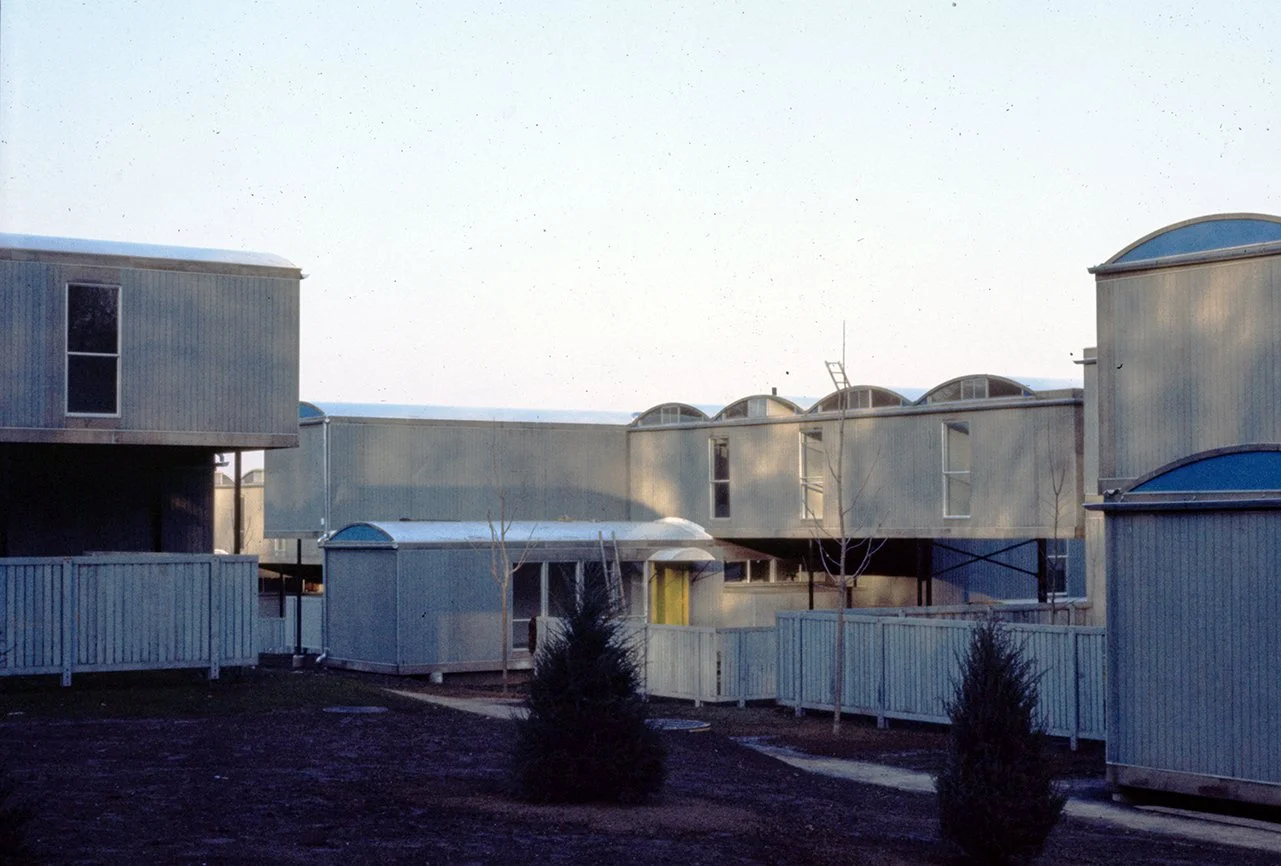

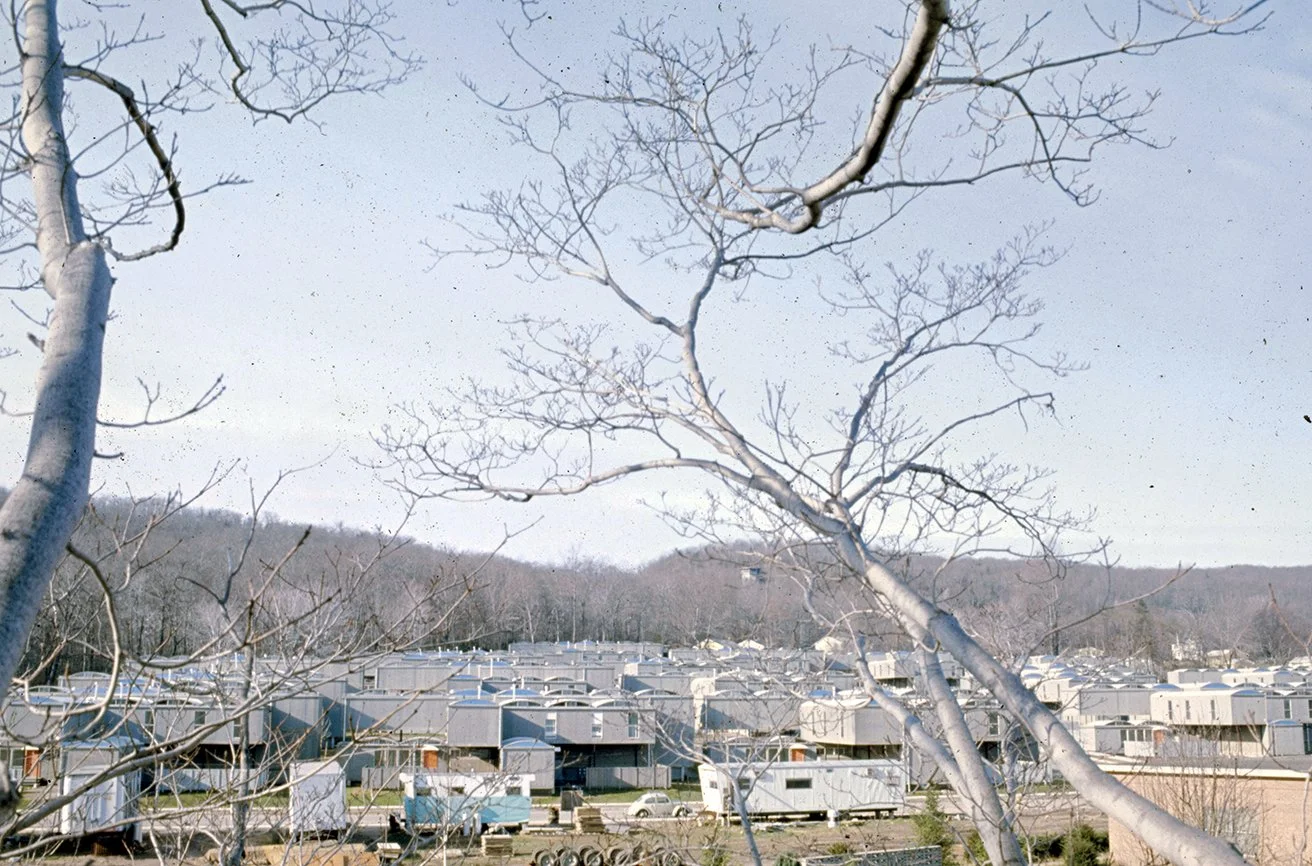

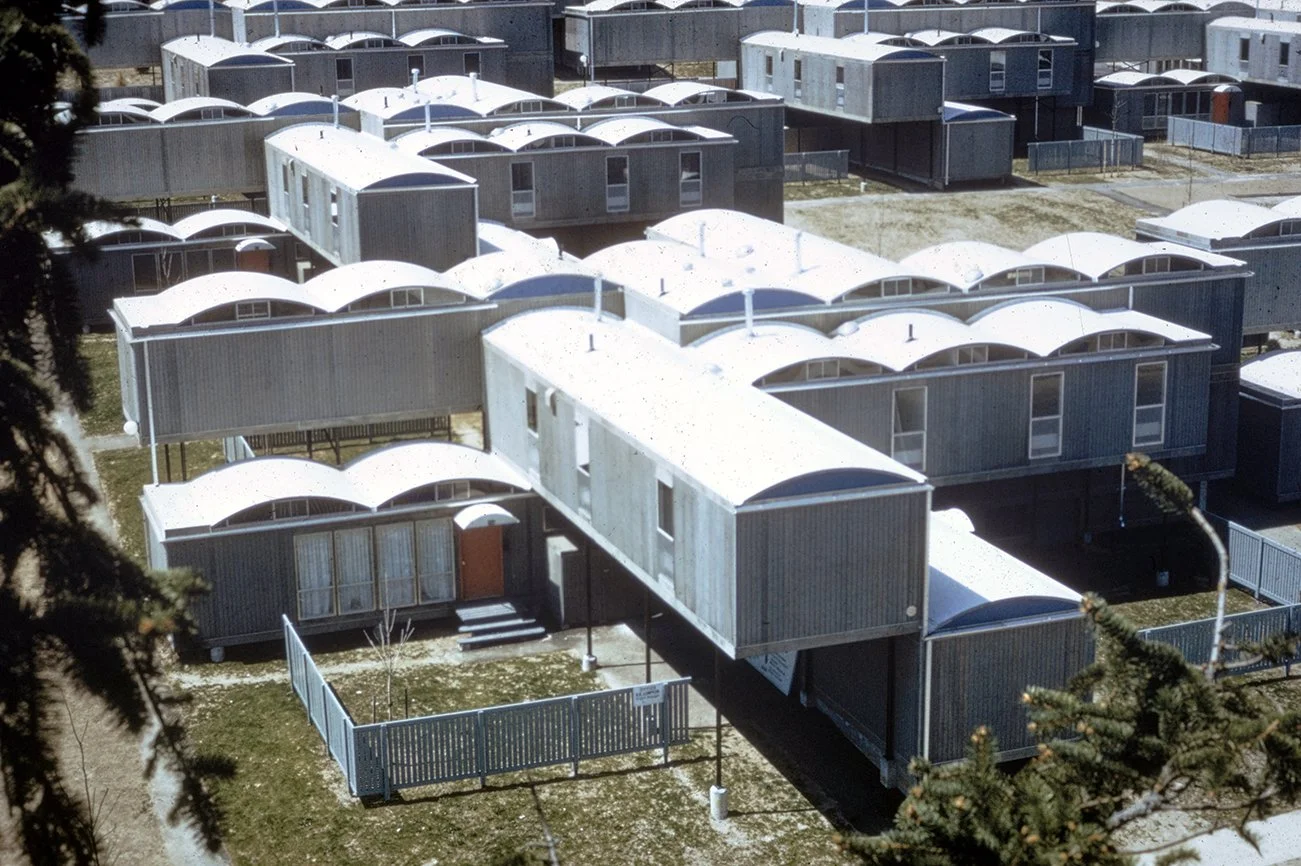

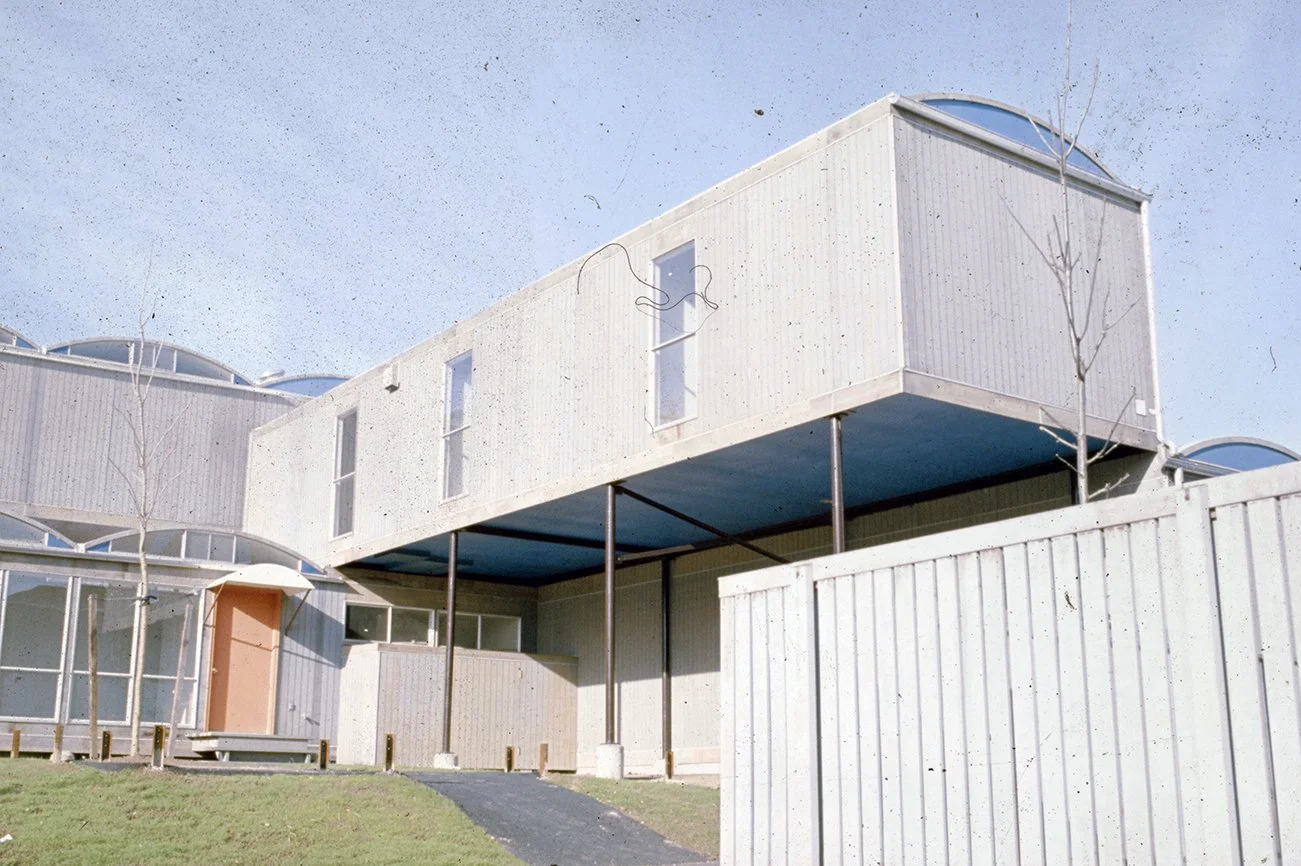

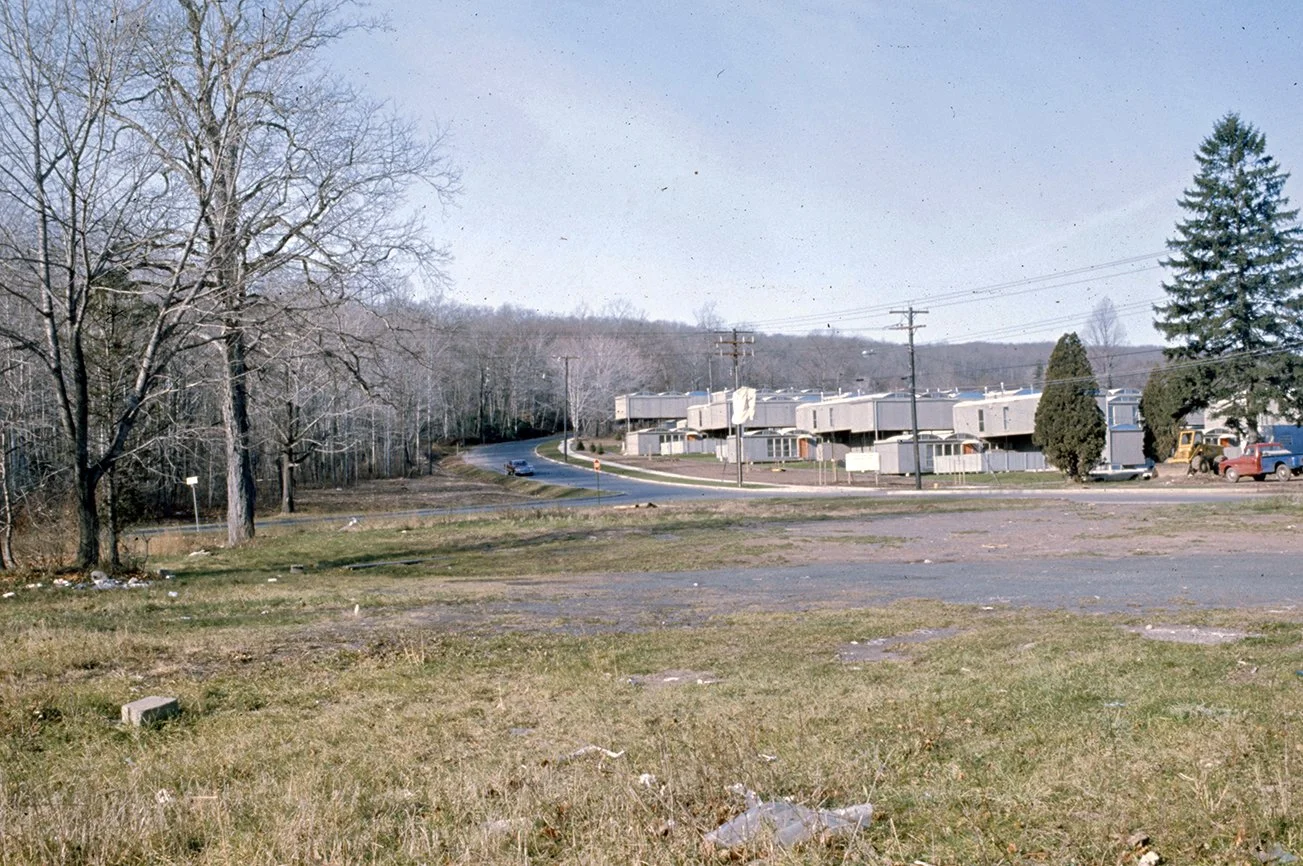

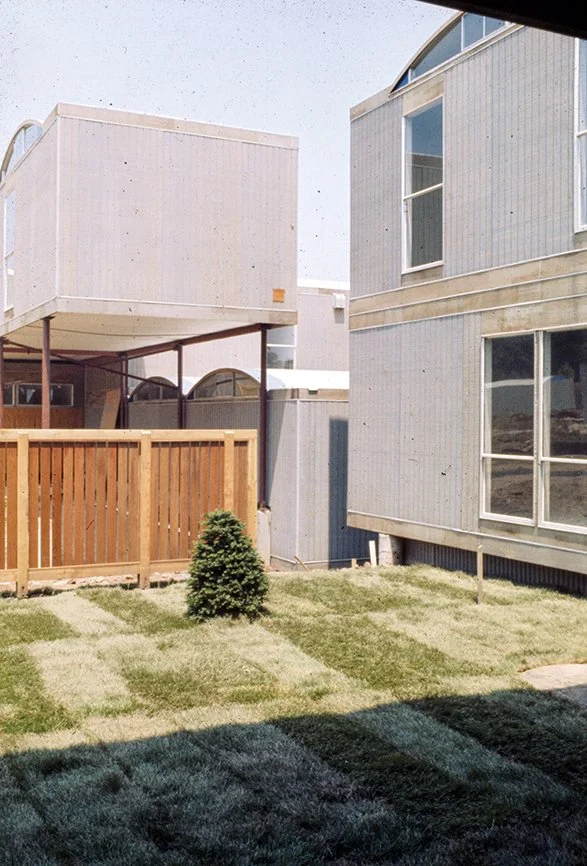

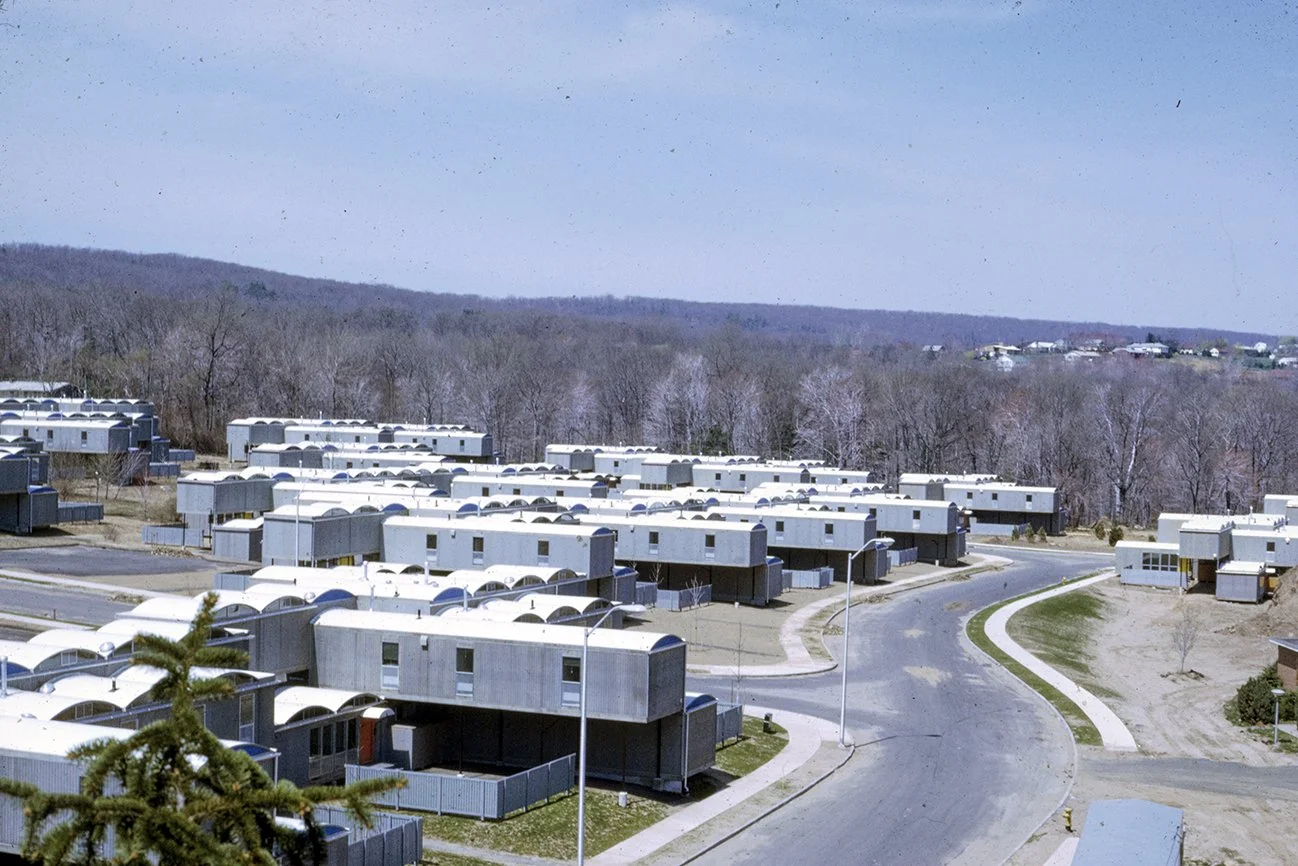

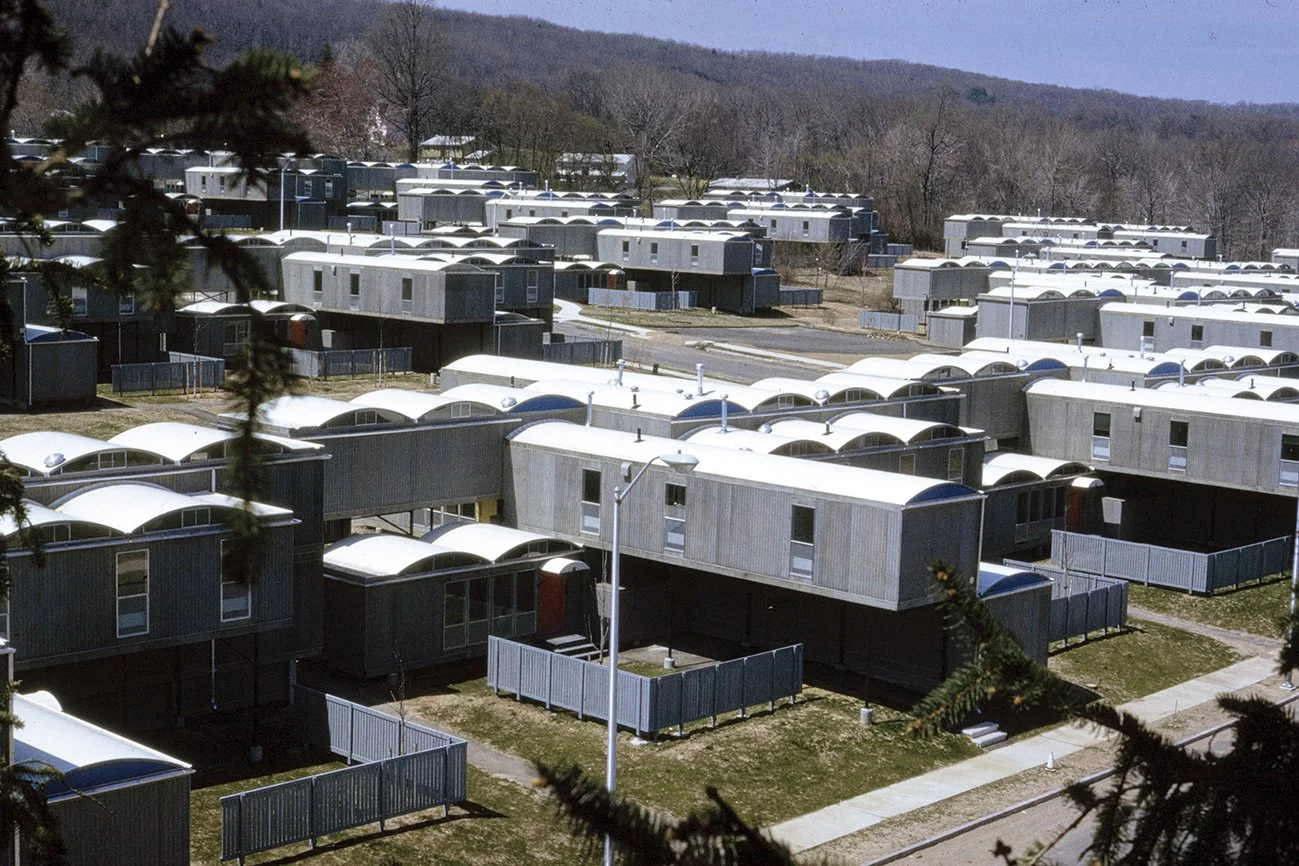

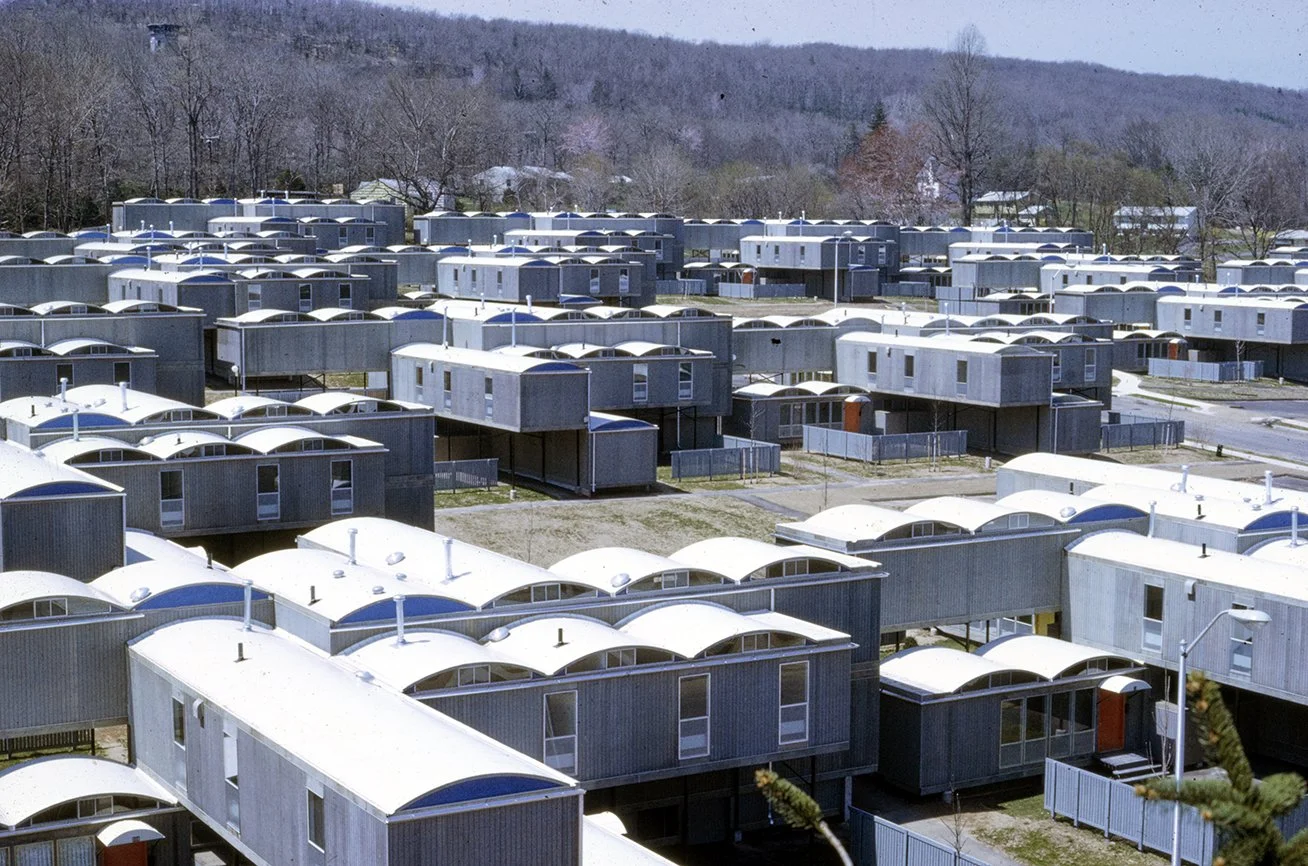

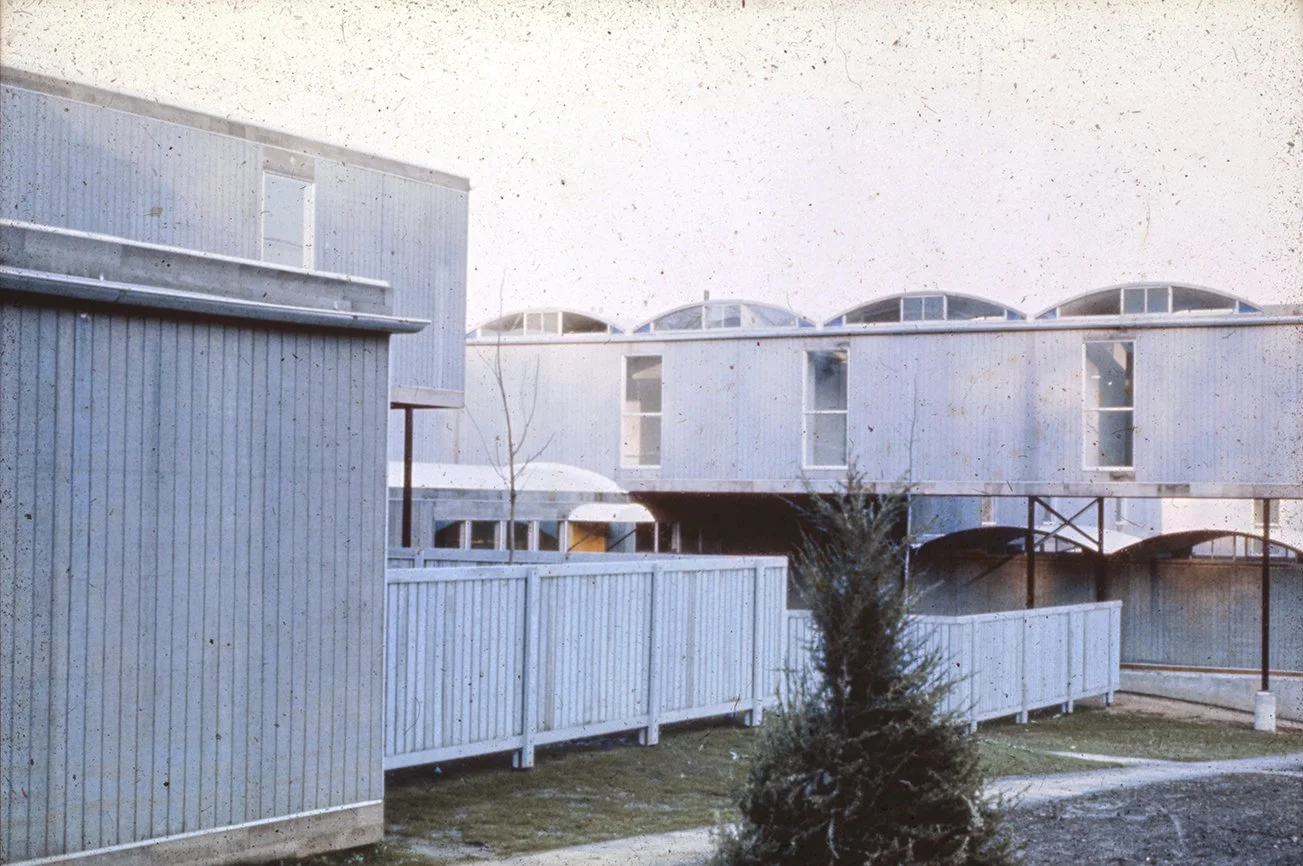

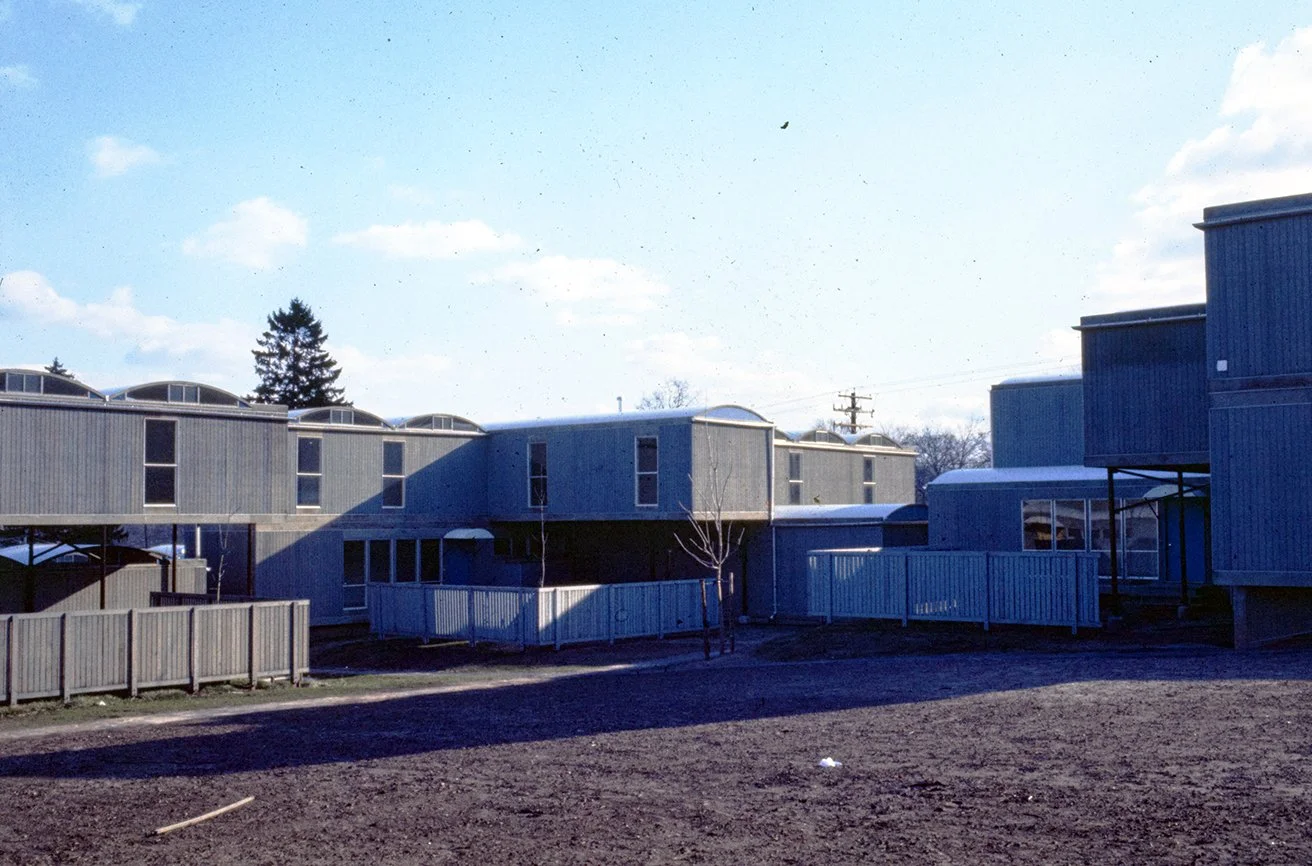

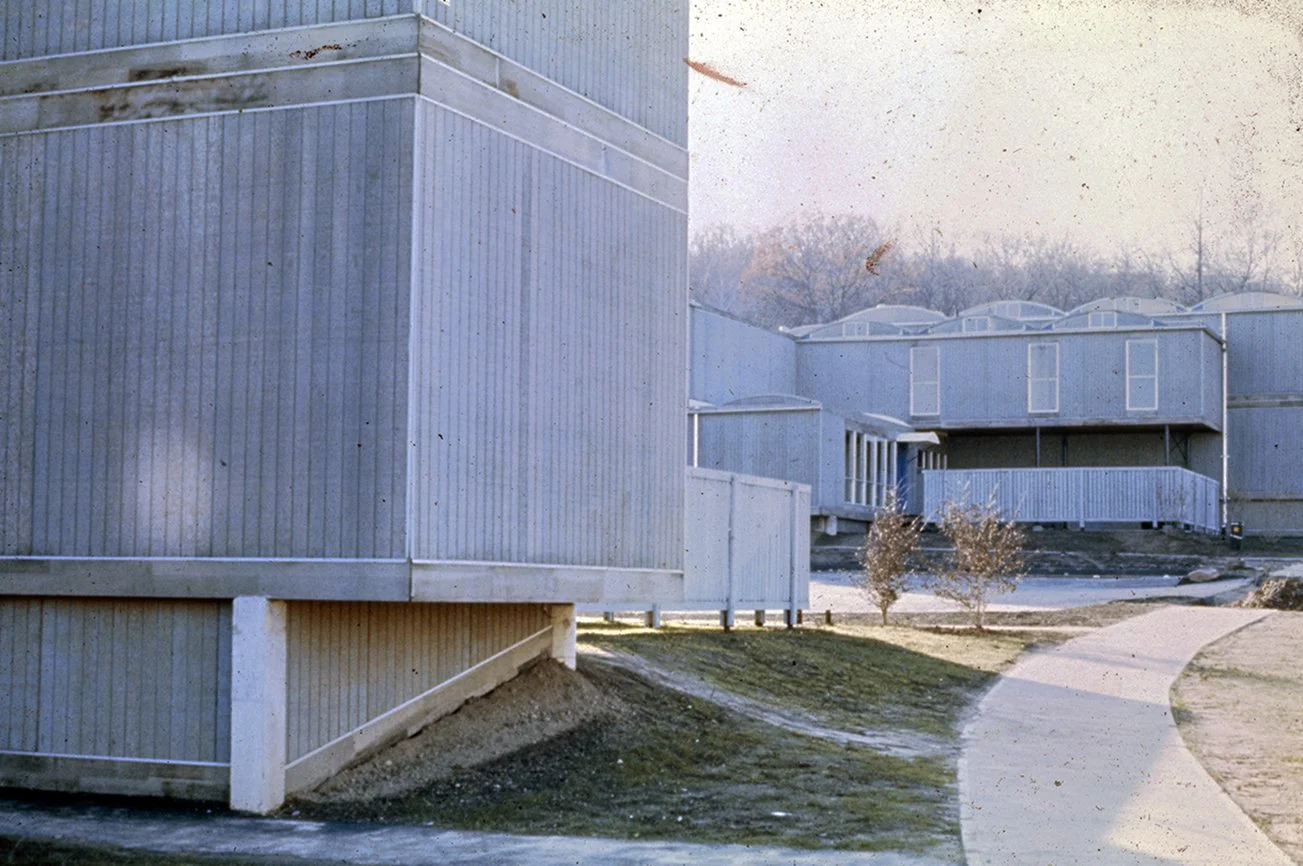

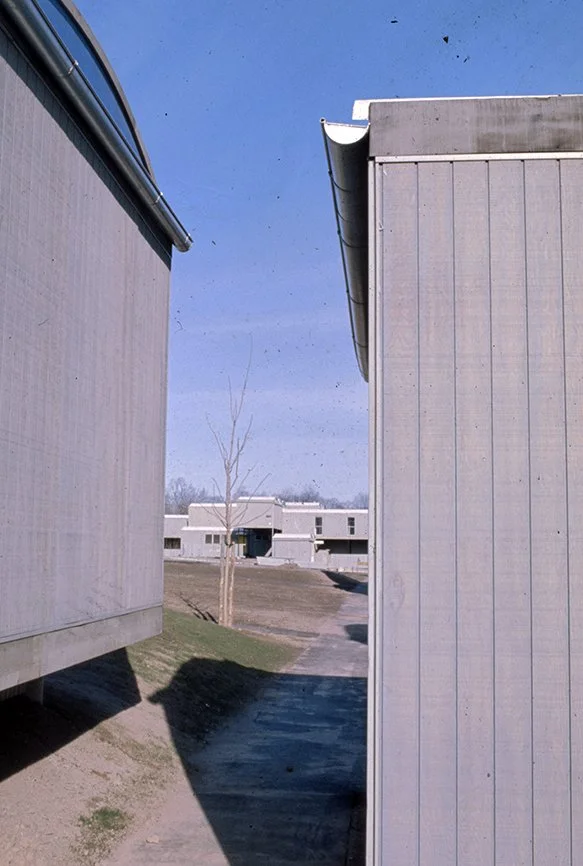

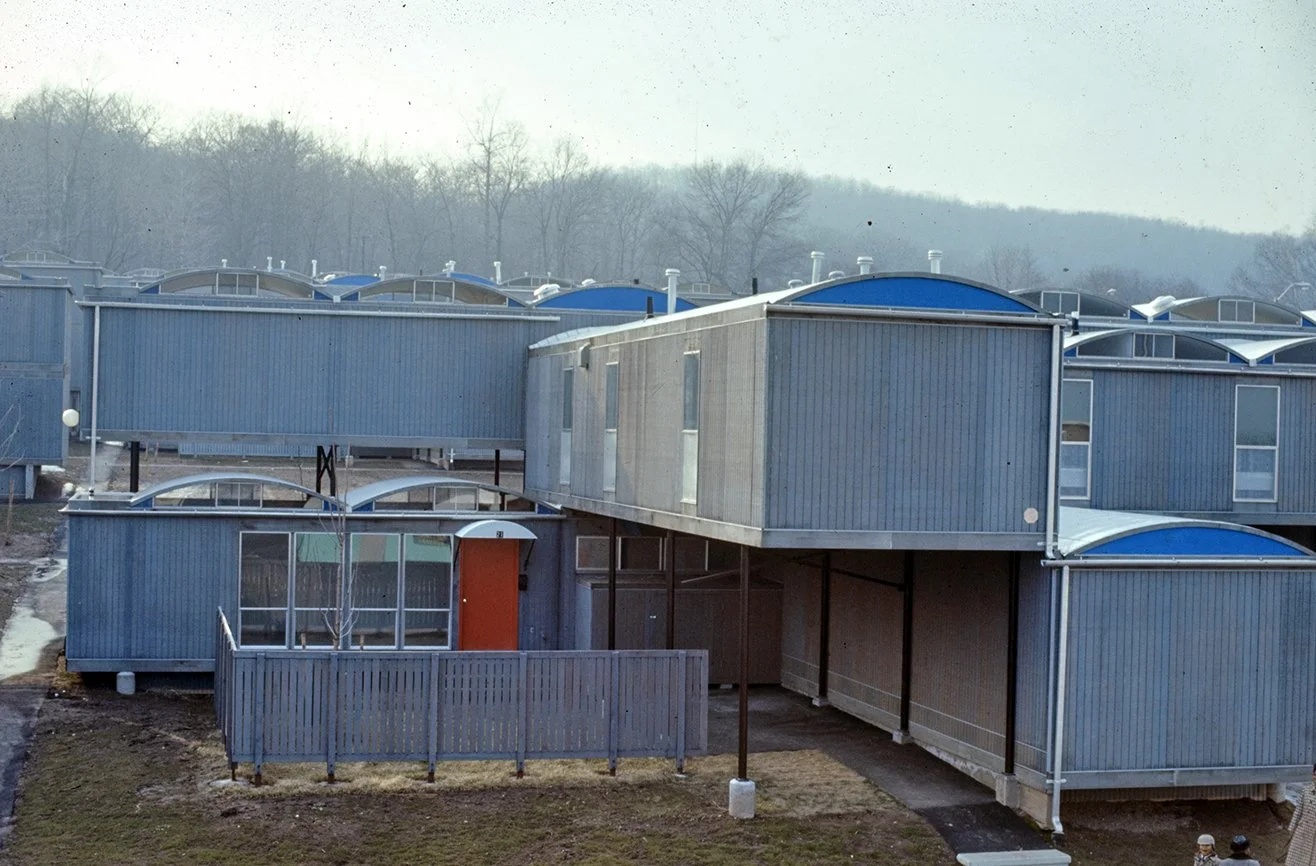

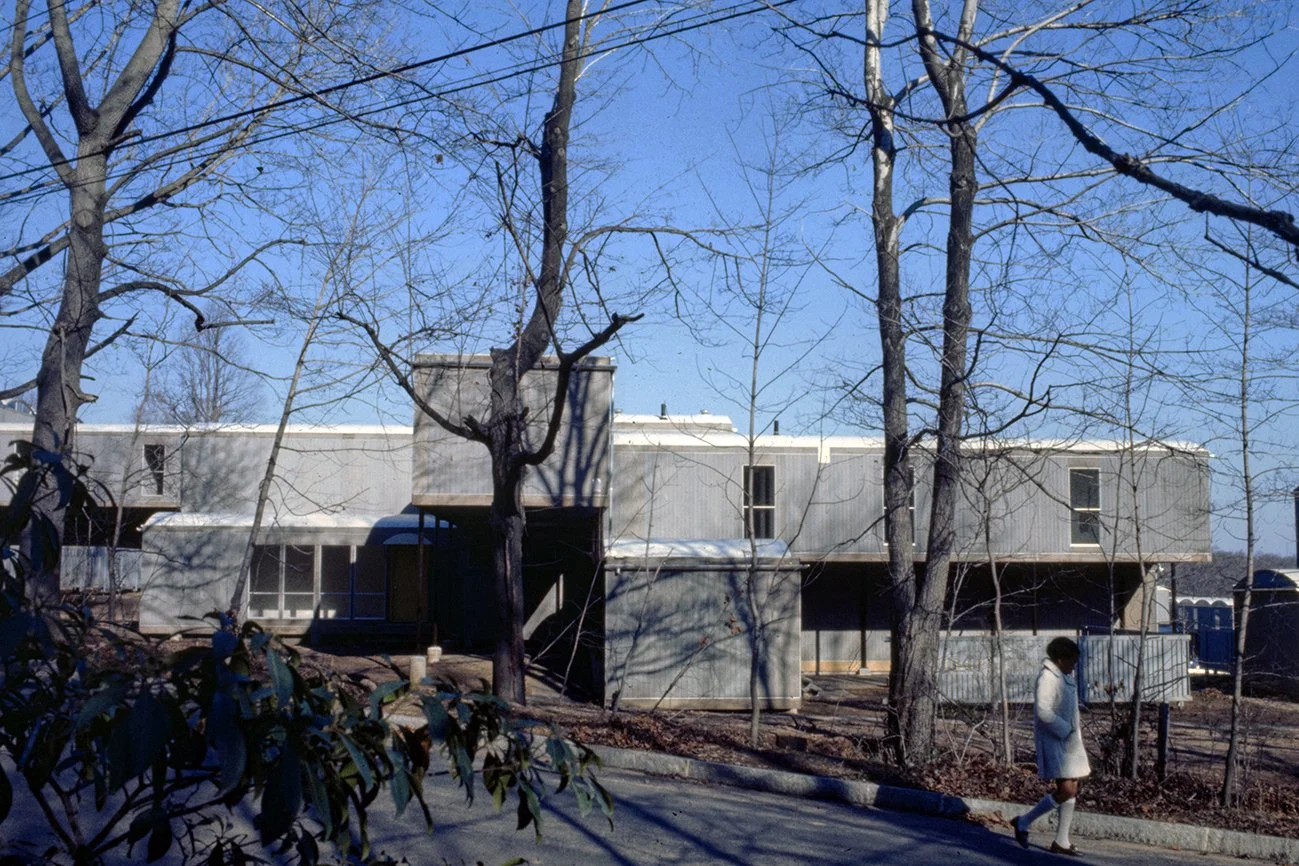

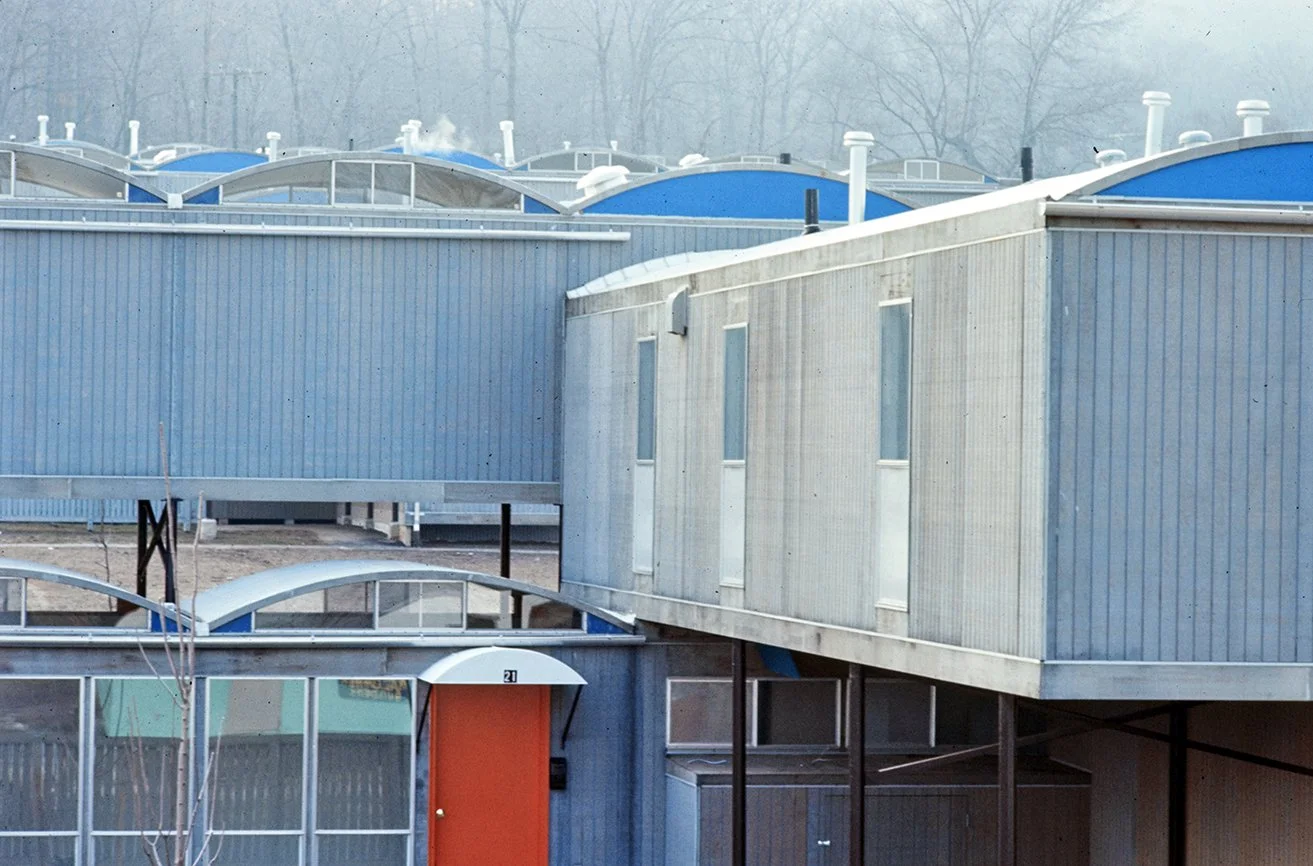

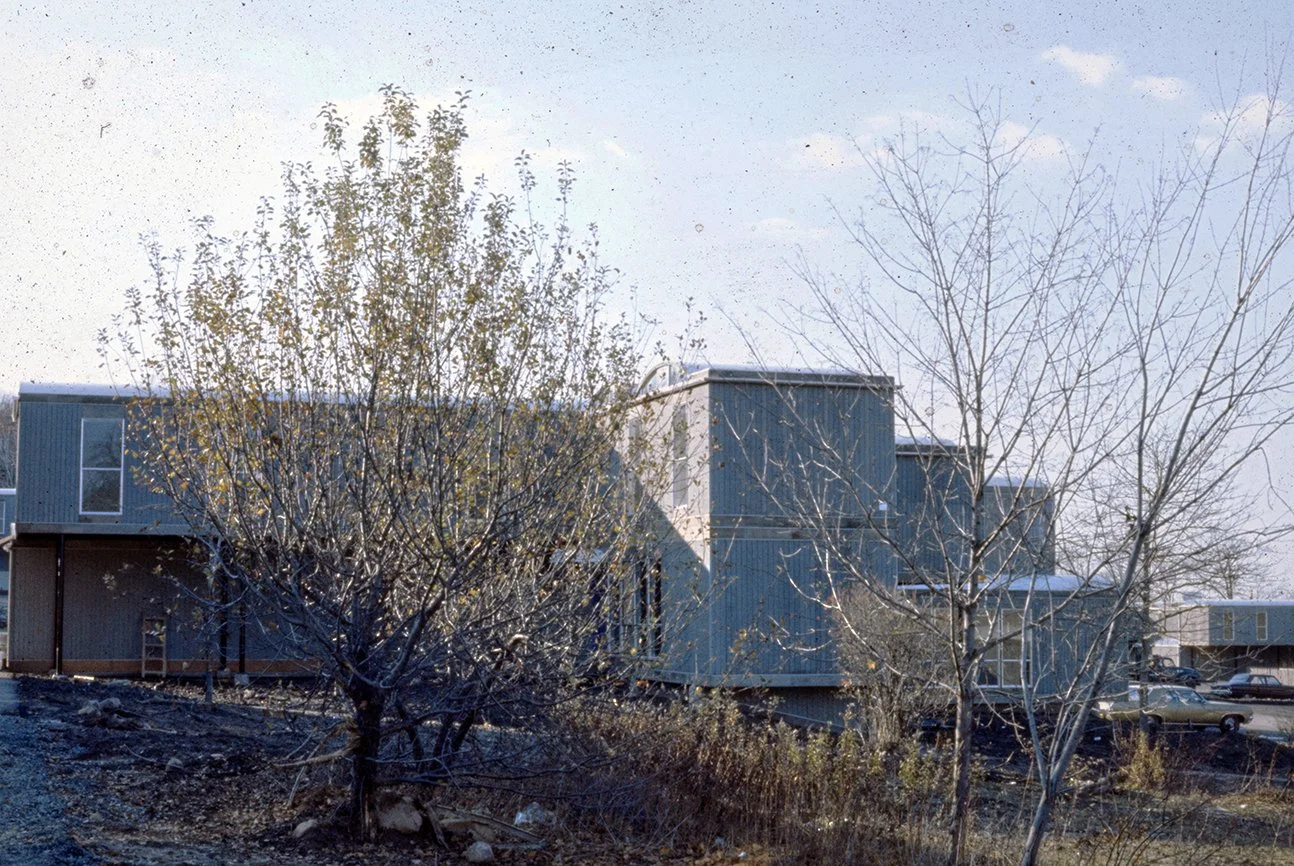

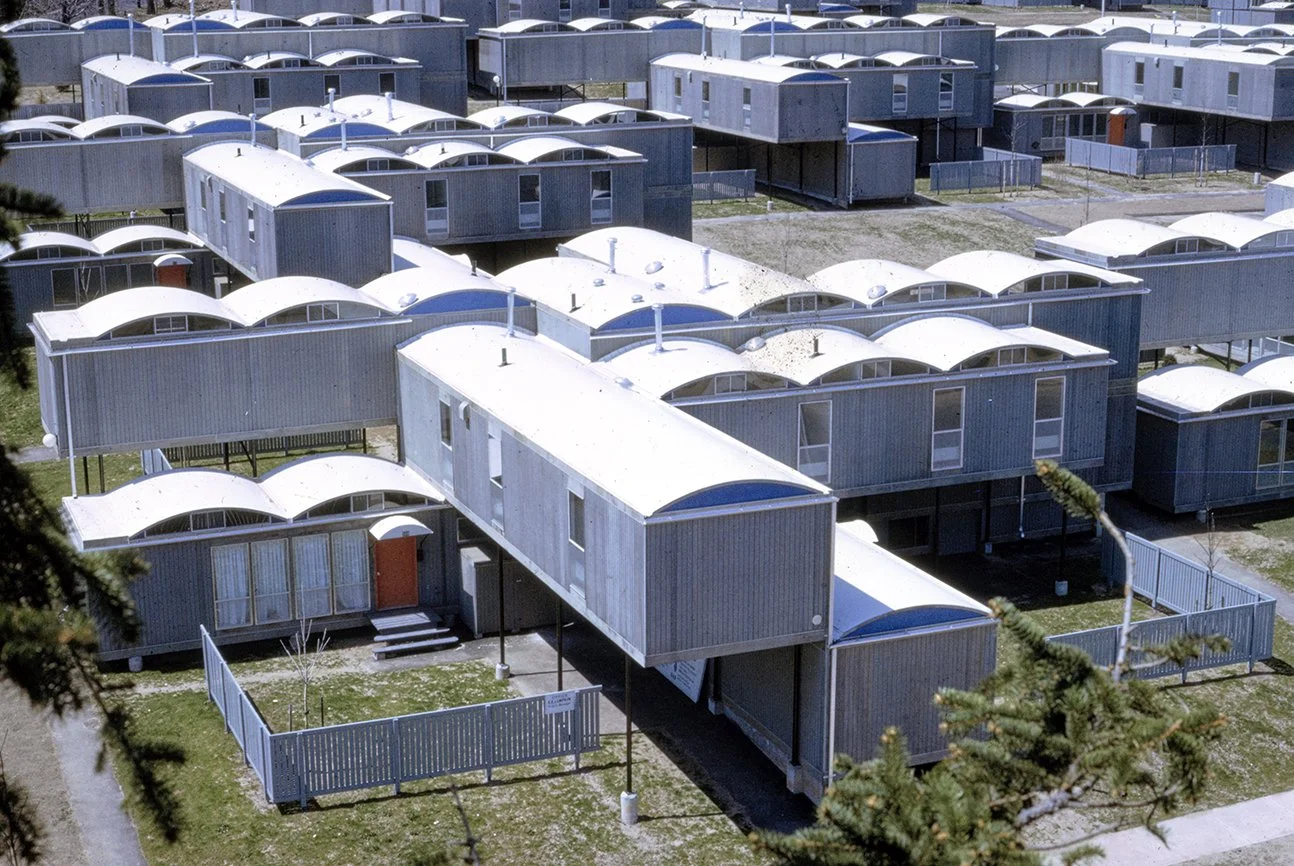

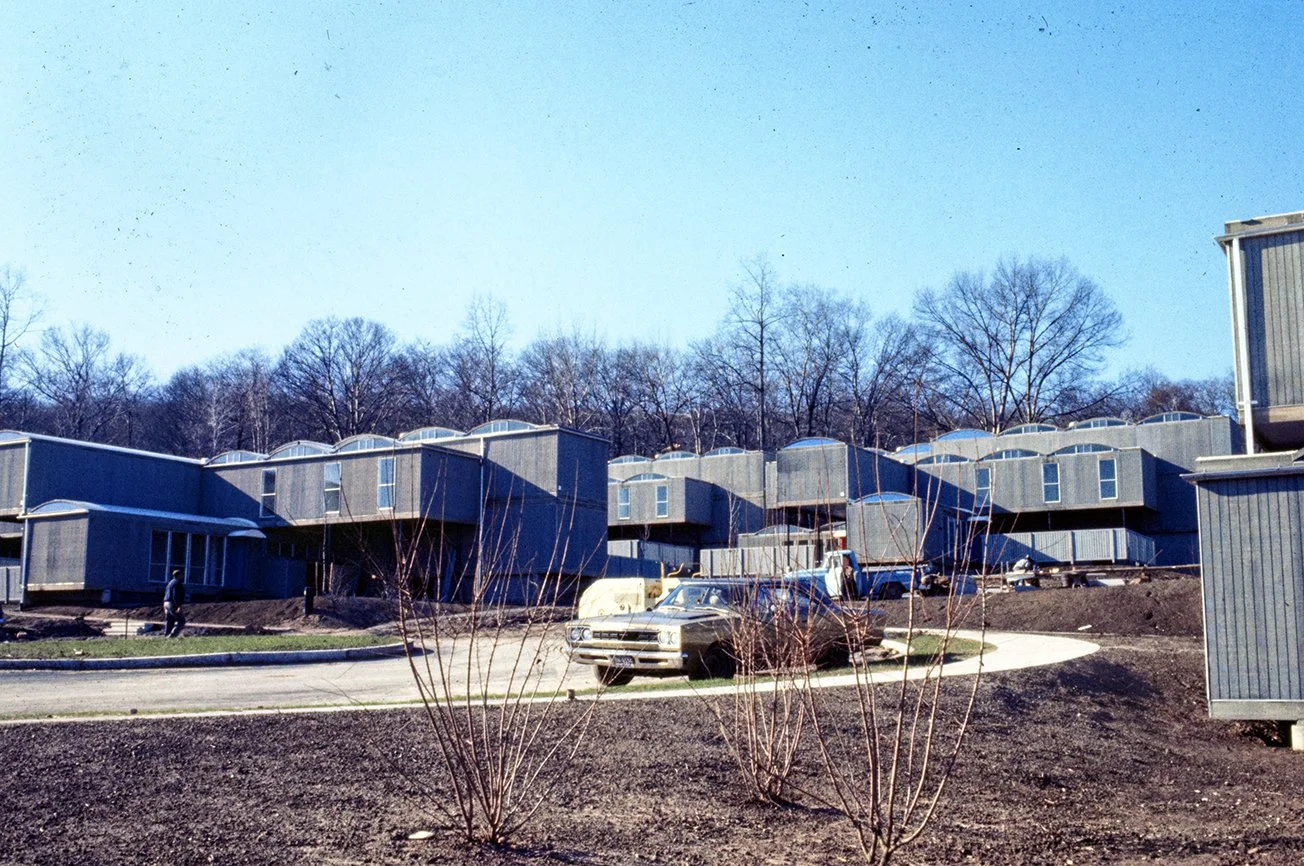

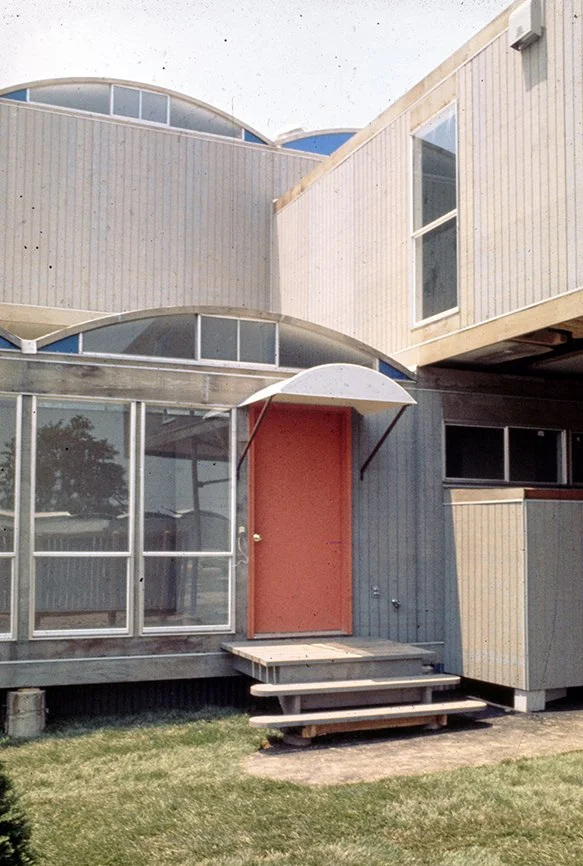

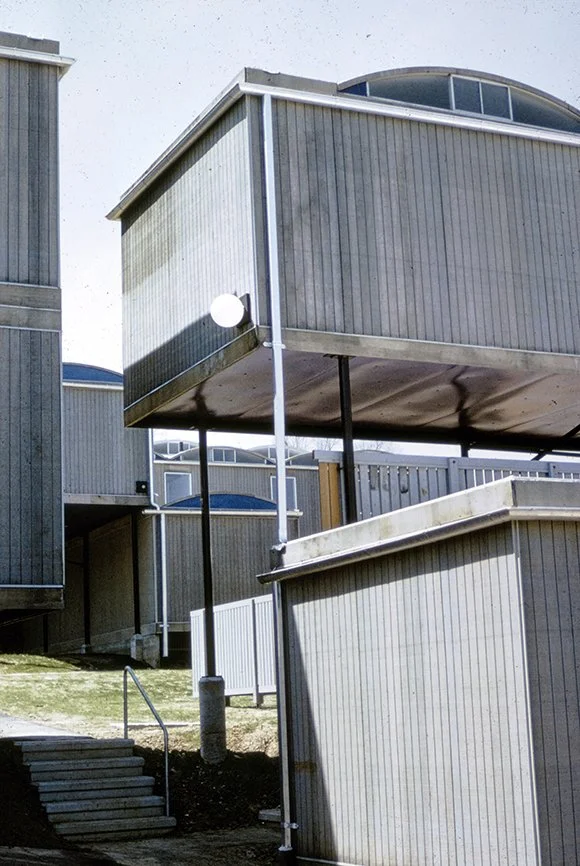

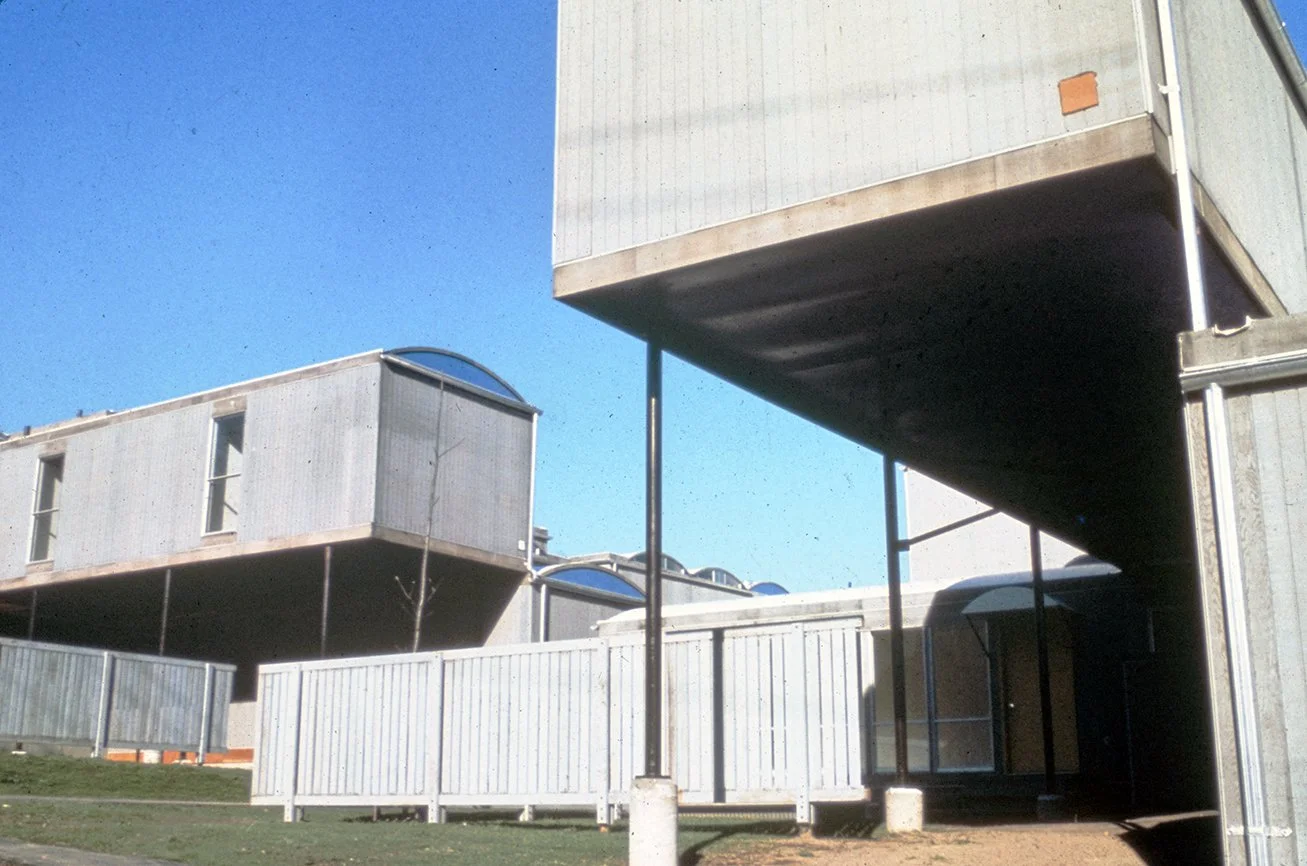

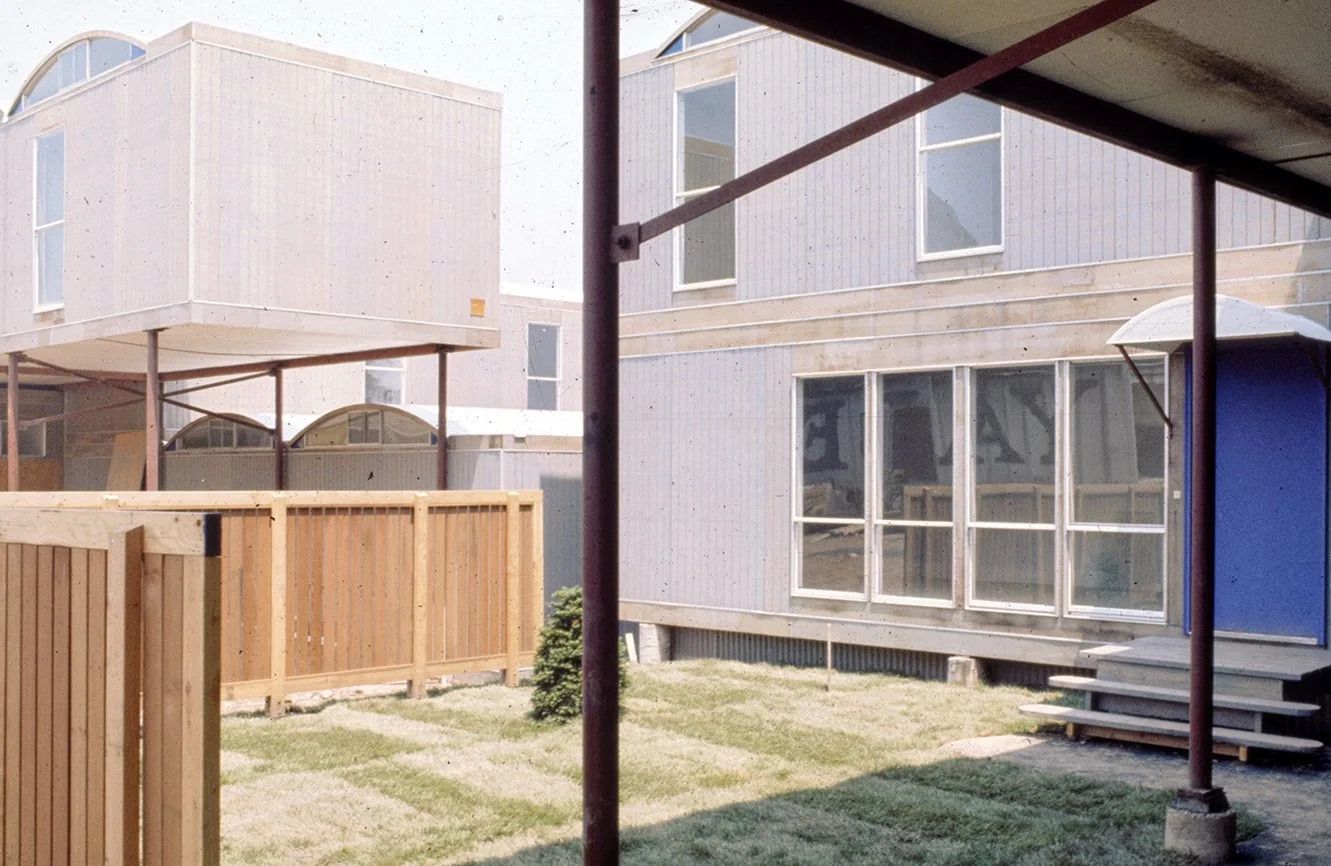

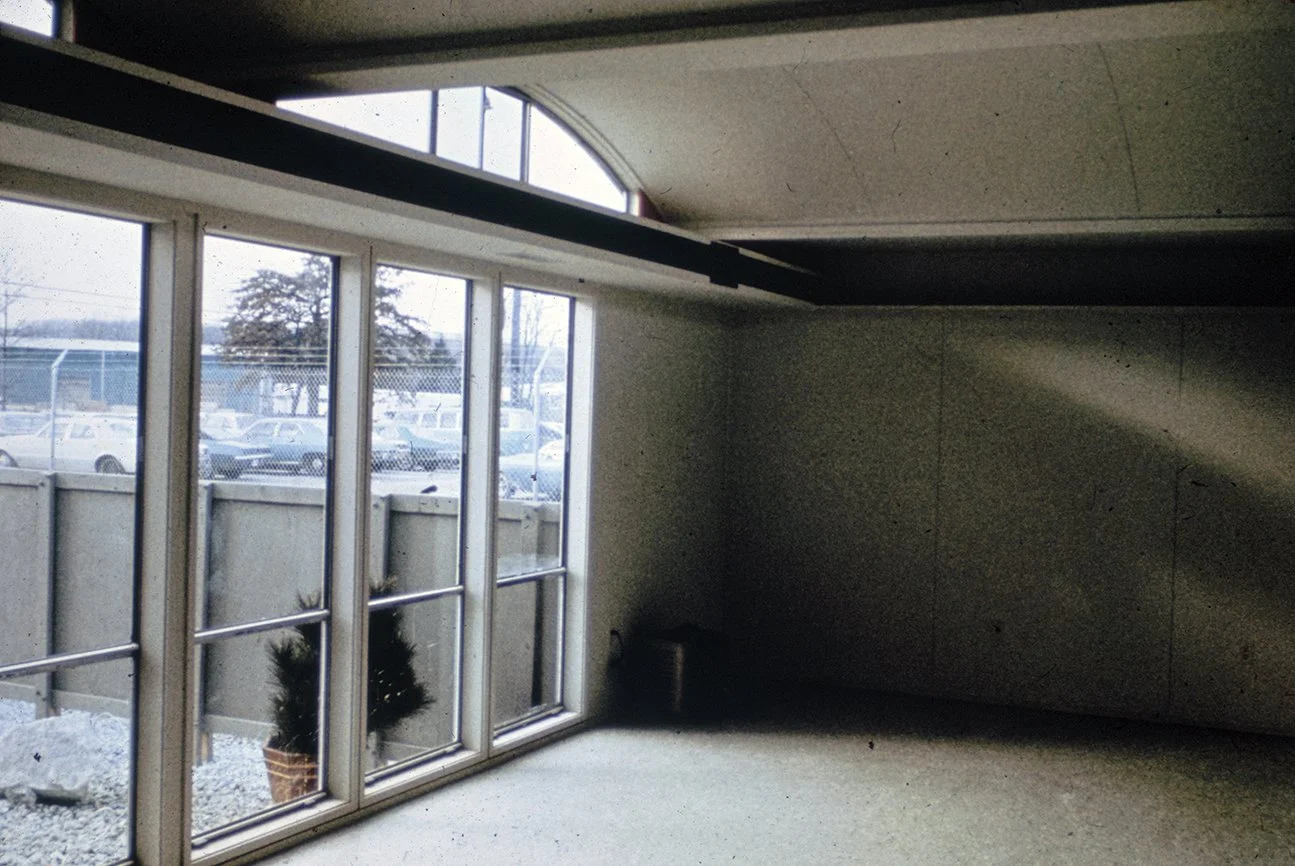

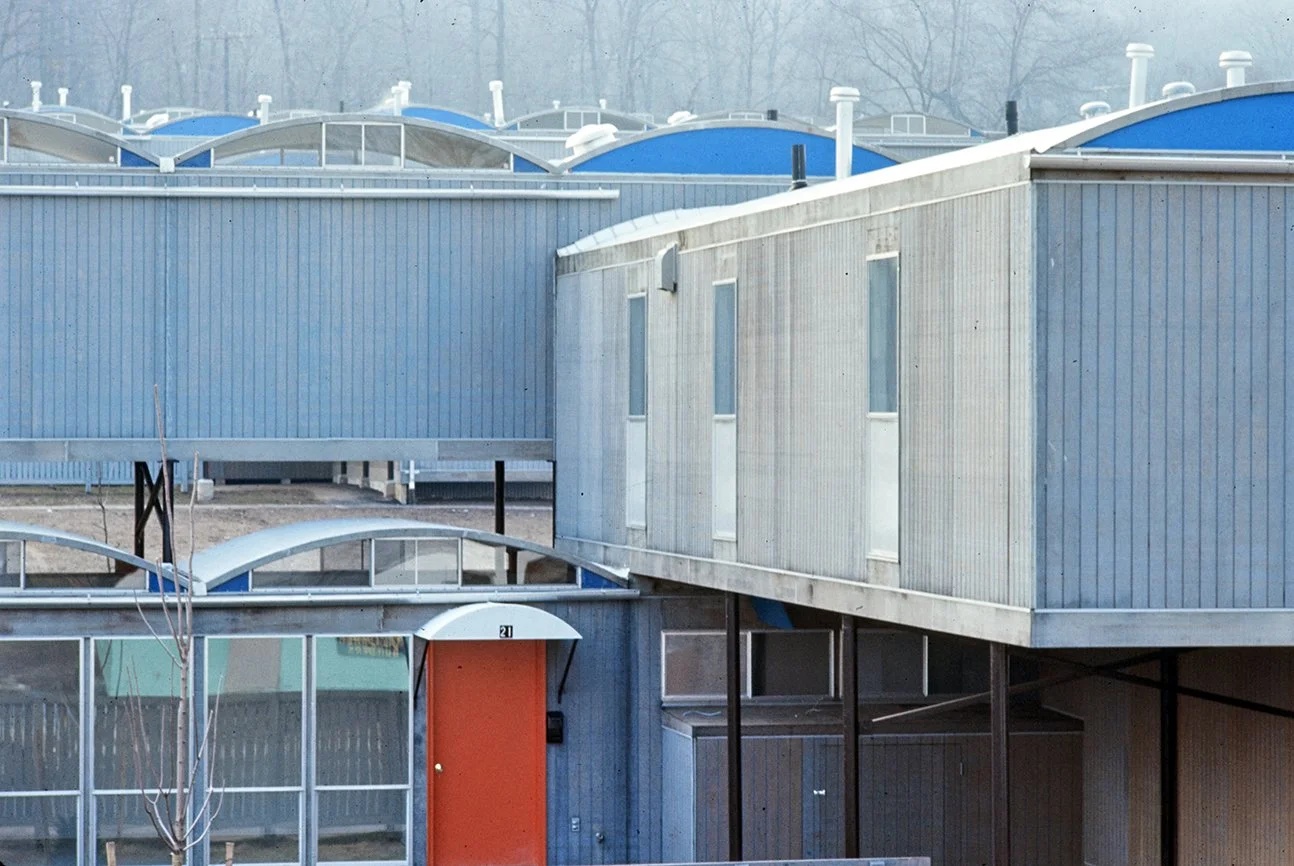

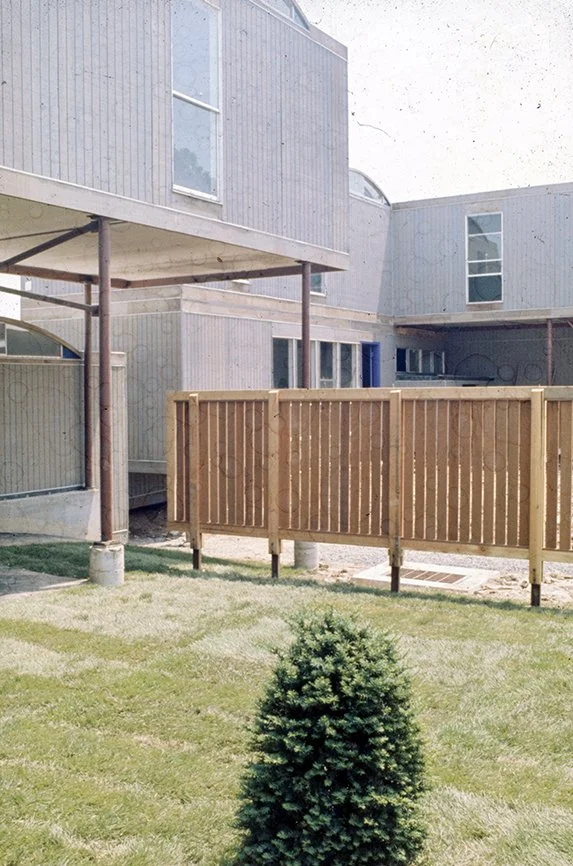

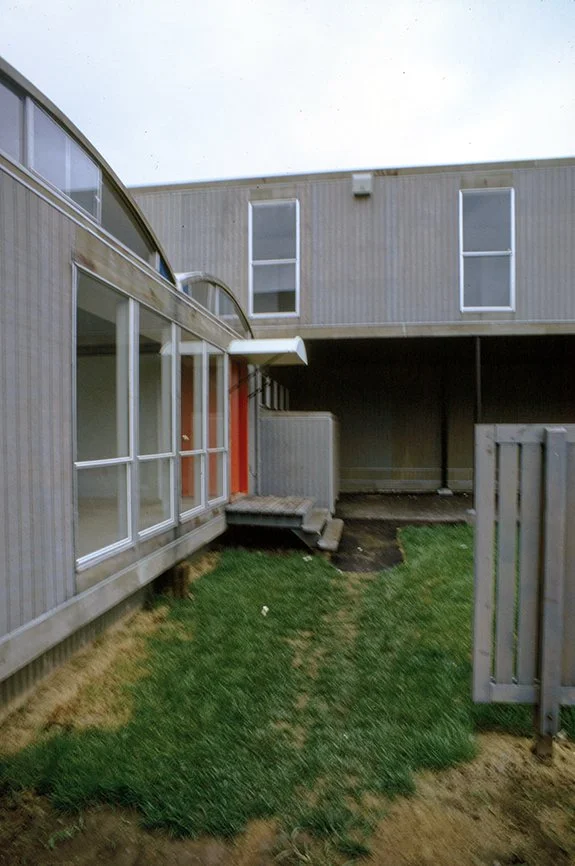

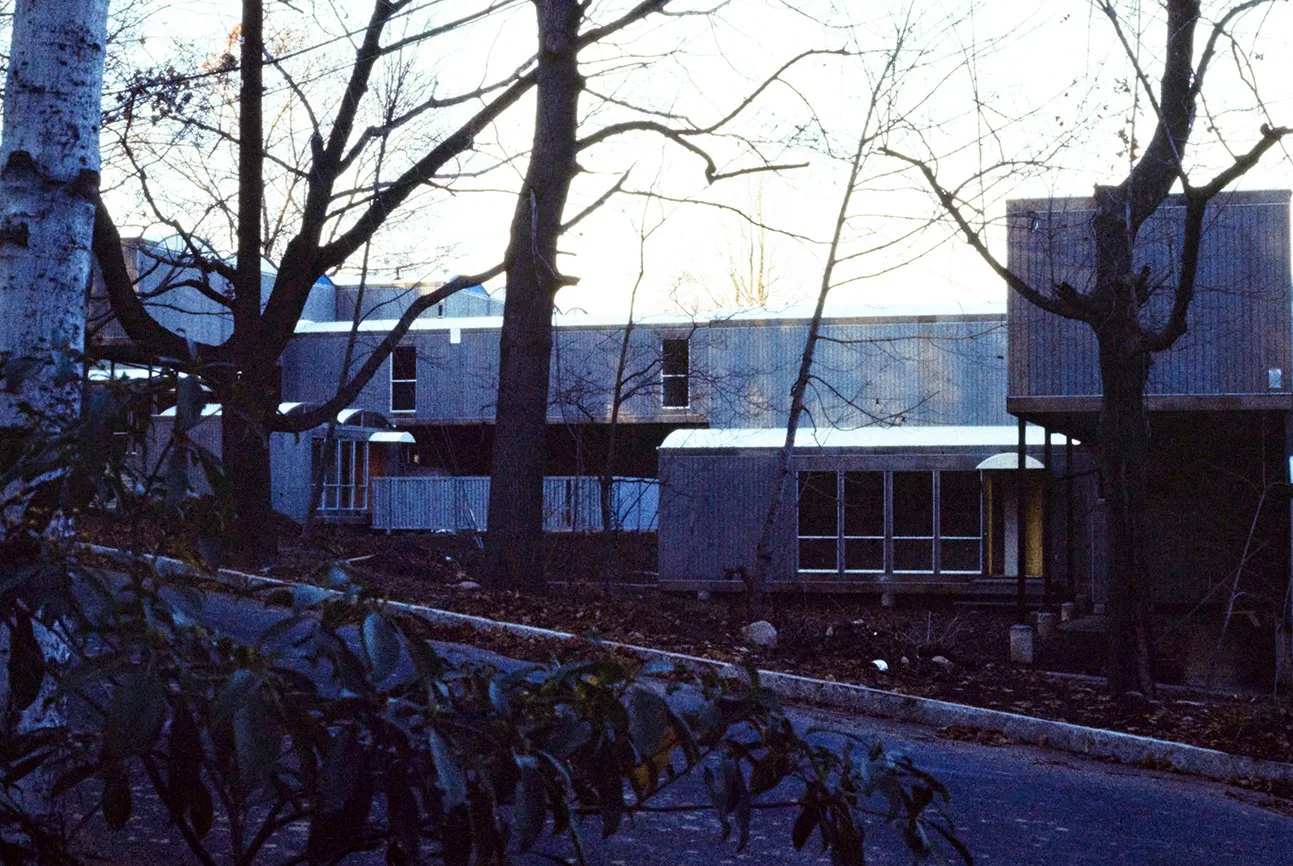

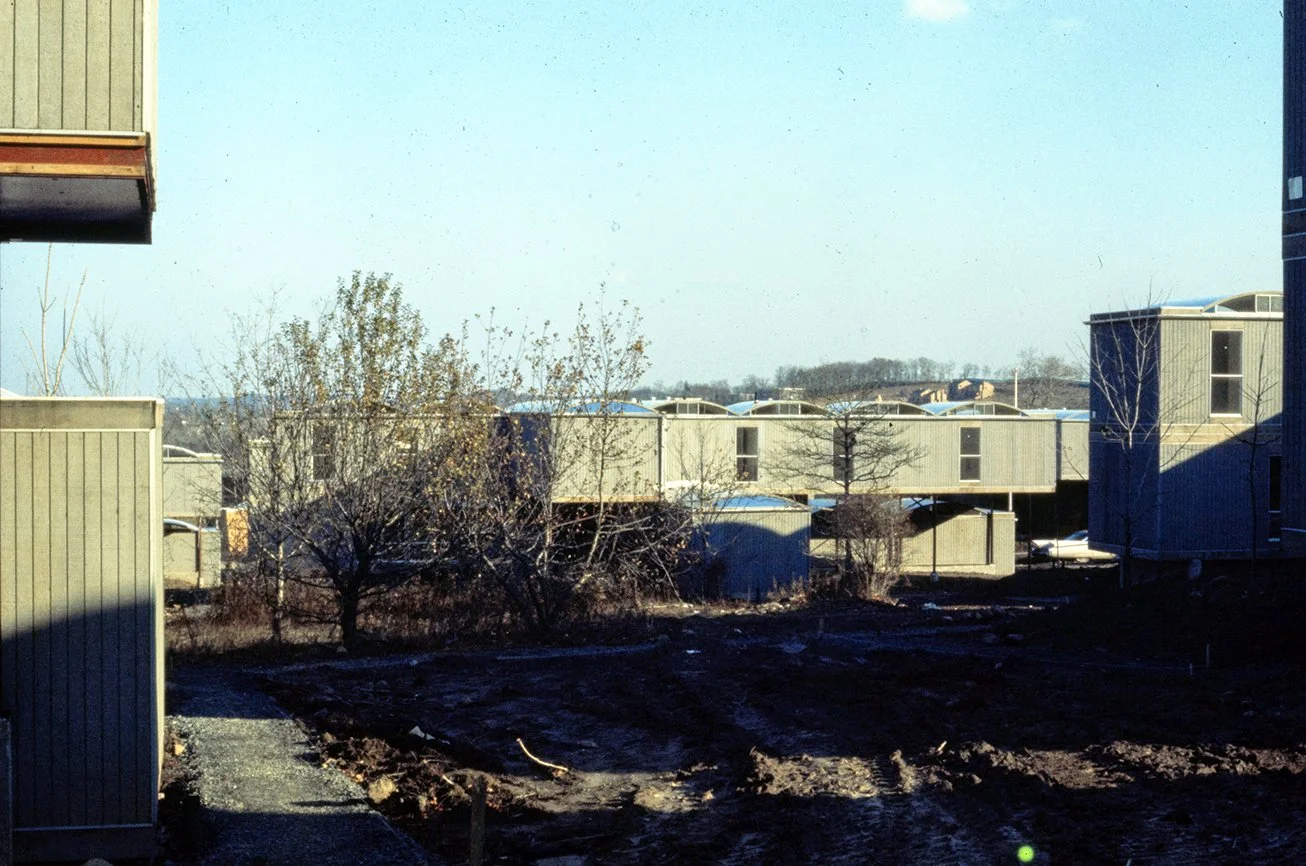

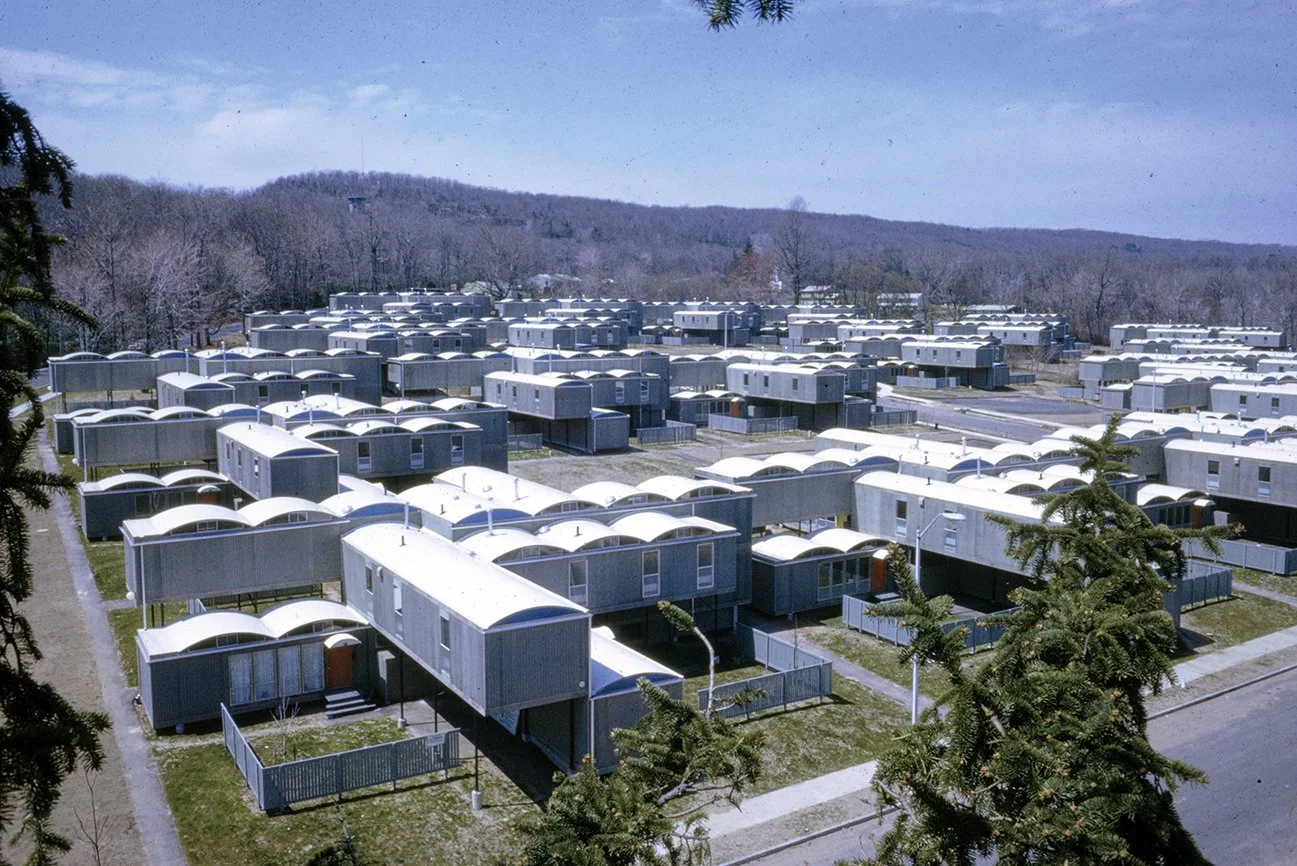

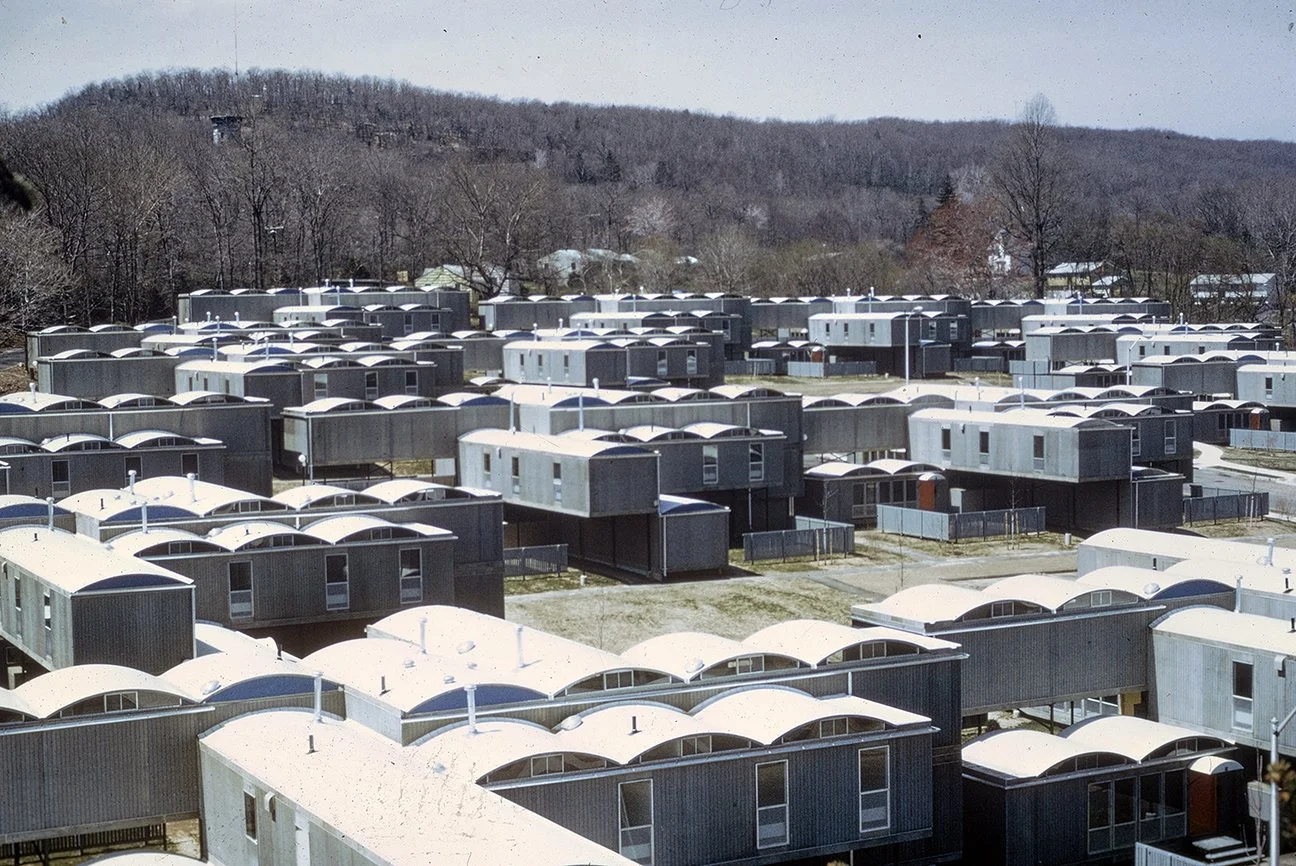

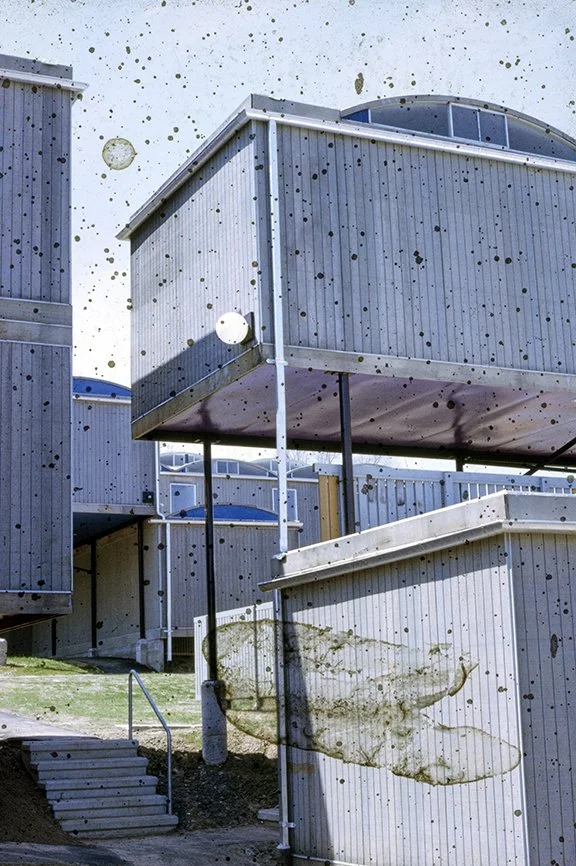

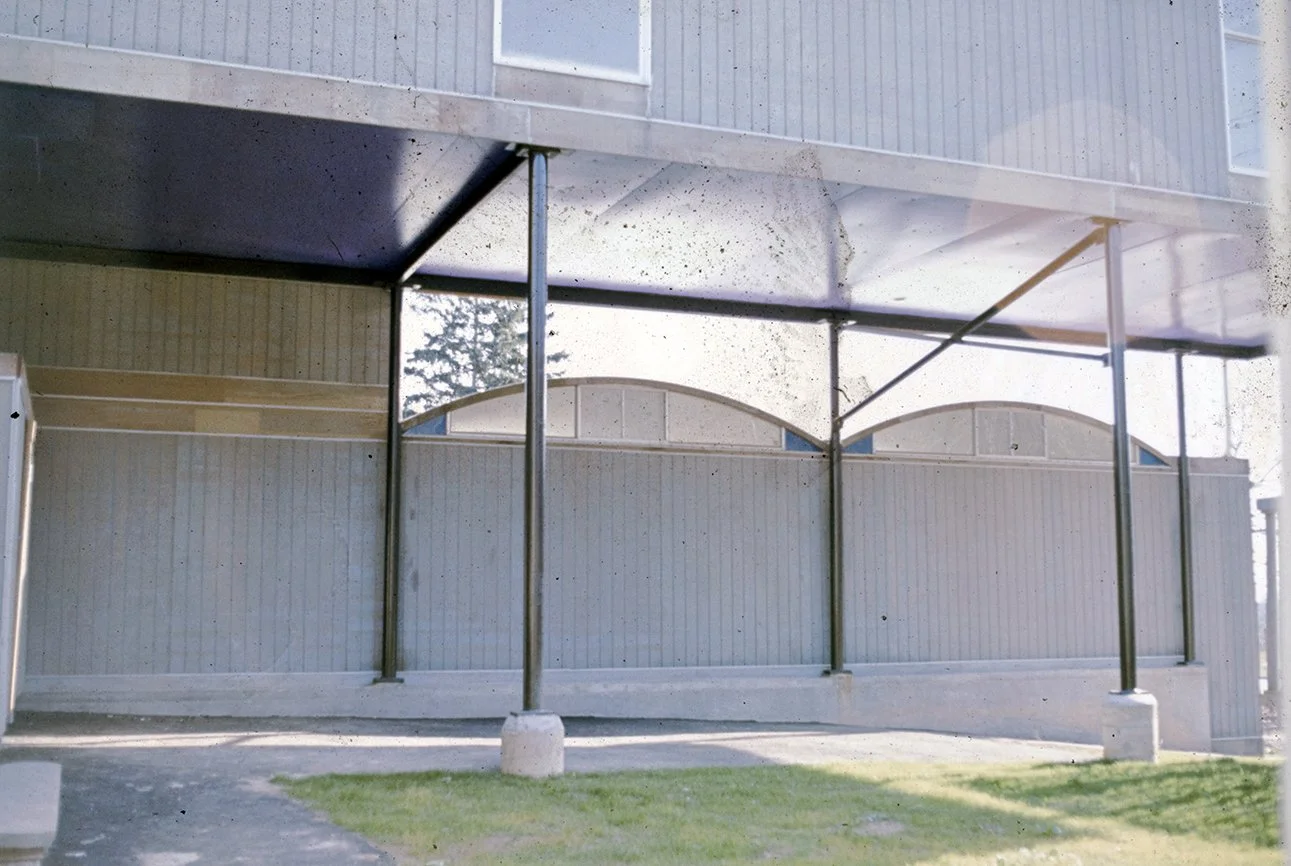

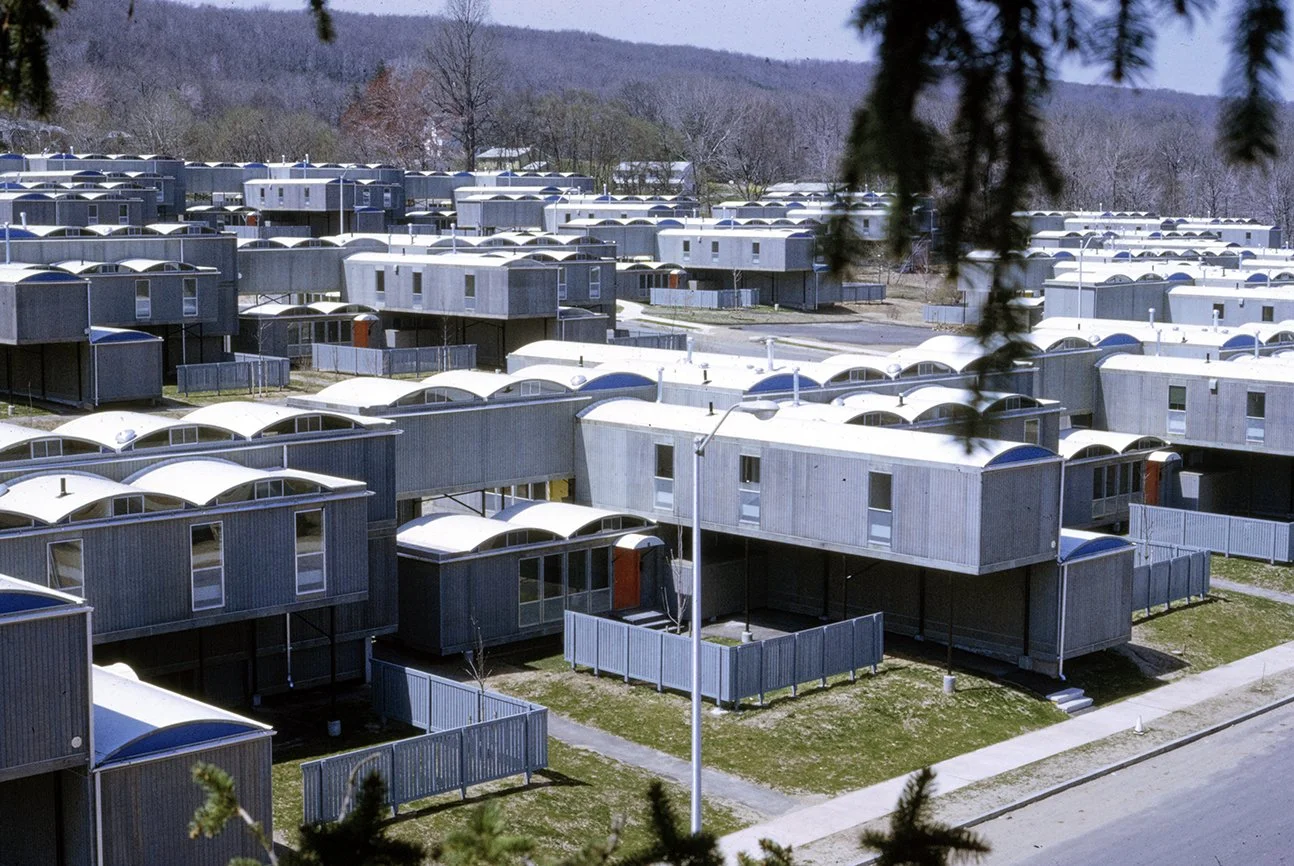

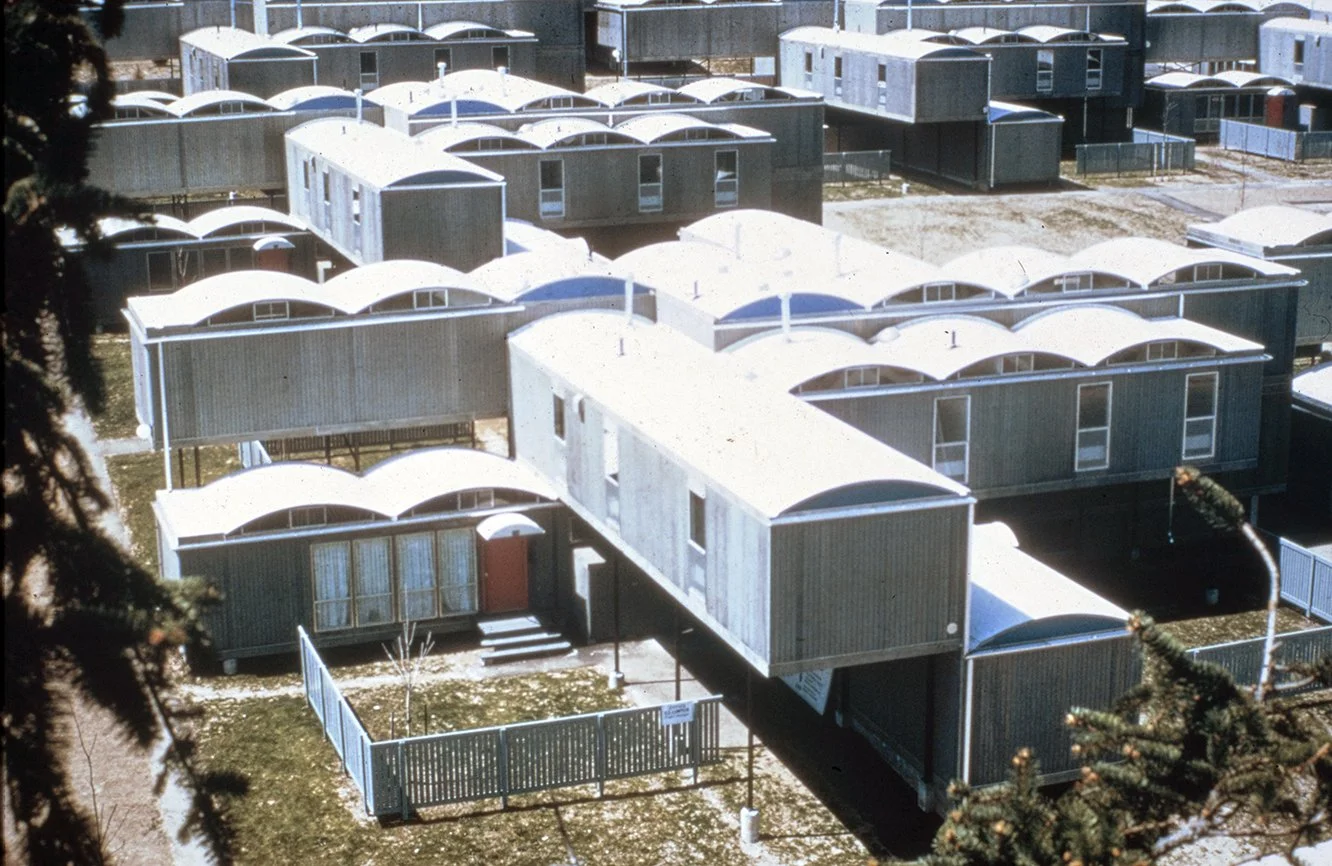

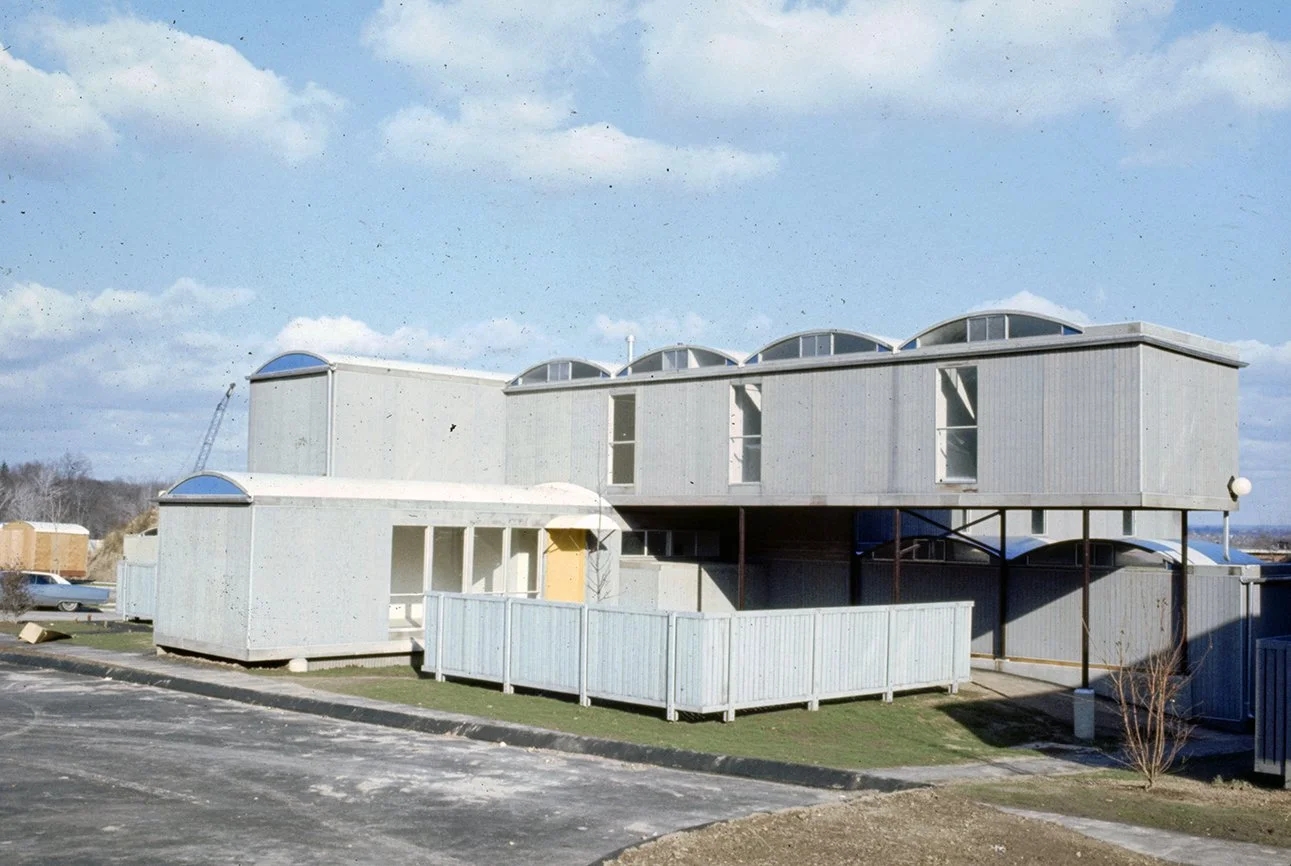

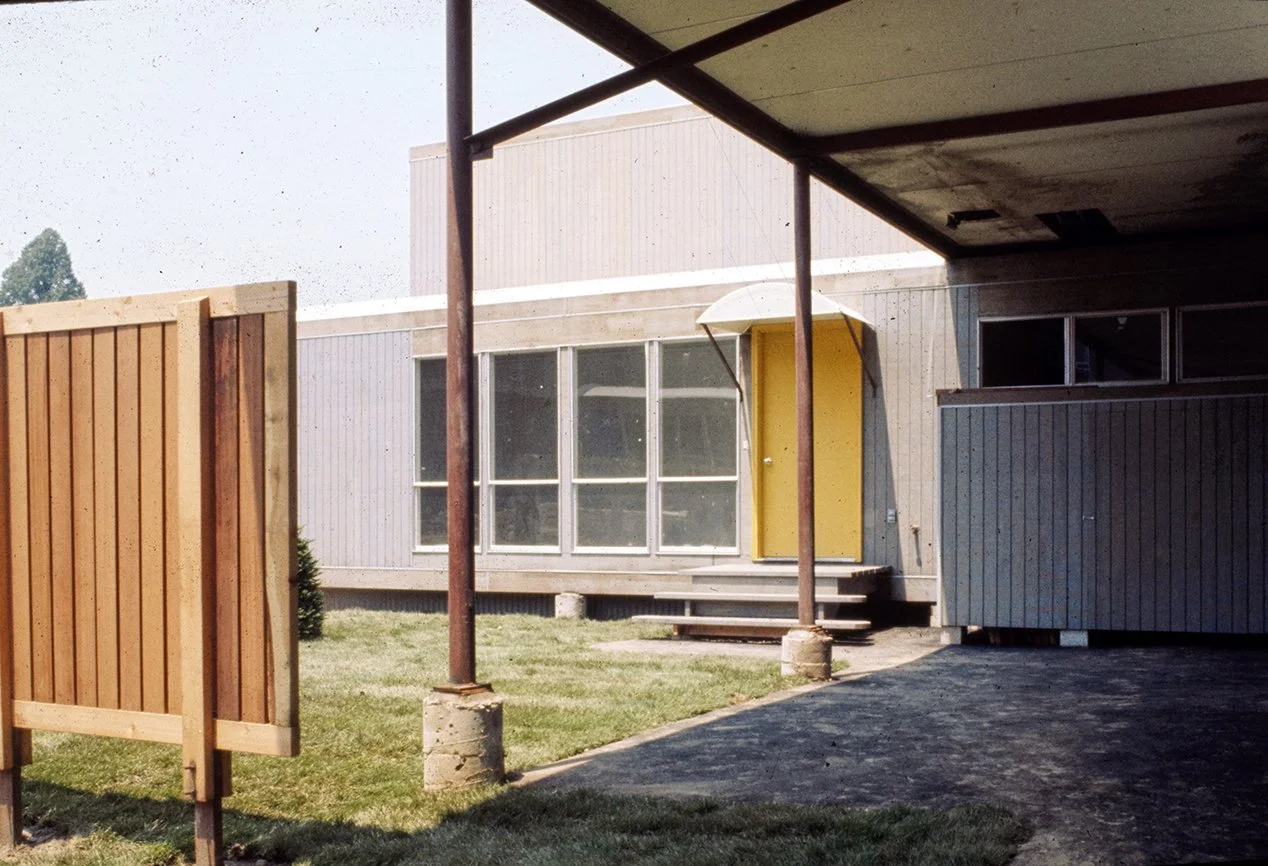

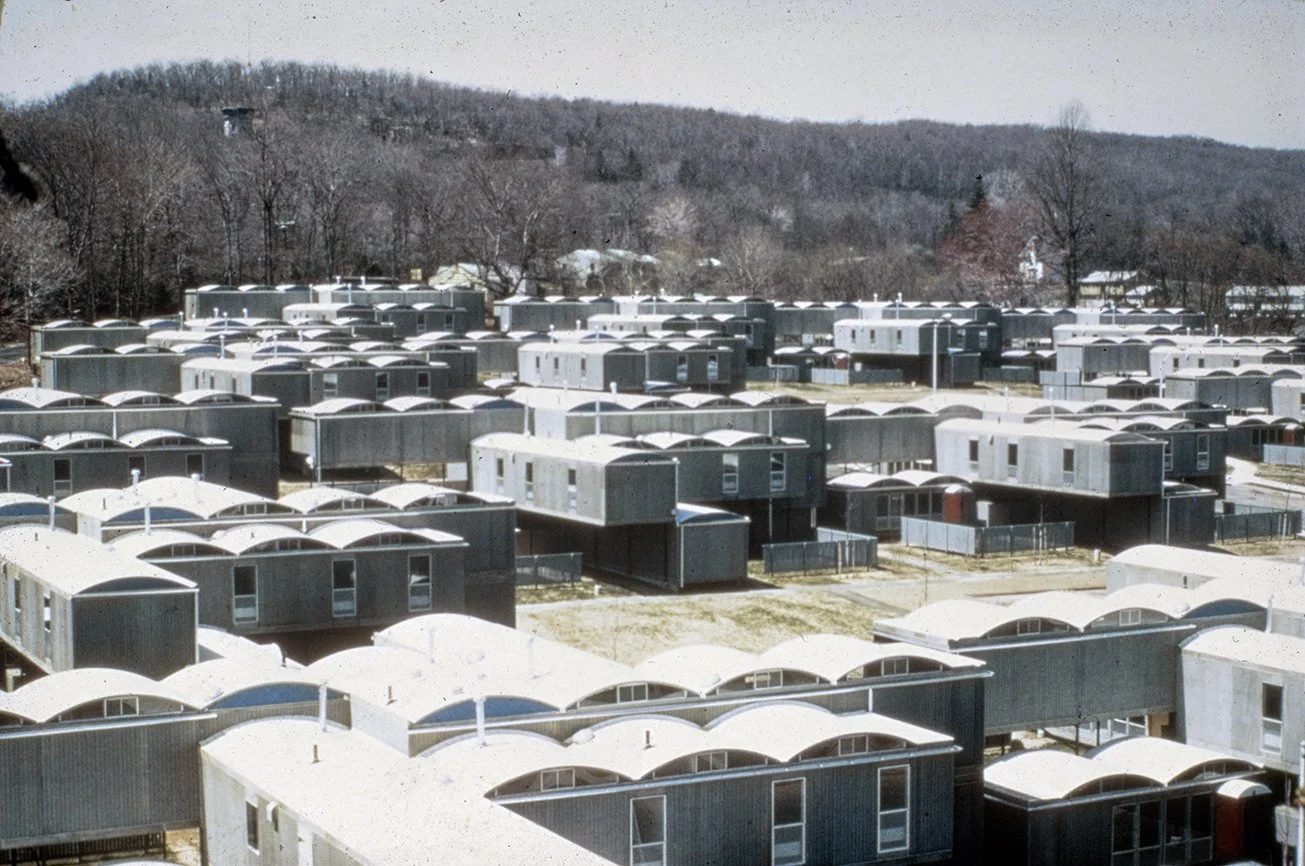

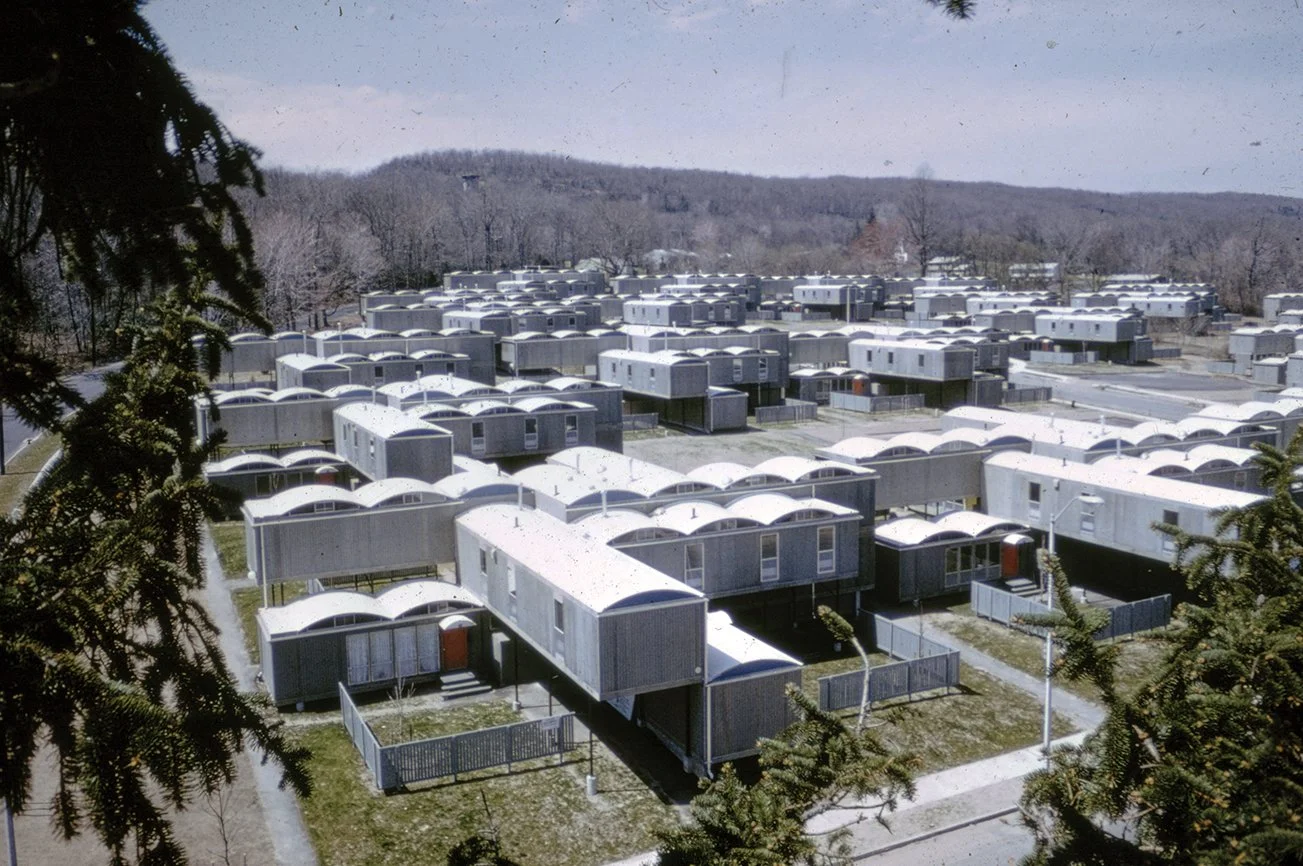

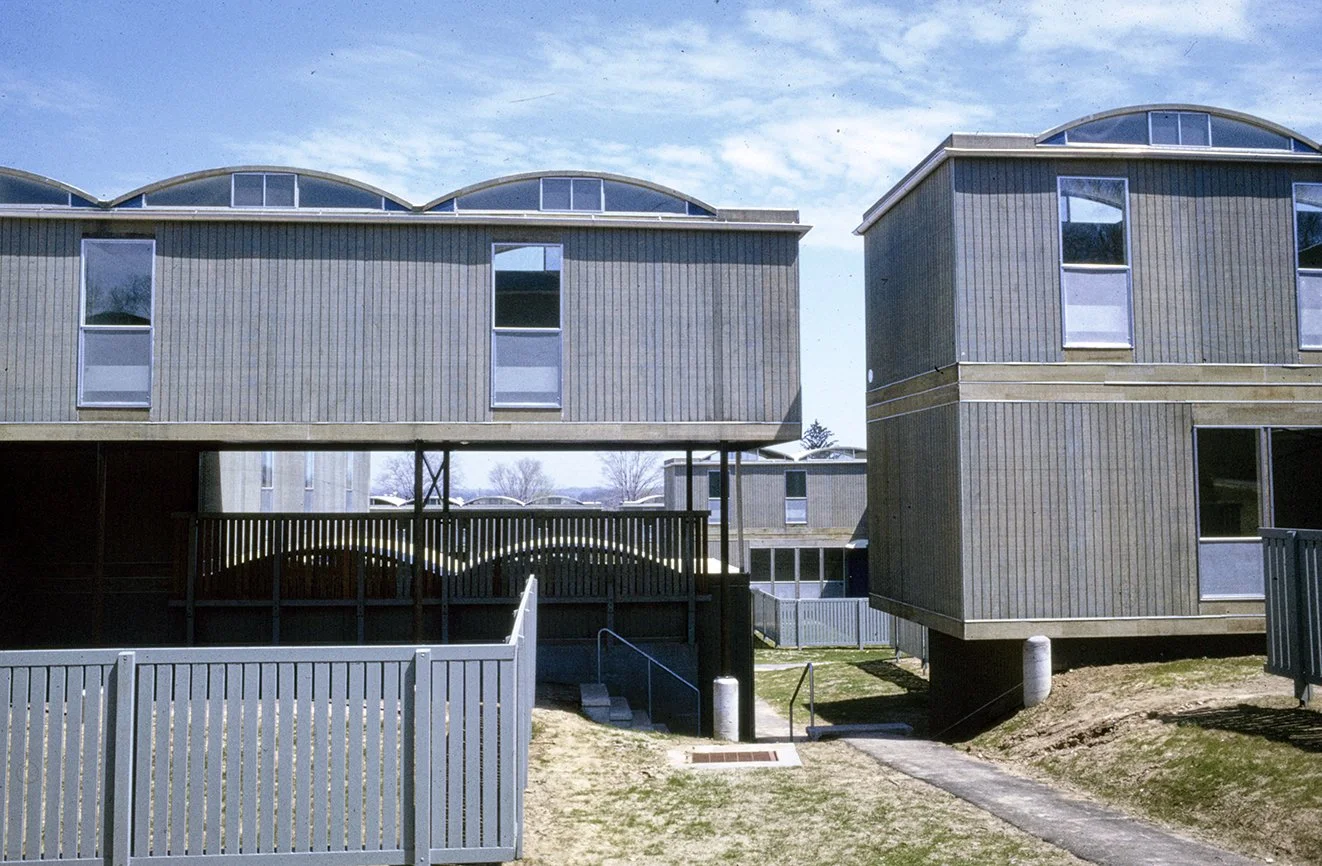

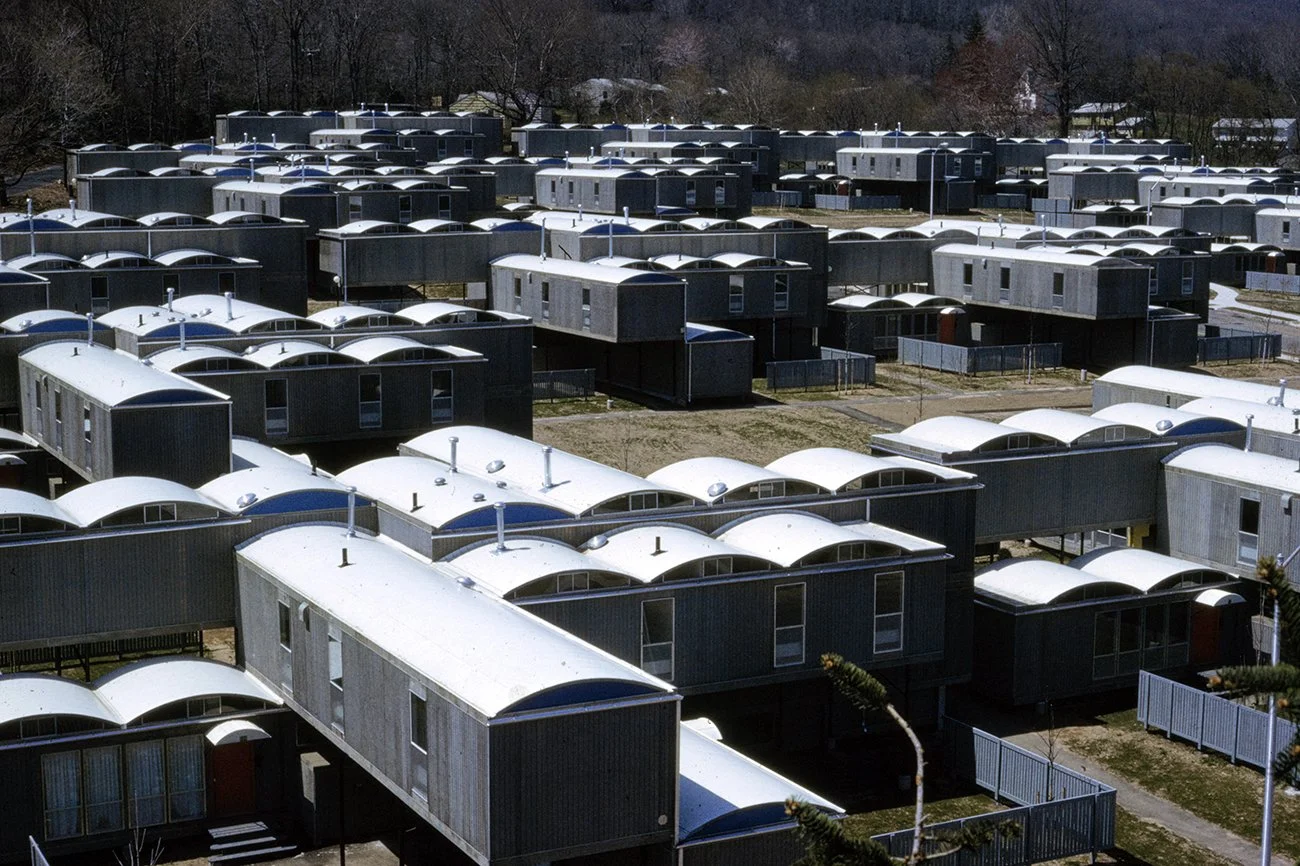

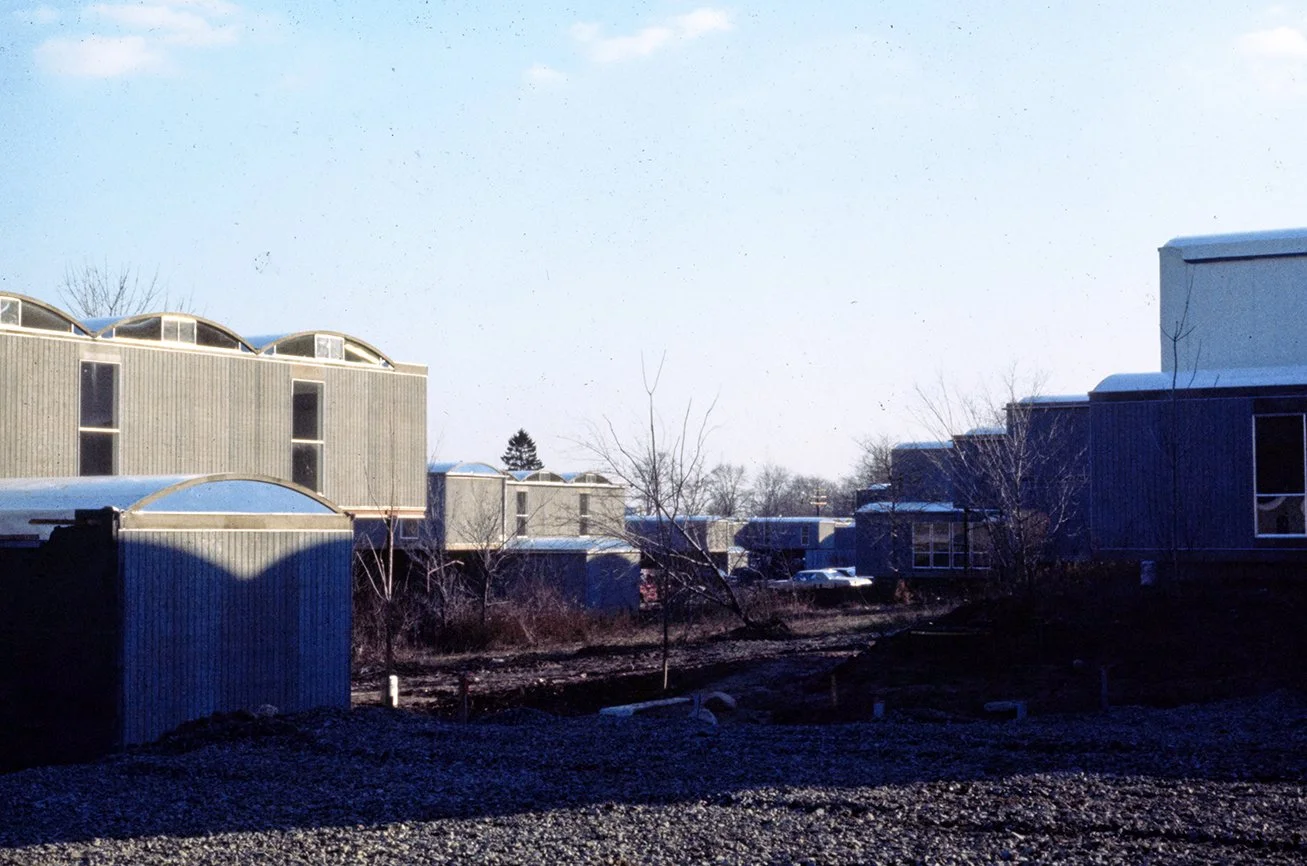

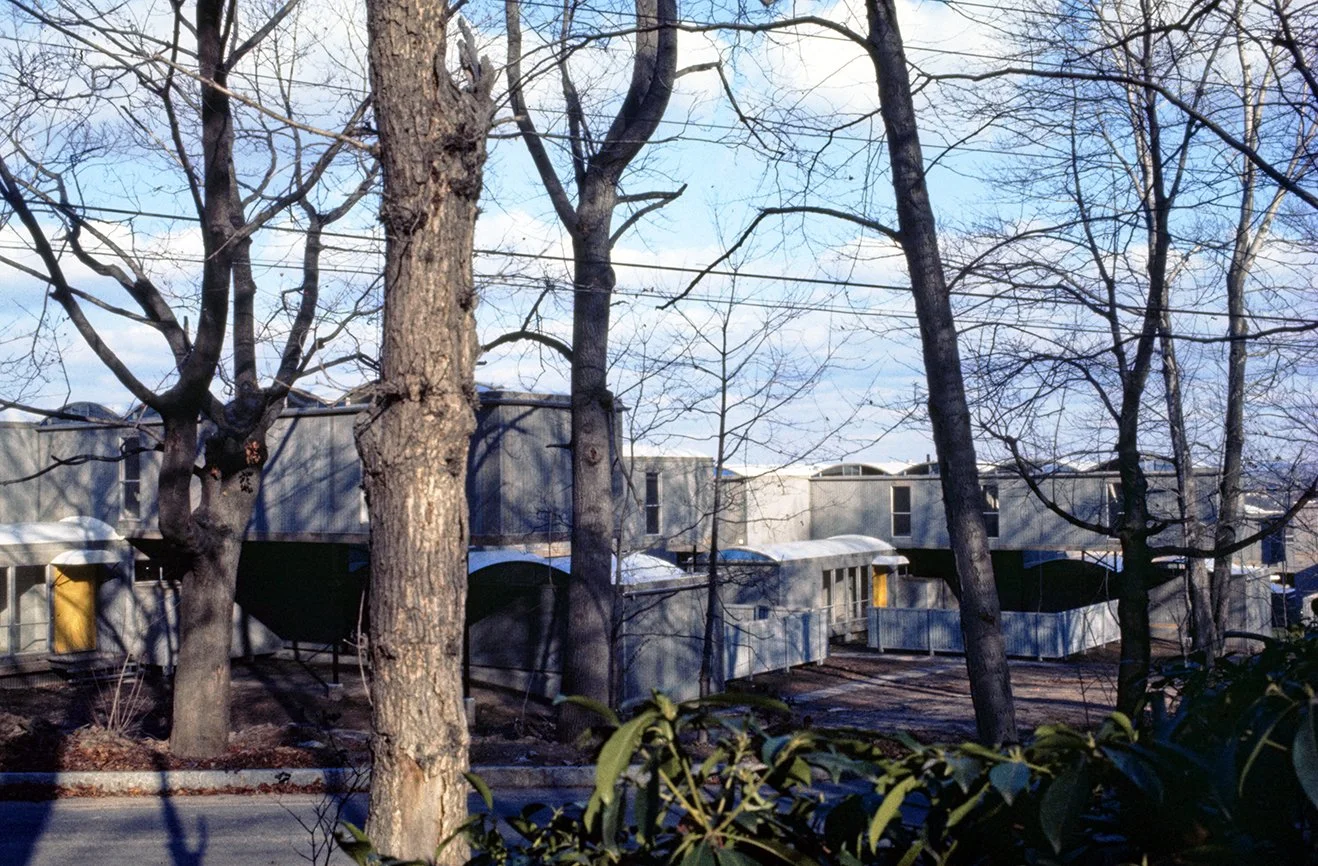

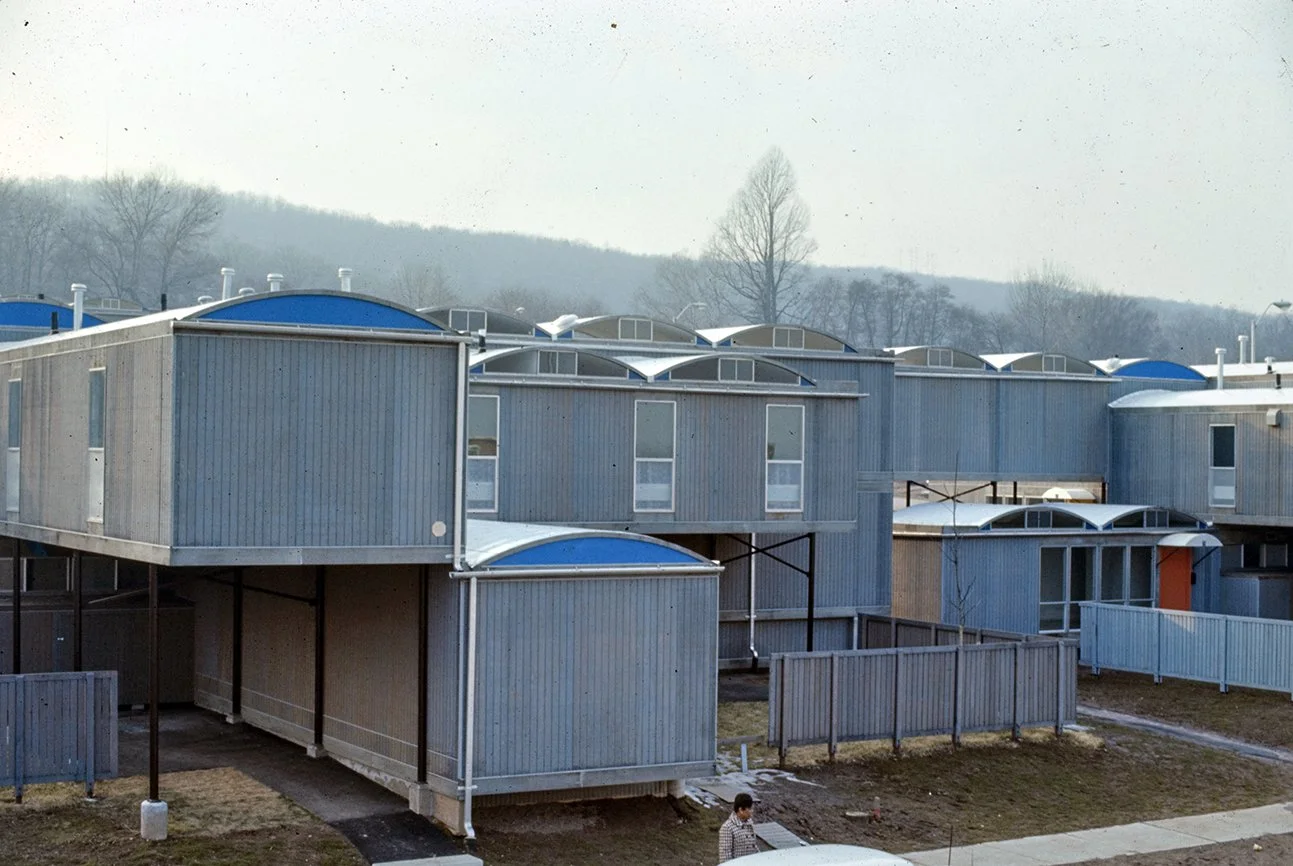

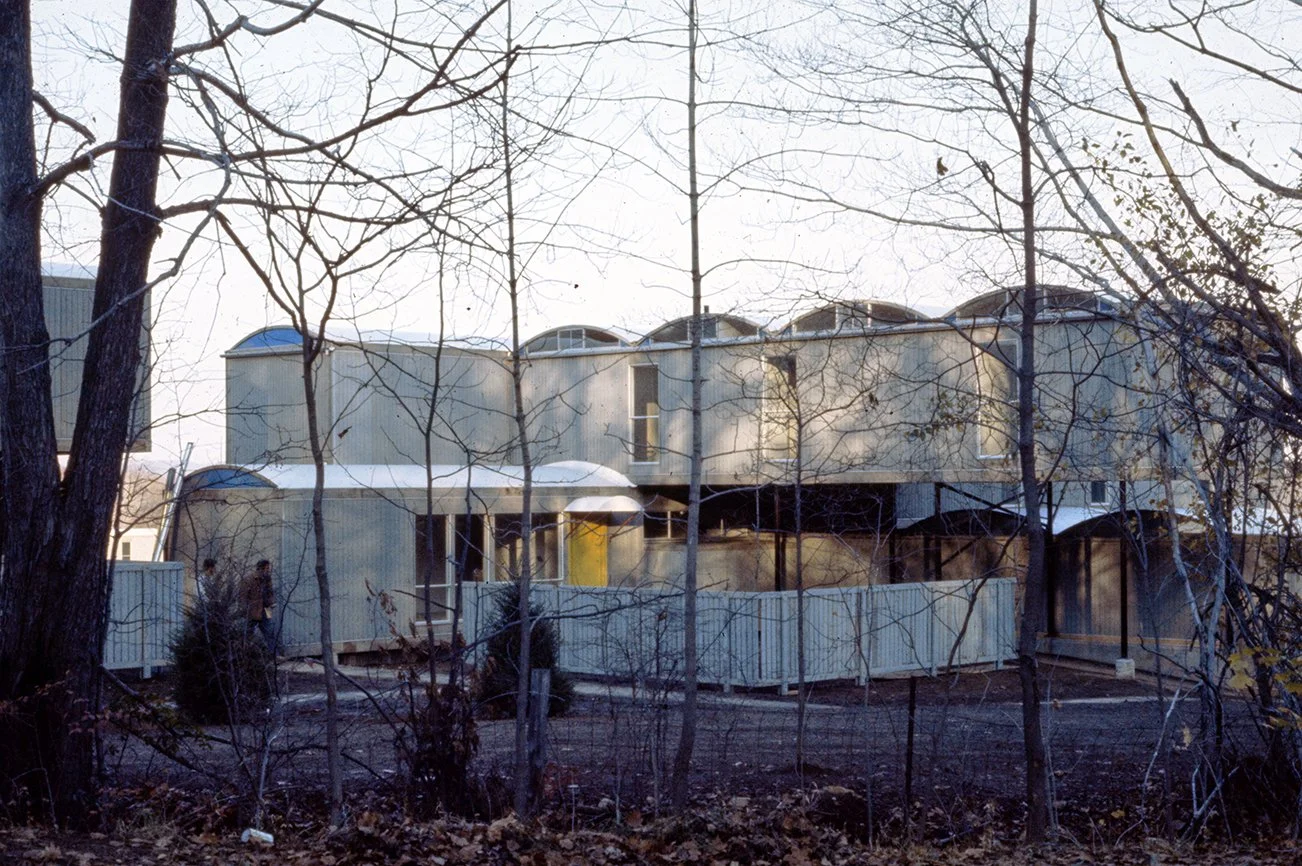

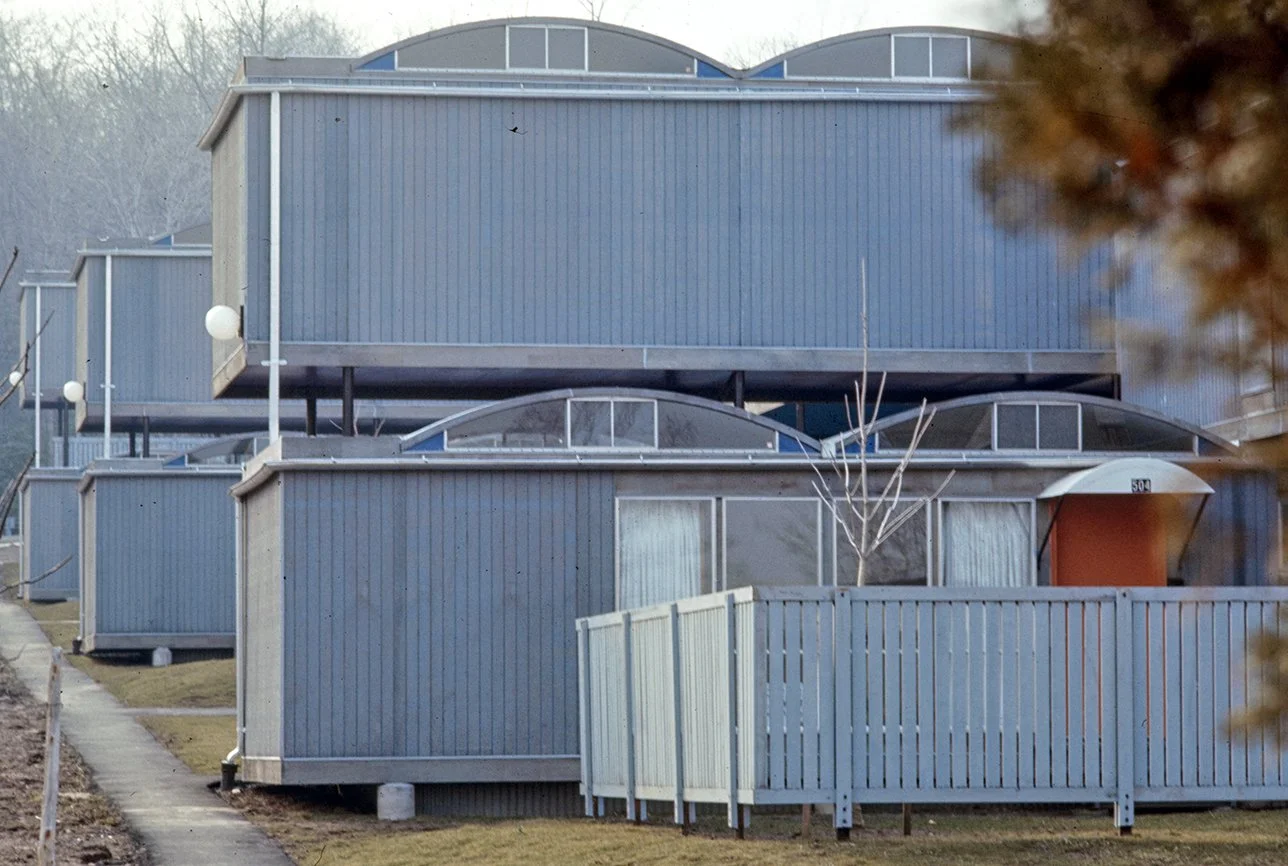

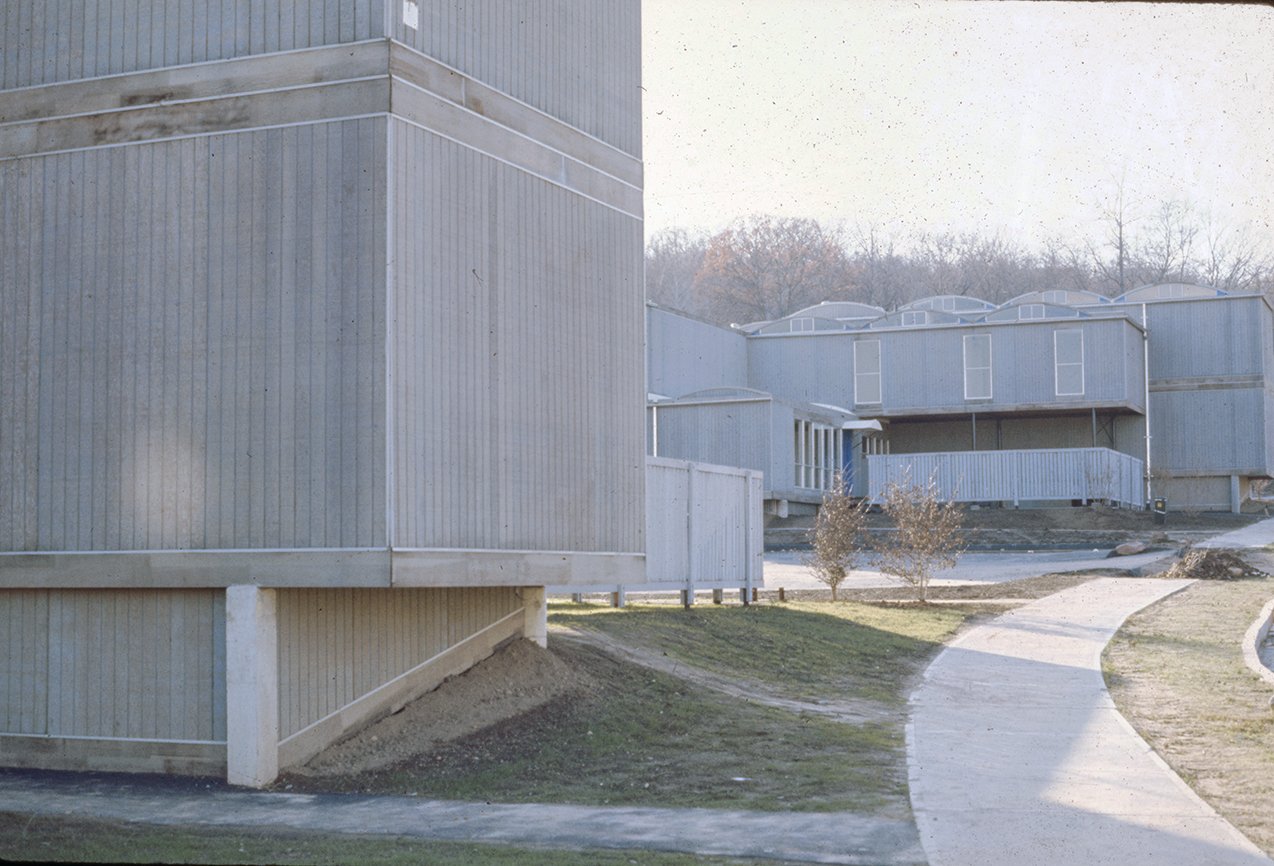

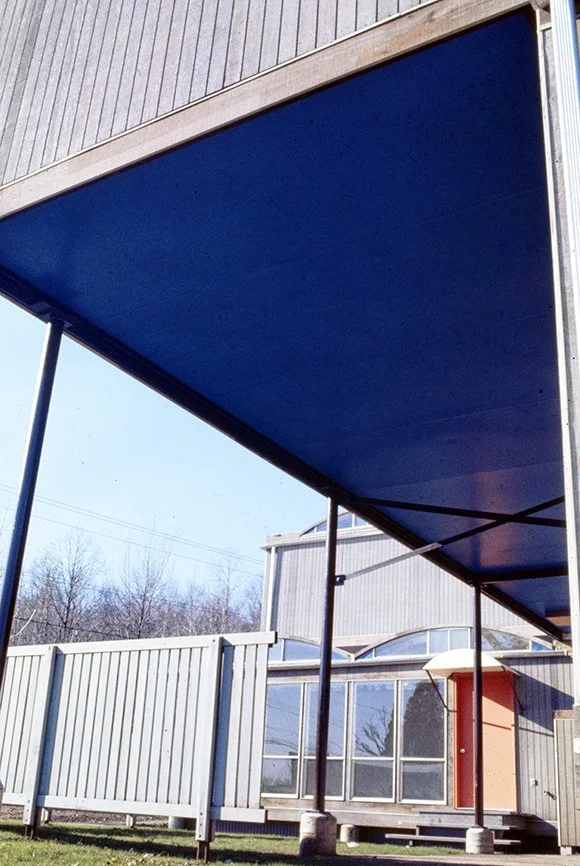

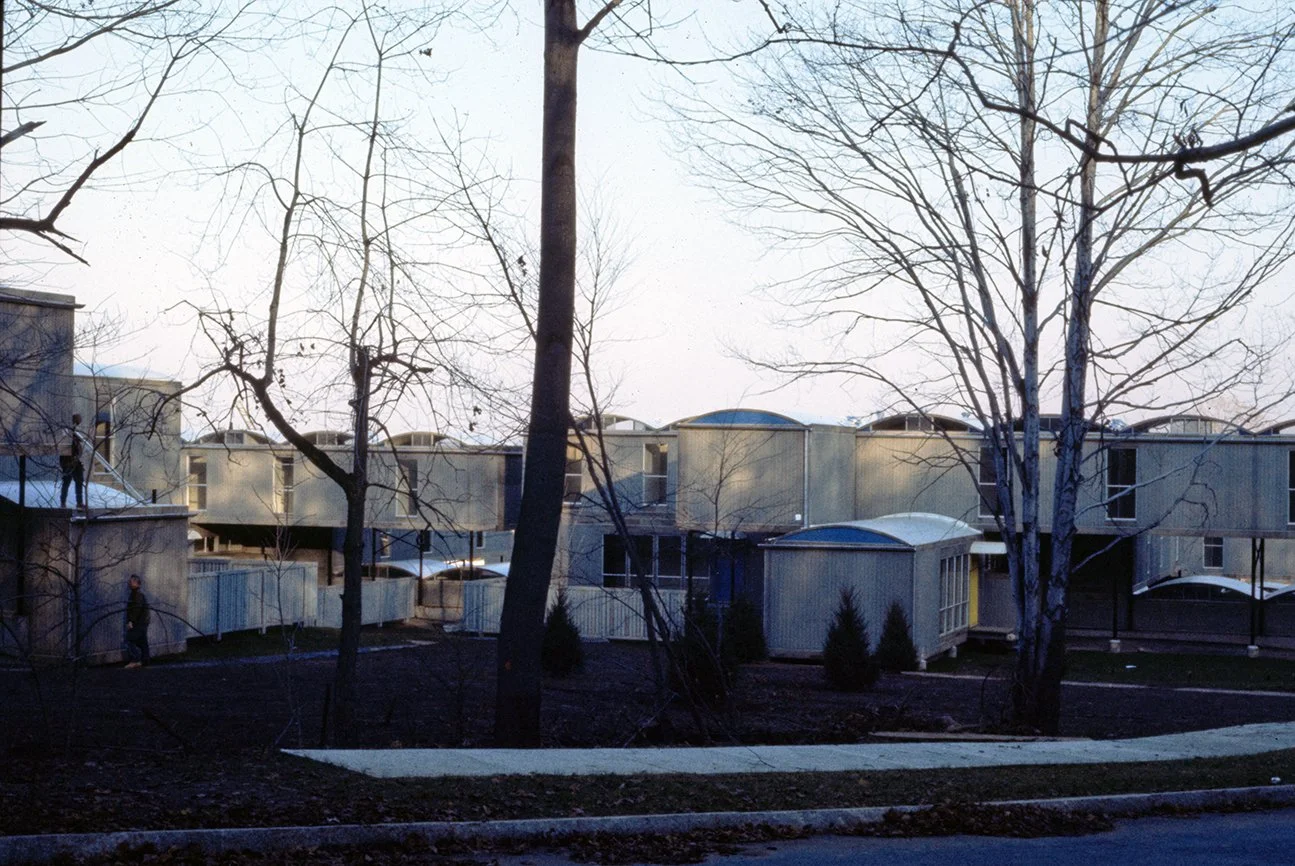

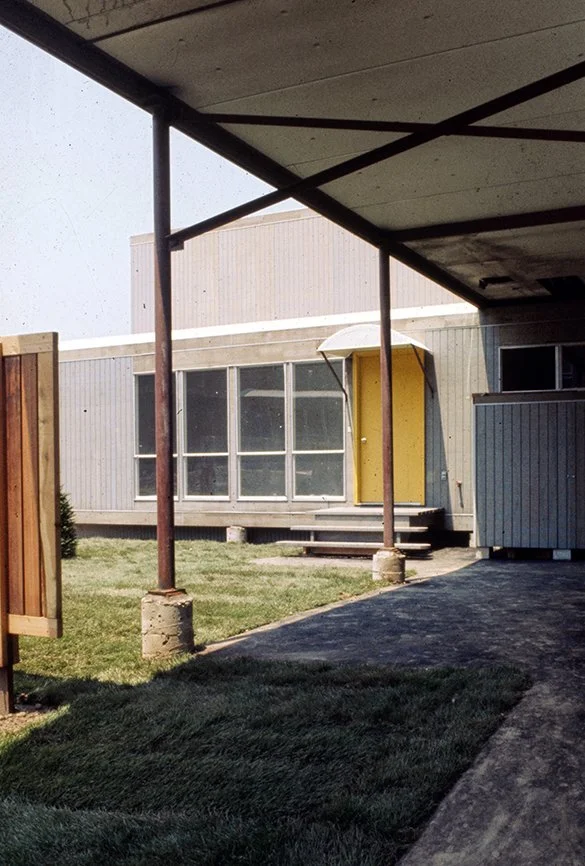

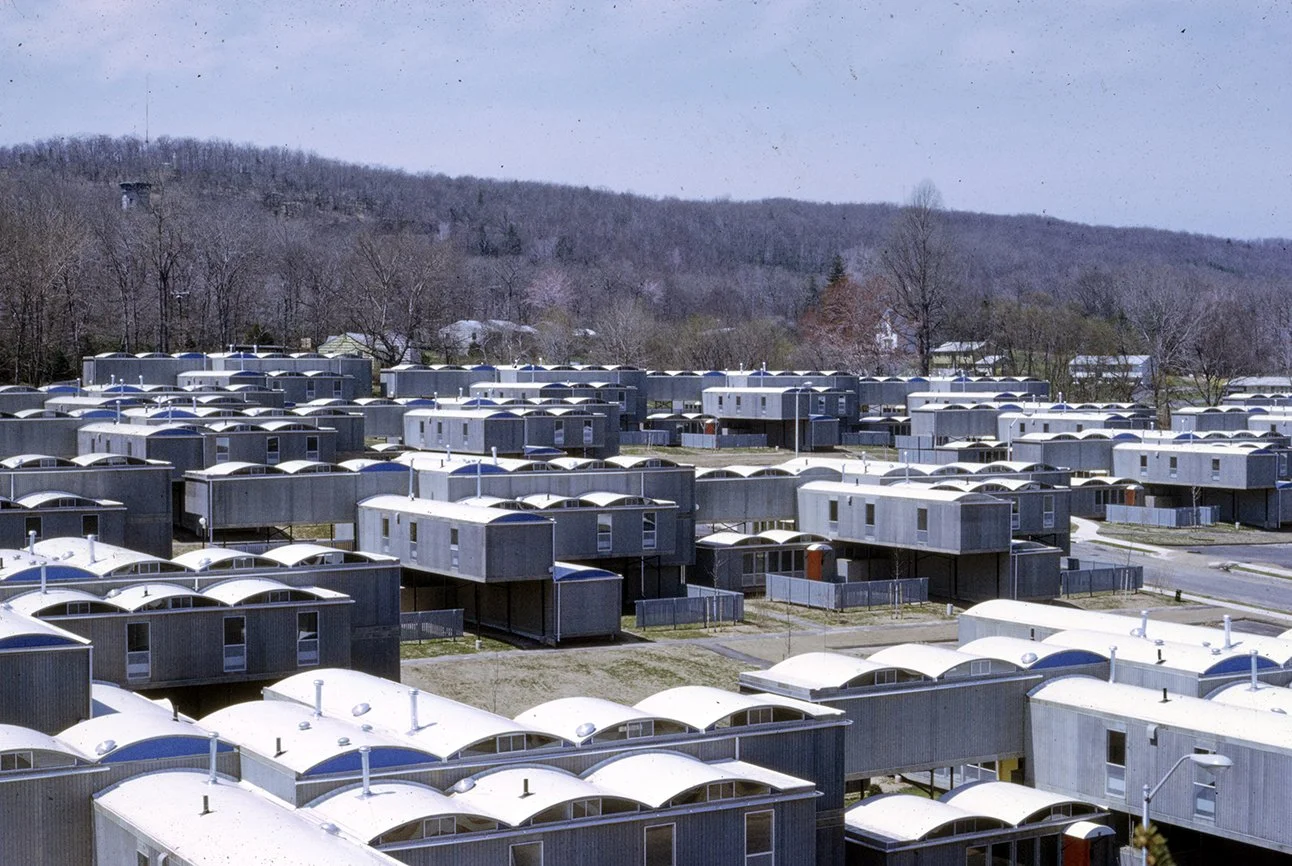

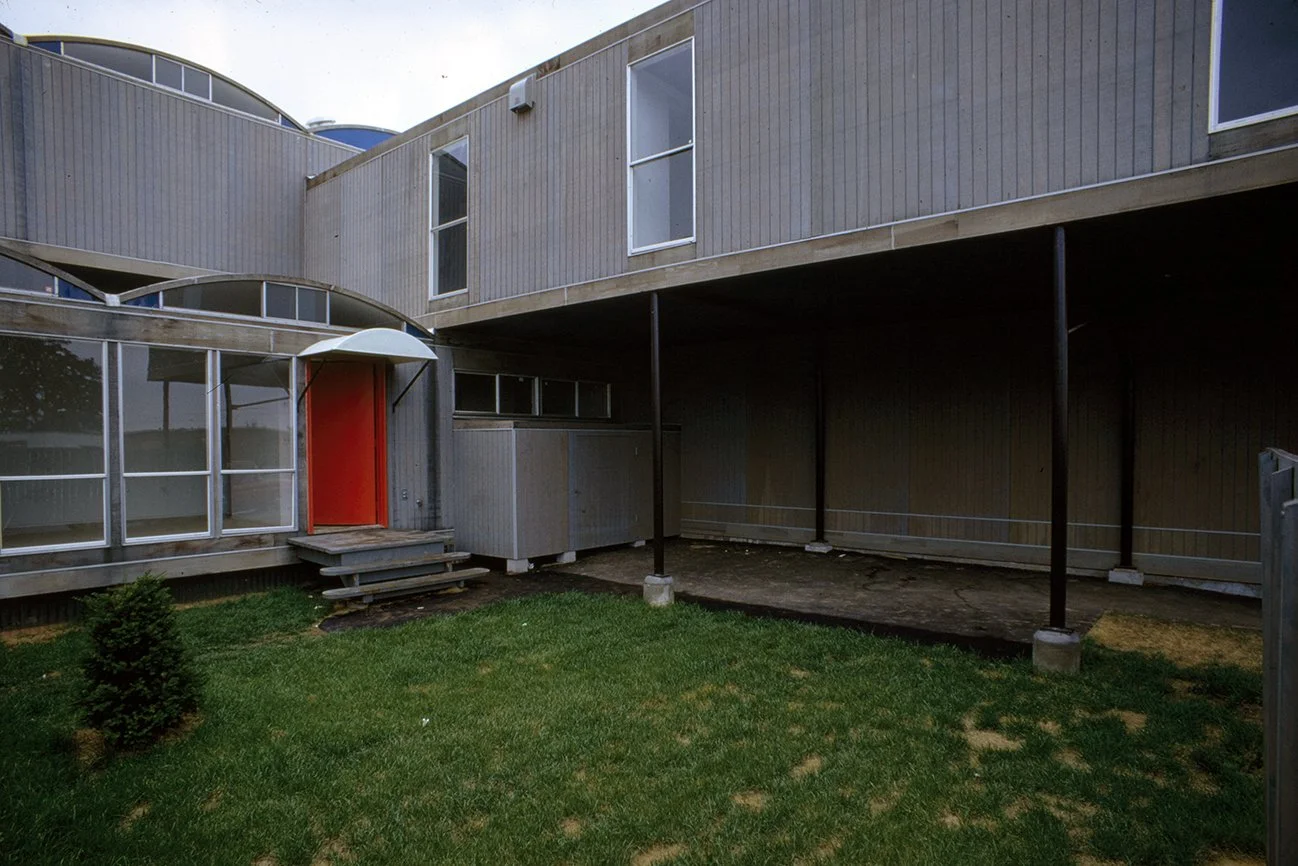

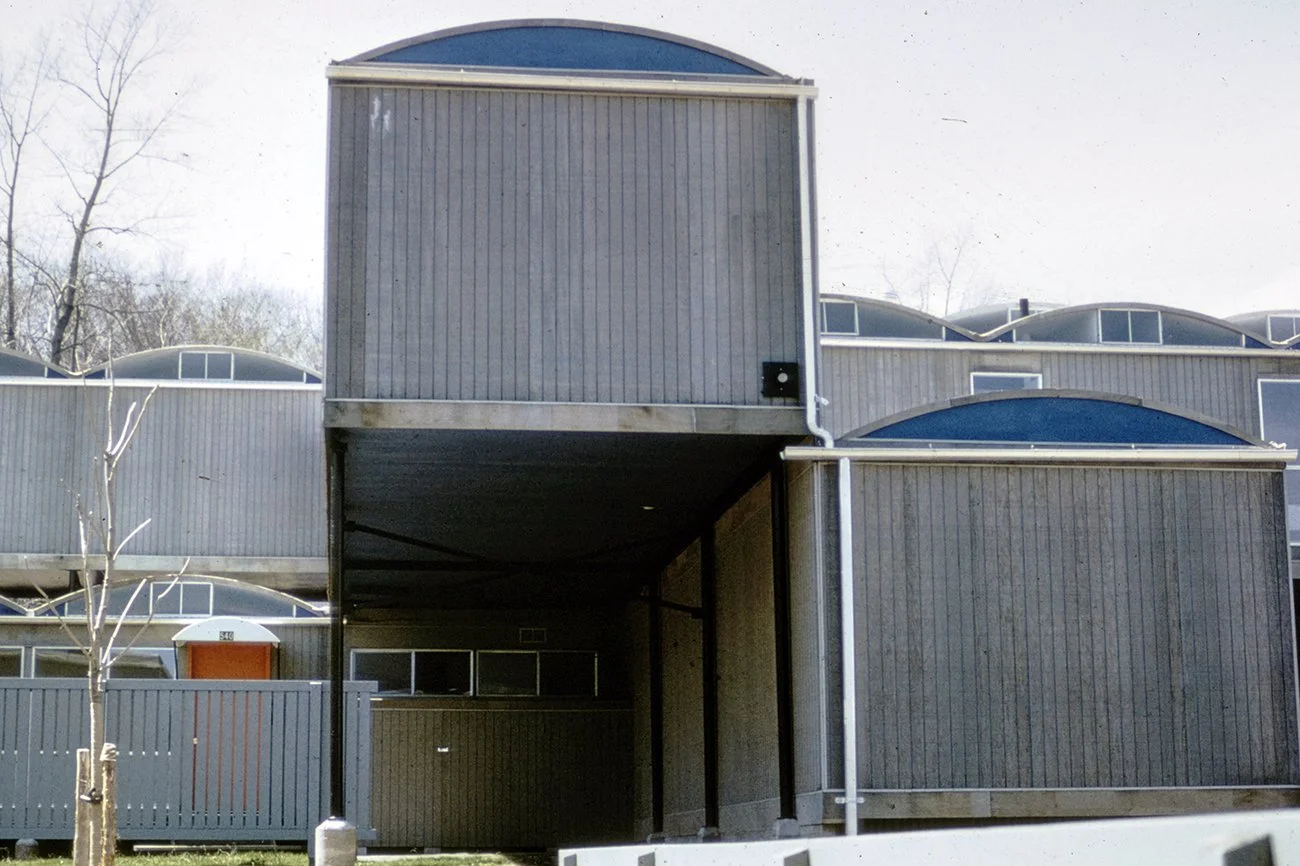

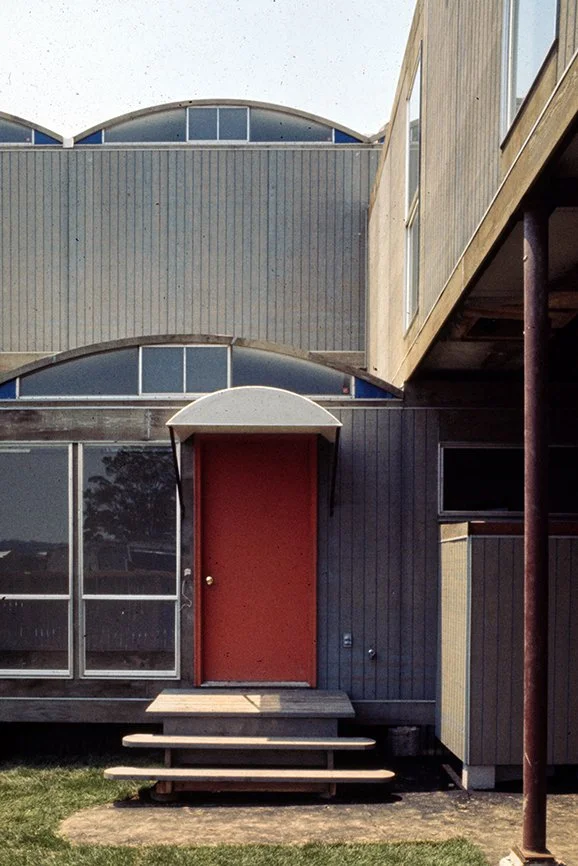

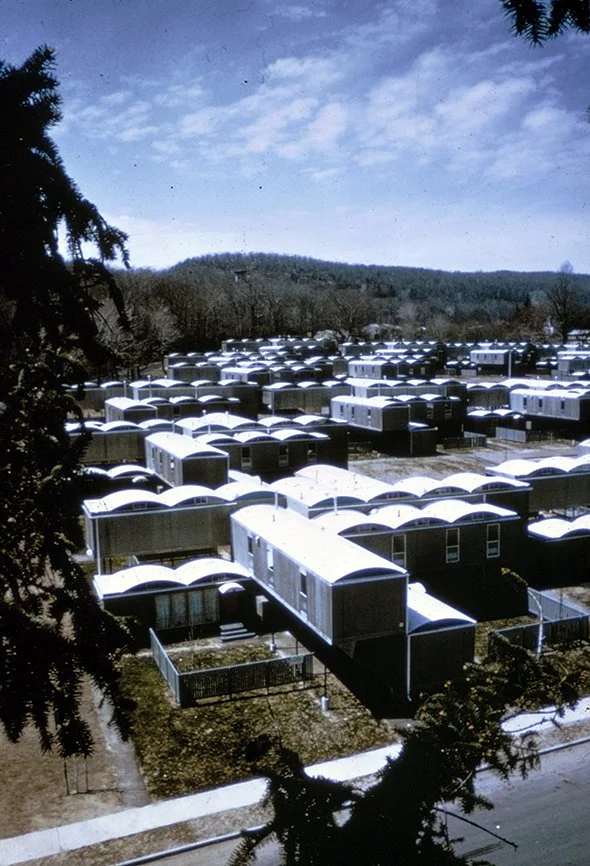

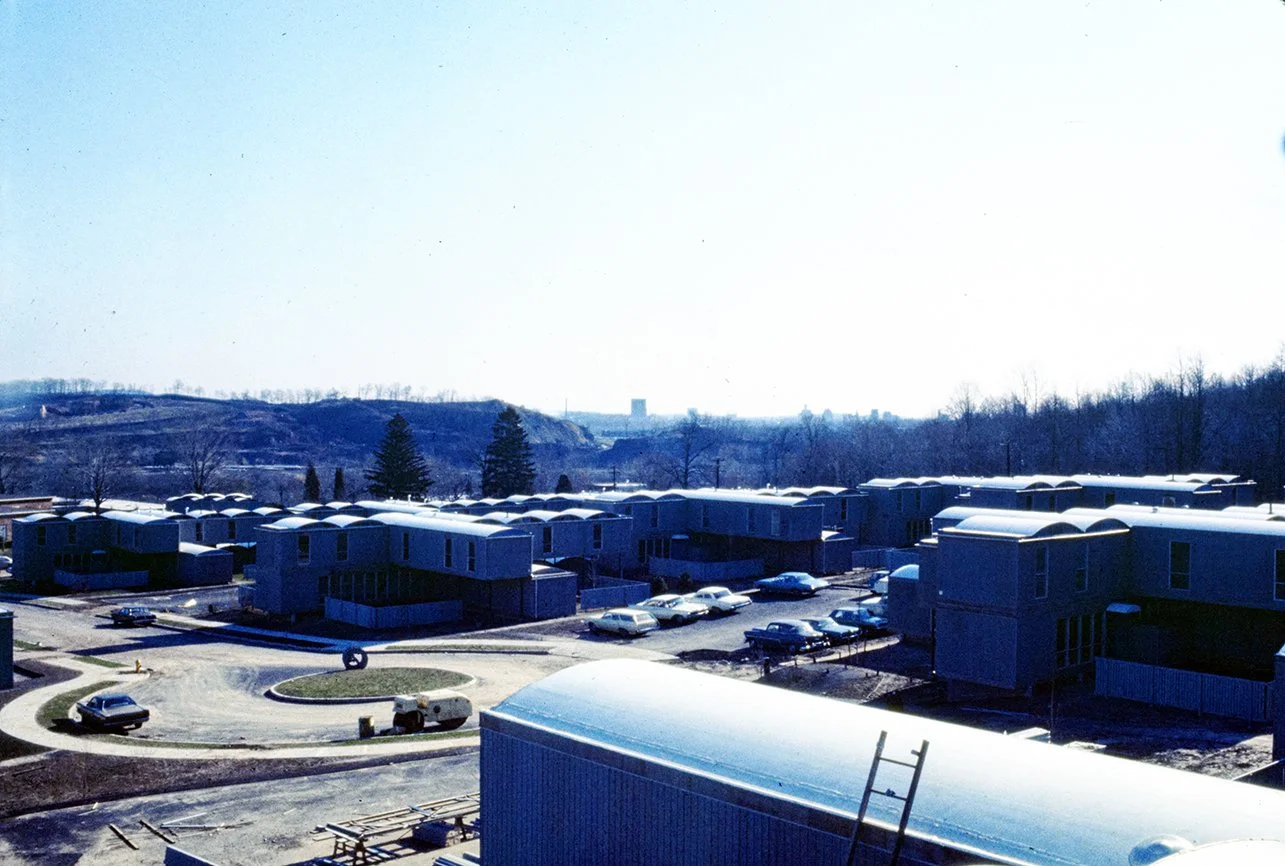

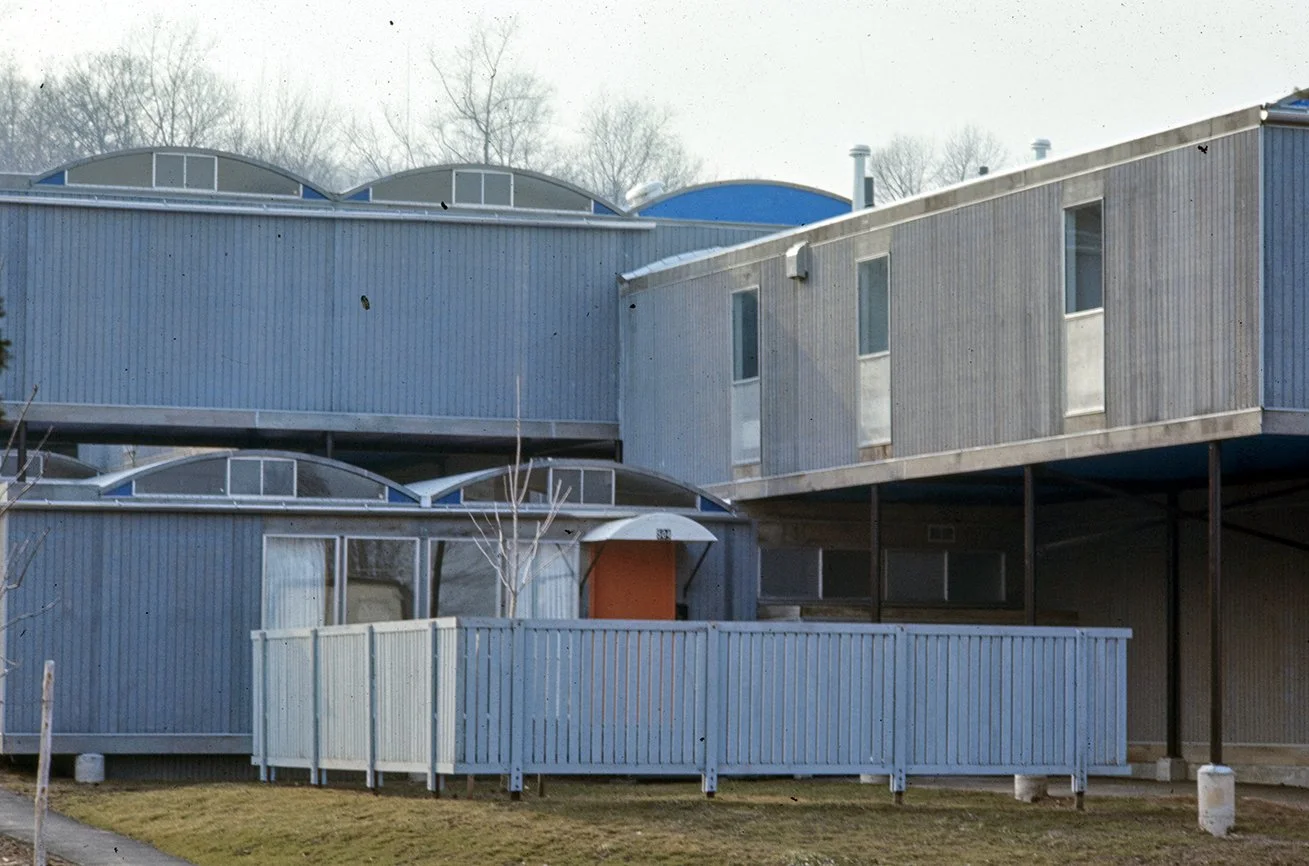

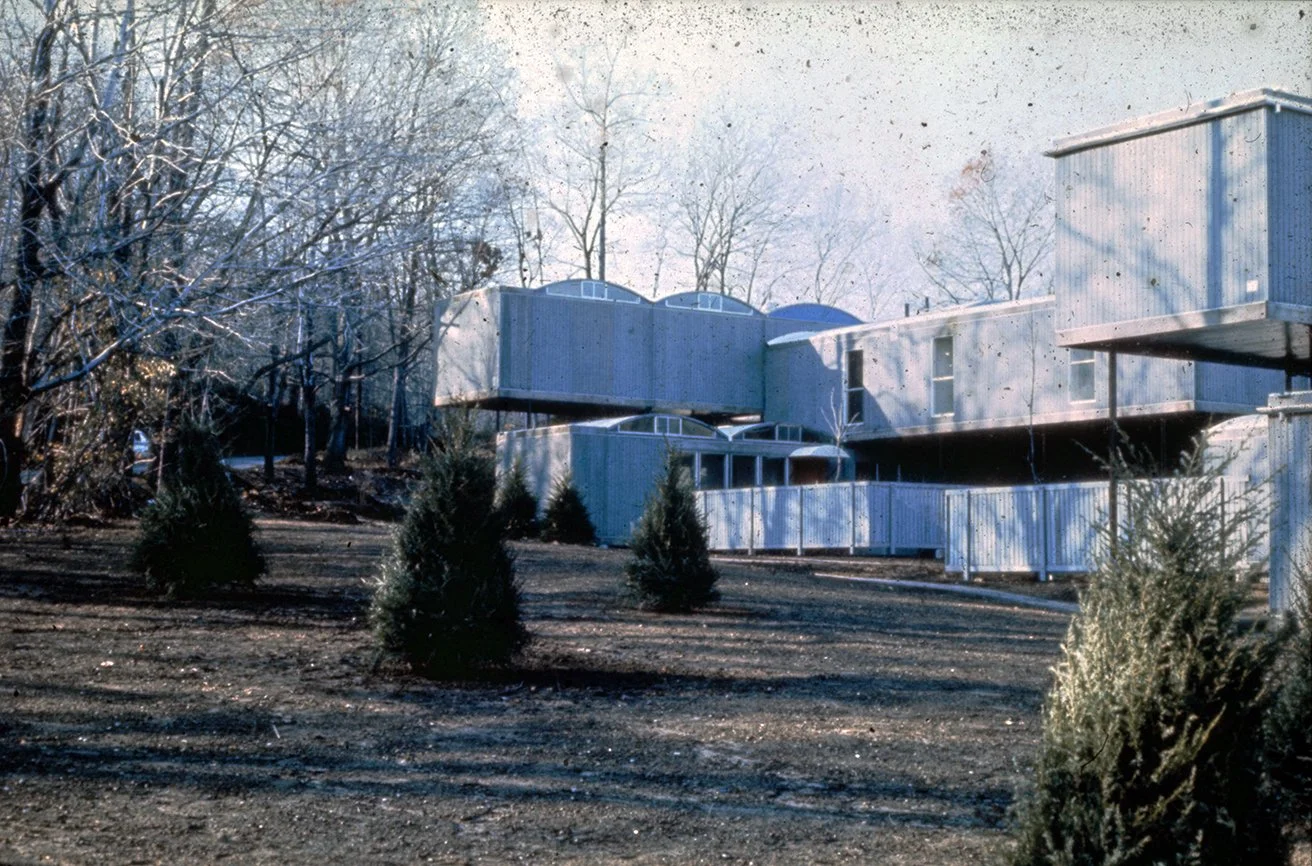

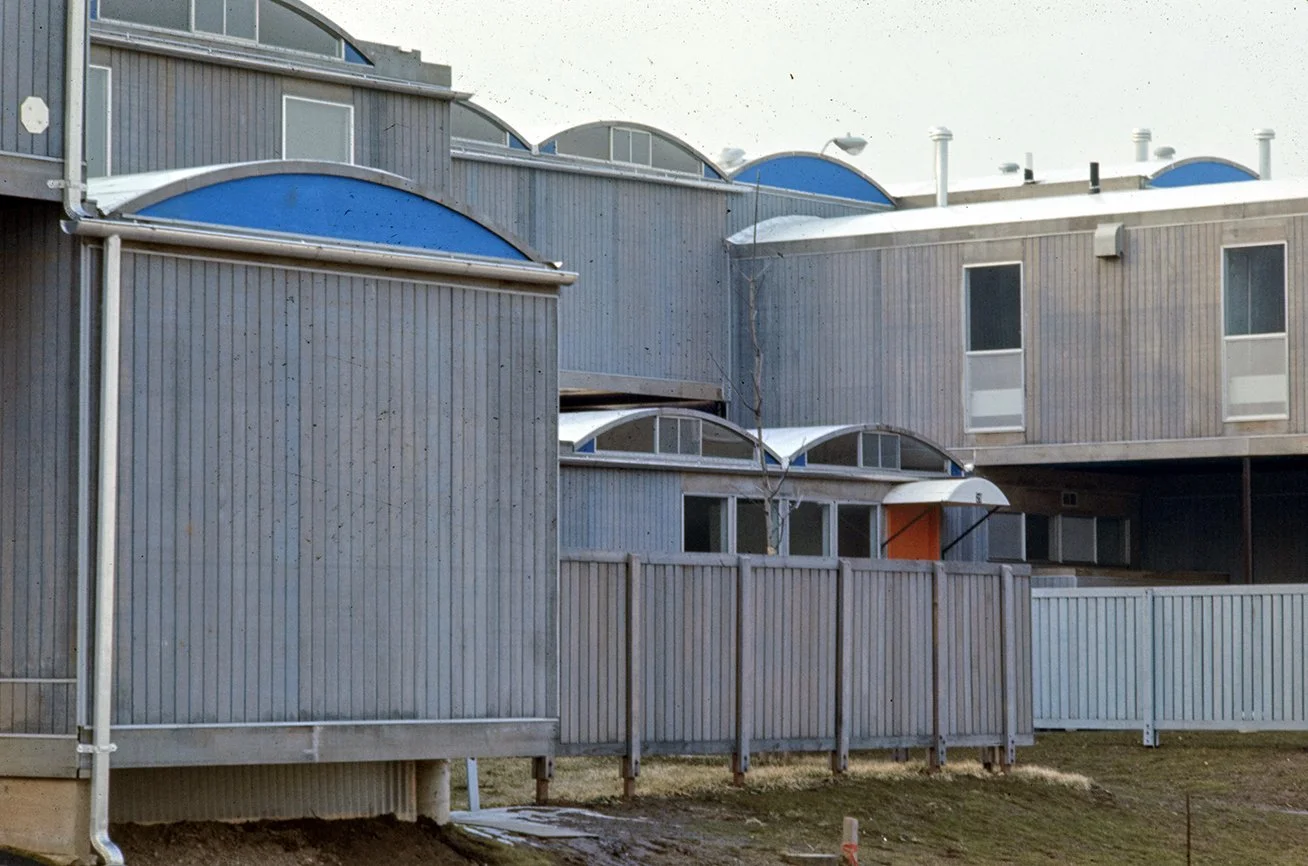

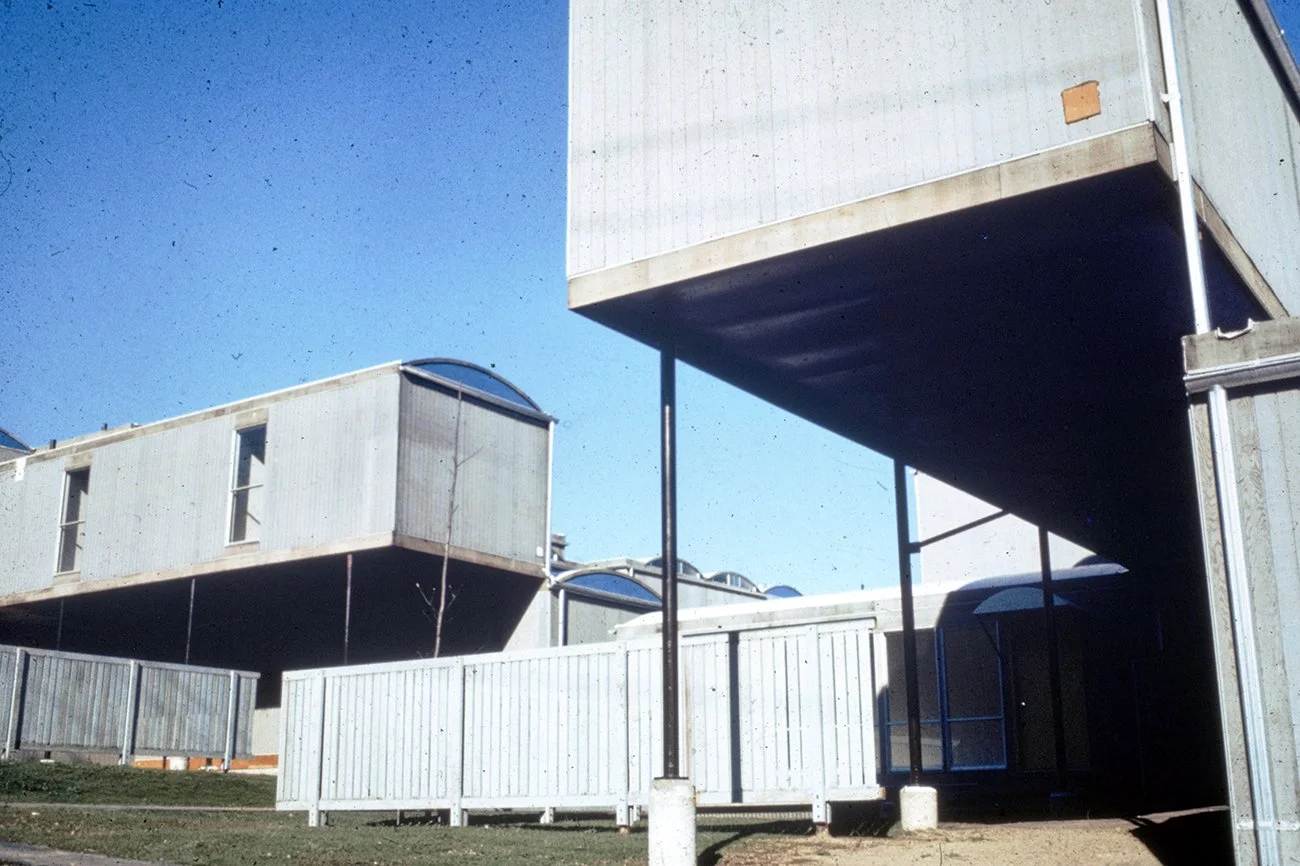

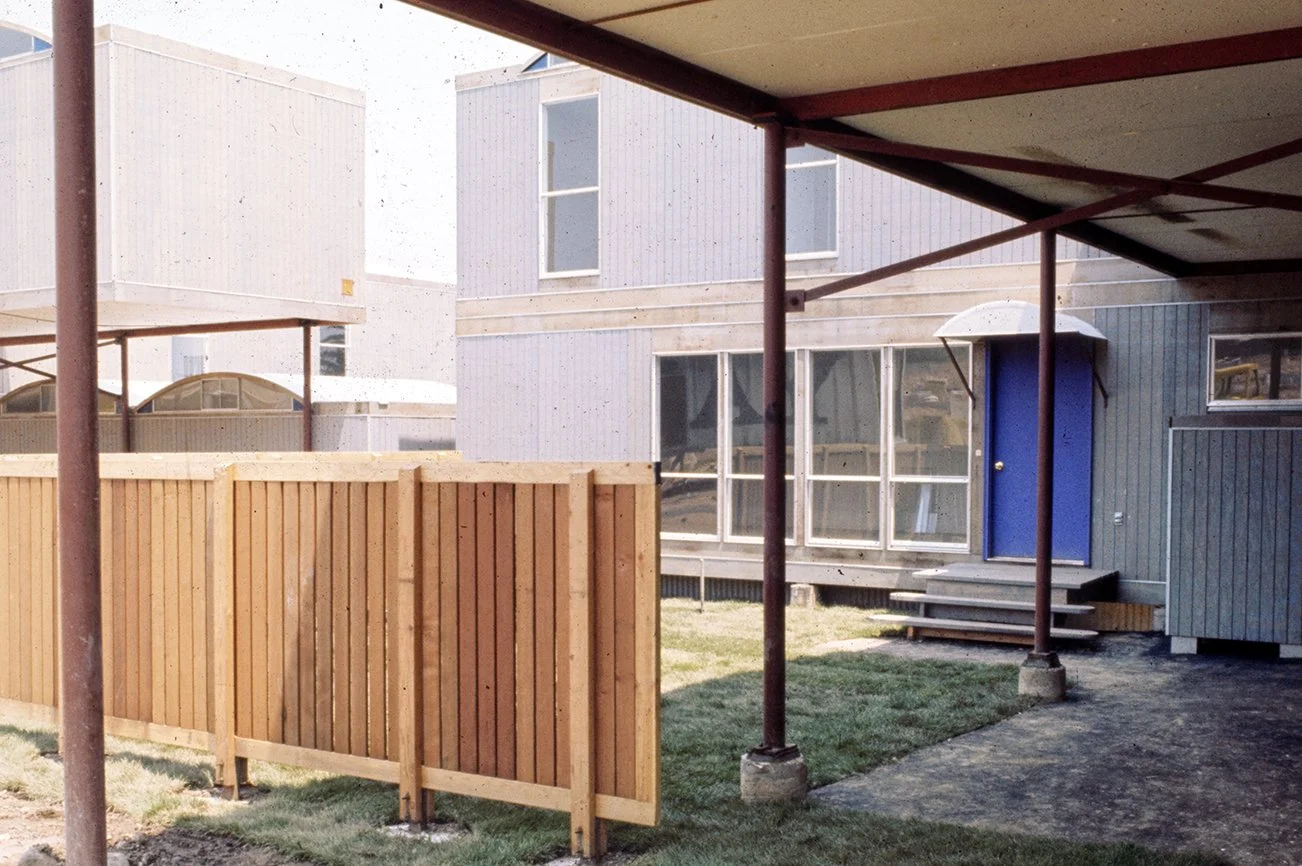

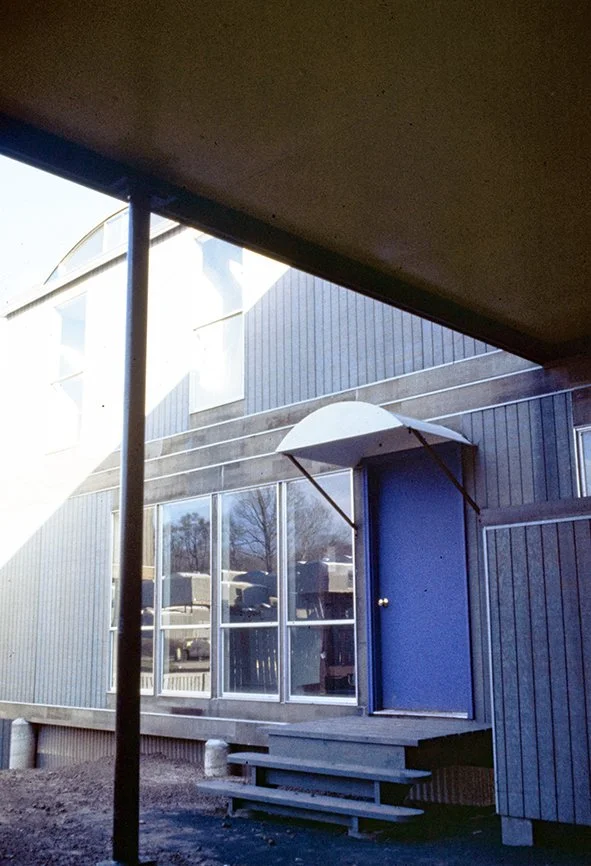

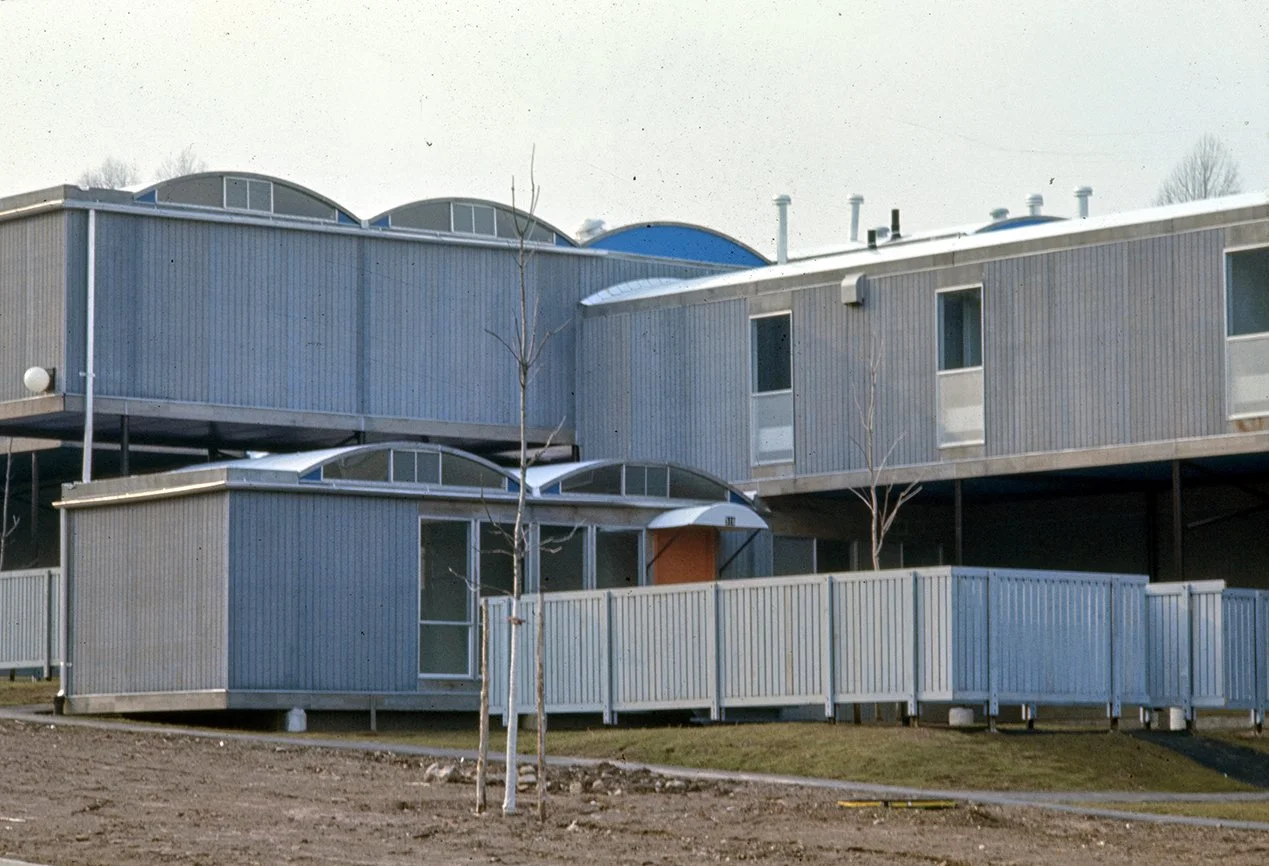

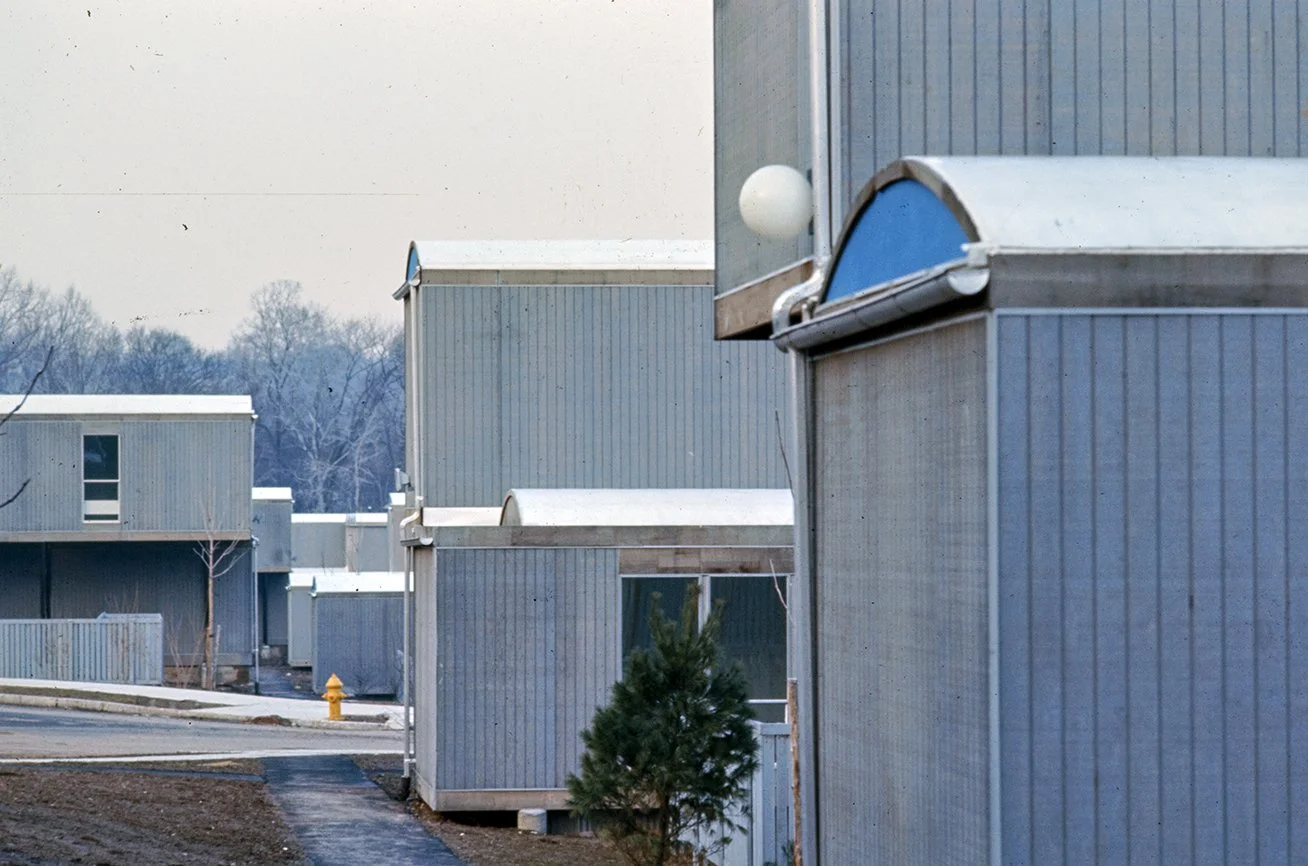

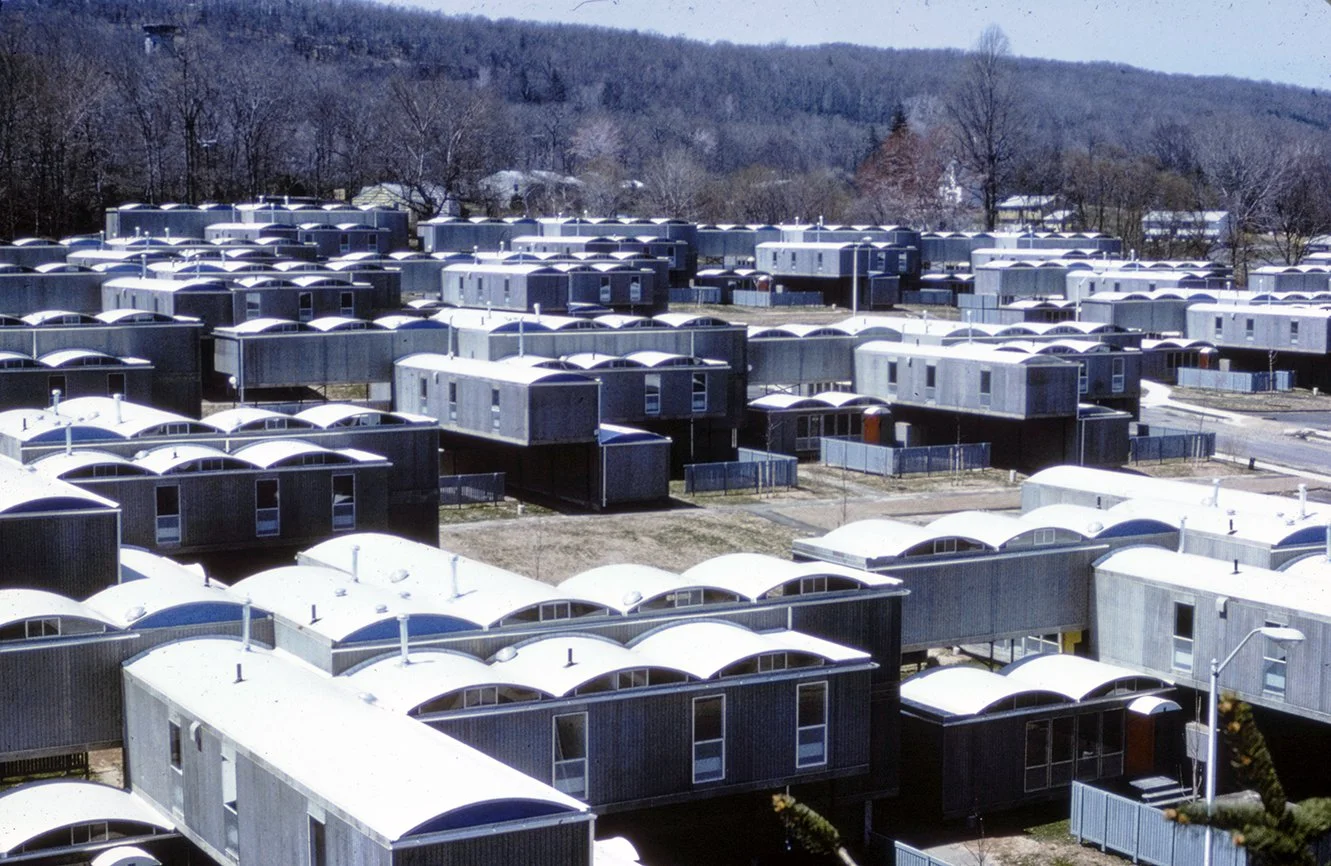

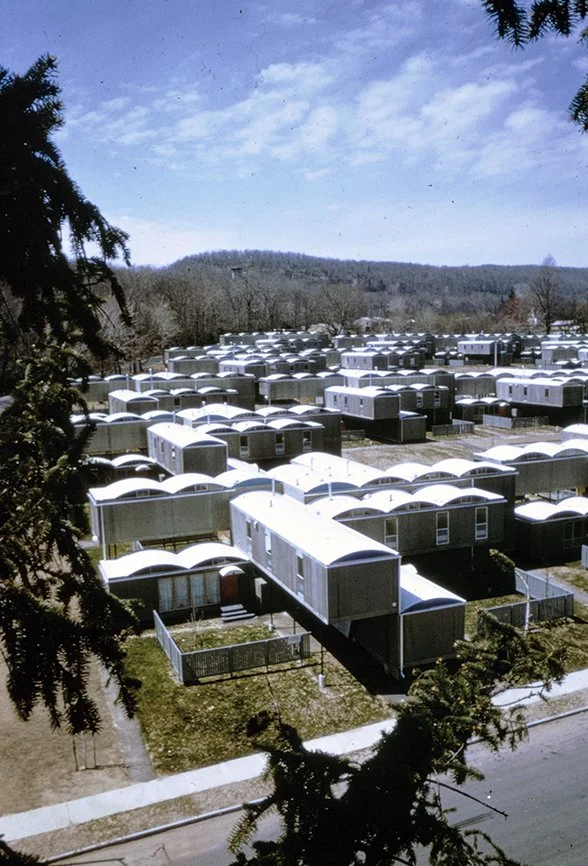

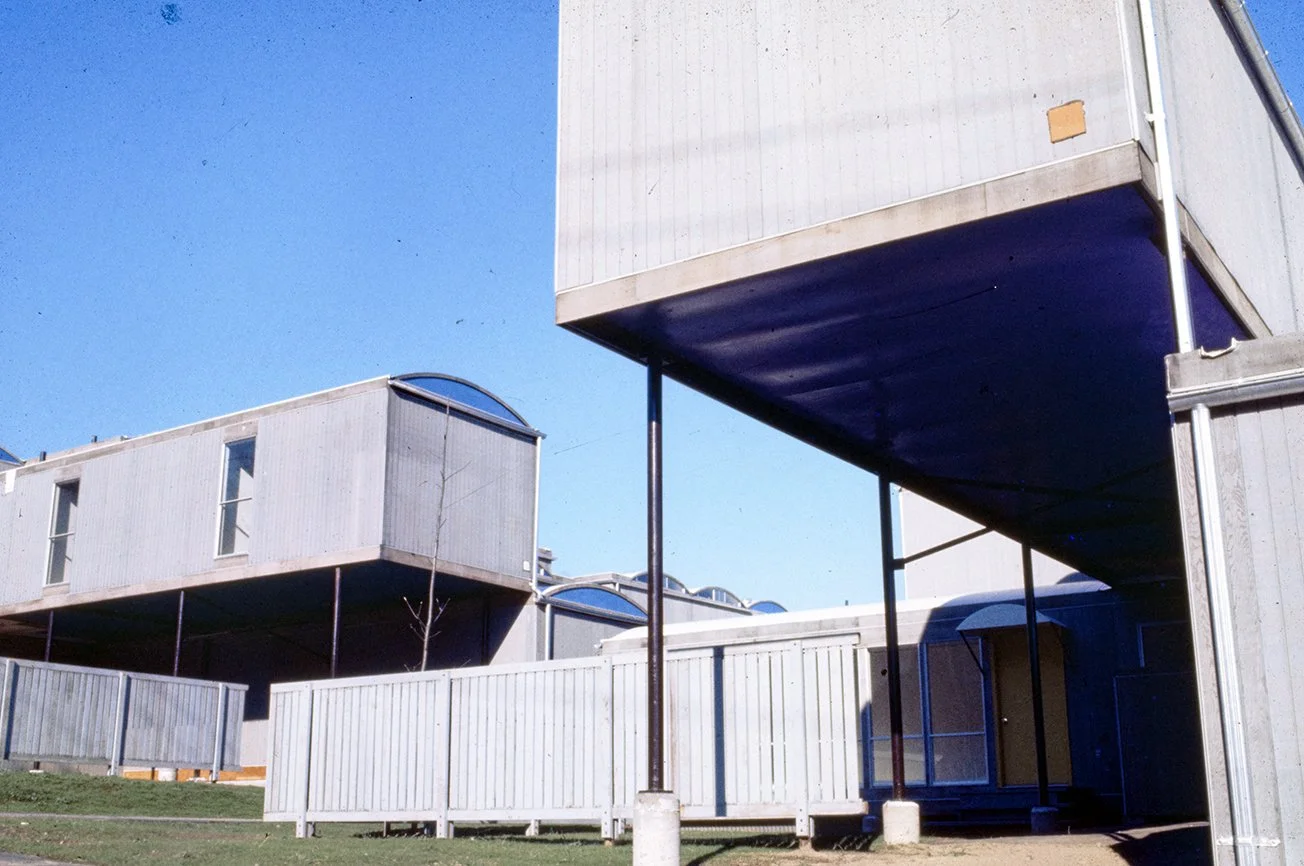

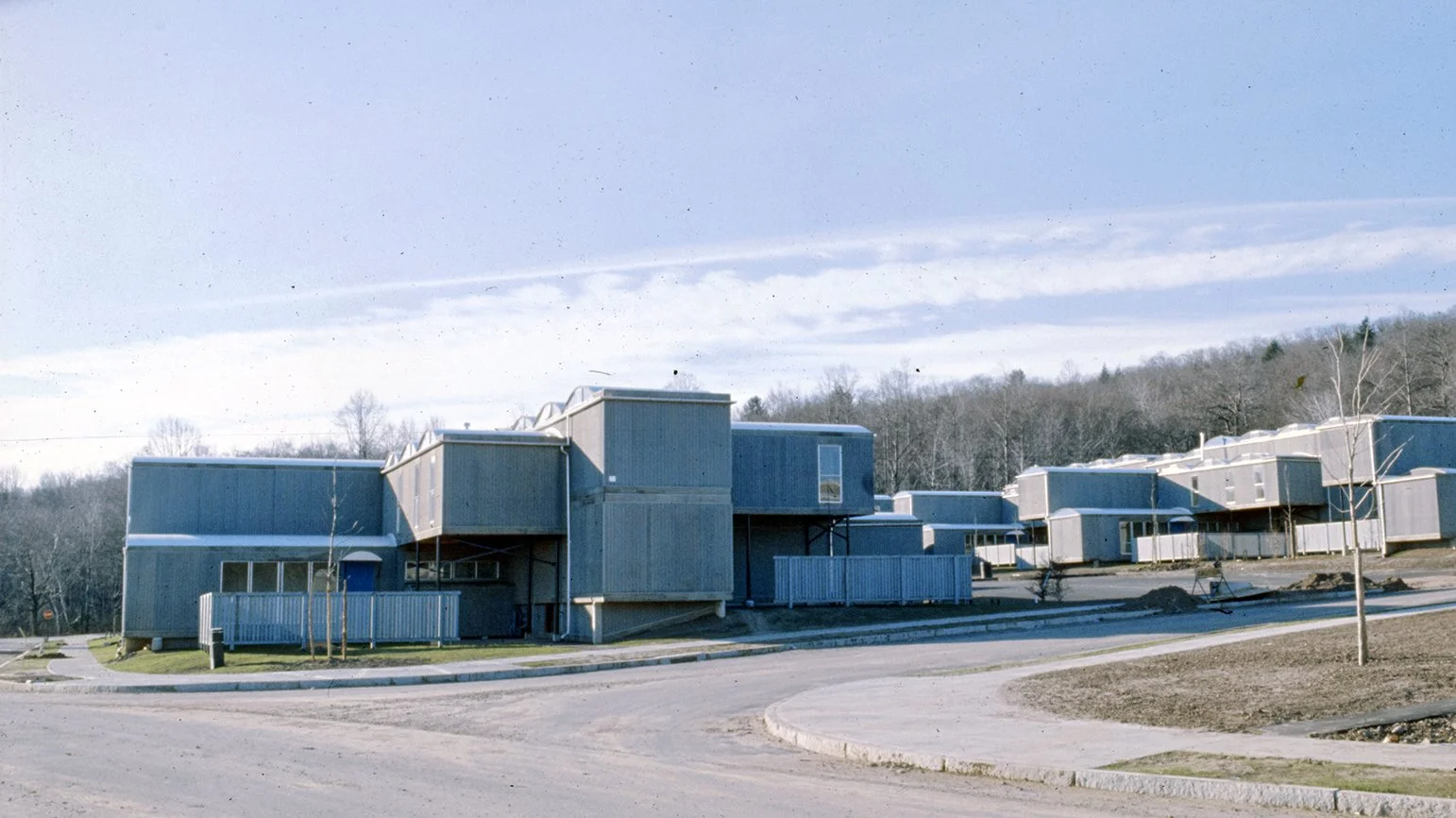

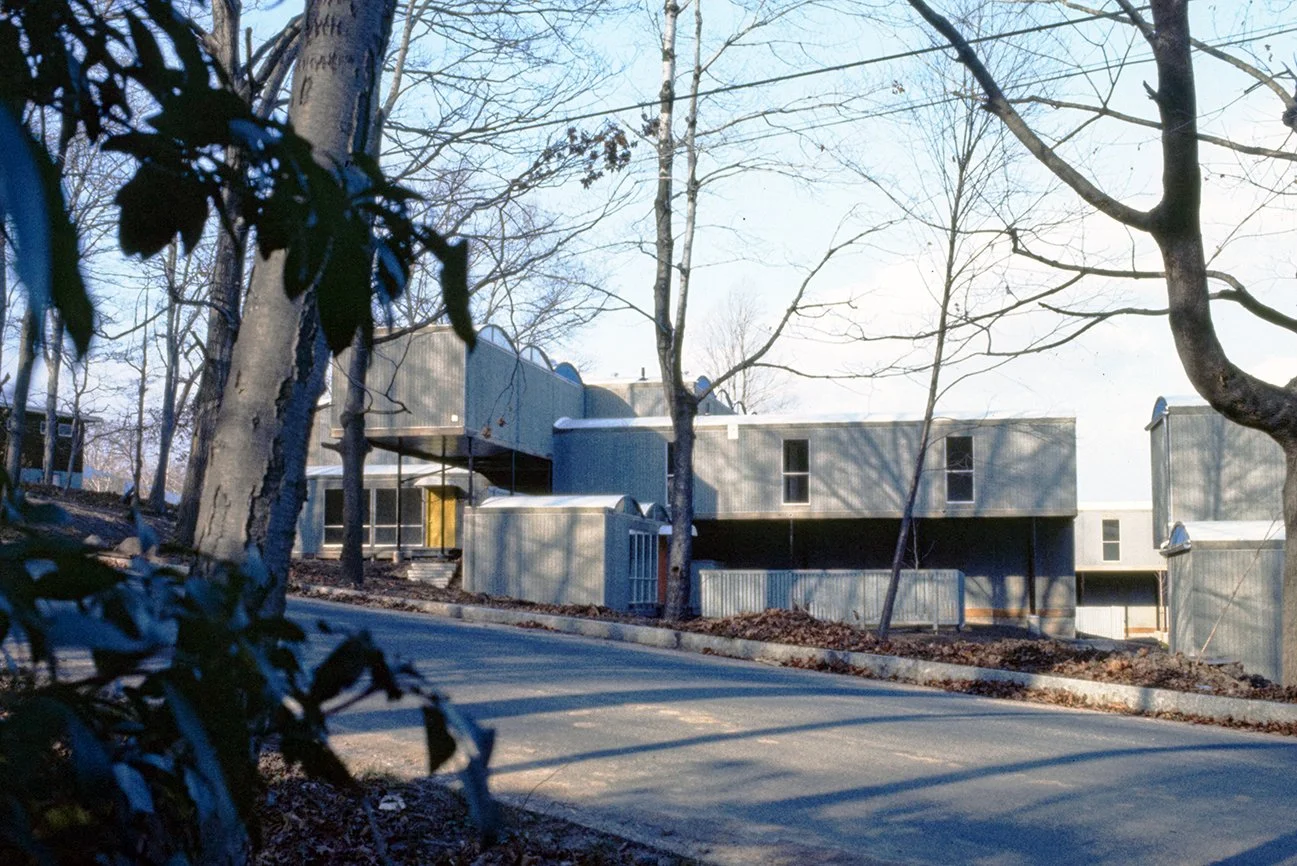

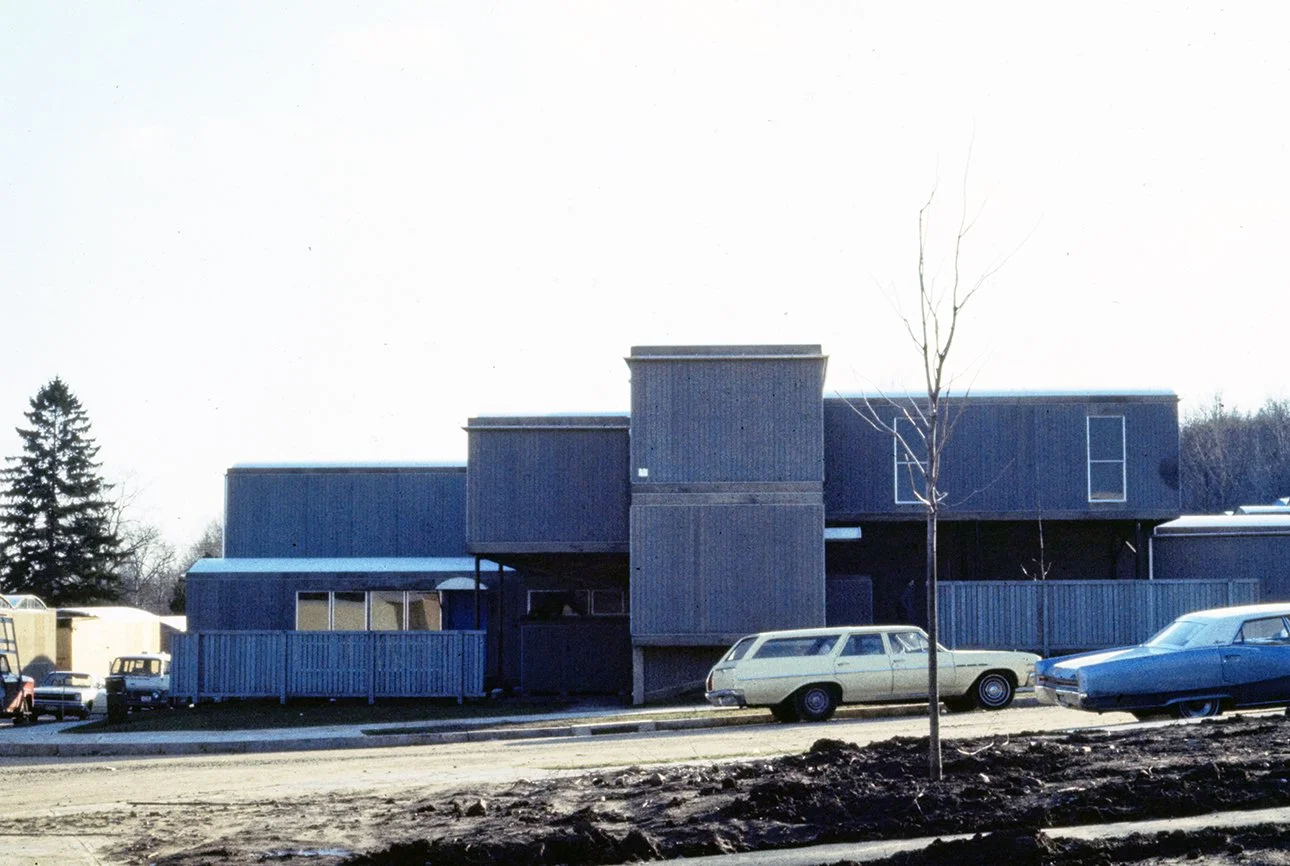

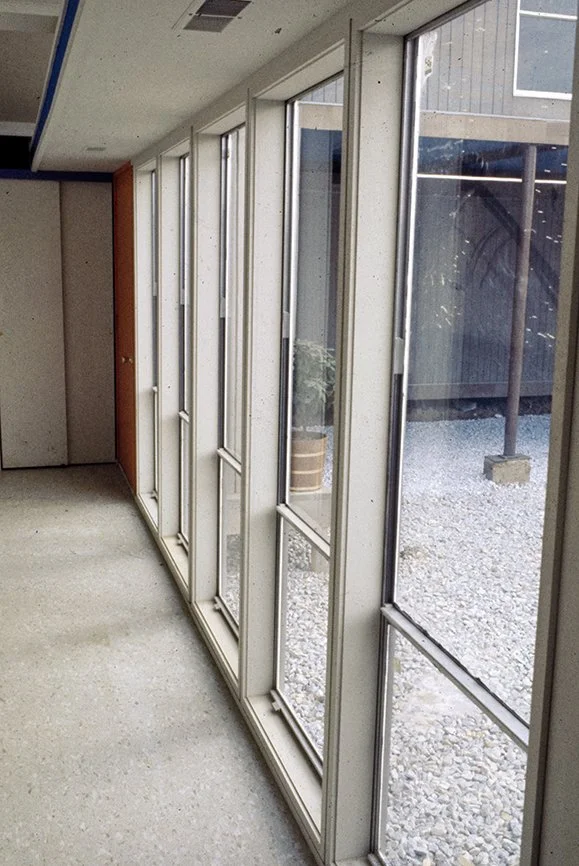

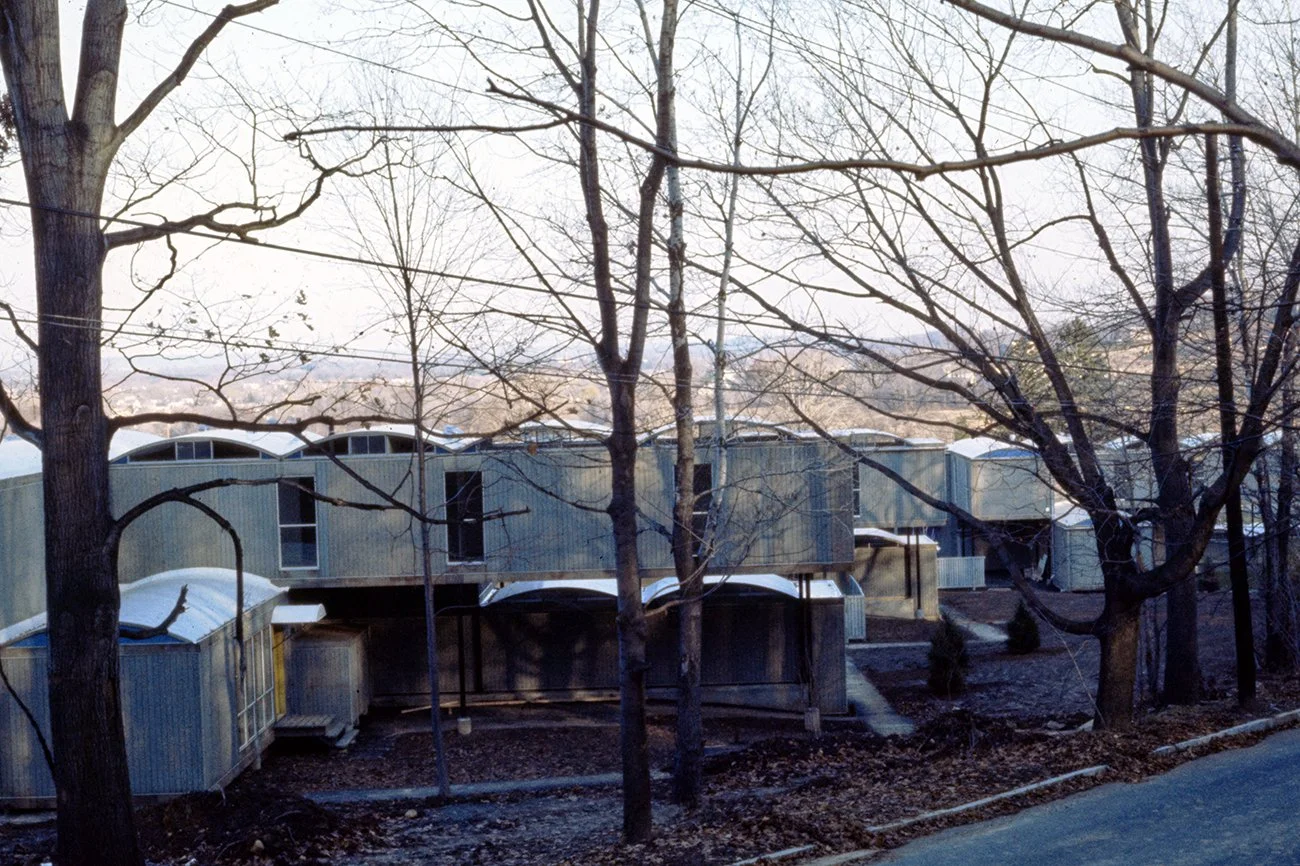

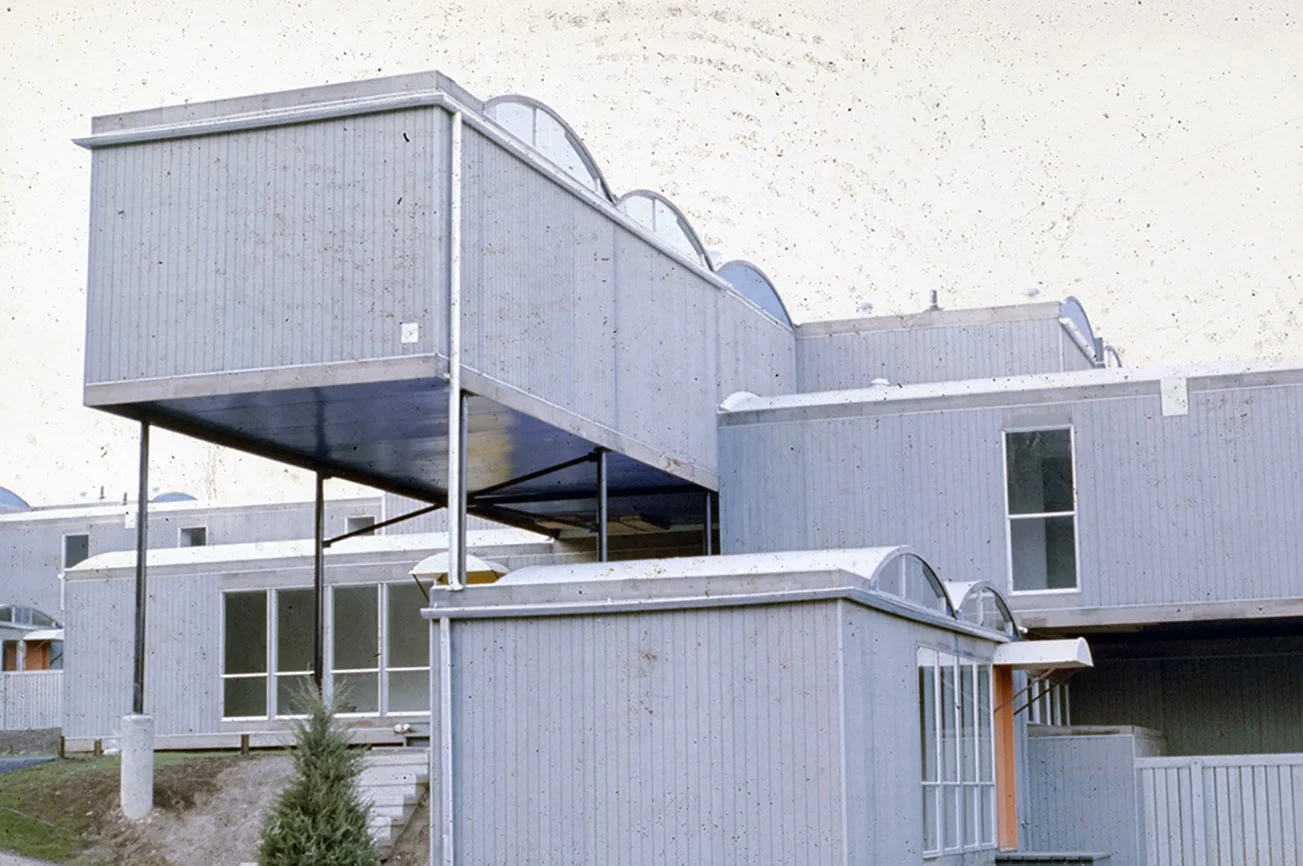

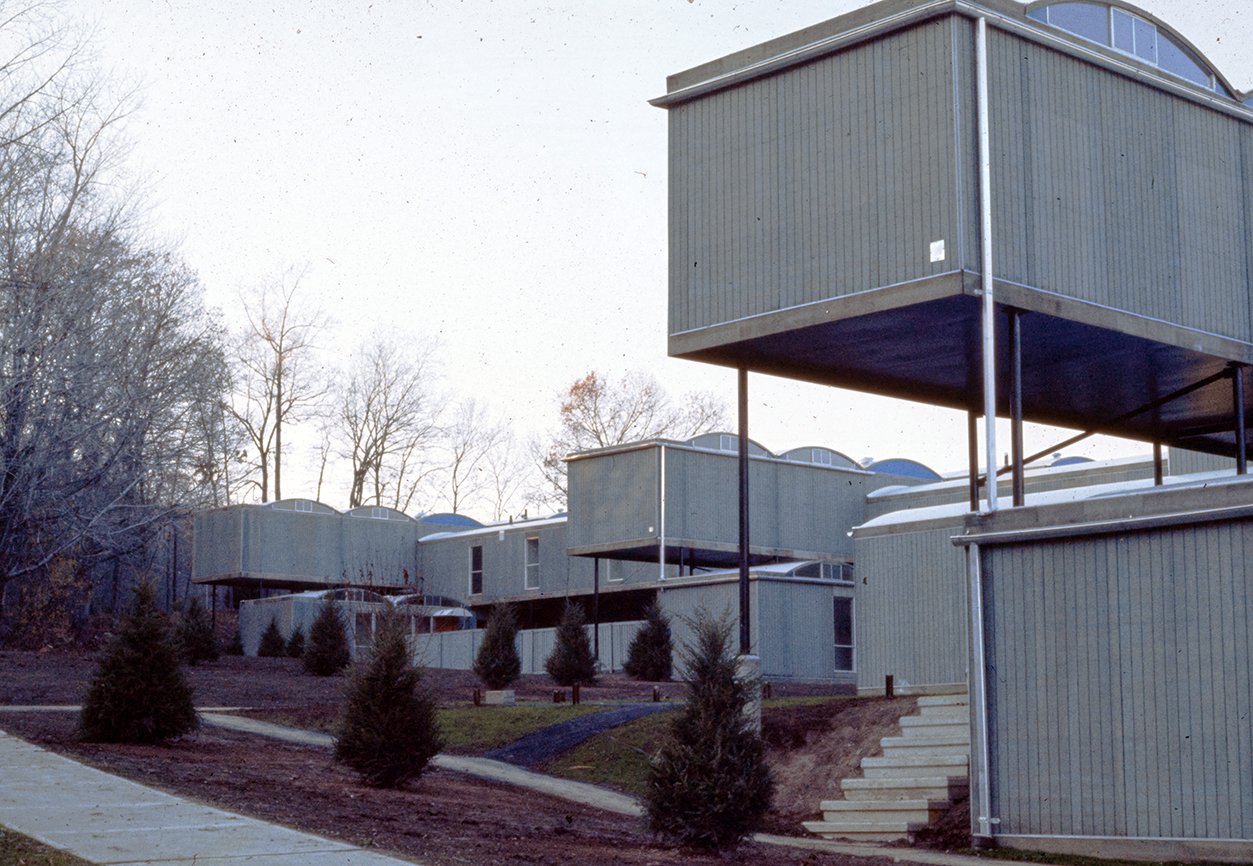

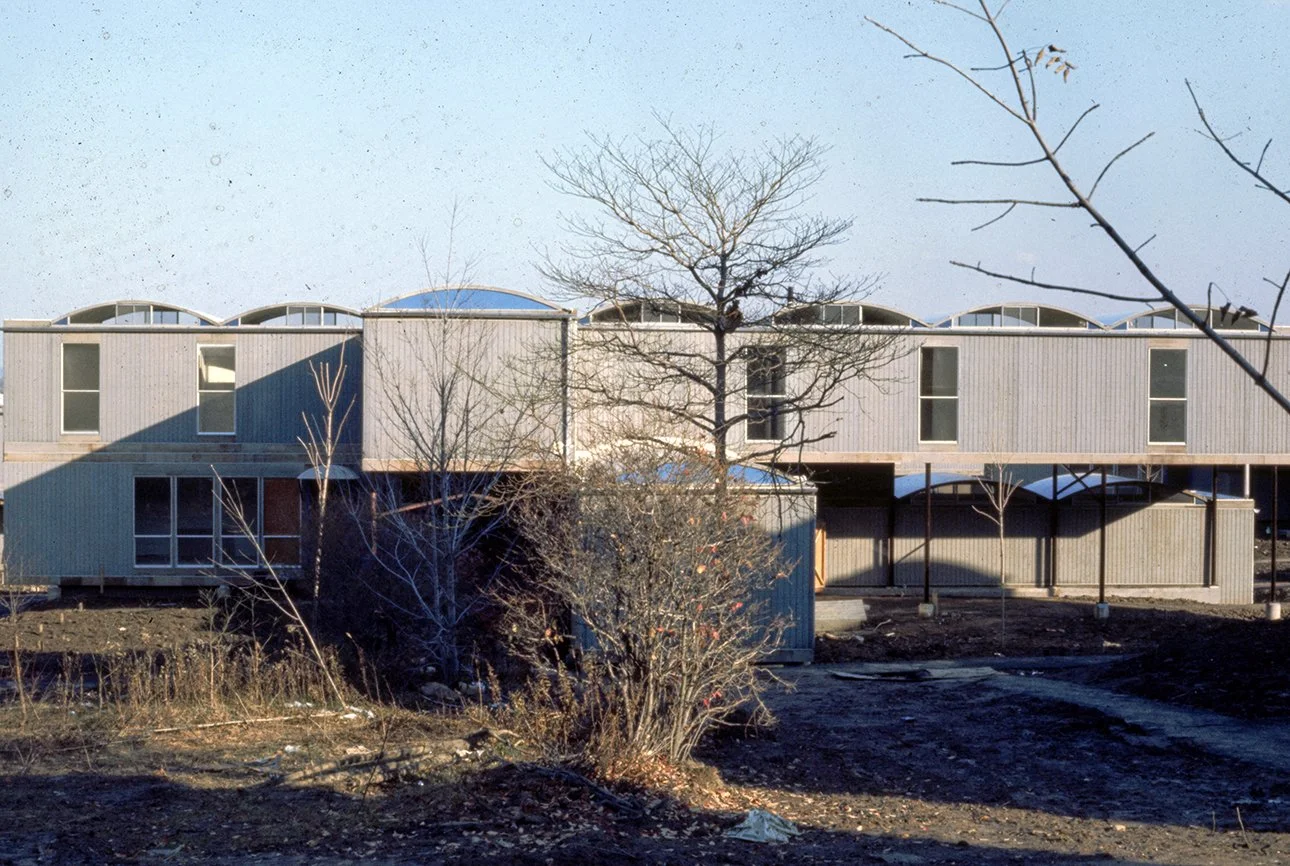

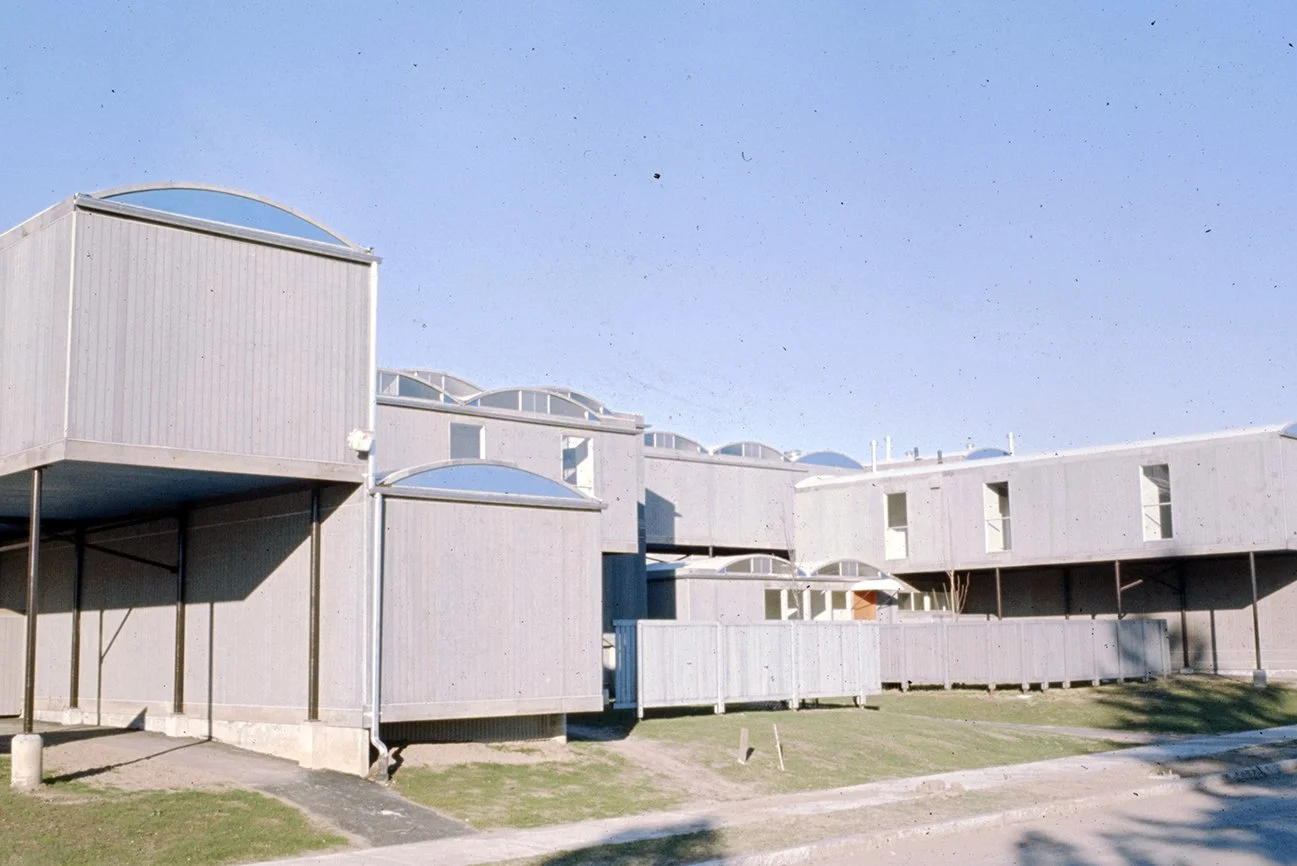

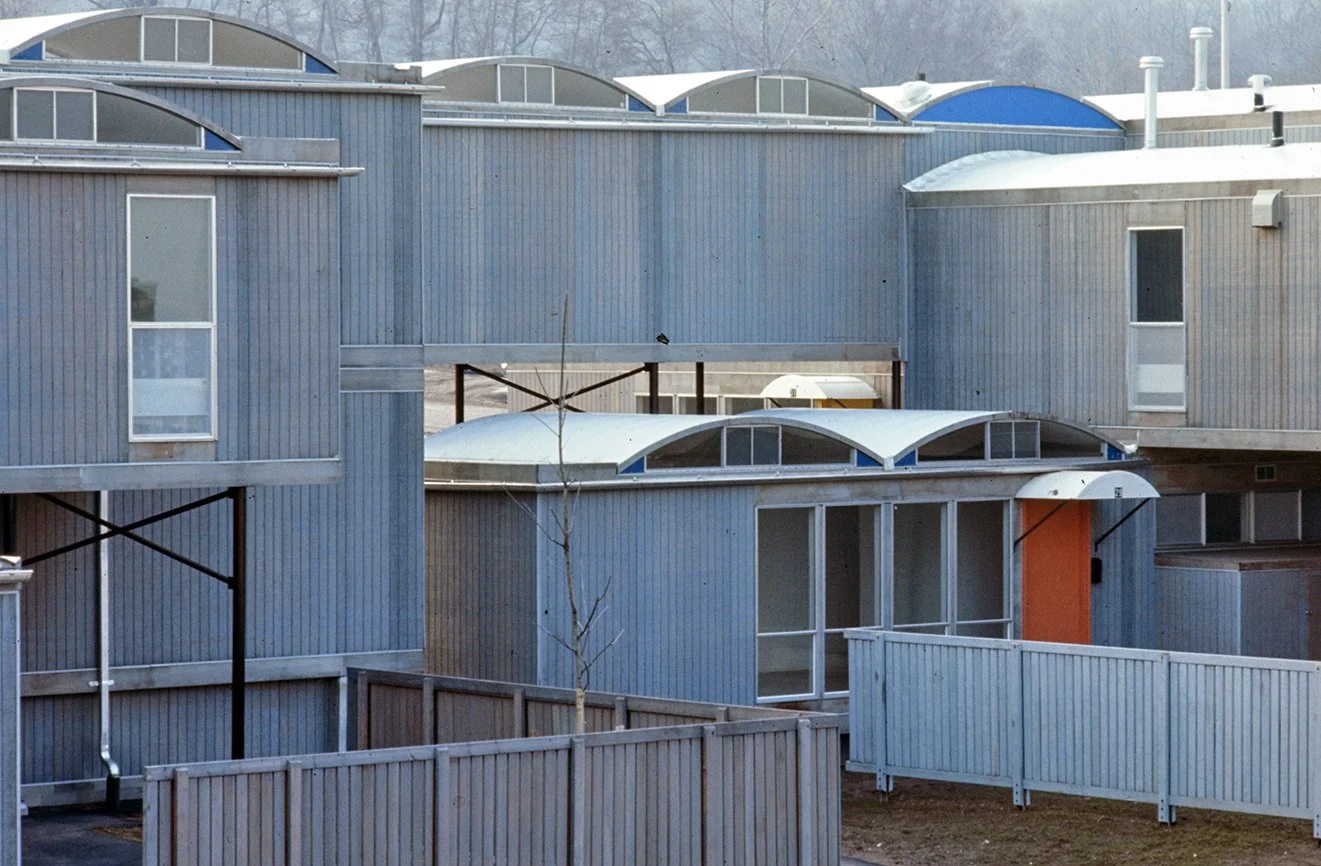

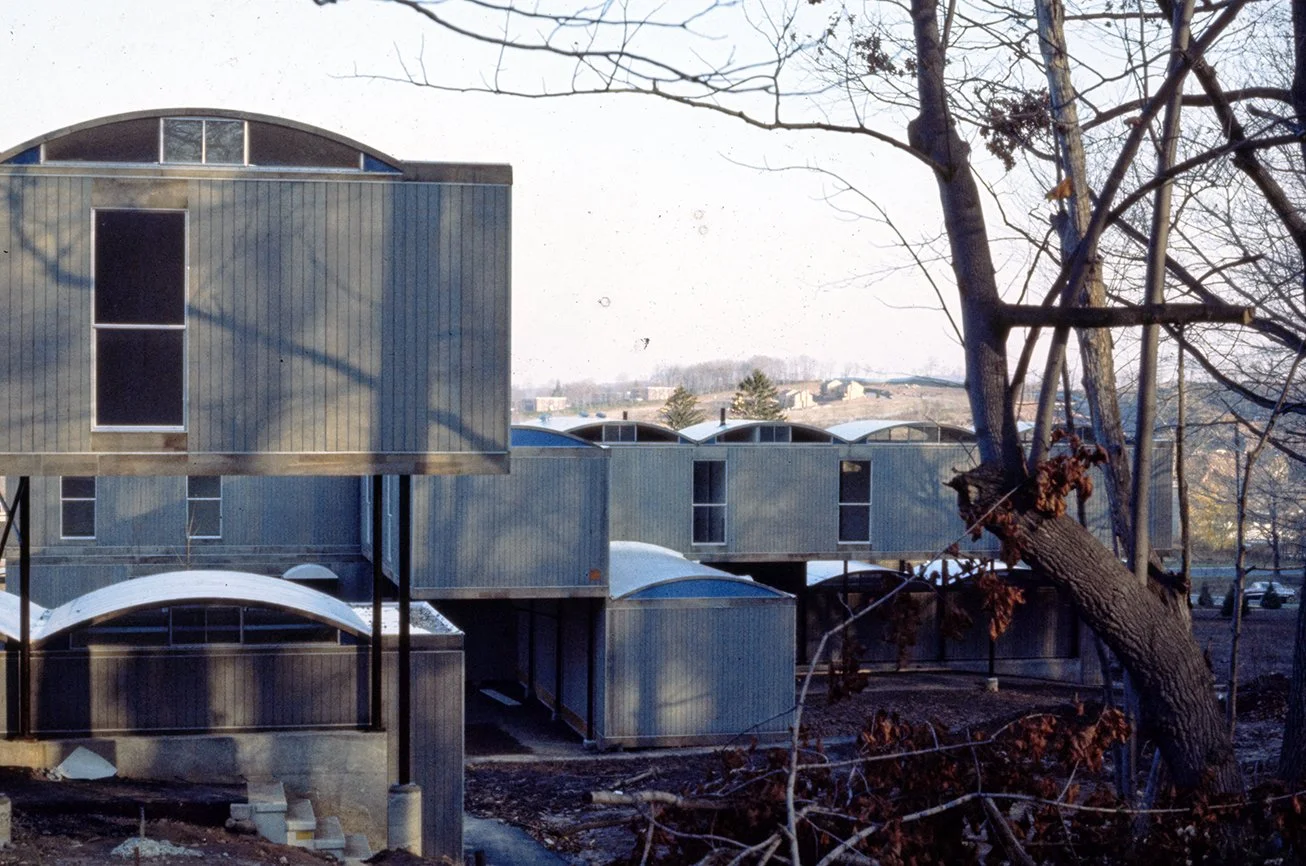

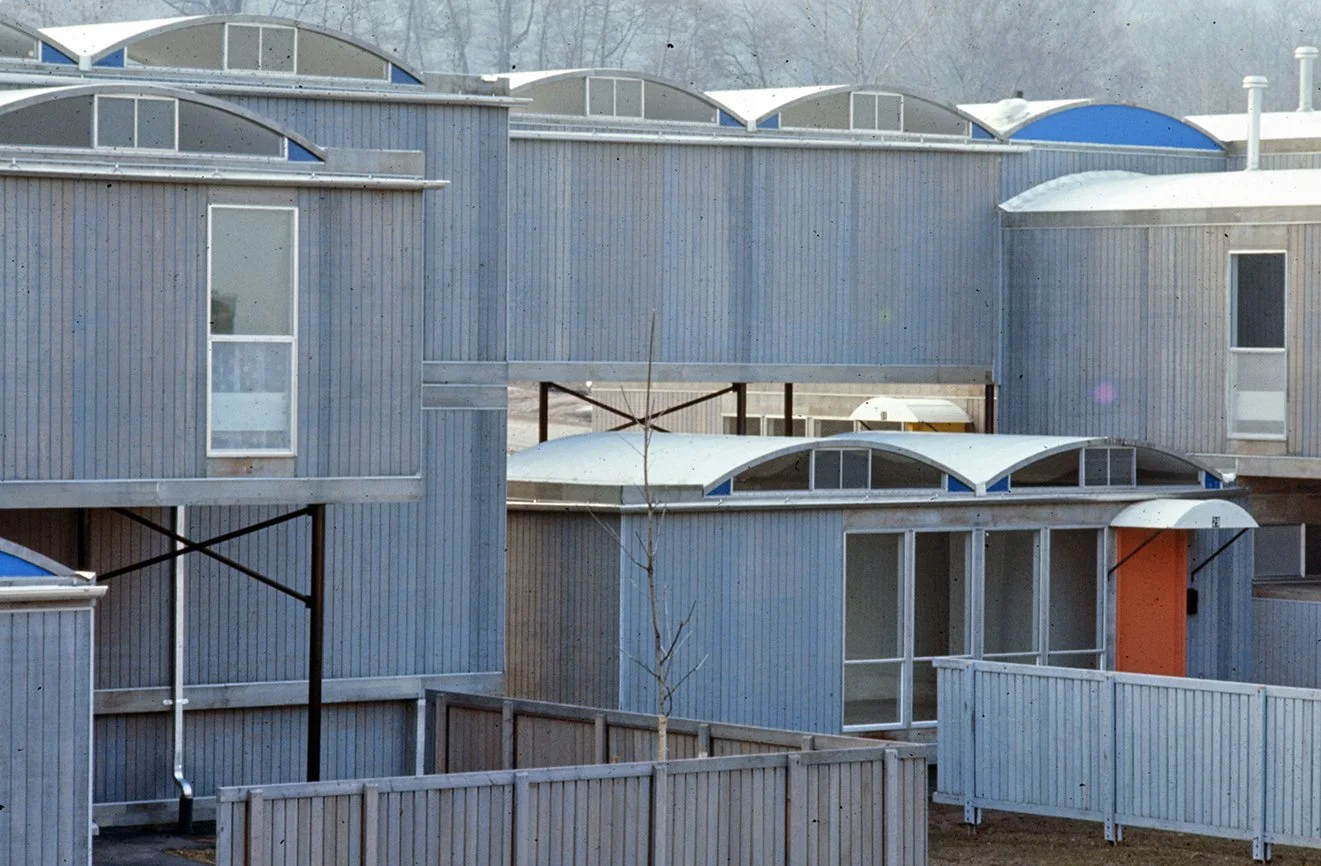

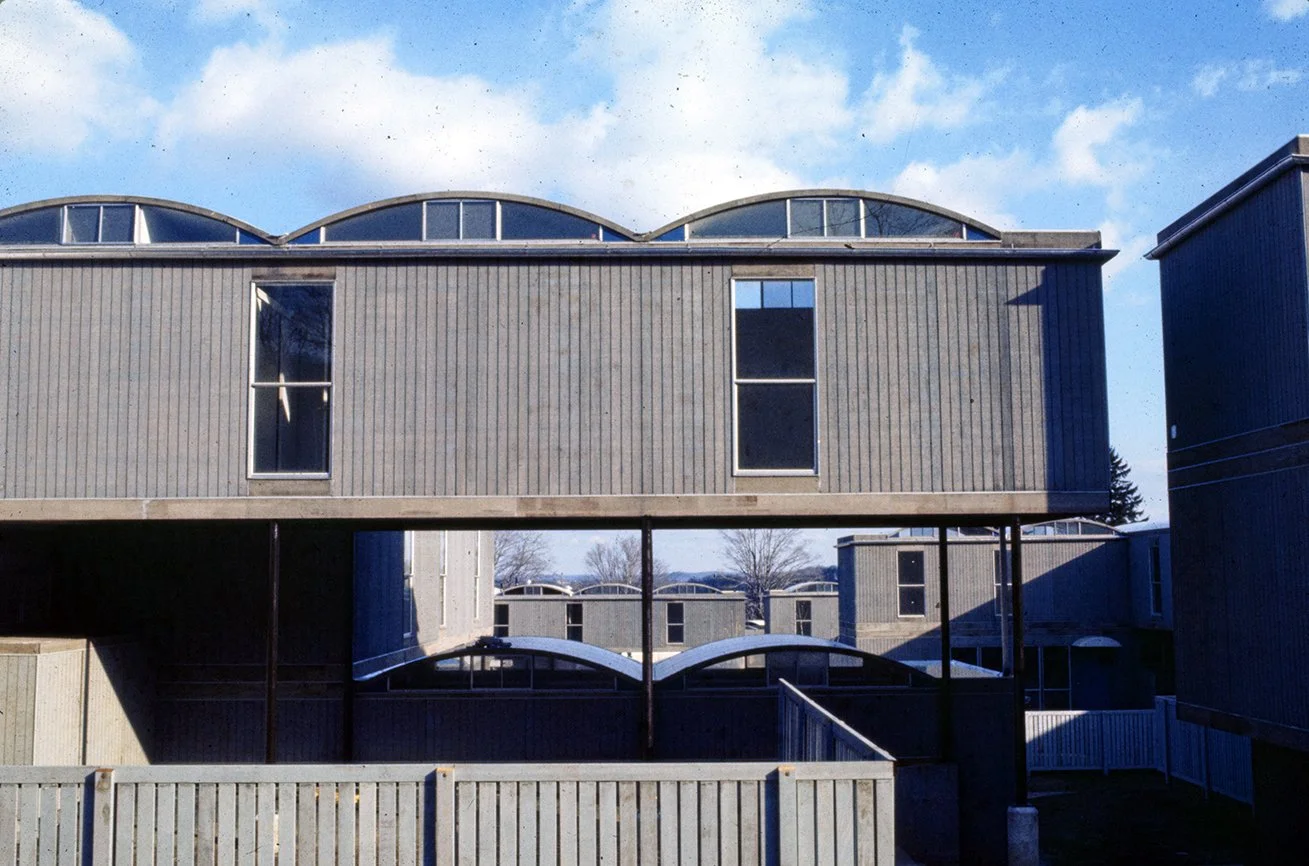

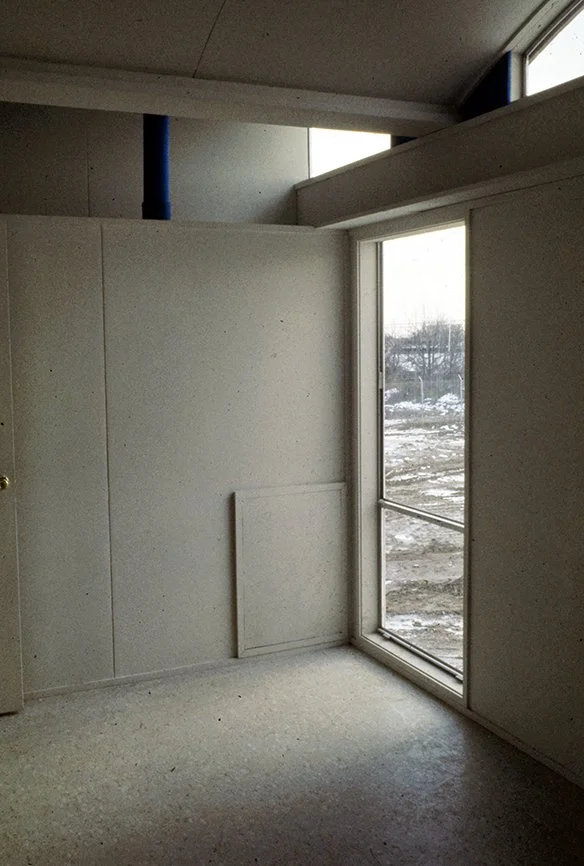

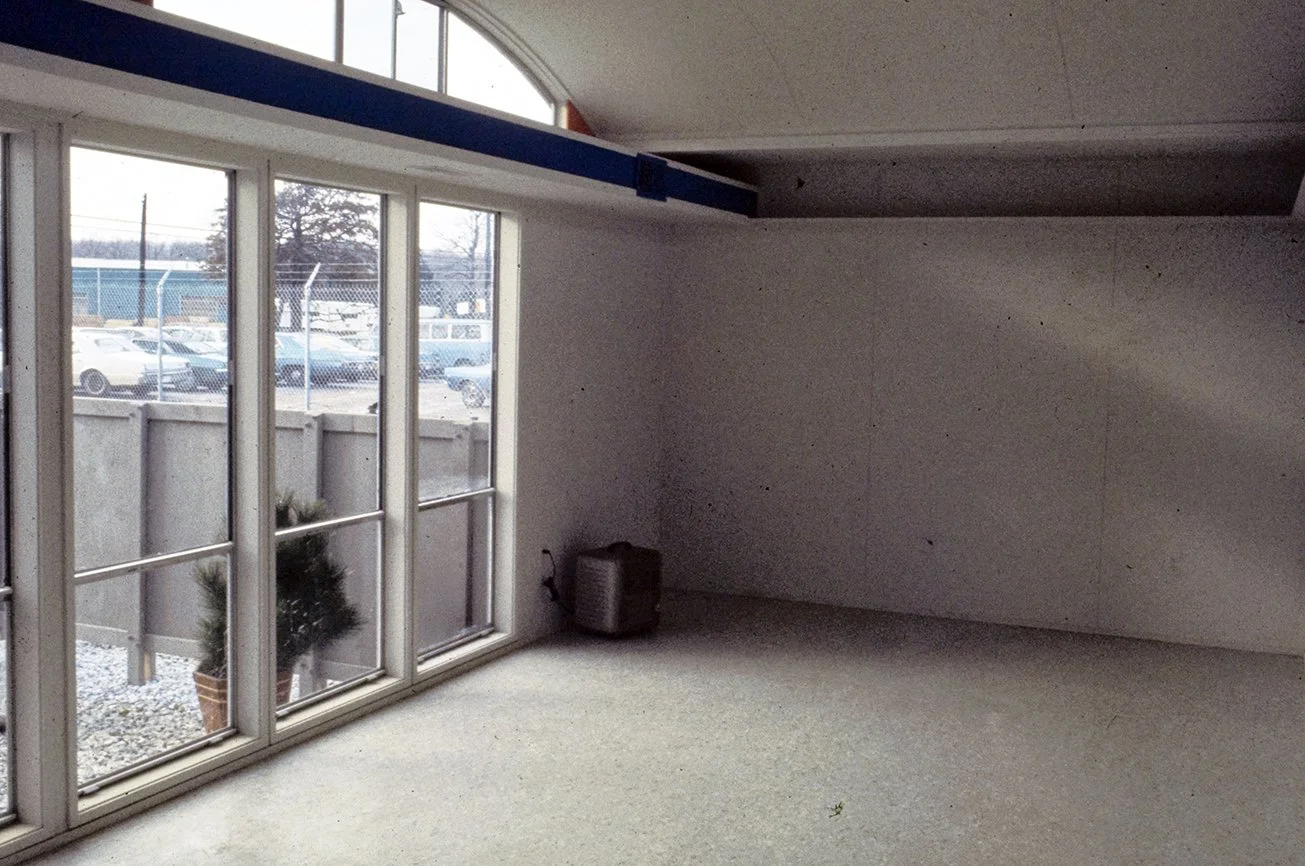

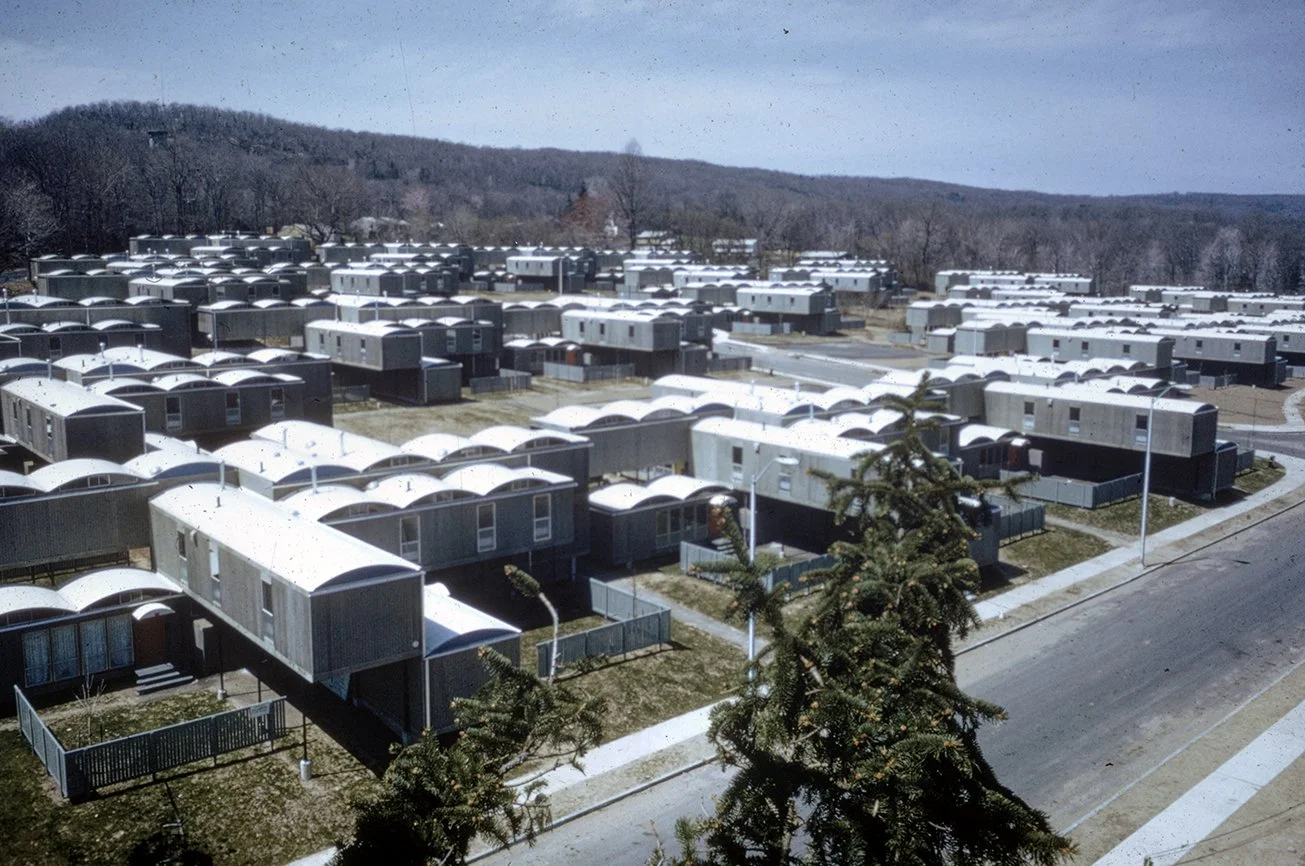

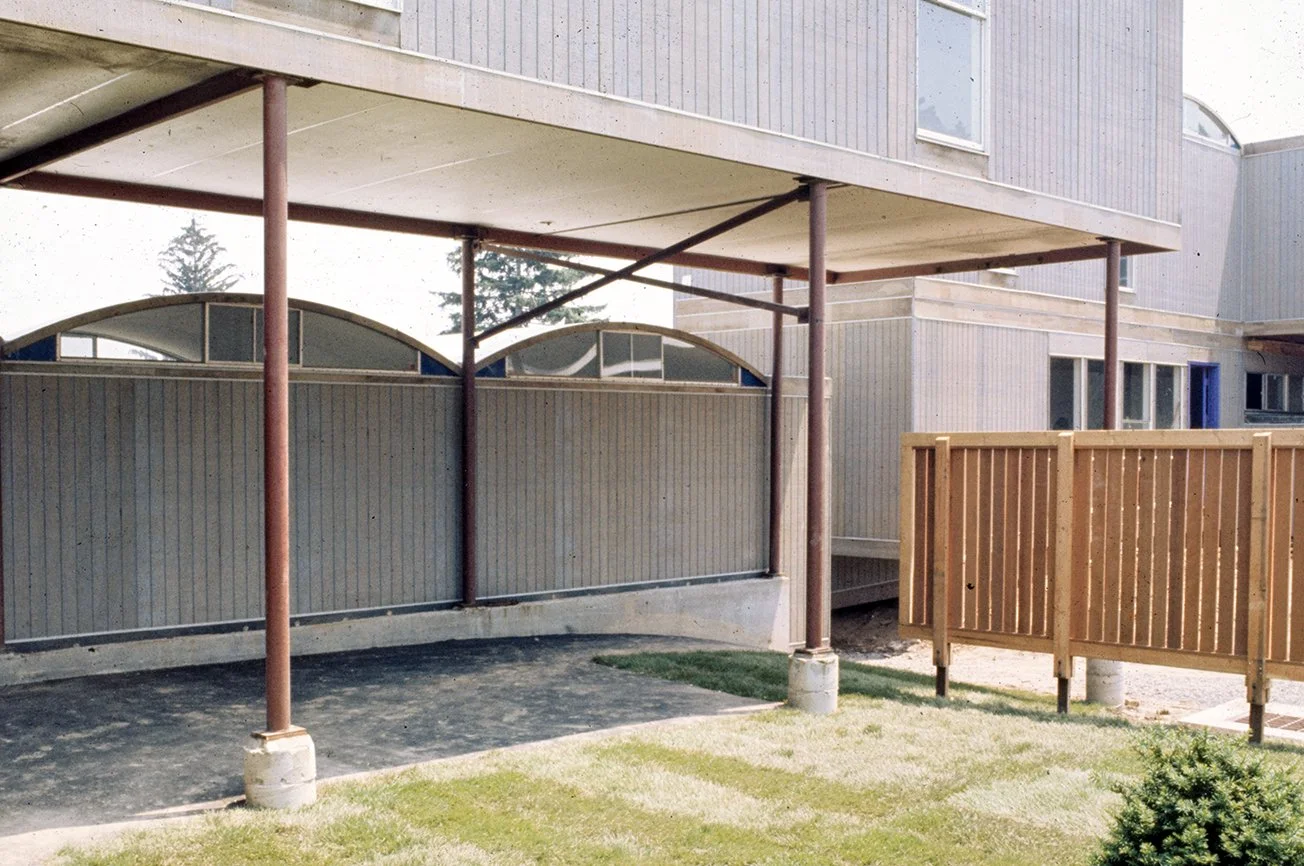

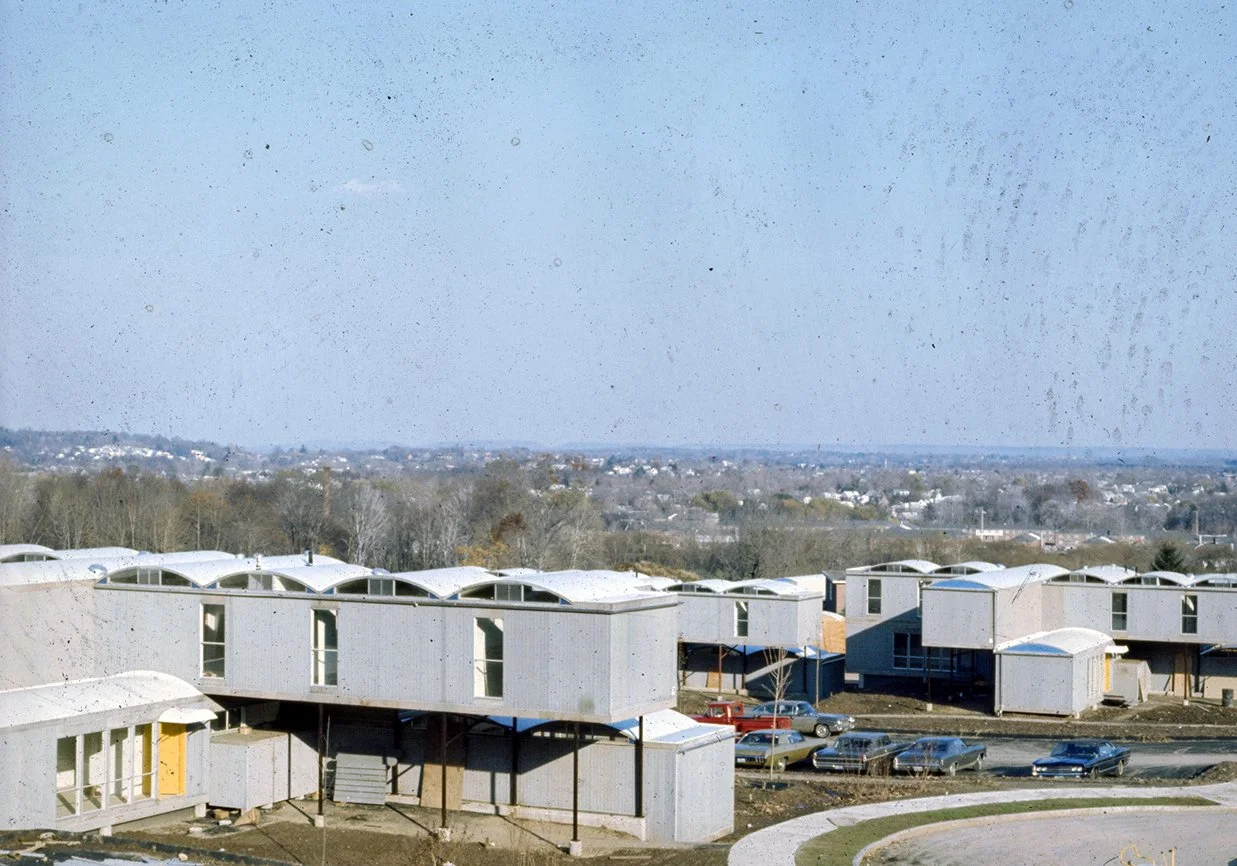

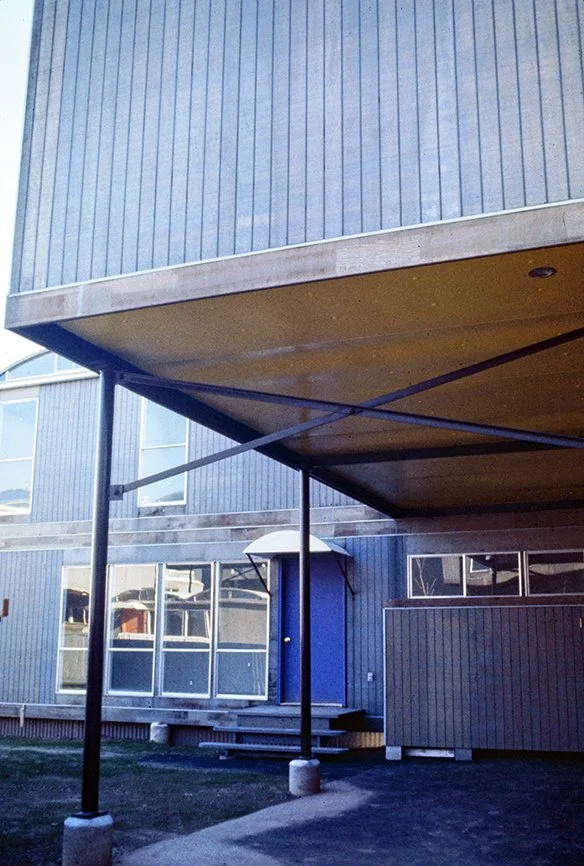

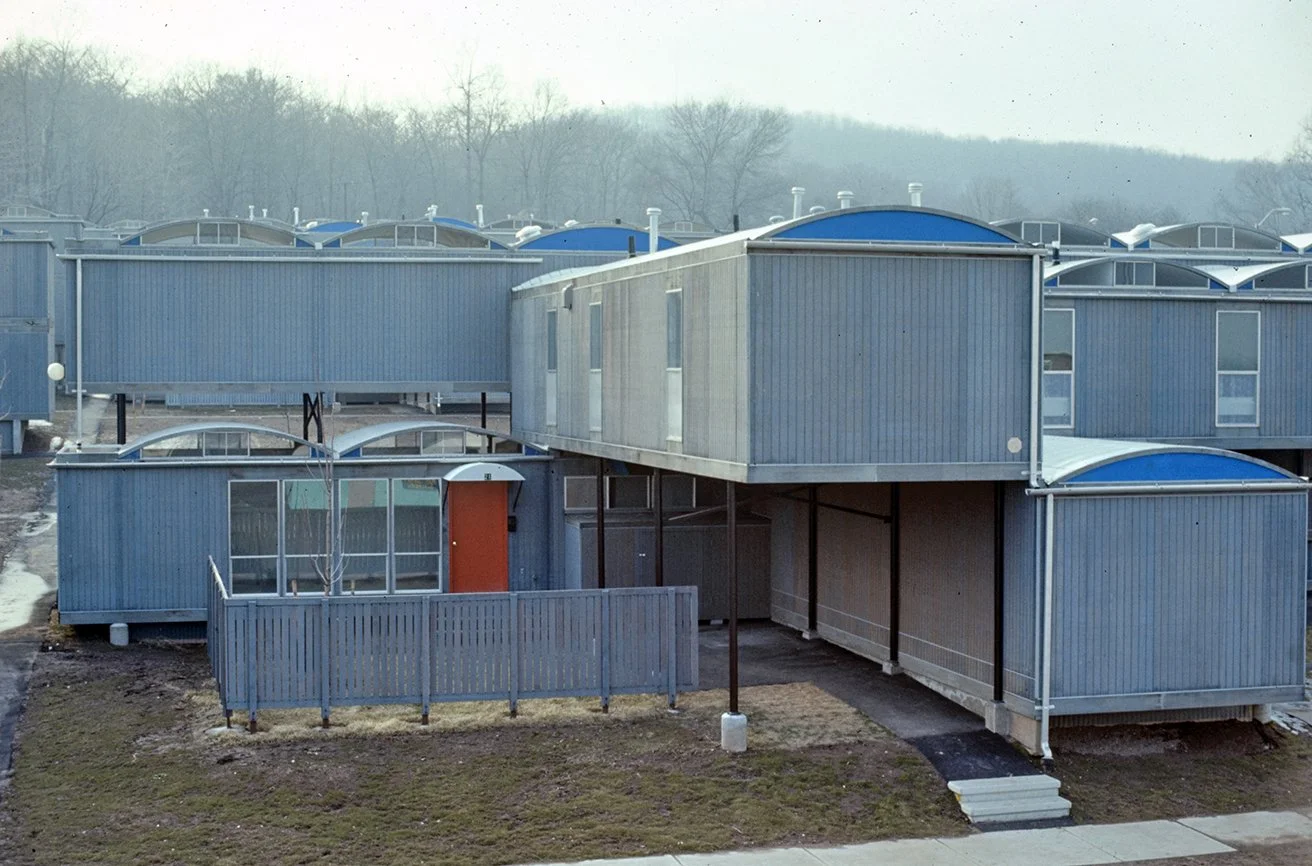

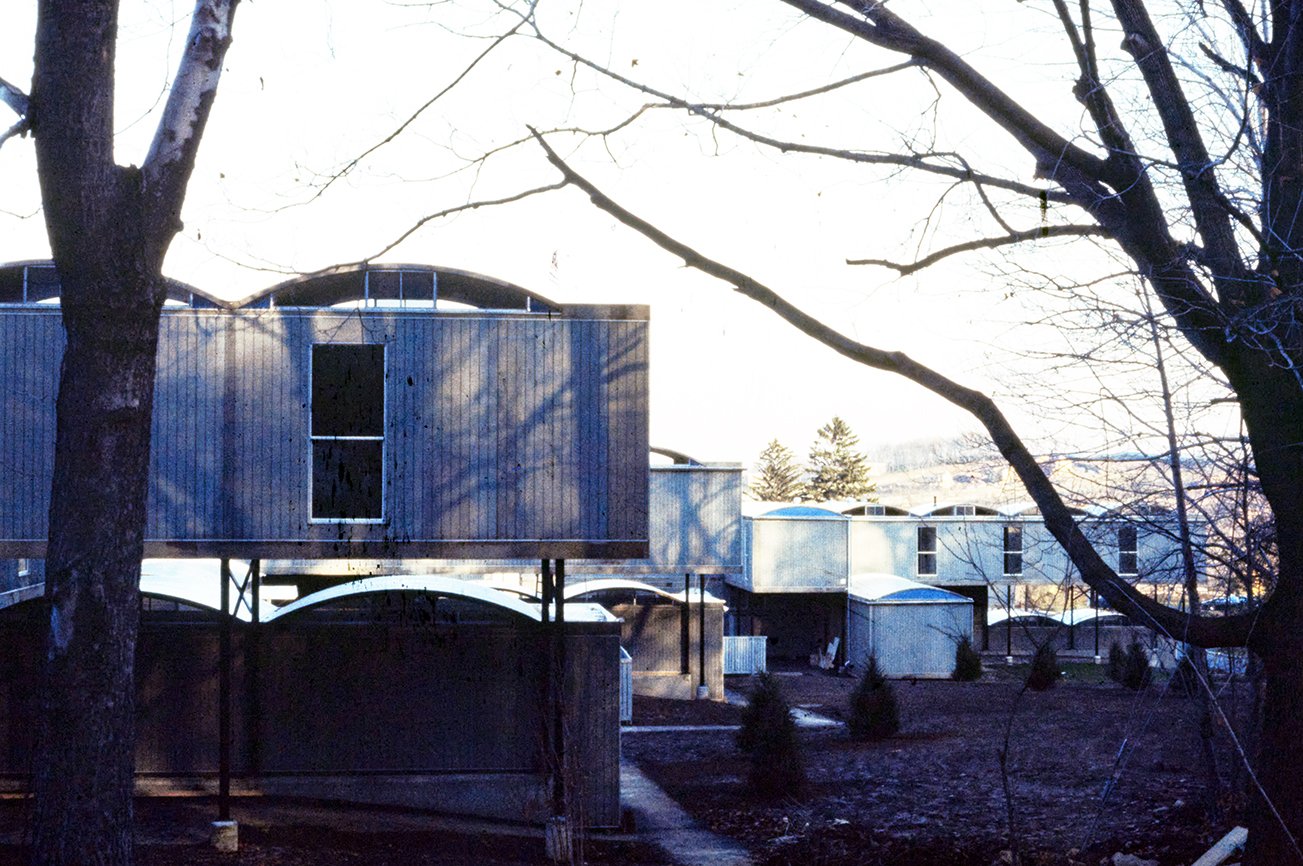

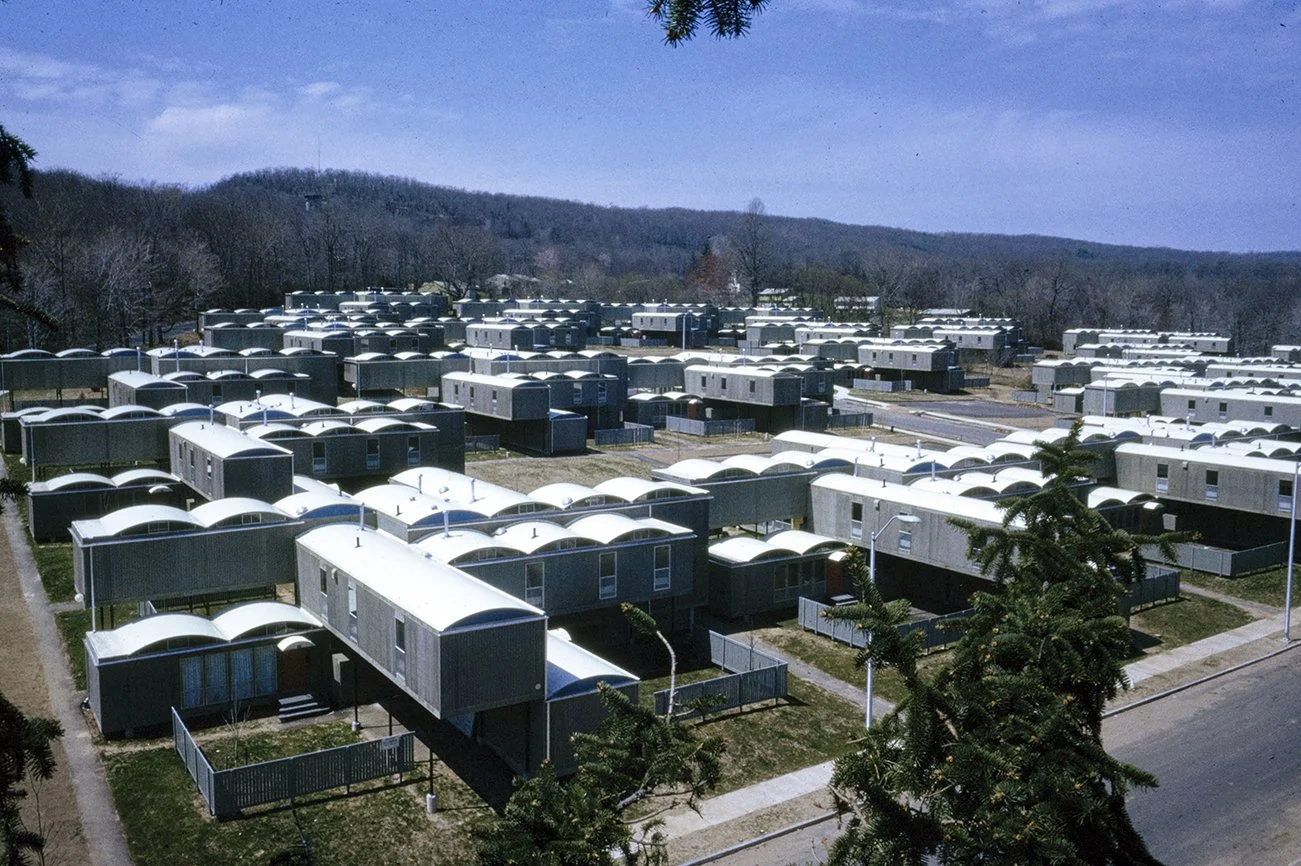

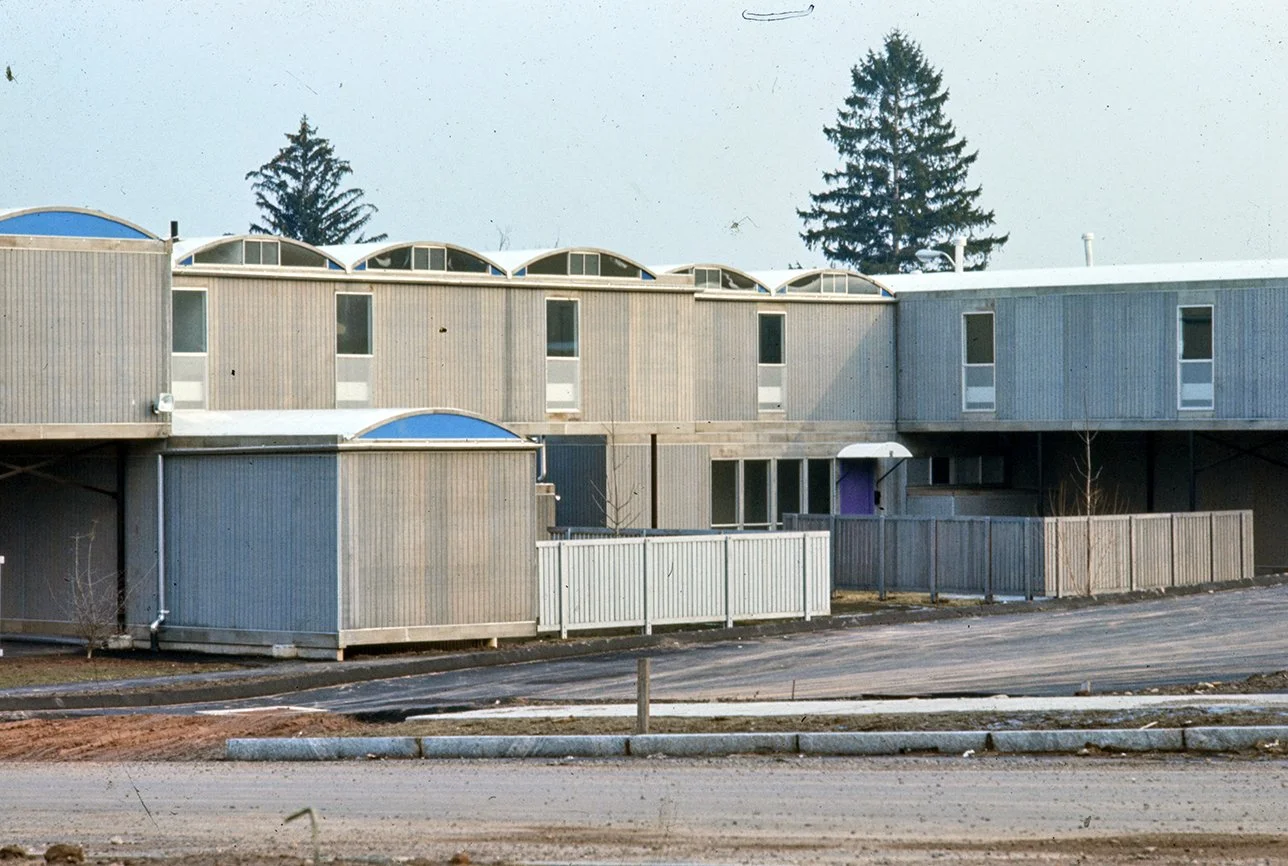

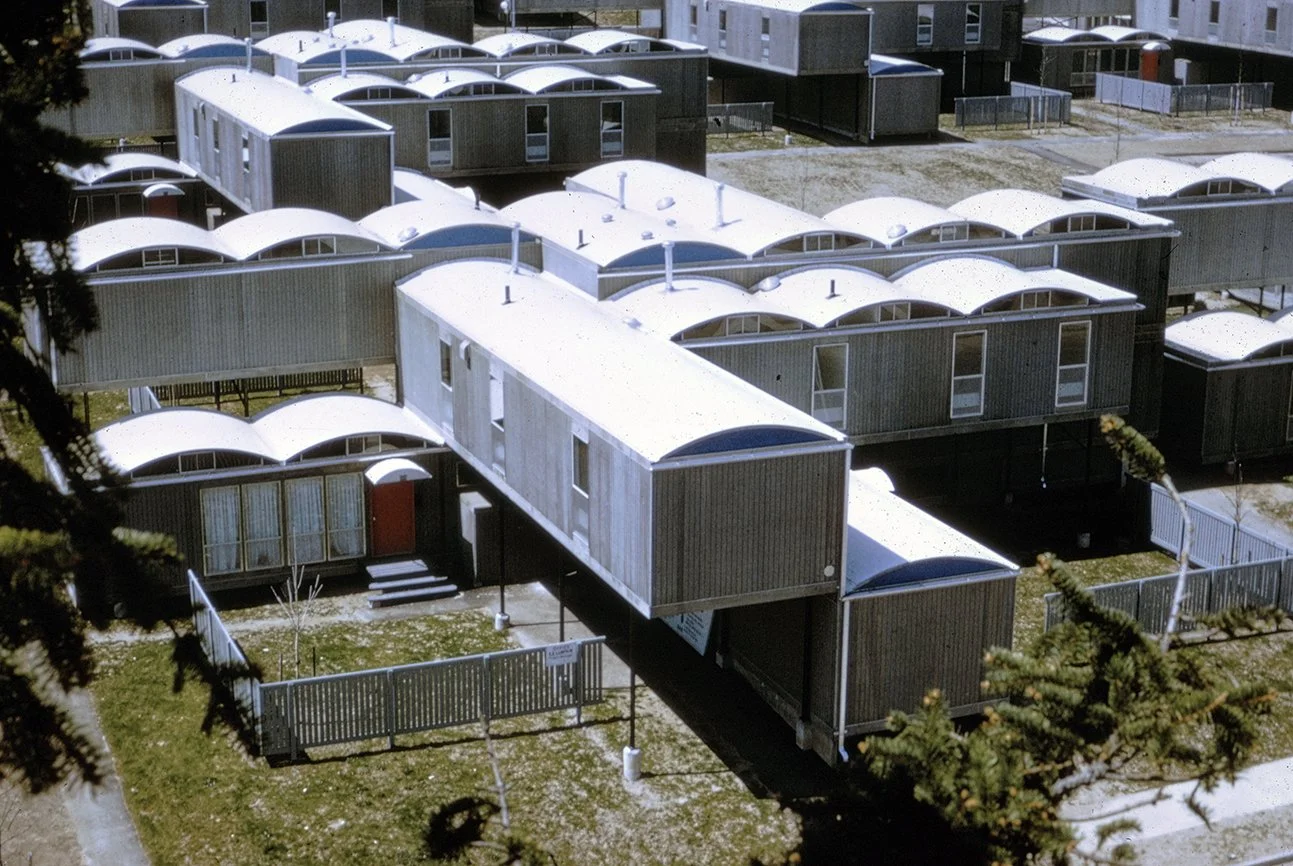

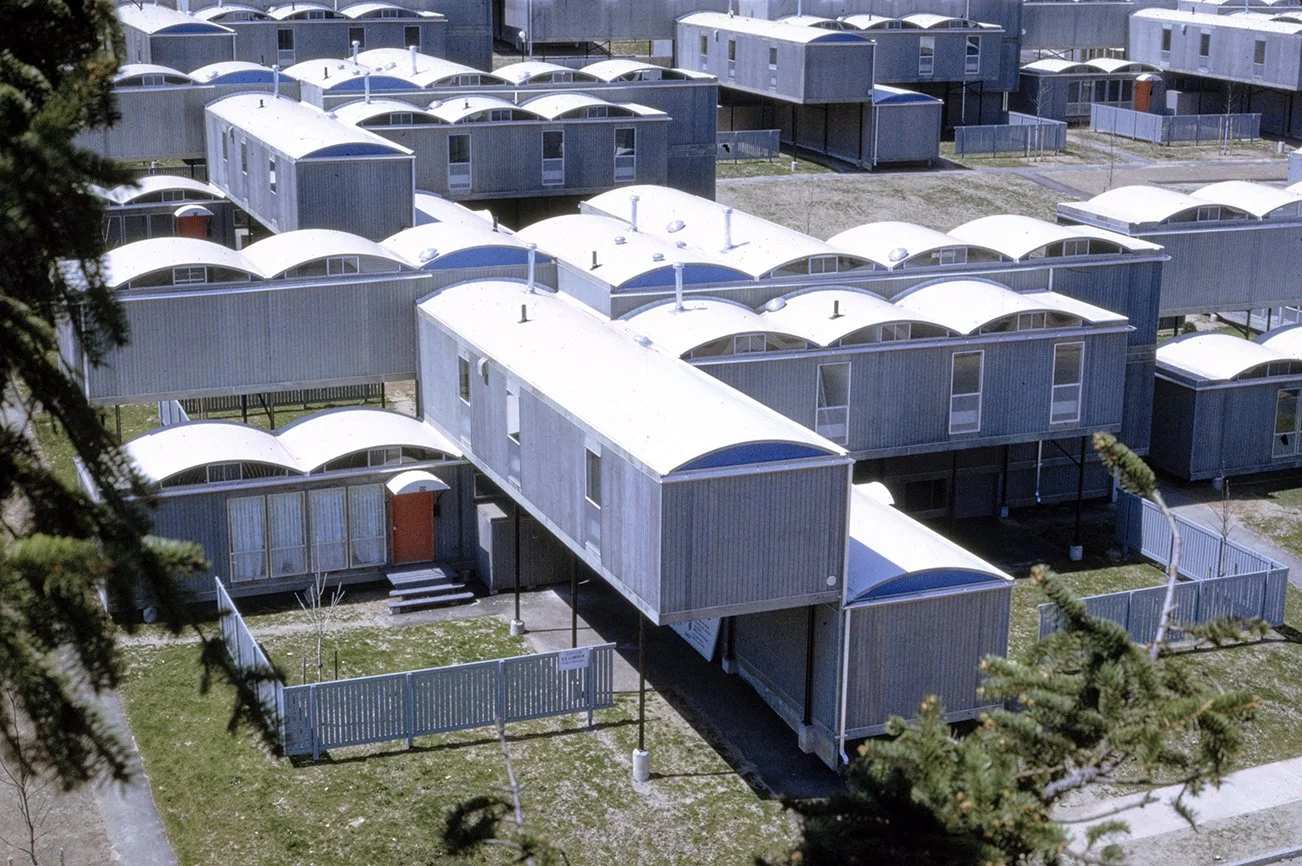

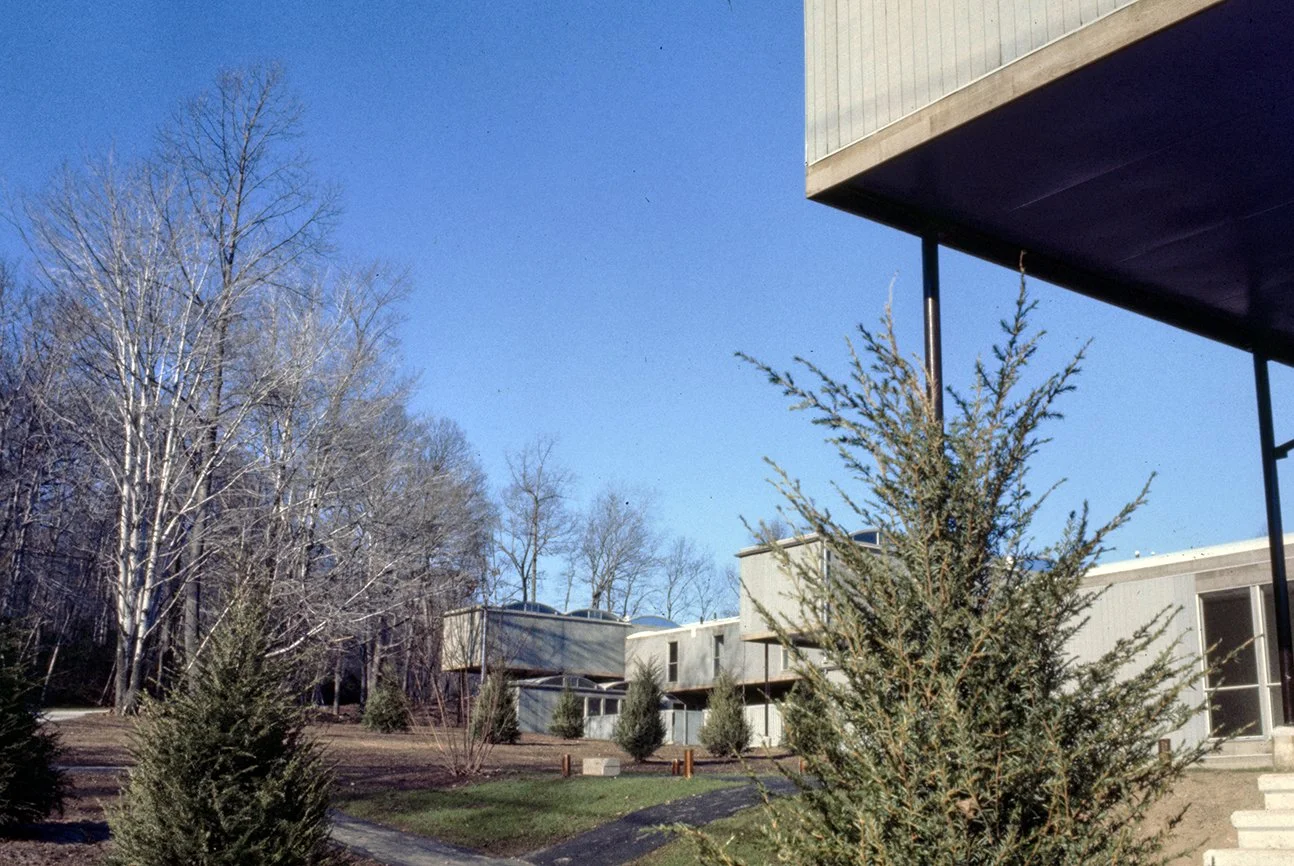

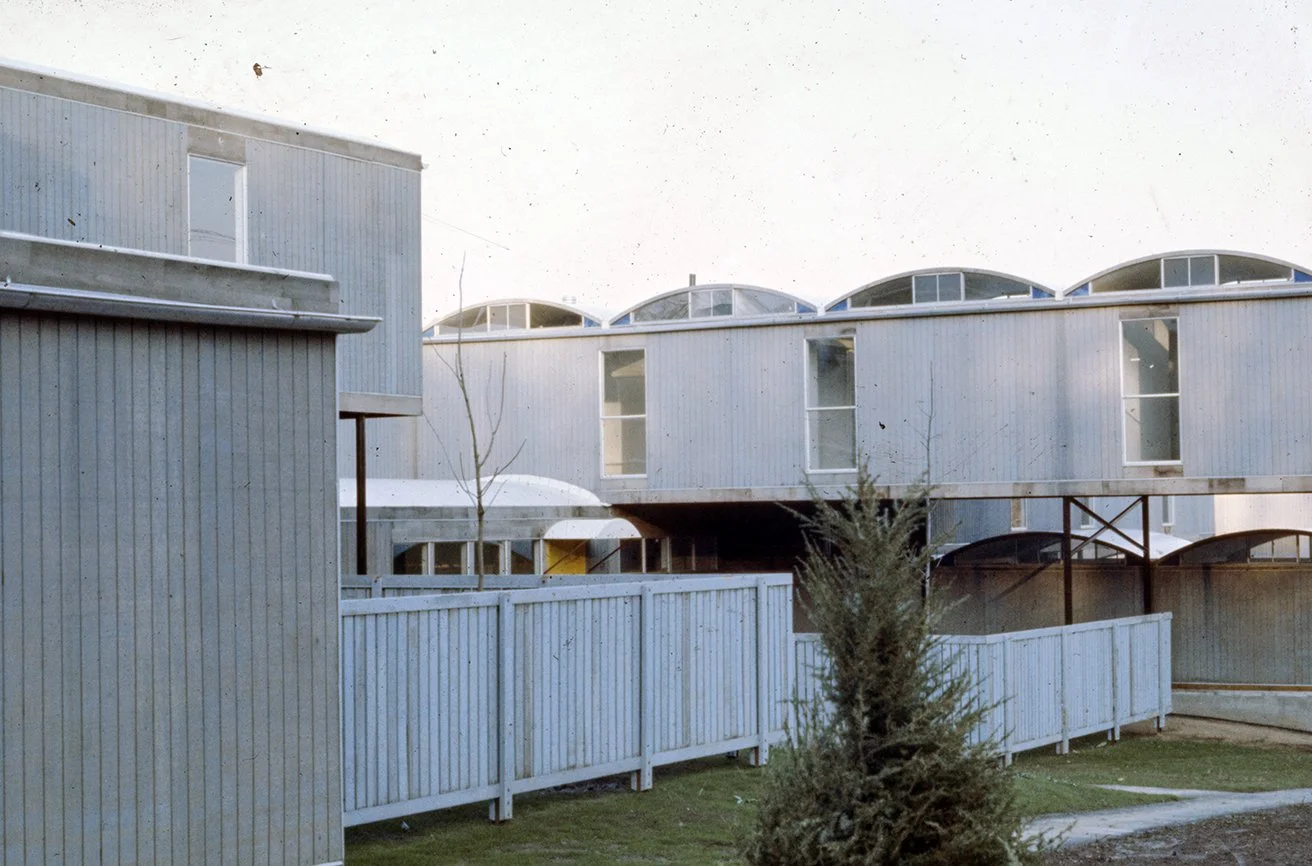

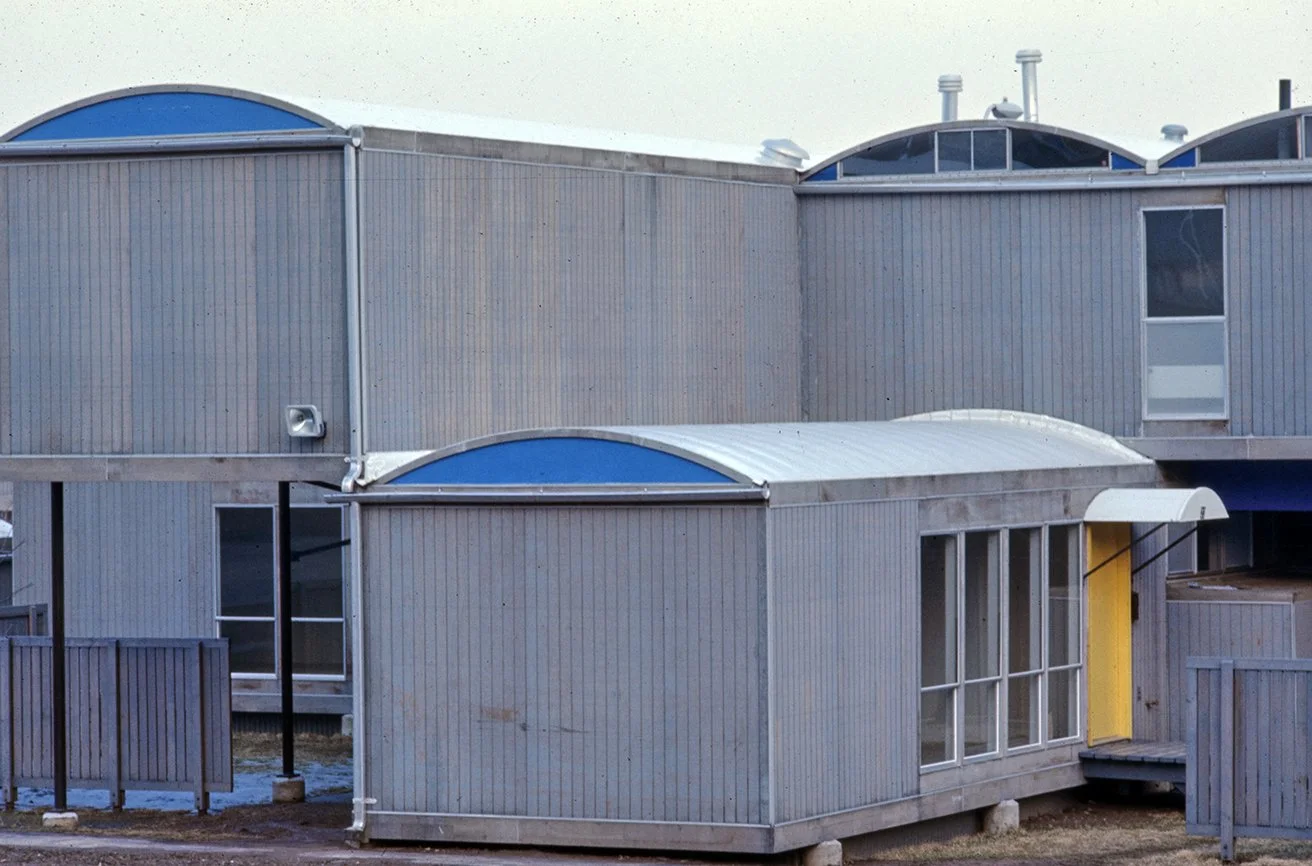

PHOTOS - Completed Project
